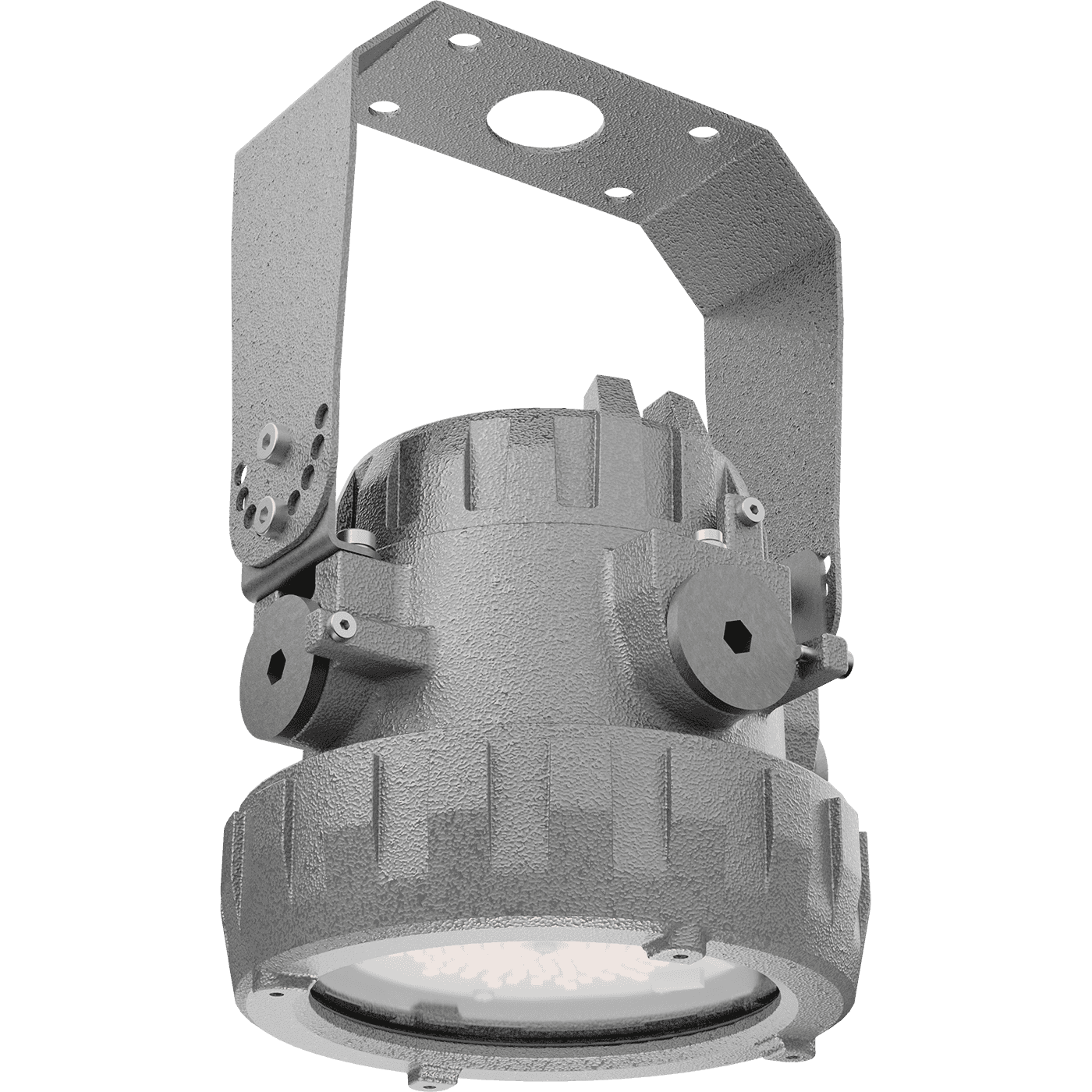

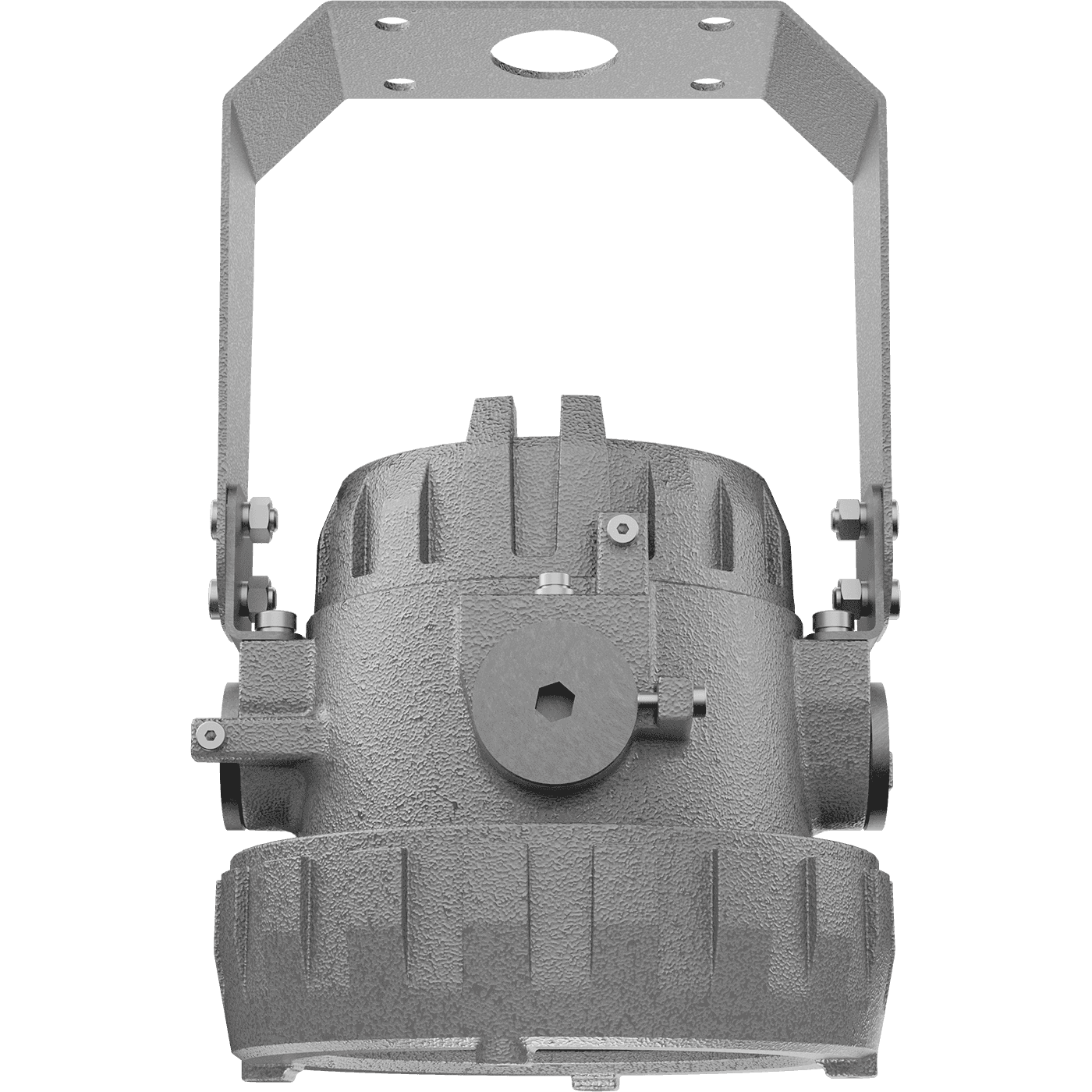

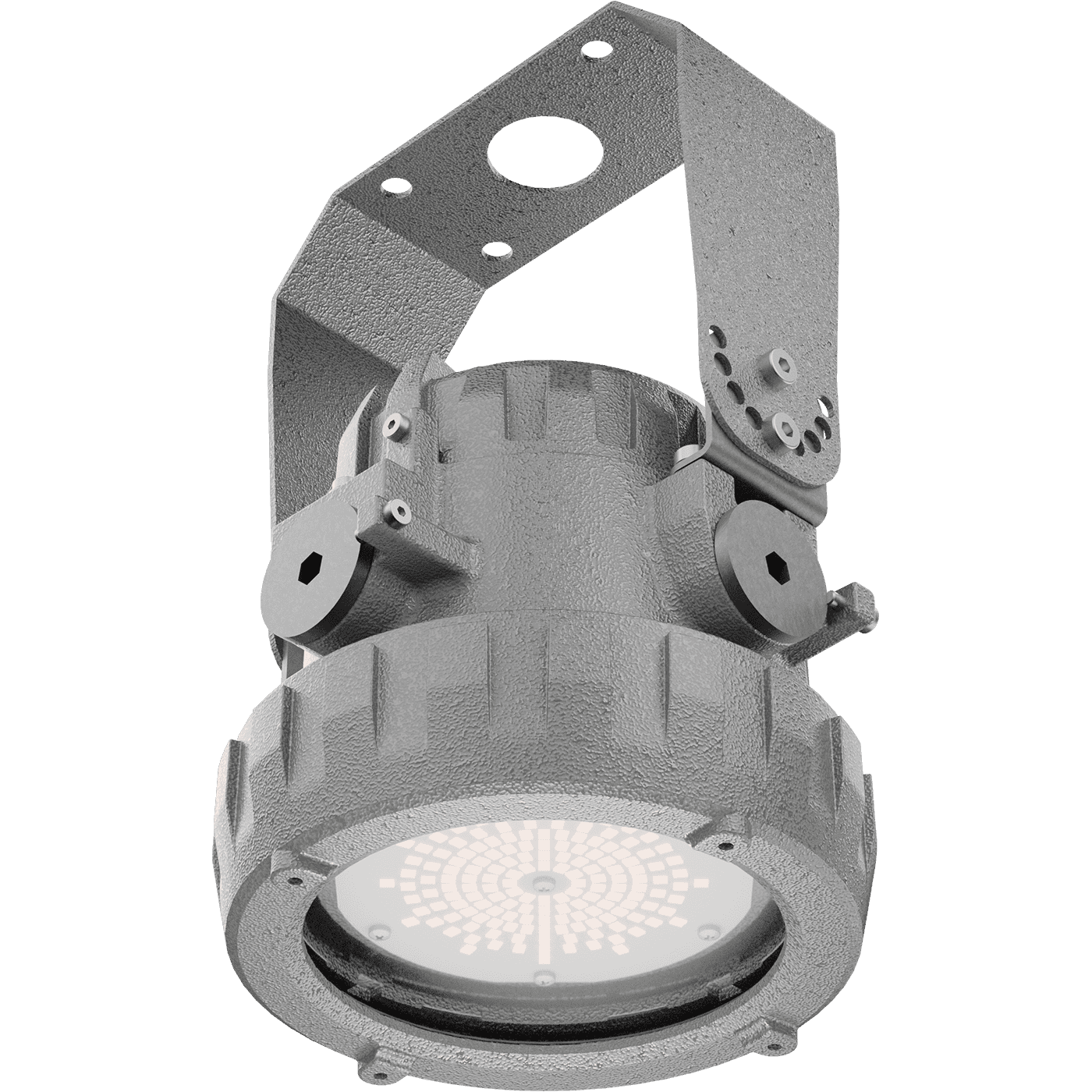

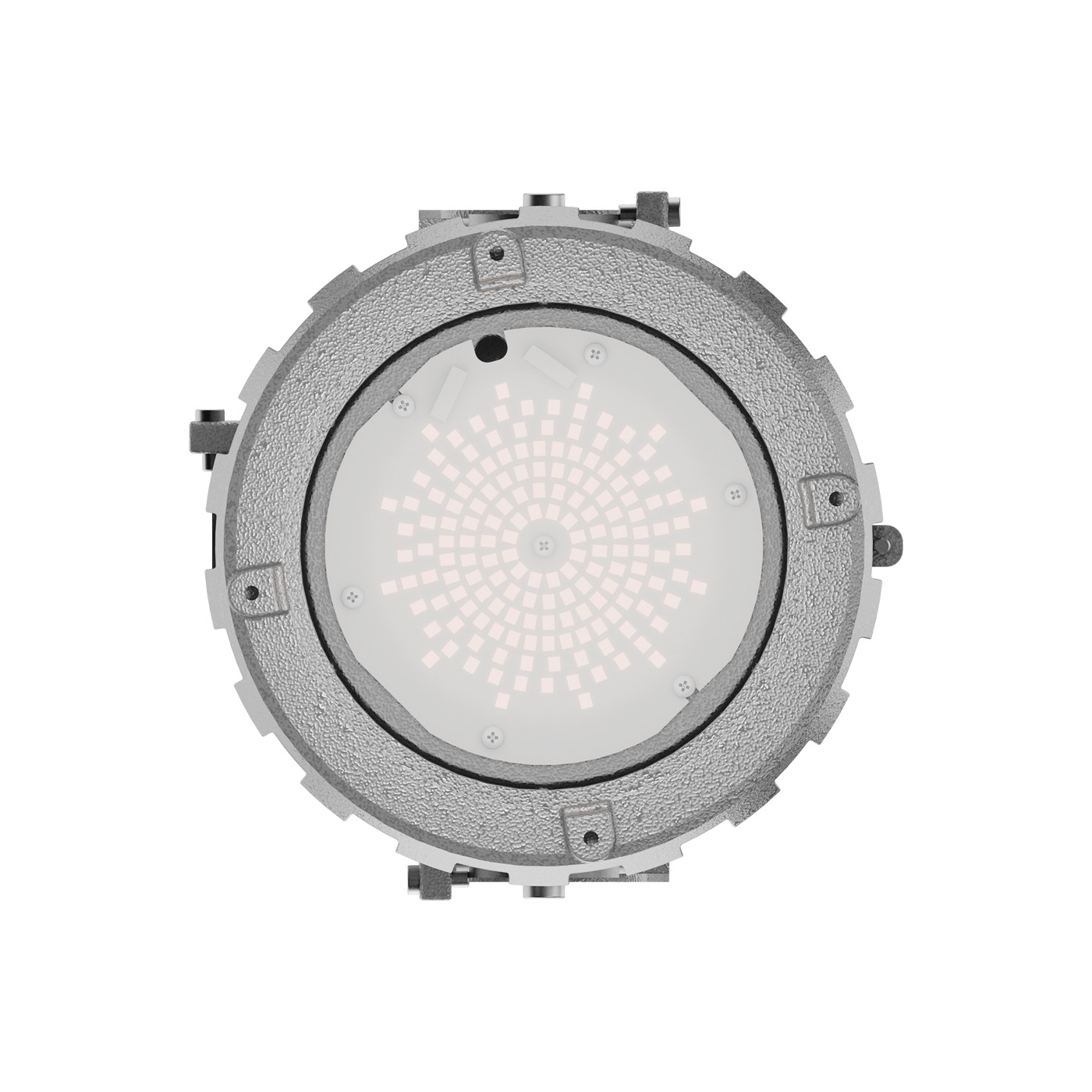

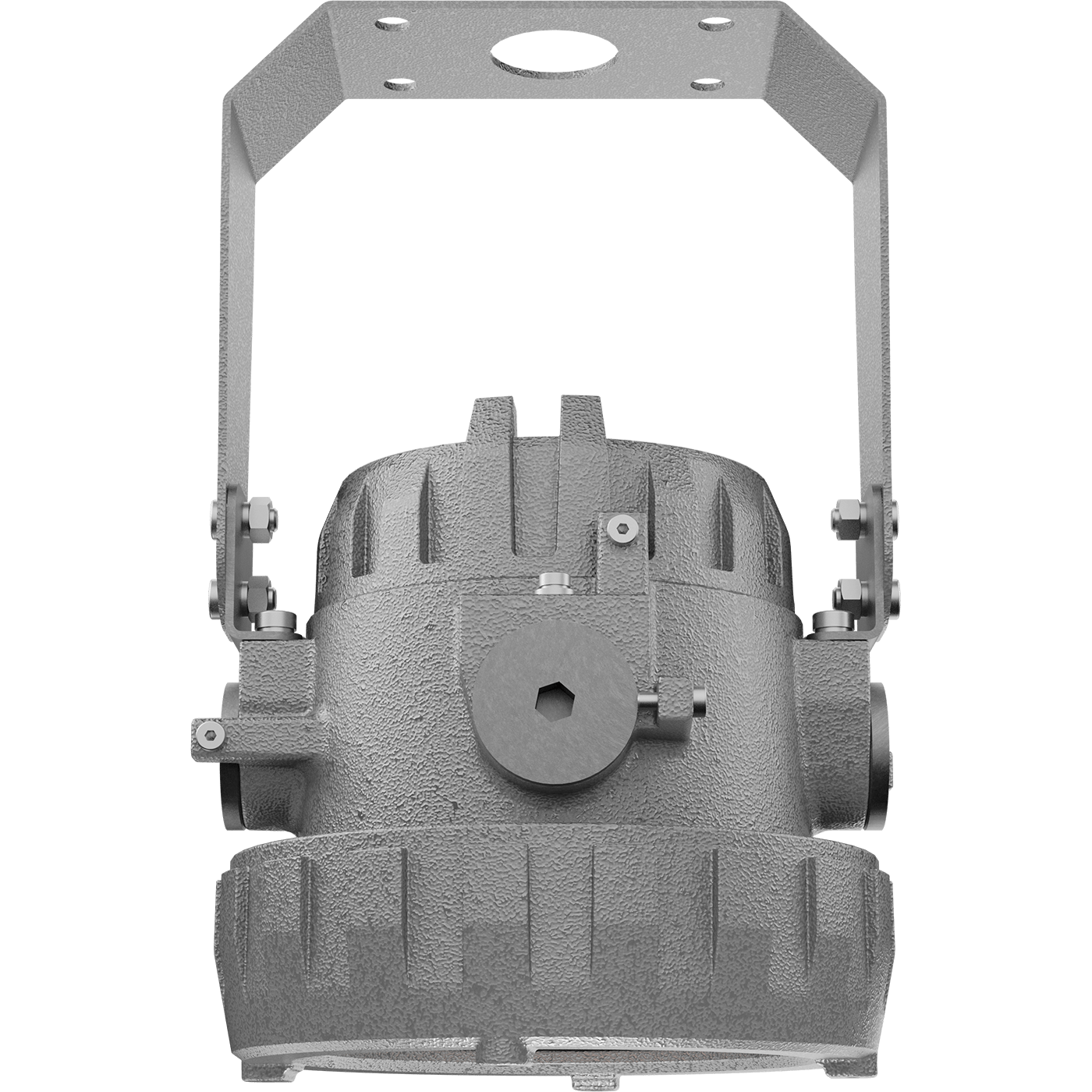

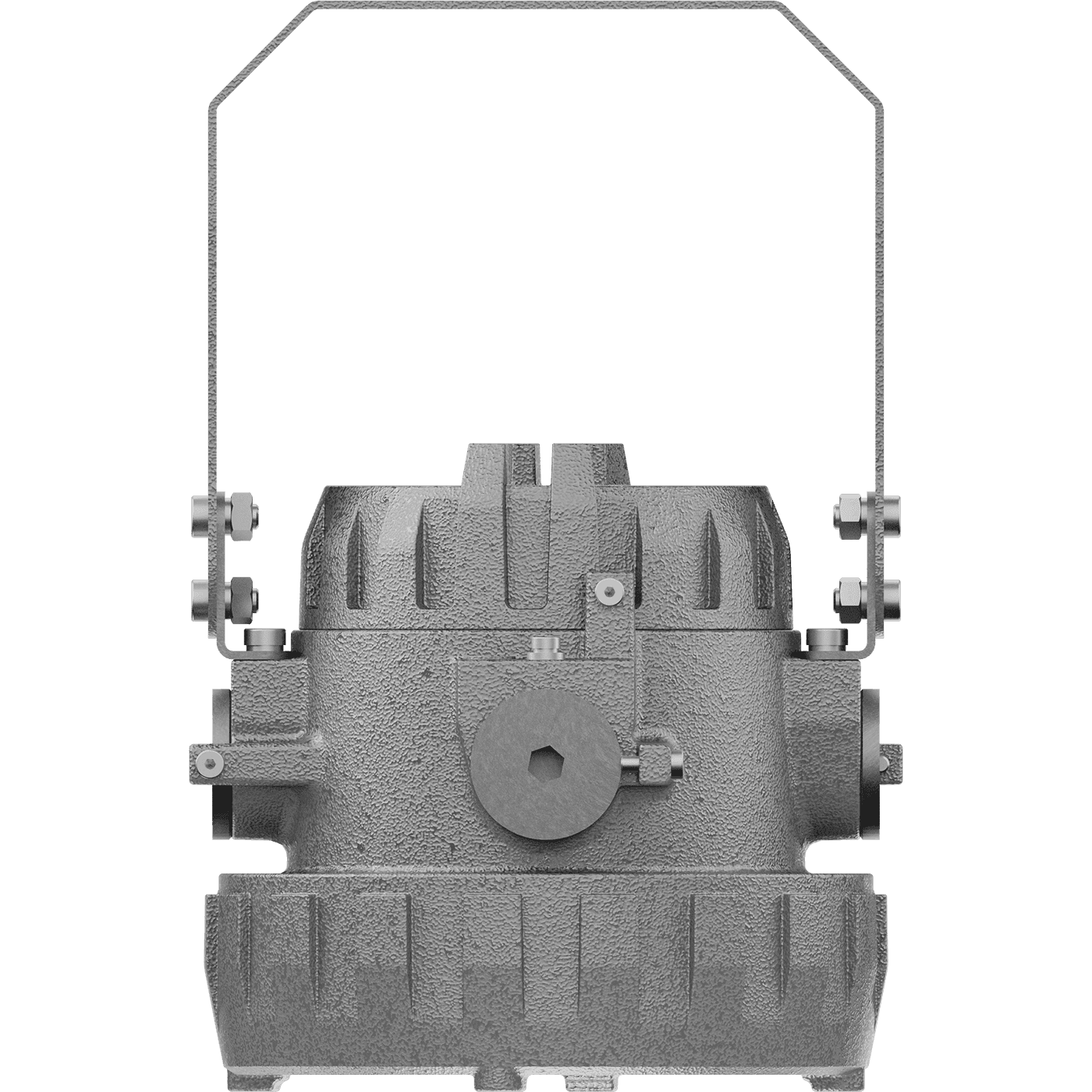

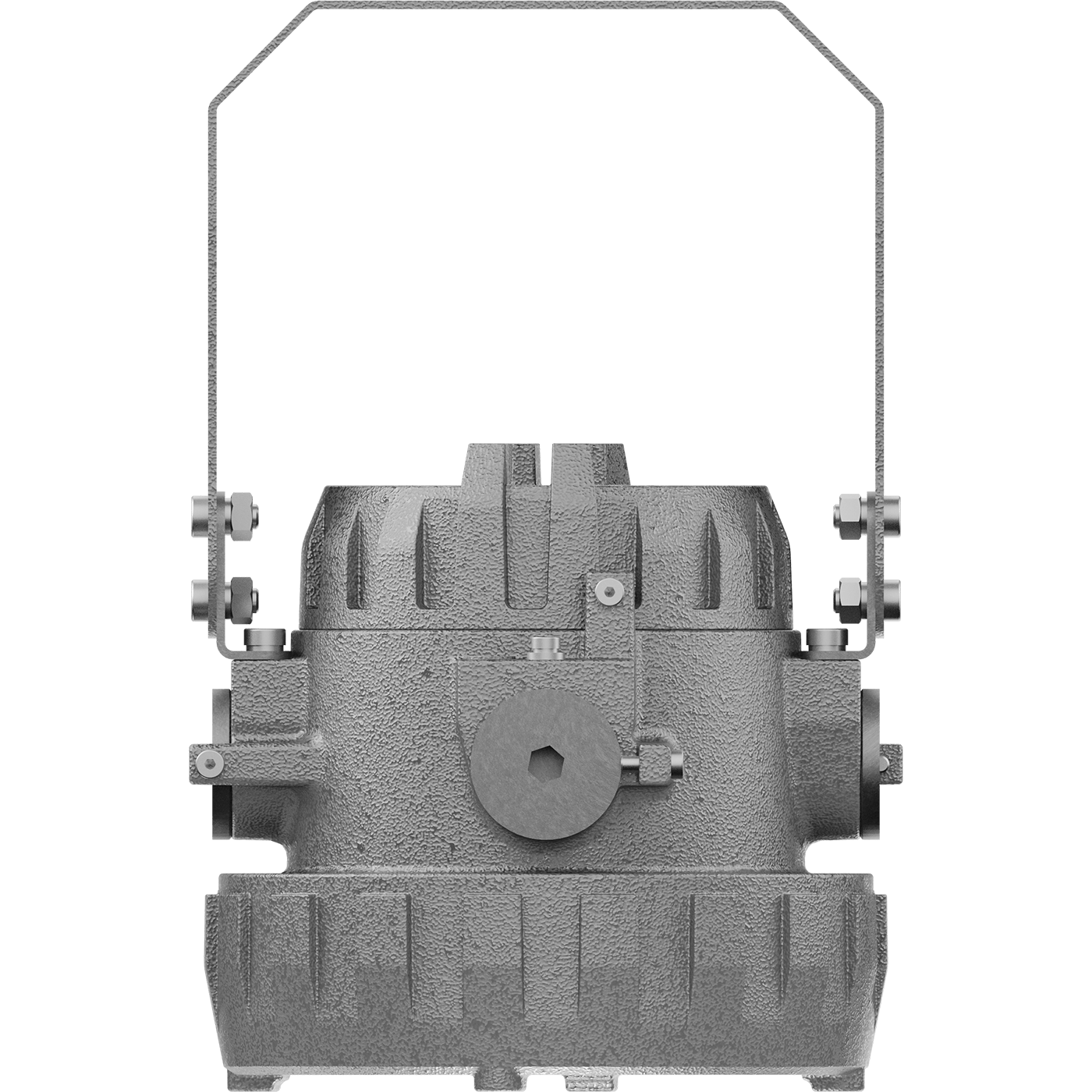

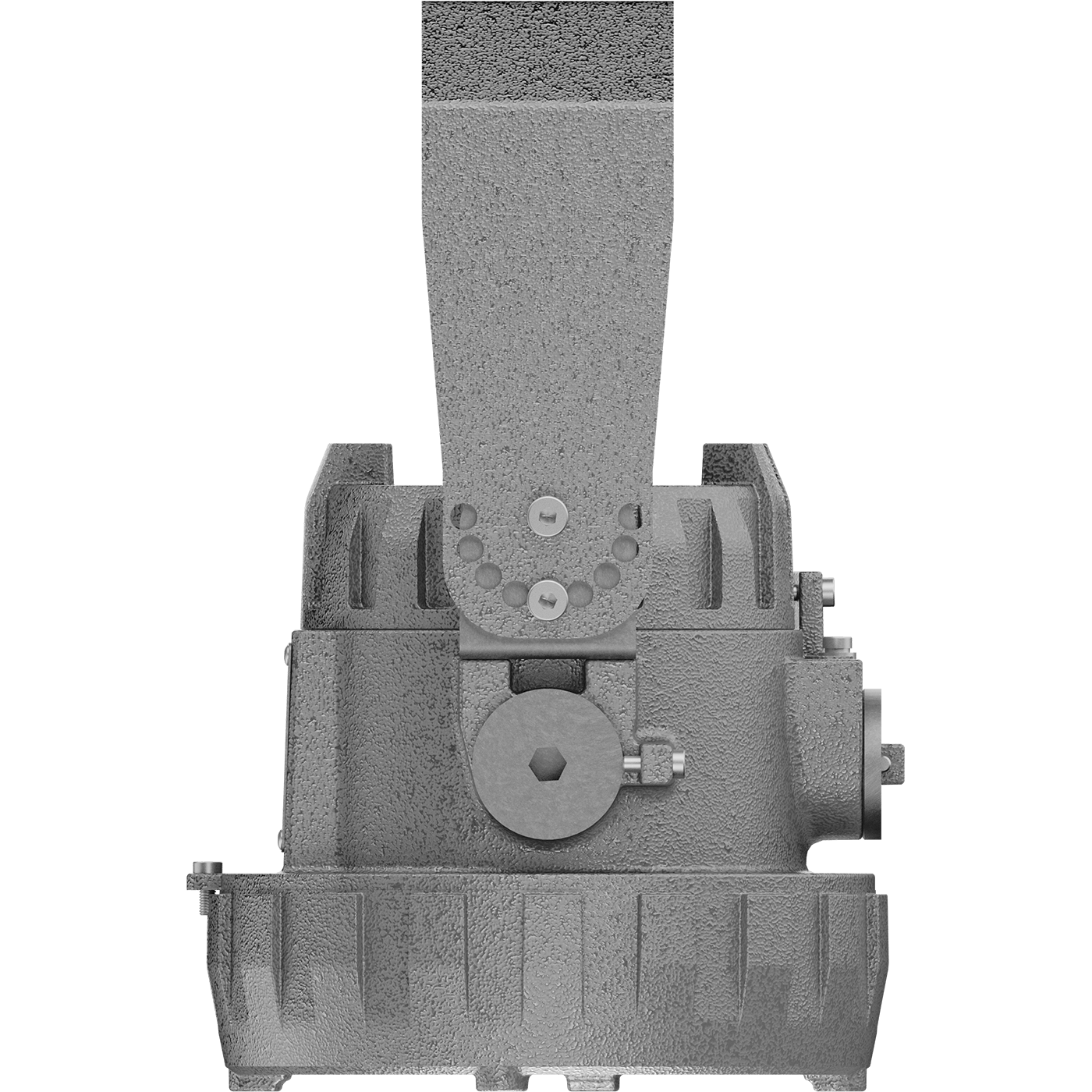

FLINT Ex/B 5W D120 750 HG
FLINT Ex/B 5W D120 750 HG
9 Wluminaire power
1100 lmlight flow
122 lm/Wenergy efficiency
code1949000010
color temperature5000 K
gas marking1 Ex db IIC T6 Gb
dust markingEx tb IIIC T80 C Db
beam angleD120
weight3.3 kg
options
свернуть все
illuminatingelectricalconstructionalexplosion-proofcommon
Synchronization of flashing mode
Нетcolor rendition index (CRI)
>70light flow
1100 lmenergy efficiency
122 lm/Wflickering factor
<1%beam angle
D120color temperature
5000 Klight source type
LEDemission color
Белыйilluminating
Synchronization of flashing mode
Нет
color rendition index (CRI)
>70
light flow
1100 lm
energy efficiency
122 lm/W
flickering factor
<1%
beam angle
D120
color temperature
5000 K
light source type
LED
emission color
Белый
electrical
electric shock protection
I
supply voltage, direct current
130-370 V
supply voltage, alternating current
100-277 V
maximum cross-section of the connected cable
4 mm2
starting current pulse time
32 µs
luminaire power
9 W
power factor
> 0,95
starting current
10 A

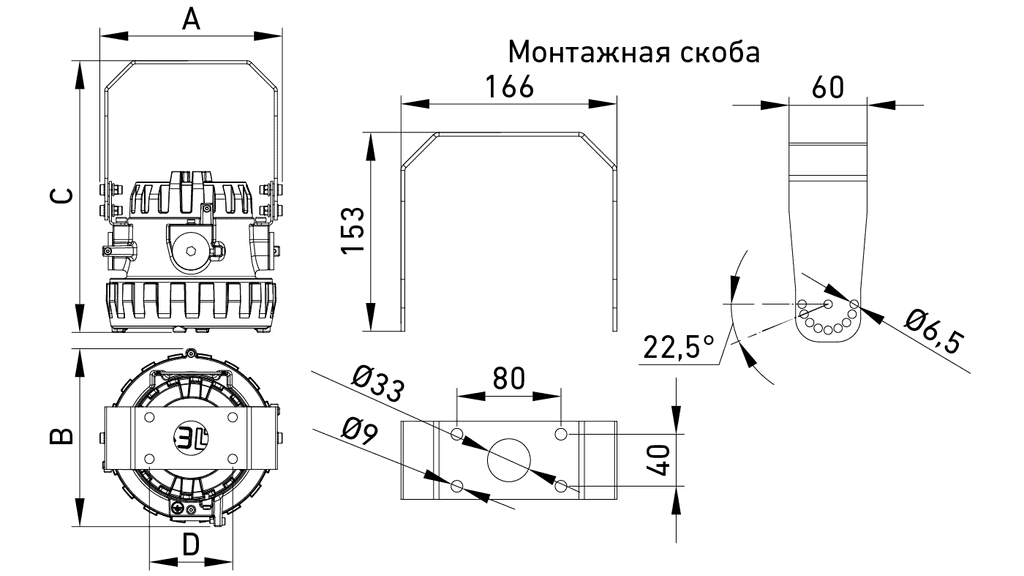

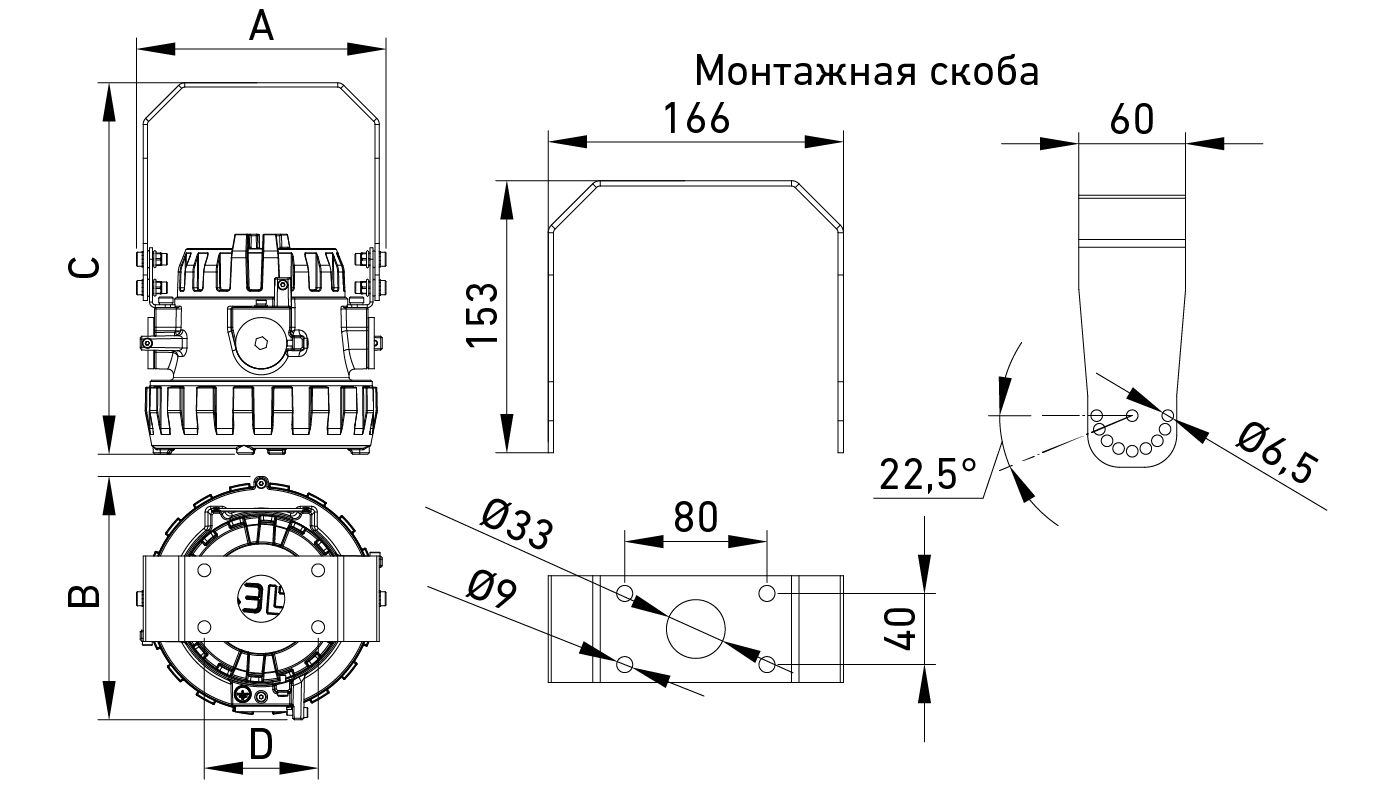

constructional
weight
3.3 kg
length
170 mm
width
167 mm
height
261 mm
installation length
70 mm
installation width
35 mm
material
Сплав алюминиевый
fire safety class
П-ІІа
climatic performance
УХЛ1*
shock resistance (IK)
IK08/7 Дж
housing color
Серый
explosion-proof
gas marking
1 Ex db IIC T6 Gb
dust marking
Ex tb IIIC T80 C Db
gas explosion-proof (type)
Ex db
gas explosion-proof (zones)
1
gas explosion-proof (groups of equipment)
IIC
T6 - temperature class
T6
common
code
1949000010
warranty
12 month
temperature range
от -60 до +60 C
energy efficiency class
A+
service life
50 000 h
ETIM class
Светильник взрывобезопасный/взрывозащищенный стационарный (фиксиров. установки)
model files
model files

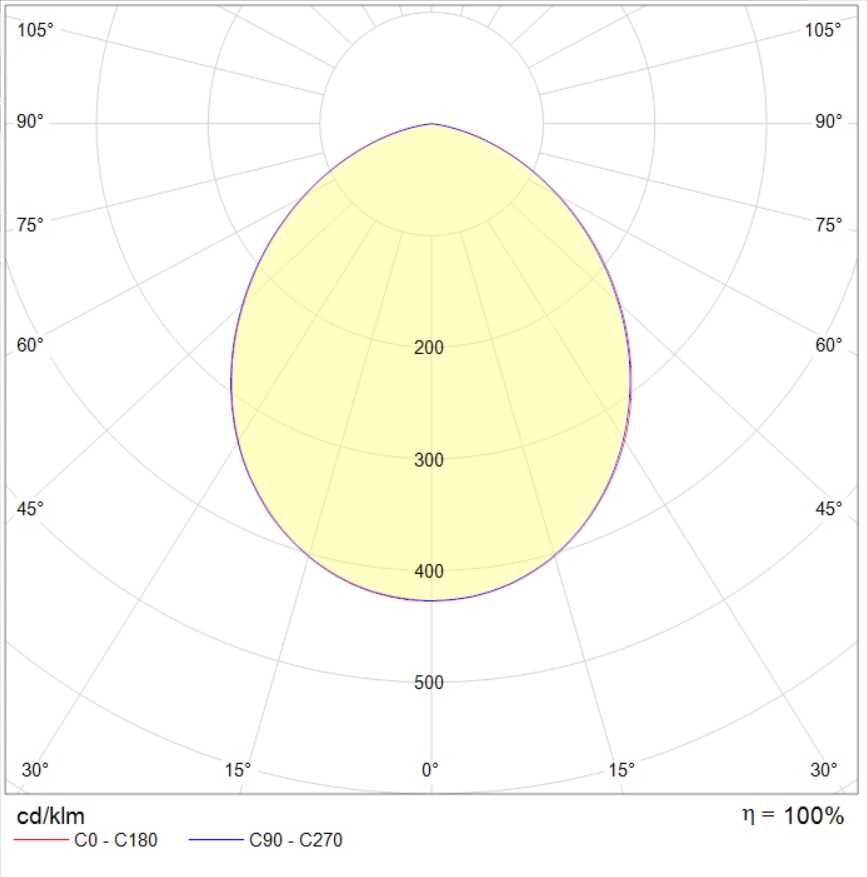

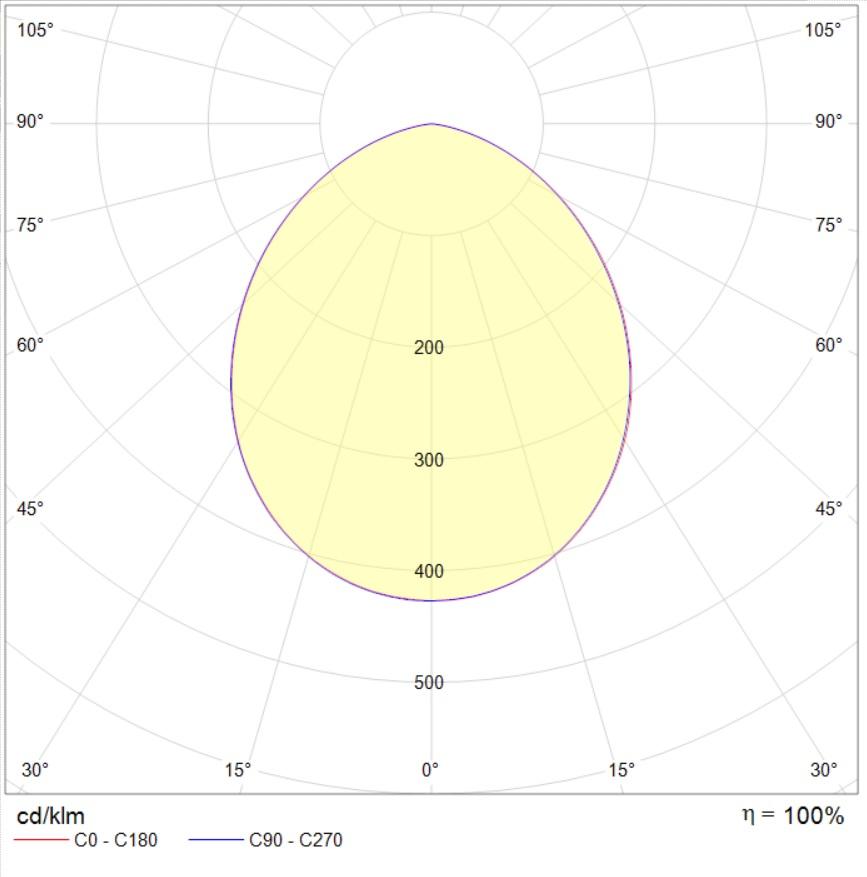

photometric files
documents
сертификаты
photometric files
ies107 kB
jpg182.2 kB
ldt71.8 kB
documents
passport1.7 mB
сертификаты
Declaration of Conformity TRTS 020/2011285 kB
Declaration of Conformity EAEU TR 037/2016282.4 kB
accessories
Cable entry explosion-proof М25х1,5 NA2MBNS0.05kgarticle: 2327009380color: Неокрашенныйø cable internal: 11,3-19,9
Cable entry explosion-proof М25х1,5 DSA2MBNS0.164kgarticle: 2327010070color: Неокрашенныйø cable internal: 11,3-19,9ø cable external: 19,9-26,2
Ввод кабельный взрывозащищенный М20х1,5 DSA1MXS (GS)0.164kgarticle: 2327035890color: Неокрашенныйø cable internal: 8,5-13,0ø cable external: 12,5-20,5
