LED STRIP Flexline 60/4.8/350 3000K
LED STRIP Flexline 60/4.8/350 3000K
24 Wluminaire power
1750 lmlight flow
73 lm/Wenergy efficiency
code2010000230
color temperature3000
number of lamps1
performance factor100
options
свернуть все
electricalcommonilluminatingconstructional
rated supply voltage, direct current
23-25 Vsupply voltage, direct current
24 Vluminaire power
24 Welectric shock protection
IIIpower factor
= 1,00supply voltage
24 Velectrical
rated supply voltage, direct current
23-25 V
supply voltage, direct current
24 V
luminaire power
24 W
electric shock protection
III
power factor
= 1,00
supply voltage
24 V
common
ETIM class
Световая полоса/ лента/ шнур
warranty
36 month
temperature range
от 0 до +40 C
energy efficiency class
A
service life, hour
24 000 h
code
2010000230
illuminating
color rendition index (CRI)
>80
light flow
1750 lm
energy efficiency
73 lm/W
color temperature
3000
light source type
LED
emission color
Белый
constructional
ingress protection (IP)
IP20
climatic performance
УХЛ3*
fire safety class
П-I,II,ІІІ
material
Пластик
weight
0.19 kg
length, mm
5000 mm
width, mm
8 mm
height, mm
2 mm
housing color
Прозрачный
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Без драйвера
model files
model files
CAD/BIM files

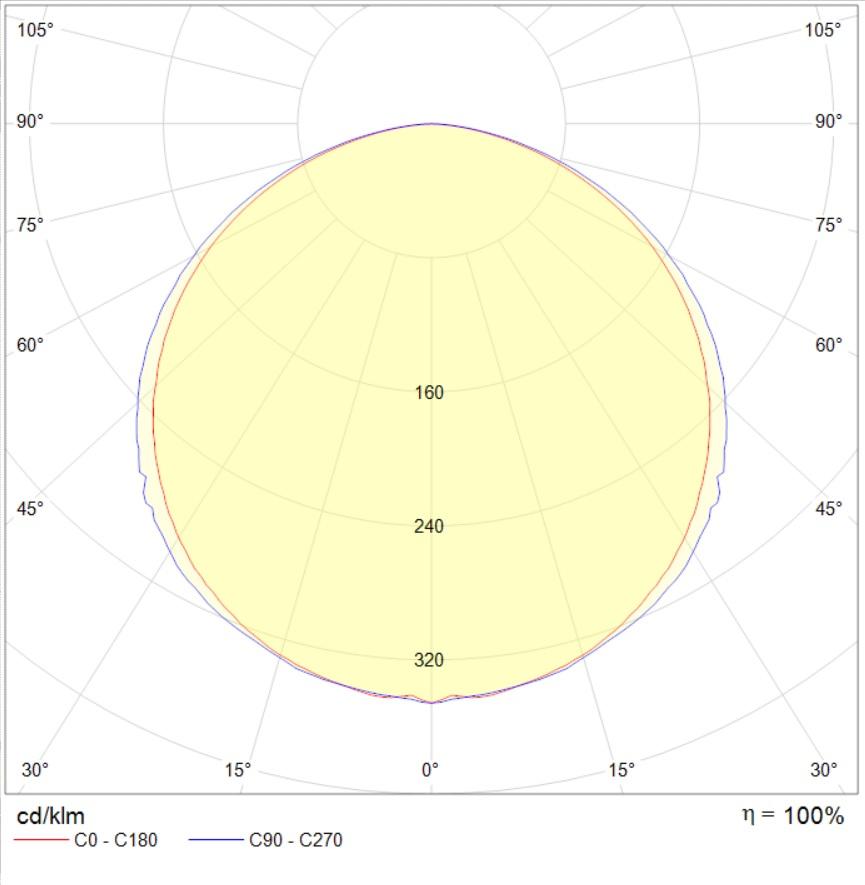

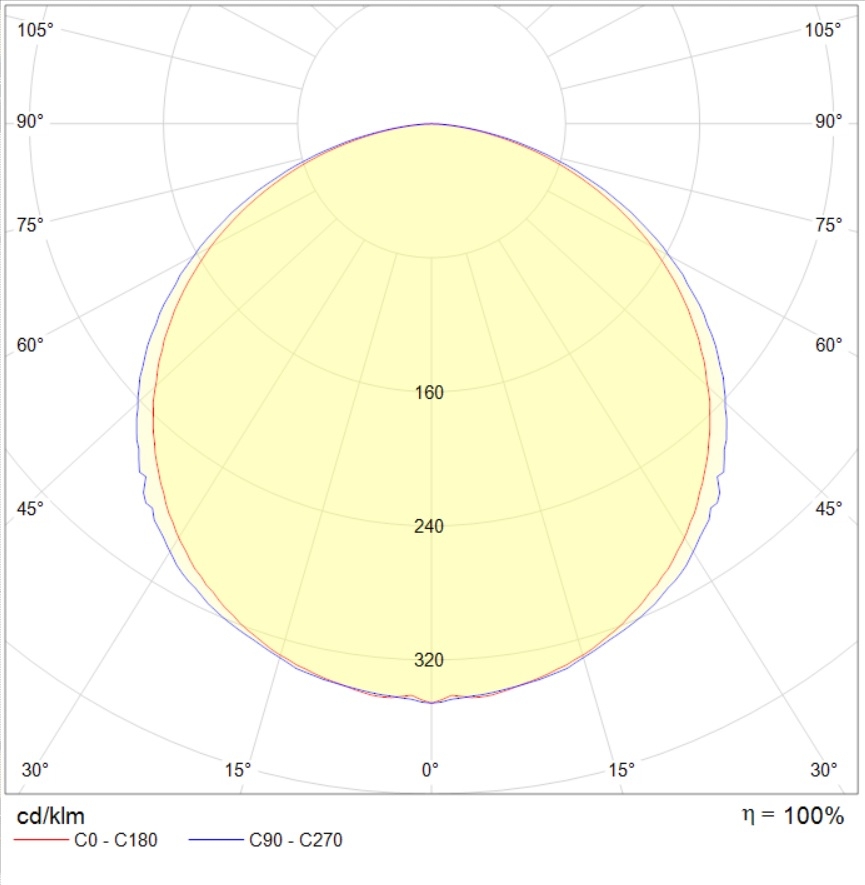

photometric files
documents
сертификаты
CAD/BIM files
CAD model 3DS51.2 kB
model 3dMax924 kB
photometric files
ies134.1 kB
jpg82 kB
ldt84.5 kB
documents
passport587.6 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/2011524.2 kB
Declaration of Conformity EAEU TR 037/2016313 kB
Fire Safety Certificate1.7 mB
accessories
Driver LED 75W/24V ( OL1x75-E-CV24 IP67 HELVAR)0.454kgarticle: 4002000110color: Белый
Driver LED CV 75W-24V-IP20 (HELVAR LL1x75-E-CV24)0.123kgarticle: 4002000090color: White
Dimmable driver DALI LED 12-24V (Helvar LL1-CV-DA)0.07kgarticle: 6002001670color: White
