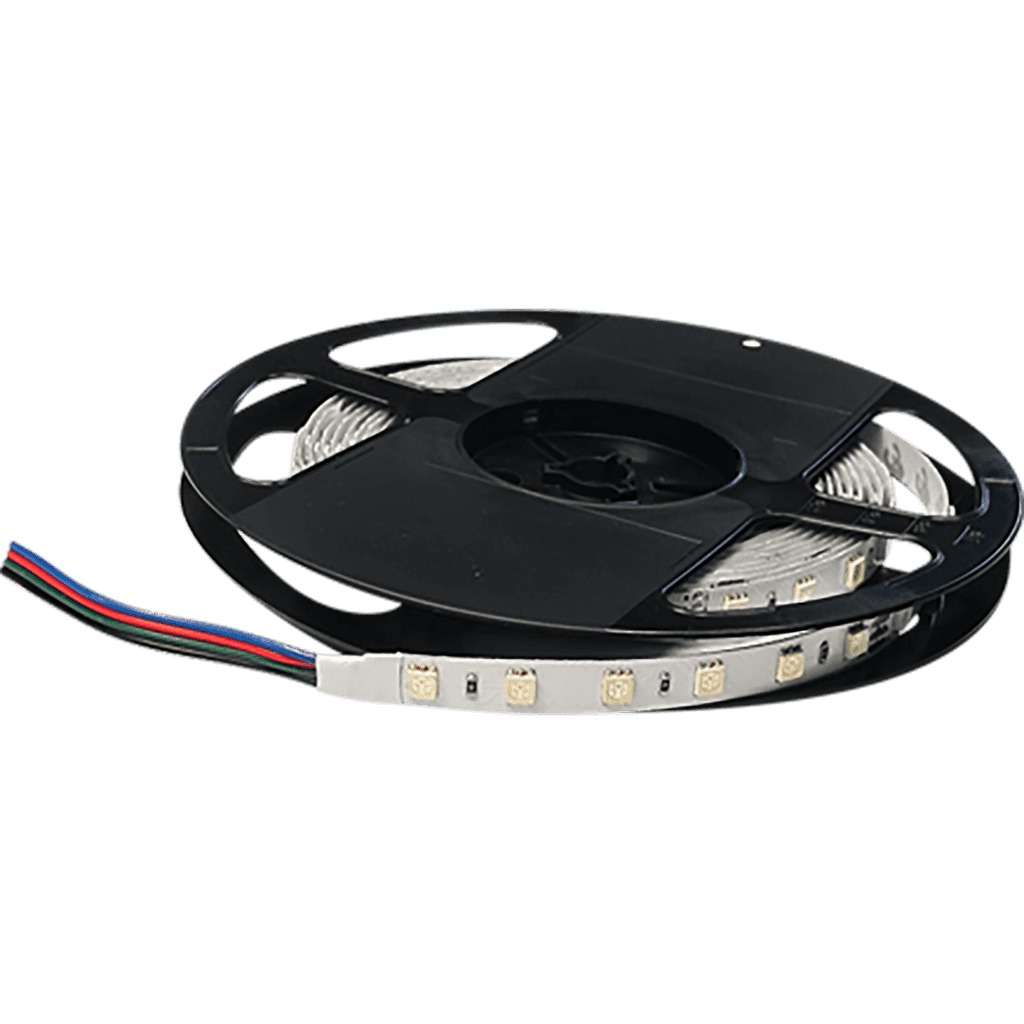

LED STRIP Flexline 60/4.4/480 830 (5m)
.jpg&w=1920&q=50)
.jpg&w=1024&q=50)
LED STRIP Flexline 60/4.4/480 830 (5m)
22 Wluminaire power
2400 lmlight flow
109 lm/Wenergy efficiency
code2010000700
color temperature3000
old nameLED STRIP Flexline 60/4.4/480 830 IP20
number of lamps1
performance factor100
options
свернуть все
electricalcommonilluminatingconstructional
rated supply voltage, direct current
23-25 Vsupply voltage, direct current
24 Vluminaire power
22 Welectric shock protection
IIIpower factor
= 1,00supply voltage
24 Velectrical
rated supply voltage, direct current
23-25 V
supply voltage, direct current
24 V
luminaire power
22 W
electric shock protection
III
power factor
= 1,00
supply voltage
24 V
common
ETIM class
Световая полоса/ лента/ шнур
warranty
36 month
temperature range
от 0 до +40 C
energy efficiency class
A+
service life, hour
24 000 h
code
2010000700
illuminating
color rendition index (CRI)
>80
light flow
2400 lm
energy efficiency
109 lm/W
color temperature
3000
light source type
LED
emission color
Белый
constructional
ingress protection (IP)
IP20
climatic performance
УХЛ3*
fire safety class
П-I,II,ІІІ
material
Силикон
weight
0.19 kg
length, mm
5000 mm
width, mm
8 mm
height, mm
2 mm
housing color
Прозрачный
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Без драйвера
model files
model files

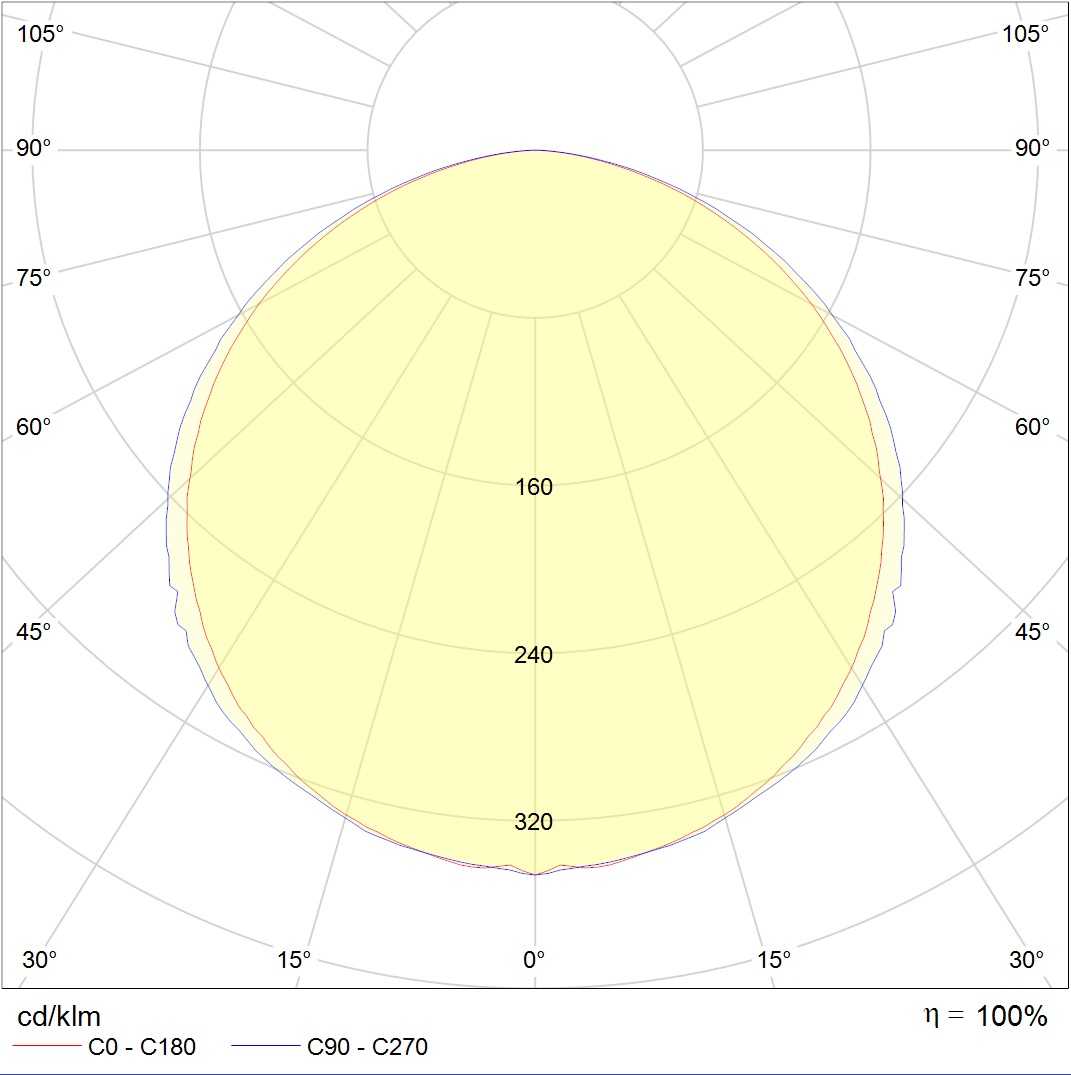

photometric files
documents
сертификаты
photometric files
ies134.1 kB
jpg130 kB
ldt84.5 kB
documents
passport1 mB
сертификаты
Voluntary certificate2.7 mB
Certificate of conformity TRTS 020/2011, TRTS 004/2011524.2 kB
Declaration of Conformity EAEU TR 037/2016313 kB
Fire Safety Certificate1.7 mB
