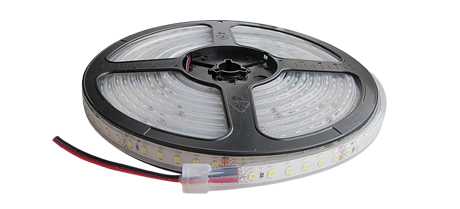

LED STRIP Flexline 192/13.0/1470 840 (5m)
.jpg&w=1920&q=100)
.jpg&w=1024&q=75)
LED STRIP Flexline 192/13.0/1470 840 (5m)
65 Wluminaire power
7350 lmlight flow
113 lm/Wenergy efficiency
code2010000820
color temperature4000
old nameLED STRIP Flexline 192/13.0/1470 840 IP20
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
113 lm/Wcolor rendition index (CRI)
>80light flow
7350 lmcolor temperature
4000light source type
LEDemission color
Белыйilluminating
energy efficiency
113 lm/W
color rendition index (CRI)
>80
light flow
7350 lm
color temperature
4000
light source type
LED
emission color
Белый
electrical
electric shock protection
III
luminaire power
65 W
supply voltage
24 V
power factor
= 1,00
rated supply voltage, direct current
23-25 V
constructional
length, mm
5000 mm
width, mm
10 mm
height, mm
2 mm
weight
0.19 kg
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ3*
fire safety class
П-I,II,ІІІ
material
Силикон
housing color
Прозрачный
lamp socket
LED
number of lamps
1
ballast
Без драйвера
common
warranty
36 month
temperature range
от 0 до +40 C
service life, hour
24 000 h
energy efficiency class
A+
ETIM class
Световая полоса/ лента/ шнур
code
2010000820
model files
model files
photometric files
documents
сертификаты

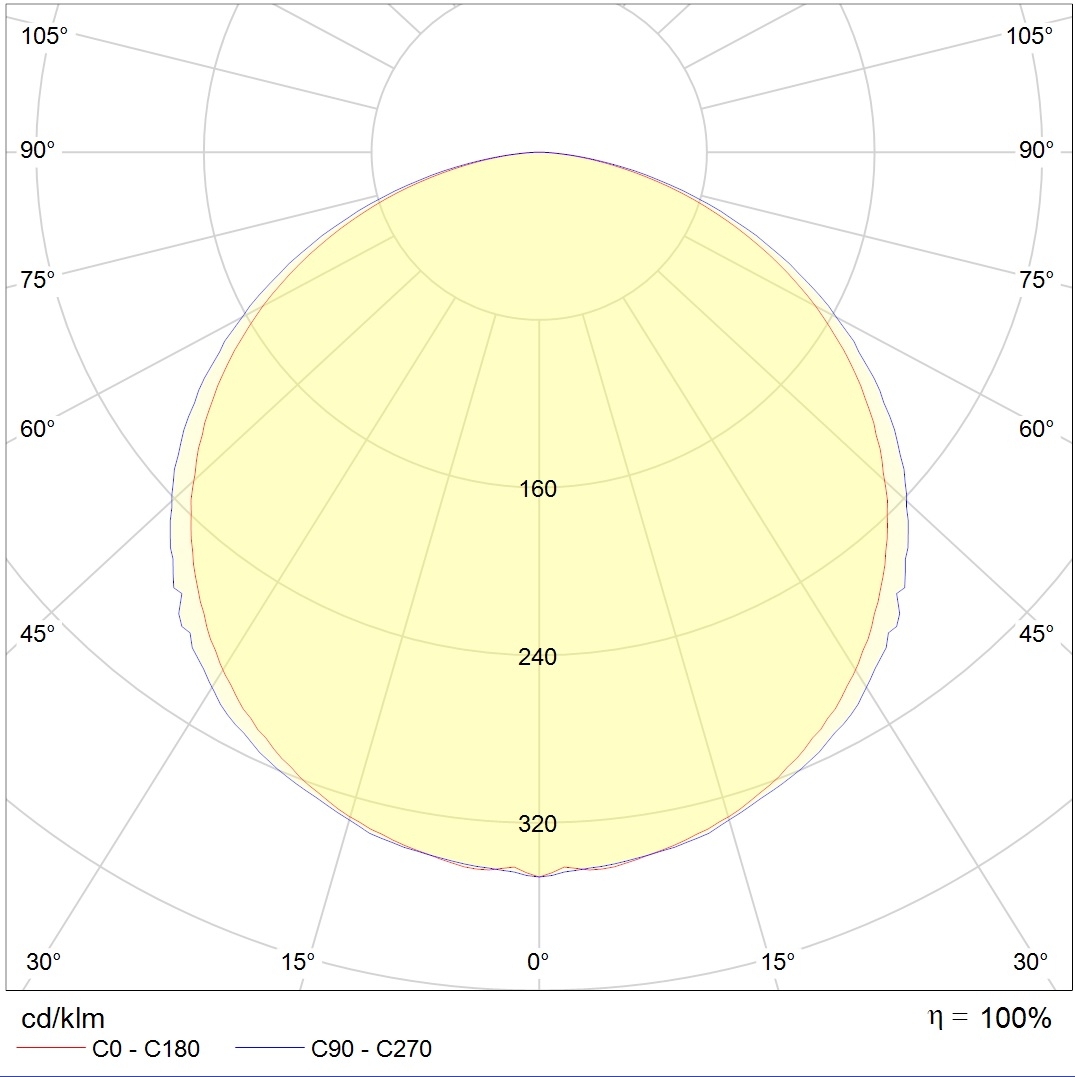

photometric files
ies134.1 kB
jpg129.7 kB
ldt84.5 kB
documents
passport1 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/2011524.2 kB
Declaration of Conformity EAEU TR 037/2016313 kB
Fire Safety Certificate1.7 mB
