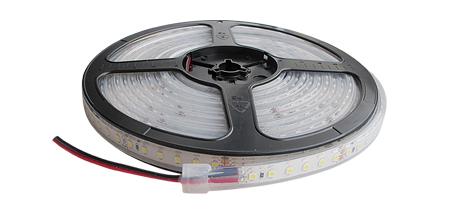

LED STRIP Flexline 1/7.2/605 930 (5m) COB
LED STRIP Flexline 1/7.2/605 930 (5m) COB
36 Wluminaire power
3050 lmlight flow
85 lm/Wenergy efficiency
code
2010000840
color temperature
3000 K
performance factor
100
- main page
- catalog
- by product type
- interior lighting
- LED strips and profiles
- LED strips
- FLEXLINE
- LED STRIP Flexline 1/7.2/605 930 (5m) COB
options
свернуть все
illuminatingelectricalconstructionalemergencycommonpackage
energy efficiency
85 lm/Wcolor rendition index (CRI)
>90light flow
3050 lmflickering factor
<1%color temperature
3000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
85 lm/W
color rendition index (CRI)
>90
light flow
3050 lm
flickering factor
<1%
color temperature
3000 K
light source type
LED
emission color
Белый
electrical
power factor
= 1,00
luminaire power
36 W
electric shock protection
III
supply voltage
24 V
rated supply voltage
23-25 V
constructional
length
5000 mm
width
8 mm
height
2 mm
weight
0.19 kg
ingress protection (IP)
IP40
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ3*
fire safety class
П-I,II,ІІІ
material
Силикон
housing color
Прозрачный
mounting type
lamp socket
LED
number of lamps
1
ballast
Без драйвера
Type roof
emergency
emergency power supply
Нет
common
temperature range
от -25 до +40 C
service life
24 000 h
ETIM class
Световая полоса/ лента/ шнур
warranty
36 month
energy efficiency class
A
code
2010000840
package
Package contents
Светильник - 1 шт.
Паспорт - 1 шт.
Упаковка - 1 шт.
model files
model files

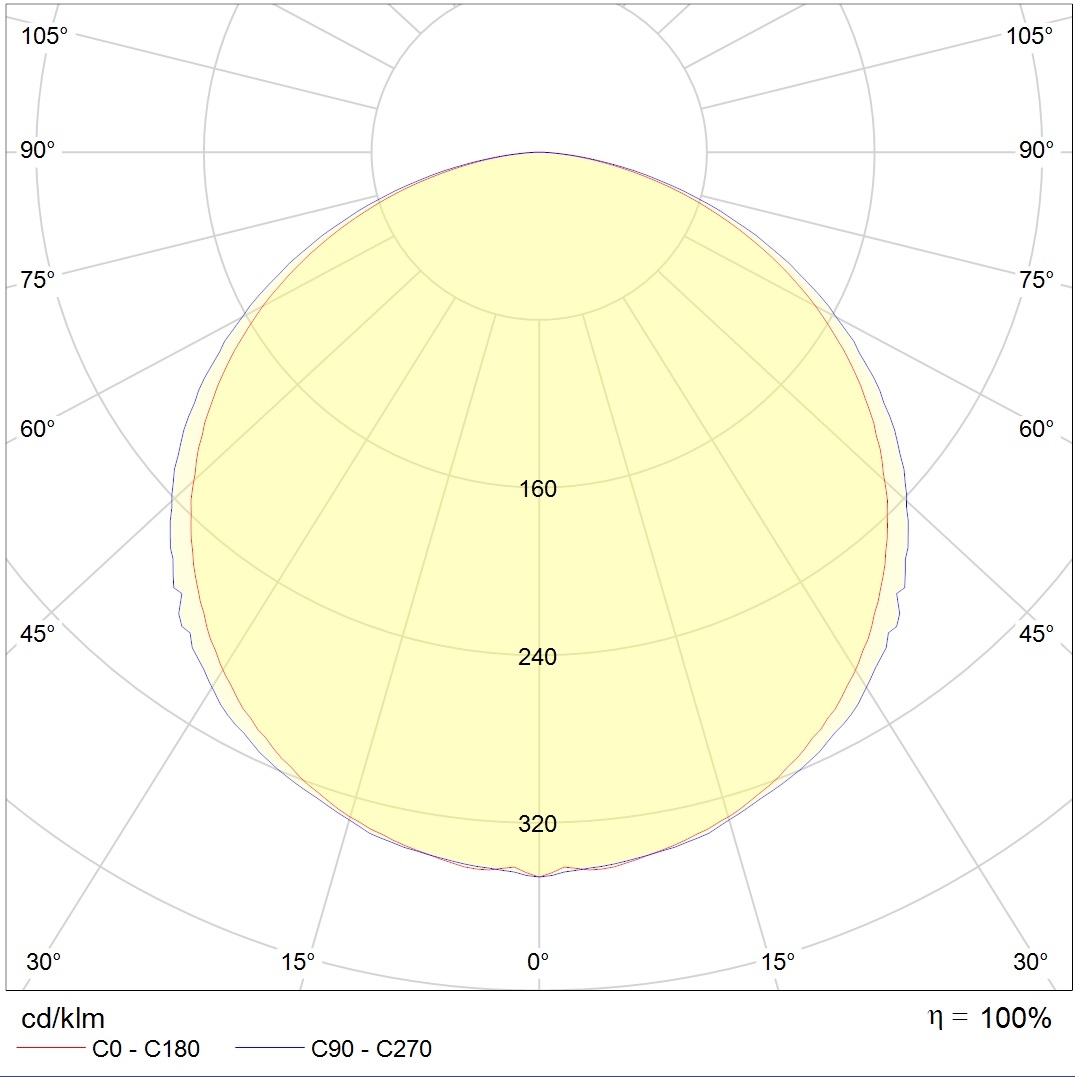

photometric files
documents
сертификаты
photometric files
ies134.1 kB
jpg129.7 kB
ldt84.5 kB
csv445 B
documents
passport651.3 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/2011524.2 kB
Declaration of Conformity EAEU TR 037/2016313 kB
