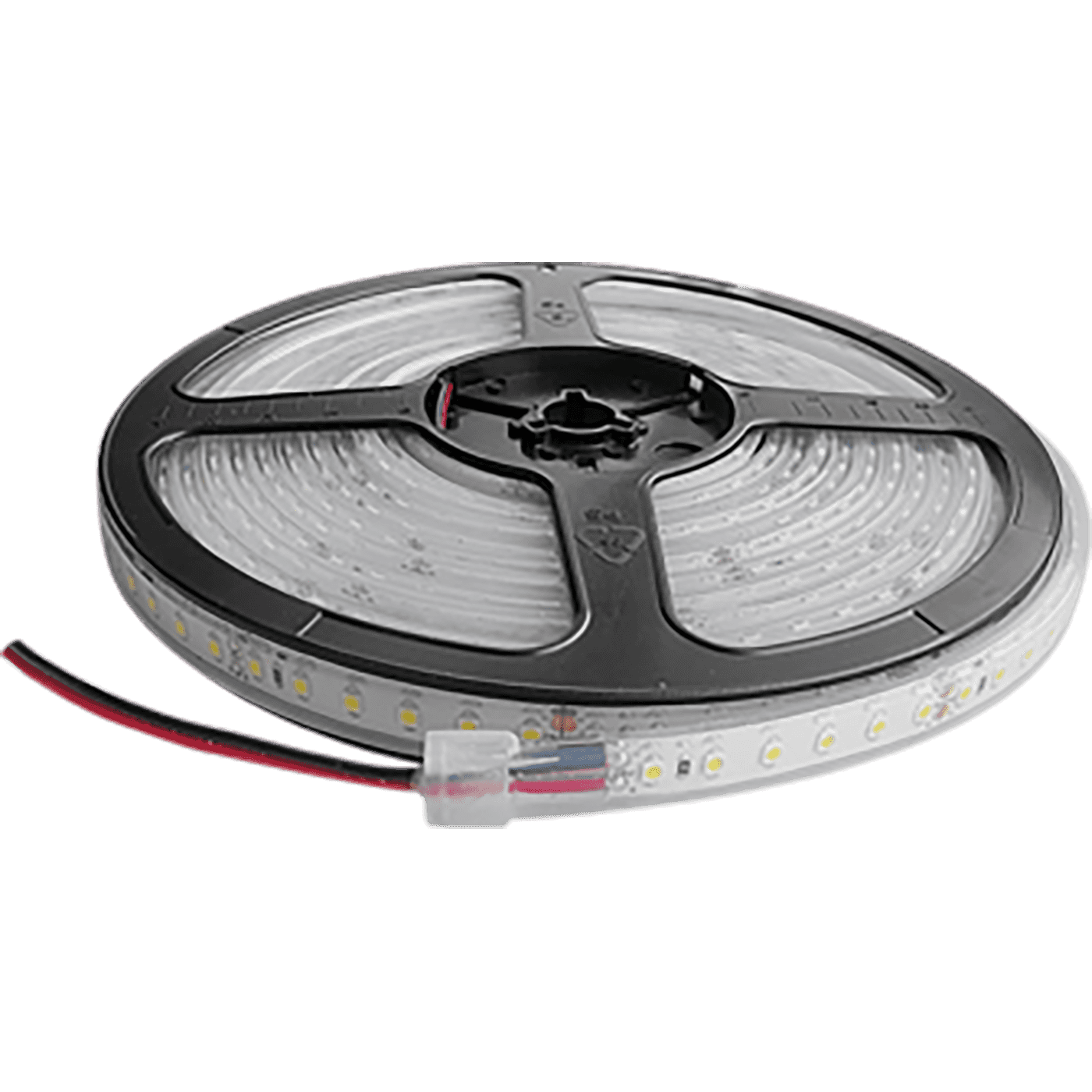

LED STRIP Flexline 98/10.0/900 4000K/IP67
LED STRIP Flexline 98/10.0/900 4000K/IP67
50 Wluminaire power
4500 lmlight flow
90 lm/Wenergy efficiency
code2010000310
color temperature4000
number of lamps1
performance factor100
options
свернуть все
electricalconstructionalcommonilluminating
rated supply voltage, direct current
23-25 Vsupply voltage, direct current
24 Vluminaire power
50 Welectric shock protection
IIIpower factor
= 1,00supply voltage
24 Velectrical
rated supply voltage, direct current
23-25 V
supply voltage, direct current
24 V
luminaire power
50 W
electric shock protection
III
power factor
= 1,00
supply voltage
24 V
constructional
maximum cross-section of the connected cable, sq. mm
2.5
ingress protection (IP)
IP67
climatic performance
УХЛ2*
fire safety class
П-I,II,ІІІ
material
Силикон
weight
0.19 kg
length, mm
5000 mm
width, mm
10 mm
height, mm
4 mm
housing color
Прозрачный
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Без драйвера
common
ETIM class
Световая полоса/ лента/ шнур
warranty
36 month
temperature range
от -25 до +40 C
energy efficiency class
A+
service life, hour
24 000 h
code
2010000310
illuminating
color rendition index (CRI)
>80
light flow
4500 lm
energy efficiency
90 lm/W
color temperature
4000
light source type
LED
emission color
Белый
model files
model files
CAD/BIM files

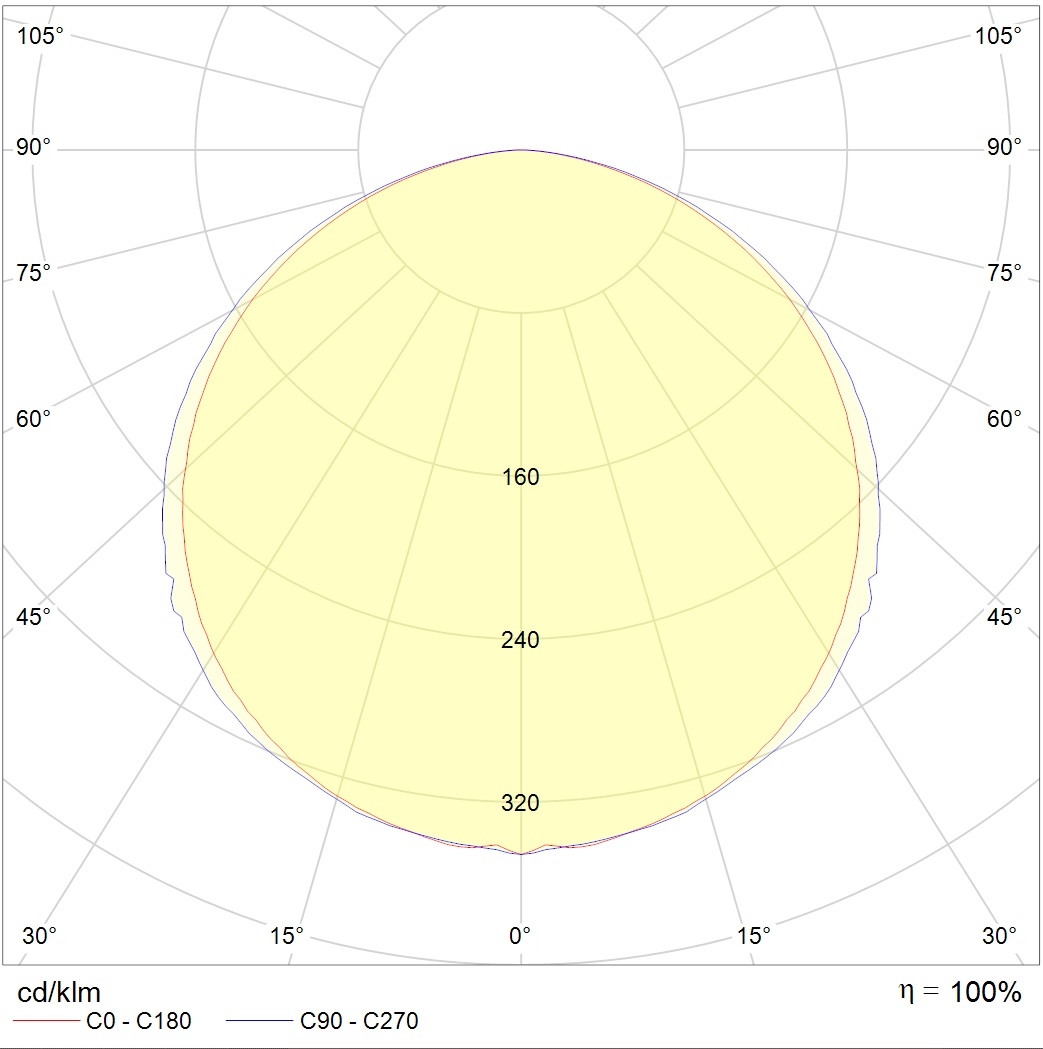

photometric files
documents
сертификаты
CAD/BIM files
CAD model 3DS51.2 kB
model 3dMax924 kB
photometric files
ies134.1 kB
jpg125.6 kB
ldt84.5 kB
documents
passport320 kB
сертификаты
Voluntary certificate2.7 mB
Certificate of conformity TRTS 020/2011, TRTS 004/2011524.2 kB
Declaration of Conformity EAEU TR 037/2016313 kB
Fire Safety Certificate1.7 mB
accessories
Driver LED 75W/24V ( OL1x75-E-CV24 IP67 HELVAR)0.454kgarticle: 4002000110color: Белый
Driver LED CV 75W-24V-IP20 (HELVAR LL1x75-E-CV24)0.123kgarticle: 4002000090color: White
Dimmable driver DALI LED 12-24V (Helvar LL1-CV-DA)0.07kgarticle: 6002001670color: White
