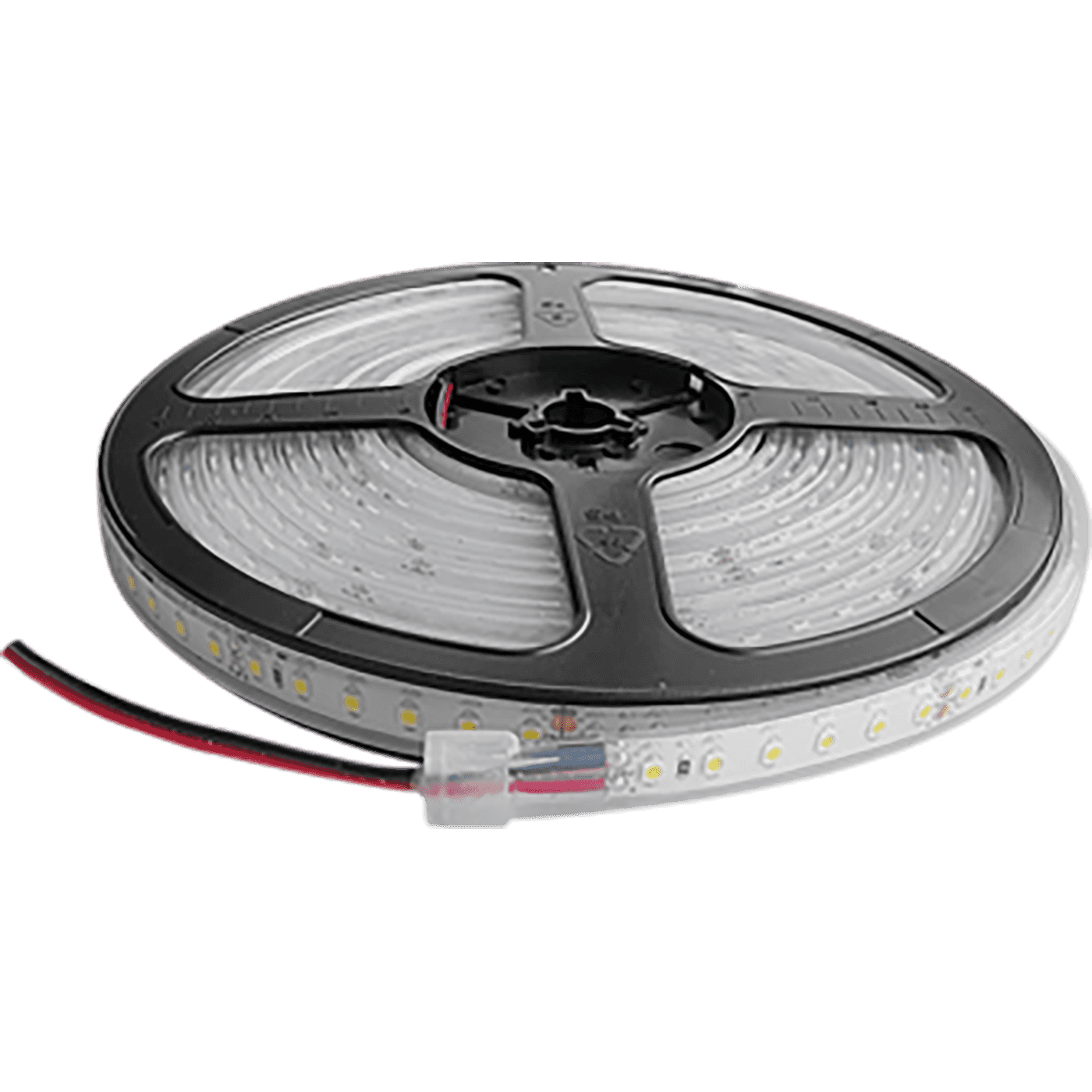

LED STRIP Flexline 80/6.6/755 930 IP67 (5m)
LED STRIP Flexline 80/6.6/755 930 IP67 (5m)
33 Wluminaire power
3775 lmlight flow
114 lm/Wenergy efficiency
code
2010000670
color temperature
3000 K
old name
LED STRIP Flexline 80/6.6/755 930 IP67 (5m) Special edition for Lakhta project
performance factor
100
- main page
- catalog
- by product type
- interior lighting
- LED strips and profiles
- LED strips
- FLEXLINE IP
- LED STRIP Flexline 80/6.6/755 930 IP67 (5m)
options
свернуть все
illuminatingelectricalconstructionalemergencycommonpackage
energy efficiency
114 lm/Wcolor rendition index (CRI)
>90light flow
3775 lmflickering factor
<1%color temperature
3000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
114 lm/W
color rendition index (CRI)
>90
light flow
3775 lm
flickering factor
<1%
color temperature
3000 K
light source type
LED
emission color
Белый
electrical
power factor
= 1,00
luminaire power
33 W
electric shock protection
III
supply voltage
24 V
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage
23-25 V
constructional
length
5000 mm
width
10 mm
height
2 mm
weight
0.19 kg
ingress protection (IP)
IP67
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ3*
fire safety class
П-I,II,ІІІ
material
Пластик
housing color
Прозрачный
mounting type
lamp socket
LED
number of lamps
1
ballast
Без драйвера
Type roof
emergency
emergency power supply
Нет
common
temperature range
от 0 до +40 C
service life
24 000 h
ETIM class
Световая полоса/ лента/ шнур
warranty
36 month
energy efficiency class
A+
code
2010000670
package
Package contents
Светодиодная лента - 1 шт.
Паспорт - 1 шт.
Упаковка - 1 шт.
model files
model files
documents
сертификаты
documents
passport1 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/2011524.2 kB
Declaration of Conformity EAEU TR 037/2016313 kB
