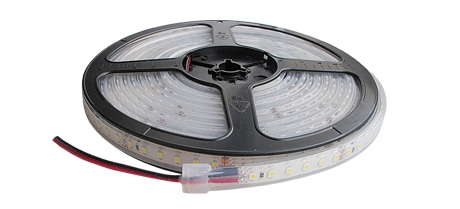

LED STRIP Flexline 80/4.8/690 827 IP65 (5m) sauna edtion
_sauna_edtion.jpg&w=1920&q=100)
_sauna_edtion.jpg&w=1024&q=75)
LED STRIP Flexline 80/4.8/690 827 IP65 (5m) sauna edtion
24 Wluminaire power
3450 lmlight flow
144 lm/Wenergy efficiency
code2010000860
color temperature2700 K
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
144 lm/Wcolor rendition index (CRI)
>80light flow
3450 lmcolor temperature
2700 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
144 lm/W
color rendition index (CRI)
>80
light flow
3450 lm
color temperature
2700 K
light source type
LED
emission color
Белый
electrical
electric shock protection
III
luminaire power
24 W
supply voltage
24 V
power factor
= 1,00
rated supply voltage
23-25 V
constructional
length
5000 mm
width
8 mm
height
2 mm
weight
0.19 kg
ingress protection (IP)
IP65
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ3*
fire safety class
П-I,II,ІІІ
material
Силикон
housing color
Прозрачный
lamp socket
LED
number of lamps
1
ballast
Без драйвера
common
warranty
36 month
temperature range
от -25 до +40 C
service life
24 000 h
energy efficiency class
A++
ETIM class
Световая полоса/ лента/ шнур
code
2010000860
model files
model files
photometric files
documents
сертификаты
photometric files
ies134.1 kB
jpg82 kB
ldt84.5 kB
documents
passport651.3 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/2011524.2 kB
Declaration of Conformity EAEU TR 037/2016313 kB
Fire Safety Certificate1.7 mB
