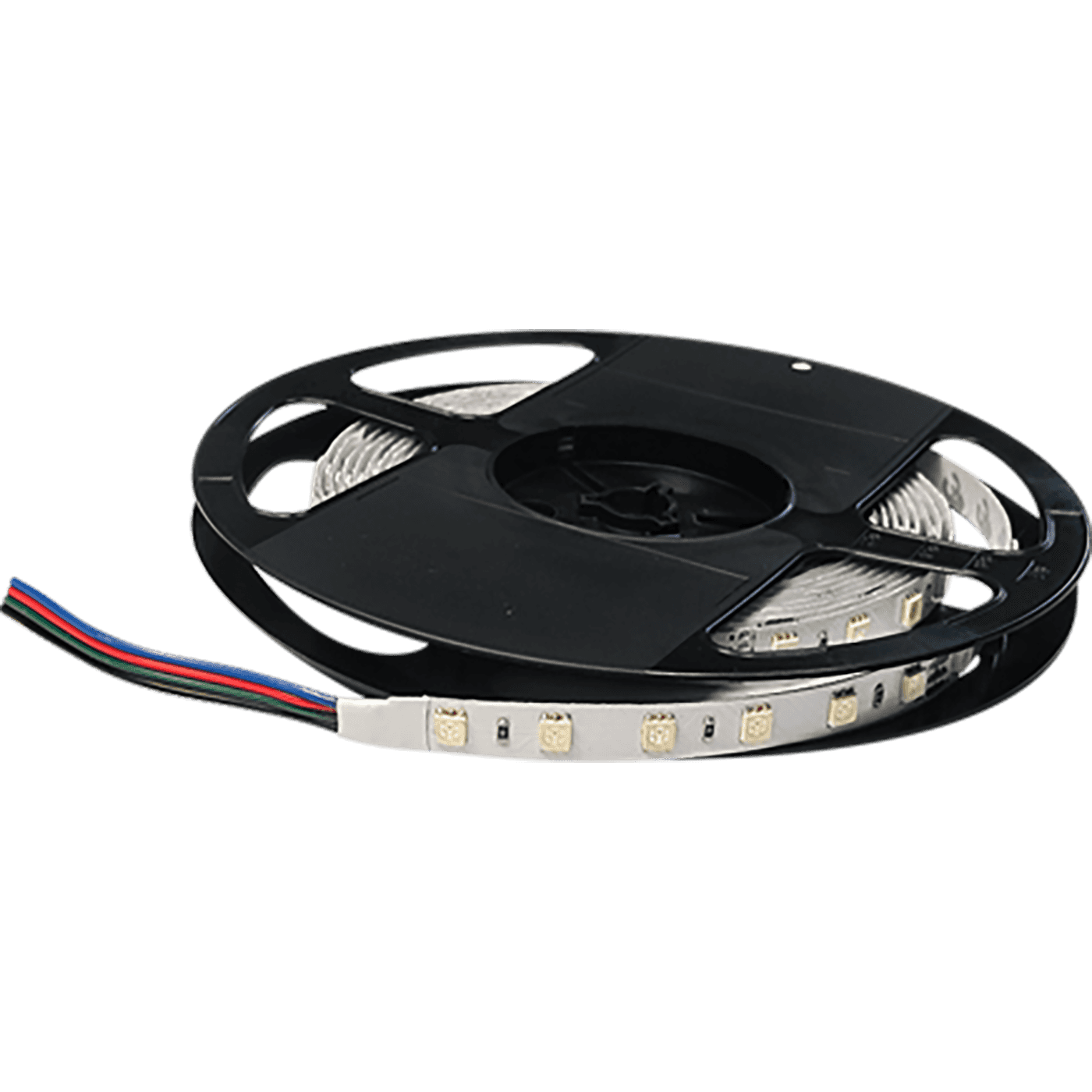

LED STRIP Flexline 60/14.4 RGB/IP 67

LED STRIP Flexline 60/14.4 RGB/IP 67
add to favorites
72 Wluminaire power
350 lmlight flow
5 lm/Wenergy efficiency
code2010000280
performance factor100
  1. main page
  2. catalog
  3. by product type
  4. interior lighting
  5. LED strips and profiles
  6. FLEXLINE COLOR
  7. LED STRIP Flexline 60/14.4 RGB/IP 67
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
5 lm/W
light flow
350 lm
light source type
LED
emission color
RGB
illuminating
energy efficiency
5 lm/W
light flow
350 lm
light source type
LED
emission color
RGB
electrical
electric shock protection
III
luminaire power
72 W
supply voltage
24 V
power factor
= 1,00
maximum cross-section of the connected cable, sq. mm
1.5
rated supply voltage, direct current
23-25 V
constructional
length, mm
5000 mm
width, mm
12 mm
height, mm
4 mm
weight
0.18 kg
ingress protection (IP)
IP67
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ3*
fire safety class
П-I,II,ІІІ
material
Силикон
housing color
Прозрачный
lamp socket
LED
number of lamps
1
ballast
Без драйвера
common
warranty
36 month
temperature range
от -25 до +40 C
service life, hour
24 000 h
energy efficiency class
Е
ETIM class
Световая полоса/ лента/ шнур
code
2010000280
model files
model files
CAD/BIM files
model 3dMax924 kB

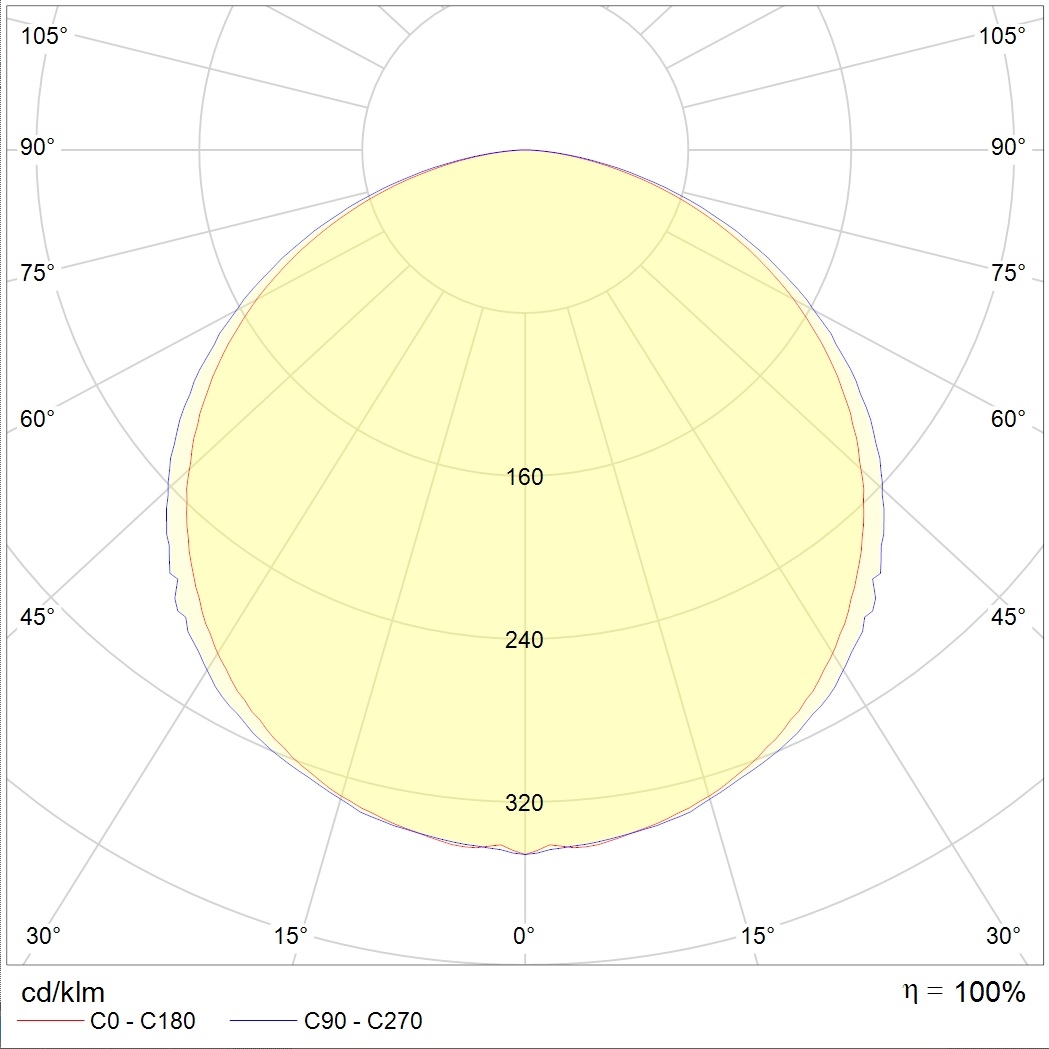

photometric files
ies134.1 kB
jpg127.5 kB
ldt84.6 kB
documents
passport414 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/2011524.2 kB
Declaration of Conformity EAEU TR 037/2016313 kB
Fire Safety Certificate1.7 mB
CAD/BIM files
model 3dMax924 kB
photometric files
ies134.1 kB
jpg127.5 kB
ldt84.6 kB
documents
passport414 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/2011524.2 kB
Declaration of Conformity EAEU TR 037/2016313 kB
Fire Safety Certificate1.7 mB
accessories
Driver LED CV 30W--24V/24V-IP67 (Helvar OL1x30-E-CV24)0.105kgarticle: 4002000100color: White
