LED STRIP Flexline 80/5.4/850 840 (5m)
LED STRIP Flexline 80/5.4/850 840 (5m)
27 Wluminaire power
4250 lmlight flow
157 lm/Wenergy efficiency
code2010000340
color temperature4000 K
old nameLED STRIP Flexline 80/5.4/850 4000K
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
157 lm/Wcolor rendition index (CRI)
>80light flow
4250 lmflickering factor
<1%color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
157 lm/W
color rendition index (CRI)
>80
light flow
4250 lm
flickering factor
<1%
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
power factor
= 1,00
luminaire power
27 W
electric shock protection
III
supply voltage
24 V
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage
23-25 V
constructional
length
5000 mm
width
8 mm
height
2 mm
weight
0.19 kg
ingress protection (IP)
IP40
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
material
Пластик
housing color
Прозрачный
lamp socket
LED
number of lamps
1
ballast
Без драйвера
common
temperature range
от 0 до +40 C
service life
30 000 h
ETIM class
Световая полоса/ лента/ шнур
warranty
36 month
energy efficiency class
A++
code
2010000340
model files
model files
CAD/BIM files
photometric files
documents
сертификаты
CAD/BIM files
model 3dMax924 kB

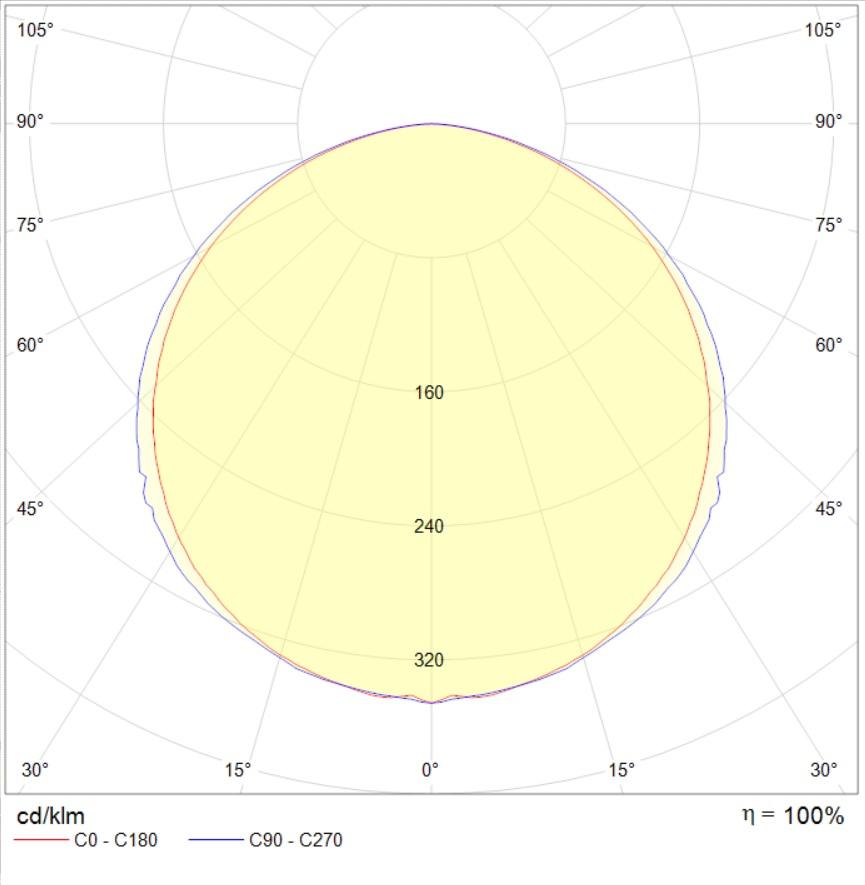

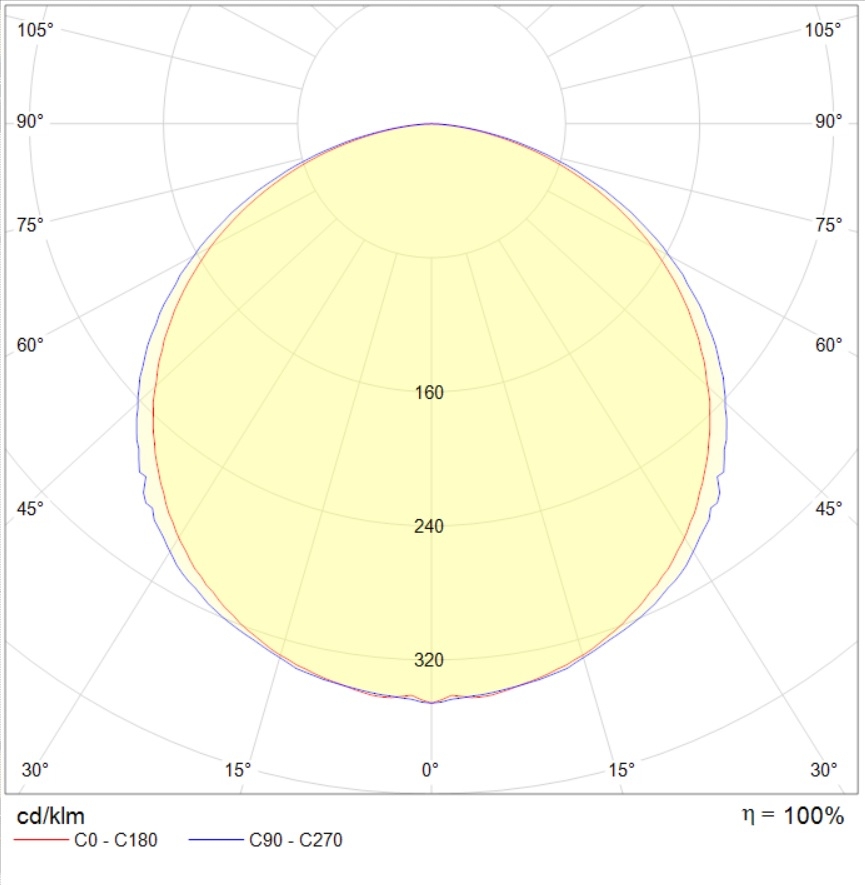

photometric files
ies134.1 kB
jpg82 kB
ldt84.5 kB
documents
passport587.6 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/2011524.2 kB
Declaration of Conformity EAEU TR 037/2016313 kB
Fire Safety Certificate1.7 mB
