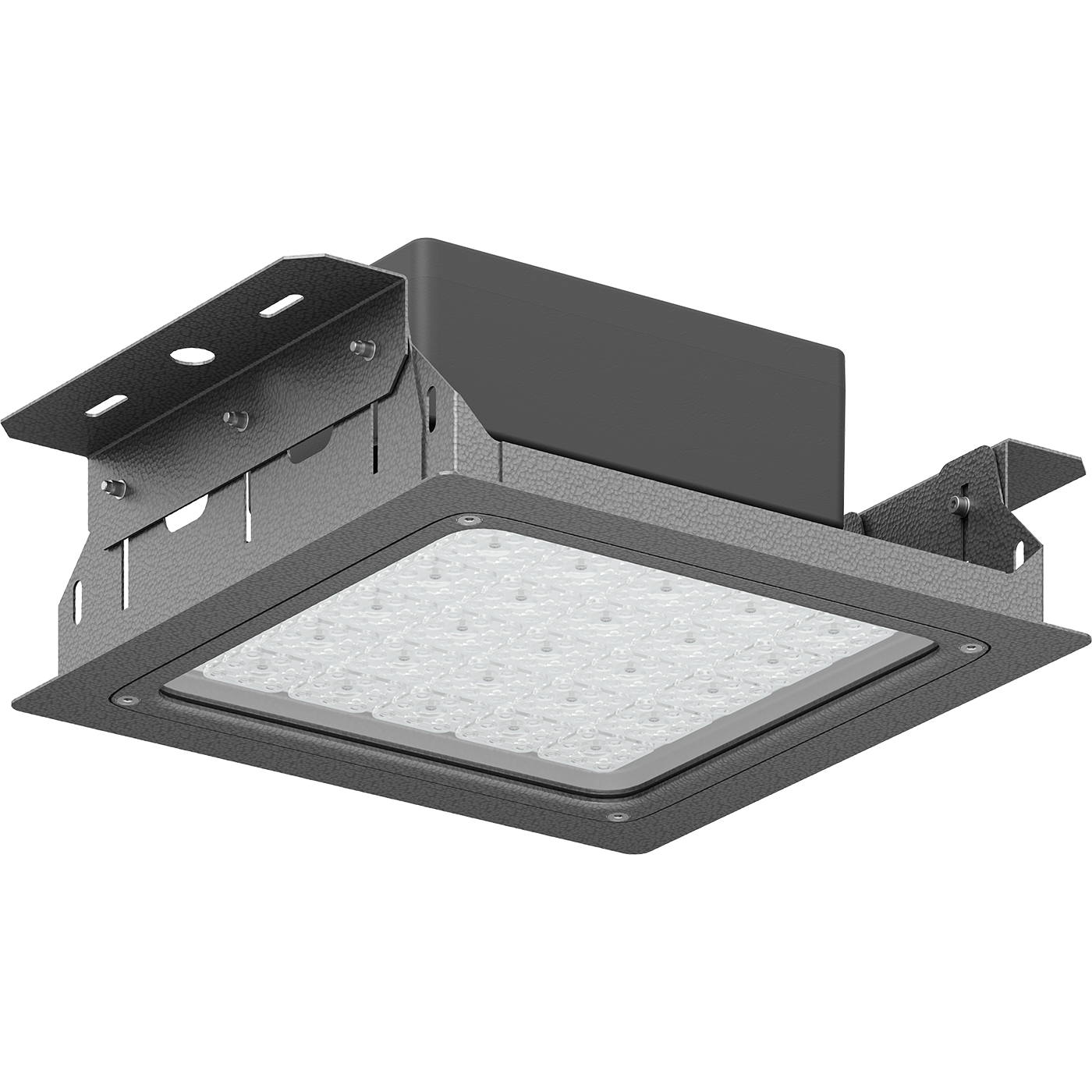

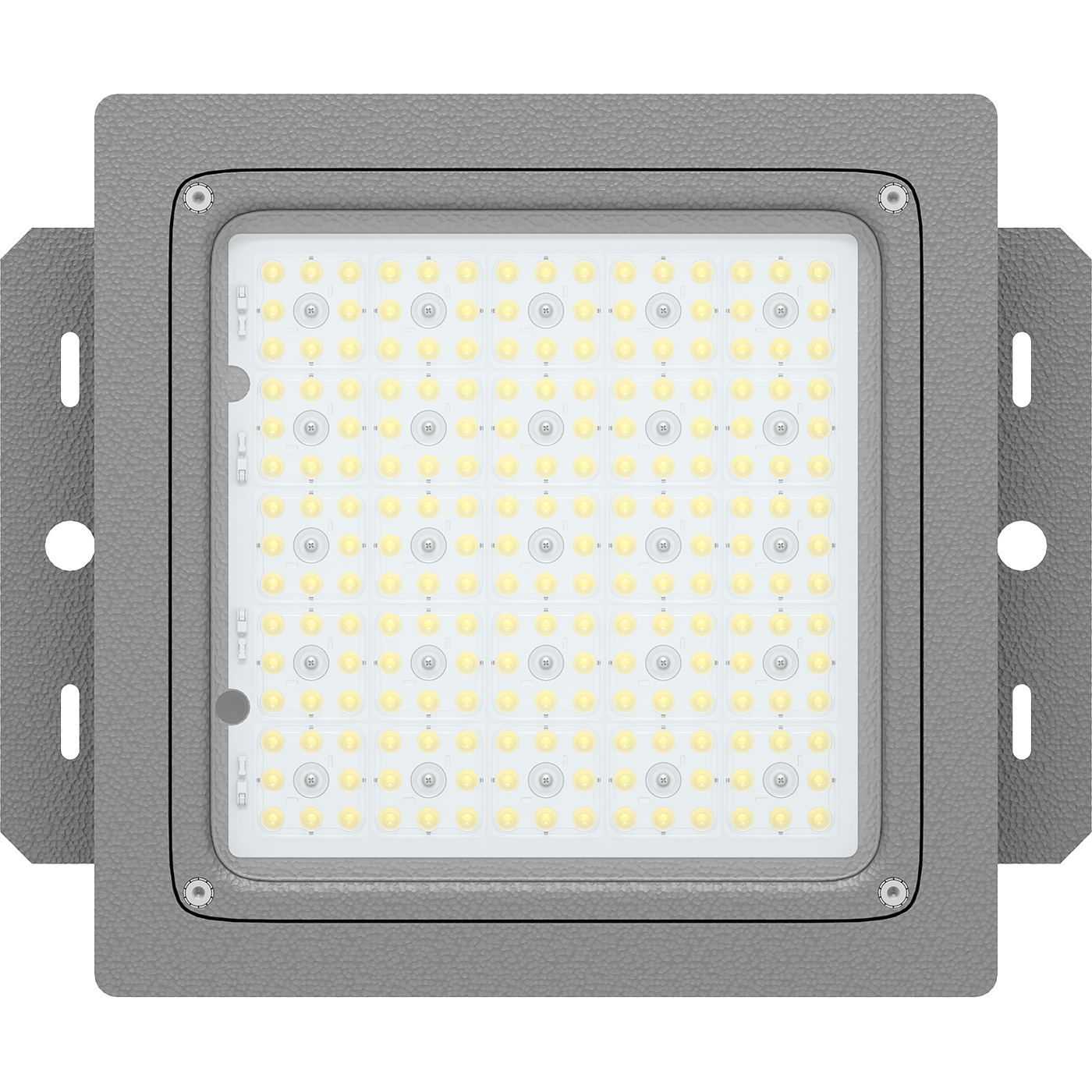

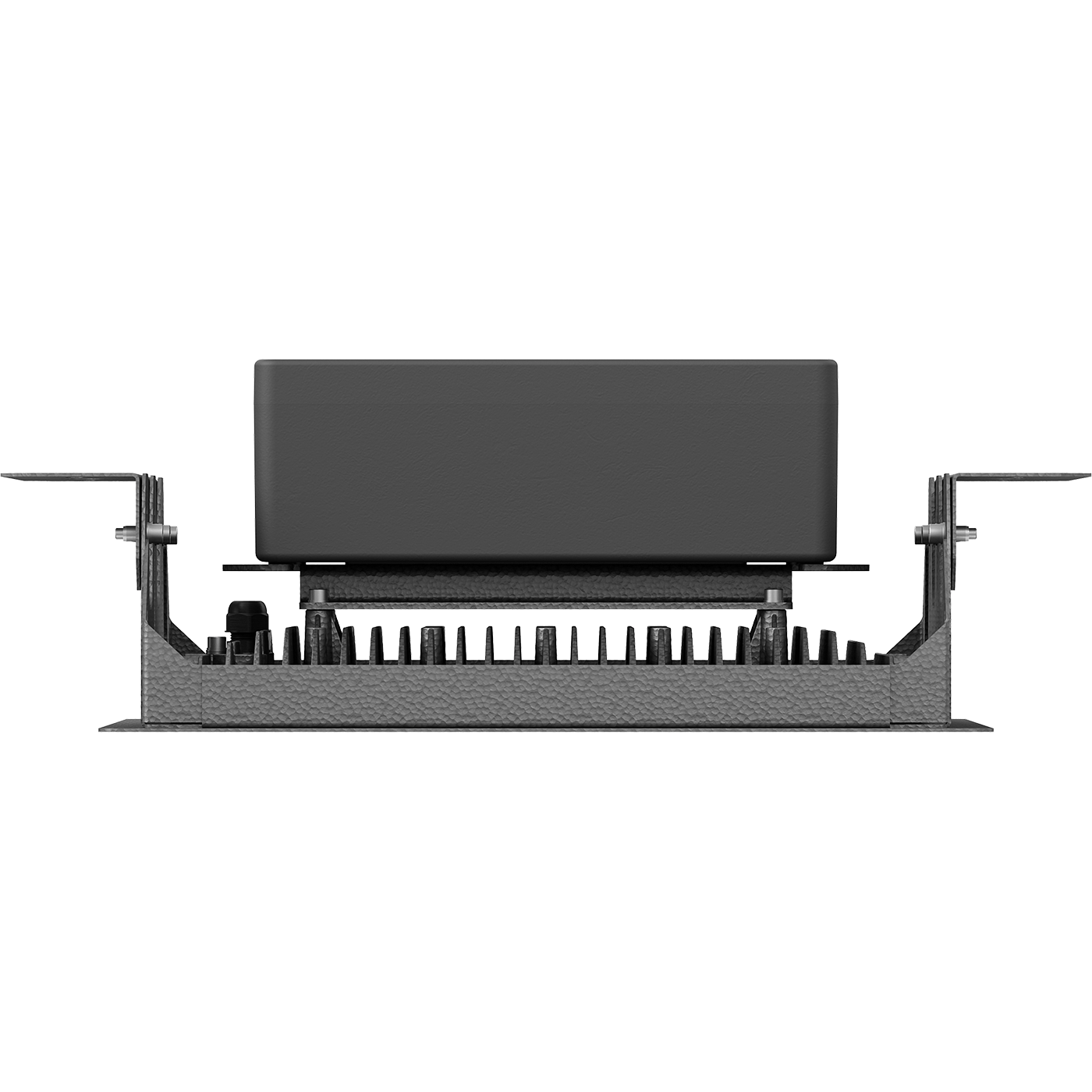

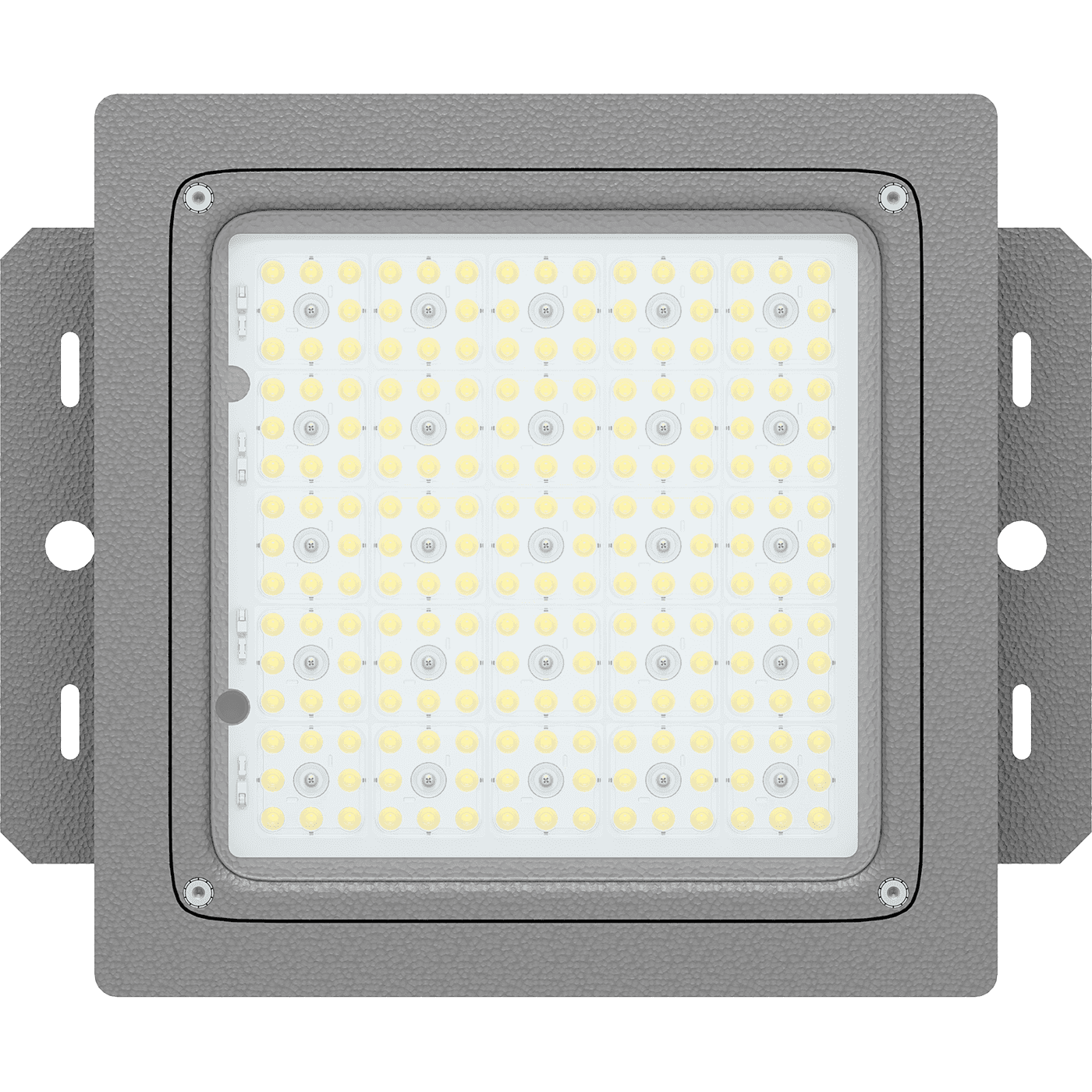

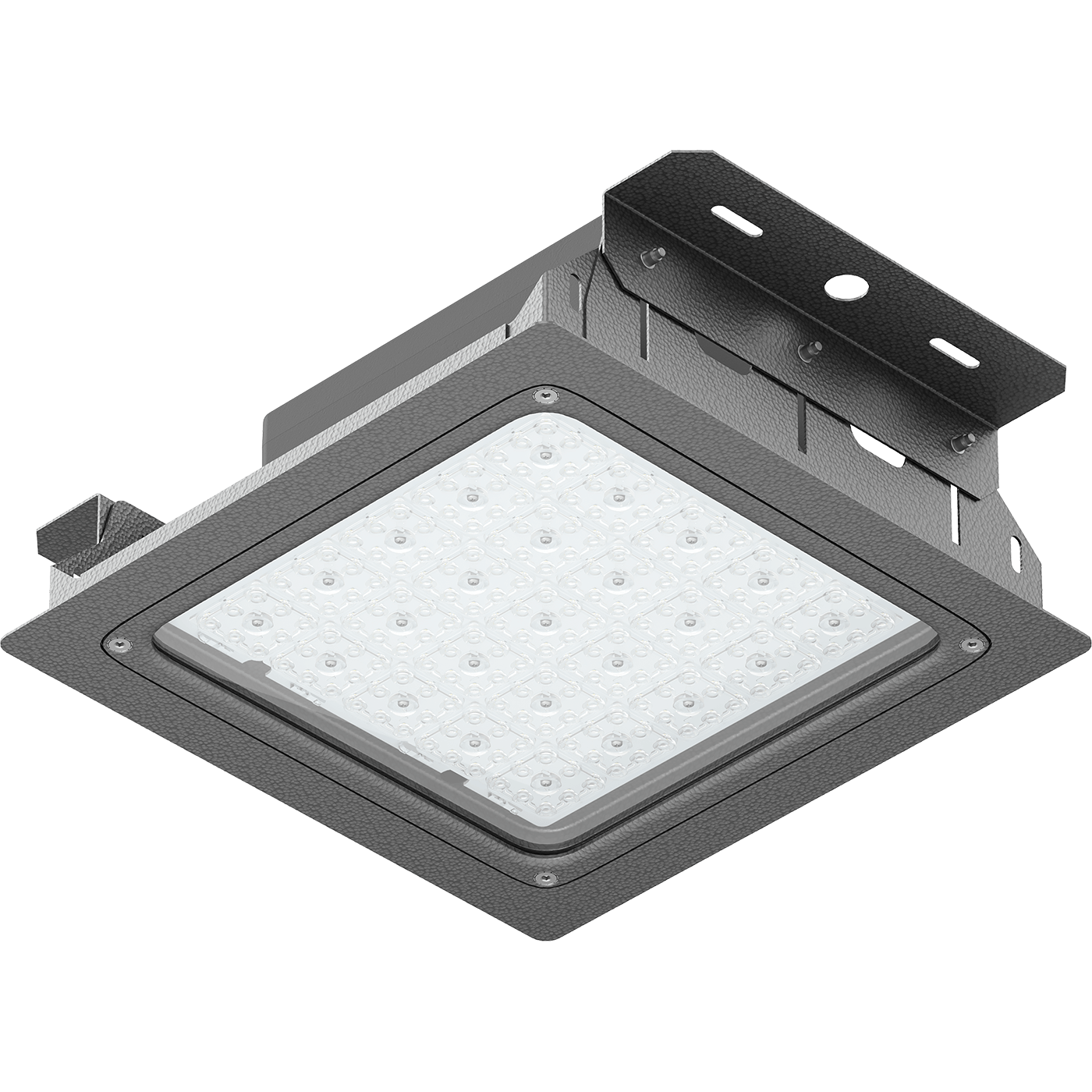

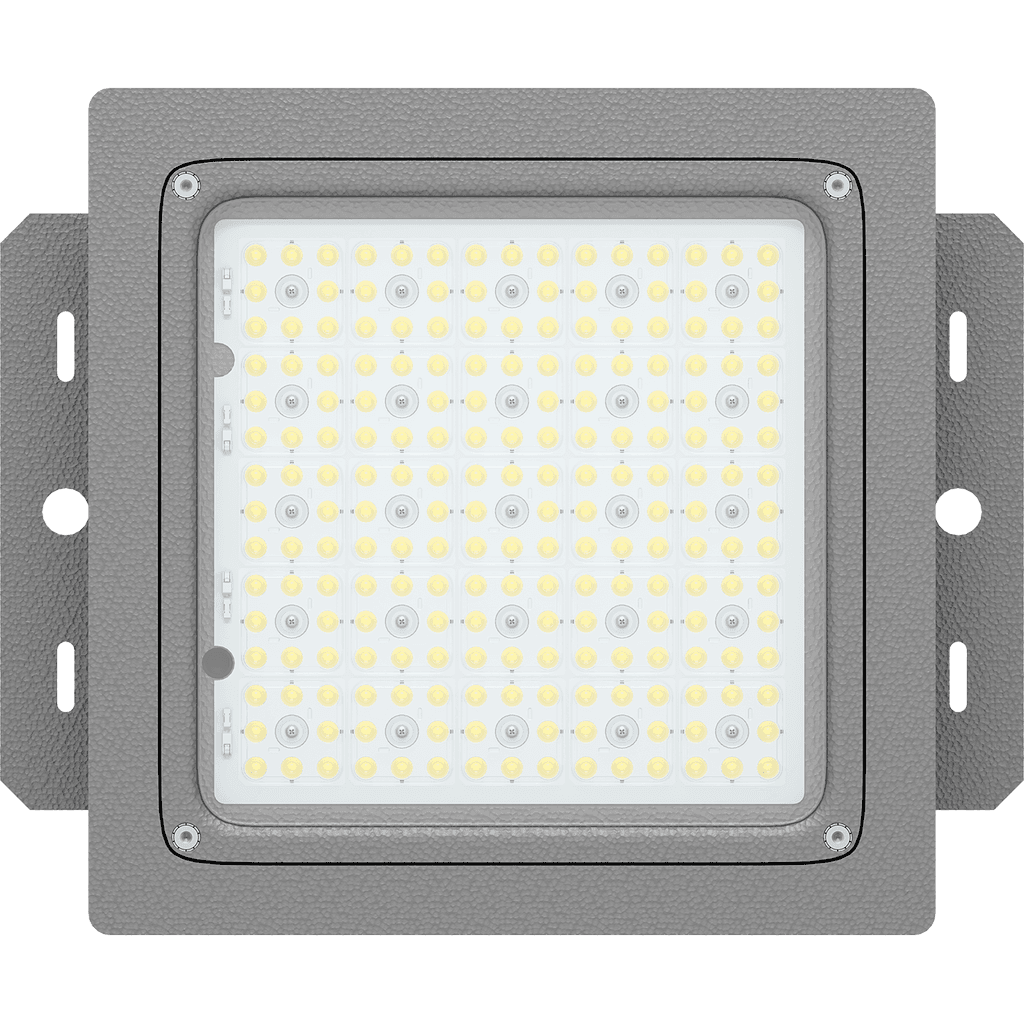

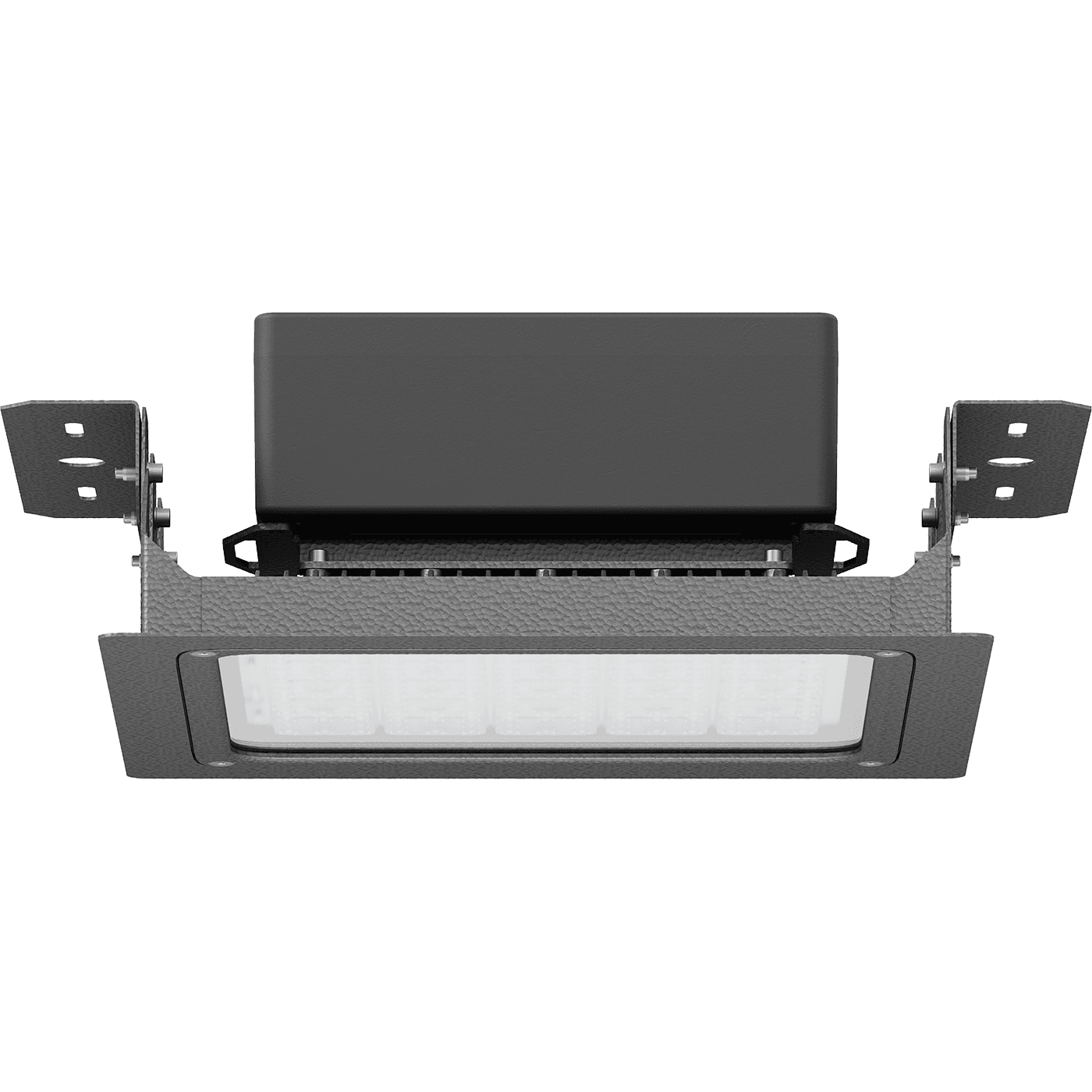

FLAT LB/R LED 80 D65 Ex 5000K
FLAT LB/R LED 80 D65 Ex 5000K
78 Wluminaire power
11600 lmlight flow
149 lm/Wenergy efficiency
code1332001050
color temperature5000 K
beam angleD65
options
свернуть все
illuminatingelectricalconstructionalcommon
emission color
Белыйlight source type
LEDlight flow
11600 lmcolor rendition index (CRI)
>80flickering factor
<1%energy efficiency
149 lm/Wbeam angle
D65color temperature
5000 Killuminating
emission color
Белый
light source type
LED
light flow
11600 lm
color rendition index (CRI)
>80
flickering factor
<1%
energy efficiency
149 lm/W
beam angle
D65
color temperature
5000 K
electrical
luminaire power
78 W
electric shock protection
I
power factor
> 0,96
maximum cross-section of the connected cable
2.5 mm2
starting current
55 A
supply voltage
230 V
starting current pulse time
200 µs
constructional
ingress protection (IP)
IP66
shock resistance (IK)
IK08/7 Дж
climatic performance
УХЛ1*
fire safety class
П-ІІа
length
390 mm
width
390 mm
height
164 mm
material
Сплав алюминиевый
housing color
Серый
weight
10 kg
common
code
1332001050
ETIM class
Светильник взрывобезопасный/взрывозащищенный стационарный (фиксиров. установки)
energy efficiency class
A++
service life
50 000 h
temperature range
от -60 до +55 C
model files
model files
CAD/BIM files
photometric files
documents
сертификаты
CAD/BIM files
model 3dMax1.7 mB

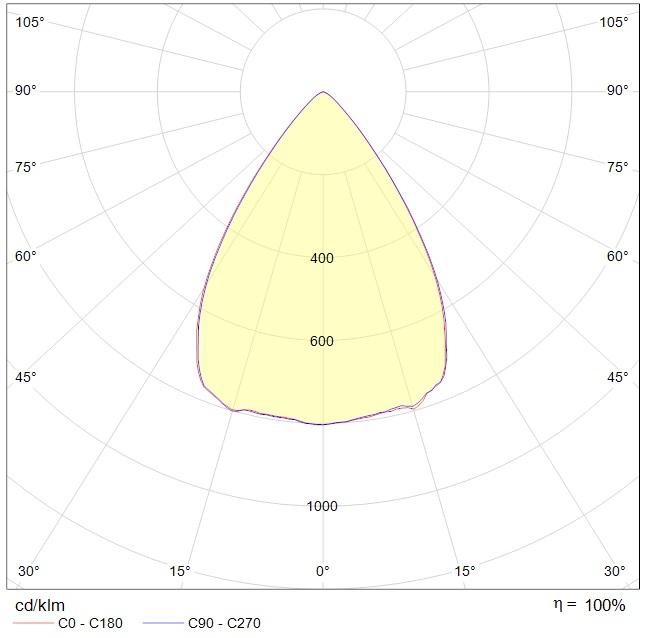

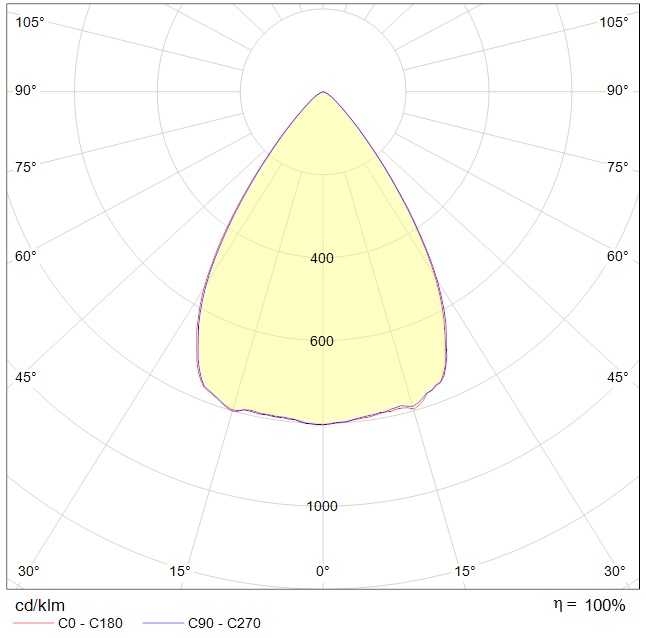

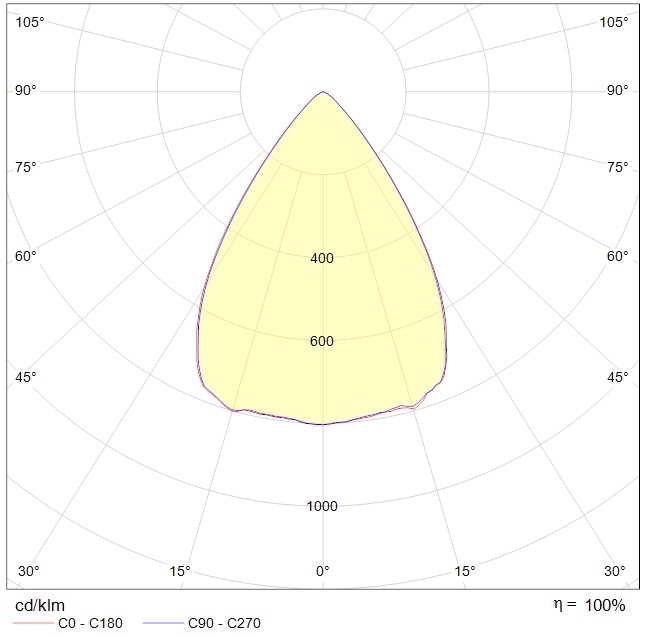

photometric files
ies263.2 kB
jpg59.7 kB
ldt156 kB
documents
passport700.2 kB
сертификаты
Certificate of Russian maritime register of shipping1.5 mB
INTERGASSERT373.2 kB
Certificate of conformity TRTS 012/2011389.4 kB
Declaration of Conformity TRTS 020/2011201.4 kB
Declaration of Conformity EAEU TR 037/2016197.5 kB
