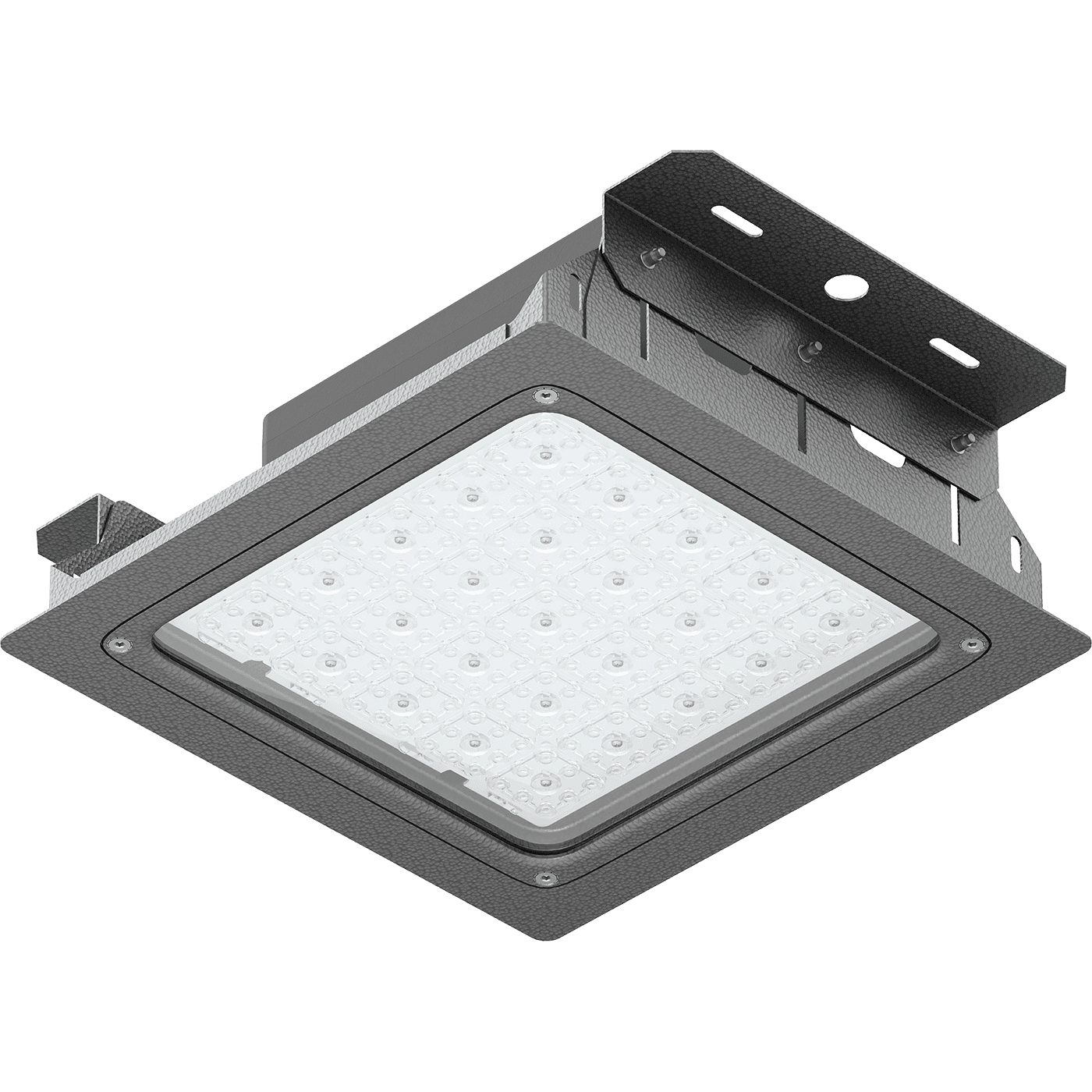

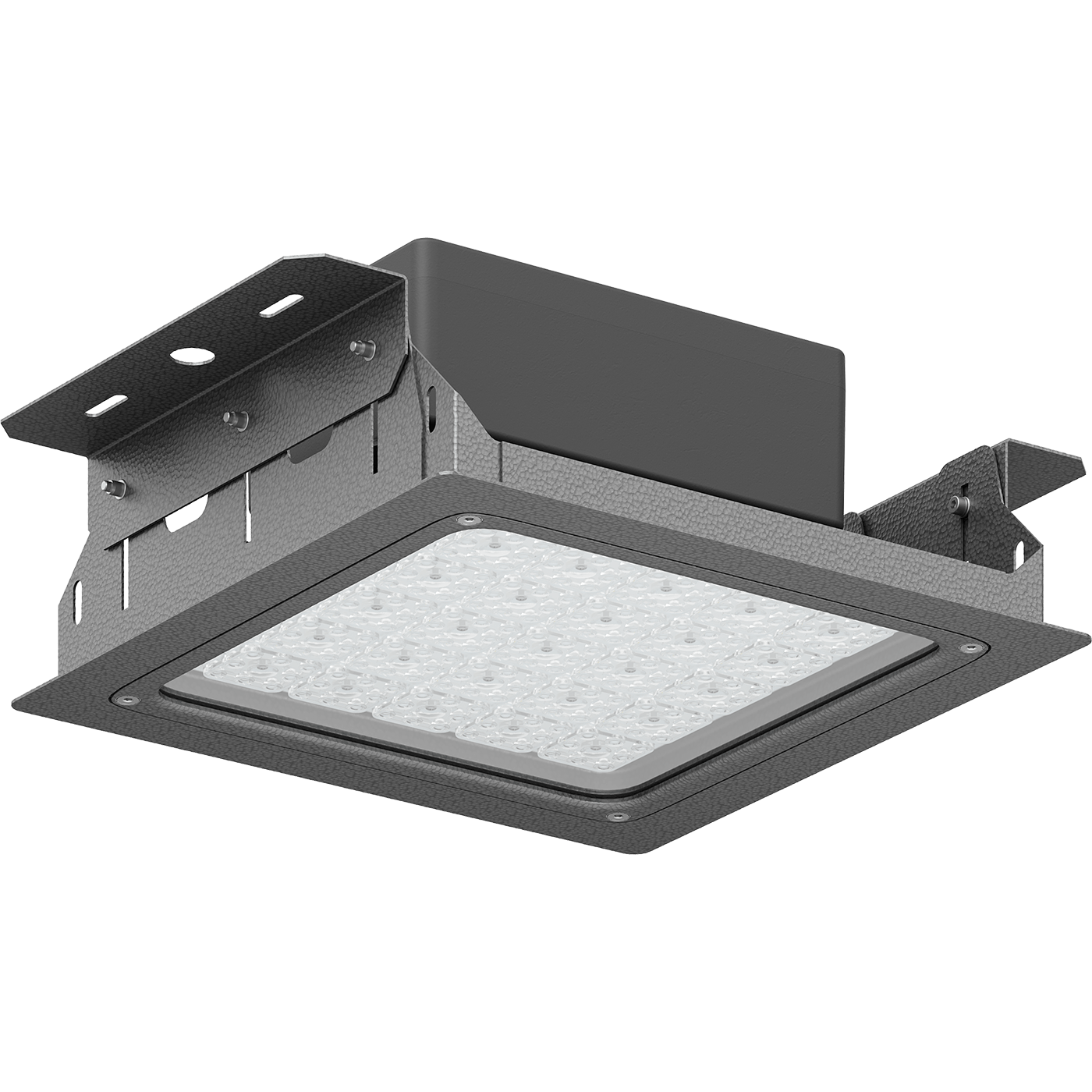

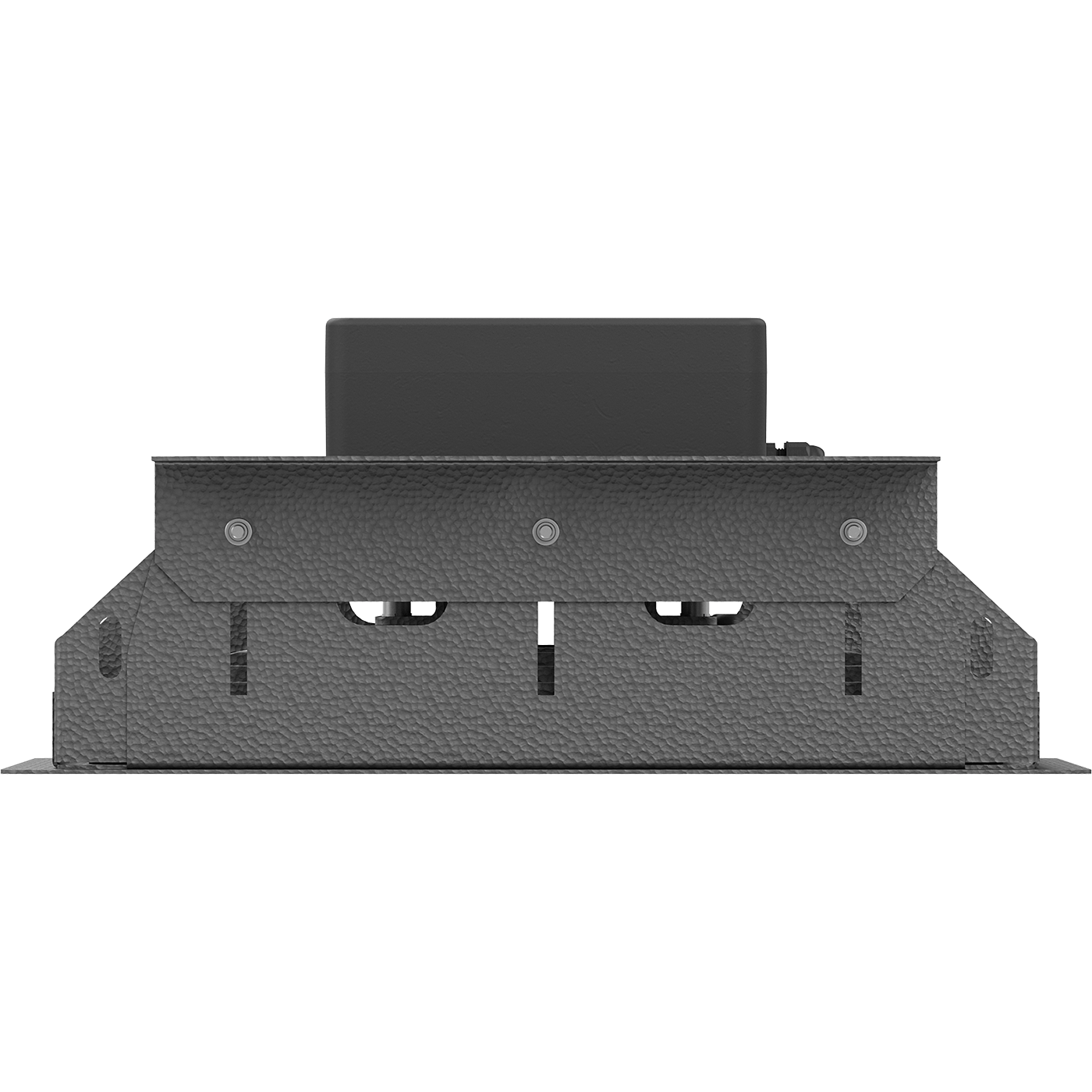

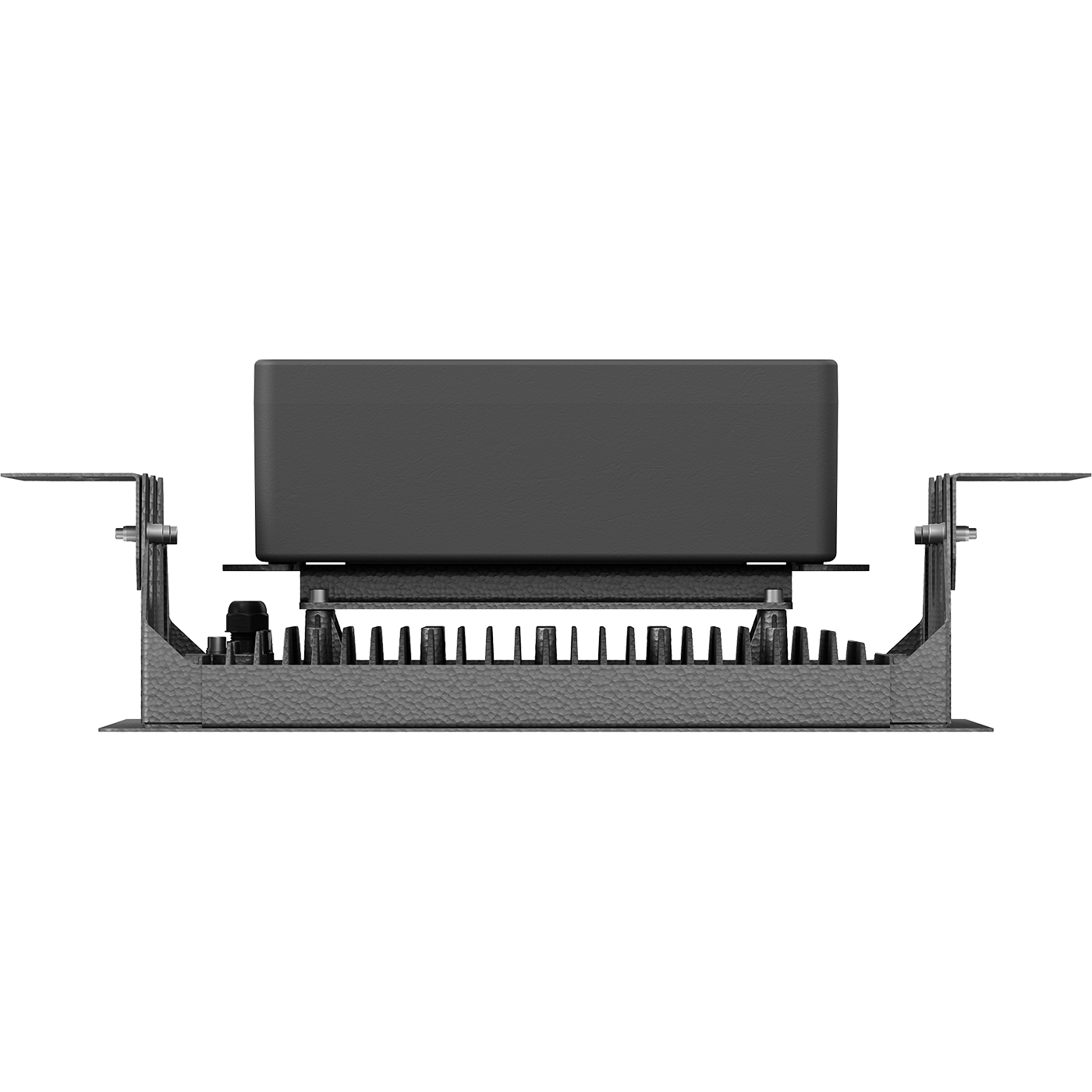

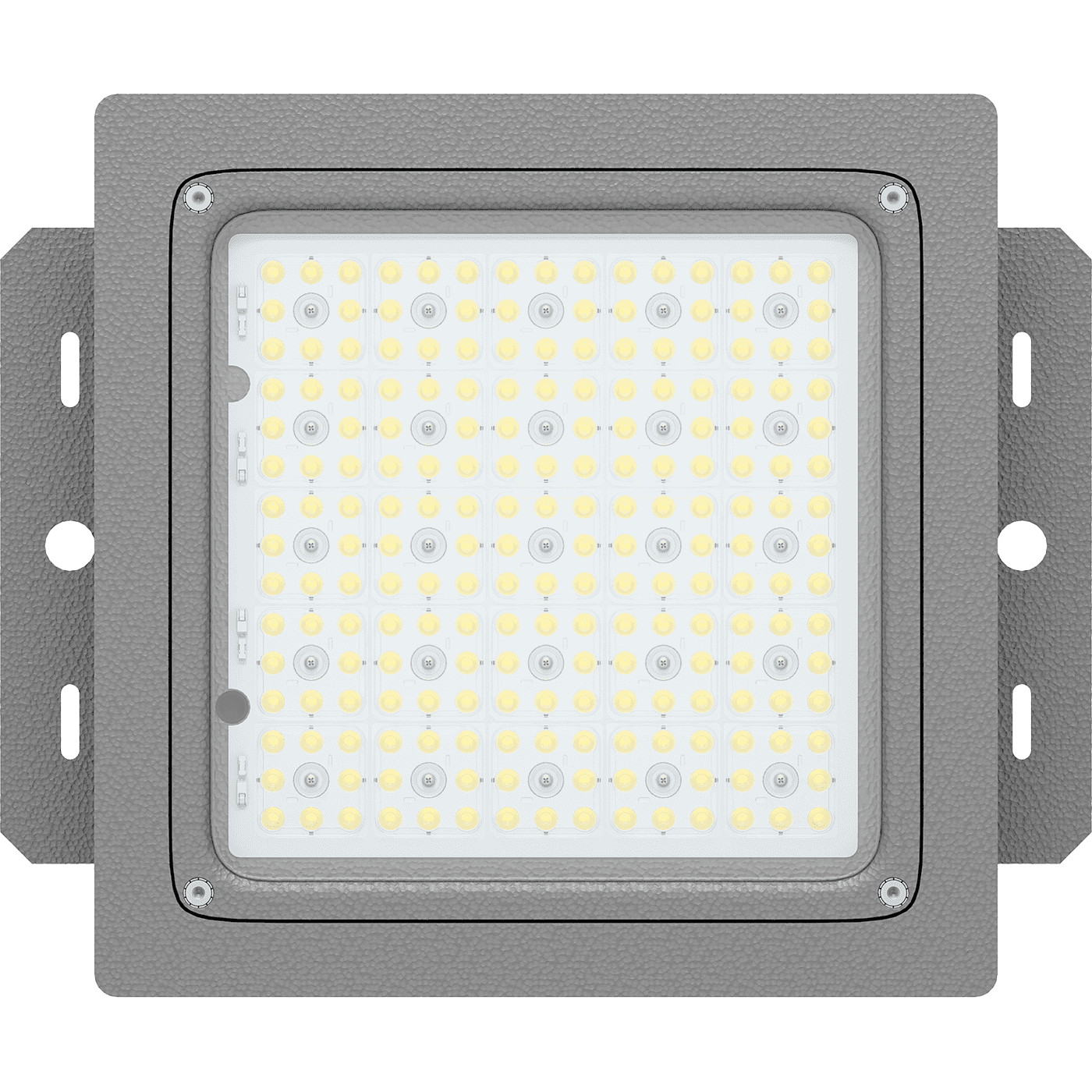

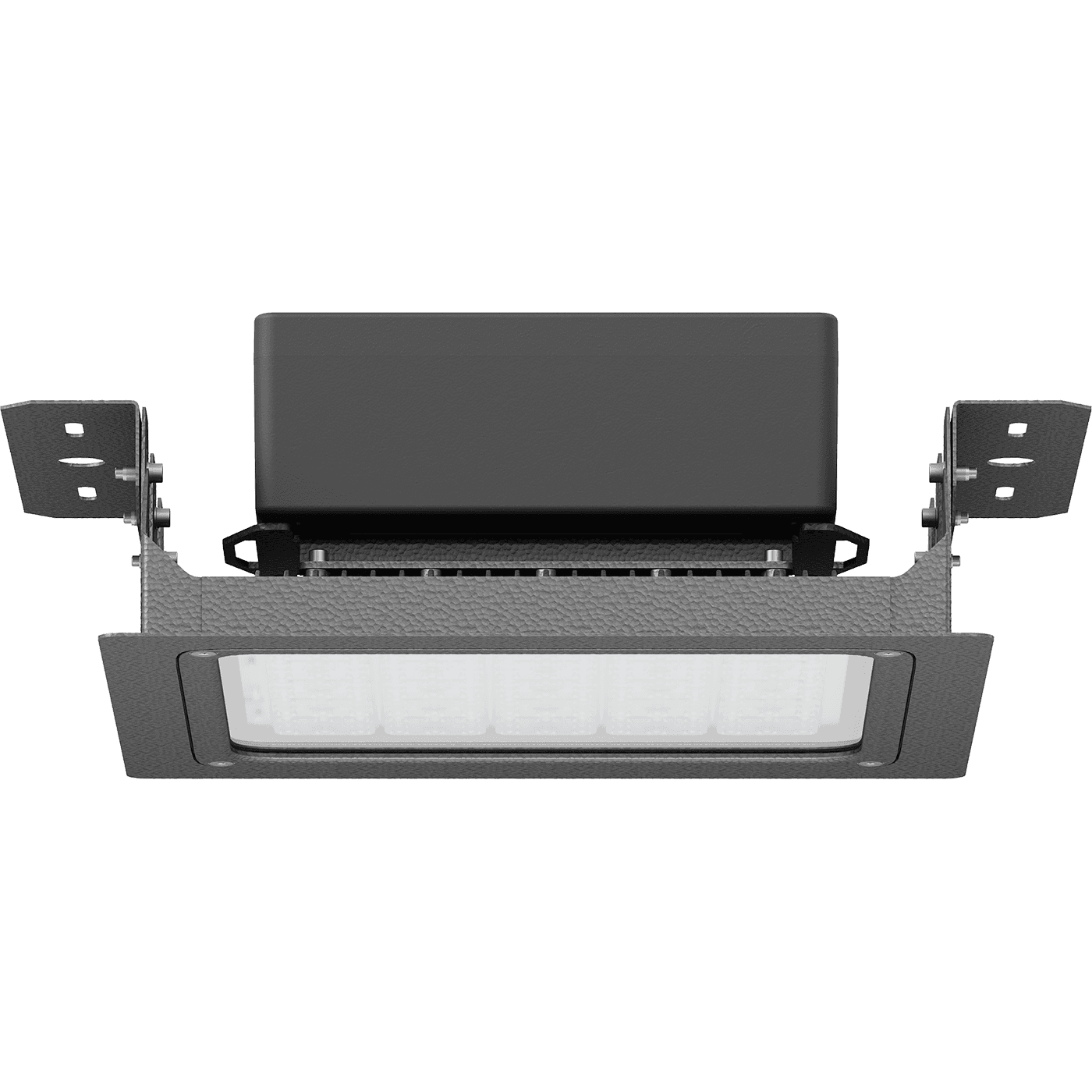

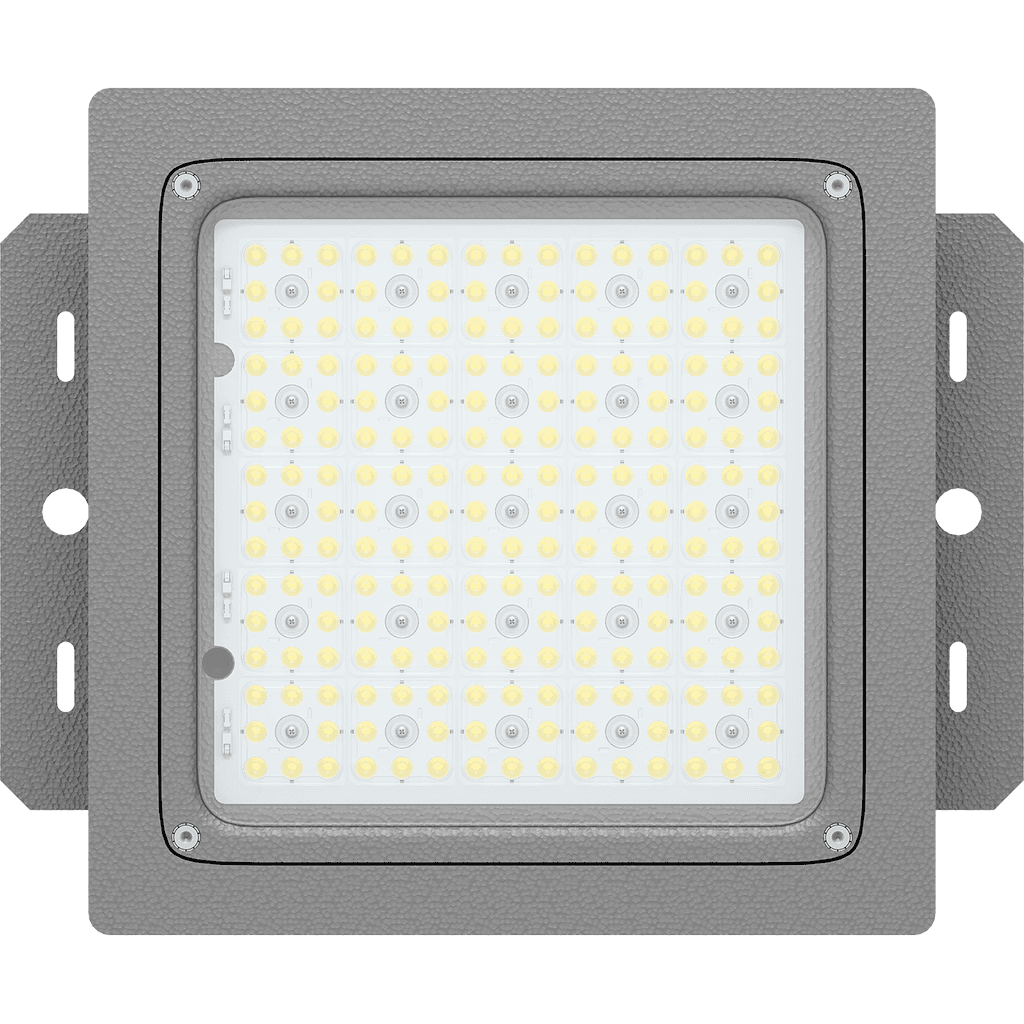

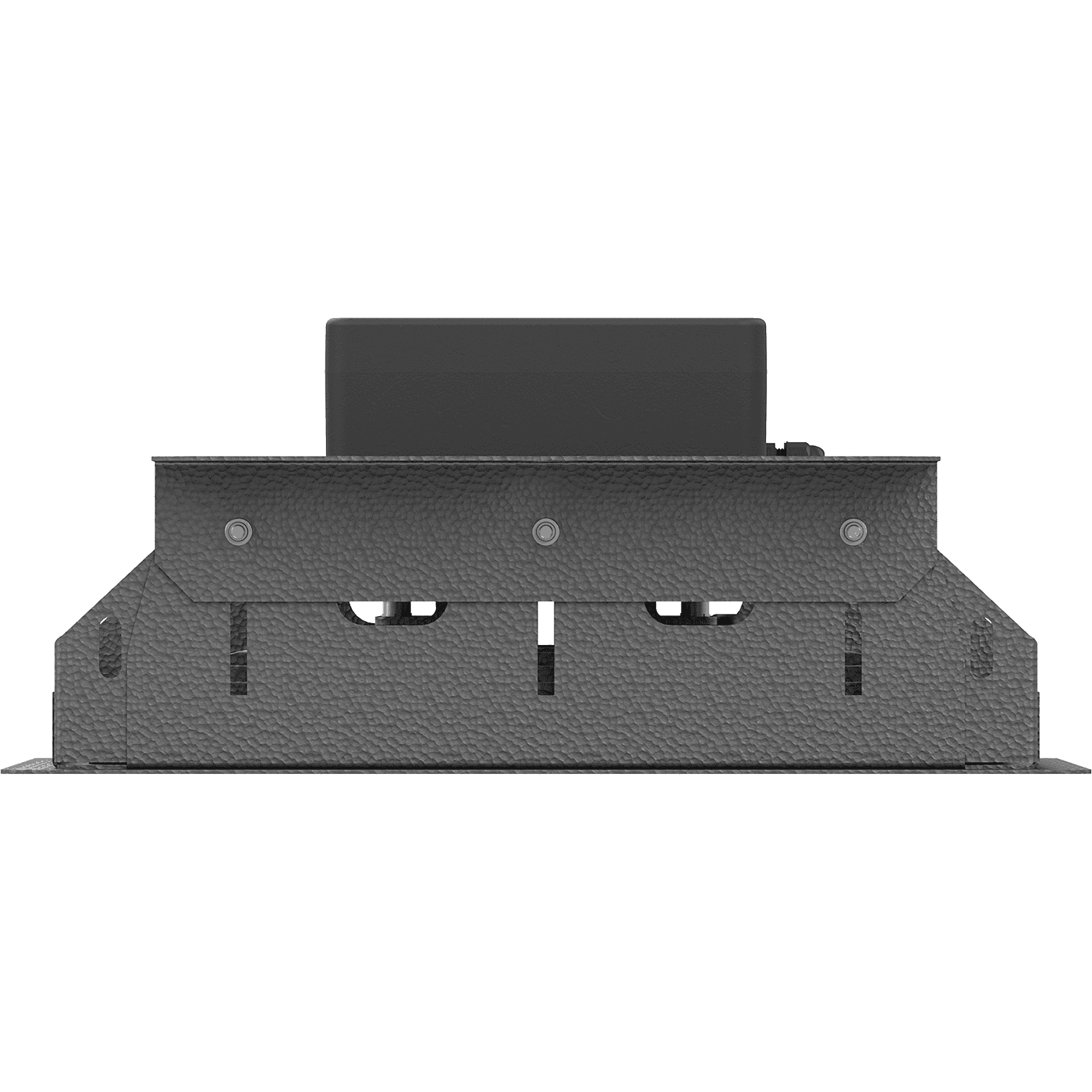

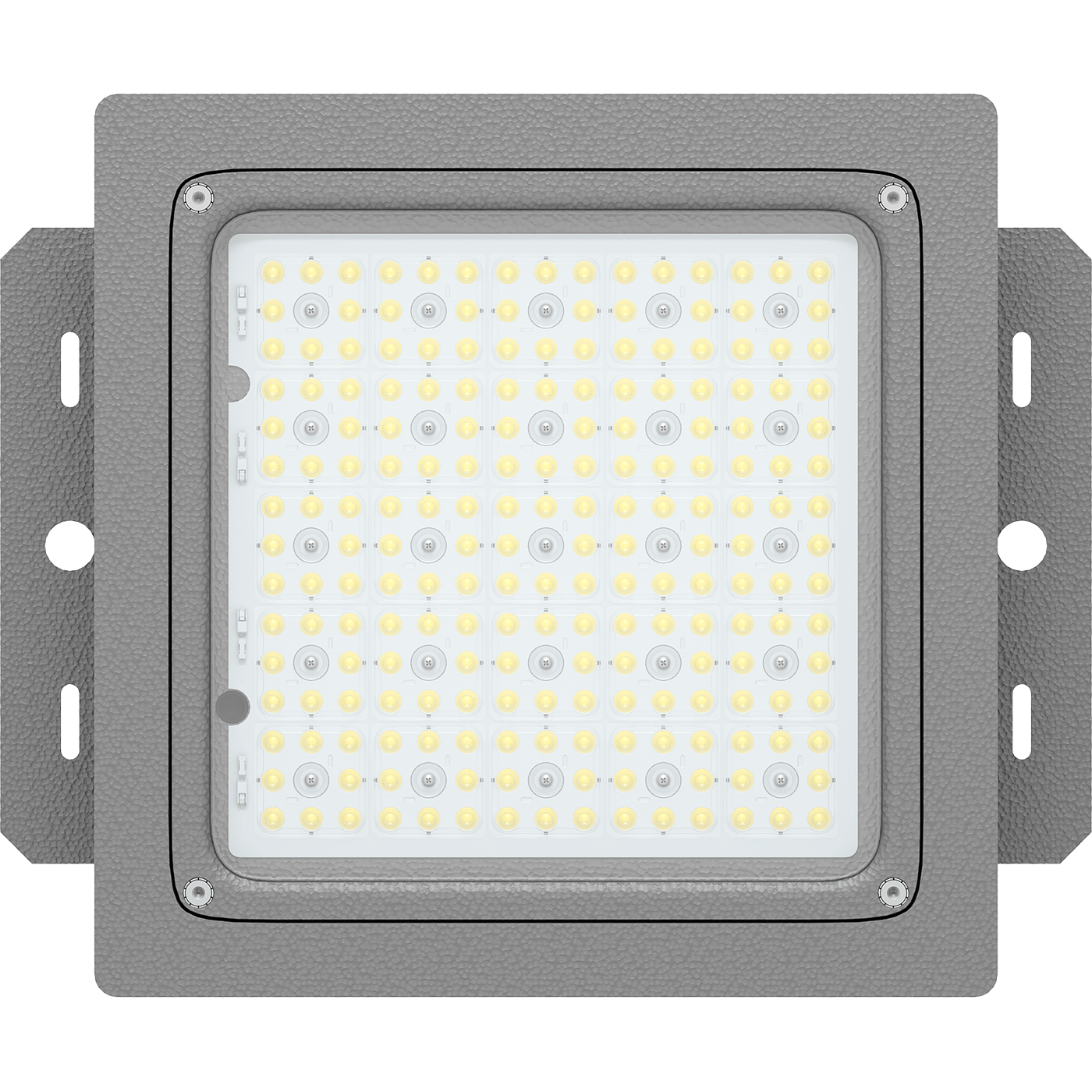

FLAT LB/R LED 100 D65 Ex 5000K

FLAT LB/R LED 100 D65 Ex 5000K
102 Wluminaire power
13600 lmlight flow
133 lm/Wenergy efficiency
code1332000930
color temperature5000 K
beam angleD65
options
свернуть все
illuminatingelectricalconstructionalcommon
emission color
Белый
light source type
LED
light flow
13600 lm
color rendition index (CRI)
>80
flickering factor
<1%
energy efficiency
133 lm/W
beam angle
D65
color temperature
5000 K
illuminating
emission color
Белый
light source type
LED
light flow
13600 lm
color rendition index (CRI)
>80
flickering factor
<1%
energy efficiency
133 lm/W
beam angle
D65
color temperature
5000 K
electrical
luminaire power
102 W
electric shock protection
I
power factor
> 0,96
maximum cross-section of the connected cable
2.5 mm2
starting current
50 A
supply voltage
230 V
starting current pulse time
500 µs
constructional
ingress protection (IP)
IP66
shock resistance (IK)
IK08/7 Дж
climatic performance
УХЛ1*
fire safety class
П-ІІа
length
480 mm
width
390 mm
height
130 mm
installation width
360 mm
material
Сплав алюминиевый
housing color
Серый
weight
12.3 kg
common
code
1332000930
ETIM class
Светильник взрывобезопасный/взрывозащищенный стационарный (фиксиров. установки)
energy efficiency class
A+
service life
50 000 h
temperature range
от -60 до +55 C
model files
model files
CAD/BIM files
model 3dMax1.7 mB

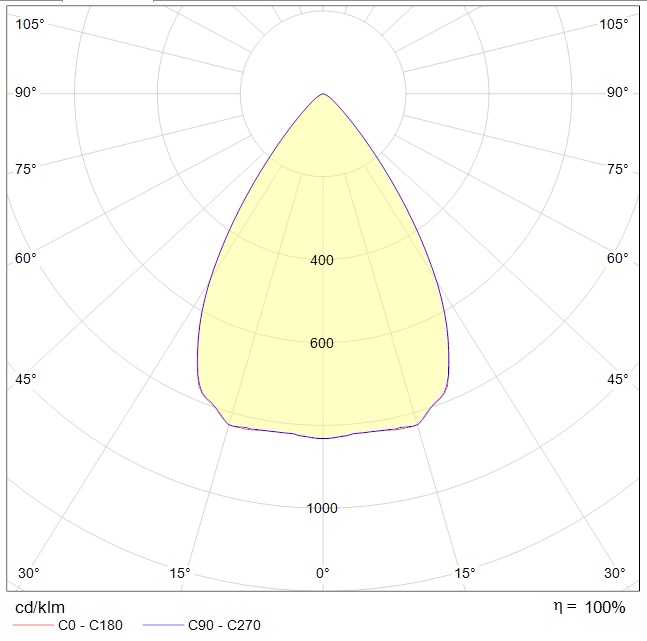

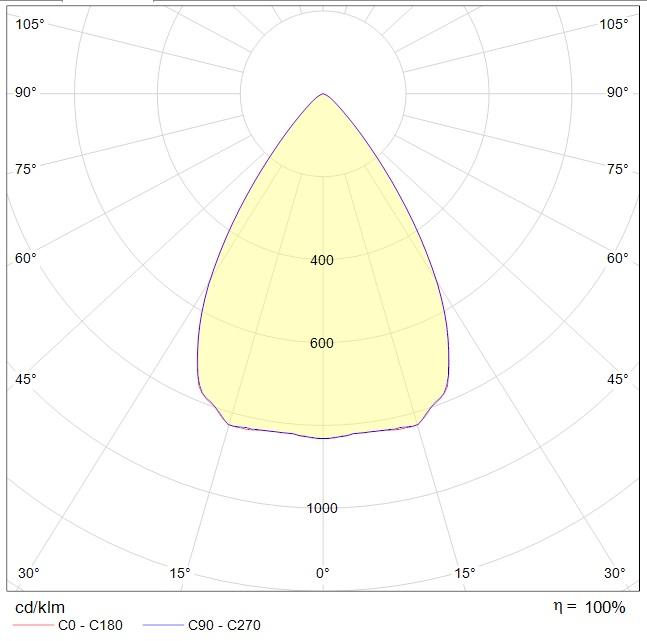

photometric files
ies134.1 kB
jpg59.8 kB
ldt80.1 kB
documents
passport851.7 kB
сертификаты
Certificate of Russian maritime register of shipping1.5 mB
INTERGASSERT373.2 kB
Certificate of conformity TRTS 012/2011389.4 kB
Declaration of Conformity TRTS 020/2011201.4 kB
Declaration of Conformity EAEU TR 037/2016197.5 kB
CAD/BIM files
model 3dMax1.7 mB
photometric files
ies134.1 kB
jpg59.8 kB
ldt80.1 kB
documents
passport851.7 kB
сертификаты
Certificate of Russian maritime register of shipping1.5 mB
INTERGASSERT373.2 kB
Certificate of conformity TRTS 012/2011389.4 kB
Declaration of Conformity TRTS 020/2011201.4 kB
Declaration of Conformity EAEU TR 037/2016197.5 kB
