FLASH LED-48Y Ex
FLASH LED-48Y Ex
5 Wluminaire power
500 lmlight flow
100 lm/Wenergy efficiency
code1591000190
gas marking1 Ex db IIC T6 Gb
dust markingEx tb IIIC T80 C Db
weight2.5 kg
options
свернуть все
illuminatingelectricalconstructionalexplosion-proofcommon
Synchronization of flashing mode
Нетcolor rendition index (CRI)
>70light flow
500 lmenergy efficiency
100 lm/Wlight source type
LEDemission color
Желтыйilluminating
Synchronization of flashing mode
Нет
color rendition index (CRI)
>70
light flow
500 lm
energy efficiency
100 lm/W
light source type
LED
emission color
Желтый
electrical
electric shock protection
I
luminaire power
5 W
power factor
> 0,95
constructional
weight
2.5 kg

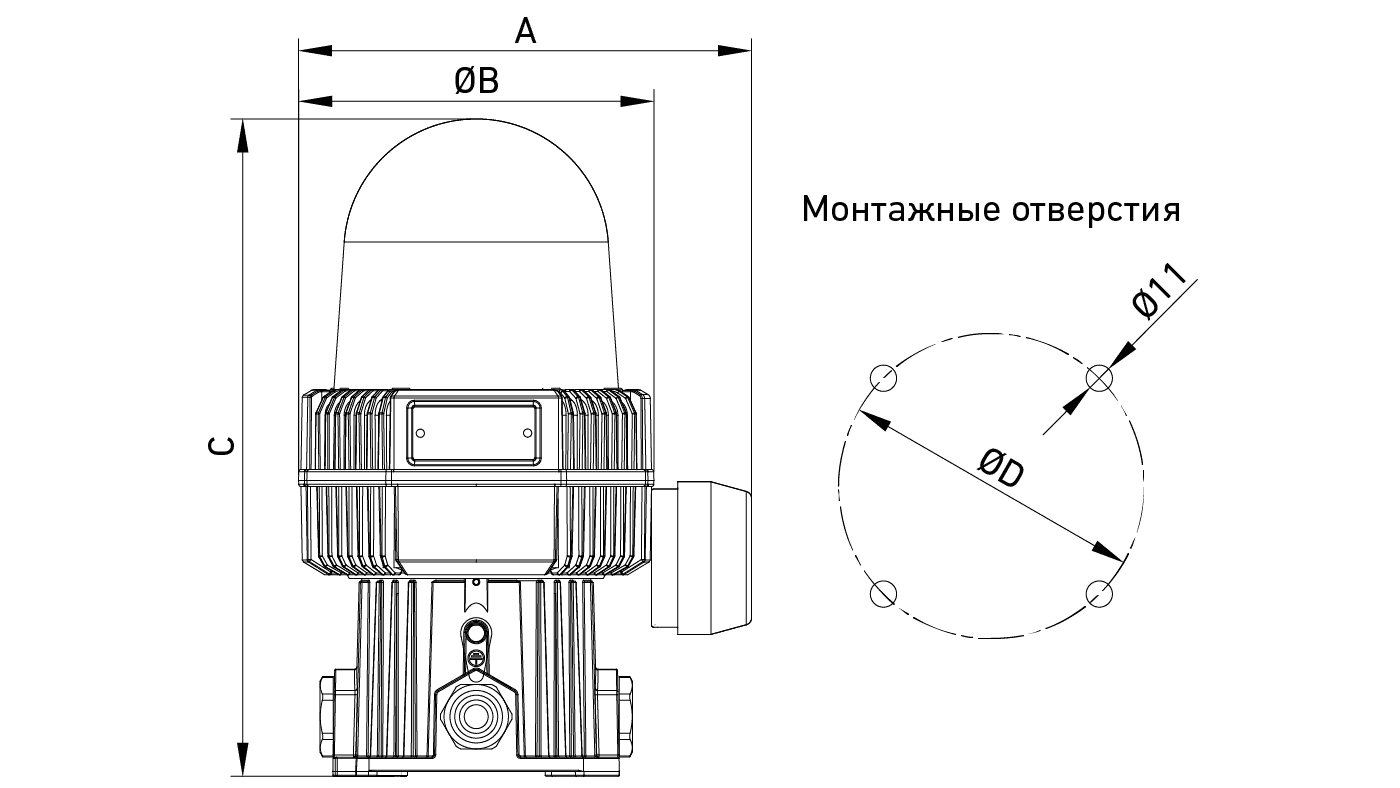

diameter
146 mm
height
230 mm
installation diameter
116 mm
material
Сплав алюминиевый
fire safety class
П-ІІа
climatic performance
УХЛ1*
shock resistance (IK)
IK08/7 Дж
housing color
Серый
explosion-proof
gas marking
1 Ex db IIC T6 Gb
dust marking
Ex tb IIIC T80 C Db
gas explosion-proof (type)
Ex db
gas explosion-proof (zones)
1
gas explosion-proof (groups of equipment)
IIC
T6 - temperature class
T6
common
code
1591000190
warranty
36 month
temperature range
от -60 до +55 C
energy efficiency class
A+
ETIM class
Светильник взрывобезопасный/взрывозащищенный стационарный (фиксиров. установки)
model files
model files
сертификаты
сертификаты
Certificate of Russian maritime register of shipping1.5 mB
Declaration of Conformity TRTS 020/2011201.4 kB
Certificate of seismic resistance834.7 kB
Declaration of Conformity EAEU TR 037/2016197.5 kB
accessories
Cable entry explosion-proof М25х1,5 DSA2MBNS0.164kgarticle: 2327010070color: Неокрашенныйø cable internal: 11,3-19,9ø cable external: 19,9-26,2
Муфта переходная М25(П)/М20(М) LT-B-RA2M1MBN 0.1kgarticle: 2327017820color: Неокрашенный
Ввод кабельный взрывозащищенный М20х1,5 DSA1SMXS0.15kgarticle: 2327010140color: Неокрашенныйø cable internal: 6,5-10,5ø cable external: 9,0-16,0
