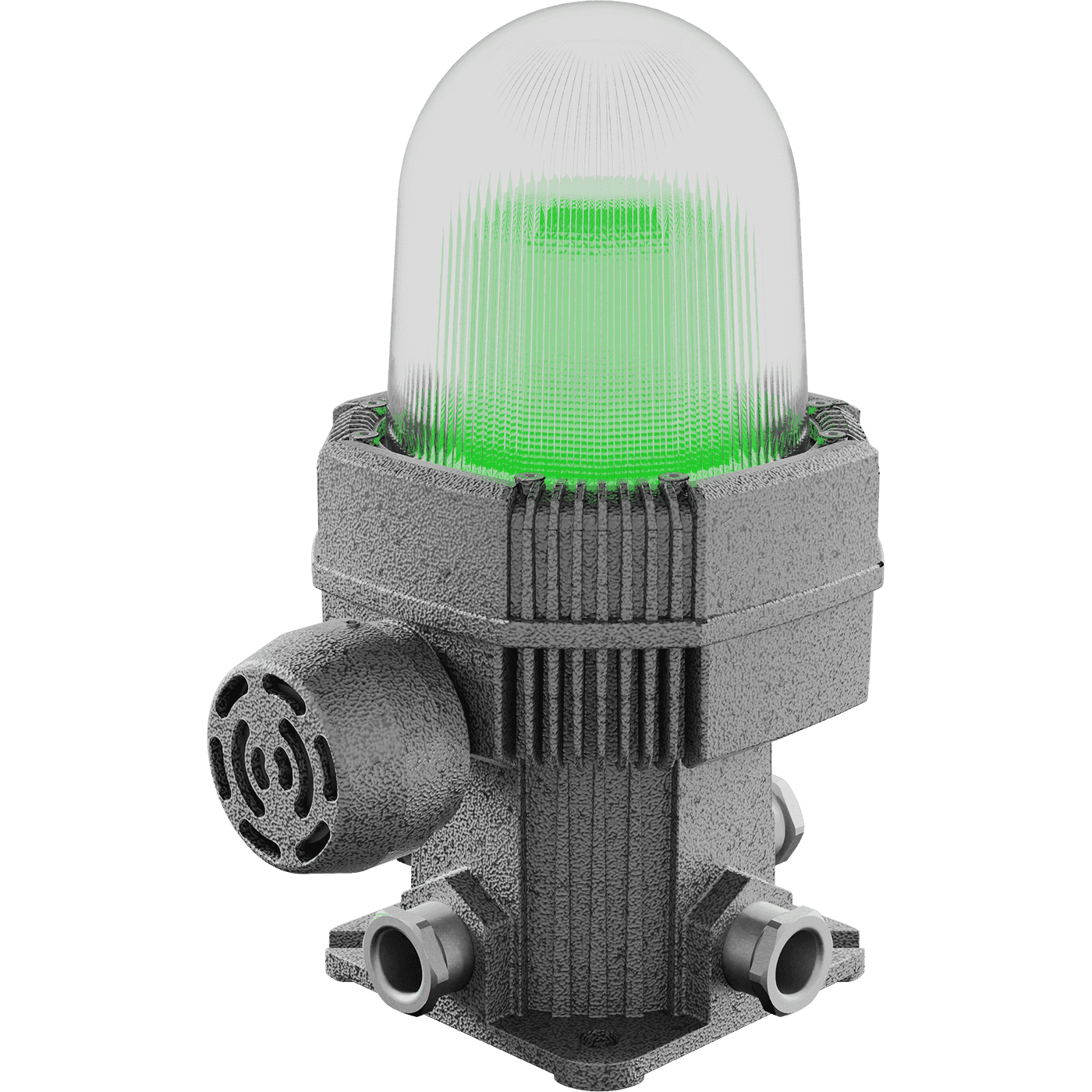

FLASH LED-220GS Ex

model is discontinued
model is discontinued
FLASH LED-220GS Ex
add to favorites
5 Wluminaire power
500 lmlight flow
100 lm/Wenergy efficiency
code4591000060
gas marking1 Ex db ib IIC T6 Gb
dust markingEx tb IIIC T80 C Db
weight2.5 kg
  1. main page
  2. catalog
  3. by product type
  4. explosion-proof equipment
  5. explosion-proof lamps
  6. zone 1
  7. FLASH LED
  8. FLASH LED-220GS Ex
options
свернуть все
illuminatingelectricalconstructionalexplosion-proofcommon
Synchronization of flashing mode
Нет
color rendition index (CRI)
>70
light flow
500 lm
energy efficiency
100 lm/W
light source type
LED
emission color
Зеленый
illuminating
Synchronization of flashing mode
Нет
color rendition index (CRI)
>70
light flow
500 lm
energy efficiency
100 lm/W
light source type
LED
emission color
Зеленый
electrical
electric shock protection
I
supply voltage, alternating current
230-240 V
luminaire power
5 W
power factor
> 0,95
constructional
weight
2.5 kg
diameter
146 mm
height
230 mm
installation diameter
116 mm
material
Сплав алюминиевый
fire safety class
П-ІІа
climatic performance
УХЛ1
shock resistance (IK)
IK08/7 Дж
housing color
Серый
explosion-proof
gas marking
1 Ex db ib IIC T6 Gb
dust marking
Ex tb IIIC T80 C Db
gas explosion-proof (type)
Ex d ib
gas explosion-proof (zones)
1
gas explosion-proof (groups of equipment)
IIC
T6 - temperature class
T6
common
code
4591000060
warranty
36 month
temperature range
от -60 до +55 C
energy efficiency class
A+
ETIM class
Светильник взрывобезопасный/взрывозащищенный стационарный (фиксиров. установки)
model files
model files
CAD/BIM files
model 3dMax3 mB
сертификаты
Certificate of Russian maritime register of shipping1.5 mB
Certificate of conformity TRTS 012/2011412.9 kB
Declaration of Conformity TRTS 020/2011201.4 kB
Certificate of seismic resistance834.7 kB
Declaration of Conformity EAEU TR 037/2016197.5 kB
Fire Safety Certificate922.7 kB
CAD/BIM files
model 3dMax3 mB
сертификаты
Certificate of Russian maritime register of shipping1.5 mB
Certificate of conformity TRTS 012/2011412.9 kB
Declaration of Conformity TRTS 020/2011201.4 kB
Certificate of seismic resistance834.7 kB
Declaration of Conformity EAEU TR 037/2016197.5 kB
Fire Safety Certificate922.7 kB
accessories
Cable entry explosion-proof М25х1,5 DSA2SMBNS0.19kgarticle: 2327017400color: Неокрашенныйø cable internal: 10,0-14,5ø cable external: 12,5-20,5
Cable entry explosion-proof М25х1,5 DSA2MBNS0.164kgarticle: 2327010070color: Неокрашенныйø cable internal: 11,3-19,9ø cable external: 19,9-26,2
