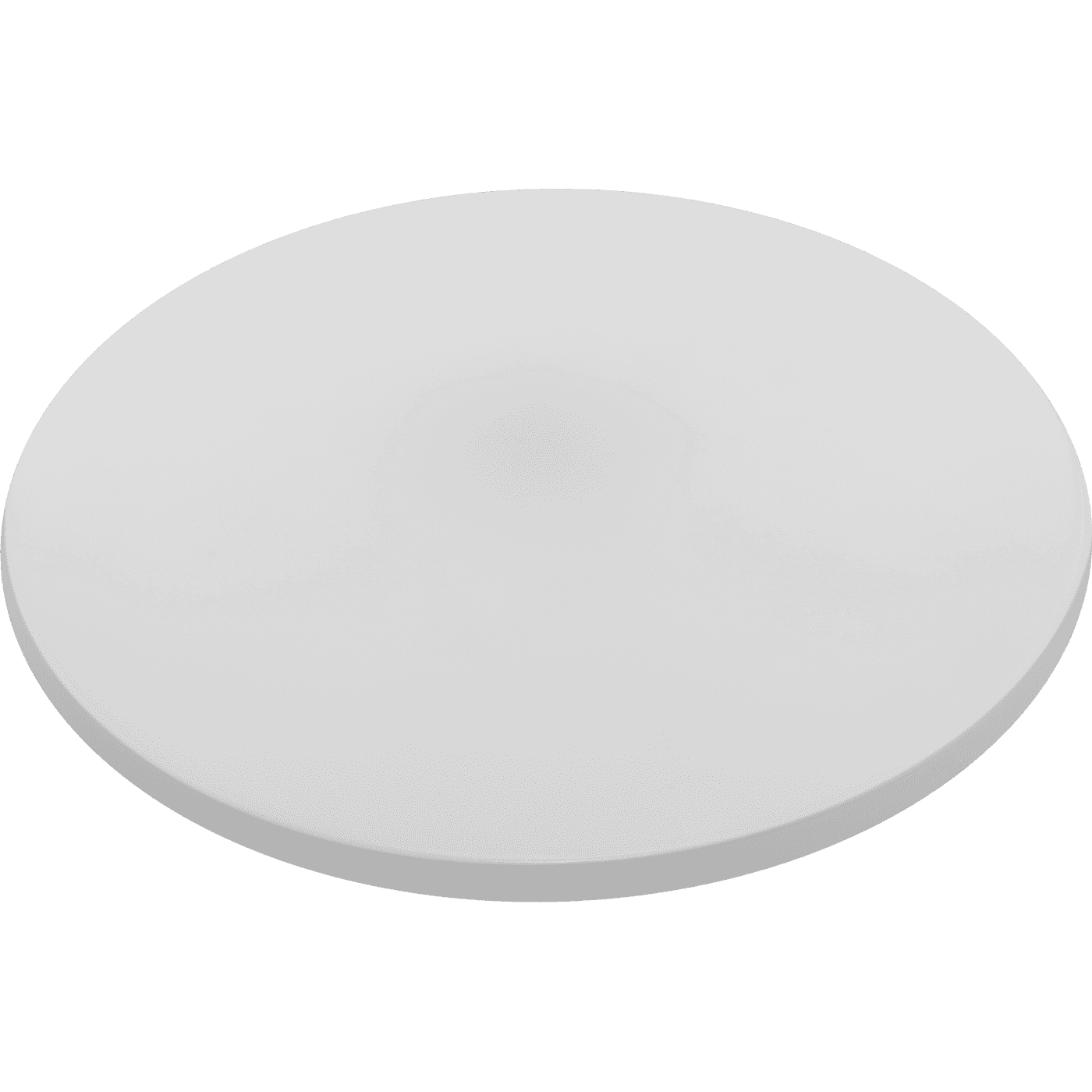

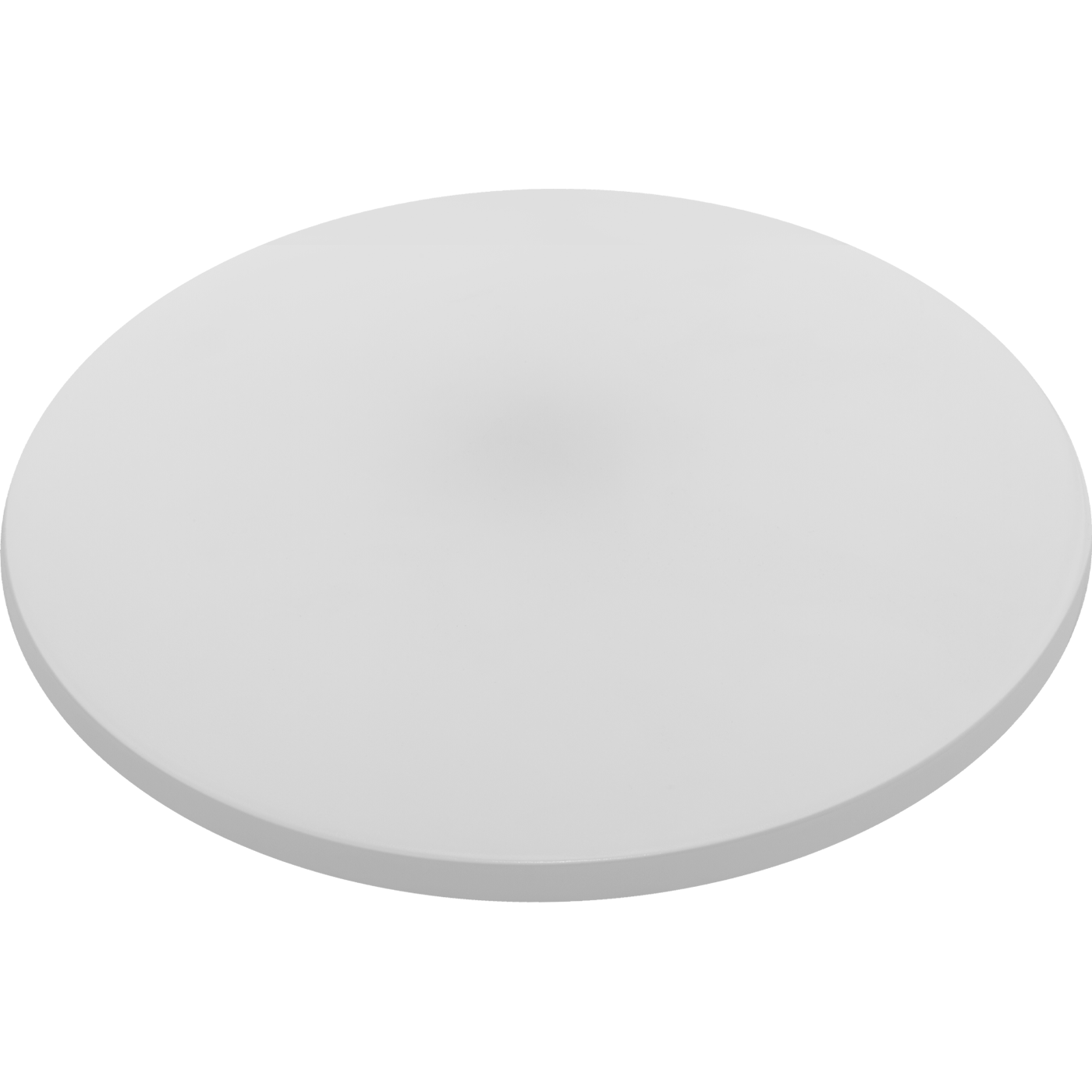

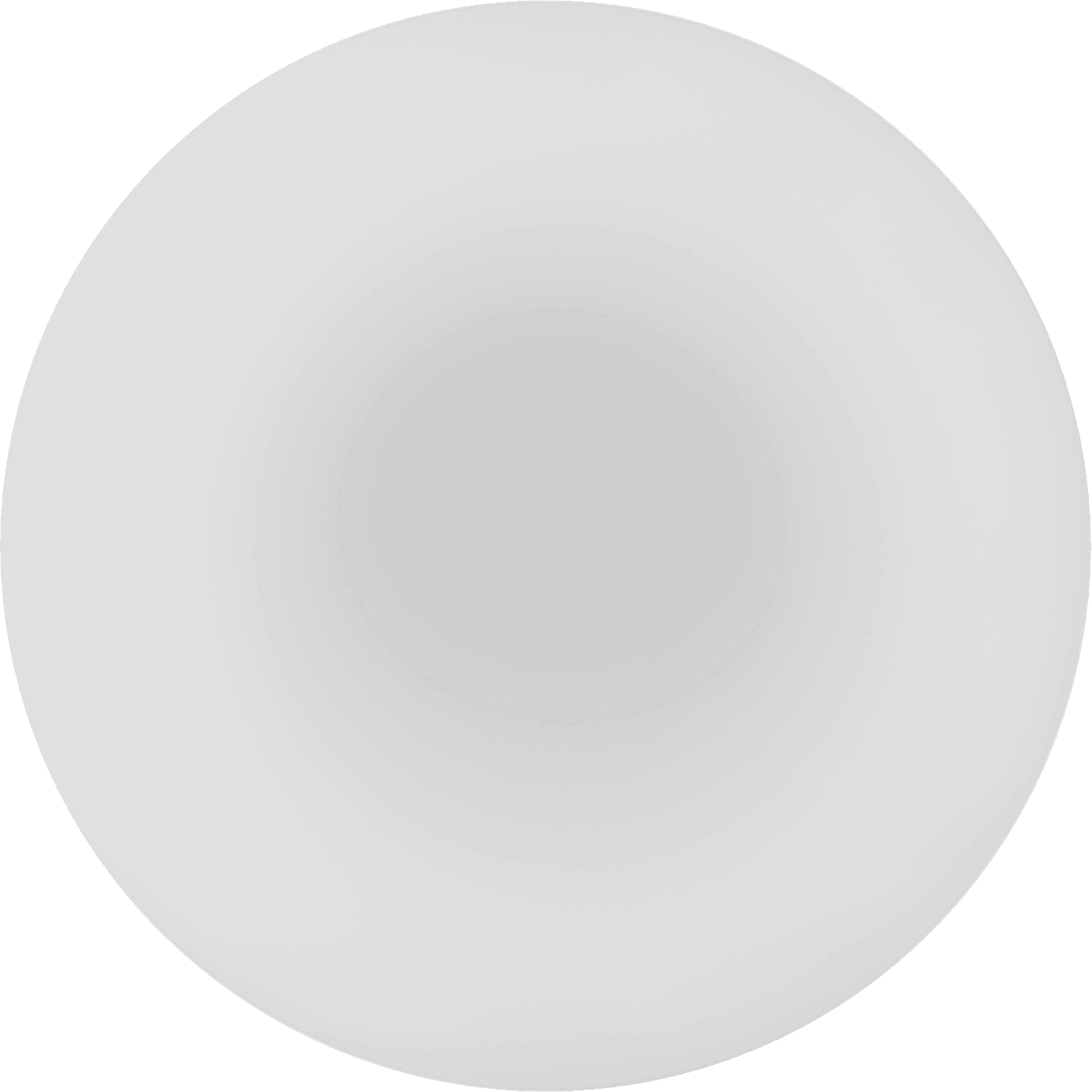

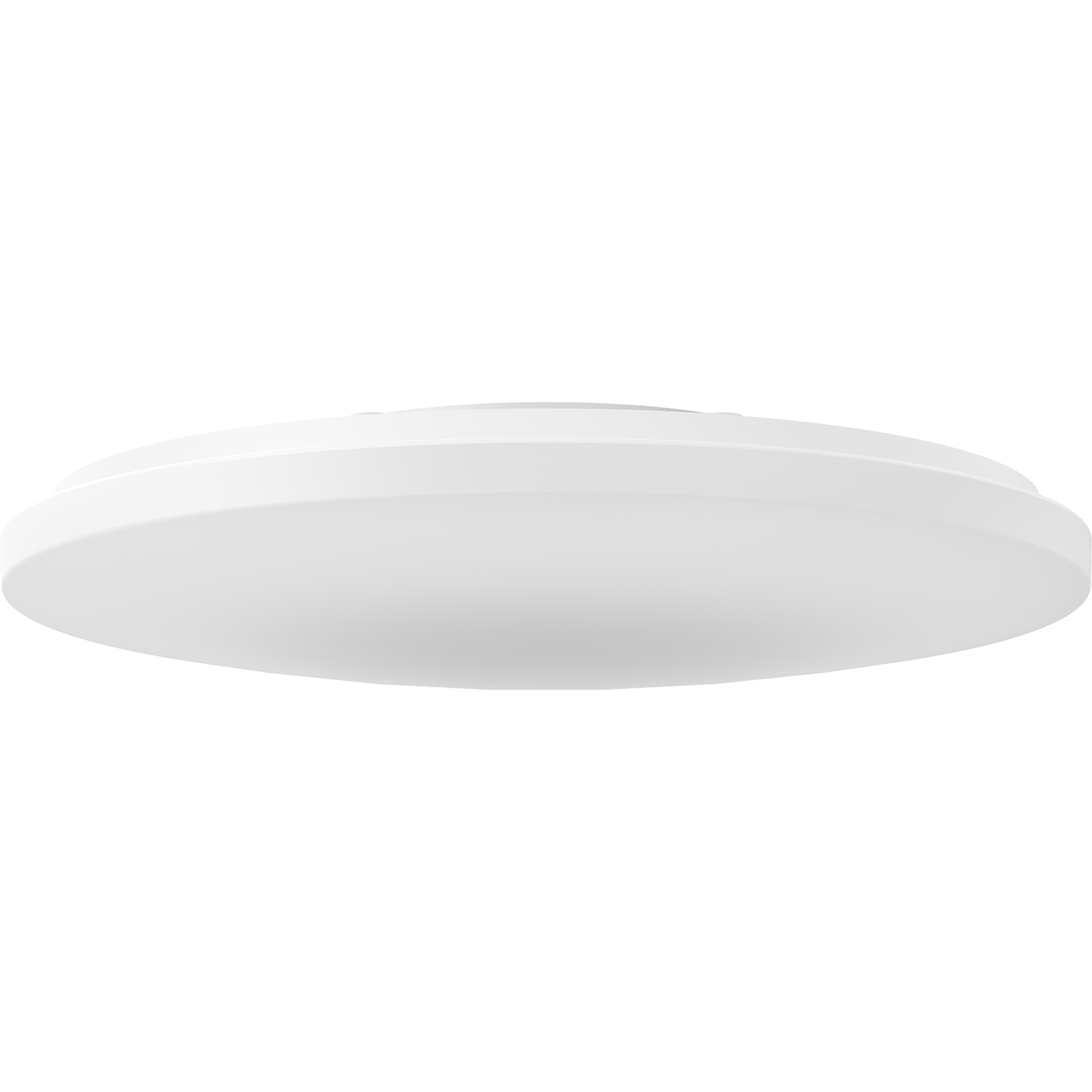

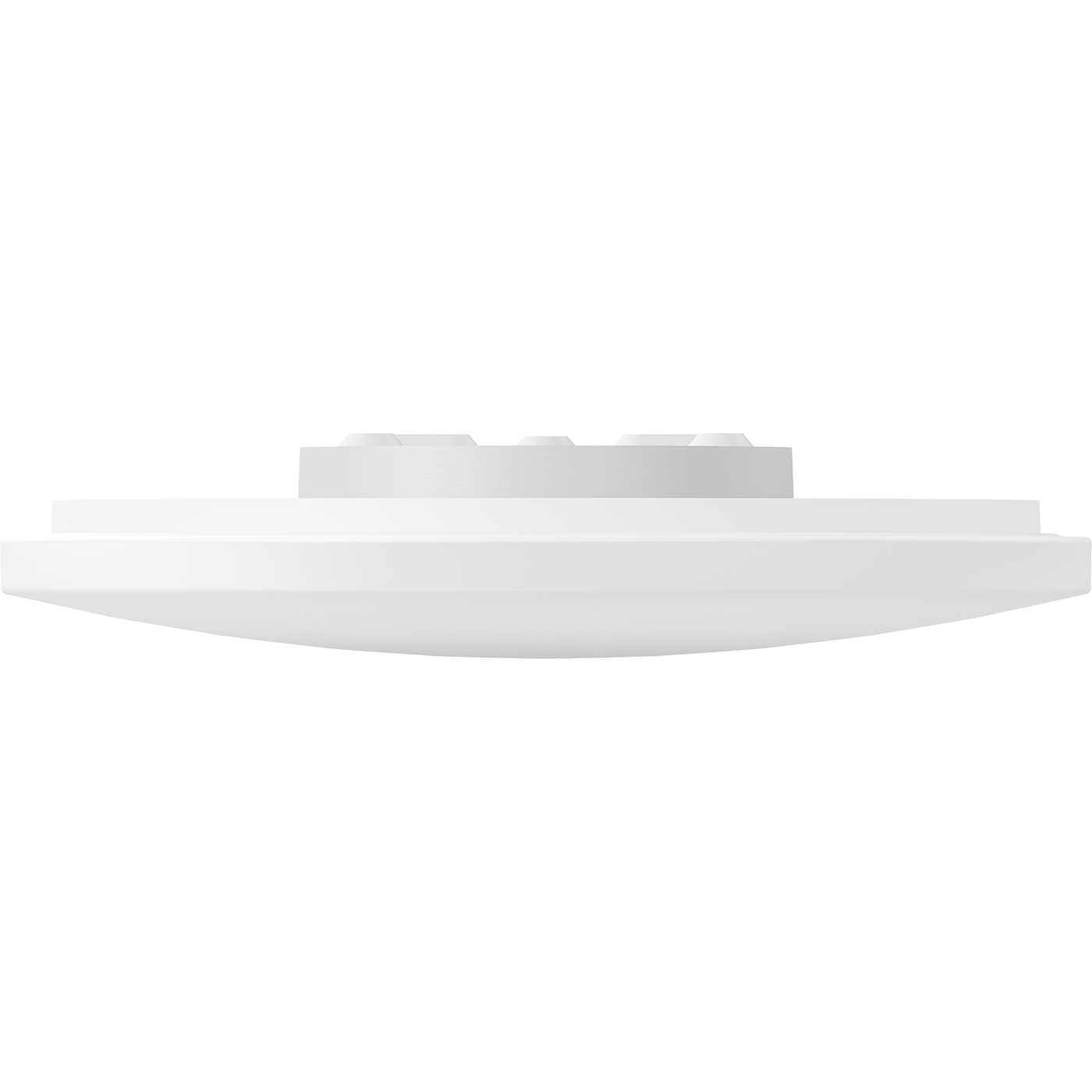

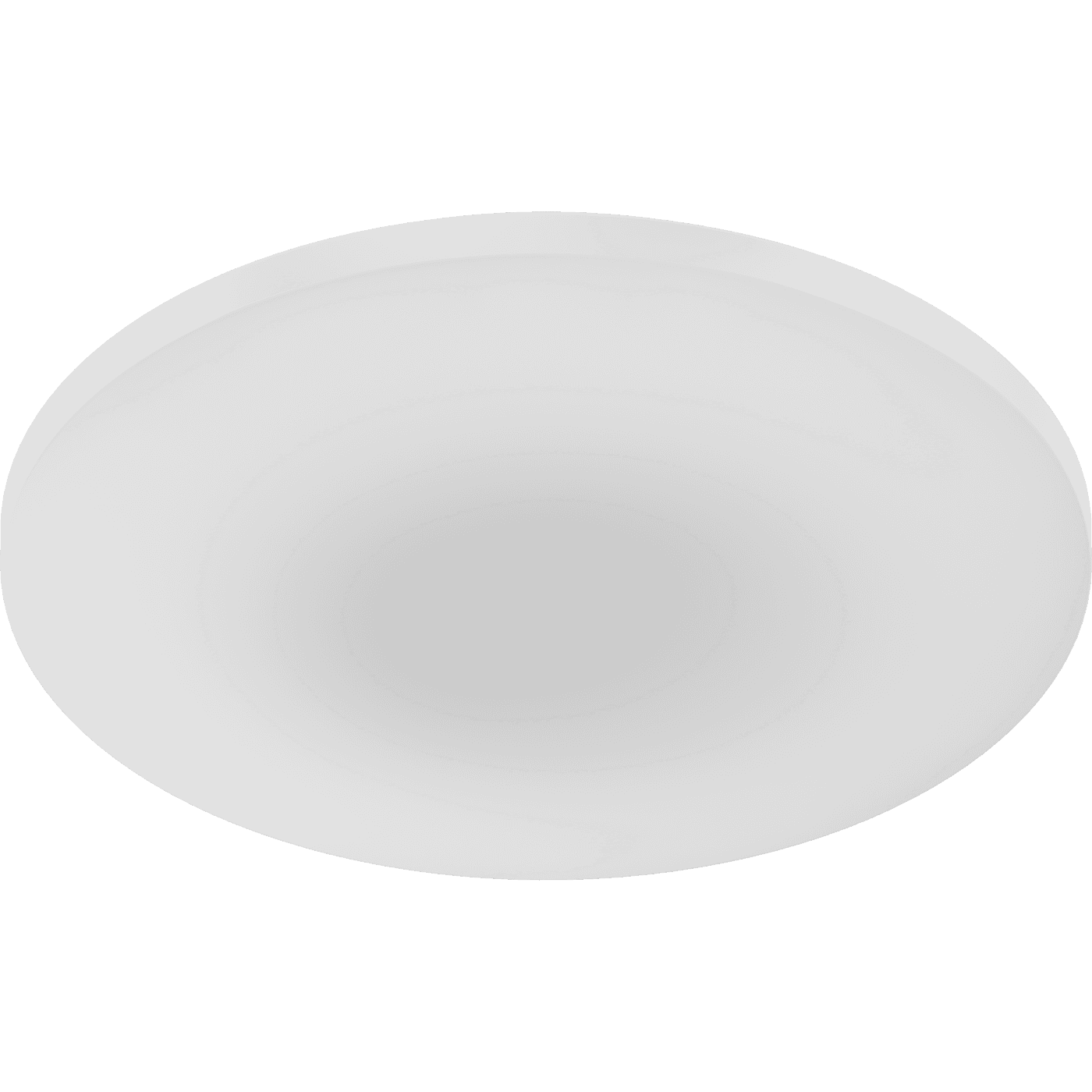

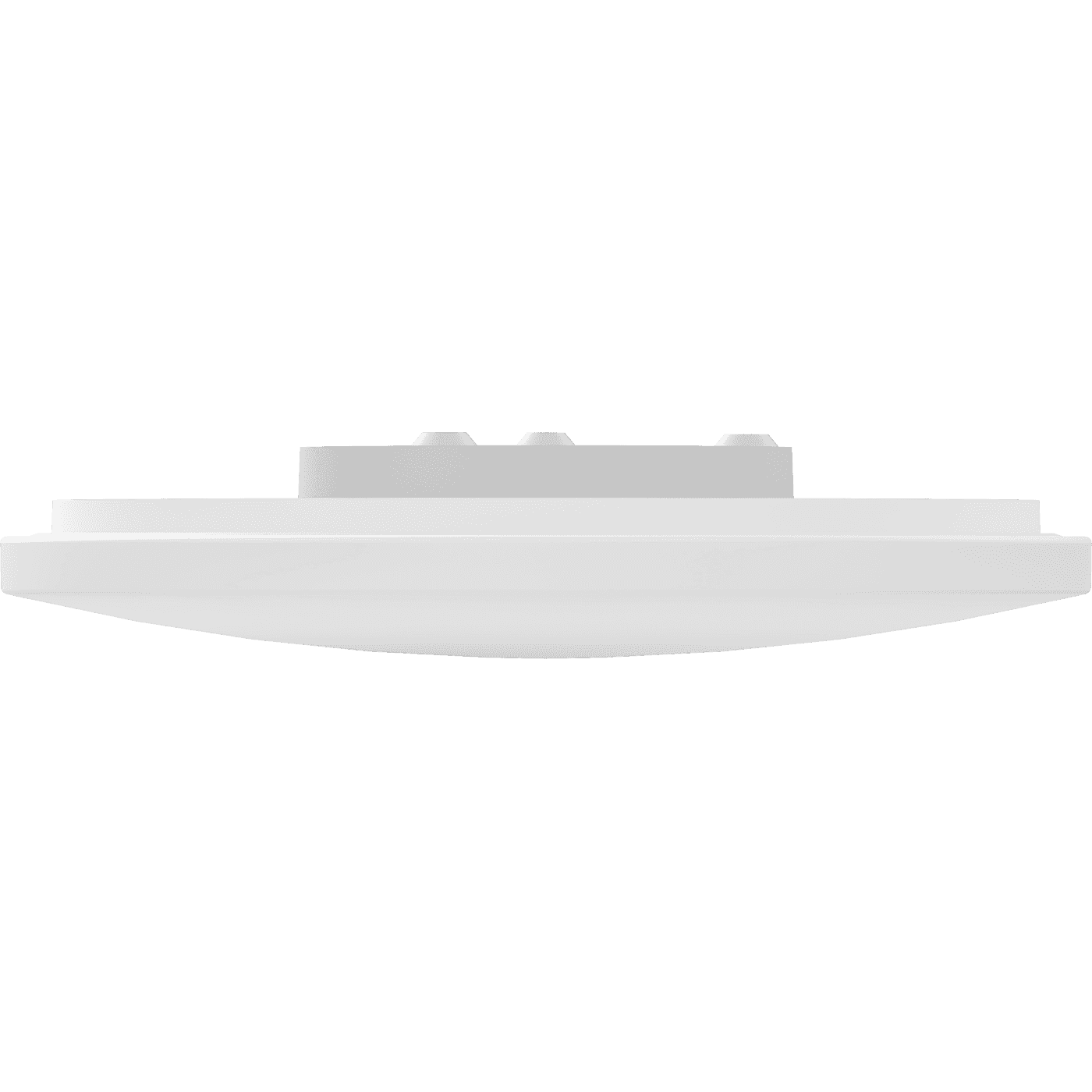

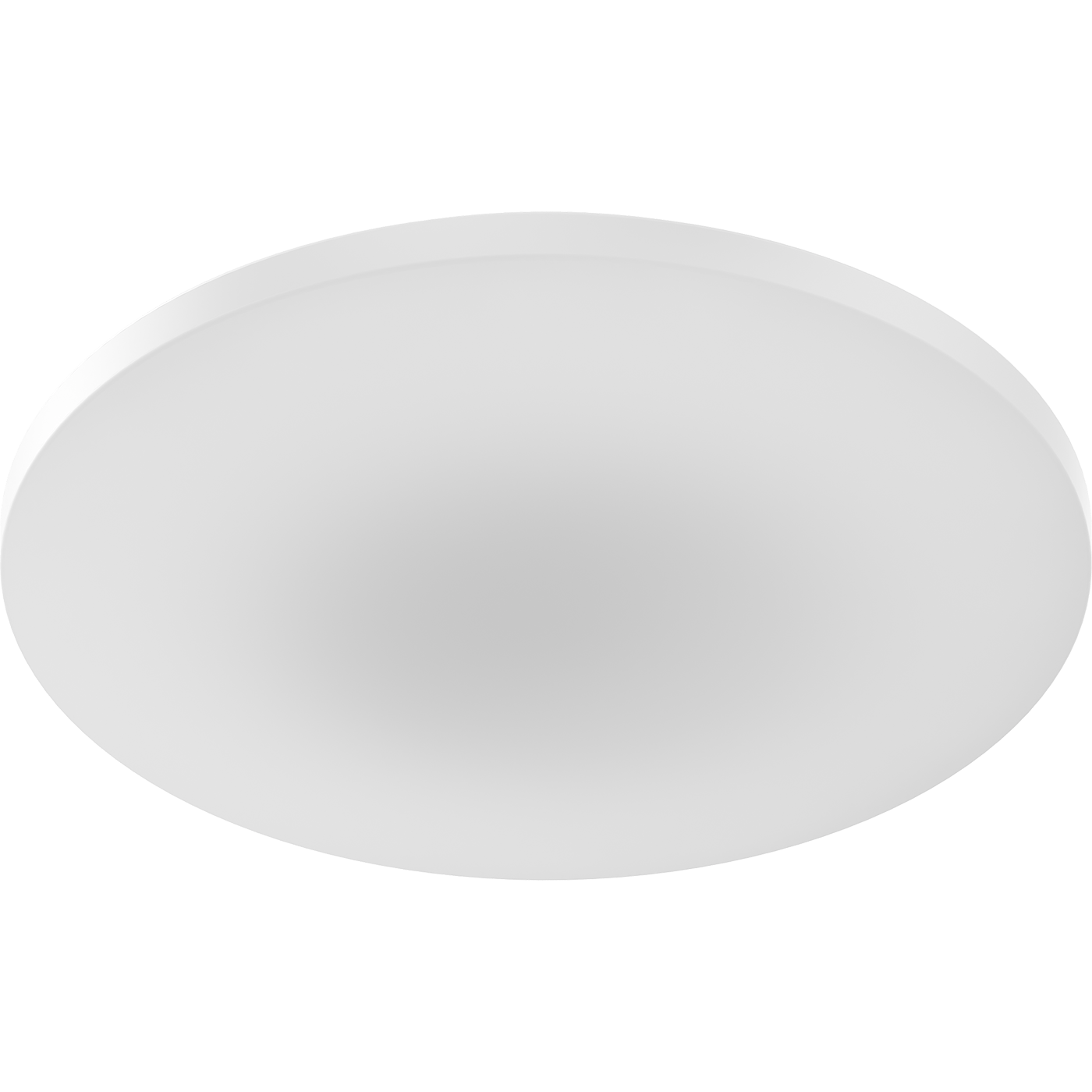

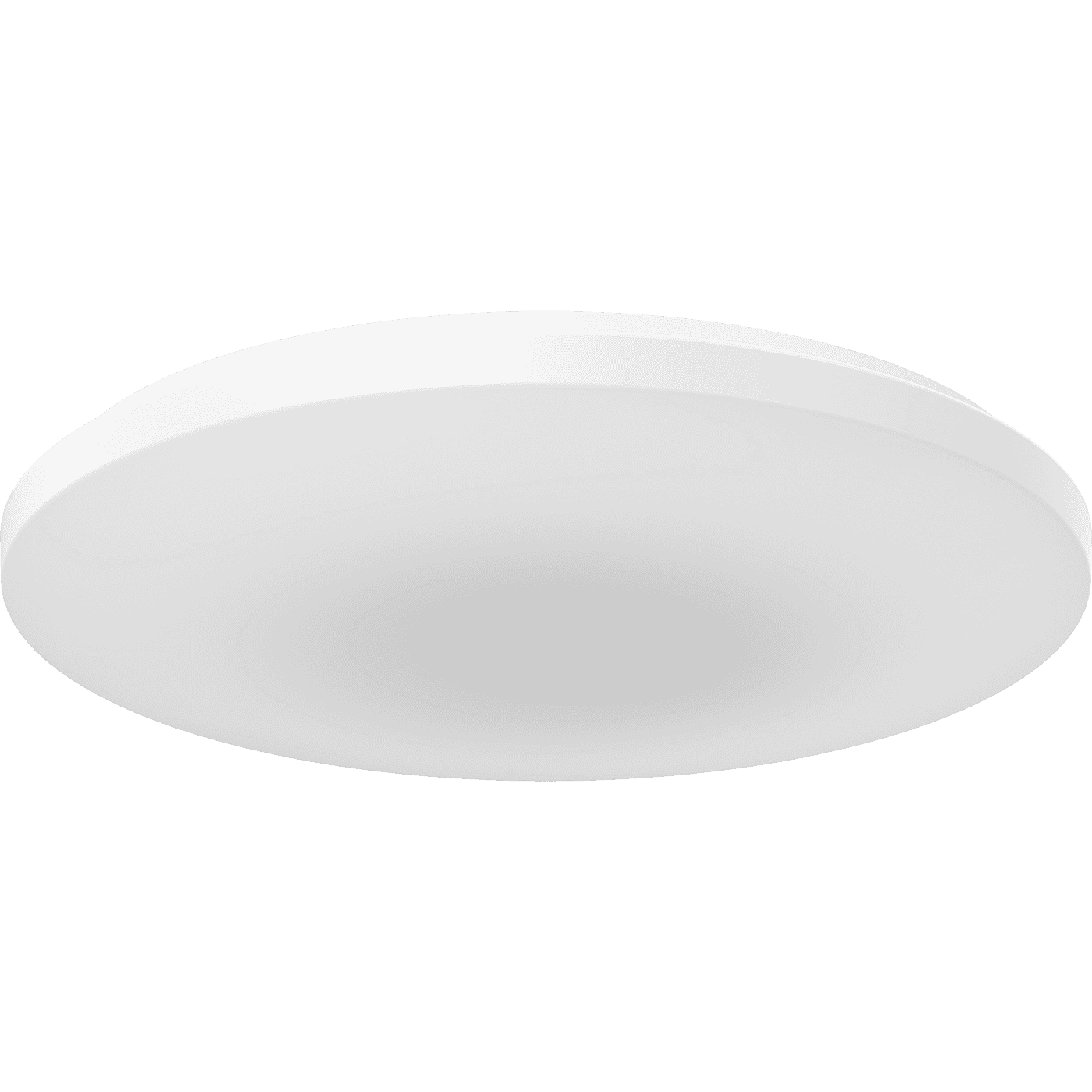

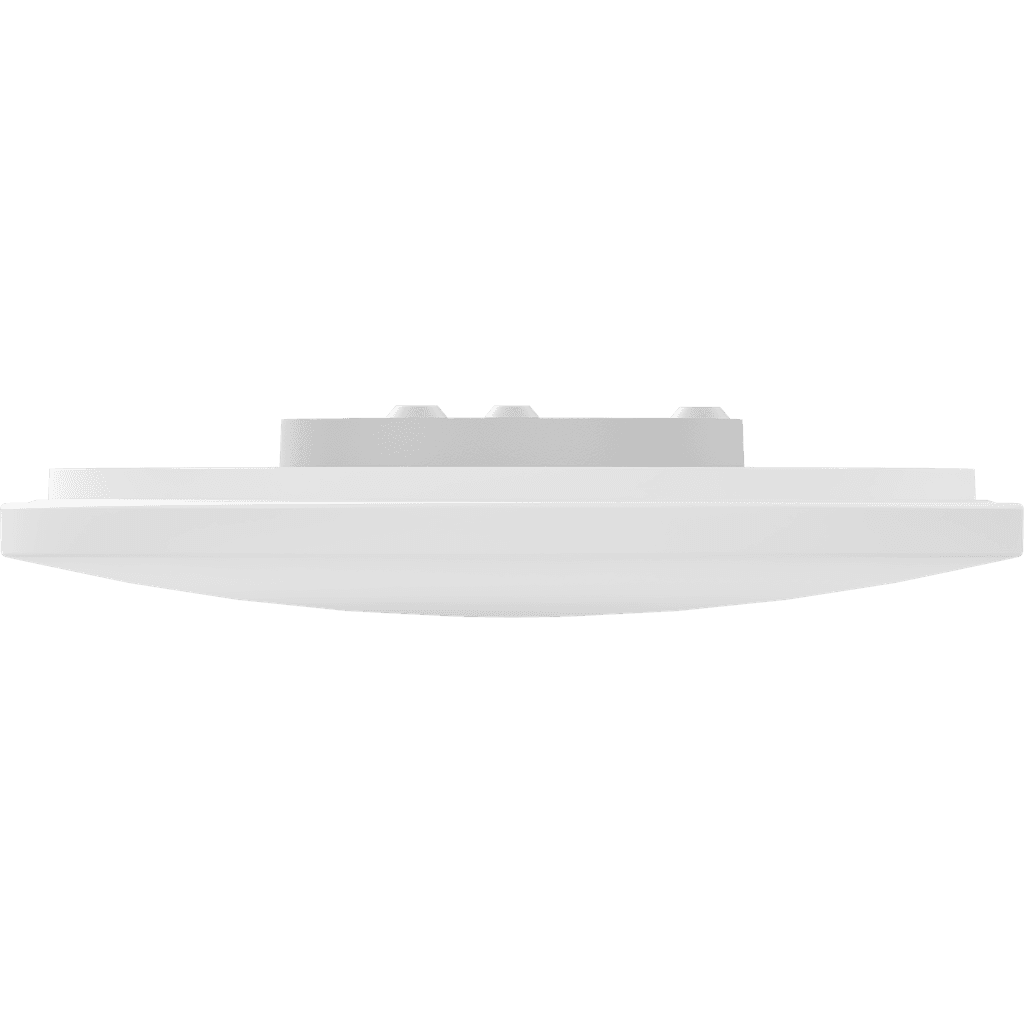

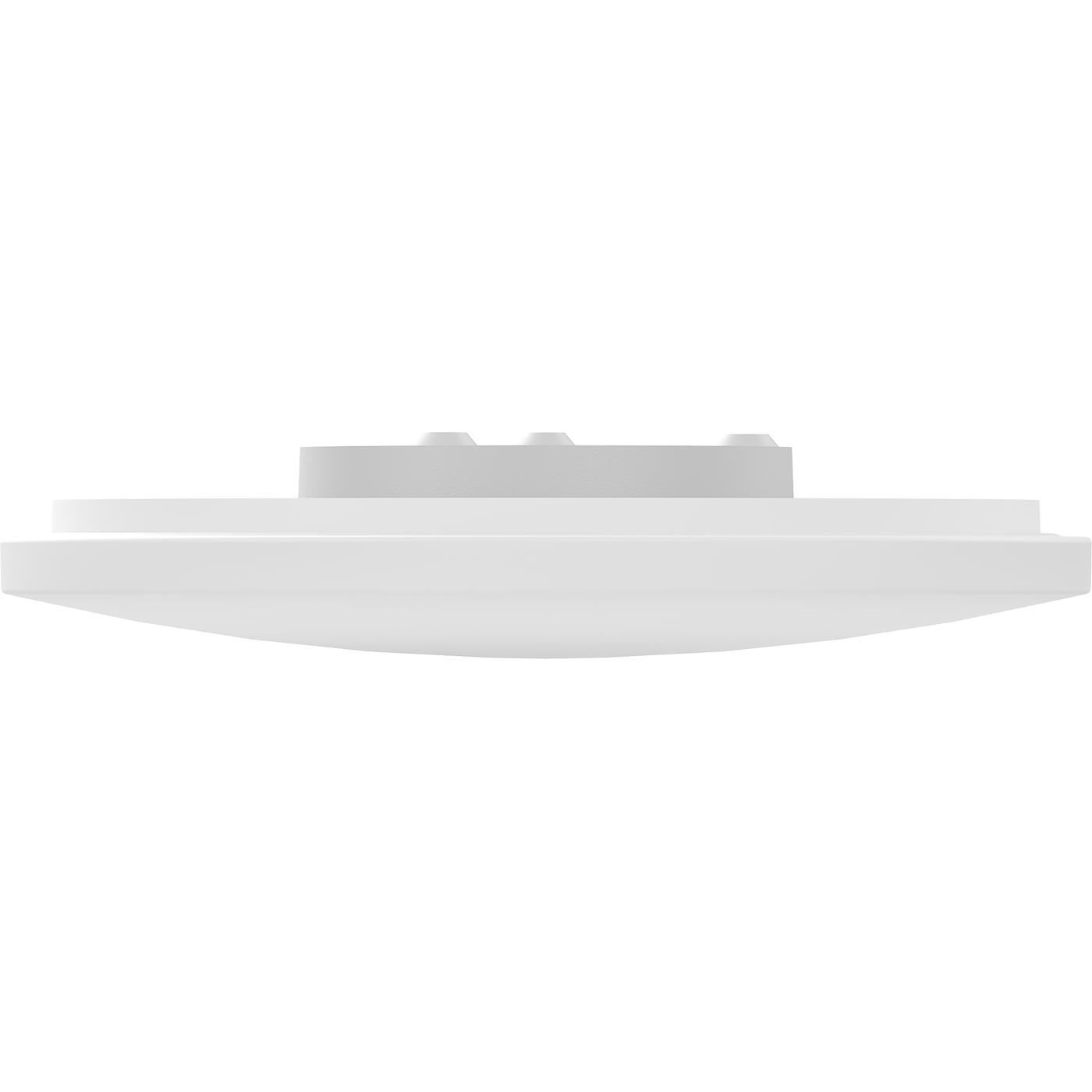

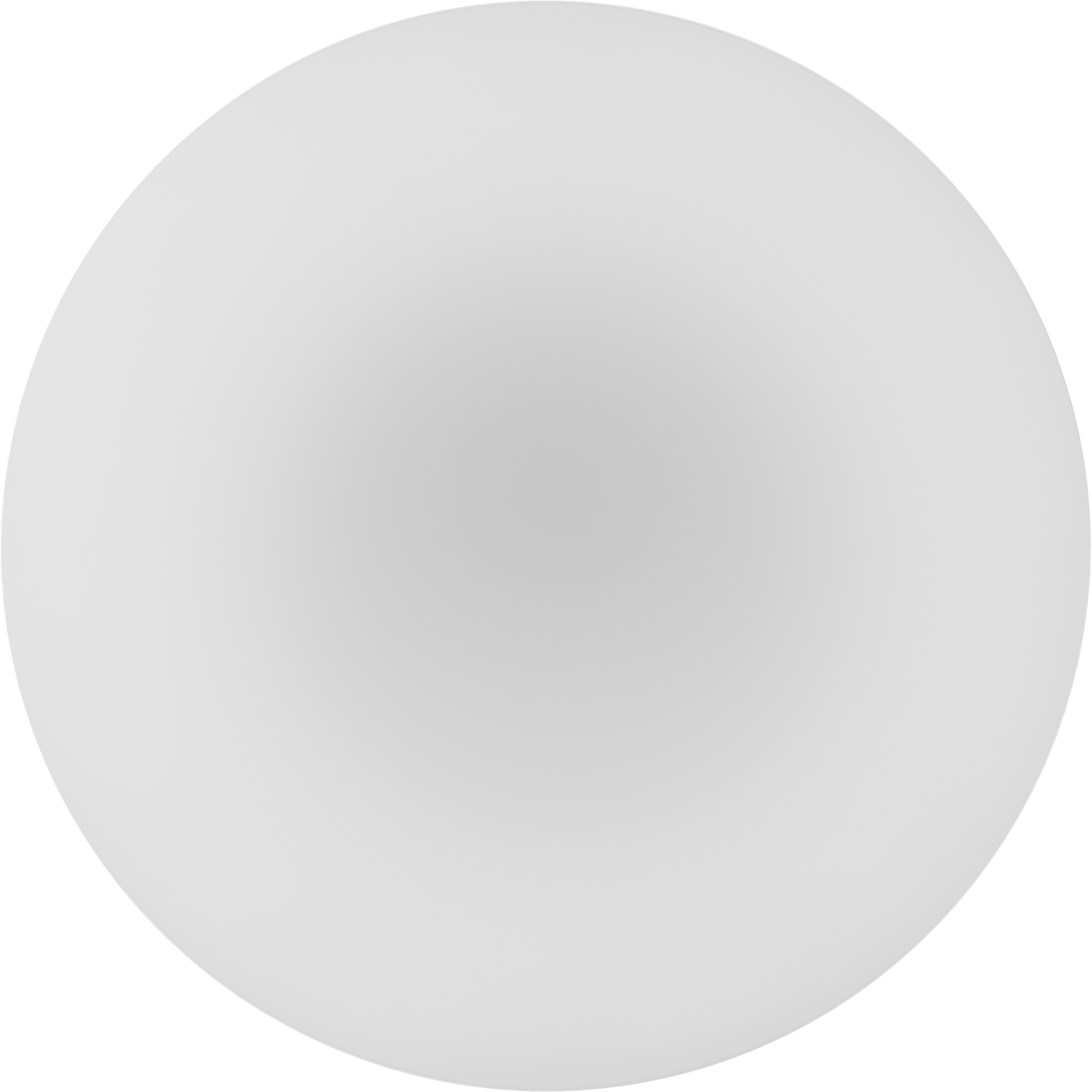

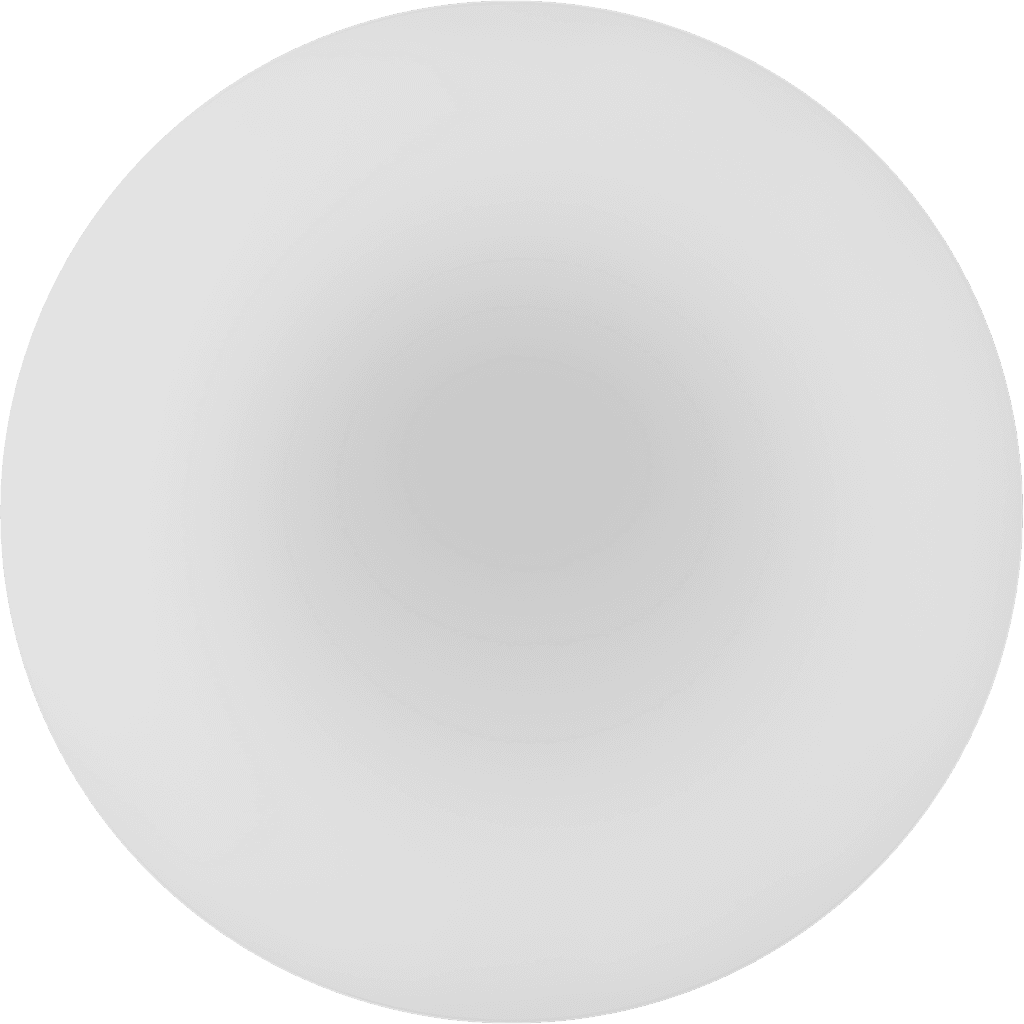

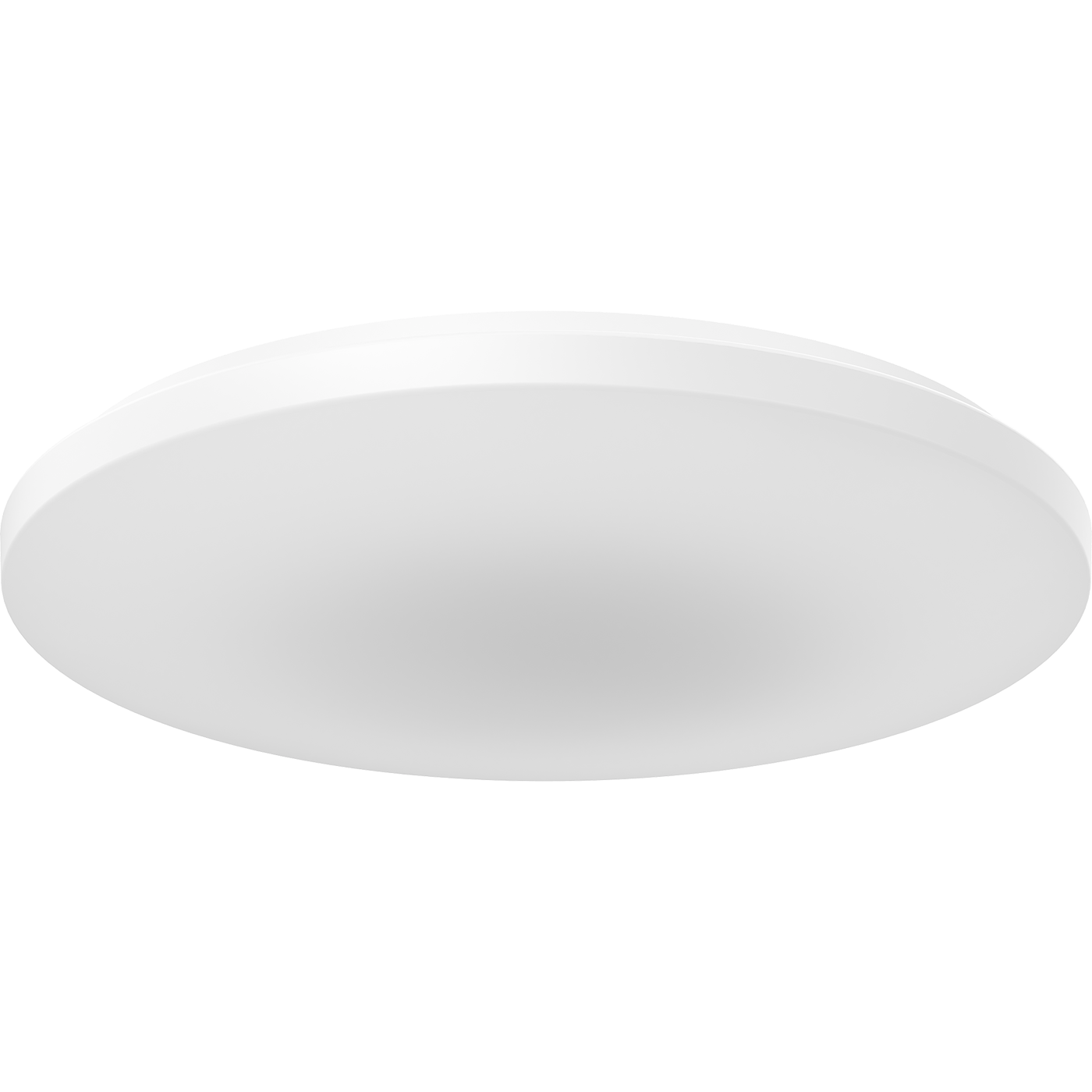

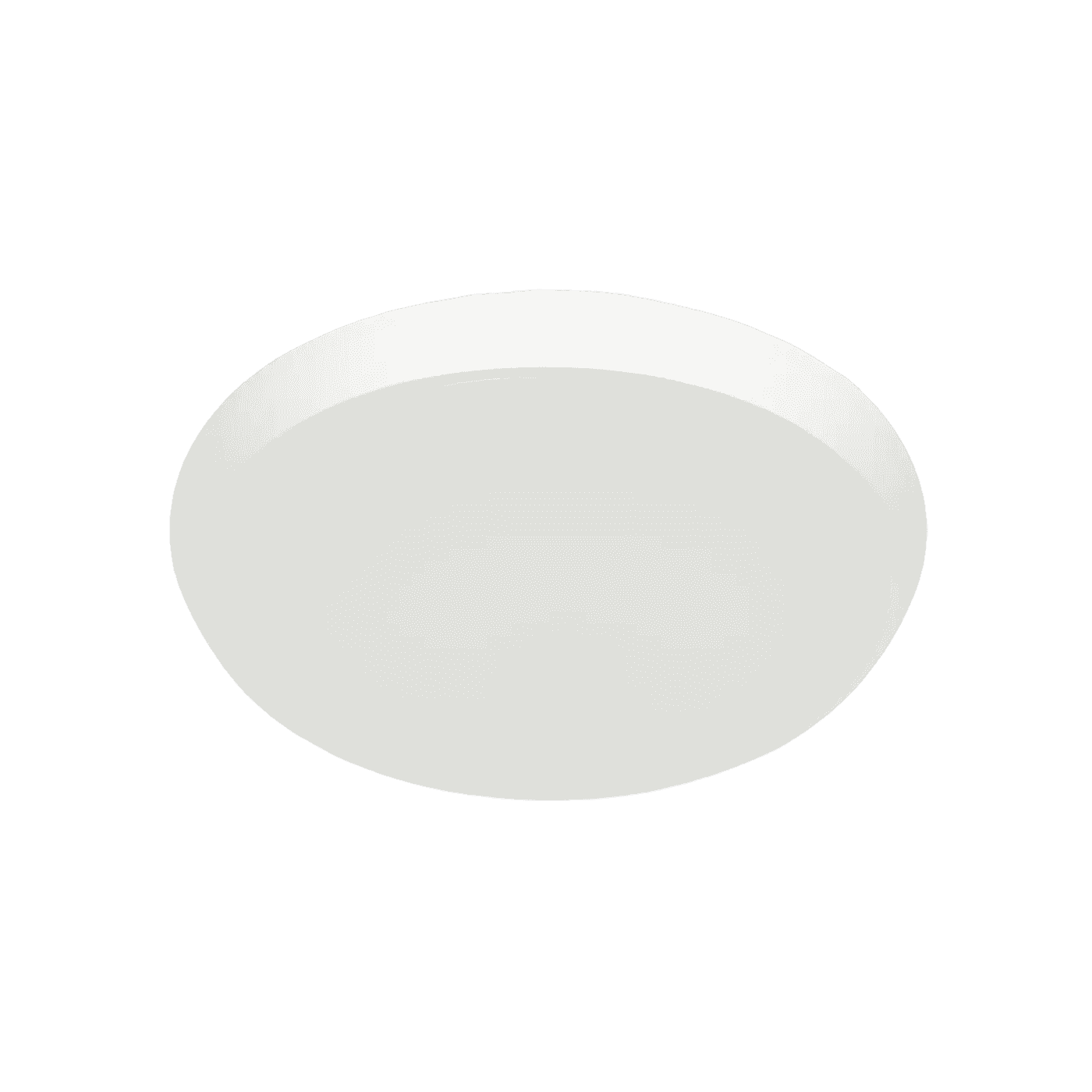

FAST 12W 840 WH STANDARD
FAST 12W 840 WH STANDARD
12 Wluminaire power
1200 lmlight flow
100 lm/Wenergy efficiency
code1871000010
color temperature4000
beam angleD120
number of lamps1
performance factor100
options
свернуть все
electricalcommonilluminatingconstructional
rated supply voltage, alternating current
230 Vsupply voltage, alternating current
230-240 Vluminaire power
12 Welectric shock protection
Ipower factor
> 0,90supply voltage
230 Velectrical
rated supply voltage, alternating current
230 V
supply voltage, alternating current
230-240 V
luminaire power
12 W
electric shock protection
I
power factor
> 0,90
supply voltage
230 V
common
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от +5 до +35 C
energy efficiency class
A+
code
1871000010
illuminating
color rendition index (CRI)
>80
light flow
1200 lm
flickering factor
<5%
energy efficiency
100 lm/W
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
constructional
ingress protection (IP)
IP40
climatic performance
УХЛ4*
fire safety class
П-ІІІ
material
Пластик
weight
0.32 kg
diameter, mm
260 mm
height, mm
62 mm
housing color
Белый
installation length, mm
105 mm
installation width, mm
105 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
model files
model files

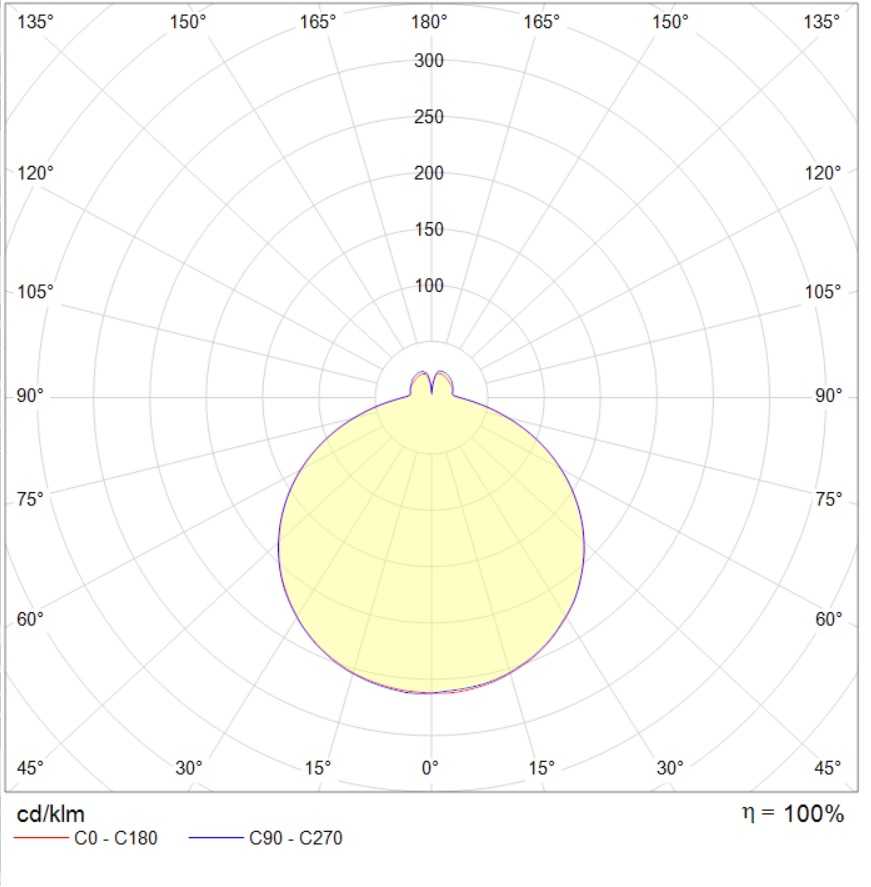

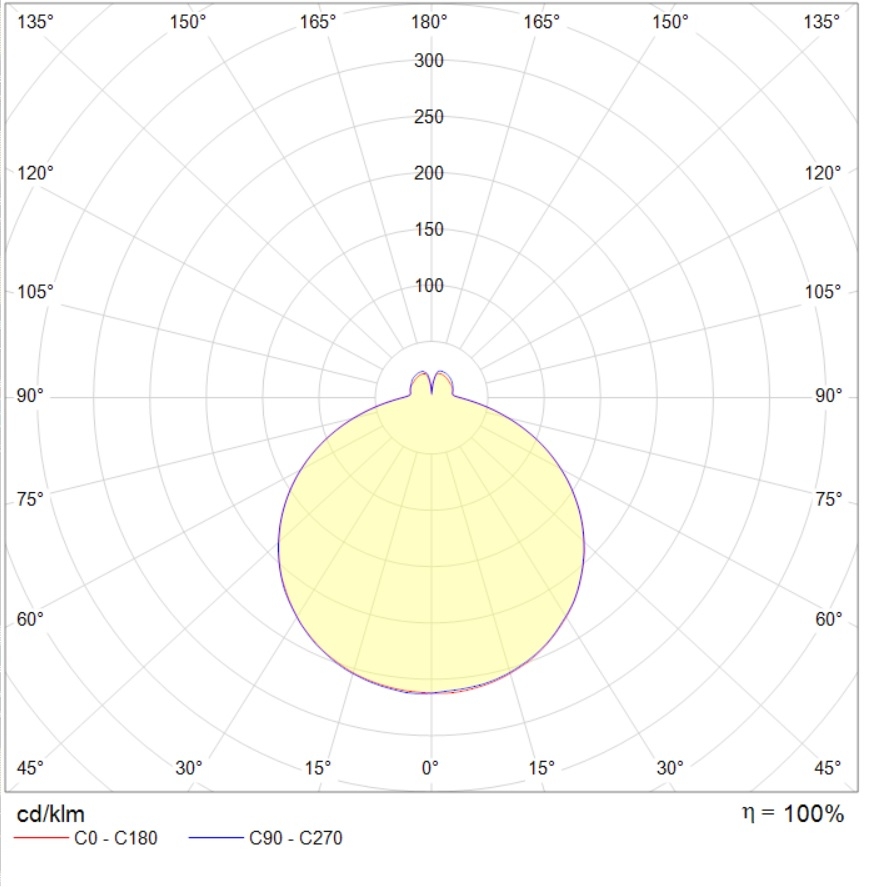

photometric files
documents
сертификаты
photometric files
ies107 kB
jpg105.7 kB
ldt77.4 kB
documents
passport664.2 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016588 kB
Fire Safety Certificate2.5 mB
