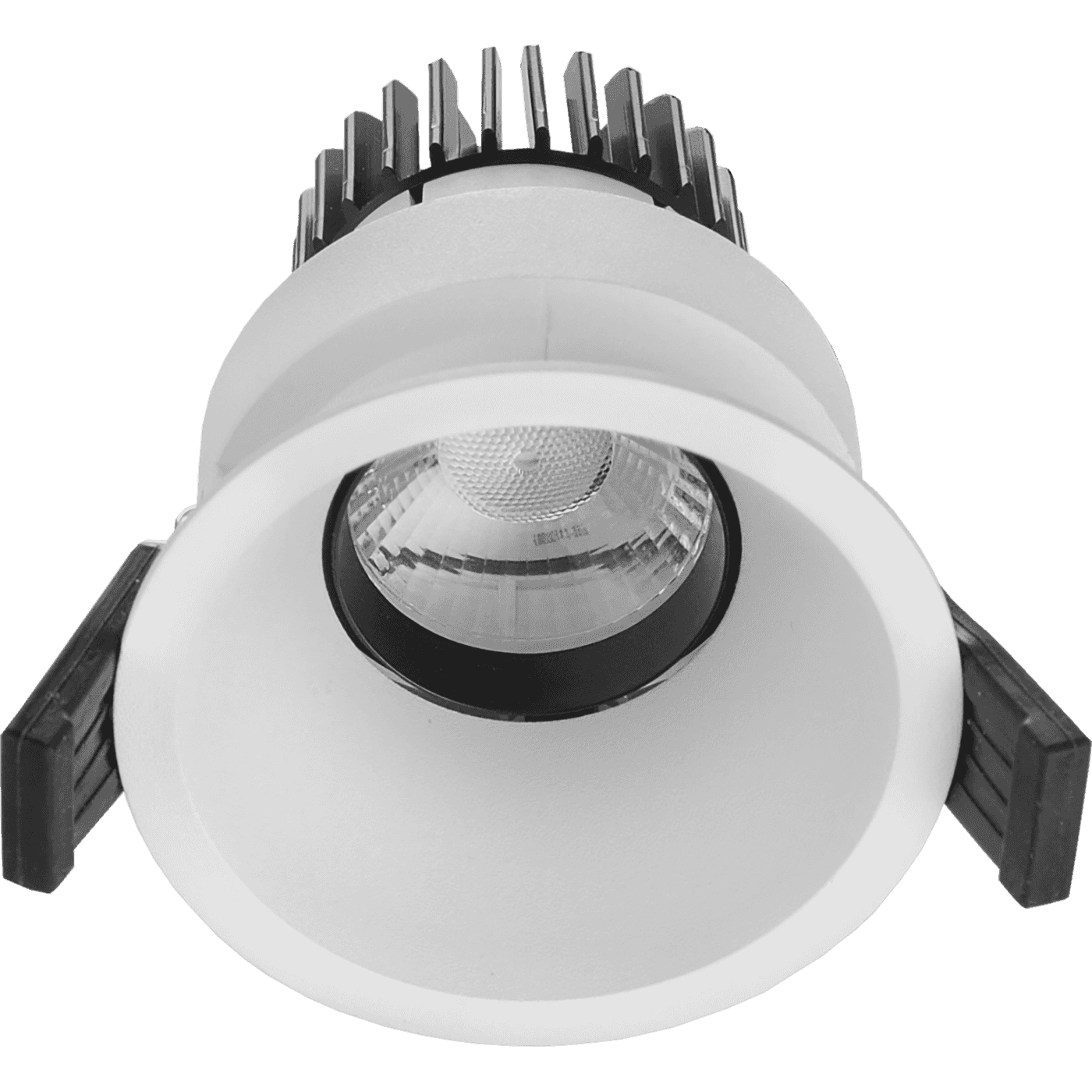

FAMO 13 WH D45 2700K (with driver)
.jpg&w=1920&q=50)
.jpg&w=1024&q=50)
FAMO 13 WH D45 2700K (with driver)
15 Wluminaire power
1250 lmlight flow
83 lm/Wenergy efficiency
code1723000130
color temperature2700
beam angleD45
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
83 lm/Wcolor rendition index (CRI)
>80light flow
1250 lmflickering factor
<5%beam angle
D45color temperature
2700light source type
LEDemission color
Белыйilluminating
energy efficiency
83 lm/W
color rendition index (CRI)
>80
light flow
1250 lm
flickering factor
<5%
beam angle
D45
color temperature
2700
light source type
LED
emission color
Белый
electrical
starting current pulse time, µs
2.28 mks
electric shock protection
II
luminaire power
15 W
supply voltage
230 V
power factor
> 0,90
maximum cross-section of the connected cable, sq. mm
1.5
rated supply voltage, alternating current
230 V
starting current
43 A

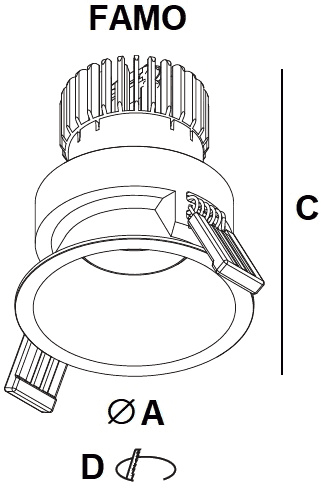

constructional
diameter
85 mm
height, mm
124 mm
installation diameter
75 mm
weight
0.35 kg
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
fire safety class
П-ІІІ
material
Алюминий
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
36 month
temperature range
от +5 до +35 C
service life, hour
50 000 h
energy efficiency class
A
ETIM class
Прожектор / Светильник направленного света
code
1723000130
model files
model files
photometric files
documents
сертификаты

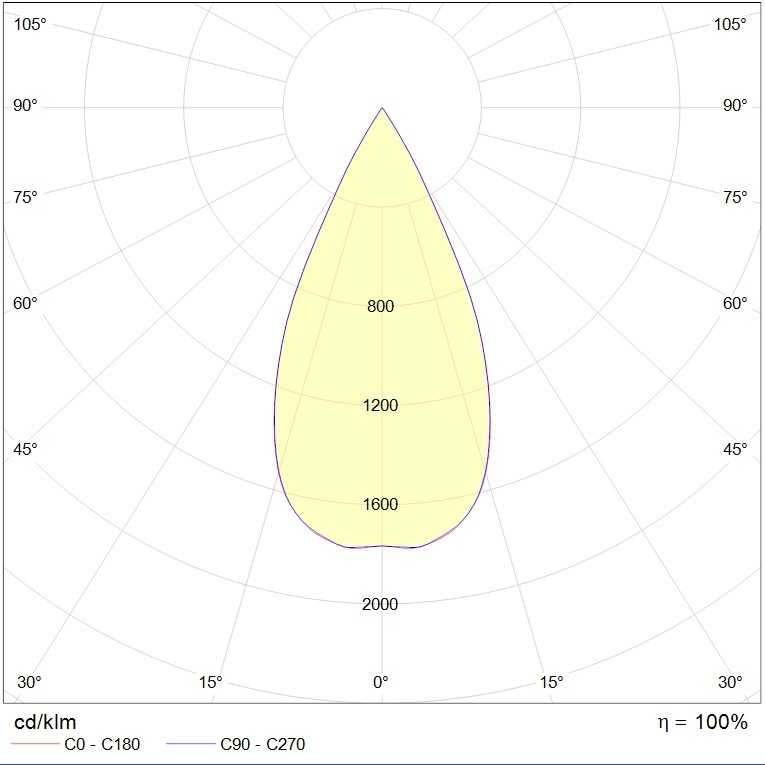

photometric files
ies68.7 kB
jpg77.1 kB
ldt43.2 kB
documents
passport2 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016583.2 kB
Fire Safety Certificate1.7 mB
