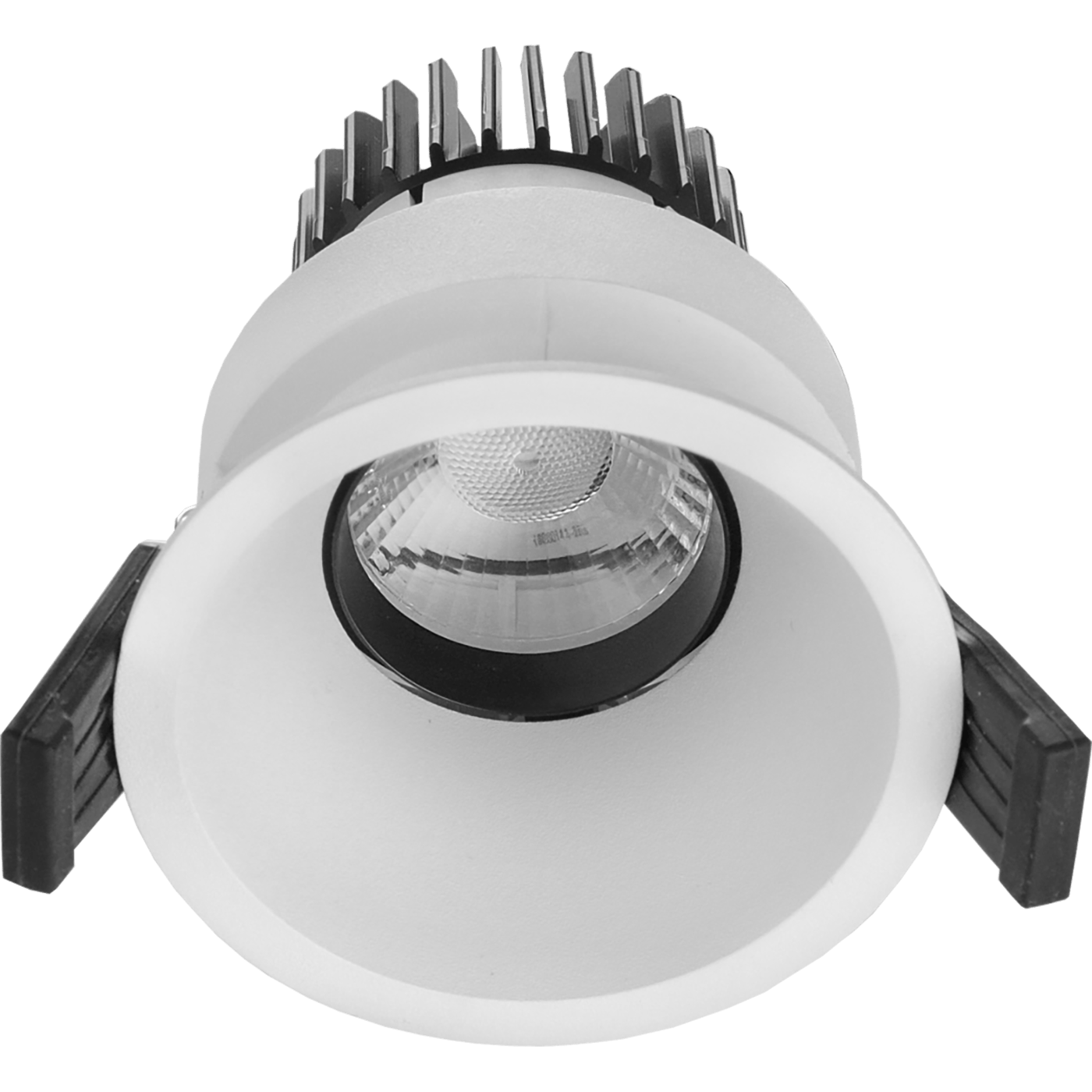

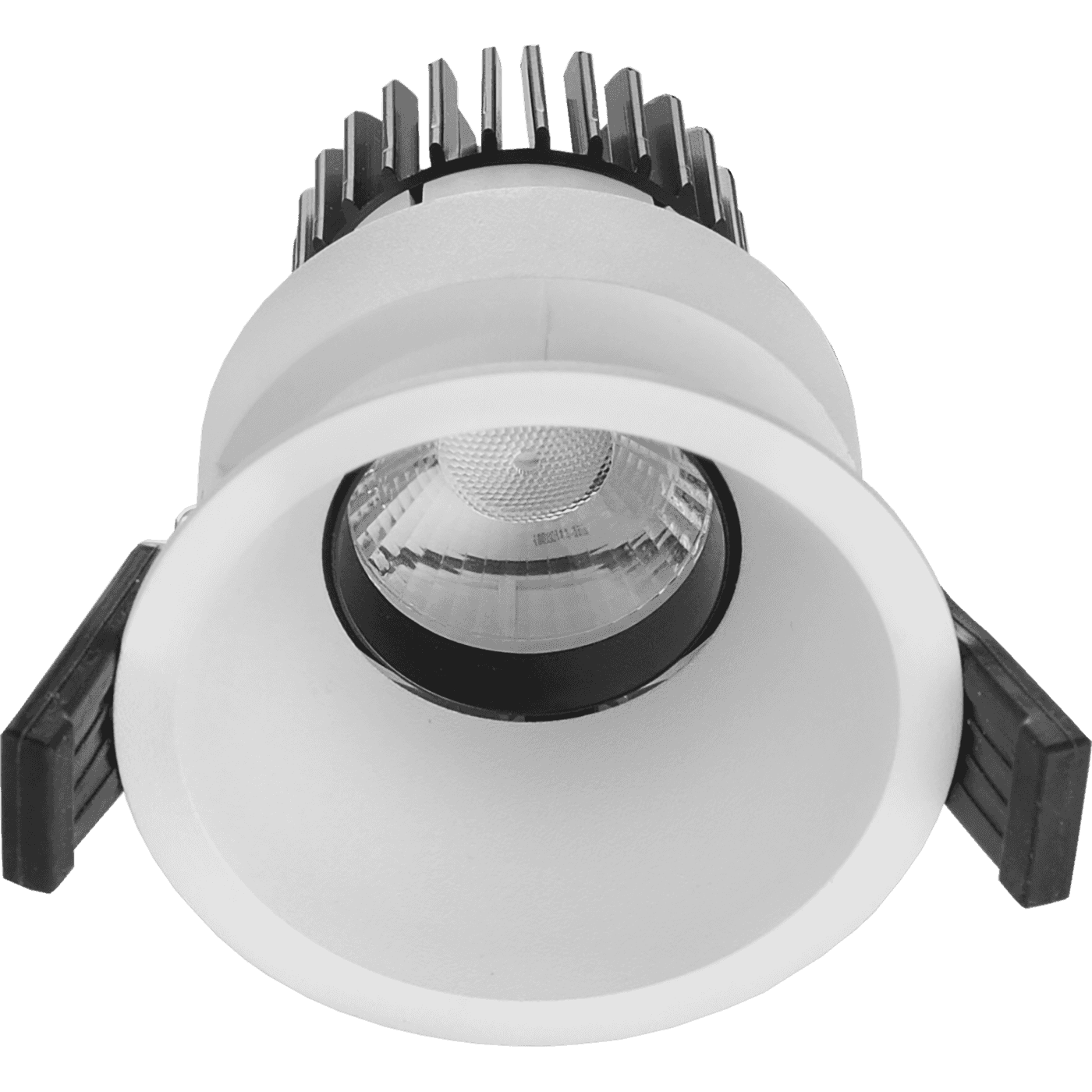

FAMO 07 WH D45 4000K (with driver)
.jpg&w=1920&q=100)
.jpg&w=1024&q=75)
FAMO 07 WH D45 4000K (with driver)
9 Wluminaire power
650 lmlight flow
72 lm/Wenergy efficiency
code1723000080
color temperature4000 K
beam angleD45
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
72 lm/Wcolor rendition index (CRI)
>80light flow
650 lmflickering factor
<5%beam angle
D45color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
72 lm/W
color rendition index (CRI)
>80
light flow
650 lm
flickering factor
<5%
beam angle
D45
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
2.28 µs
electric shock protection
II
luminaire power
9 W
supply voltage
230 V
power factor
> 0,90
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
starting current
43 A
constructional
diameter
85 mm
height
104 mm
installation diameter
75 mm
weight
0.35 kg
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
fire safety class
П-ІІІ
material
Алюминий
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
36 month
temperature range
от +5 до +35 C
service life
50 000 h
energy efficiency class
A
ETIM class
Прожектор / Светильник направленного света
code
1723000080
model files
model files

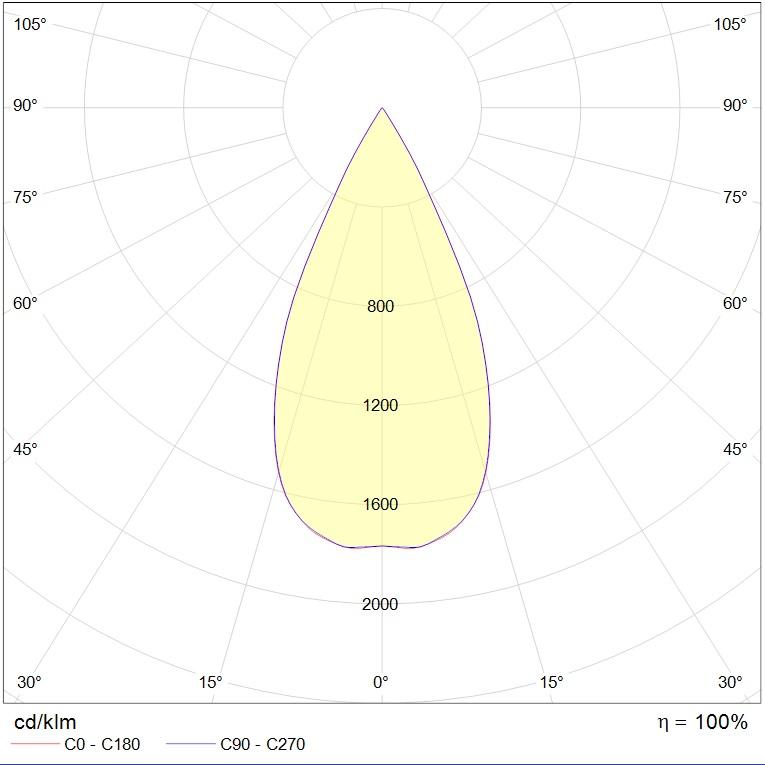

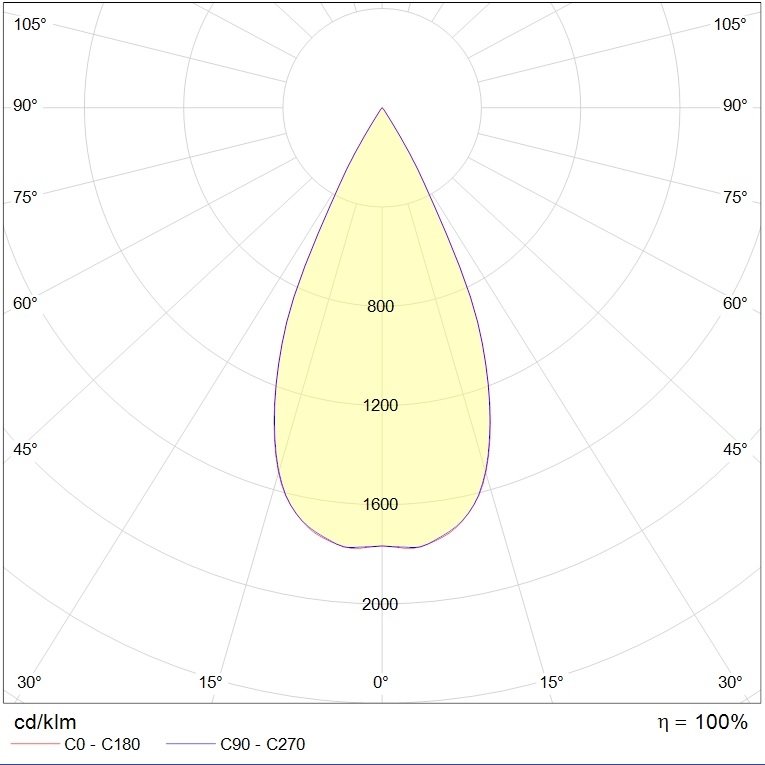

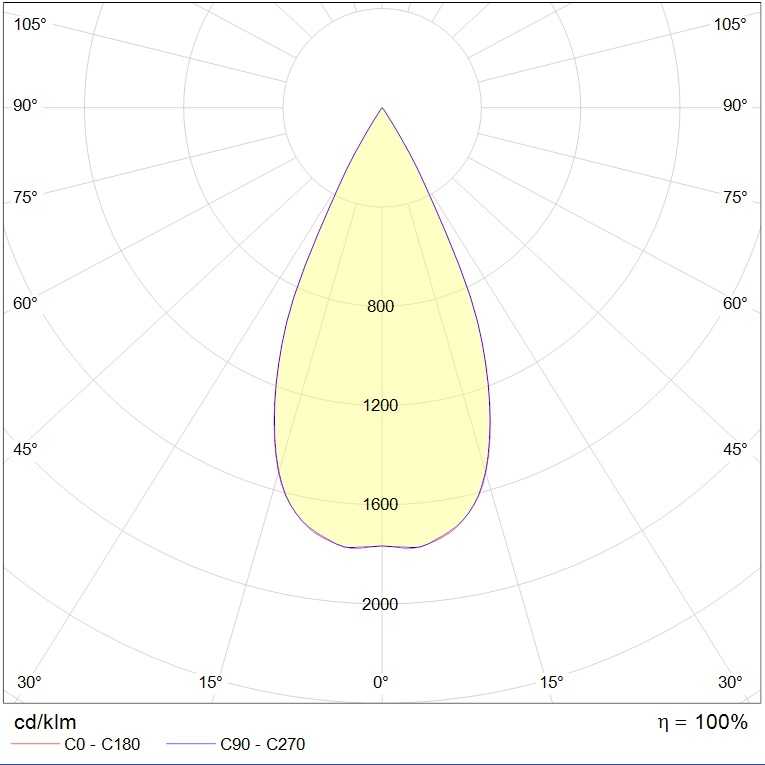

photometric files
documents
сертификаты
photometric files
ies68.7 kB
jpg77.1 kB
ldt43.2 kB
documents
passport2 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016583.2 kB
Fire Safety Certificate1.7 mB
