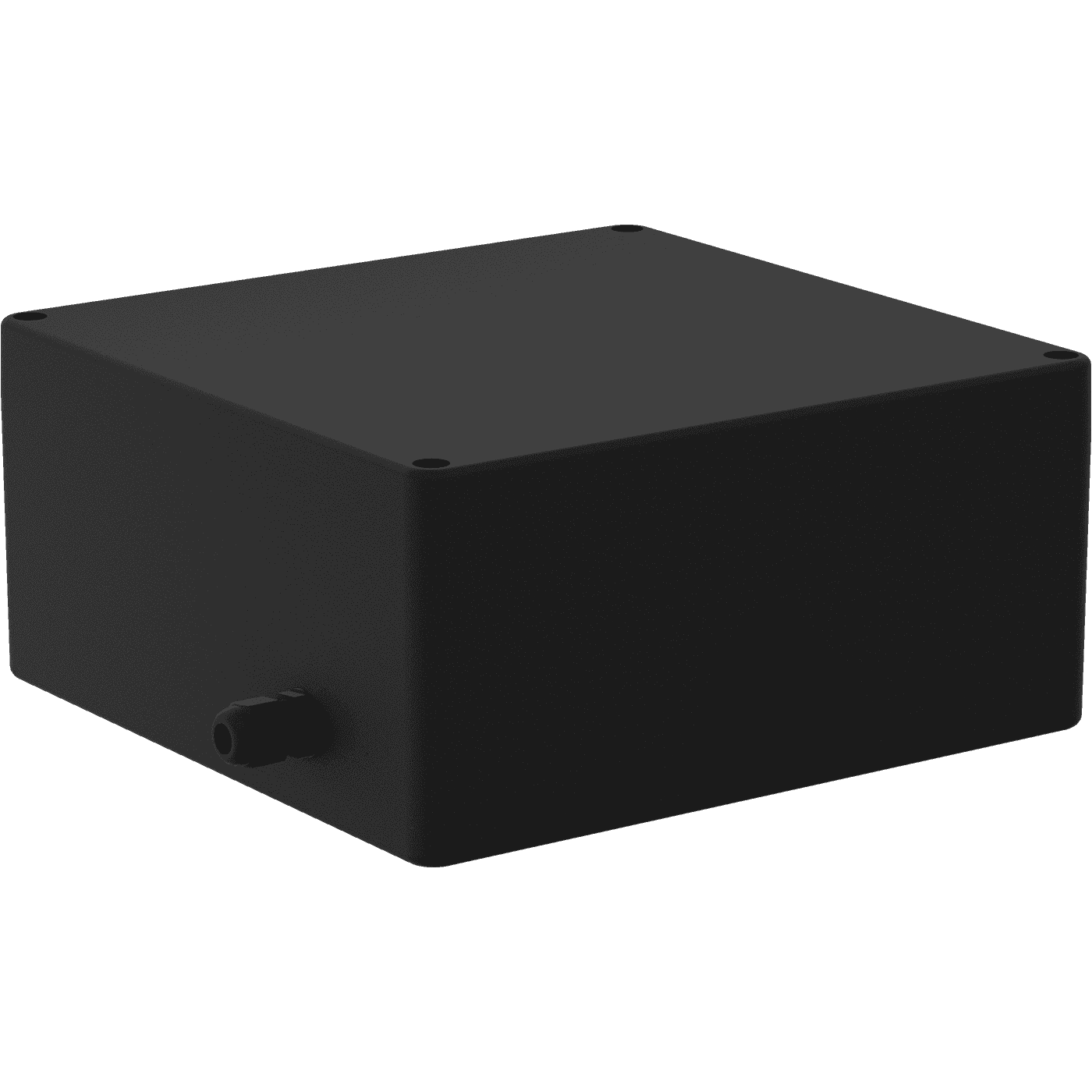

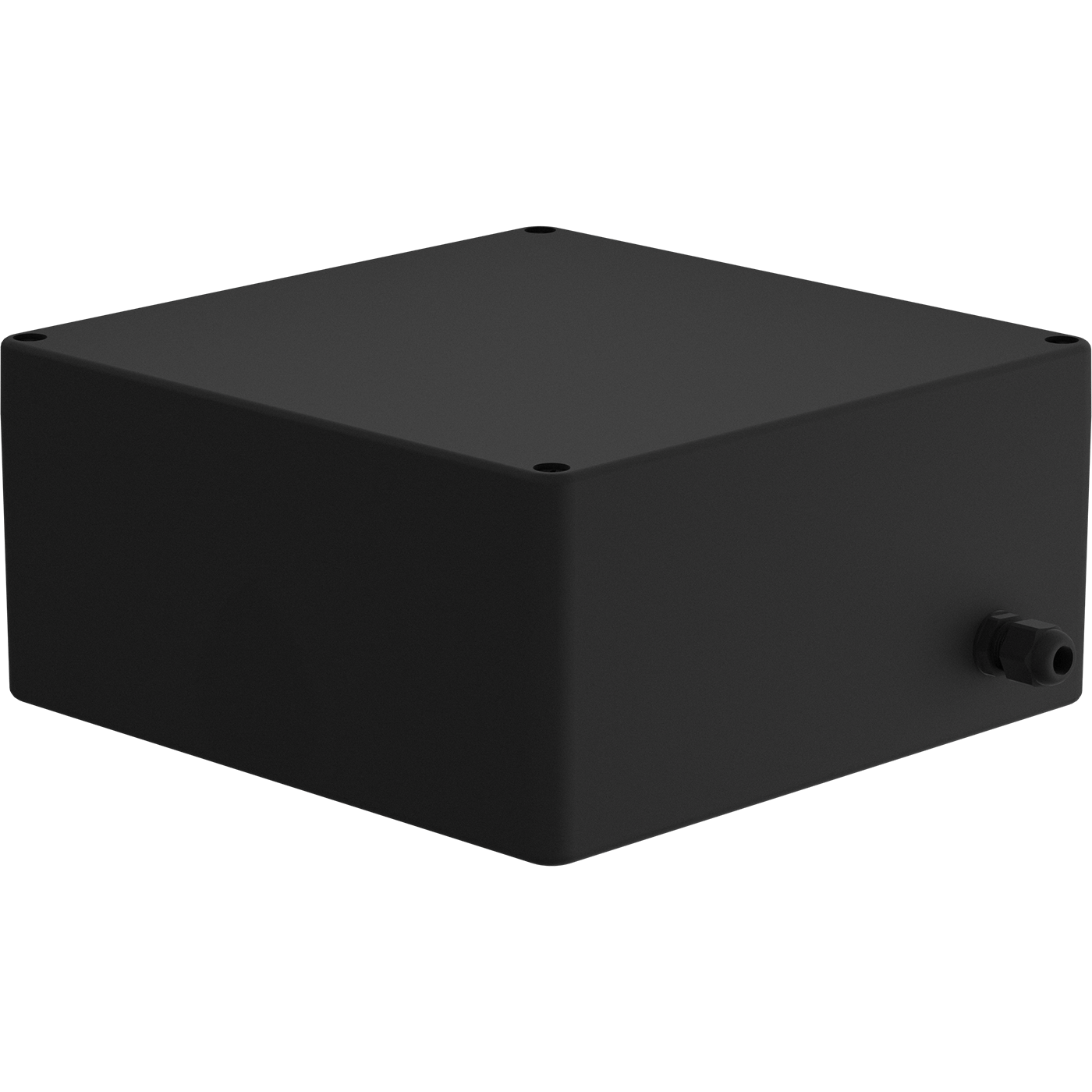

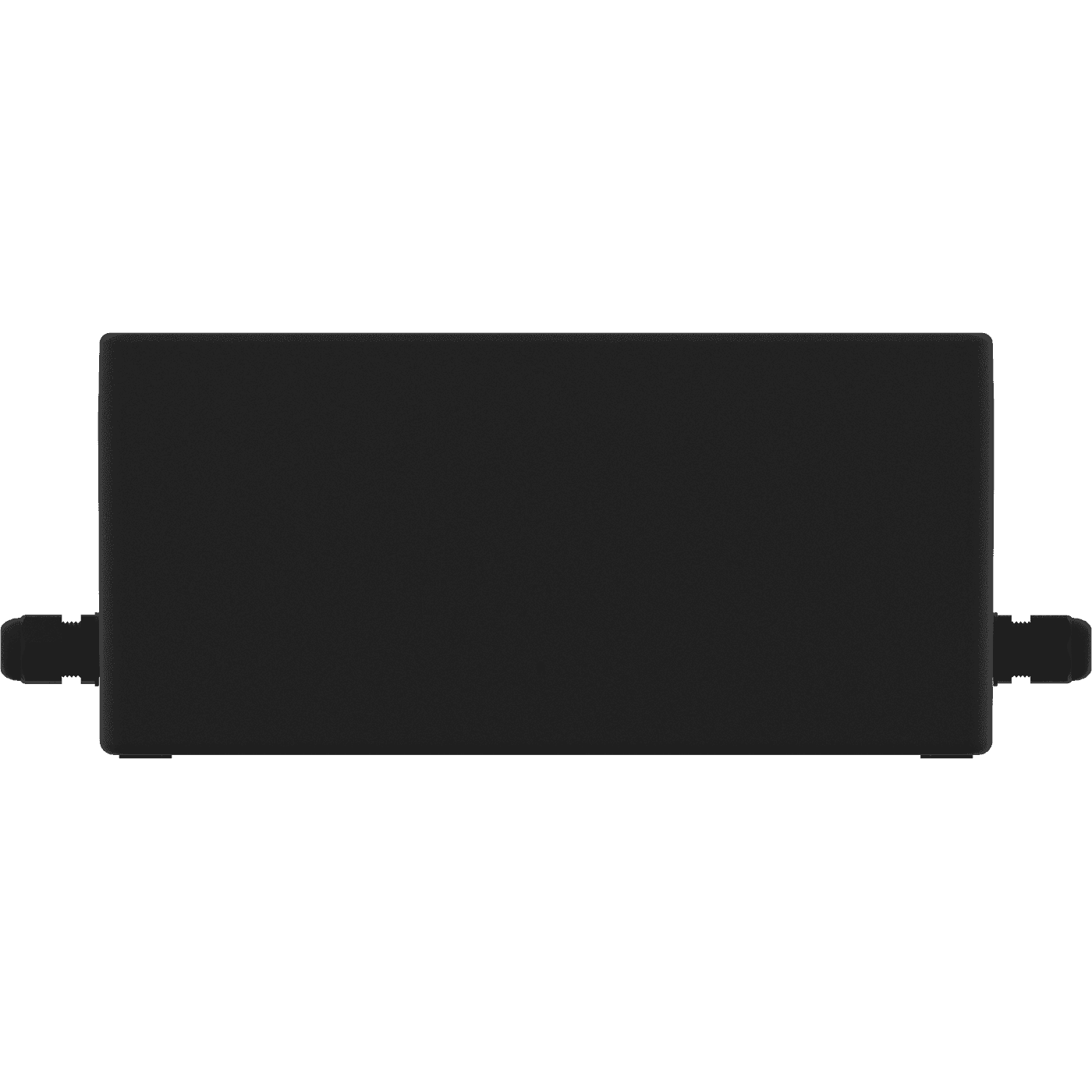

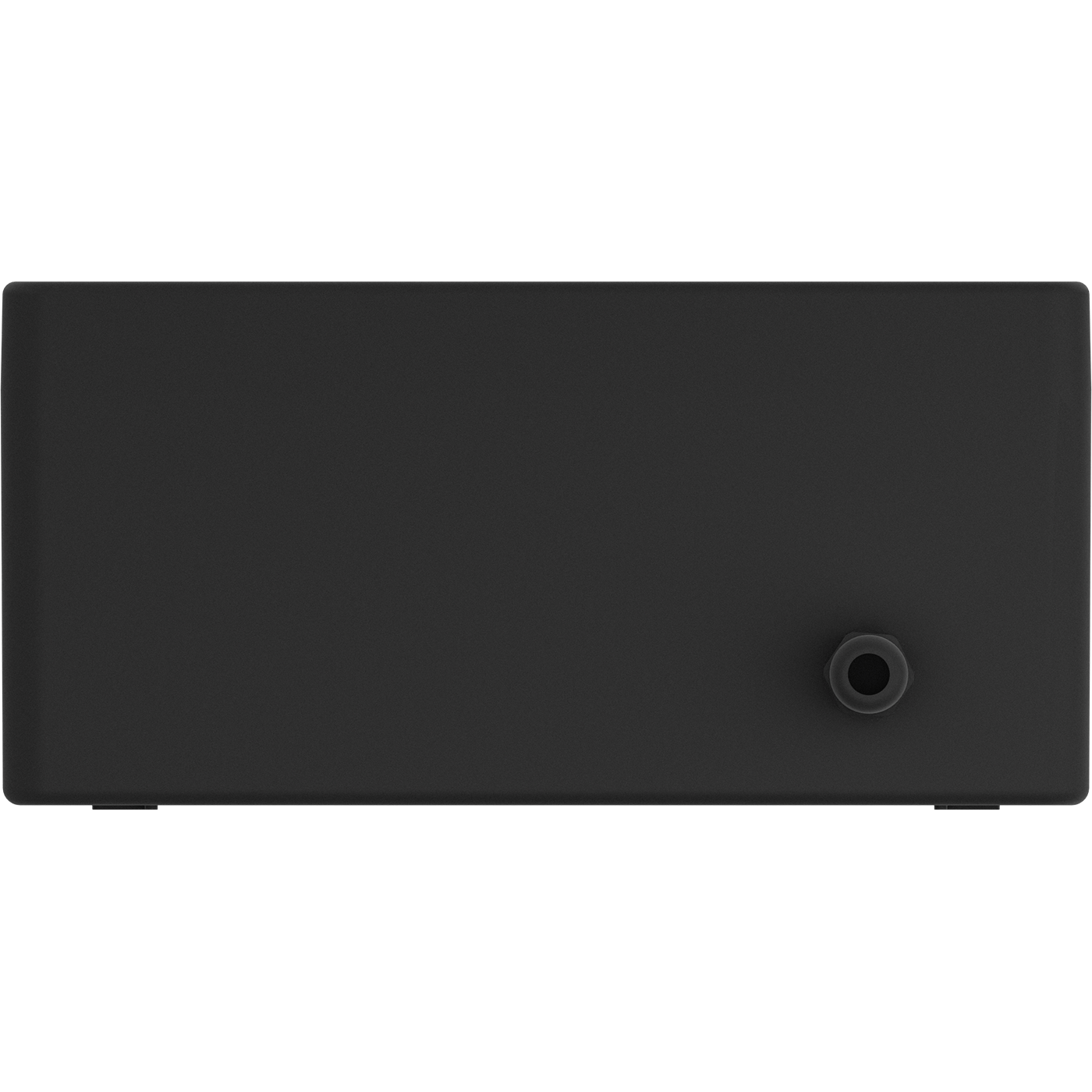

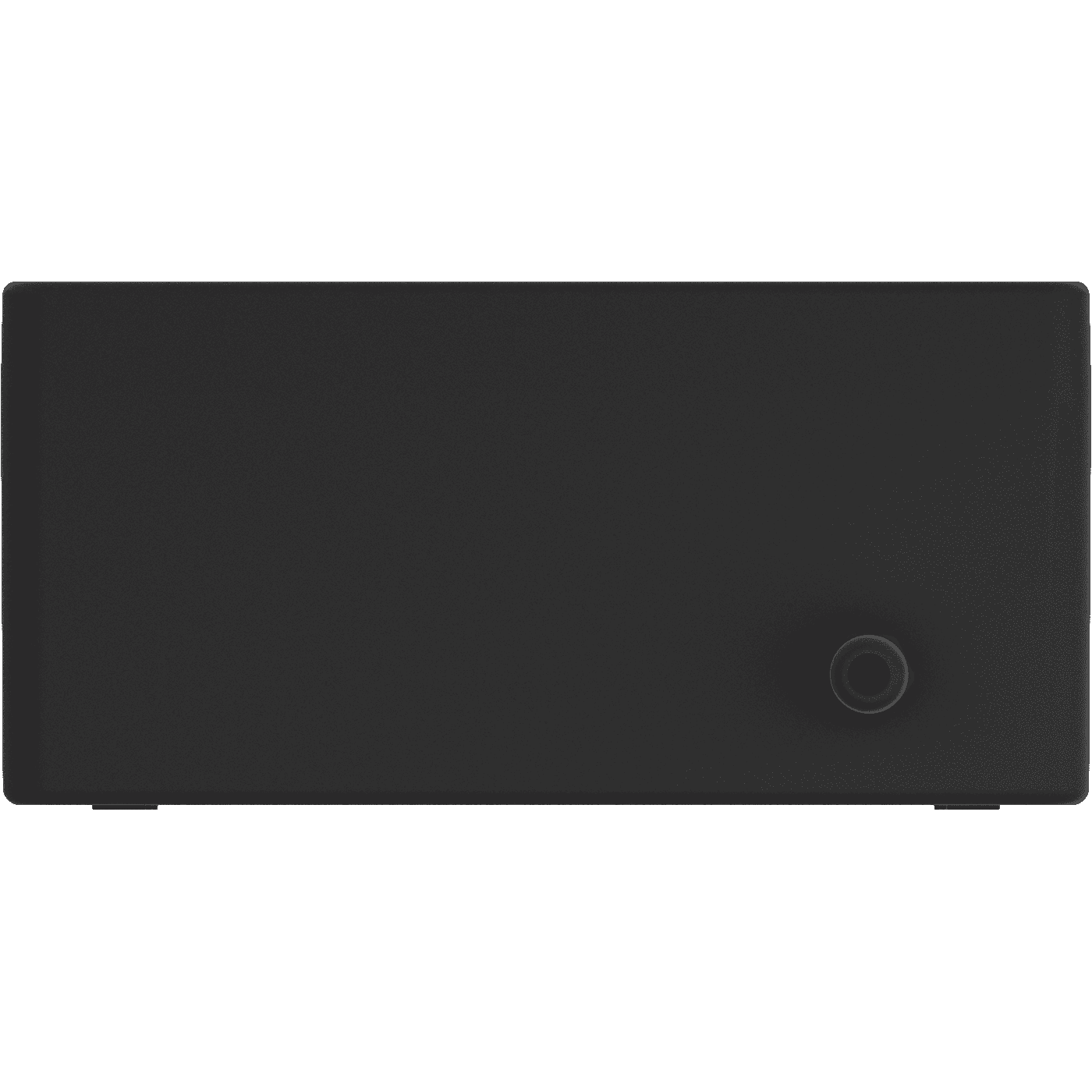

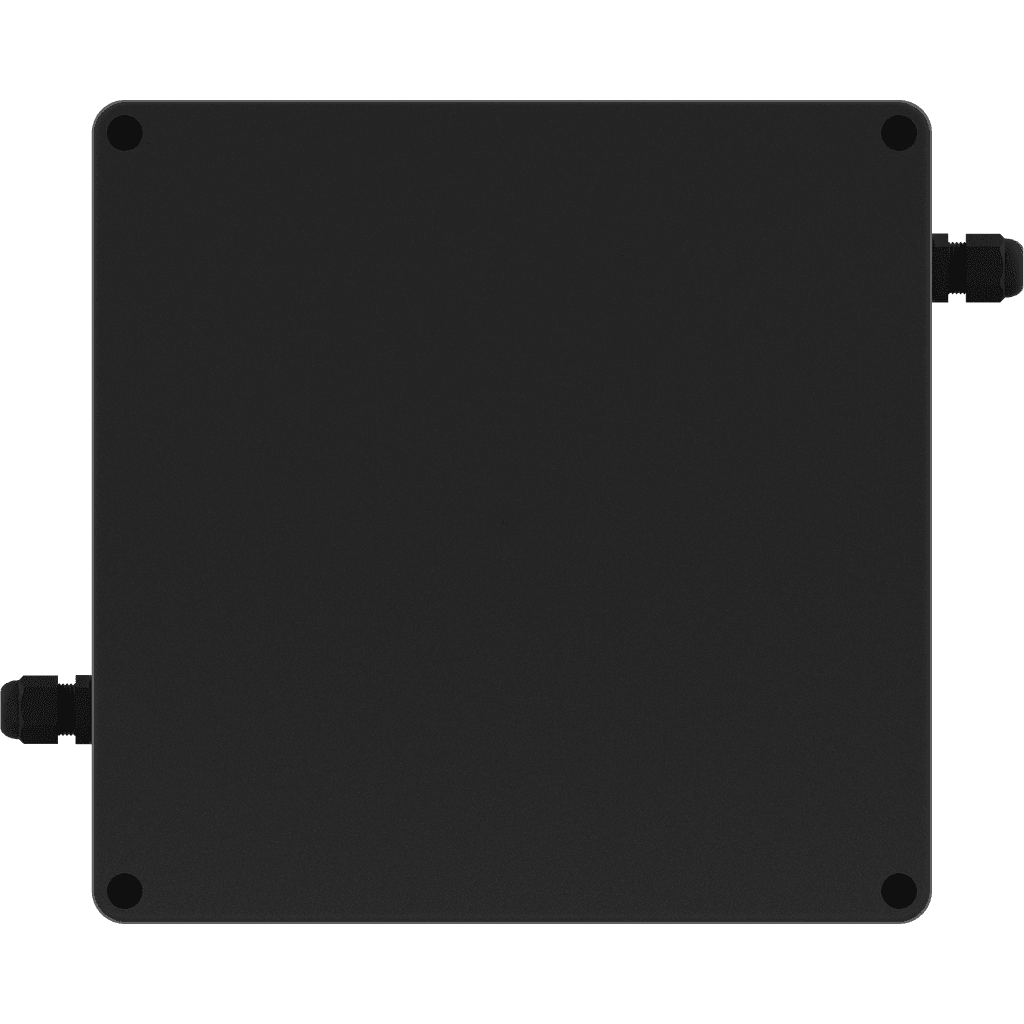

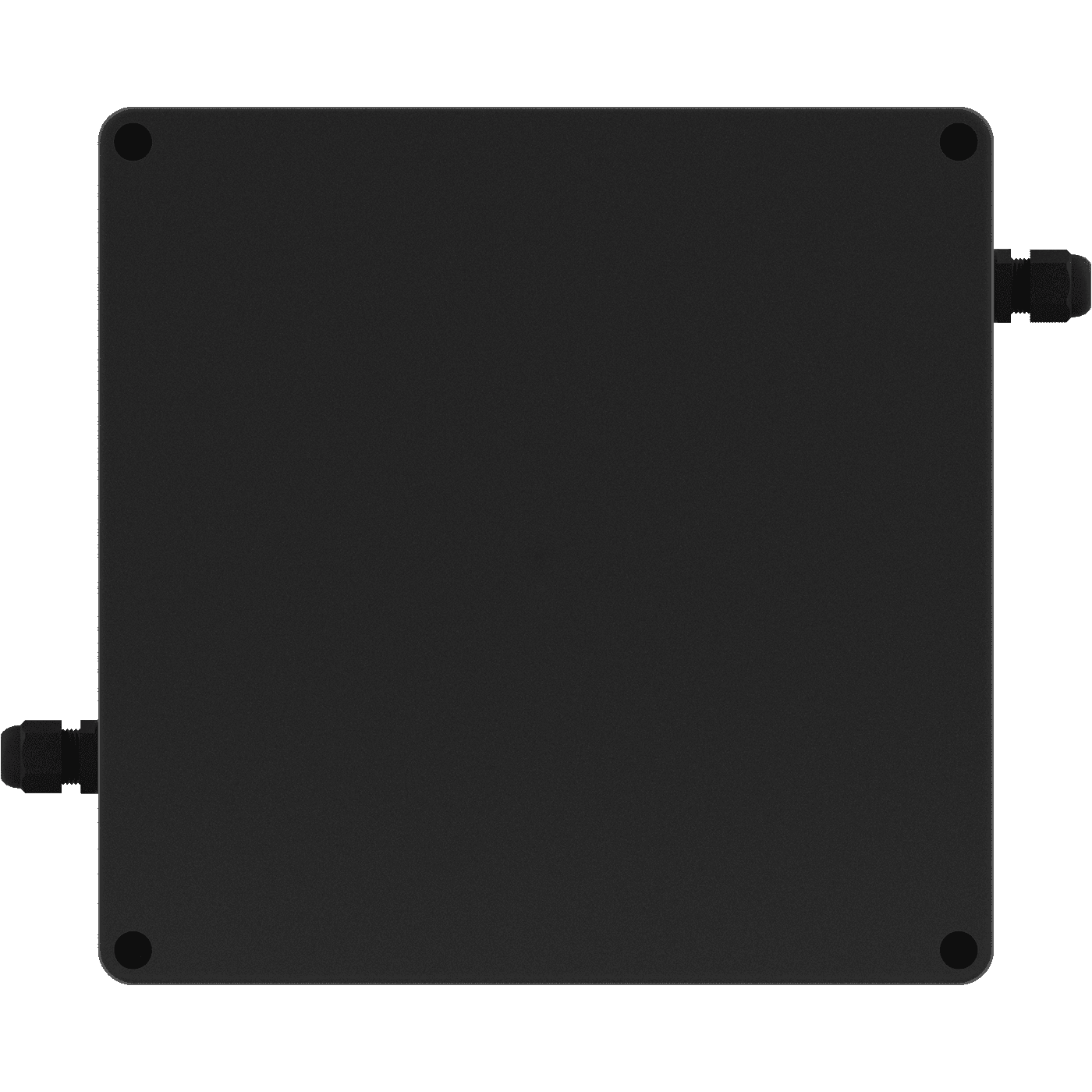

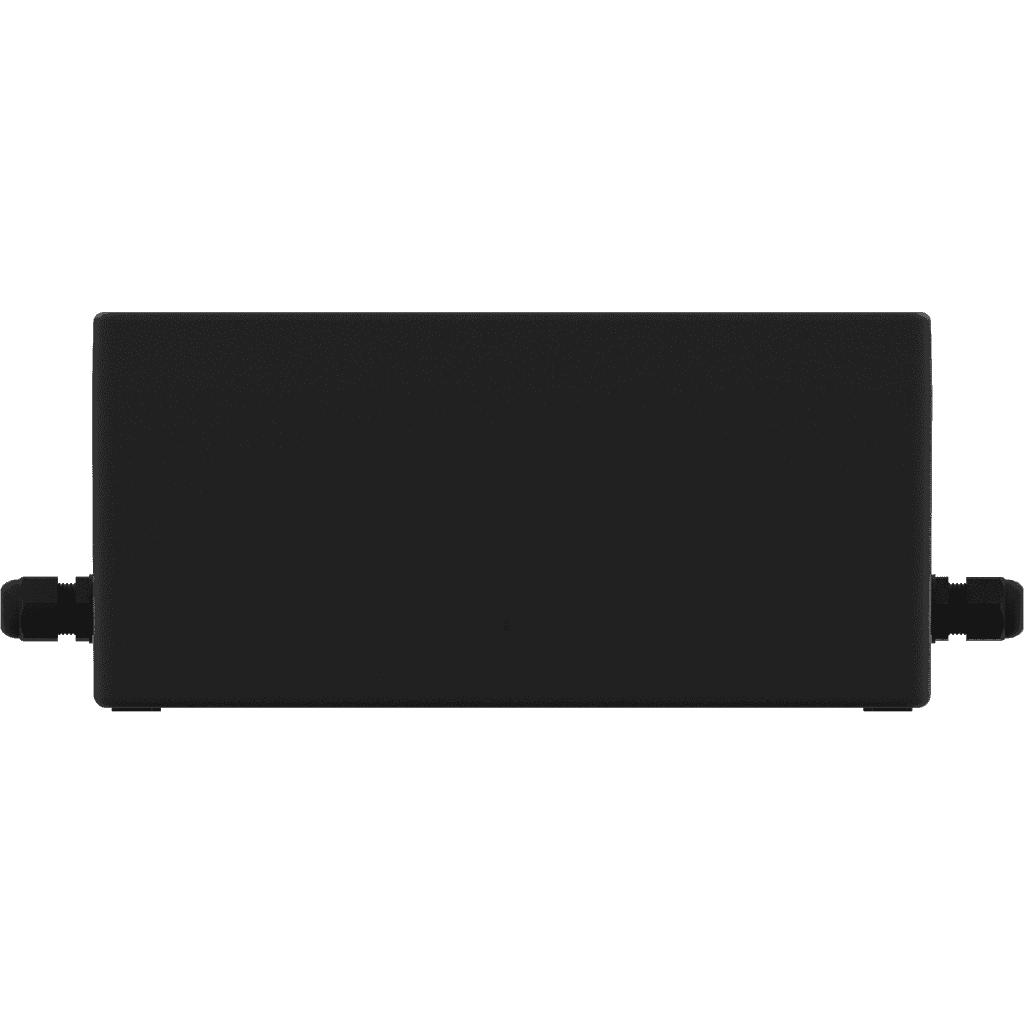

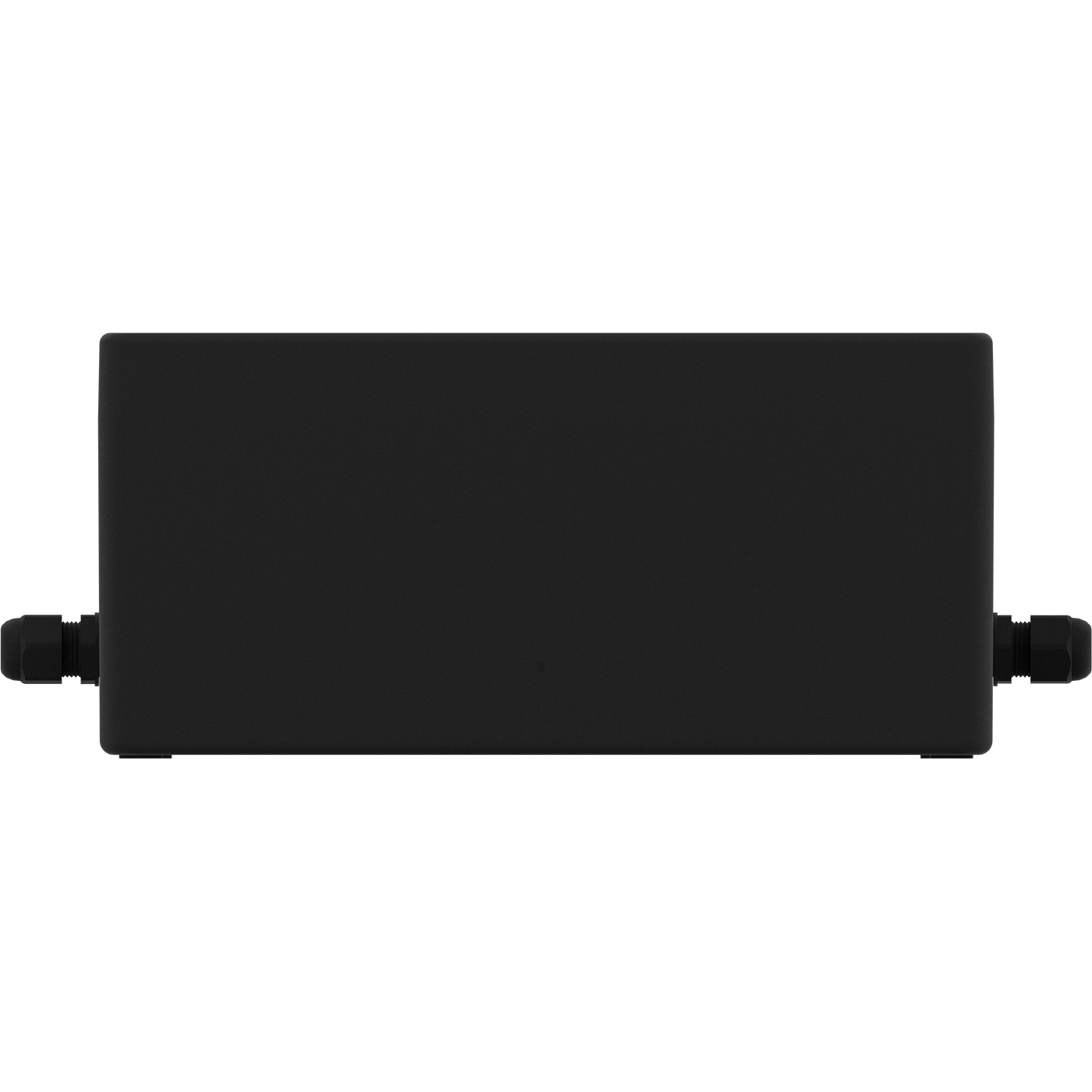

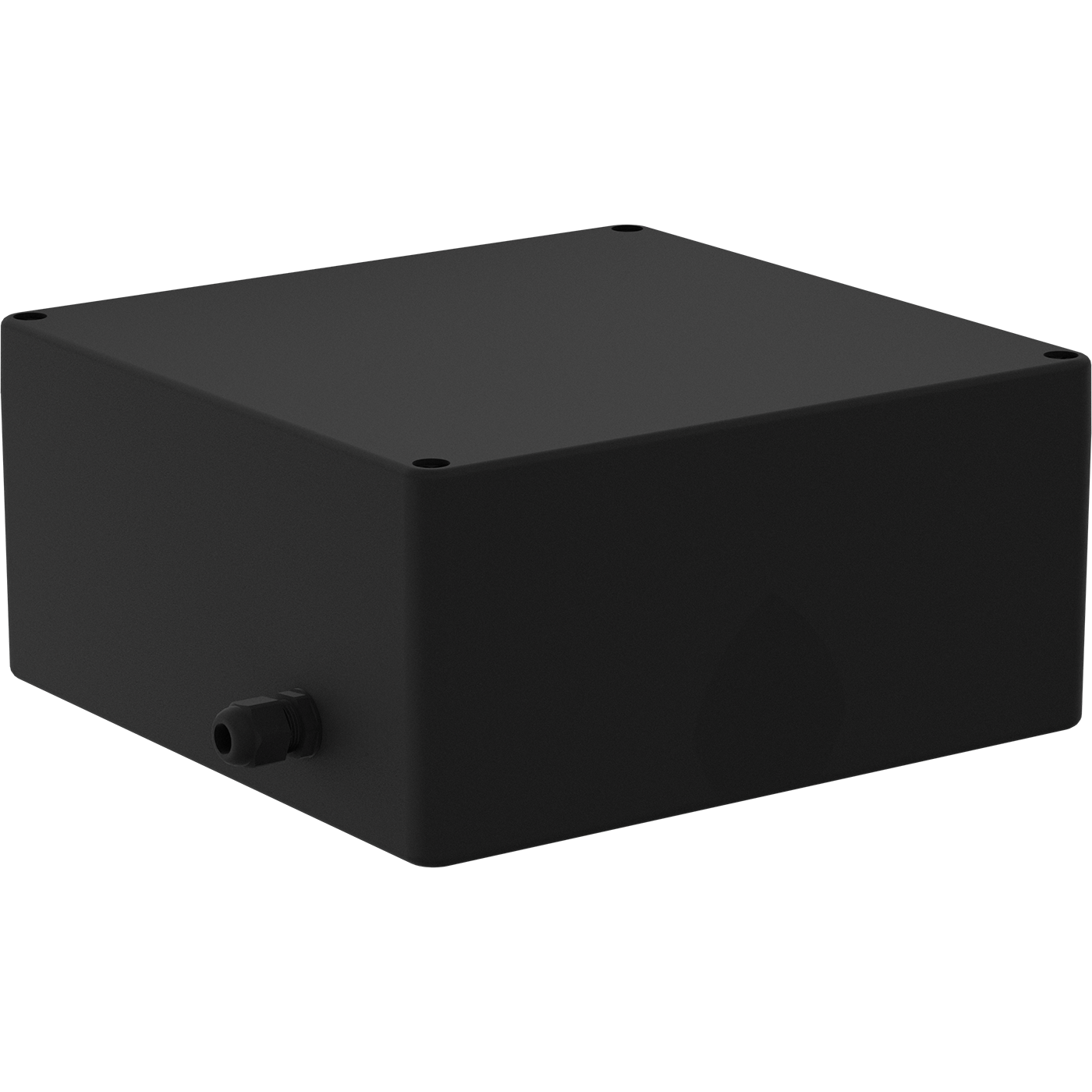

EVOLINE MINI BOX DMX512 (150W - 48V) бокс для драйвера

EVOLINE MINI BOX DMX512 (150W - 48V) бокс для драйвера
add to favorites
code2006000730
weight5.6 kg
  1. main page
  2. catalog
  3. by product type
  4. outdoor lighting
  5. linear architectural luminaires
  6. EVOLINE MINI RGB
  7. EVOLINE MINI BOX DMX512 (150W - 48V) бокс для драйвера
options
свернуть все
electricalconstructionalLMS optionscommon
electric shock protection
I
starting current pulse time
550 µs
rated supply voltage, alternating current
230 V
supply voltage
230 V
starting current
65 A
maximum cross-section of the connected cable
2.5 mm2
supply voltage, direct current
142-431 V
supply voltage, alternating current
100-305 V
power factor
> 0,95
electrical
electric shock protection
I
starting current pulse time
550 µs
rated supply voltage, alternating current
230 V
supply voltage
230 V
starting current
65 A
maximum cross-section of the connected cable
2.5 mm2
supply voltage, direct current
142-431 V
supply voltage, alternating current
100-305 V
power factor
> 0,95
constructional
climatic performance
УХЛ1
width
250 mm
height
120 mm
installation width
200 mm
installation length
235 mm
housing color
Черный
ballast
Драйвер
length
285 mm
material
Полиэстер армированный стекловолокном
ingress protection (IP)
IP65
shock resistance (IK)
IK08/7 Дж
weight
5.6 kg
LMS options
dimming
DMX
common
code
2006000730
warranty
36 month
temperature range
от -40 до +40 C
ETIM class
Клеммная распределительная коробка/бокс
model files
model files
documents
passport889.5 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/2011186.8 kB
documents
passport889.5 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/2011186.8 kB
