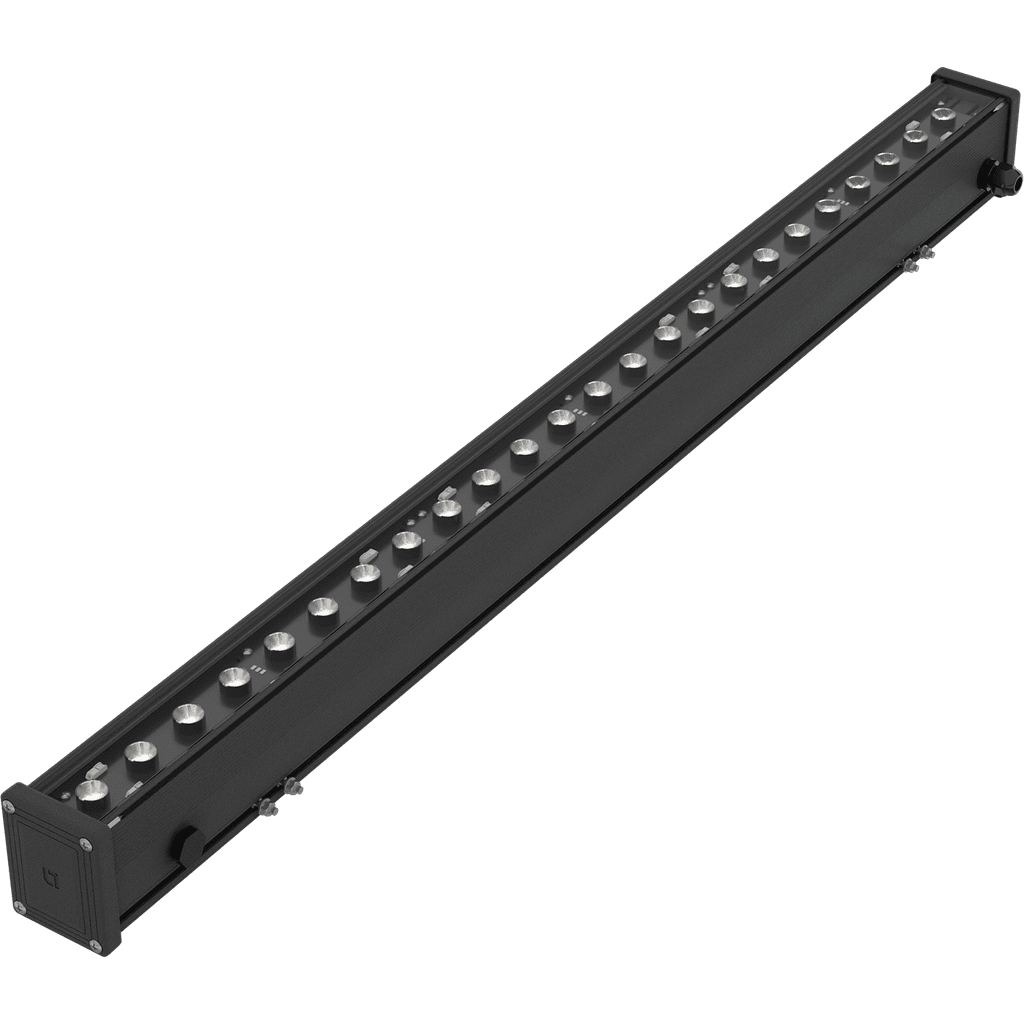

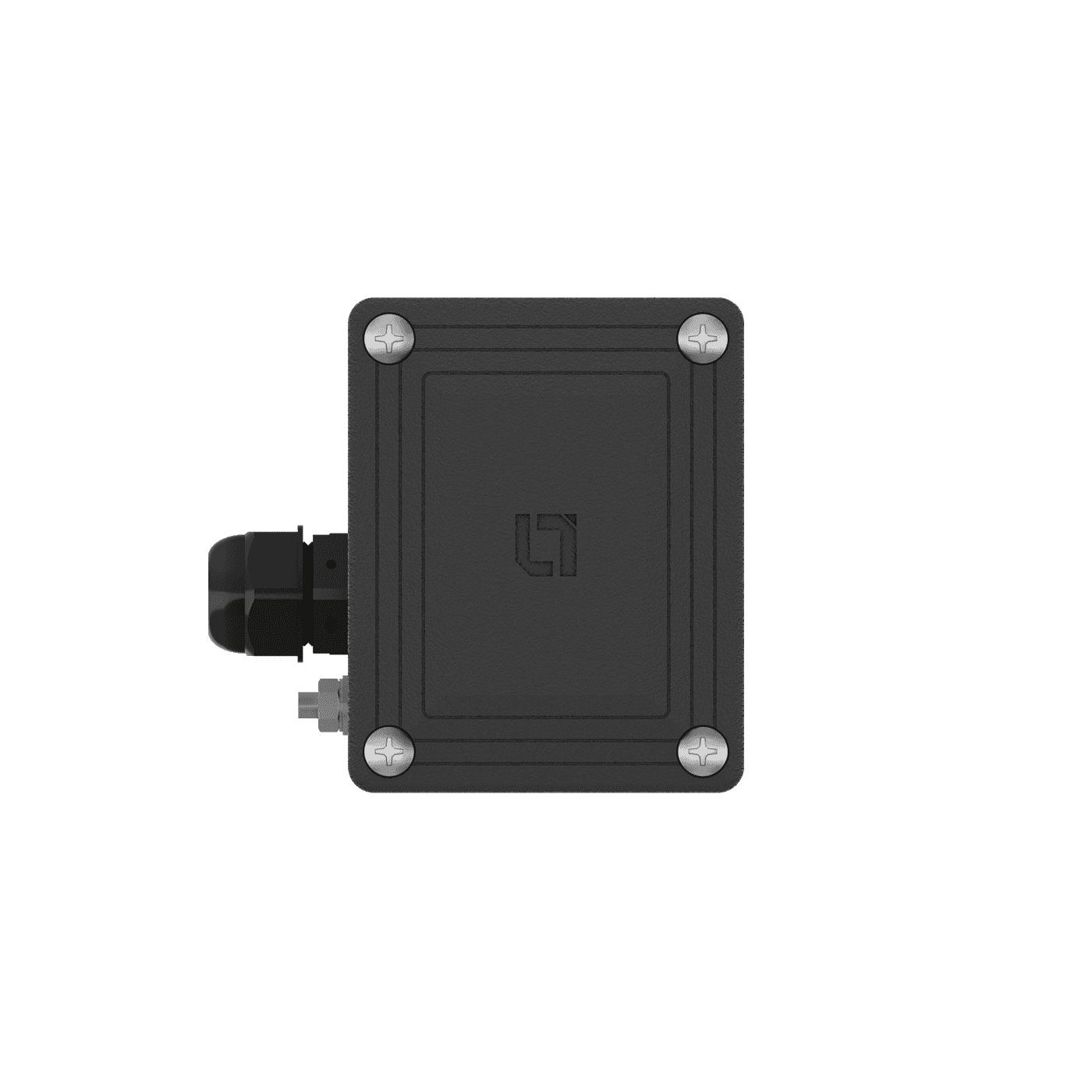

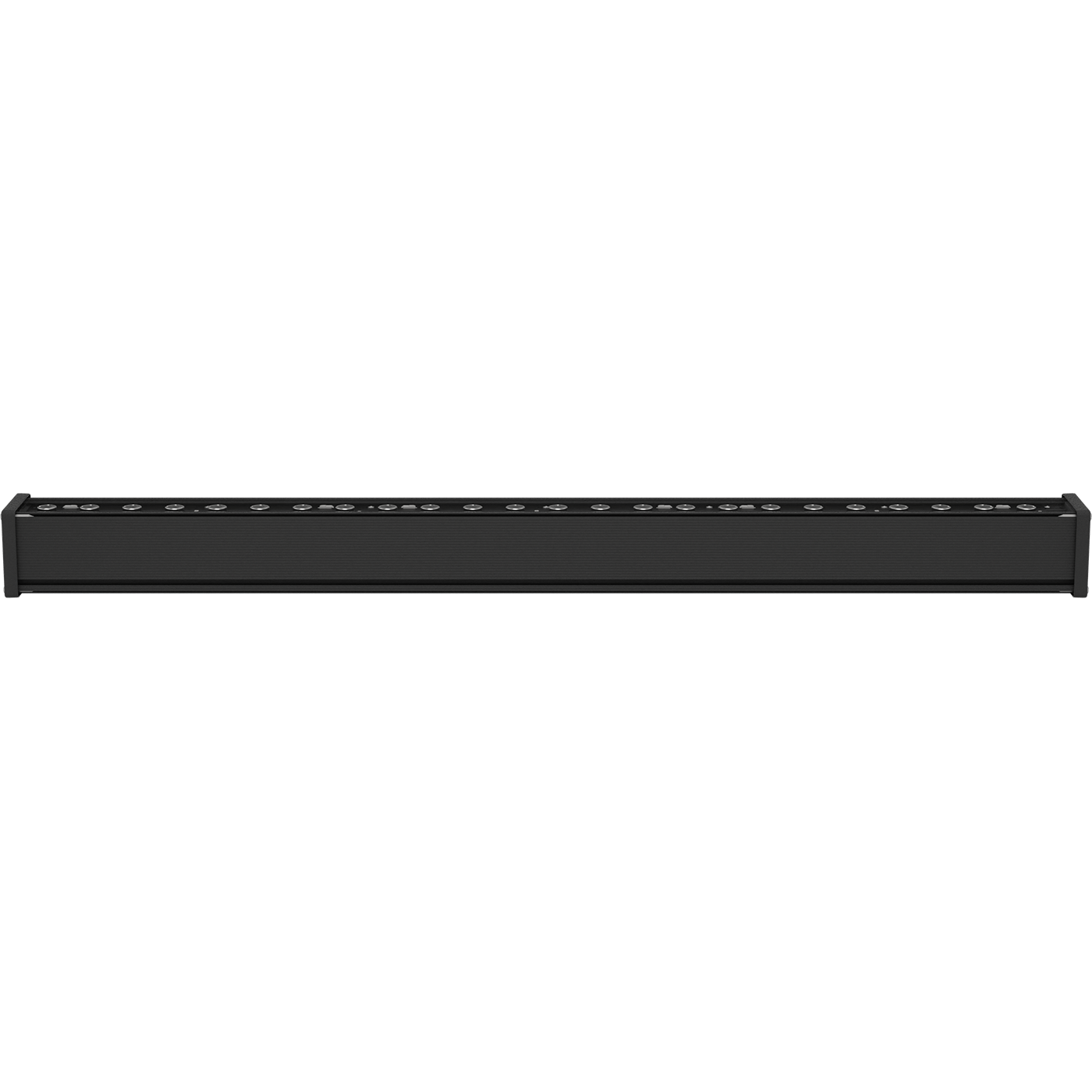

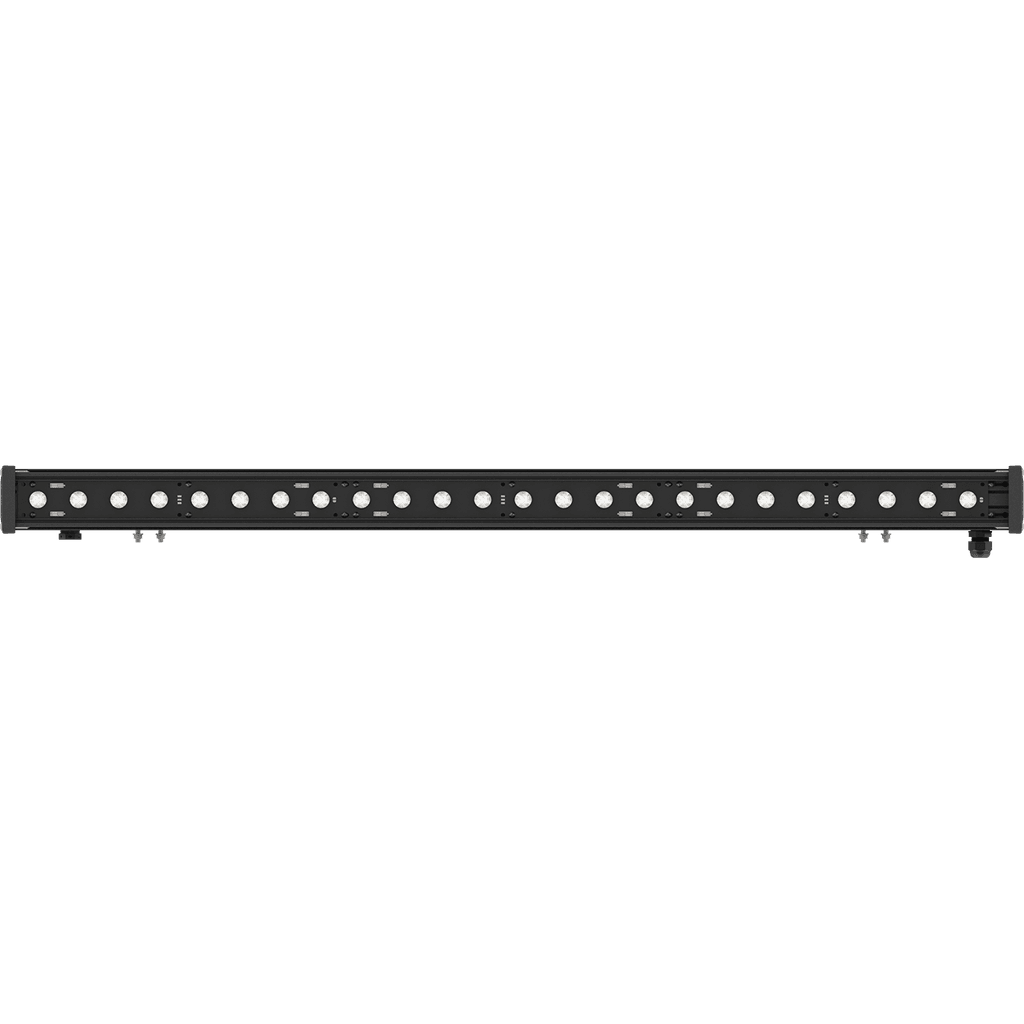

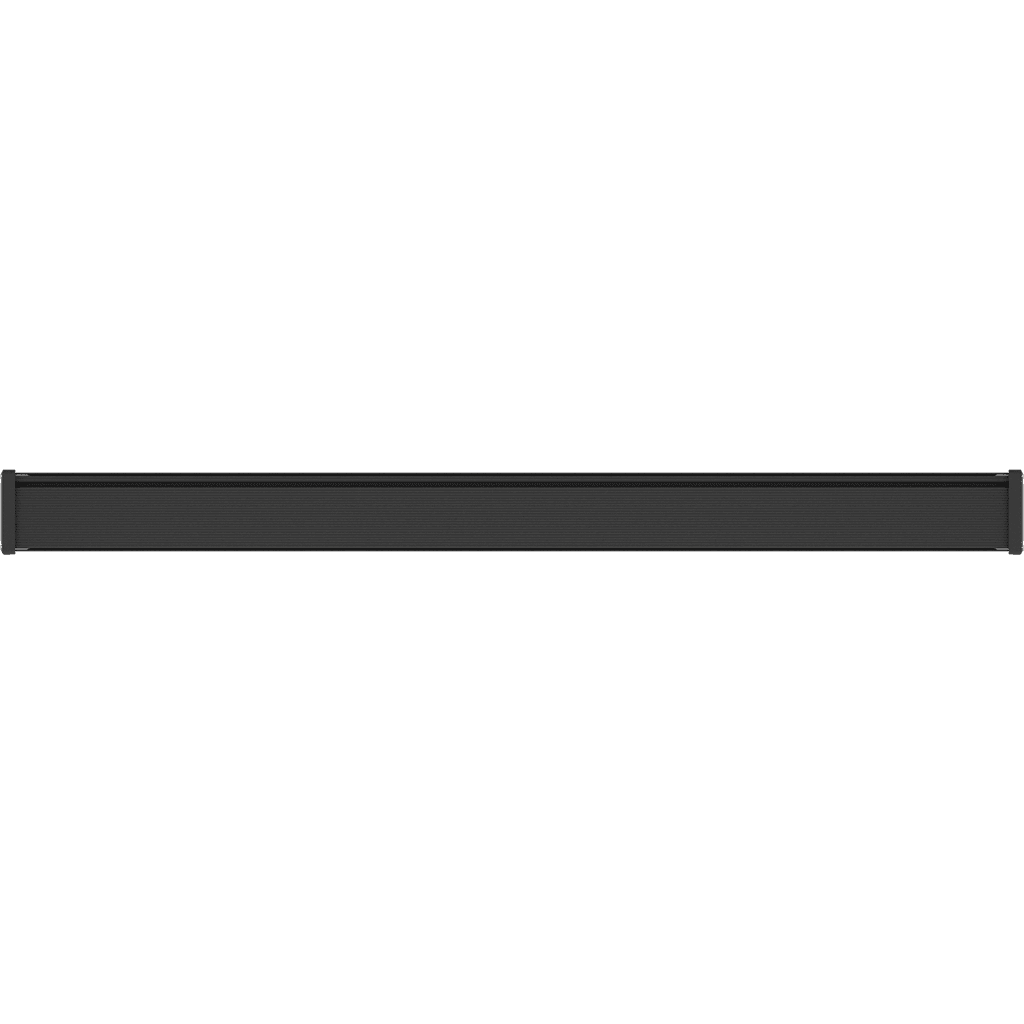

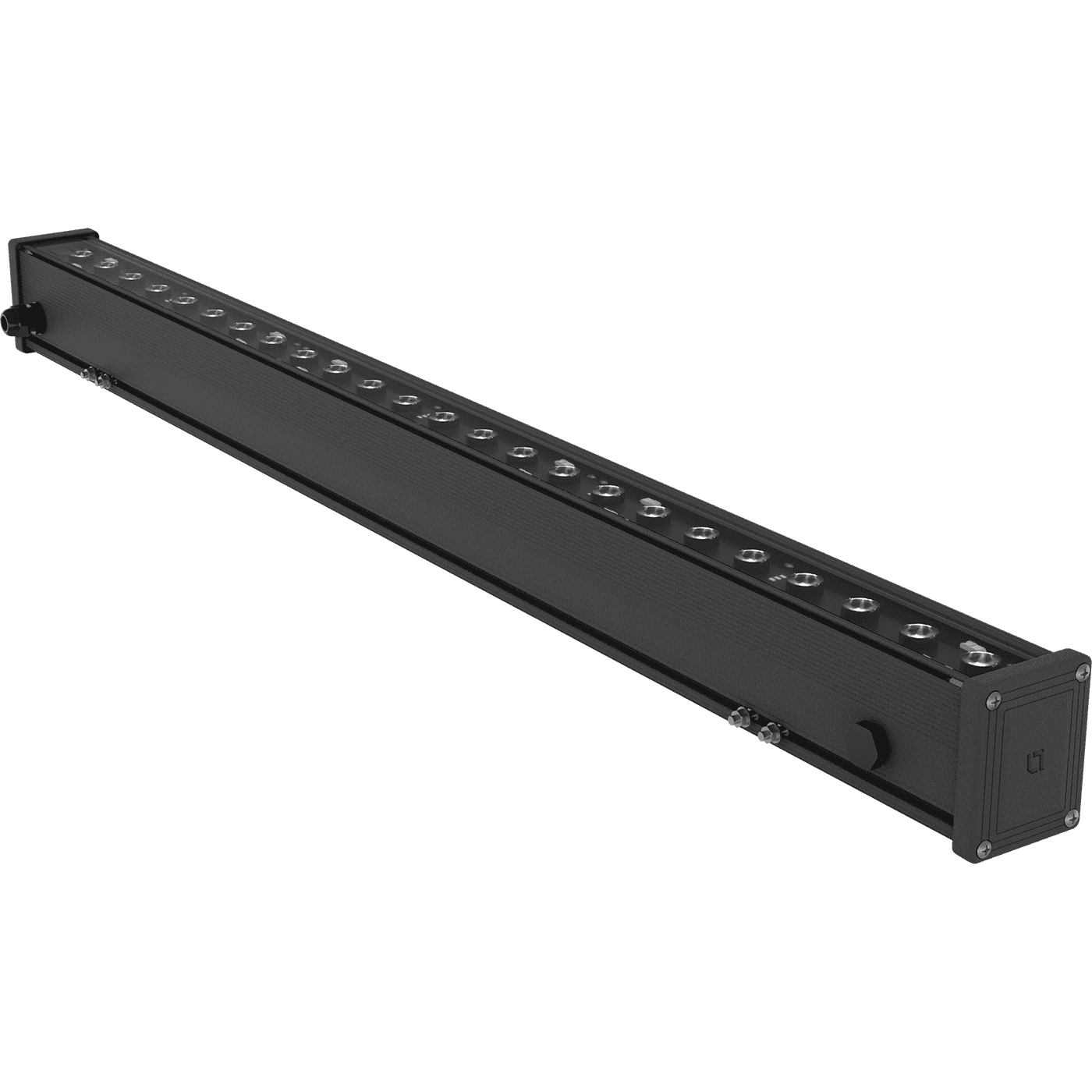

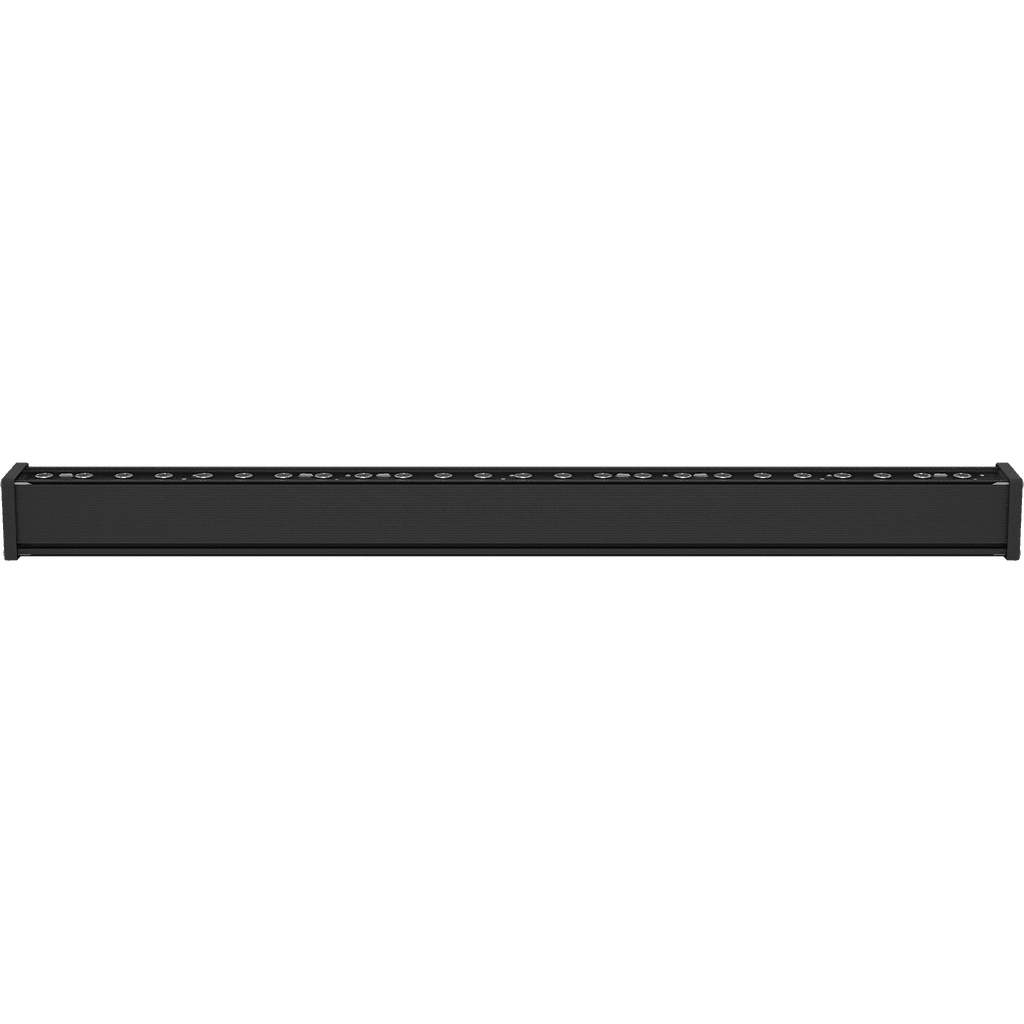

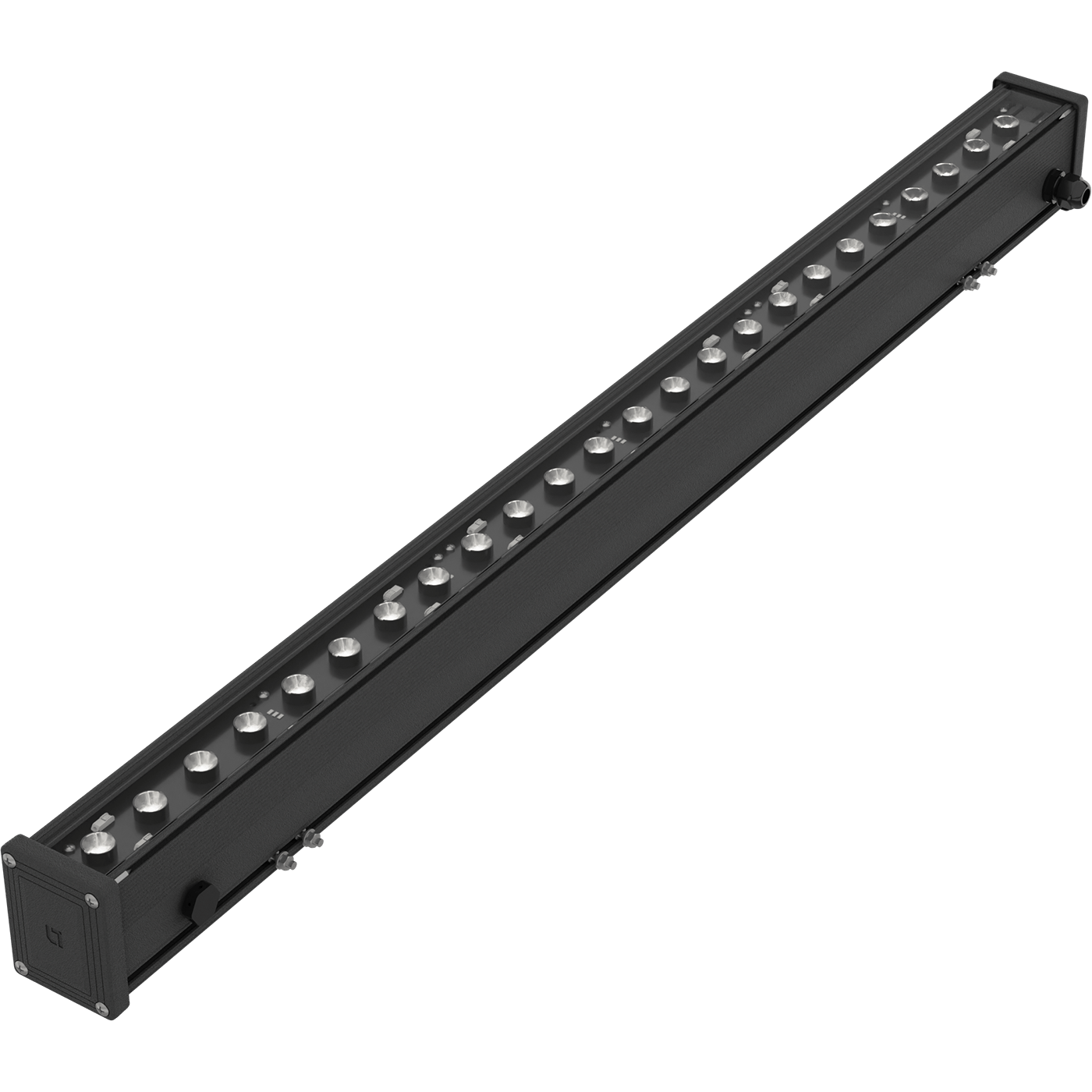

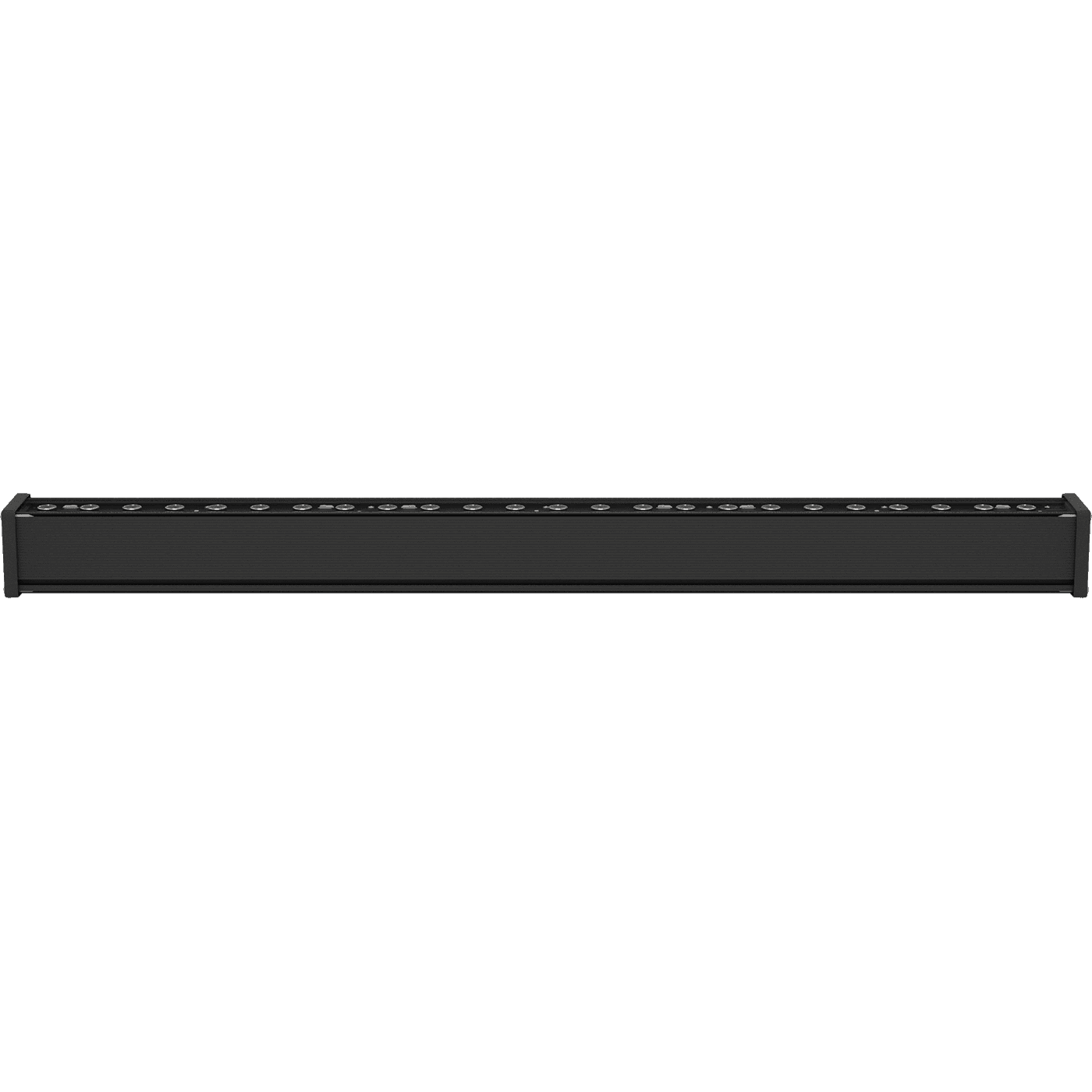

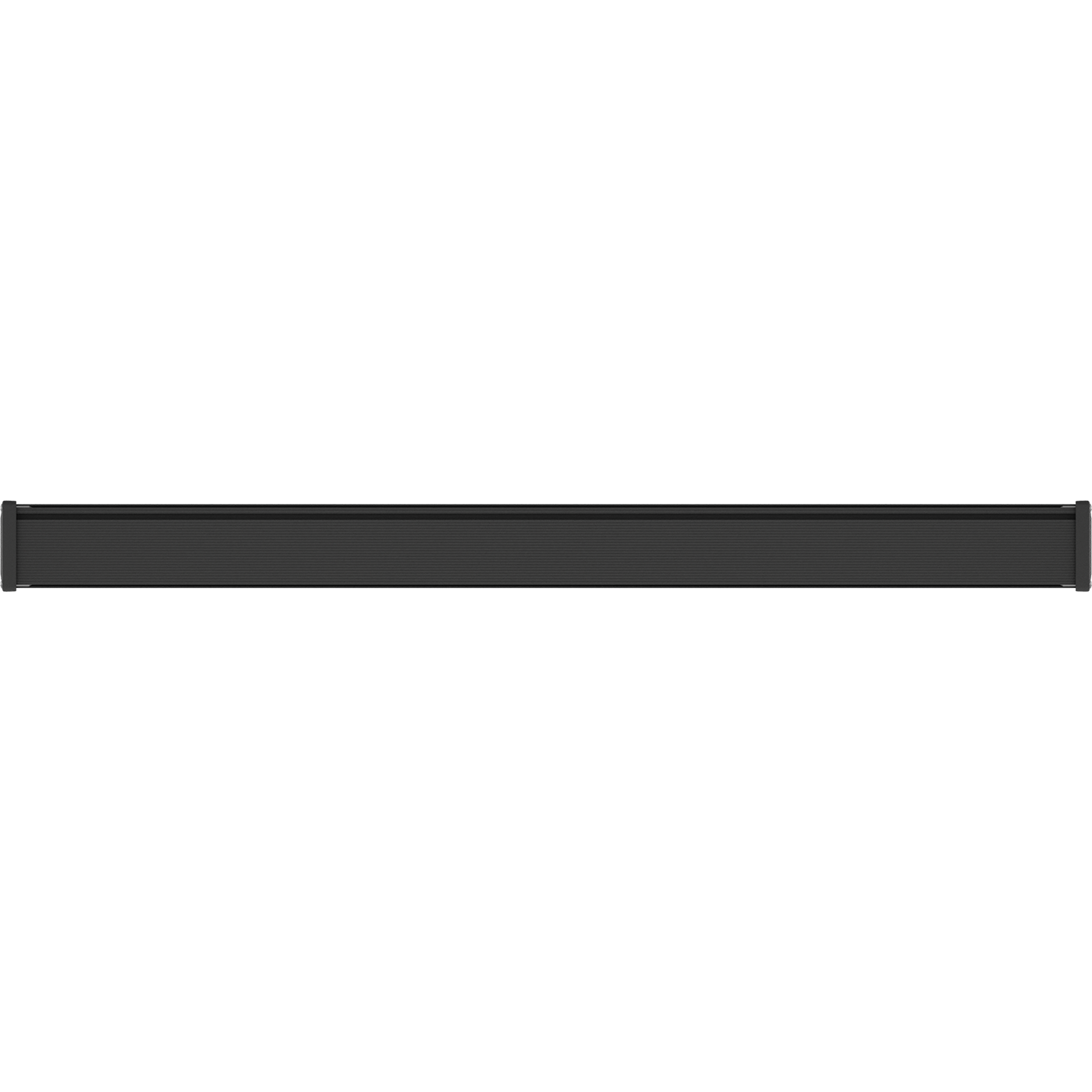

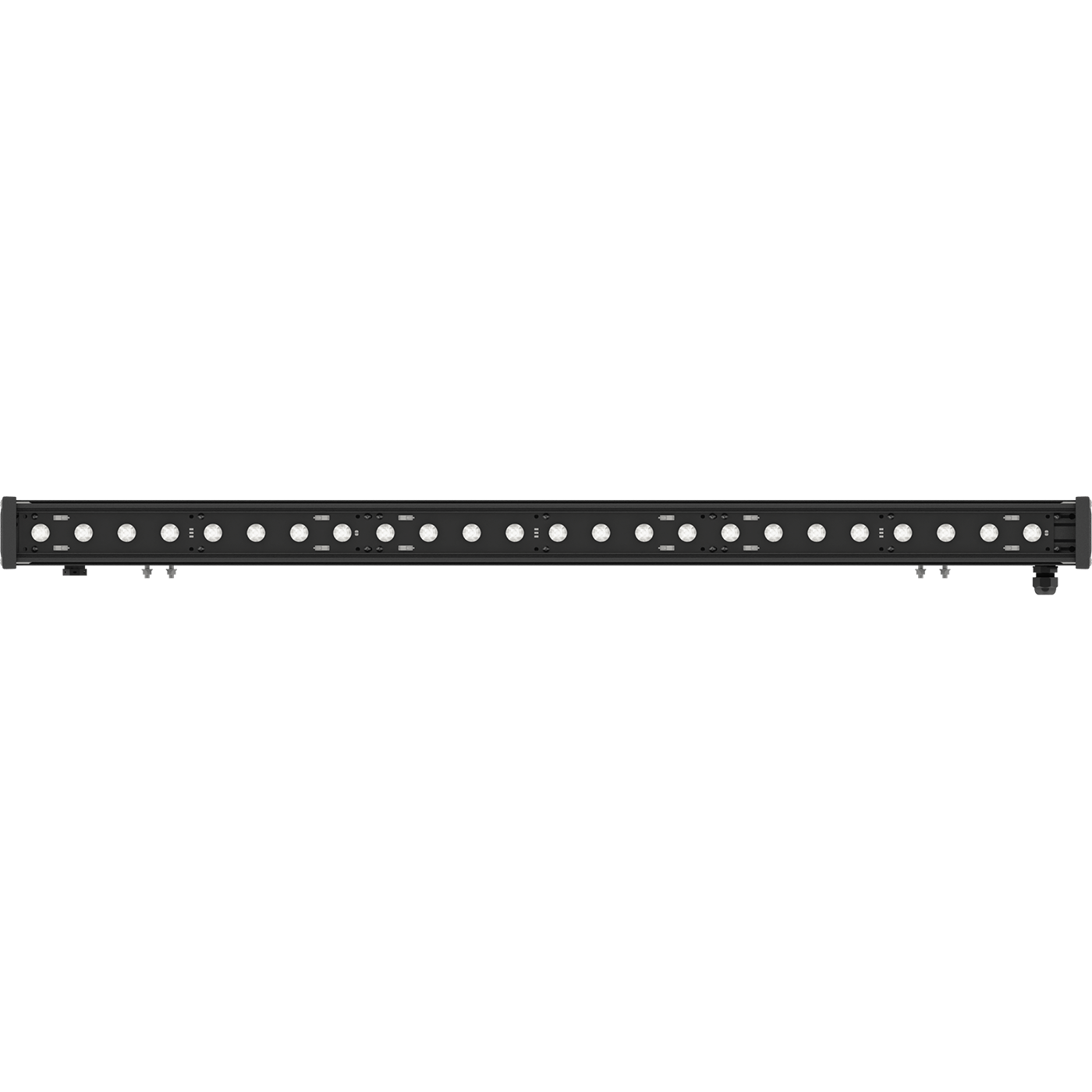

EVOLINE LED (600) 24W D50 840 SL
_24w_d50_840_sl.jpg&w=1920&q=100)
_24w_d50_840_sl.jpg&w=1024&q=75)
EVOLINE LED (600) 24W D50 840 SL
26 Wluminaire power
2700 lmlight flow
104 lm/Wenergy efficiency
code1006000080
beam angleD50
color temperature4000 K
weight2.1 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
104 lm/Wcolor rendition index (CRI)
>80light flow
2700 lmflickering factor
<5%beam angle
D50color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
104 lm/W
color rendition index (CRI)
>80
light flow
2700 lm
flickering factor
<5%
beam angle
D50
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
luminaire power
26 W
electric shock protection
I
starting current pulse time
250 µs
rated supply voltage, alternating current
230 V
supply voltage
230 V
starting current
25 A
maximum cross-section of the connected cable
2.5 mm2
supply voltage, direct current
176-264 V
supply voltage, alternating current
176-264 V
power factor
> 0,95
constructional
climatic performance
УХЛ1*
fire safety class
П-ІІІ
width
60 mm
height
75 mm
installation length
450 mm
housing color
Металлик
lamp socket
LED
number of lamps
1
ballast
Драйвер
length
600 mm
material
Алюминий
ingress protection (IP)
IP65
shock resistance (IK)
IK07/2 Дж
weight
2.1 kg
common
code
1006000080
warranty
36 month
energy efficiency class
A+
temperature range
от -40 до +40 C
service life
50 000 h
ETIM class
Настенно-потолочный светильник
model files
model files
CAD/BIM files
photometric files
documents
сертификаты
CAD/BIM files
model 3dMax2.3 mB

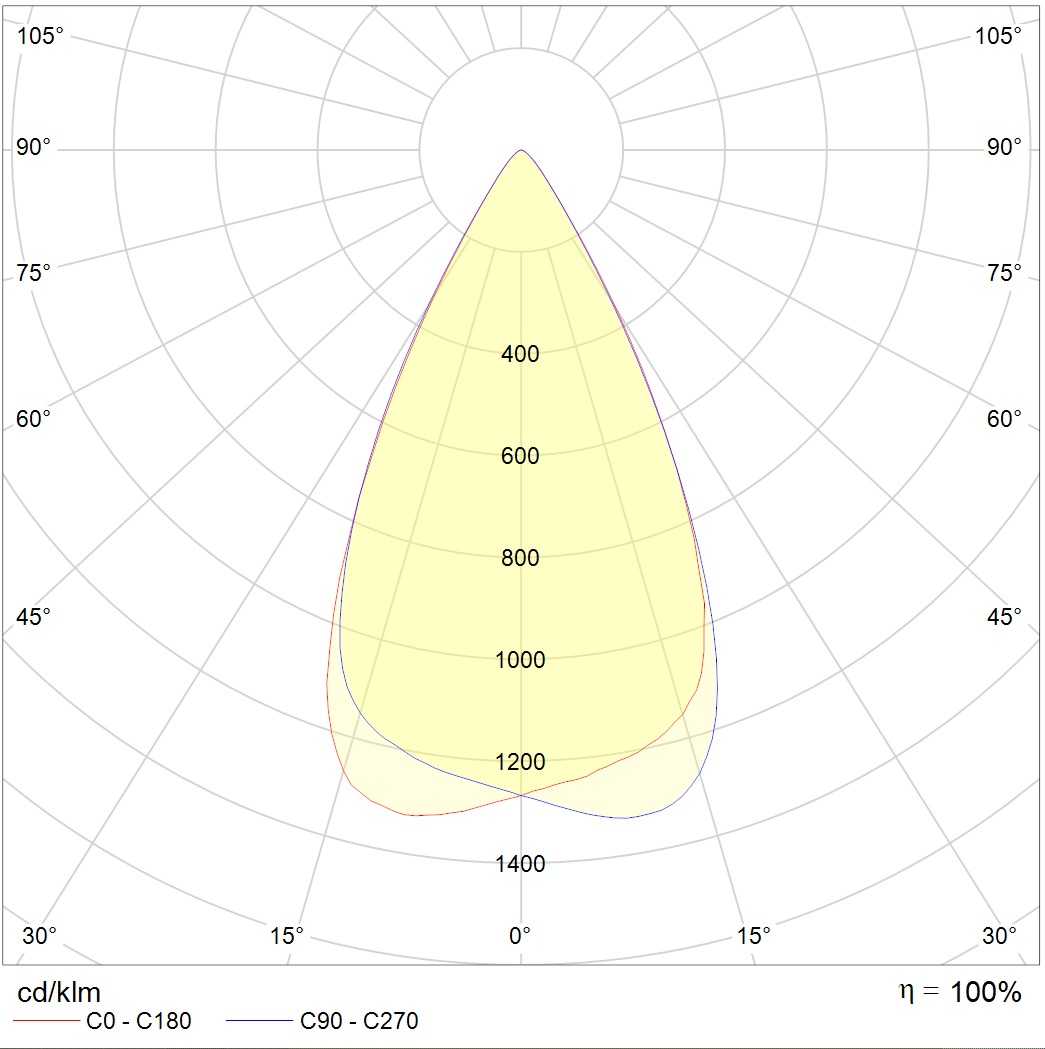

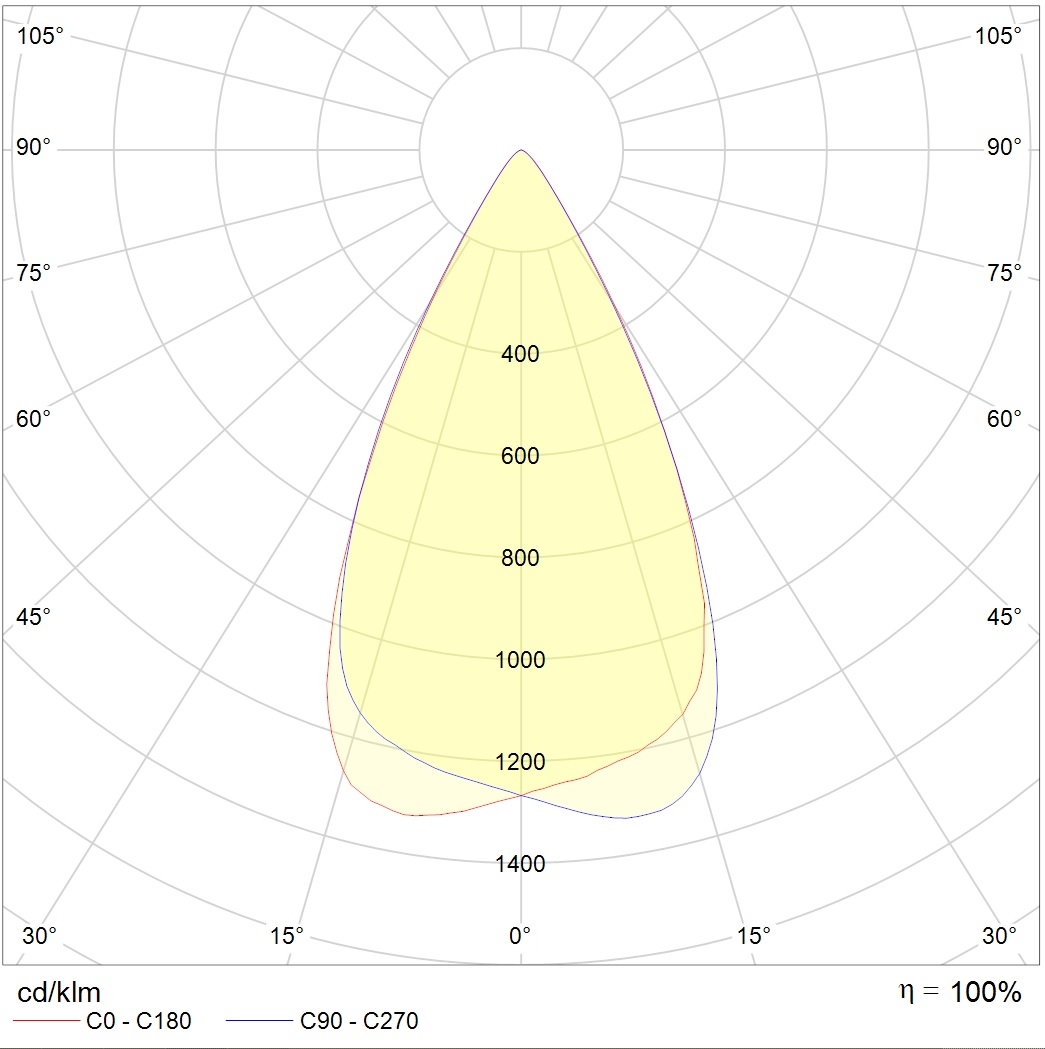

photometric files
