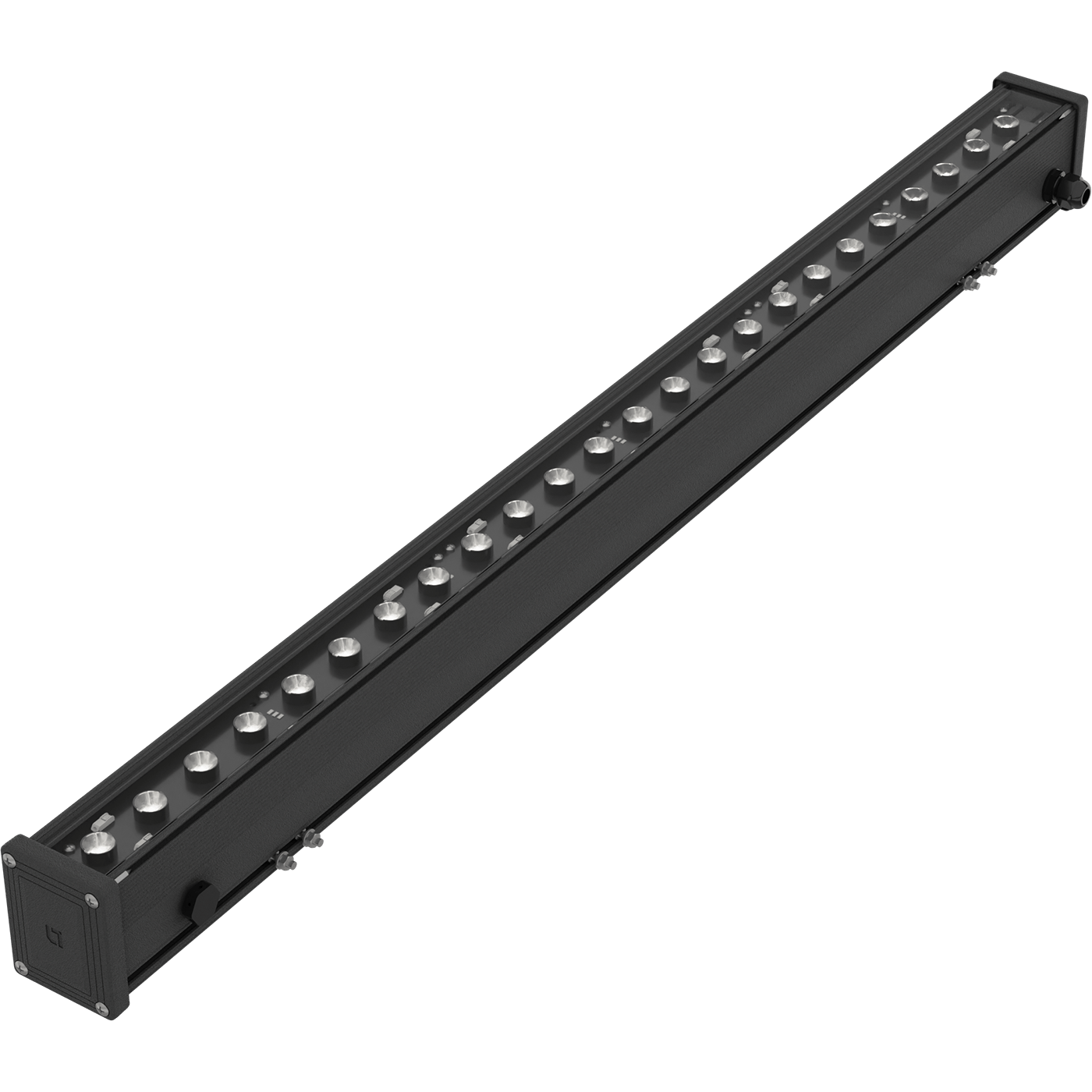

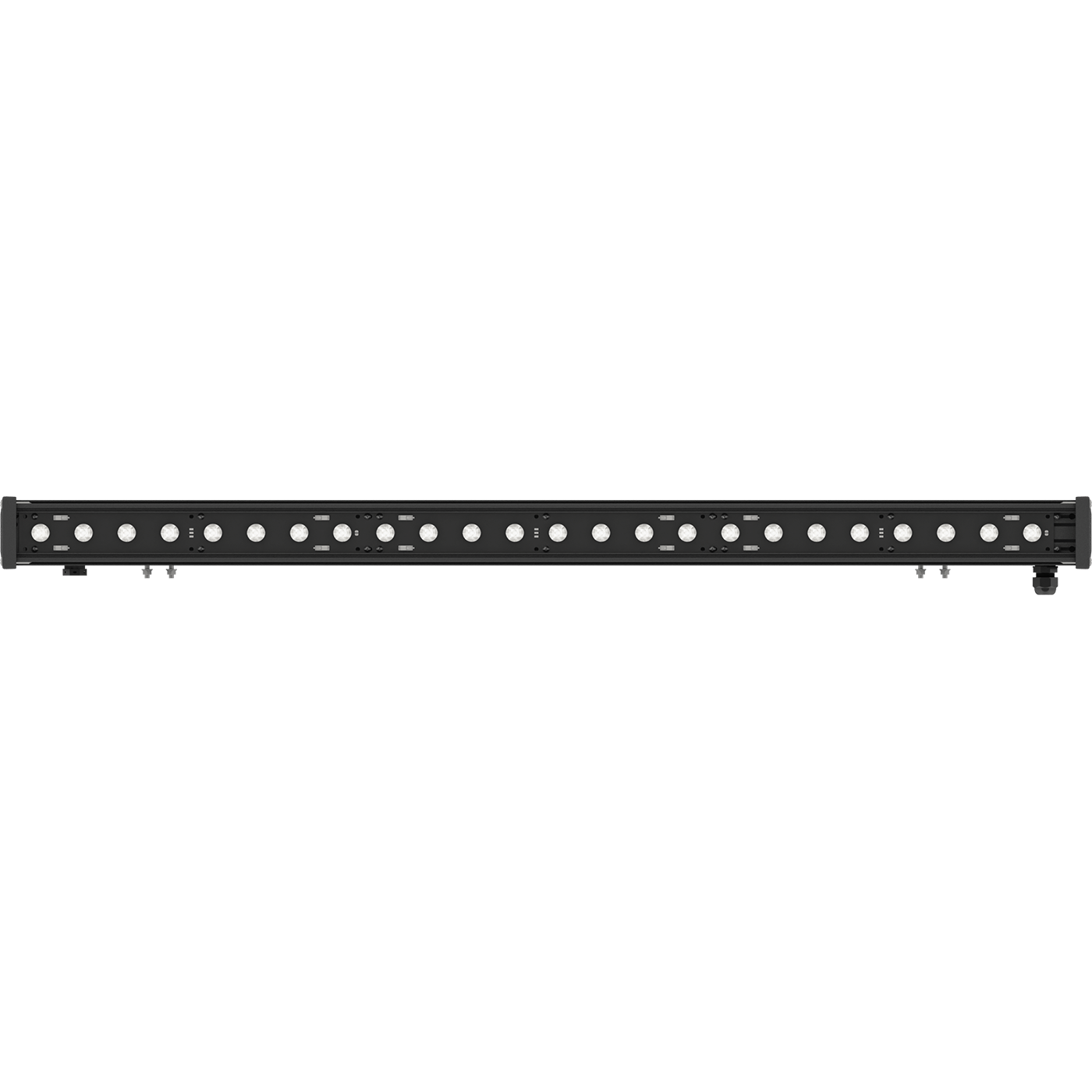

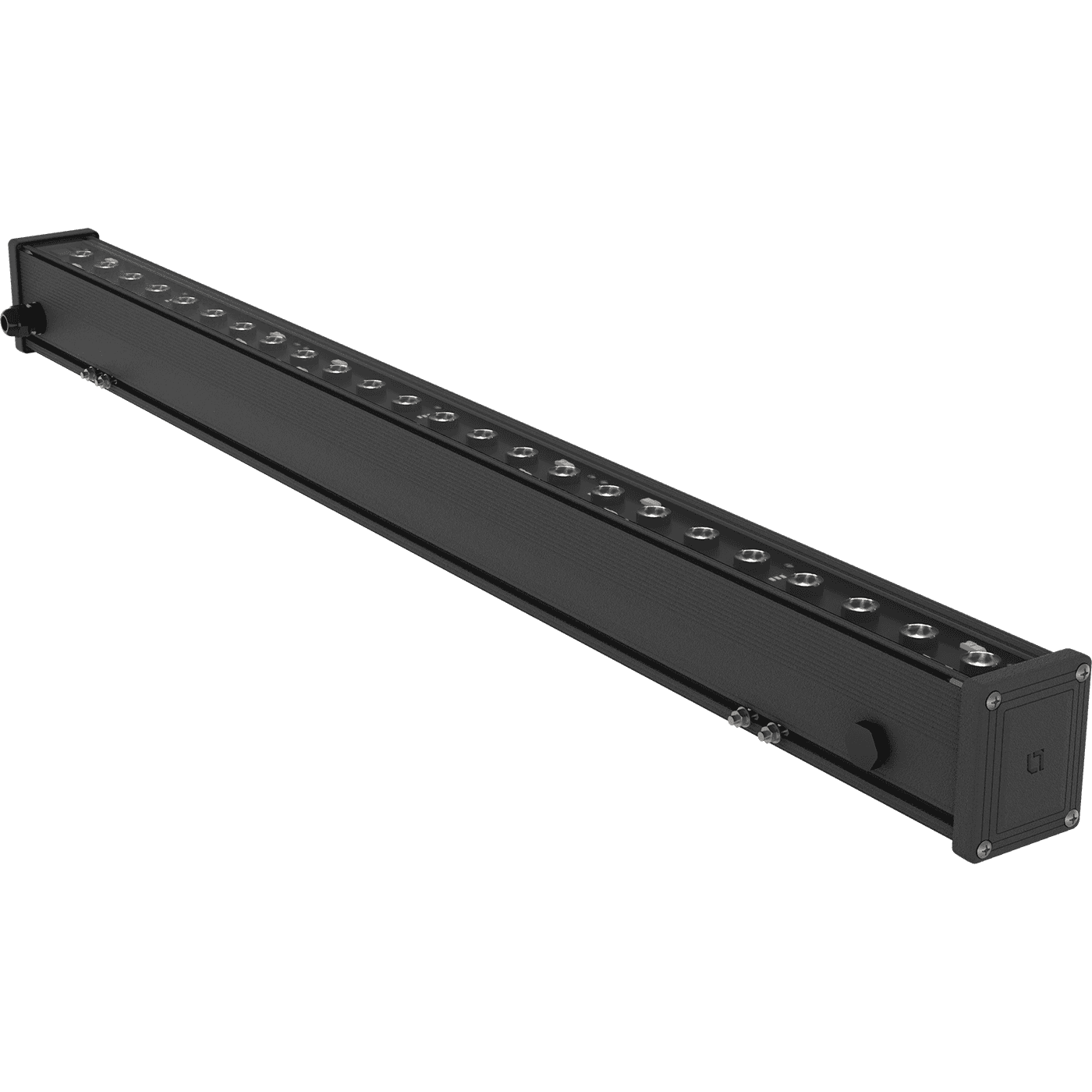

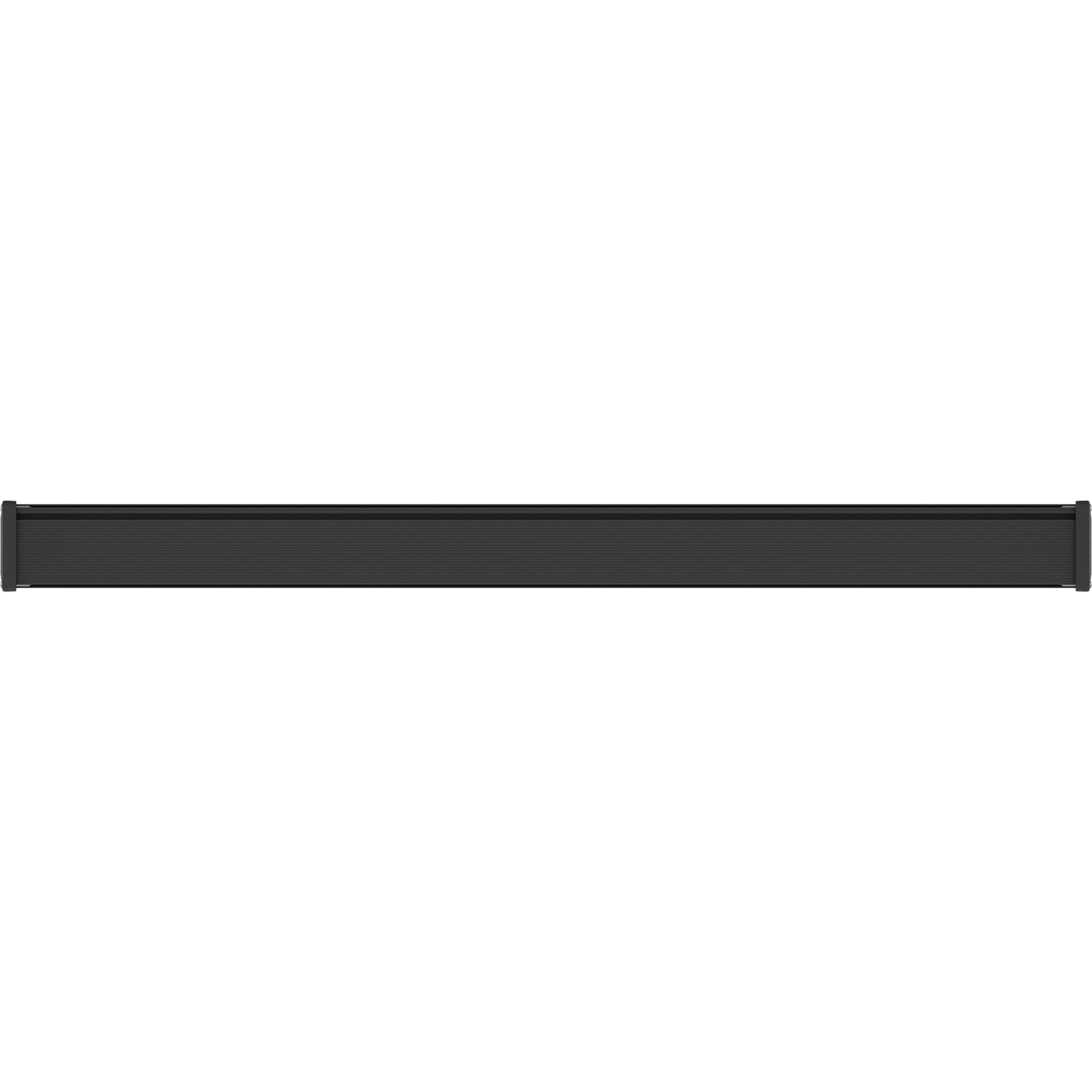

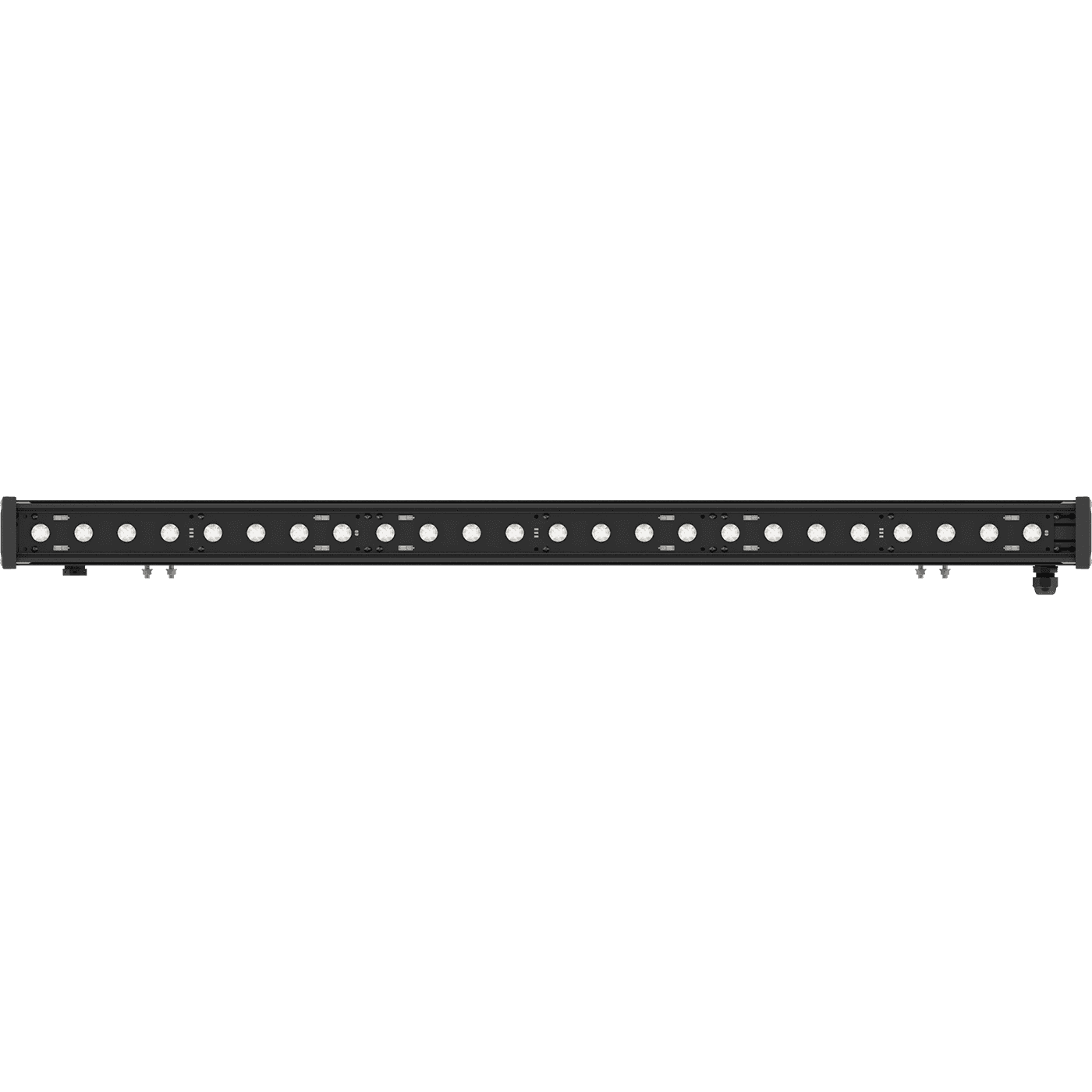

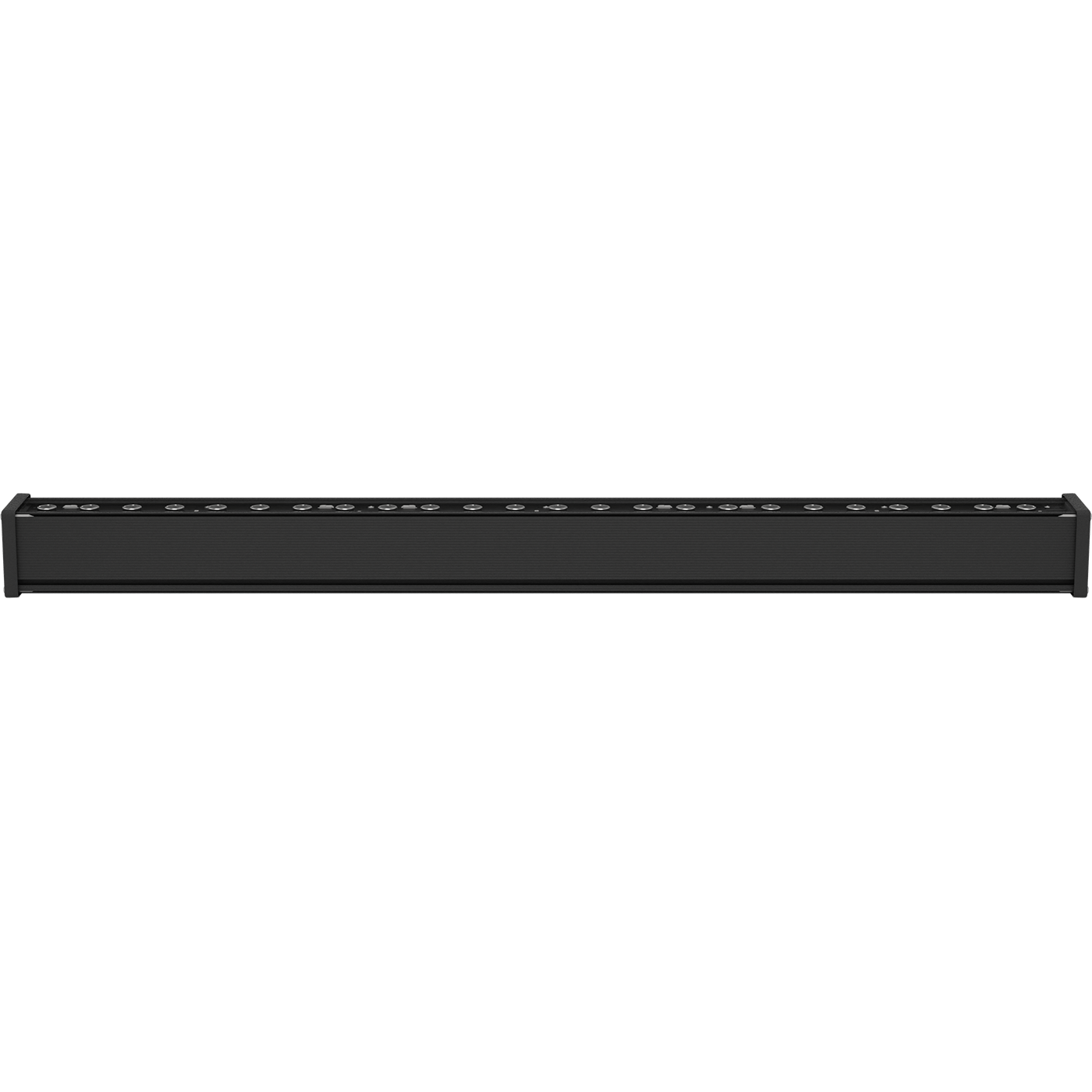

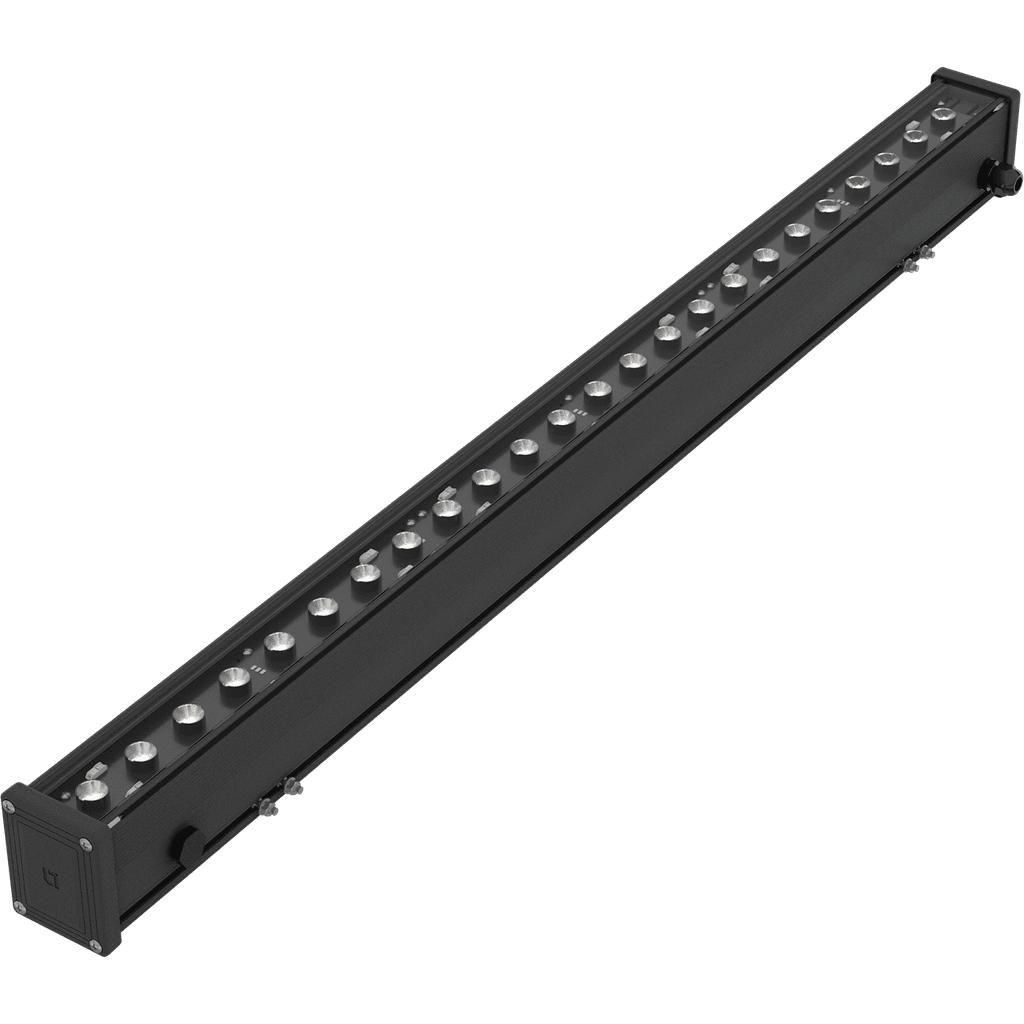

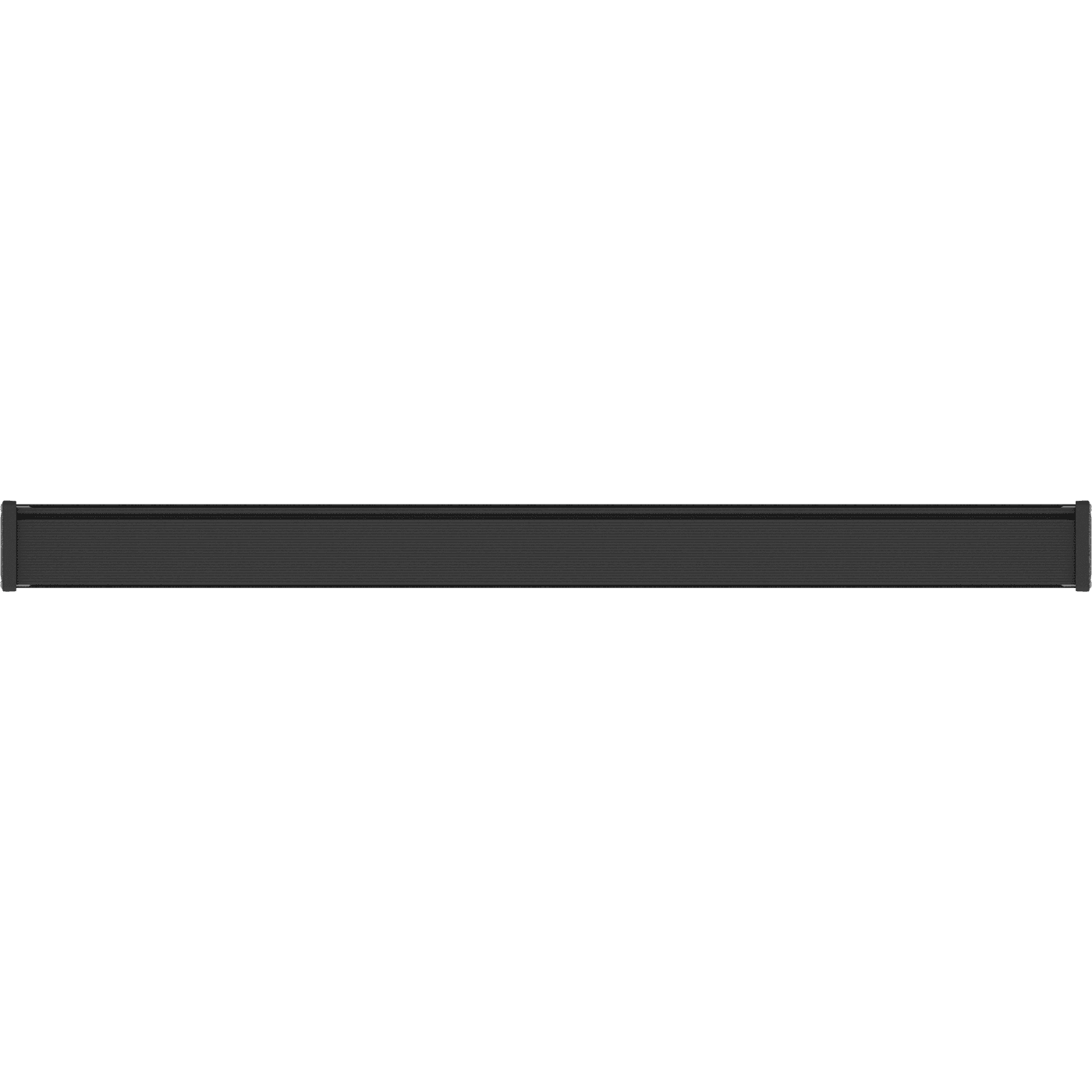

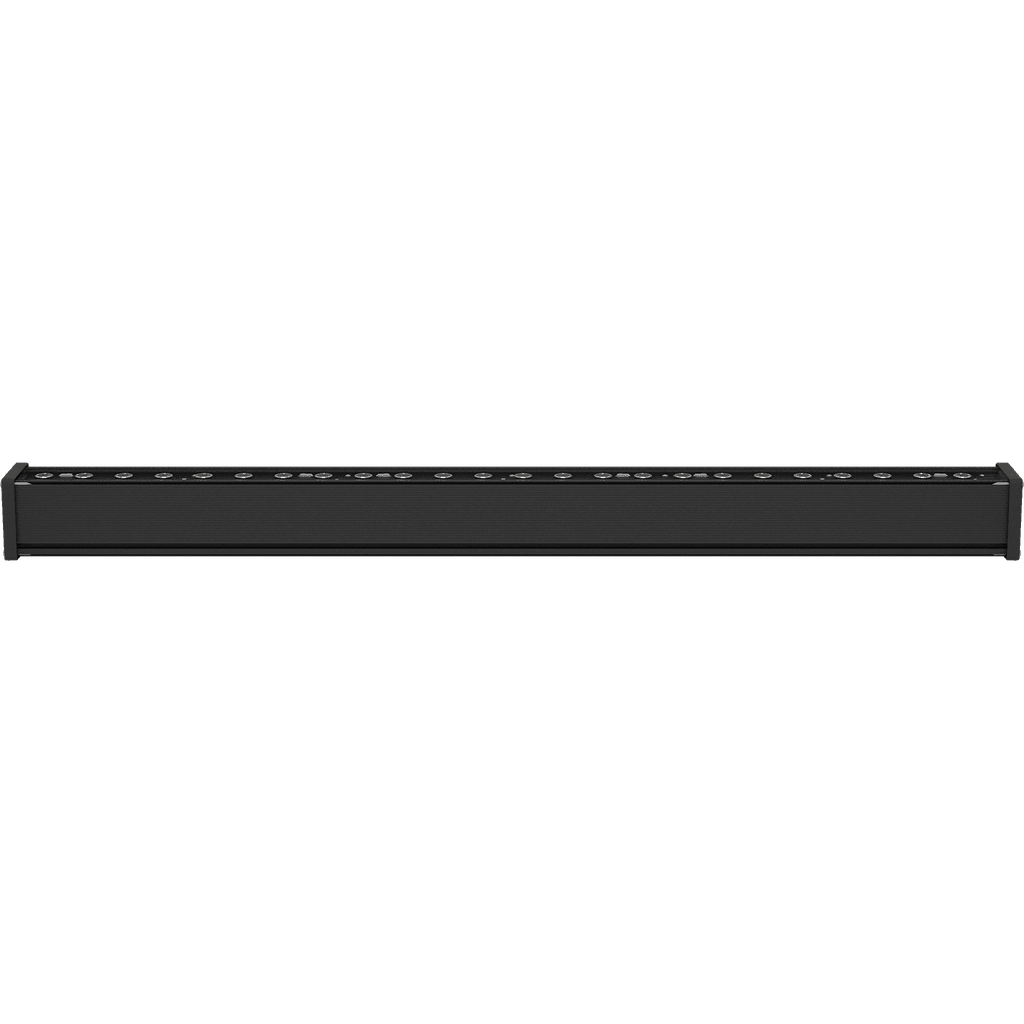

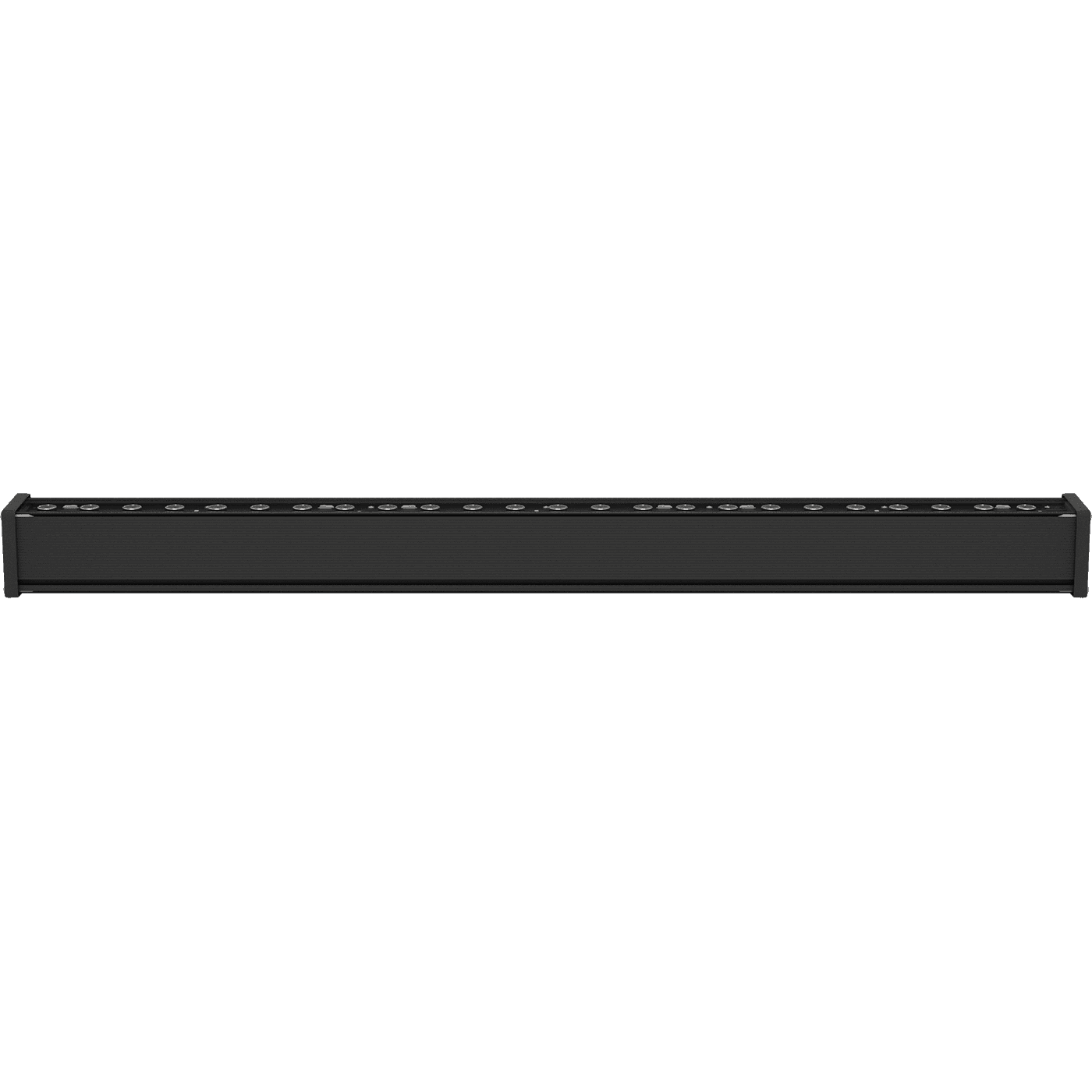

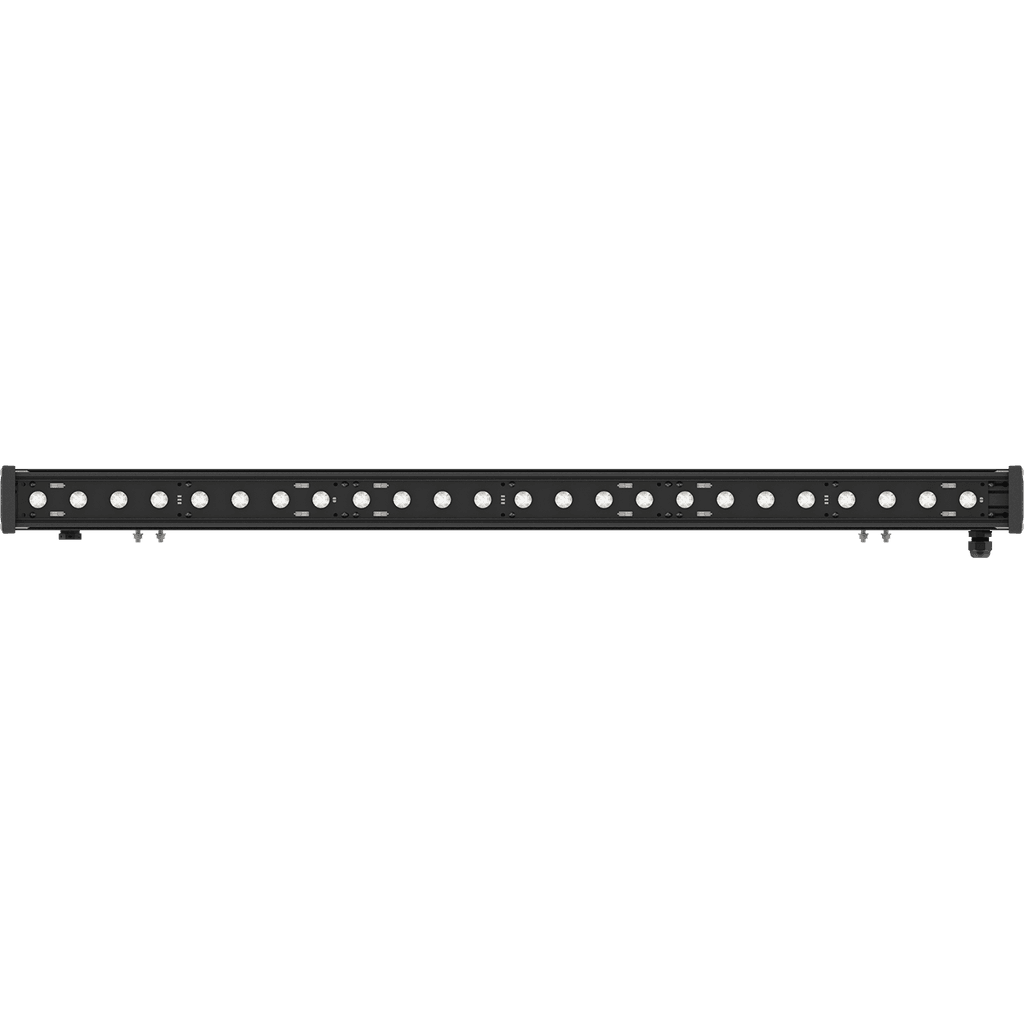

EVOLINE LED 36 D8 4000K 900

EVOLINE LED 36 D8 4000K 900
40 Wluminaire power
3300 lmlight flow
83 lm/Wenergy efficiency
code1006000450
beam angleD8
color temperature4000 K
weight3.3 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
83 lm/W
color rendition index (CRI)
>80
light flow
3300 lm
flickering factor
<5%
beam angle
D8
color temperature
4000 K
light source type
LED
emission color
Белый
illuminating
energy efficiency
83 lm/W
color rendition index (CRI)
>80
light flow
3300 lm
flickering factor
<5%
beam angle
D8
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
luminaire power
40 W
electric shock protection
I
starting current pulse time
250 µs
rated supply voltage, alternating current
230 V
supply voltage
230 V
starting current
50 A
maximum cross-section of the connected cable
2.5 mm2
supply voltage, direct current
127-420 V
supply voltage, alternating current
90-305 V
power factor
> 0,95
constructional
climatic performance
УХЛ1*
fire safety class
П-ІІІ
width
60 mm
height
75 mm
installation length
700 mm
housing color
Серый
lamp socket
LED
number of lamps
1
ballast
Драйвер
length
900 mm
material
Алюминий
ingress protection (IP)
IP65
shock resistance (IK)
IK07/2 Дж
weight
3.3 kg
common
code
1006000450
warranty
36 month
energy efficiency class
A
temperature range
от -40 до +40 C
service life
50 000 h
ETIM class
Настенно-потолочный светильник
model files
model files

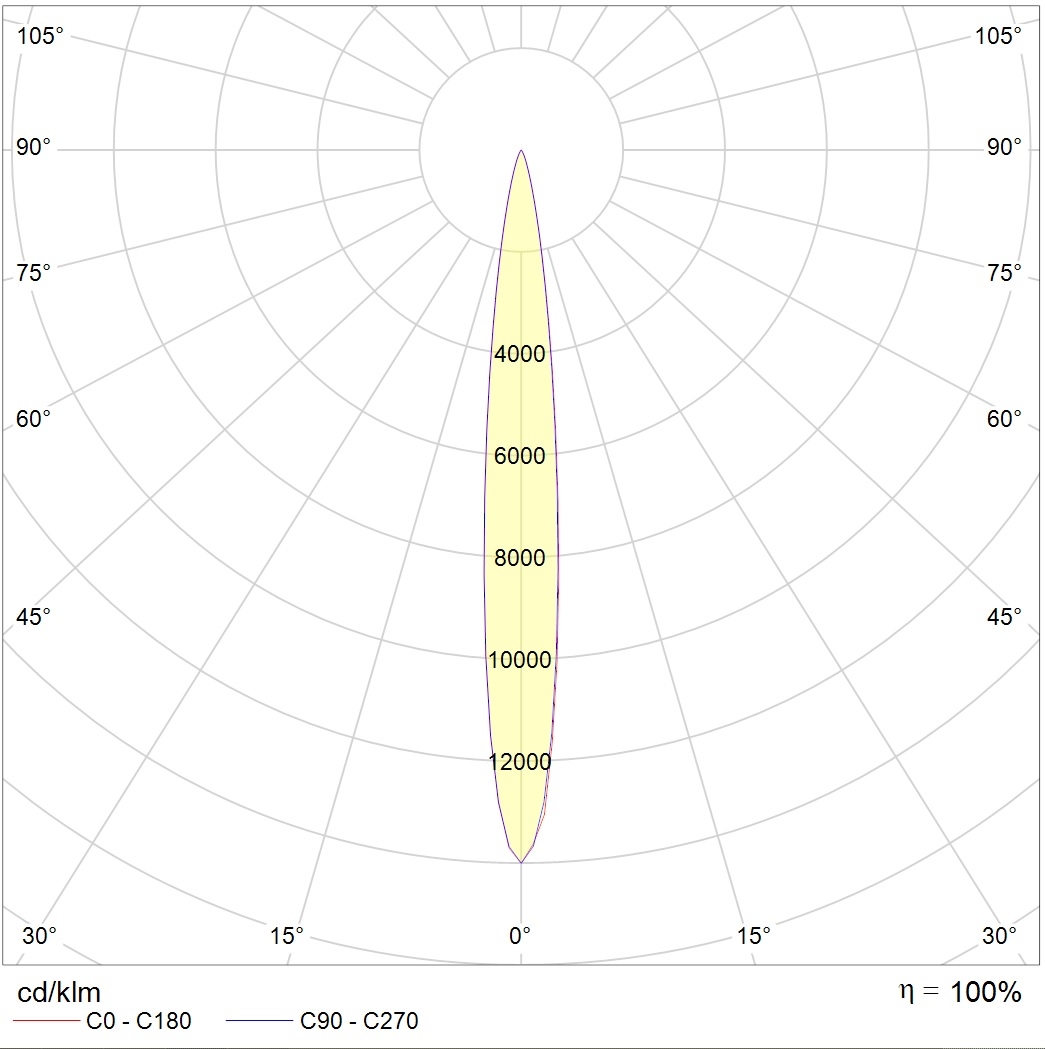

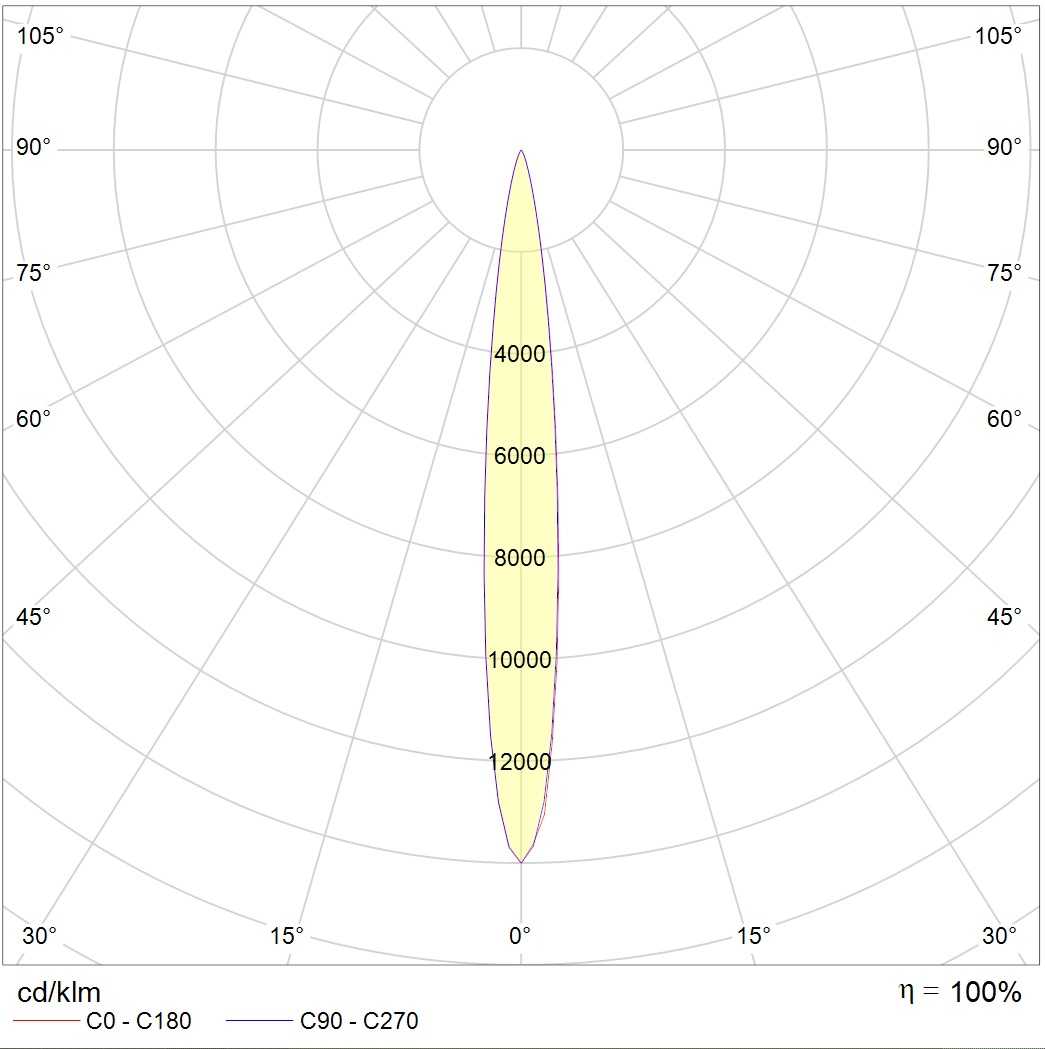

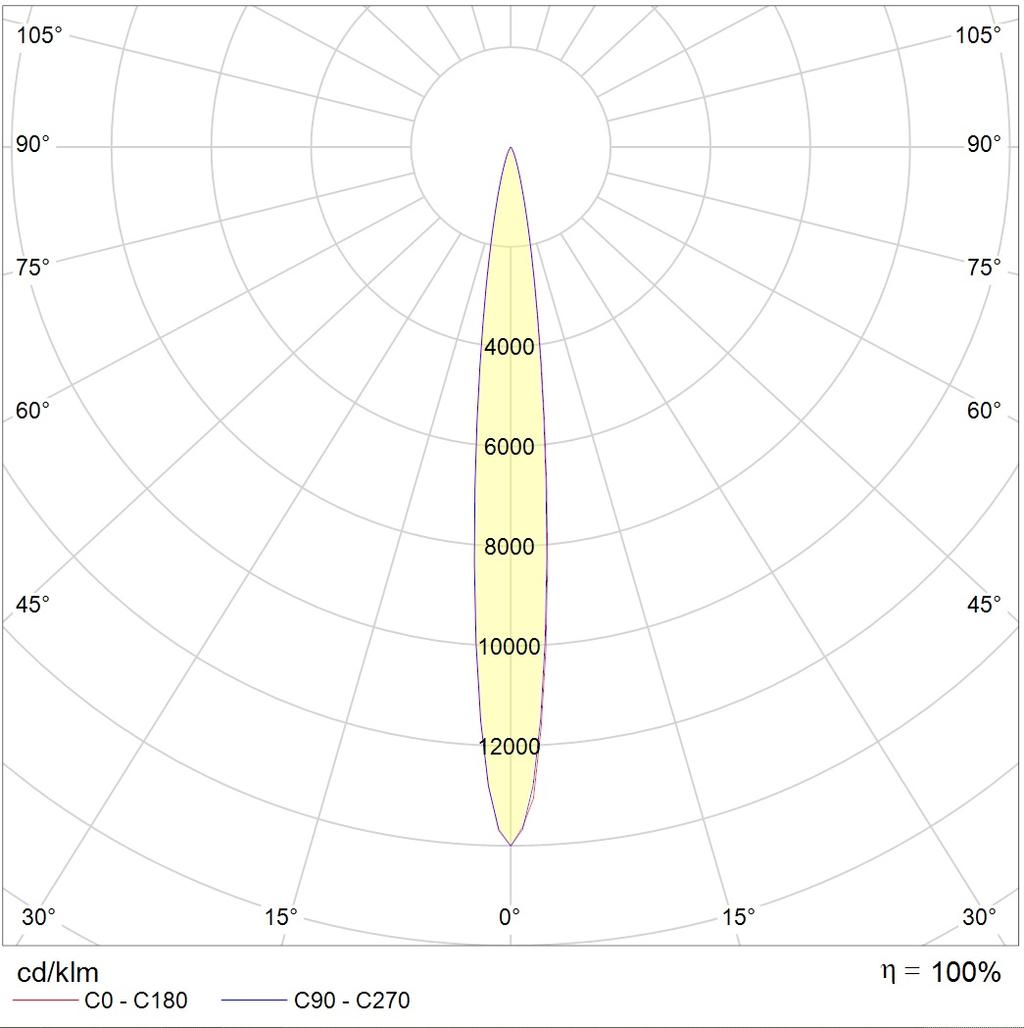

photometric files
