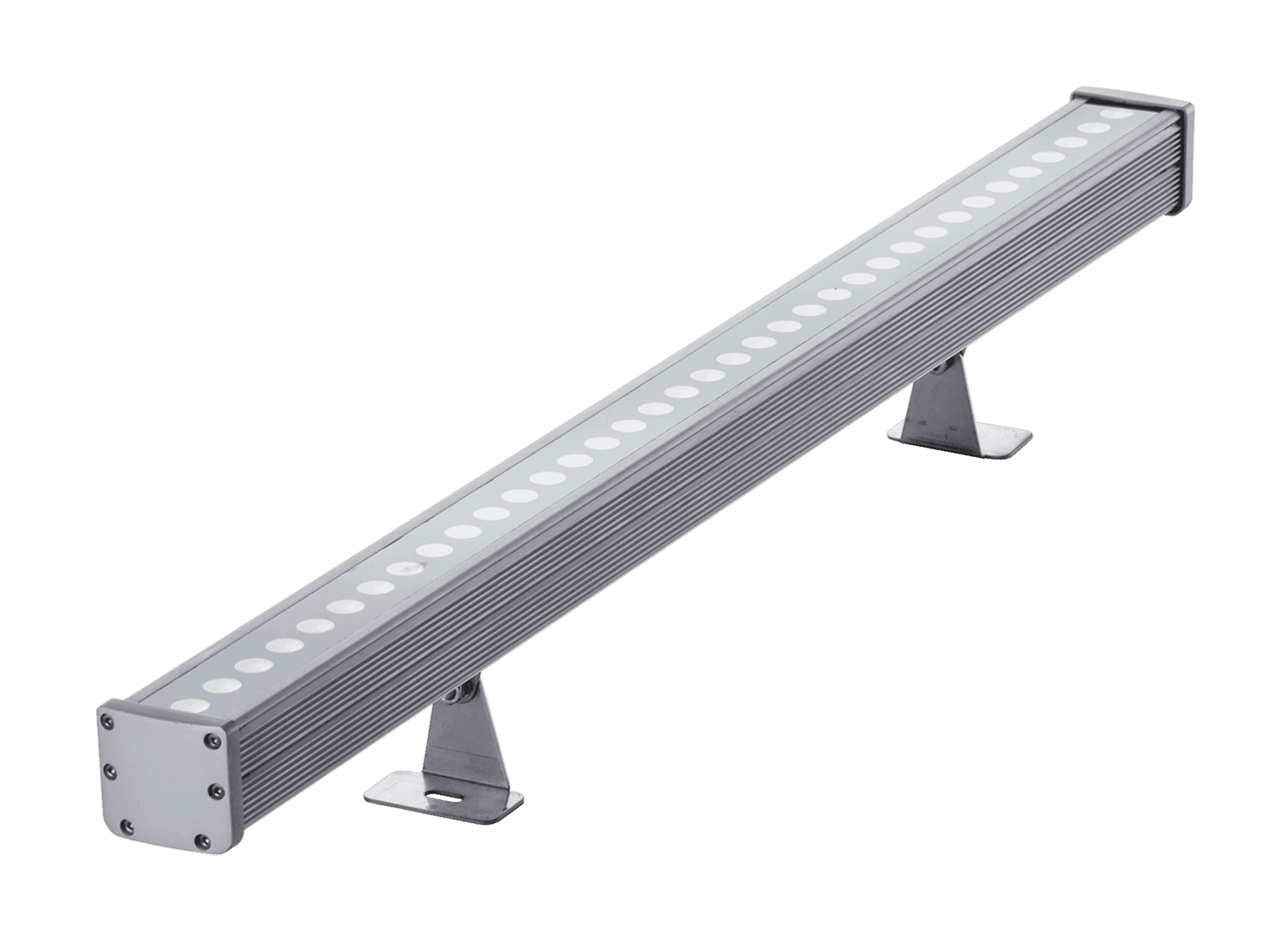

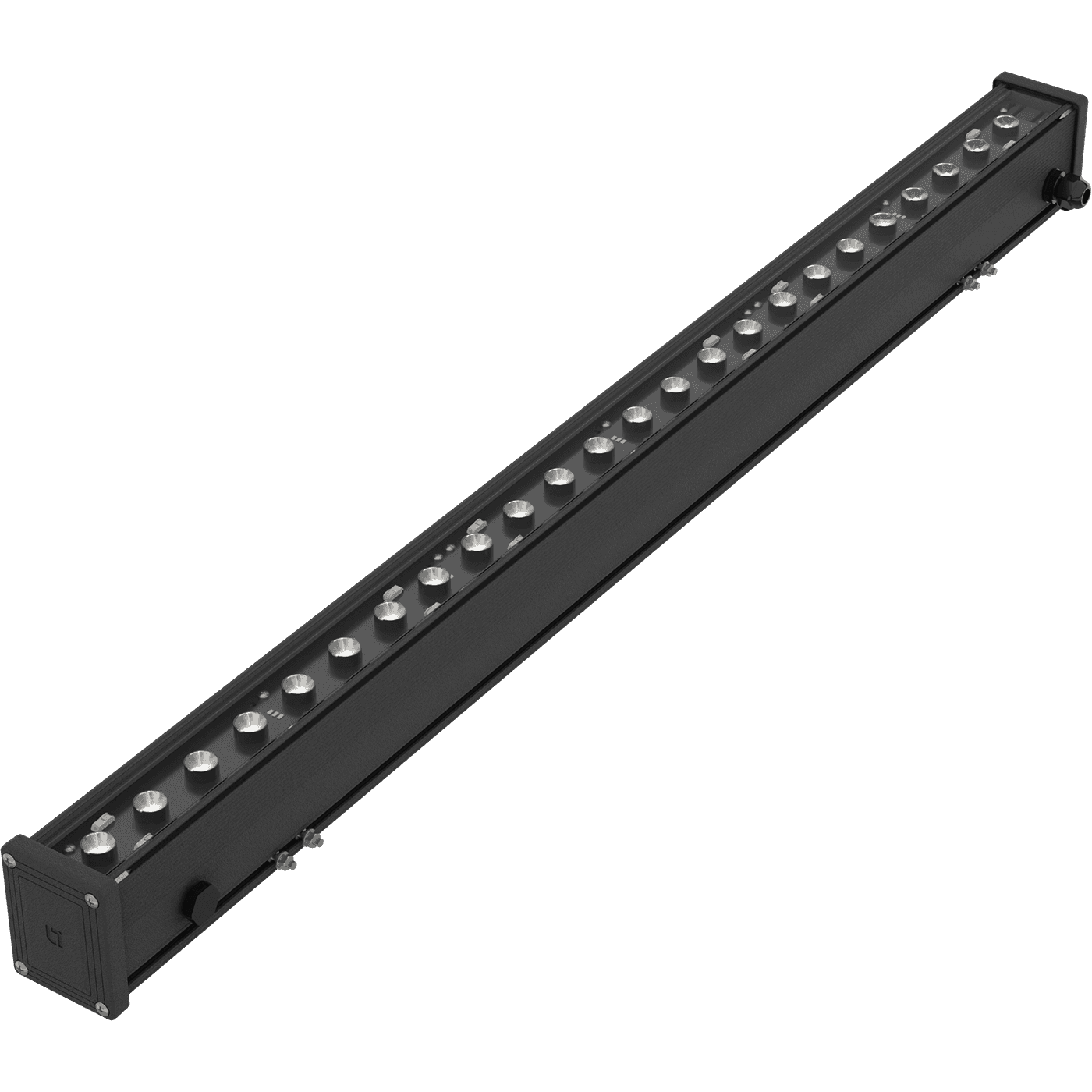

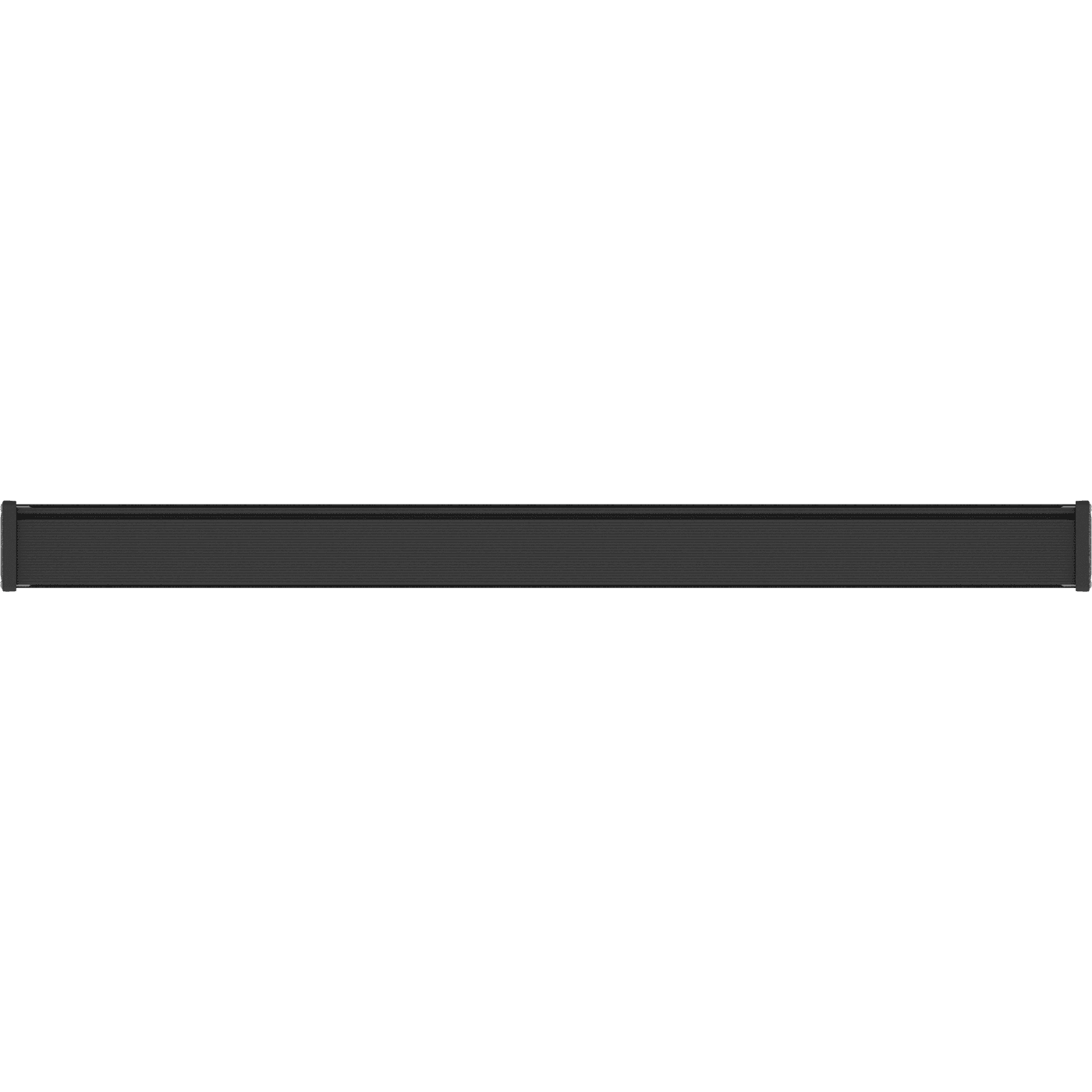

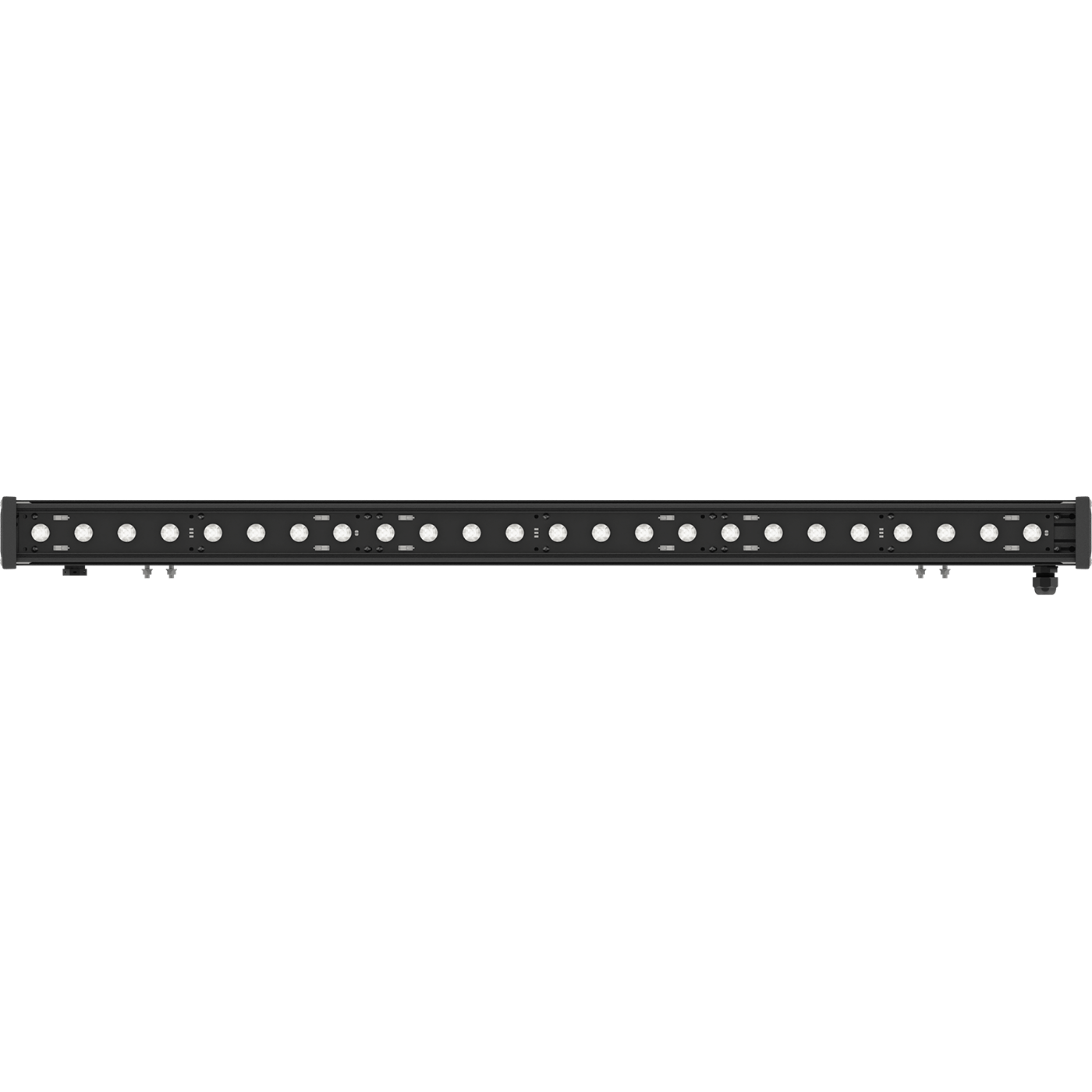

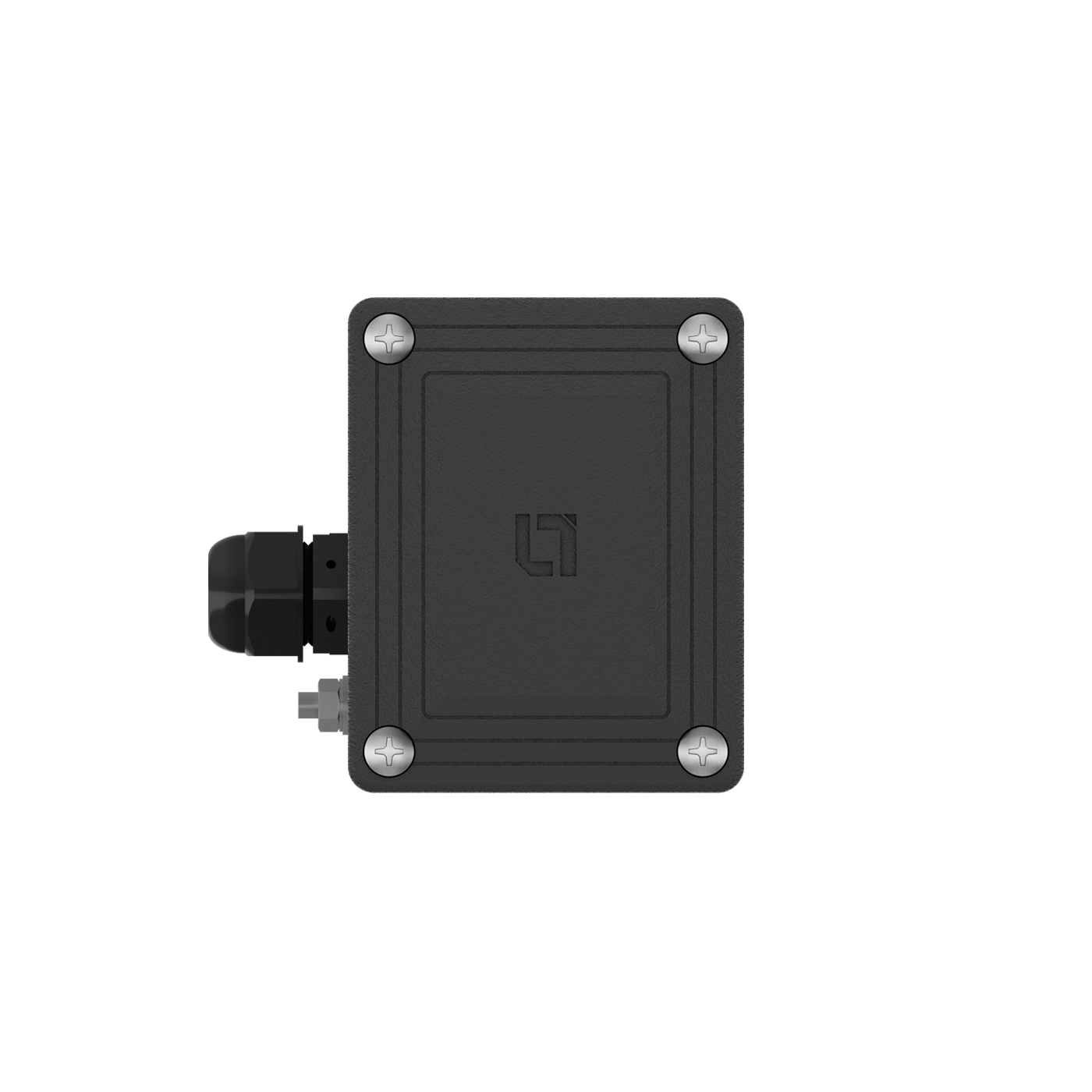

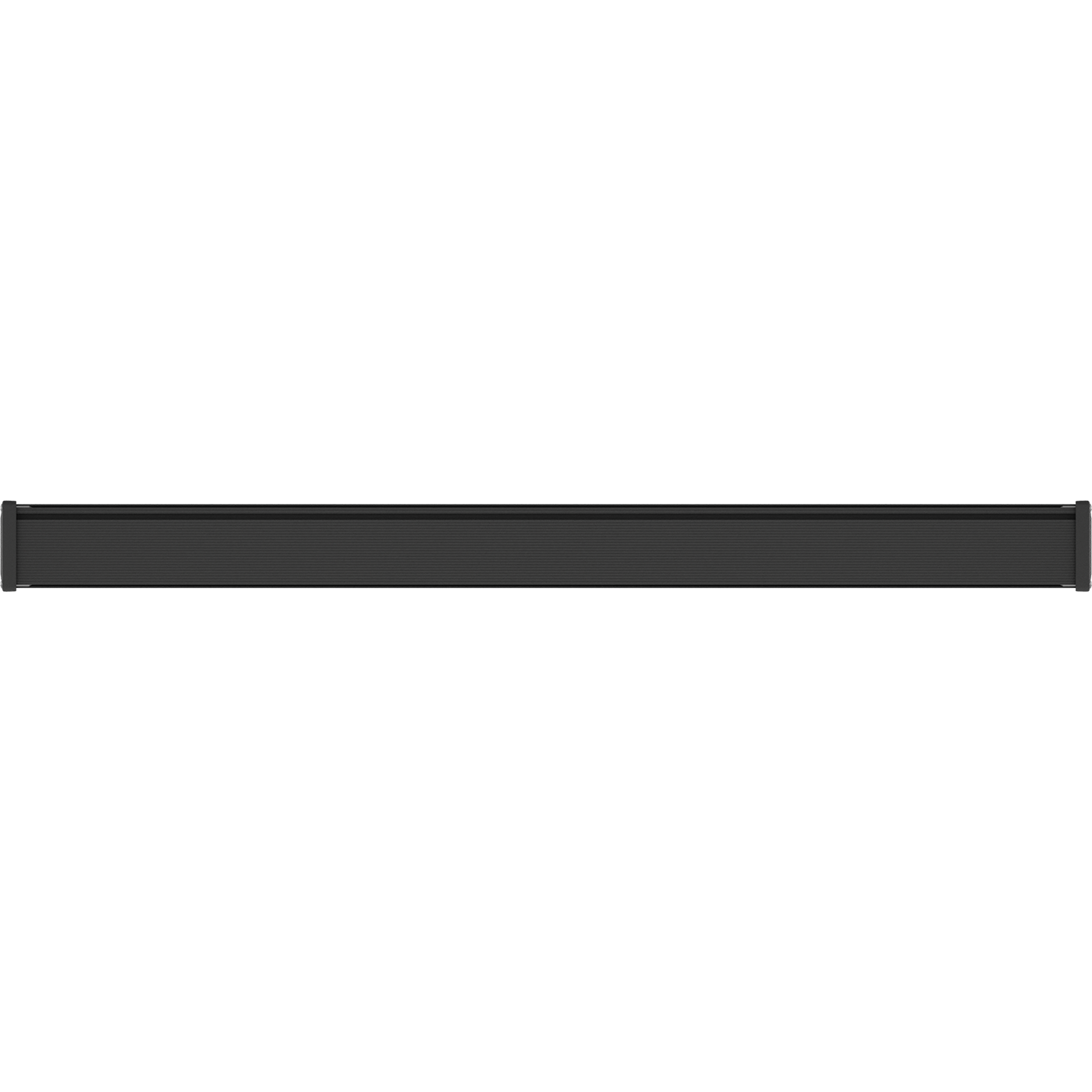

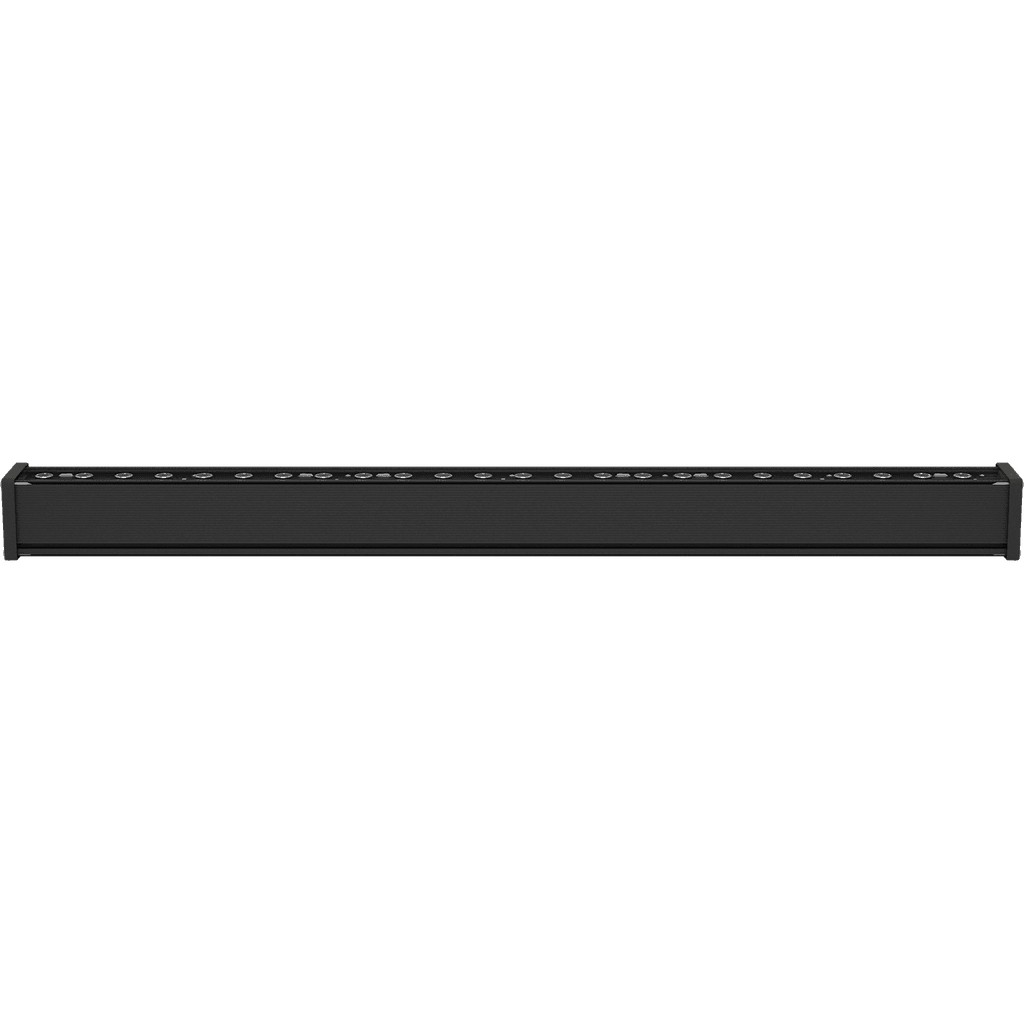

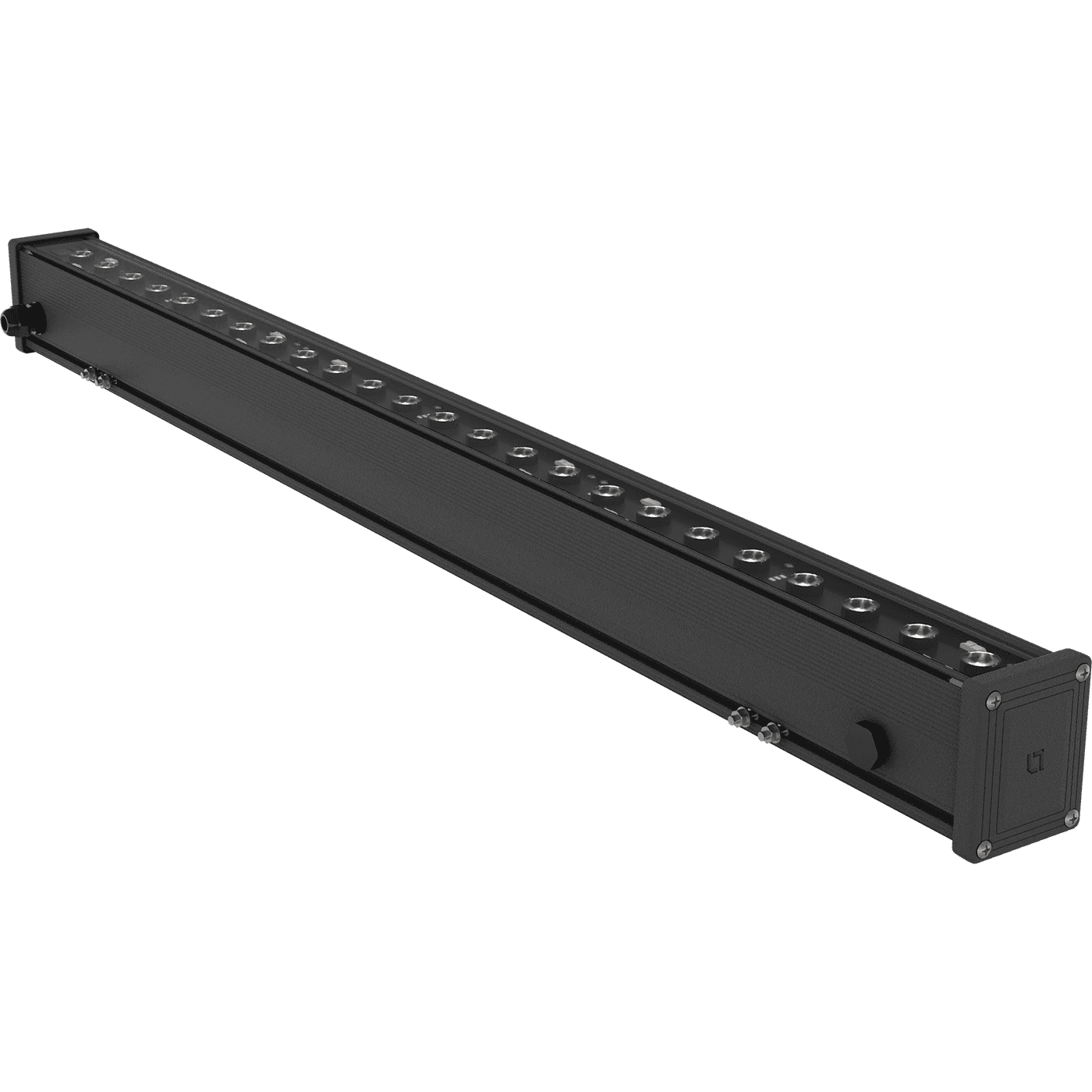

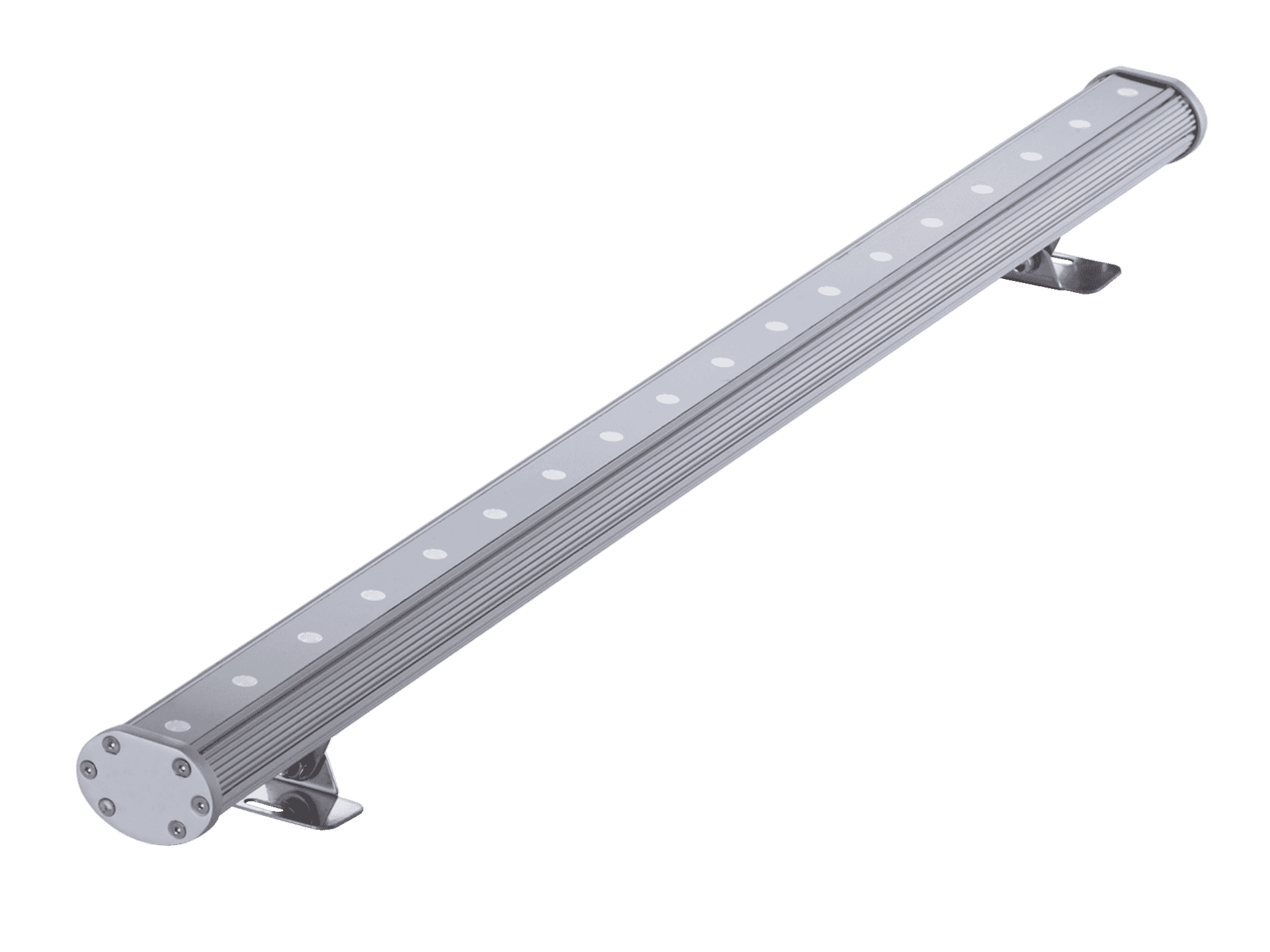

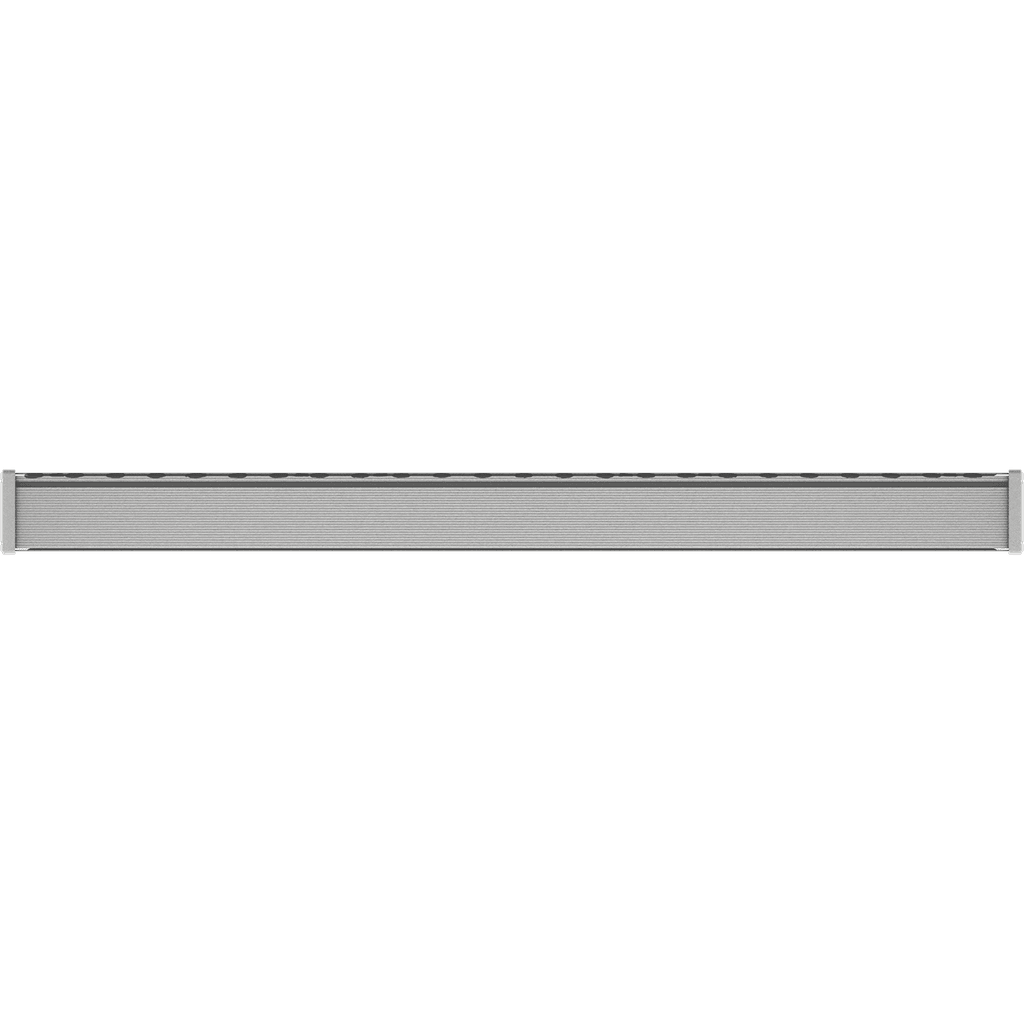

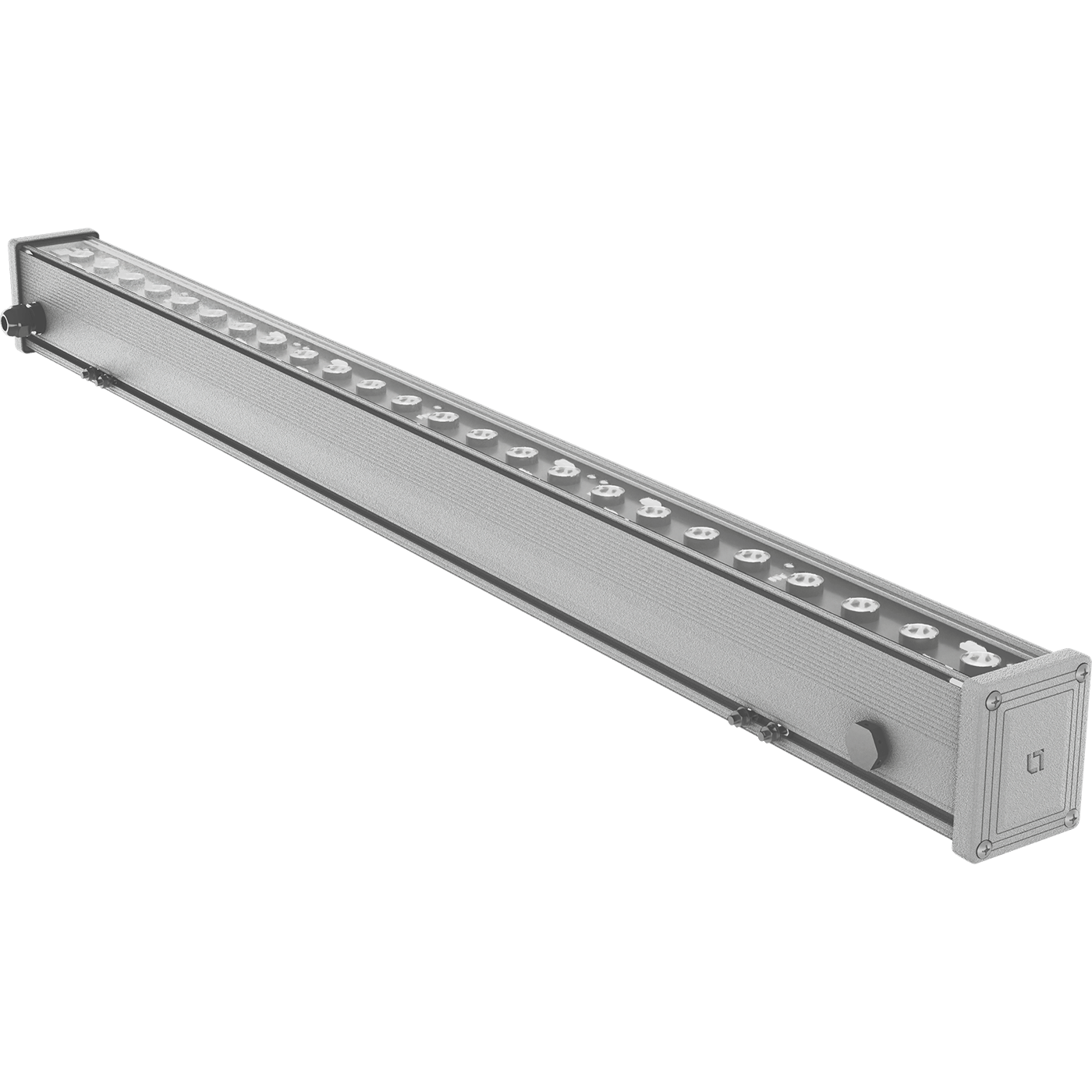

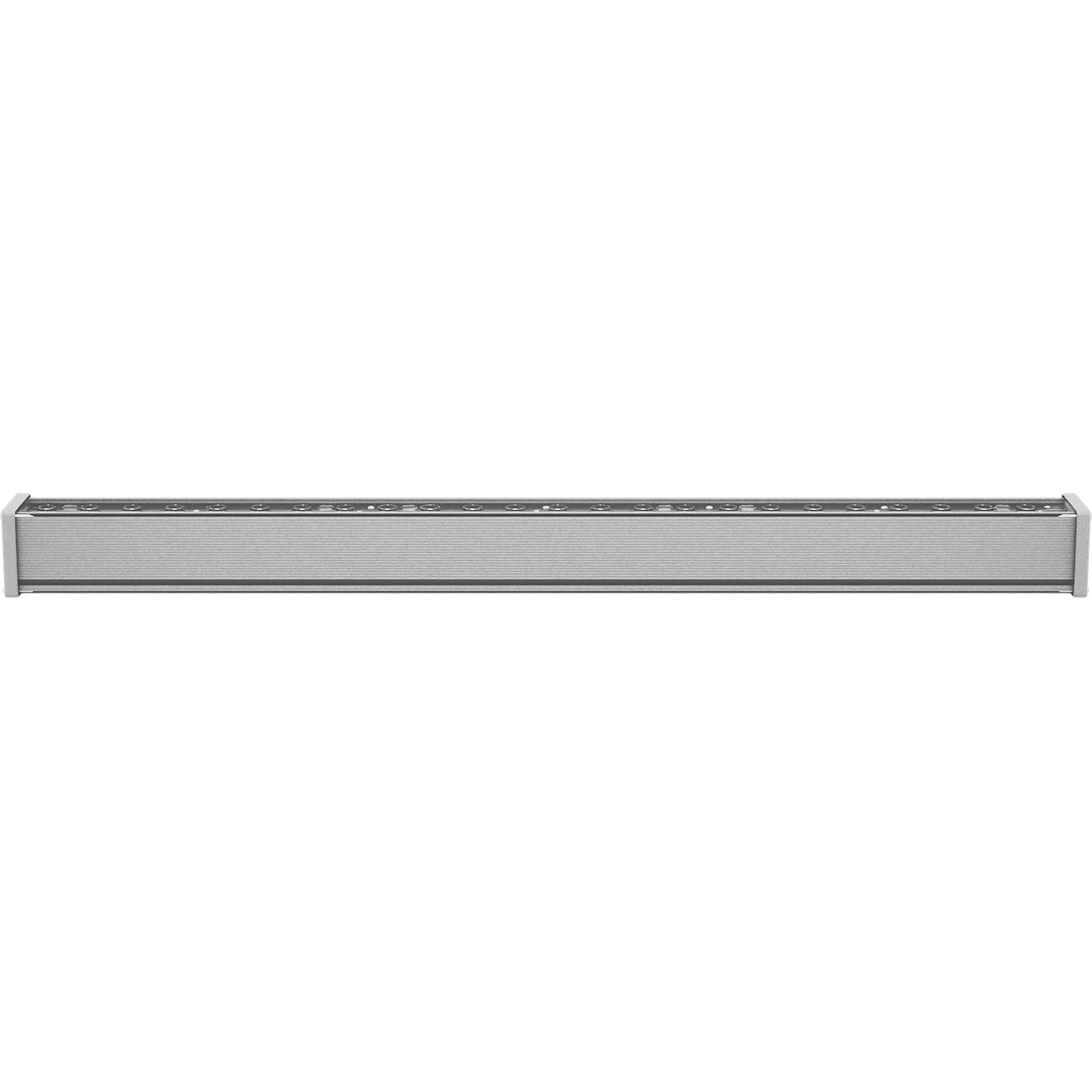

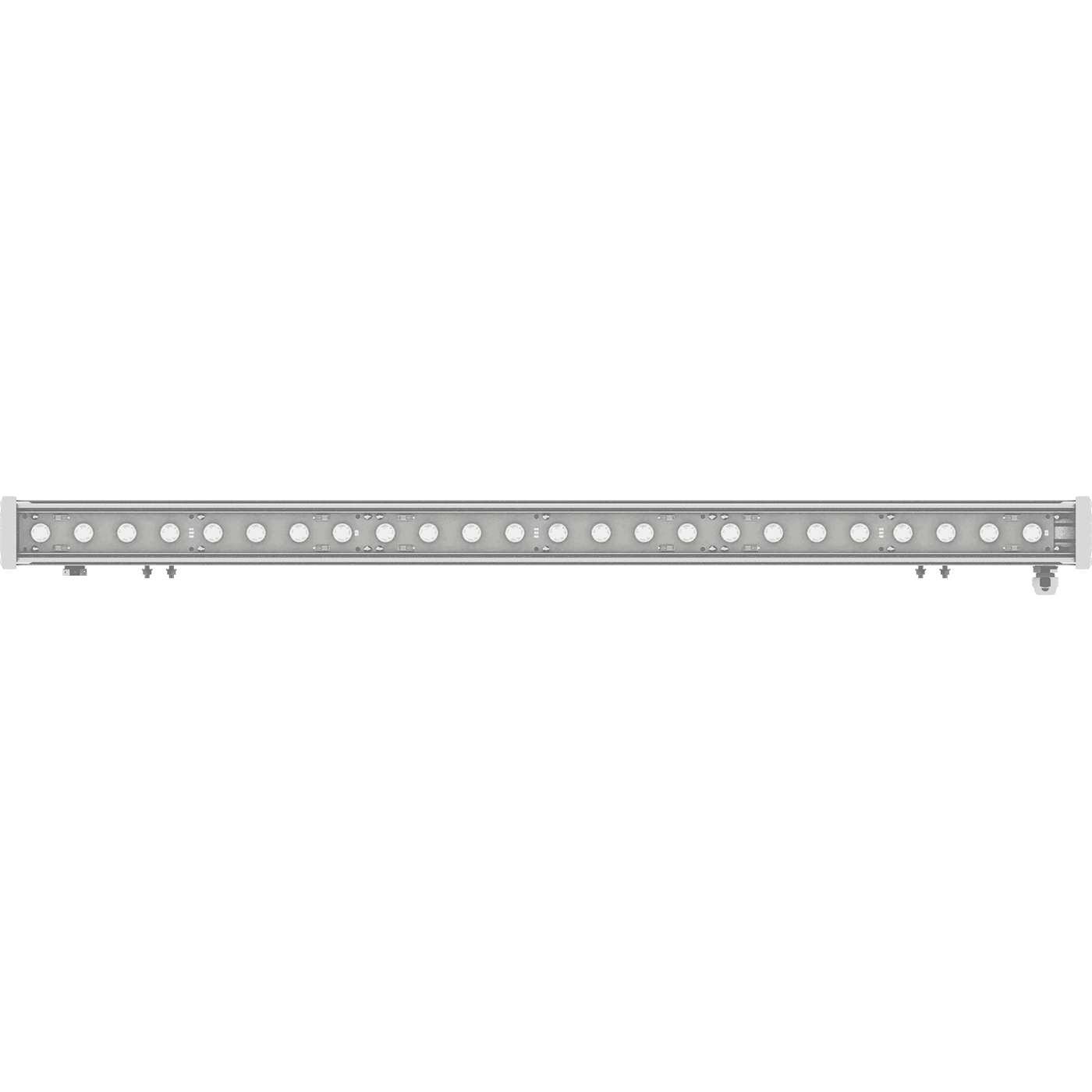

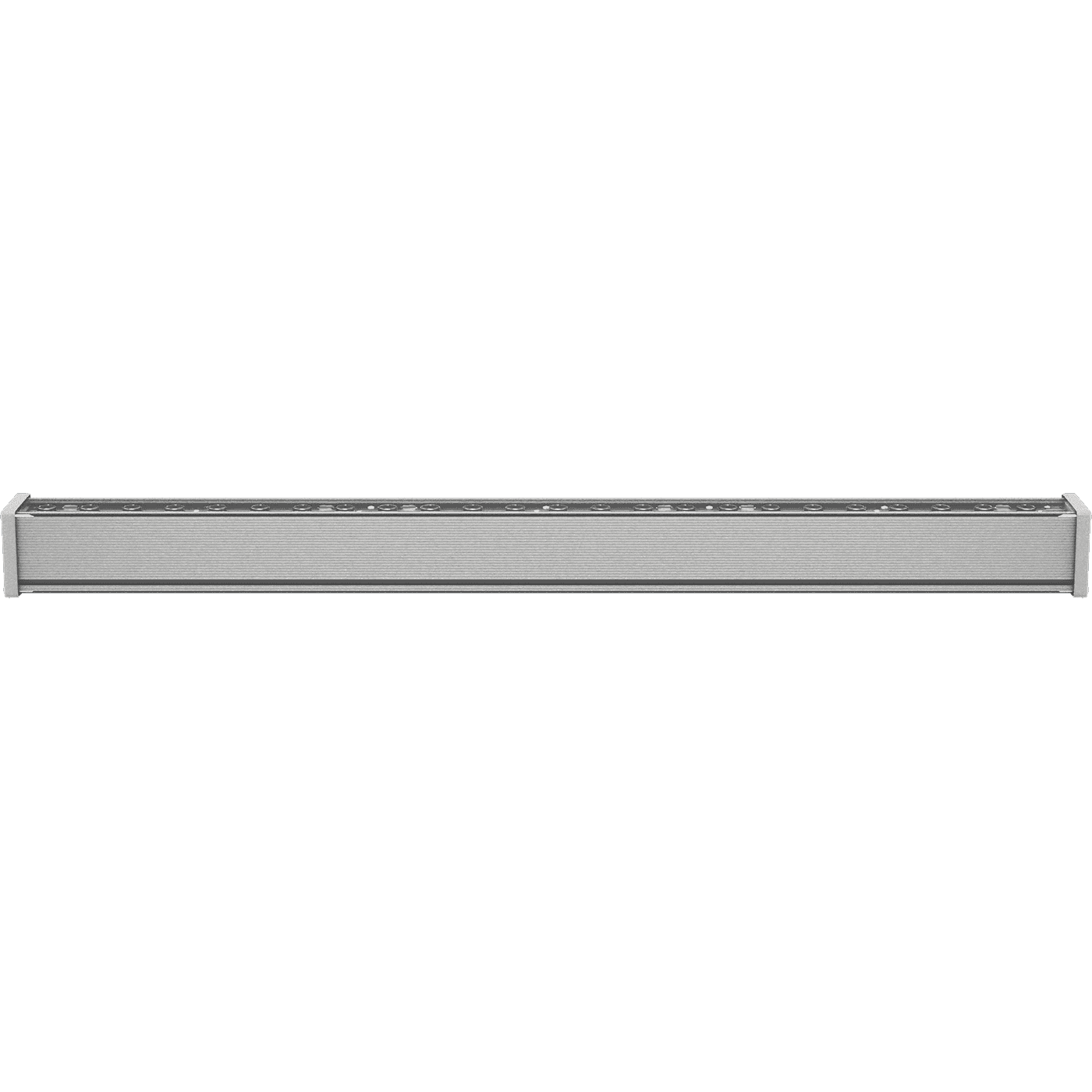

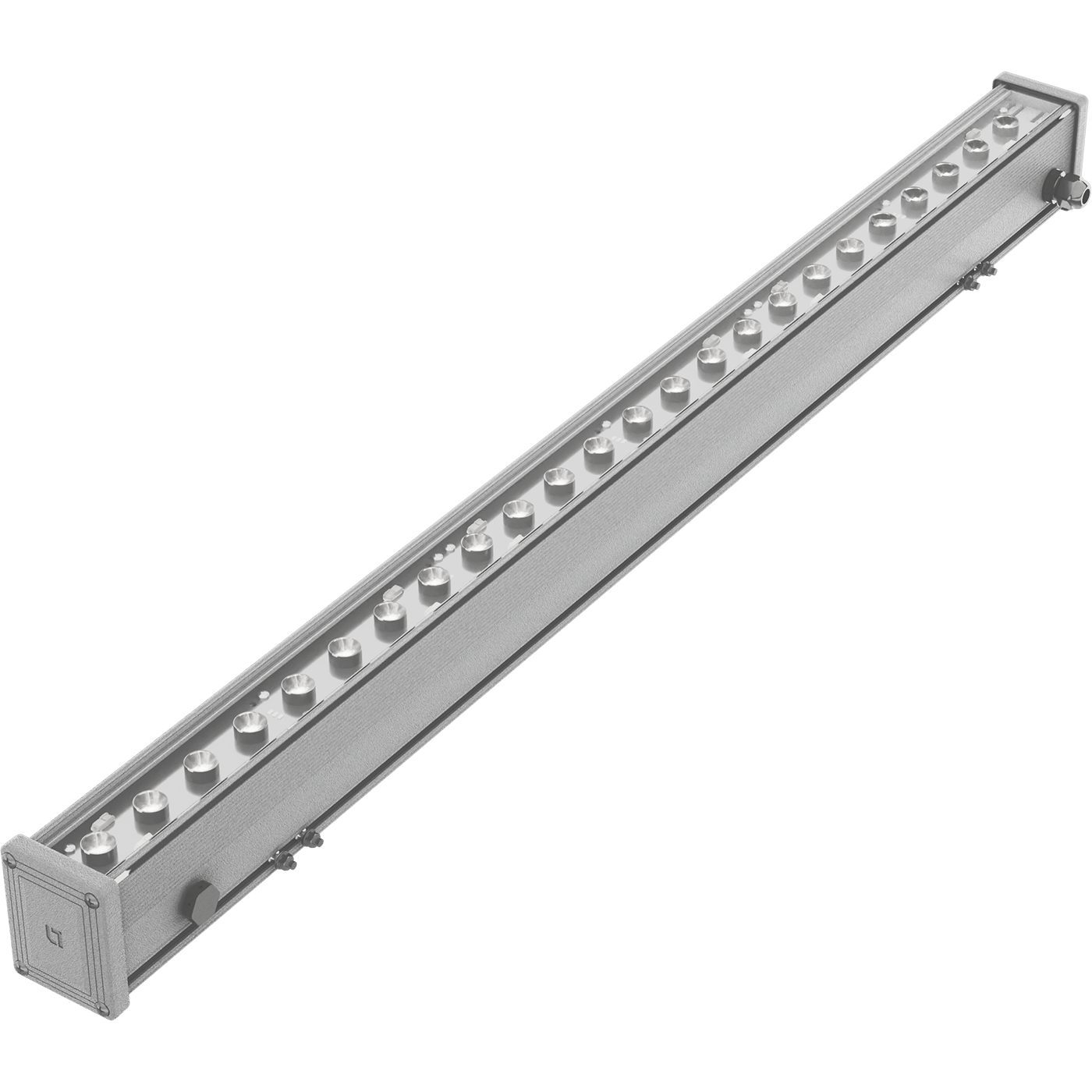

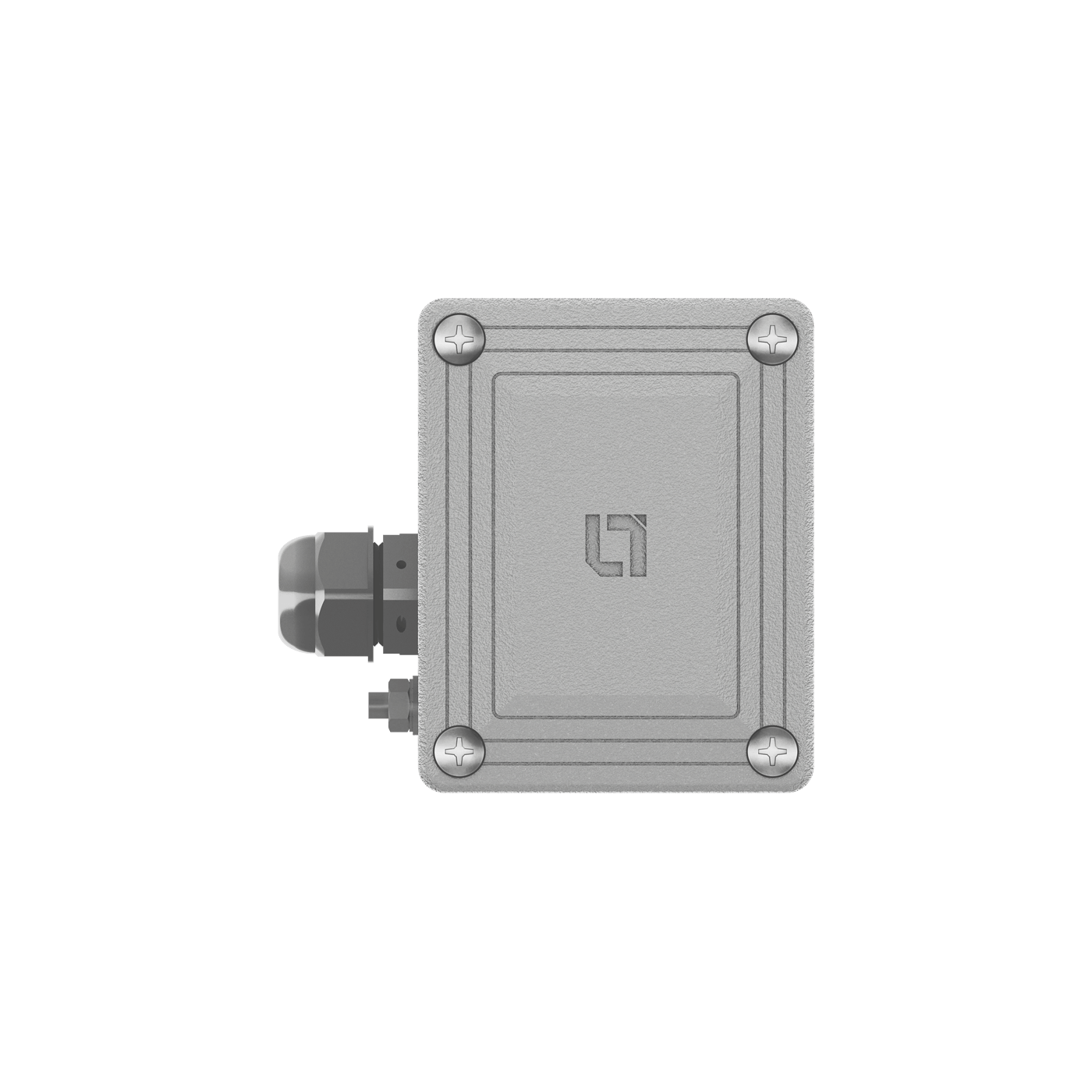

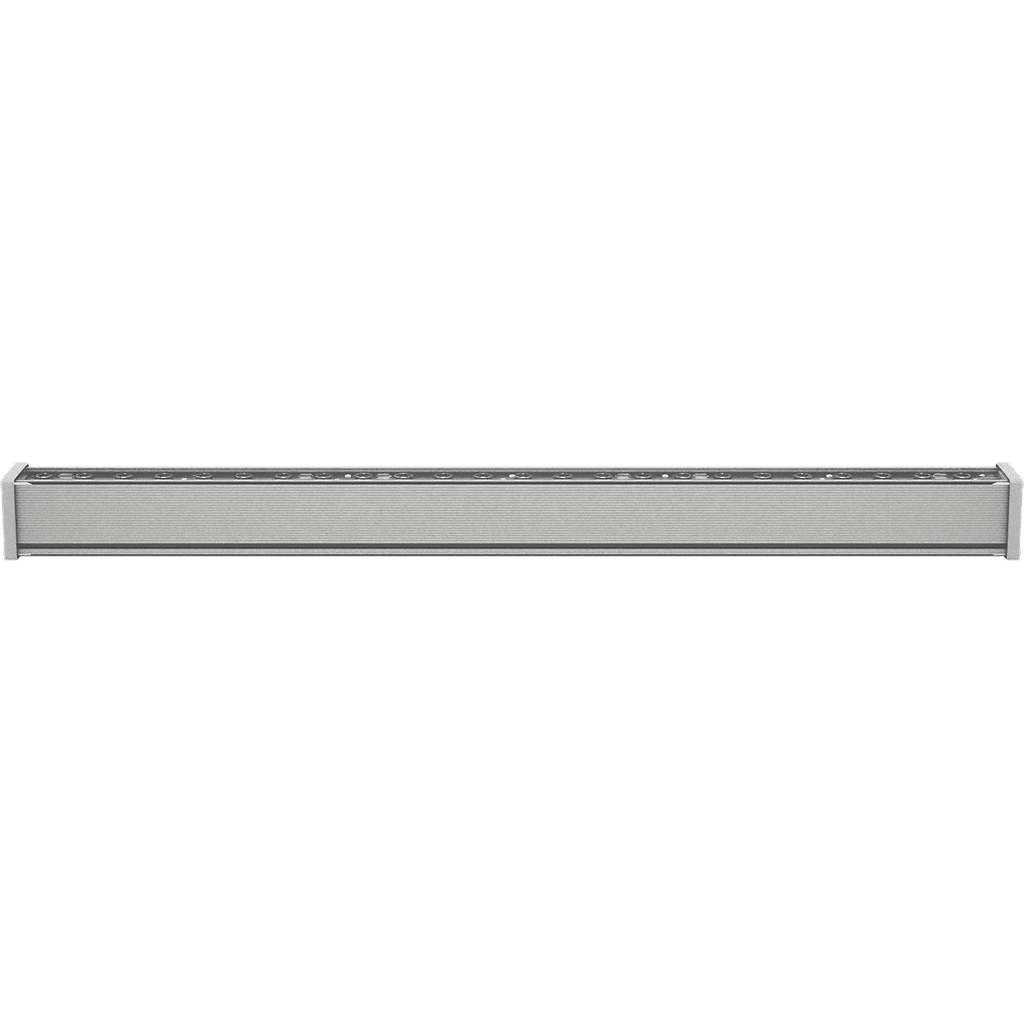

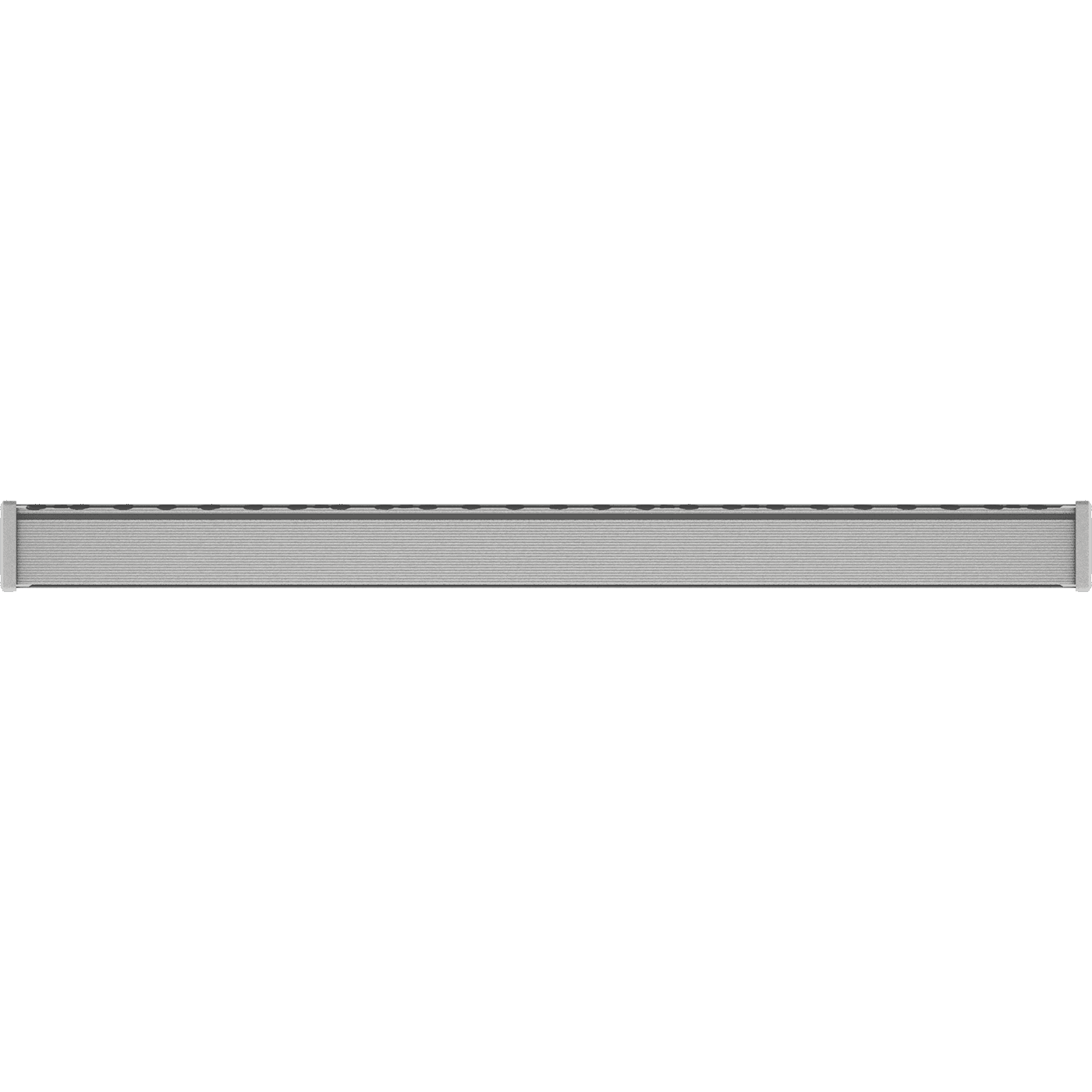

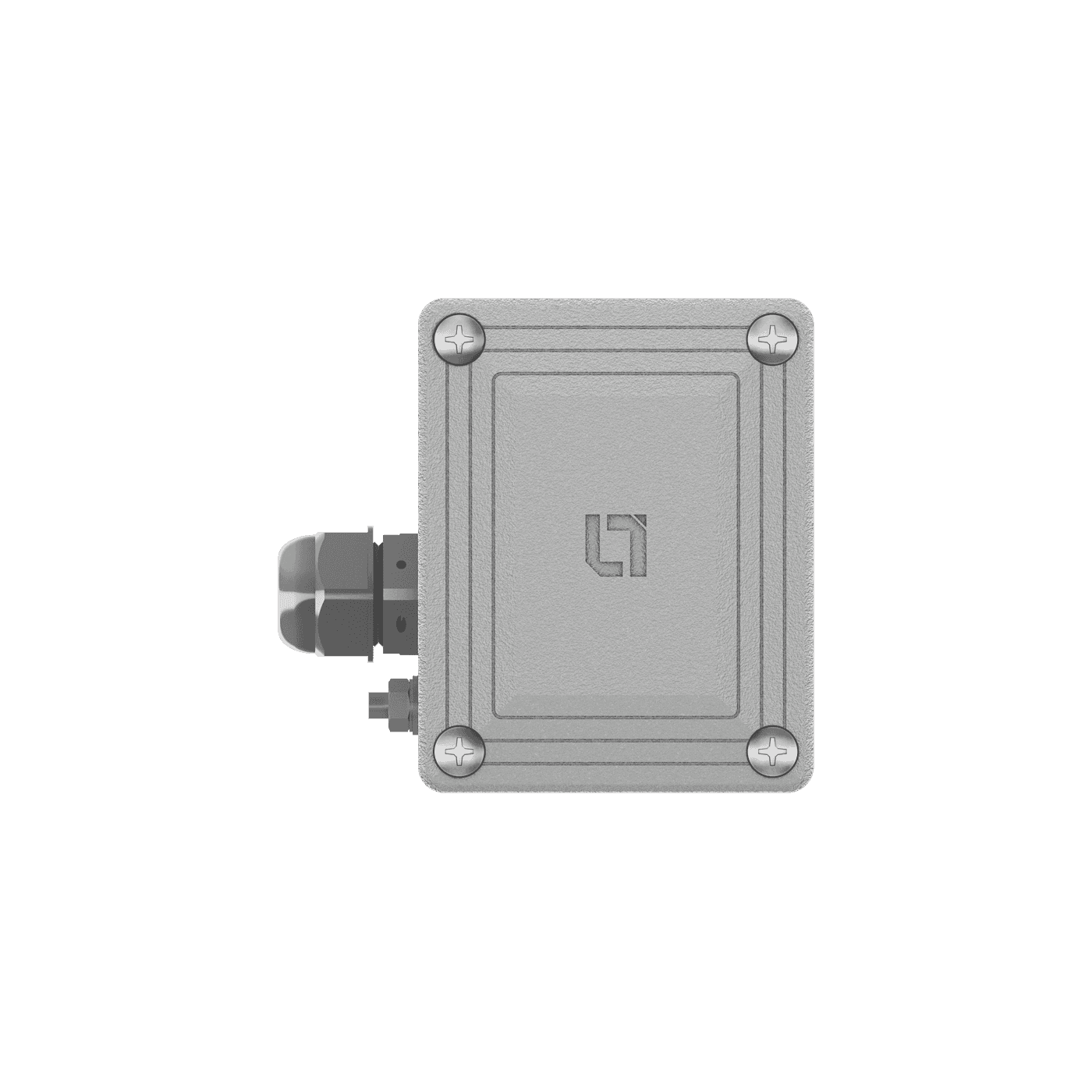

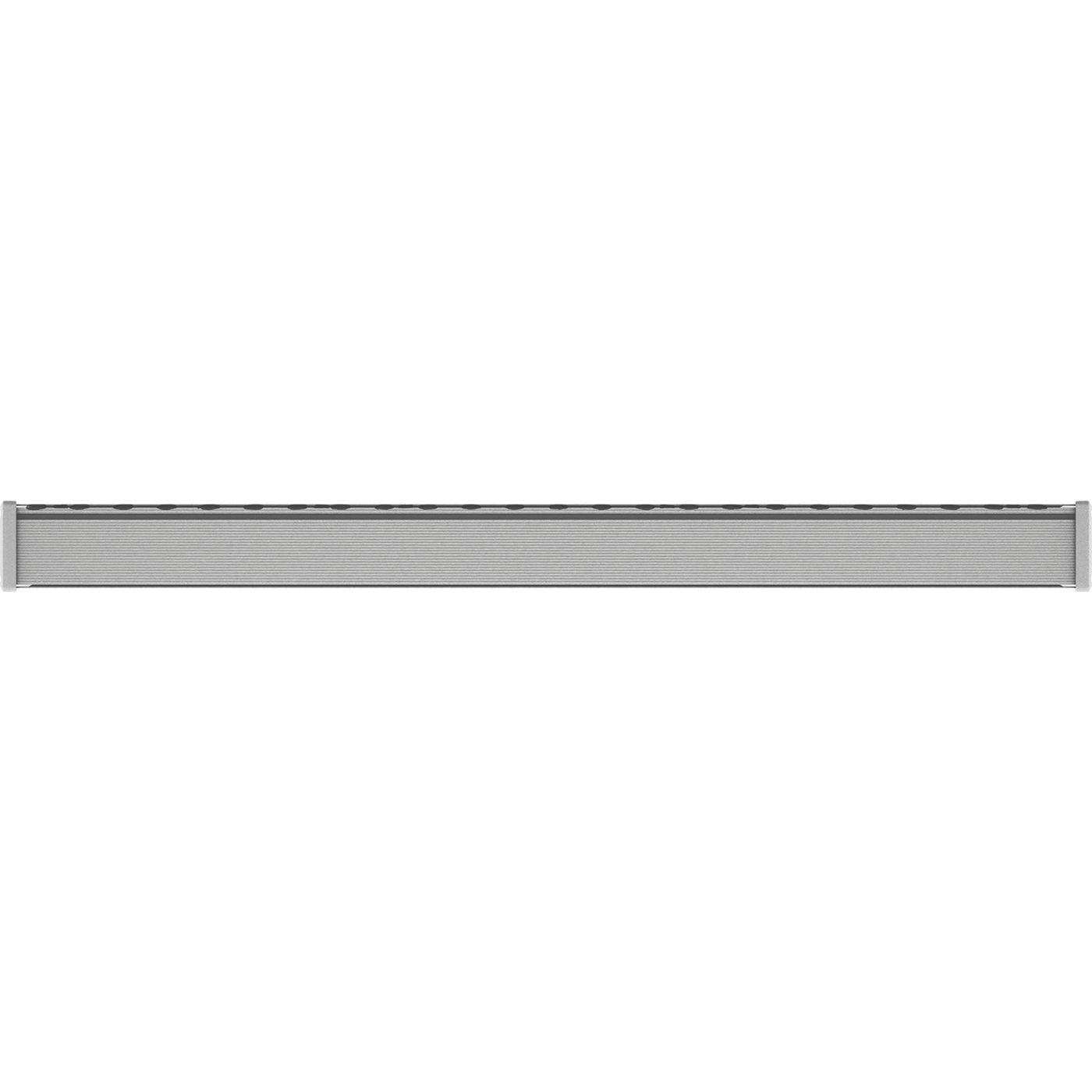

EVOLINE LED (1500) 60W D50 830 SL
model is discontinued
_60w_d50_830_sl.jpg&w=1920&q=100)
_60w_d50_830_sl.jpg&w=1024&q=75)
model is discontinued
EVOLINE LED (1500) 60W D50 830 SL
66 Wluminaire power
6200 lmlight flow
94 lm/Wenergy efficiency
code1006001270
beam angleD50
color temperature3000
weight4.5 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
94 lm/Wcolor rendition index (CRI)
>80light flow
6200 lmflickering factor
<5%beam angle
D50color temperature
3000light source type
LEDemission color
Белыйilluminating
energy efficiency
94 lm/W
color rendition index (CRI)
>80
light flow
6200 lm
flickering factor
<5%
beam angle
D50
color temperature
3000
light source type
LED
emission color
Белый
electrical
luminaire power
66 W
electric shock protection
I
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
supply voltage
230 V
starting current
50 A
maximum cross-section of the connected cable, sq. mm
2.5
supply voltage, direct current
127-420 V
supply voltage, alternating current
90-305 V
power factor
> 0,95
constructional
climatic performance
УХЛ1*
fire safety class
П-ІІІ
width, mm
60 mm
height, mm
75 mm
installation length, mm
1000 mm
housing color
Металлик
lamp socket
LED
number of lamps
1
ballast
Драйвер
length, mm
1460 mm
material
Алюминий
ingress protection (IP)
IP65
shock resistance (IK)
IK07/2 Дж
weight
4.5 kg
common
code
1006001270
warranty
36 month
energy efficiency class
A+
temperature range
от -40 до +40 C
service life, hour
50 000 h
ETIM class
Настенно-потолочный светильник
model files
model files

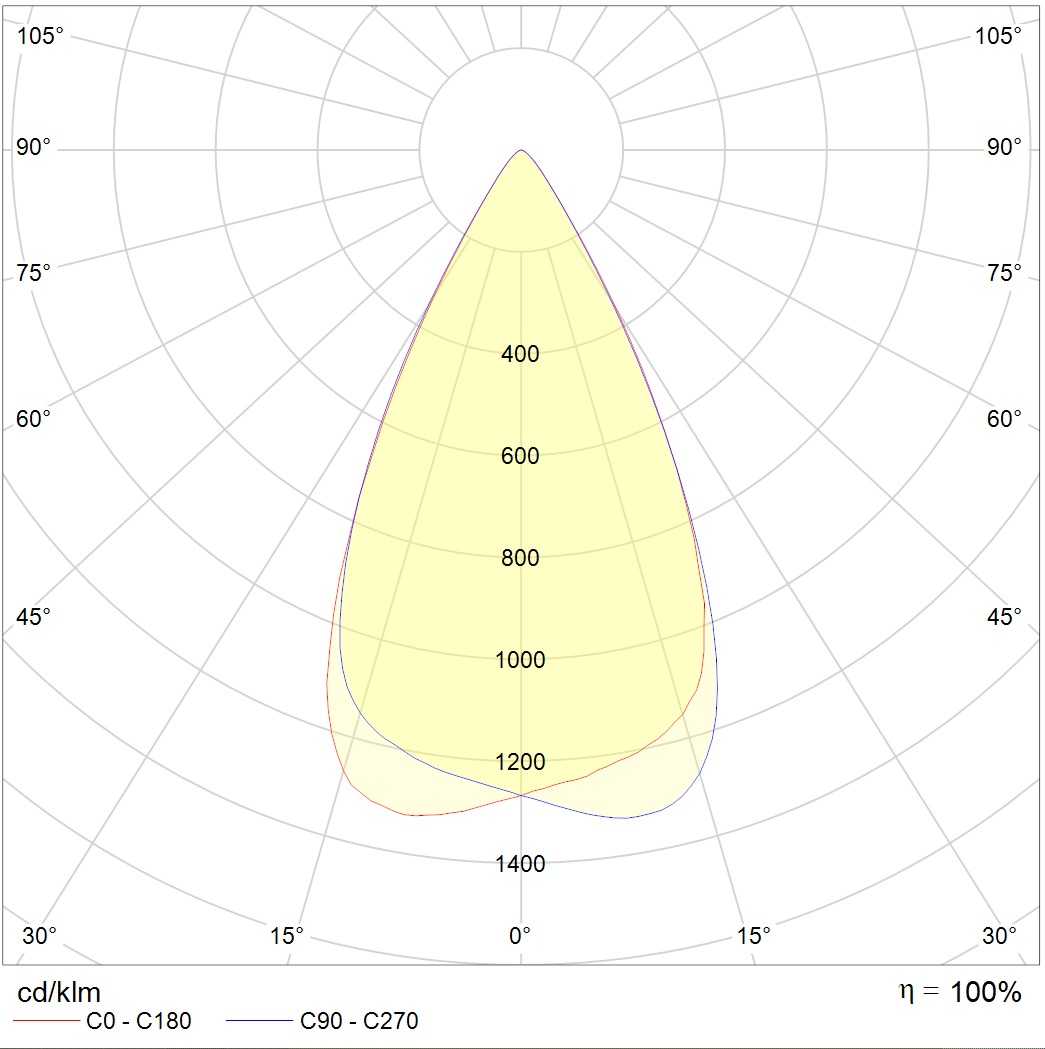

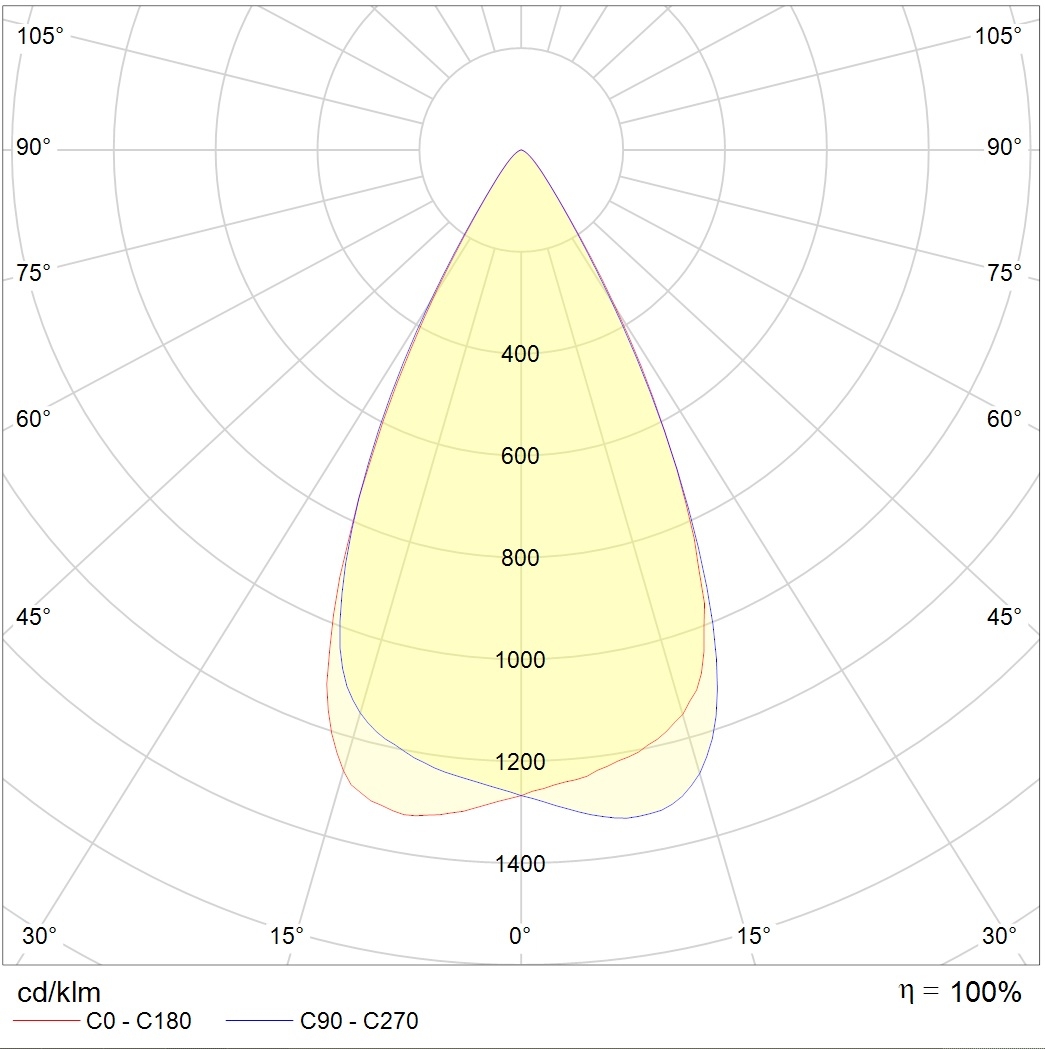

photometric files
documents
сертификаты
photometric files
ies263.2 kB
jpg140.3 kB
ldt174.5 kB
documents
passport1.5 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
