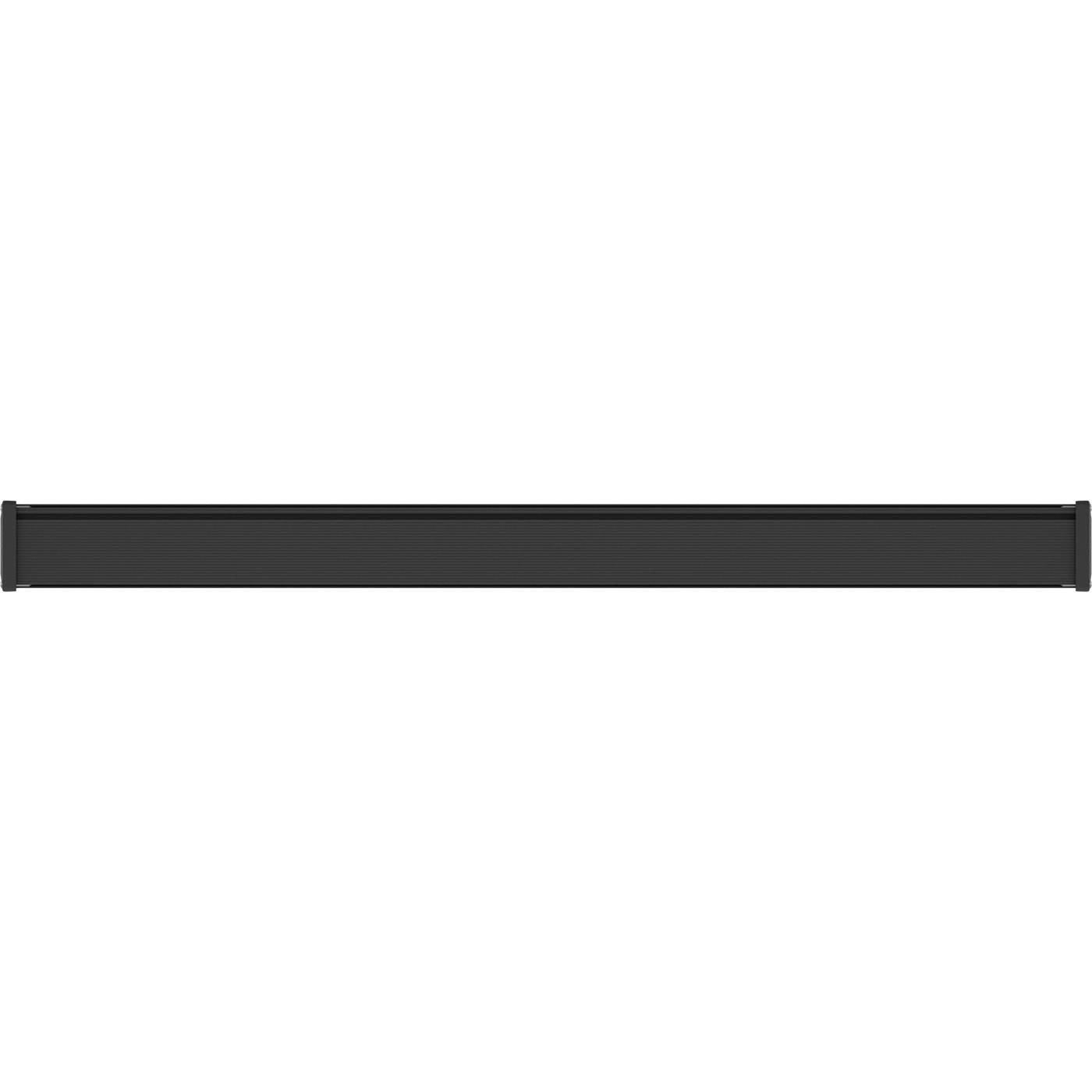

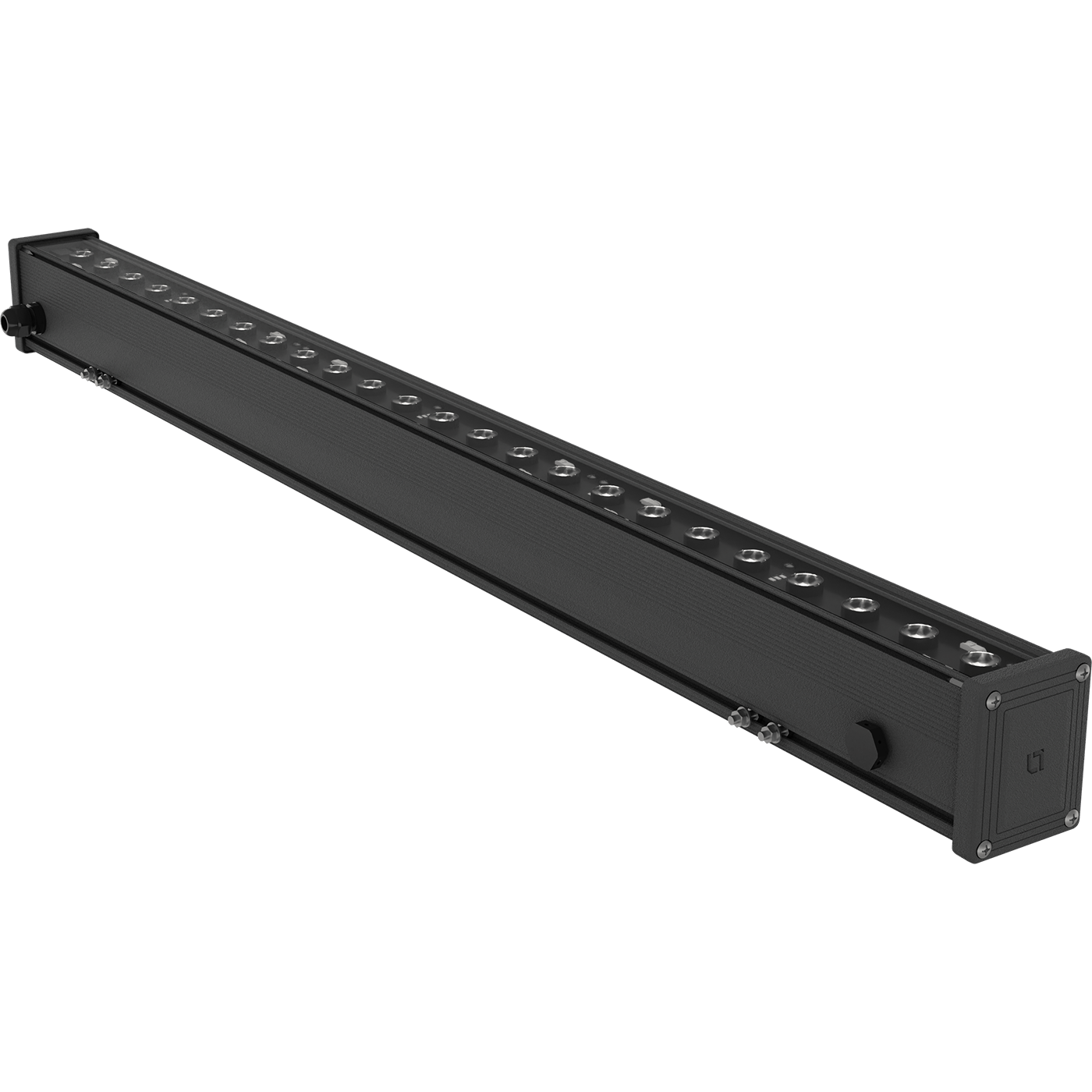

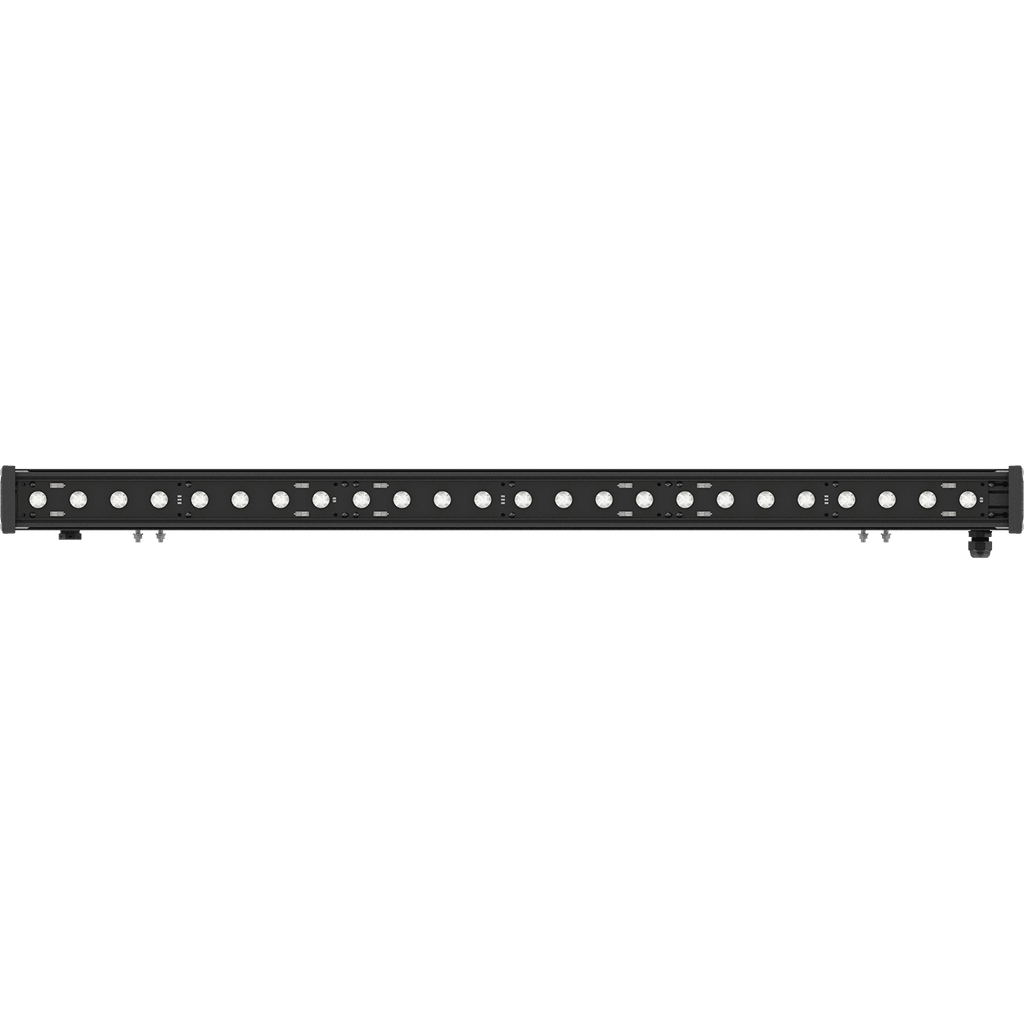

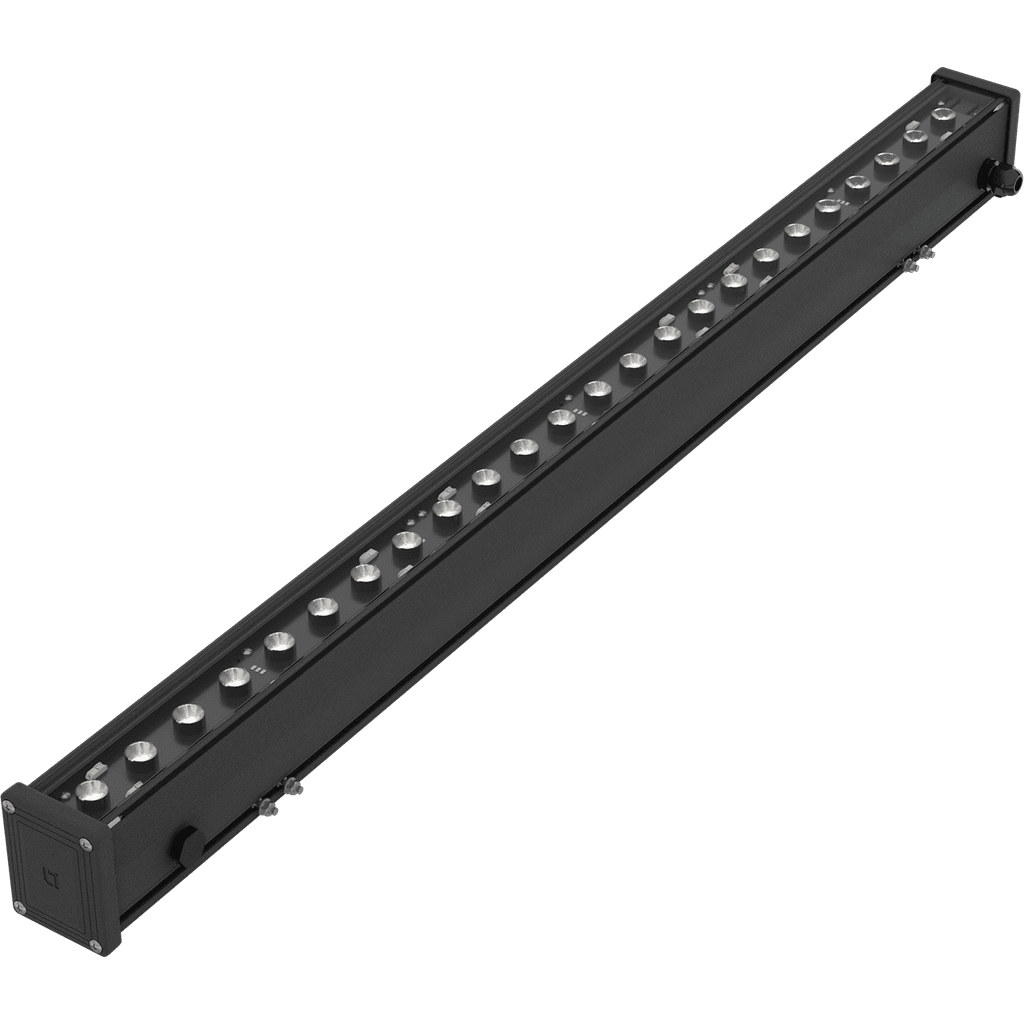

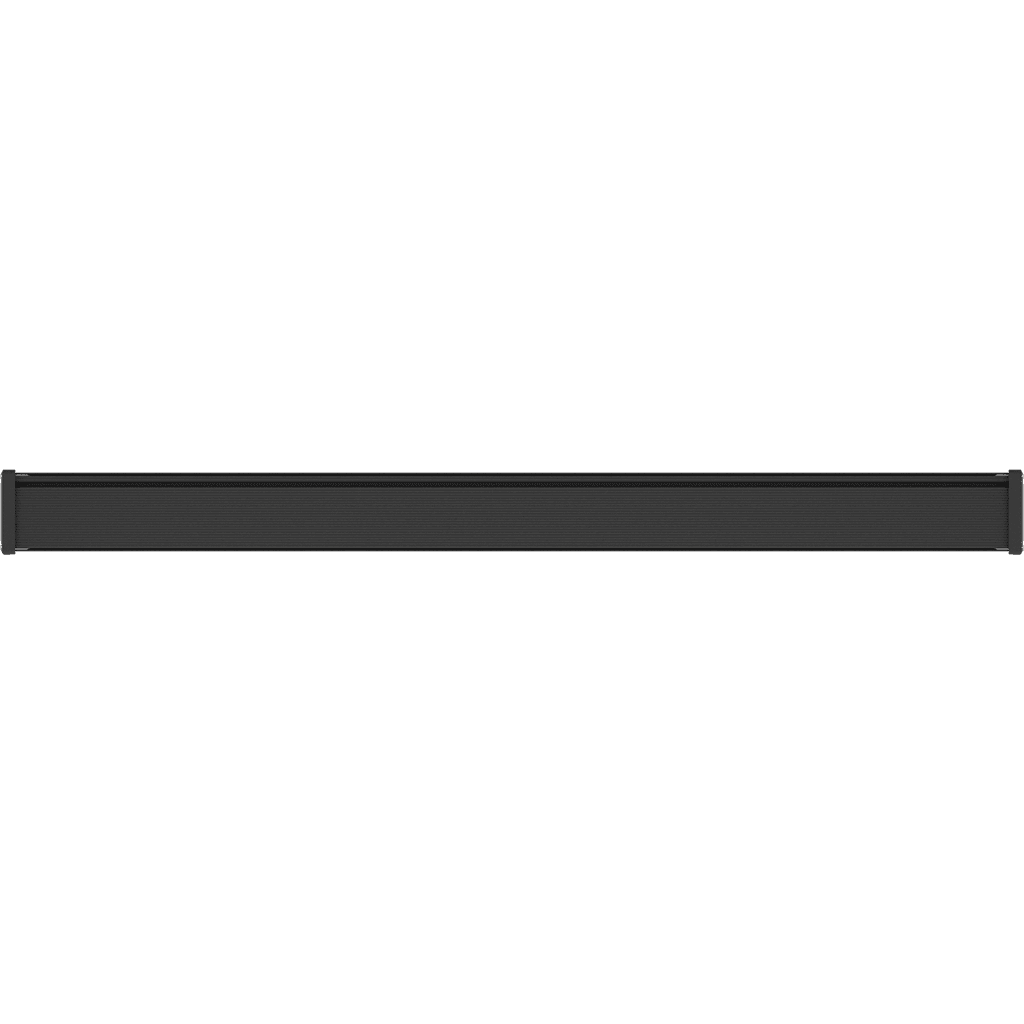

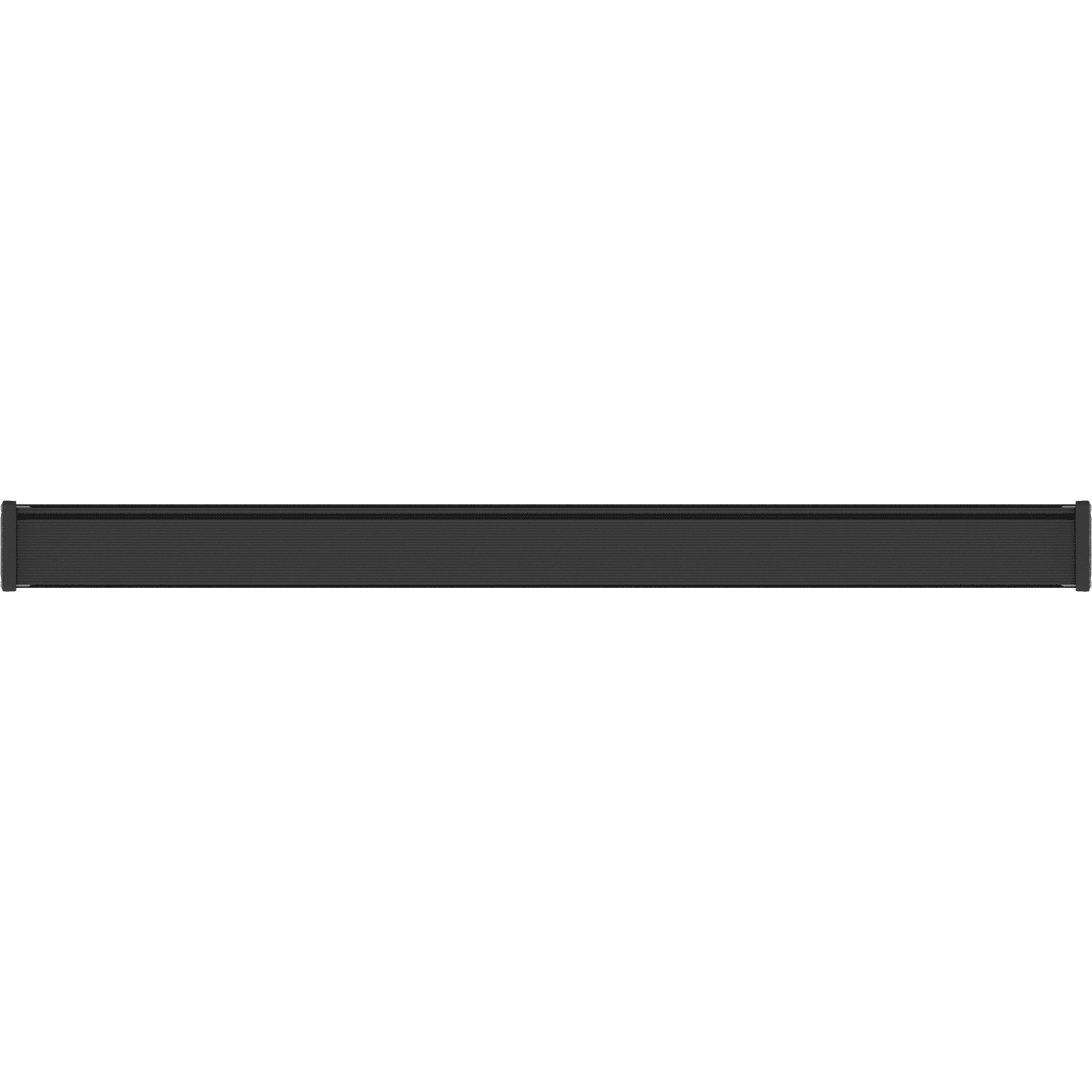

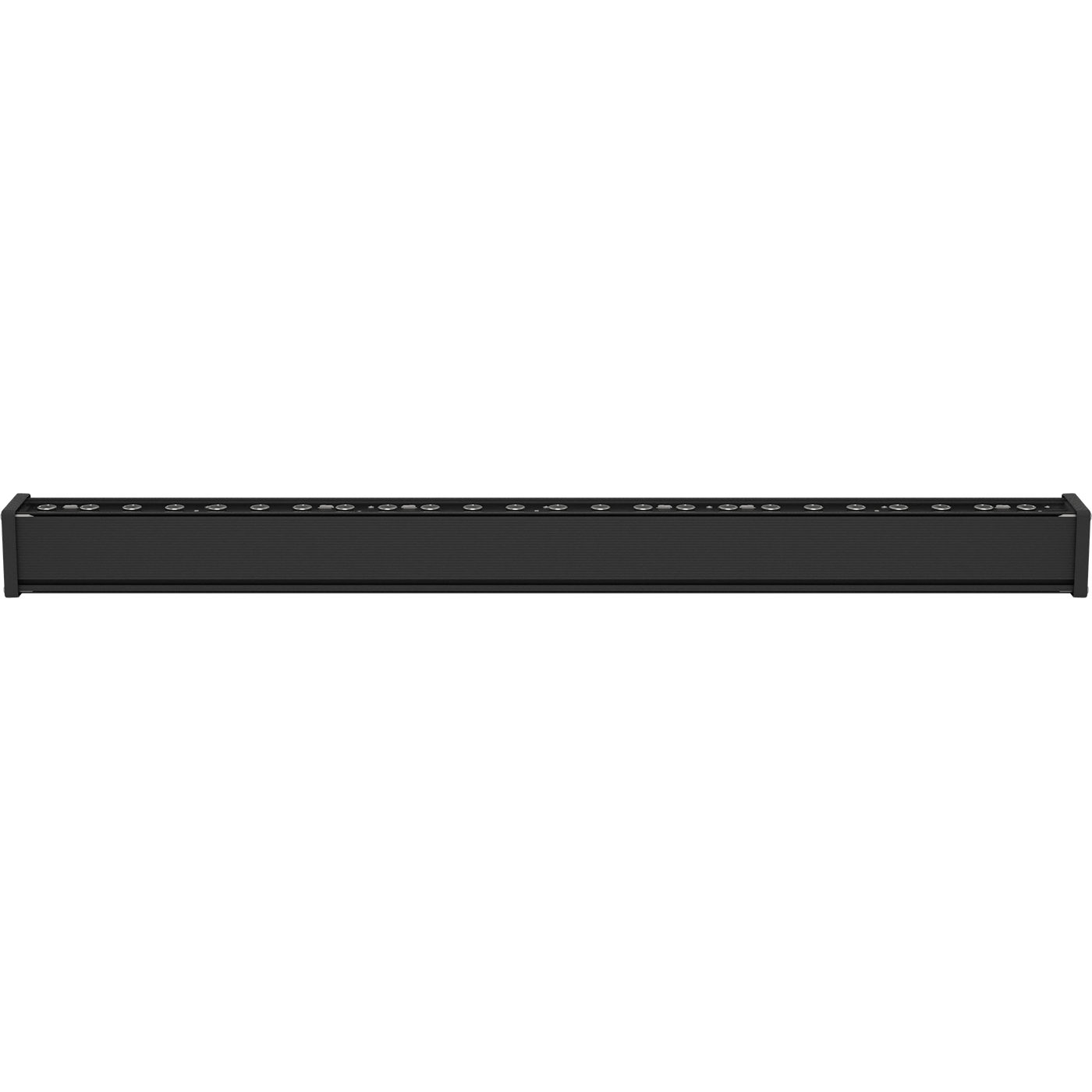

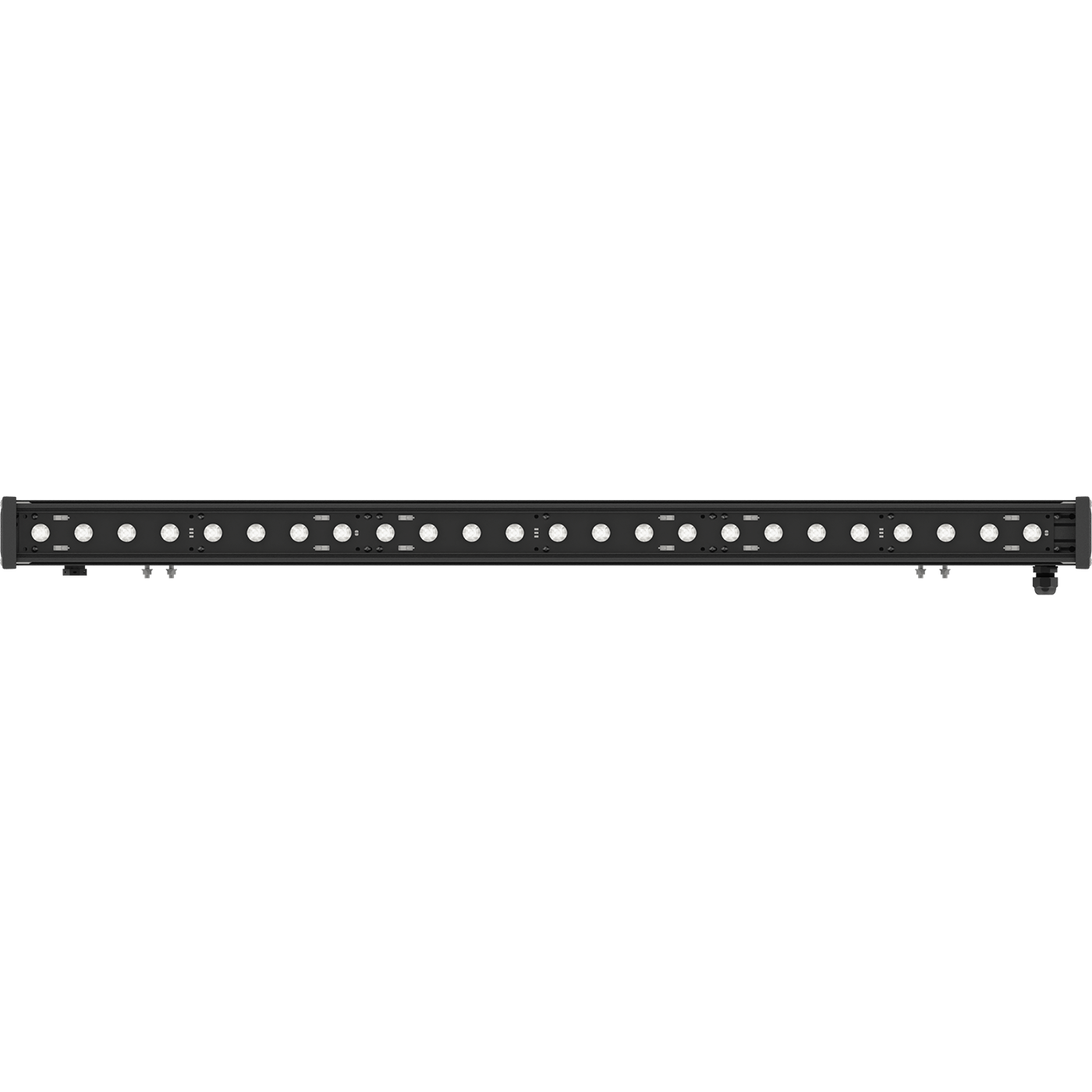

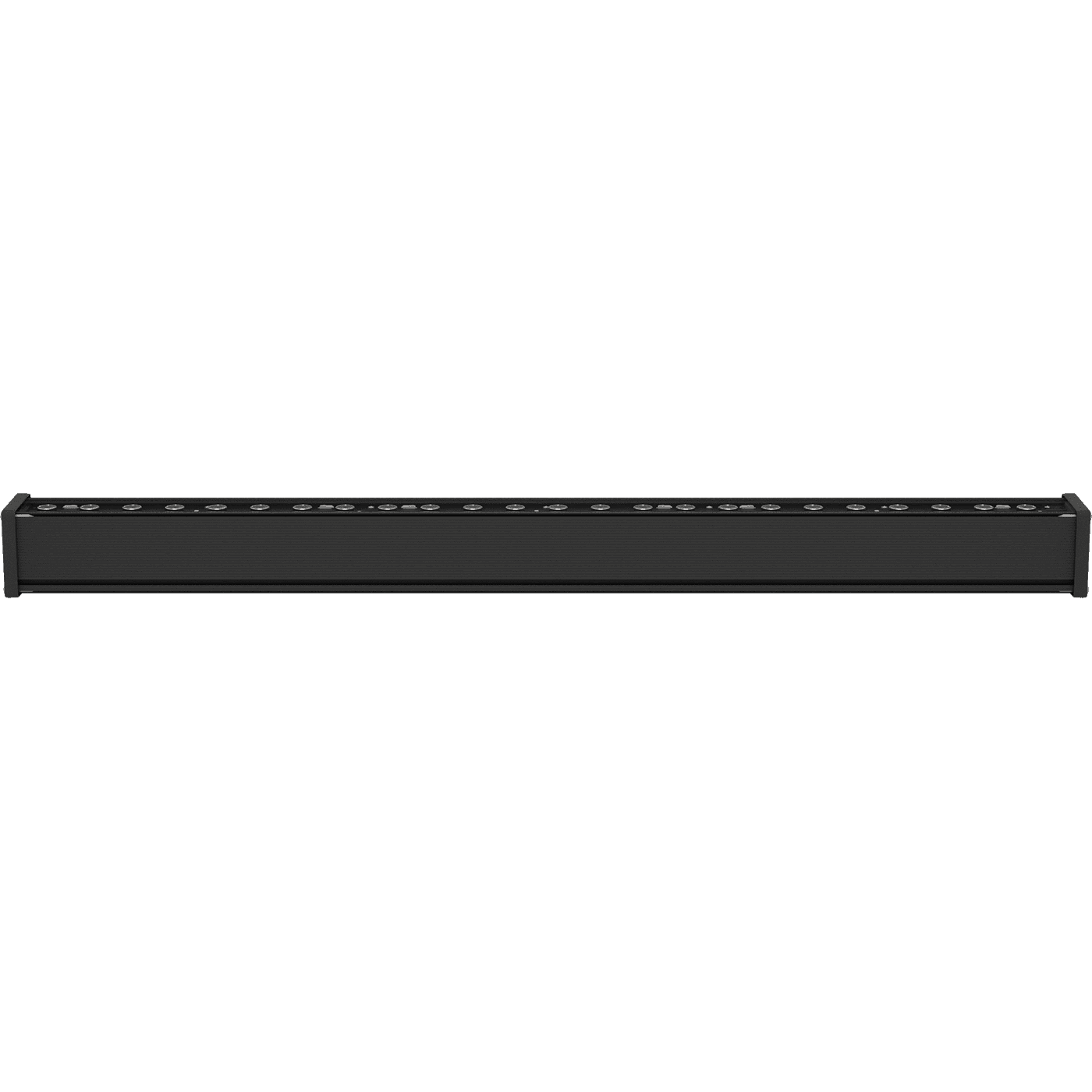

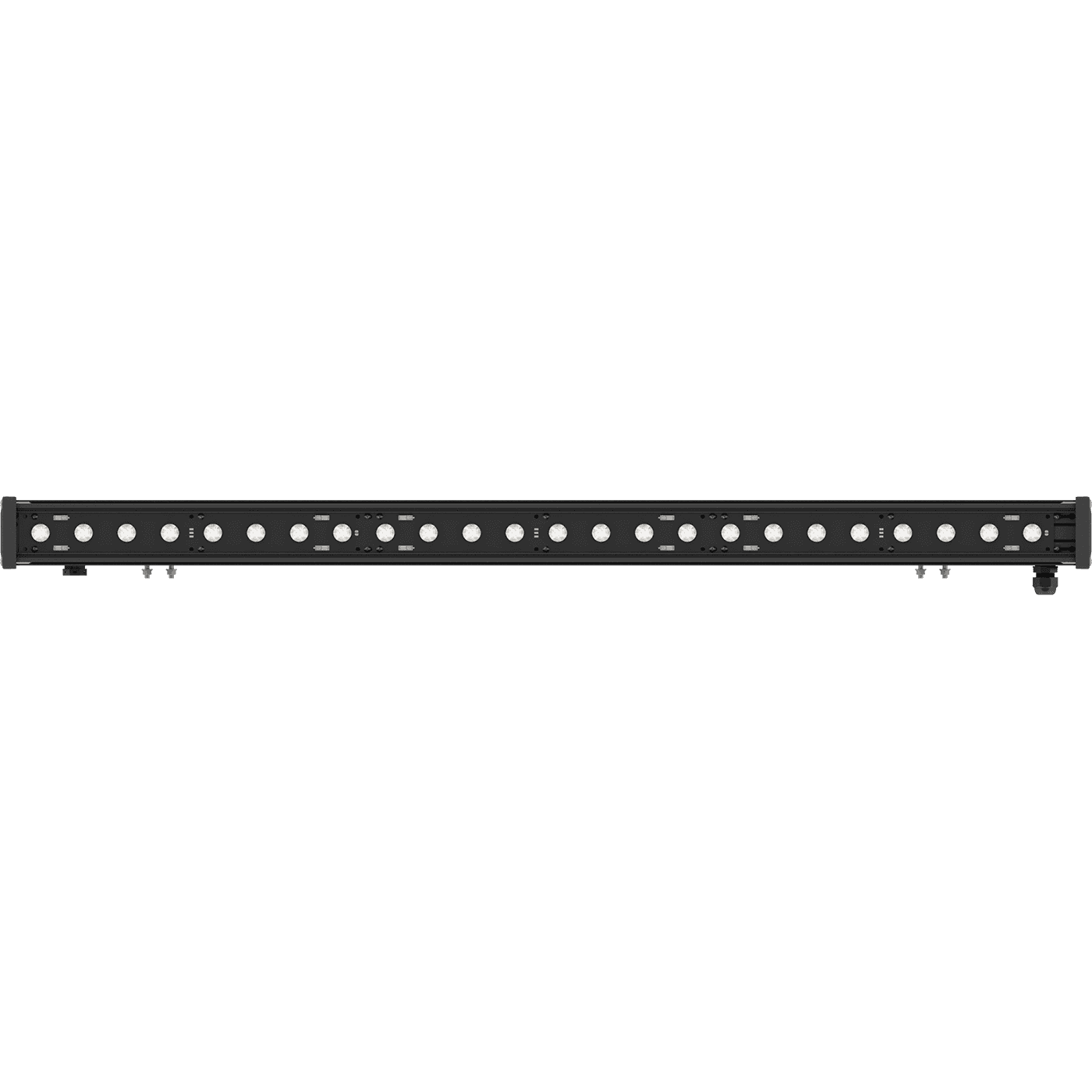

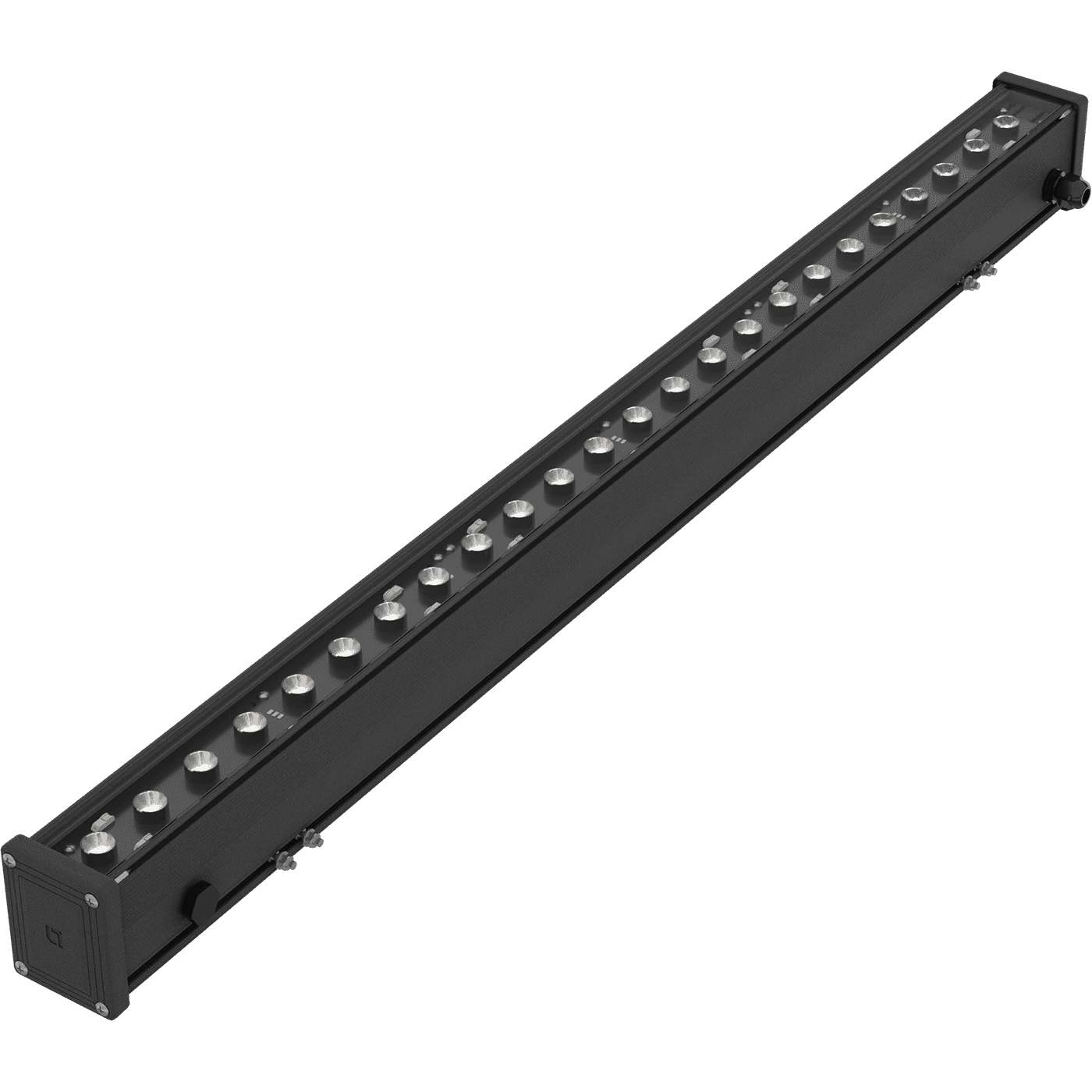

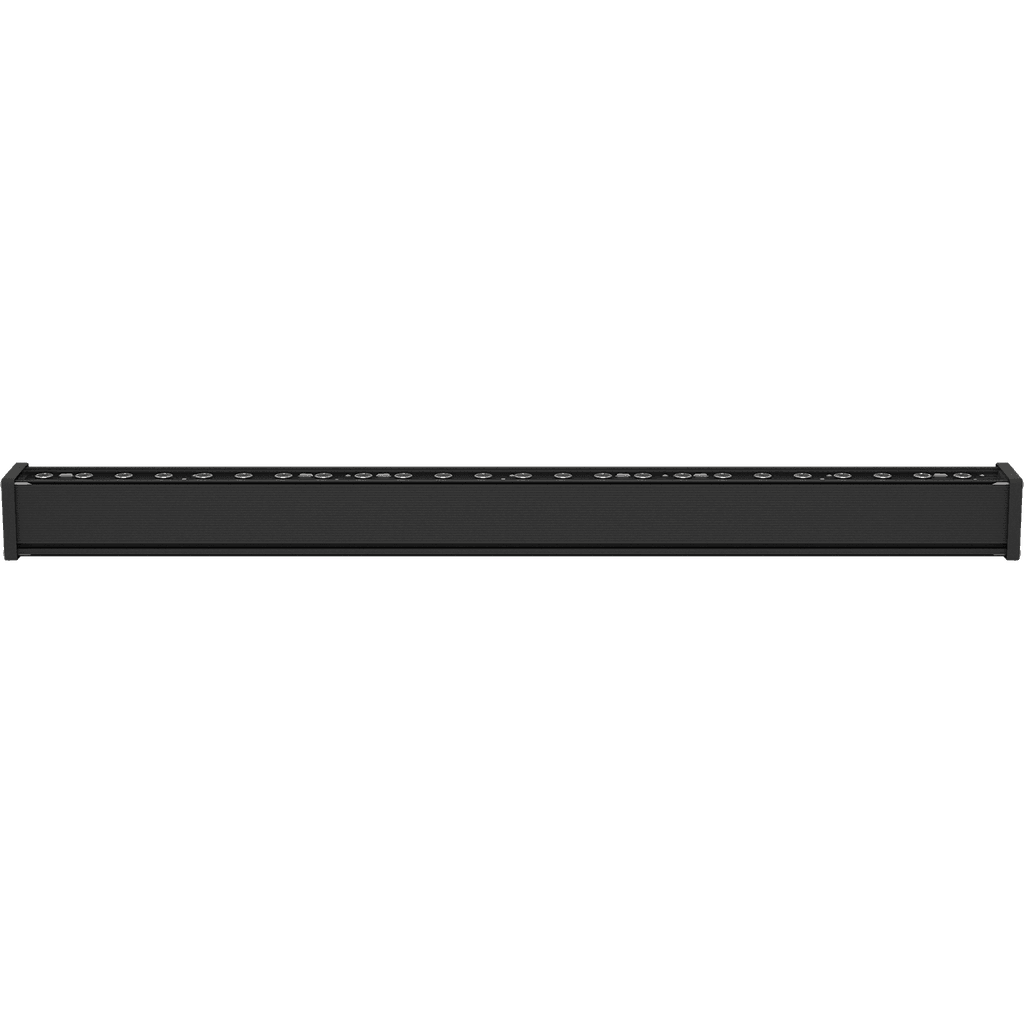

EVOLINE LED (1200) 48W D15x40 827 SL

EVOLINE LED (1200) 48W D15x40 827 SL
add to favorites
54 Wluminaire power
4300 lmlight flow
80 lm/Wenergy efficiency
code1006000090
beam angleD15x40
color temperature2700
weight4.1 kg
  1. main page
  2. catalog
  3. by product type
  4. outdoor lighting
  5. linear architectural luminaires
  6. EVOLINE LED
  7. EVOLINE LED (1200) 48W D15x40 827 SL
options
свернуть все
electricalconstructionalcommonilluminating
starting current
50 A
starting current pulse time, µs
1200 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
90-305 V
supply voltage, direct current
127-420 V
luminaire power
54 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
electrical
starting current
50 A
starting current pulse time, µs
1200 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
90-305 V
supply voltage, direct current
127-420 V
luminaire power
54 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
constructional
ingress protection (IP)
IP65
fire safety class
П-ІІІ
material
Алюминий
weight
4.1 kg
length, mm
1180 mm
width, mm
60 mm
height, mm
75 mm
housing color
Металлик
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
shock resistance (IK)
IK07/2 Дж
installation length, mm
950 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
code
1006000090
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от -40 до +40 C
energy efficiency class
A
service life, hour
50 000 h
illuminating
energy efficiency
80 lm/W
color rendition index (CRI)
>80
light flow
4300 lm
flickering factor
<5%

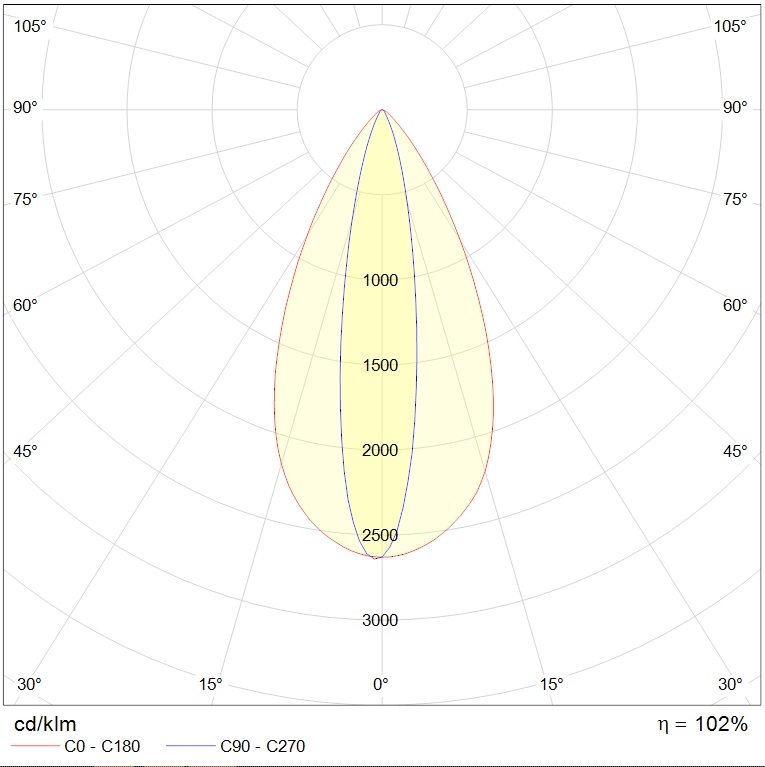

beam angle
D15x40
color temperature
2700
light source type
LED
emission color
Белый
model files
model files
CAD/BIM files
CAD model 3DS353.7 kB
model 3dMax2.3 mB
photometric files
ies66.9 kB
jpg87.5 kB
ldt59.5 kB
documents
passport1.5 mB
сертификаты
Russian origin278.3 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016588 kB
Fire Safety Certificate2.5 mB
CAD/BIM files
CAD model 3DS353.7 kB
model 3dMax2.3 mB
photometric files
ies66.9 kB
jpg87.5 kB
ldt59.5 kB
documents
passport1.5 mB
сертификаты
Russian origin278.3 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016588 kB
Fire Safety Certificate2.5 mB
