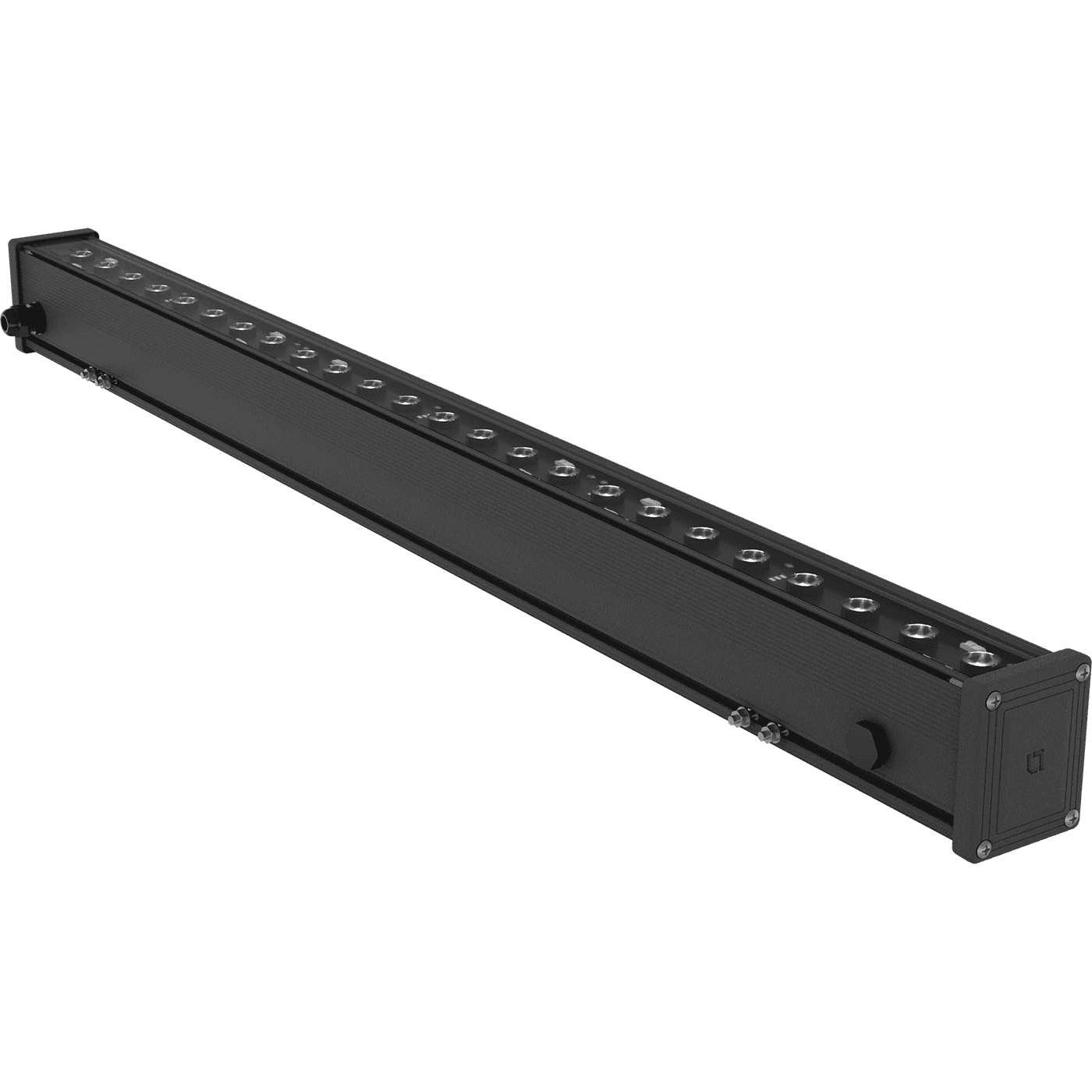

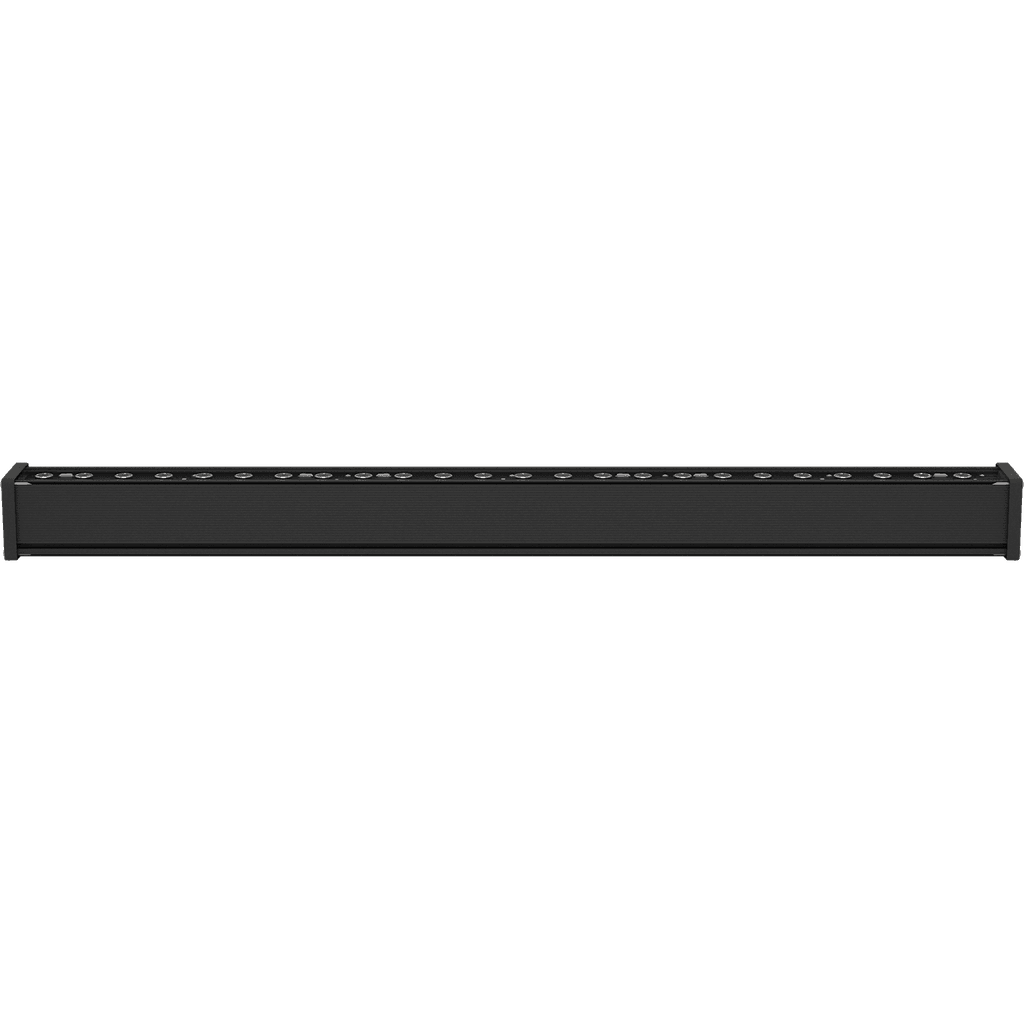

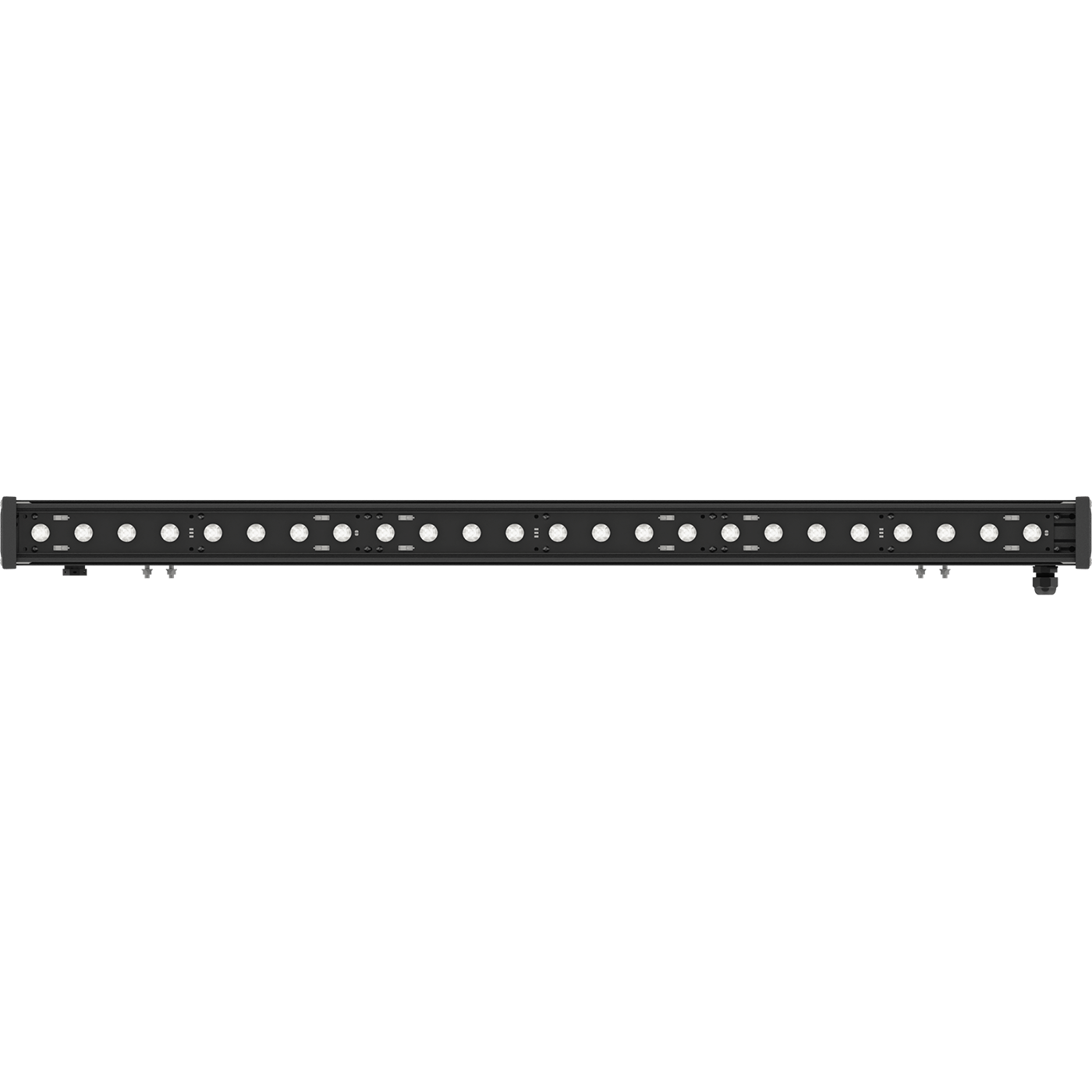

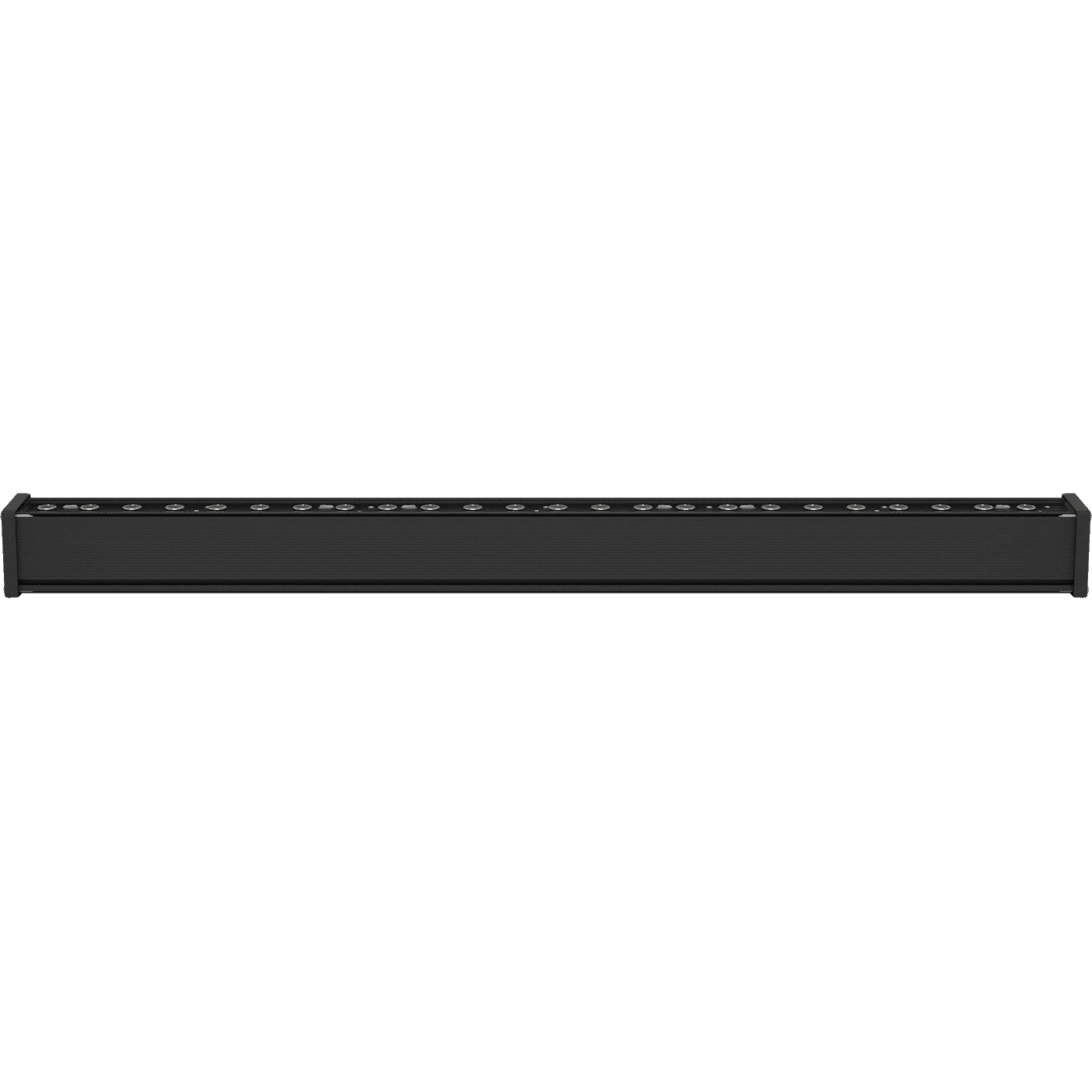

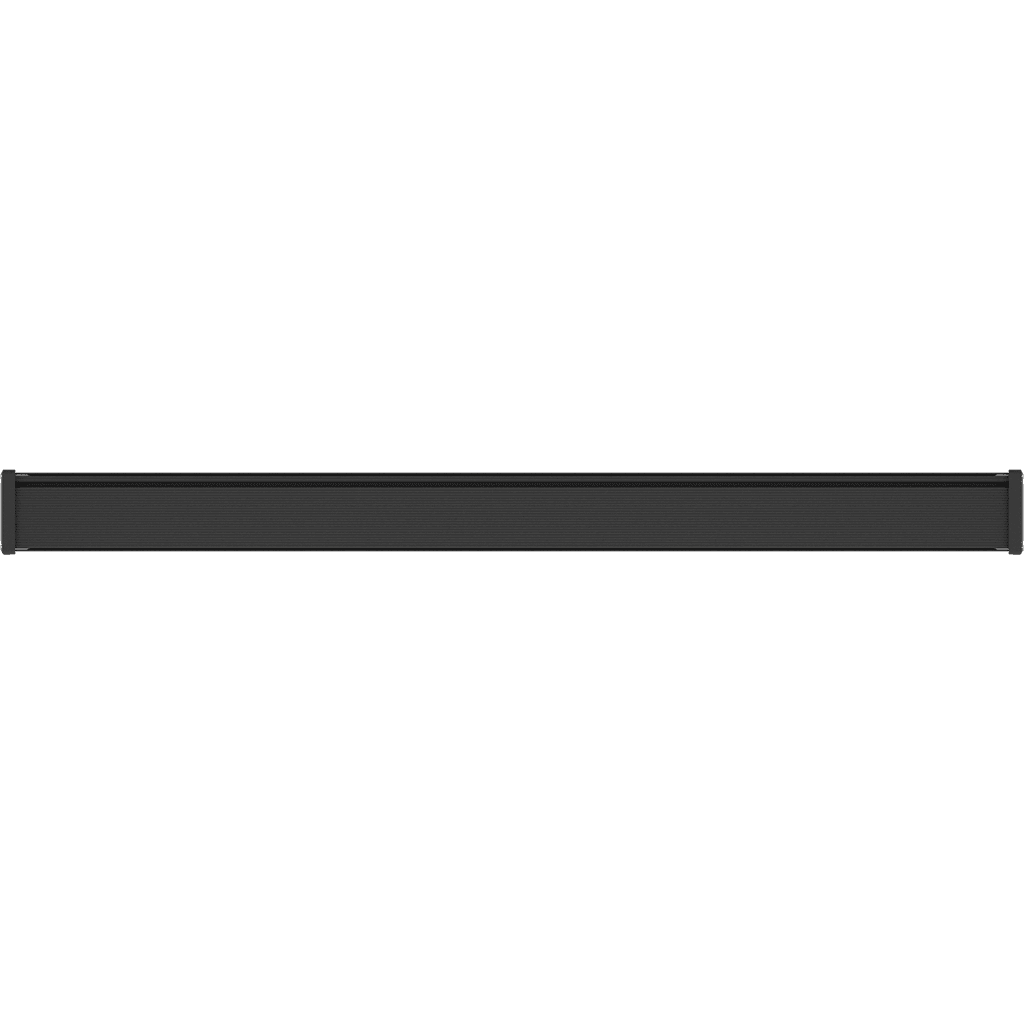

EVOLINE LED 12 D50 3000K 300

archive
archive
EVOLINE LED 12 D50 3000K 300
14 Wluminaire power
1350 lmlight flow
96 lm/Wenergy efficiency
code1006001280
beam angleD50
color temperature3000
weight1.7 kg
options
свернуть все
constructionalelectricalcommonilluminating
ingress protection (IP)
IP65
housing color
Серый
length, mm
320 mm
width, mm
60 mm
height, mm
75 mm
weight
1.7 kg
fire safety class
П-ІІІ
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
material
Алюминий
shock resistance (IK)
IK07/2 Дж
installation length, mm
700 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер
constructional
ingress protection (IP)
IP65
housing color
Серый
length, mm
320 mm
width, mm
60 mm
height, mm
75 mm
weight
1.7 kg
fire safety class
П-ІІІ
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
material
Алюминий
shock resistance (IK)
IK07/2 Дж
installation length, mm
700 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер
electrical
electric shock protection
I
supply voltage, alternating current
198-264 V
luminaire power
14 W
power factor
> 0,90
supply voltage
230 V
common
code
1006001280
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от -40 до +40 C
energy efficiency class
A+
service life, hour
50 000 h
illuminating
color rendition index (CRI)
>80
light flow
1350 lm
energy efficiency
96 lm/W
flickering factor
<5%
beam angle
D50
color temperature
3000
light source type
LED
emission color
Белый
model files
model files

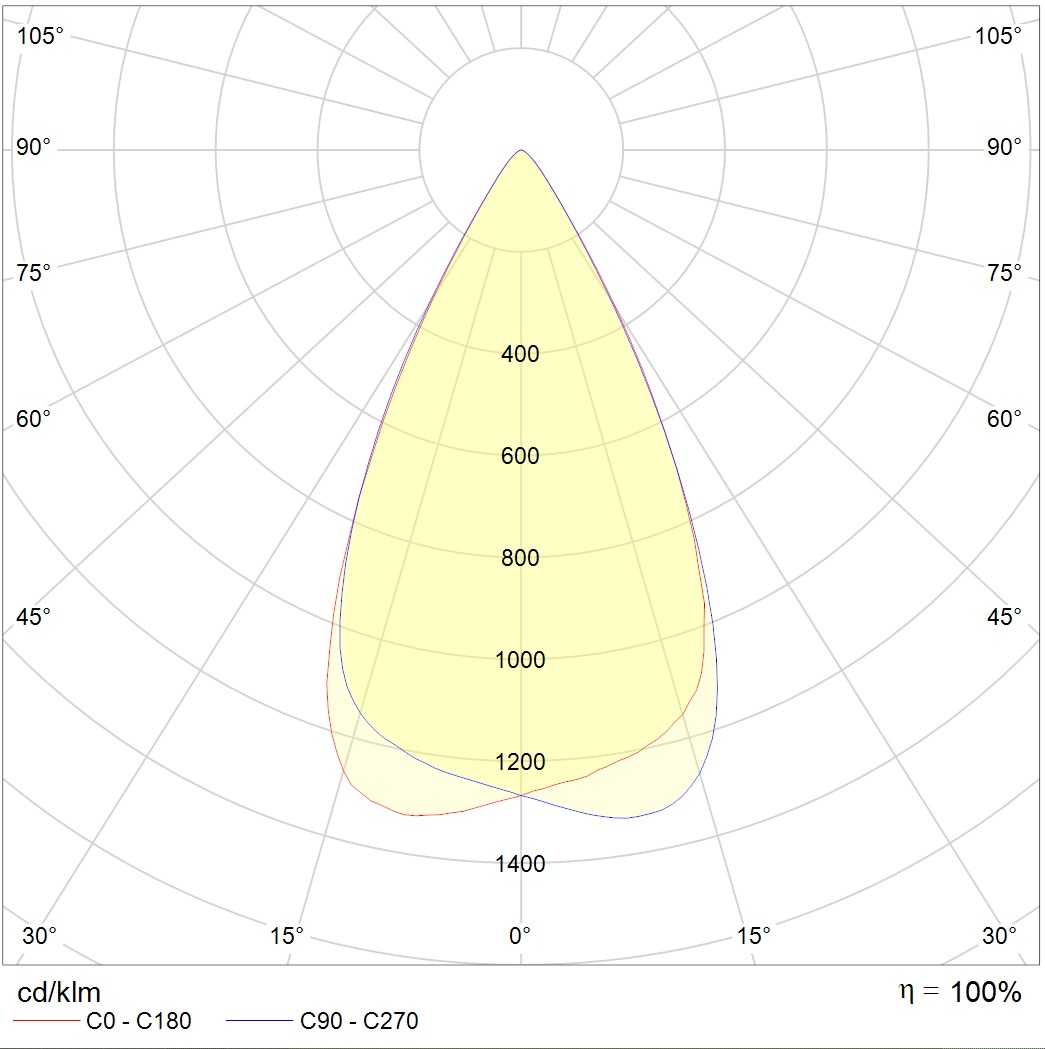

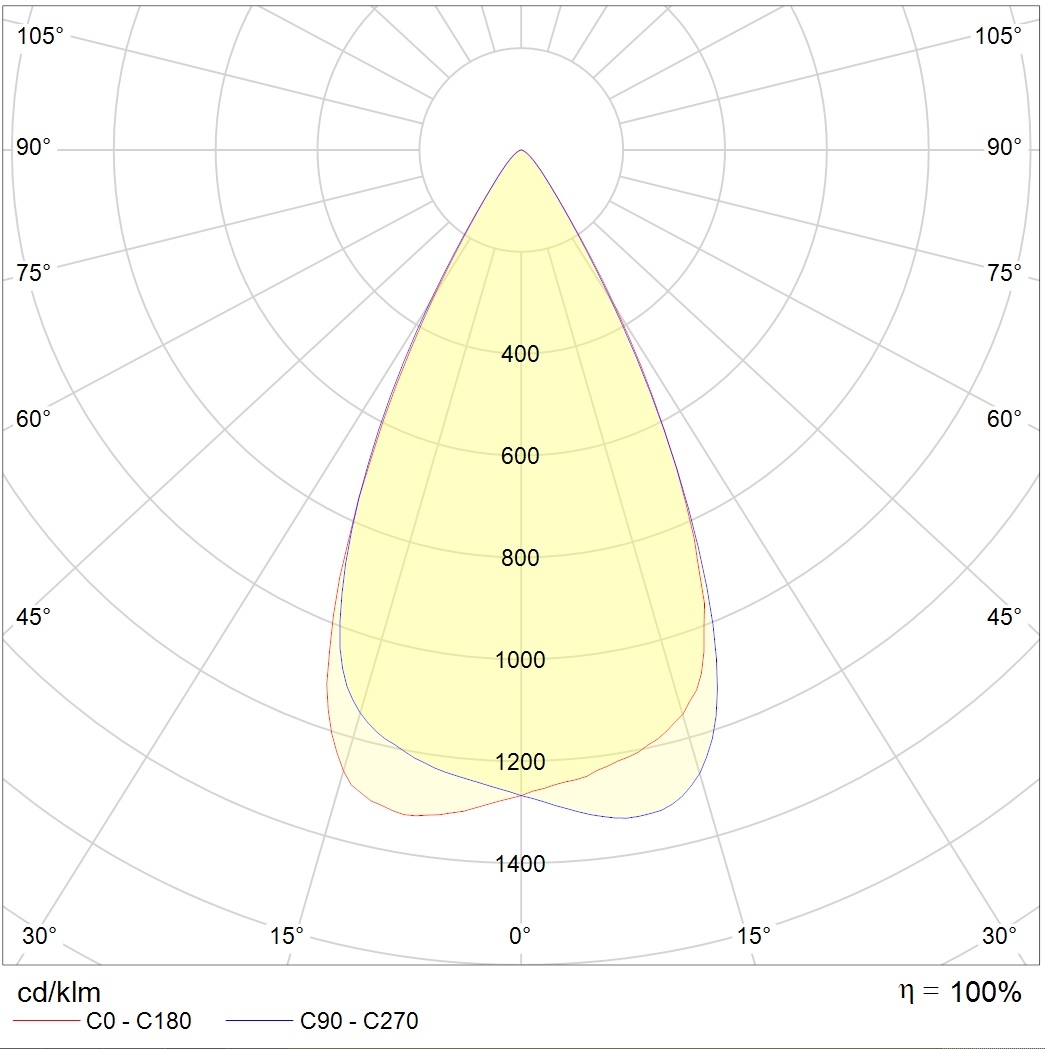

photometric files
ies263.2 kB
jpg140.3 kB
ldt174.5 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.6 mB
Declaration of Conformity EAEU TR 037/2016595.1 kB
Fire Safety Certificate2.5 mB
photometric files
ies263.2 kB
jpg140.3 kB
ldt174.5 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.6 mB
Declaration of Conformity EAEU TR 037/2016595.1 kB
Fire Safety Certificate2.5 mB
