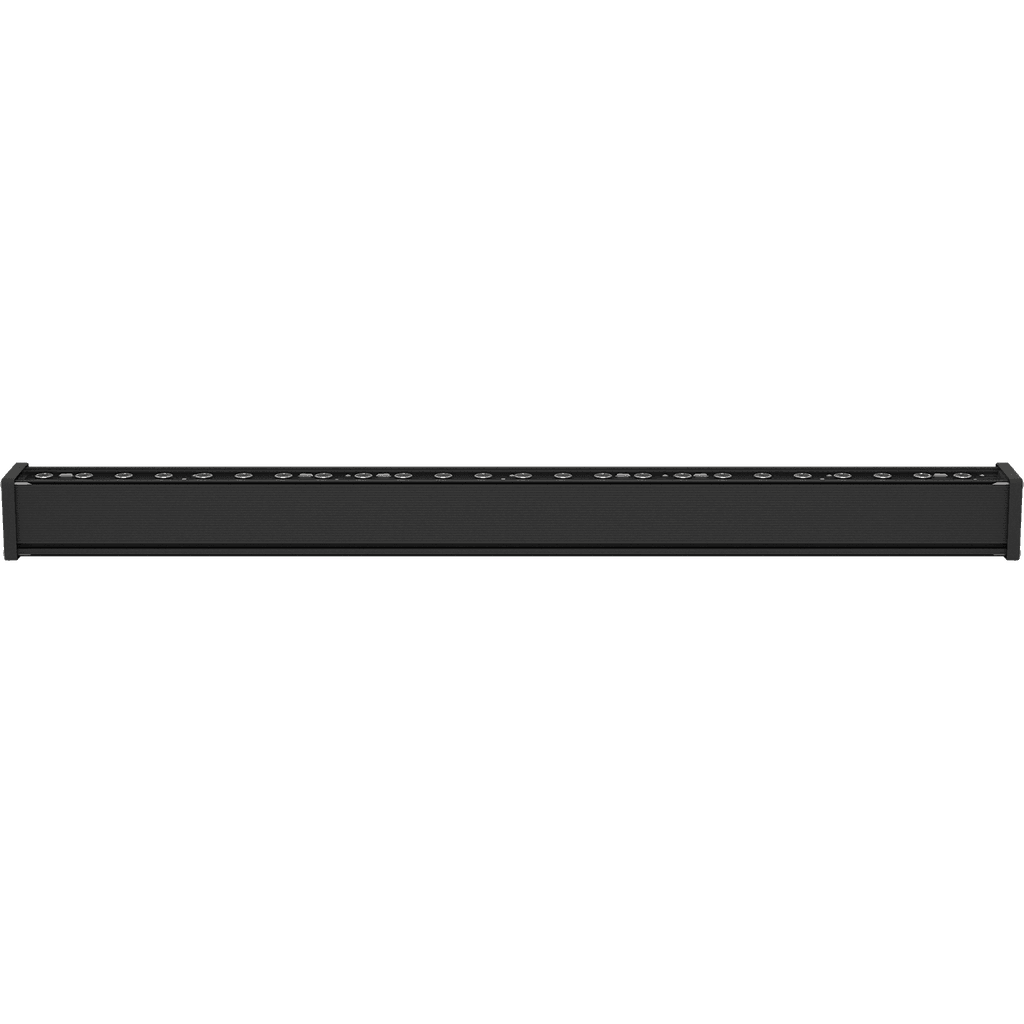

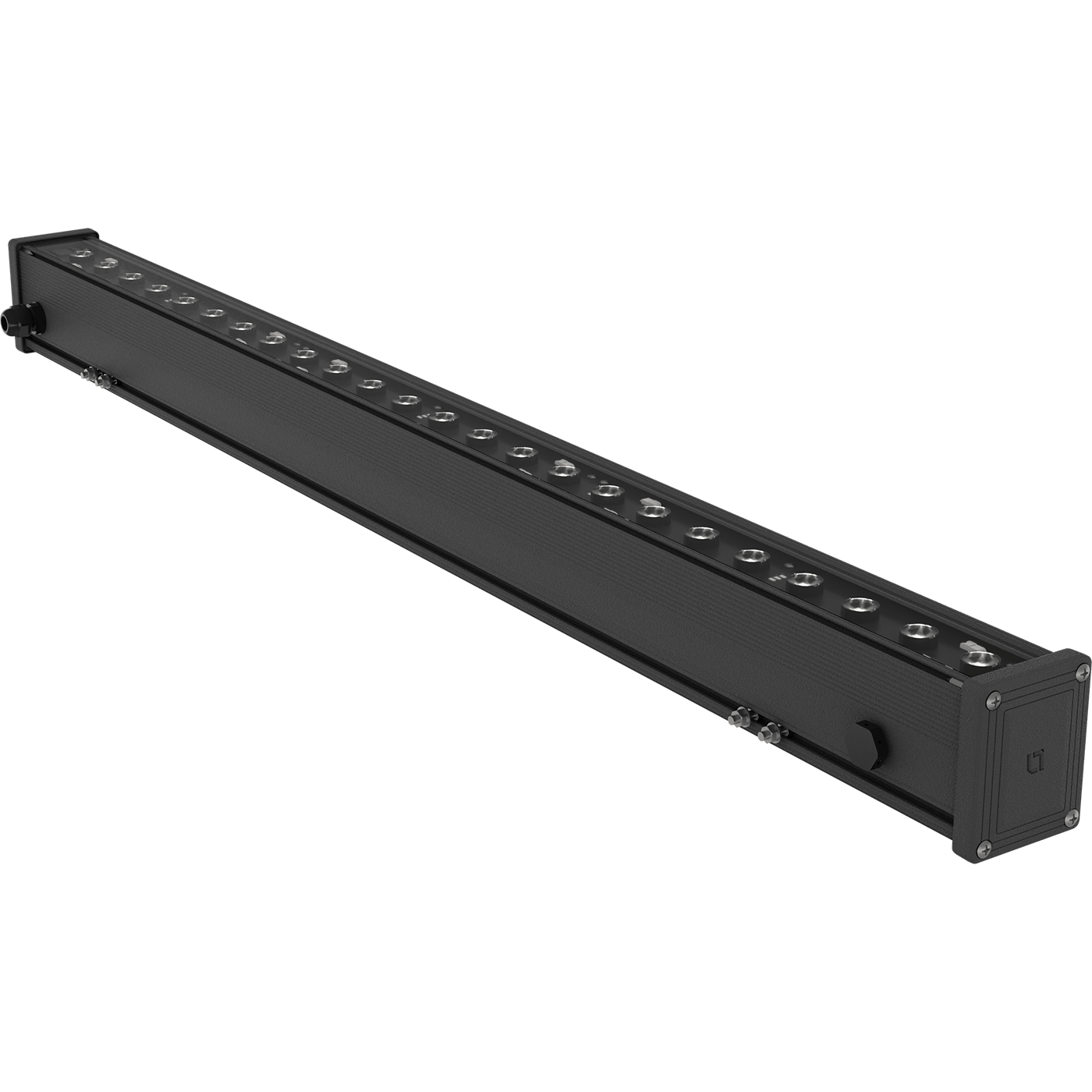

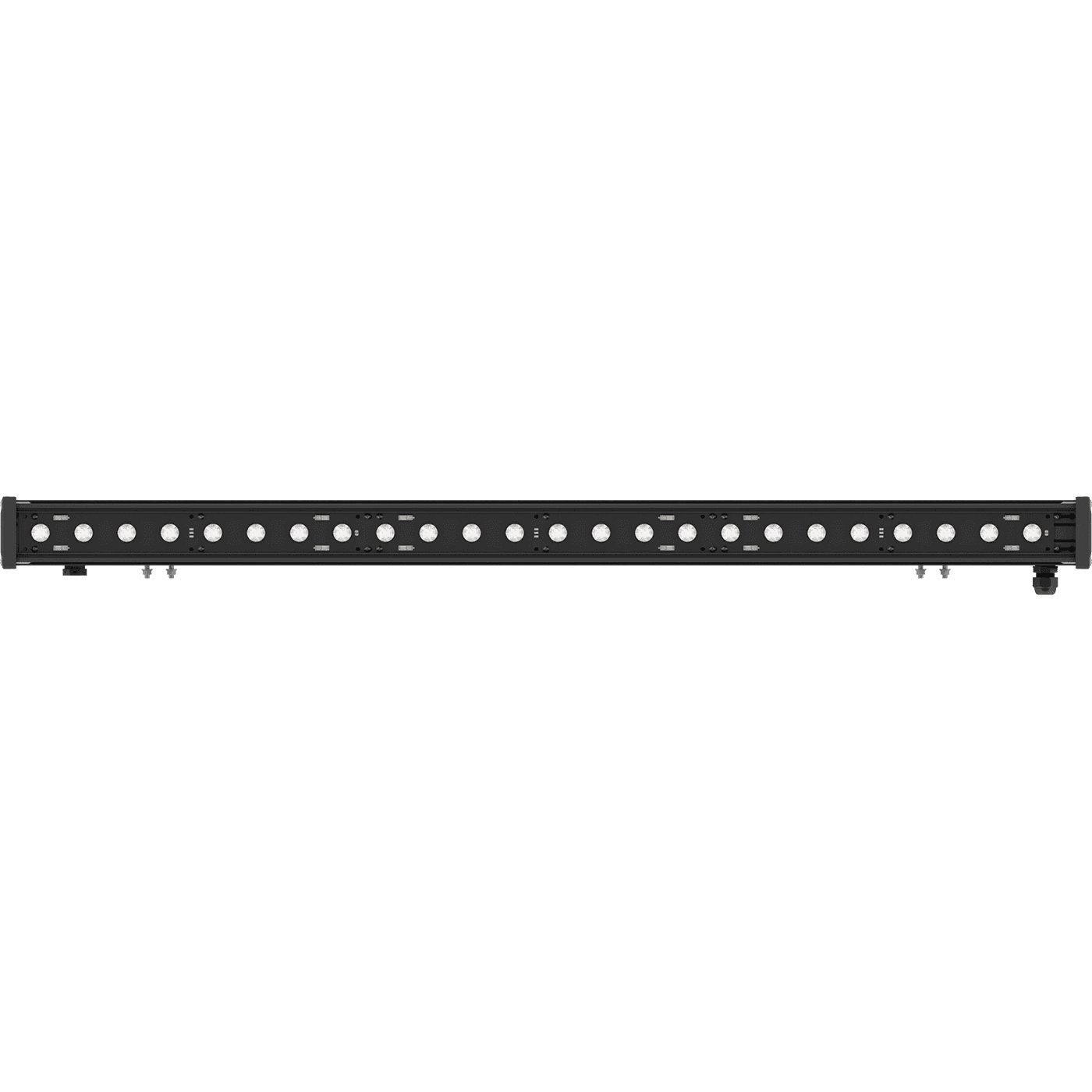

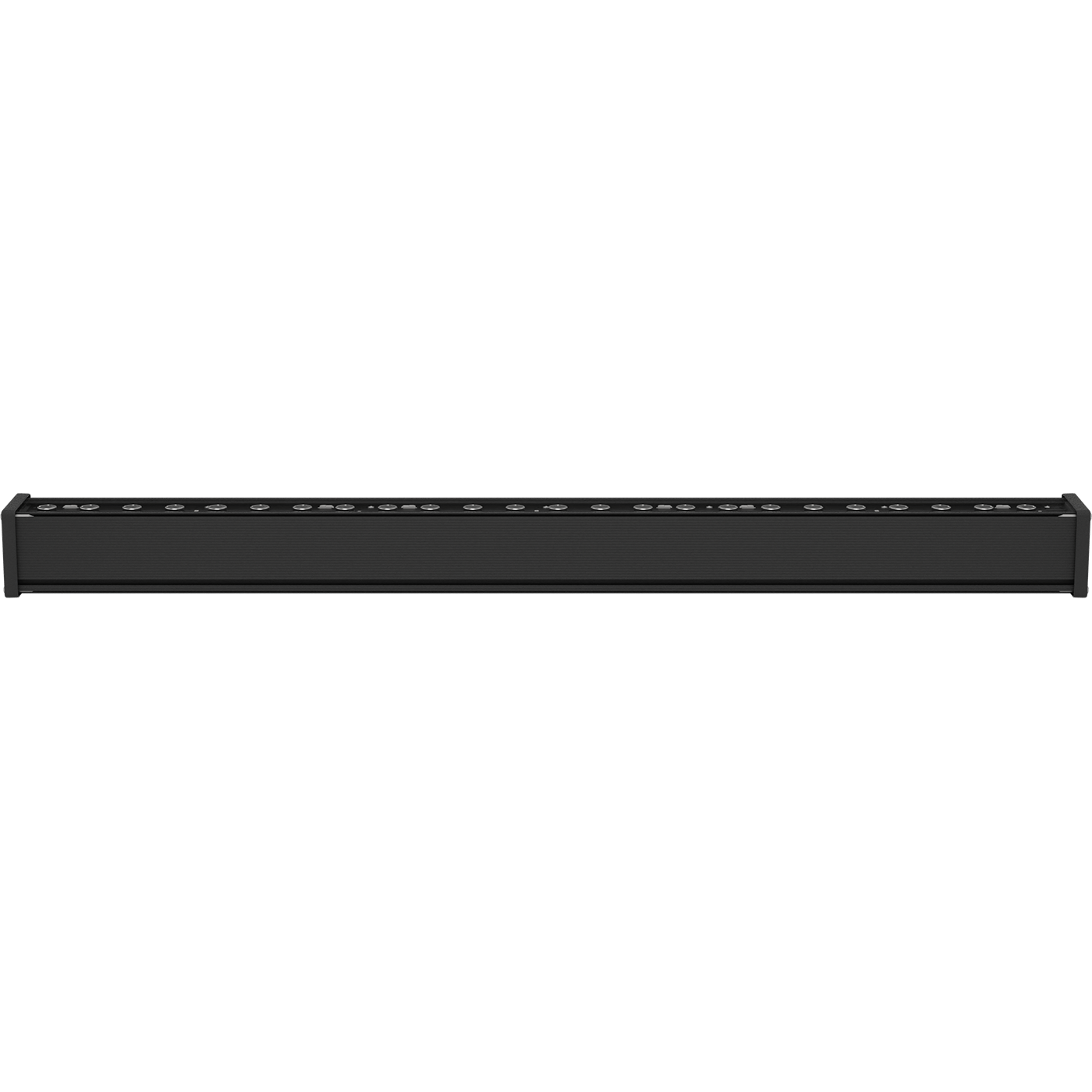

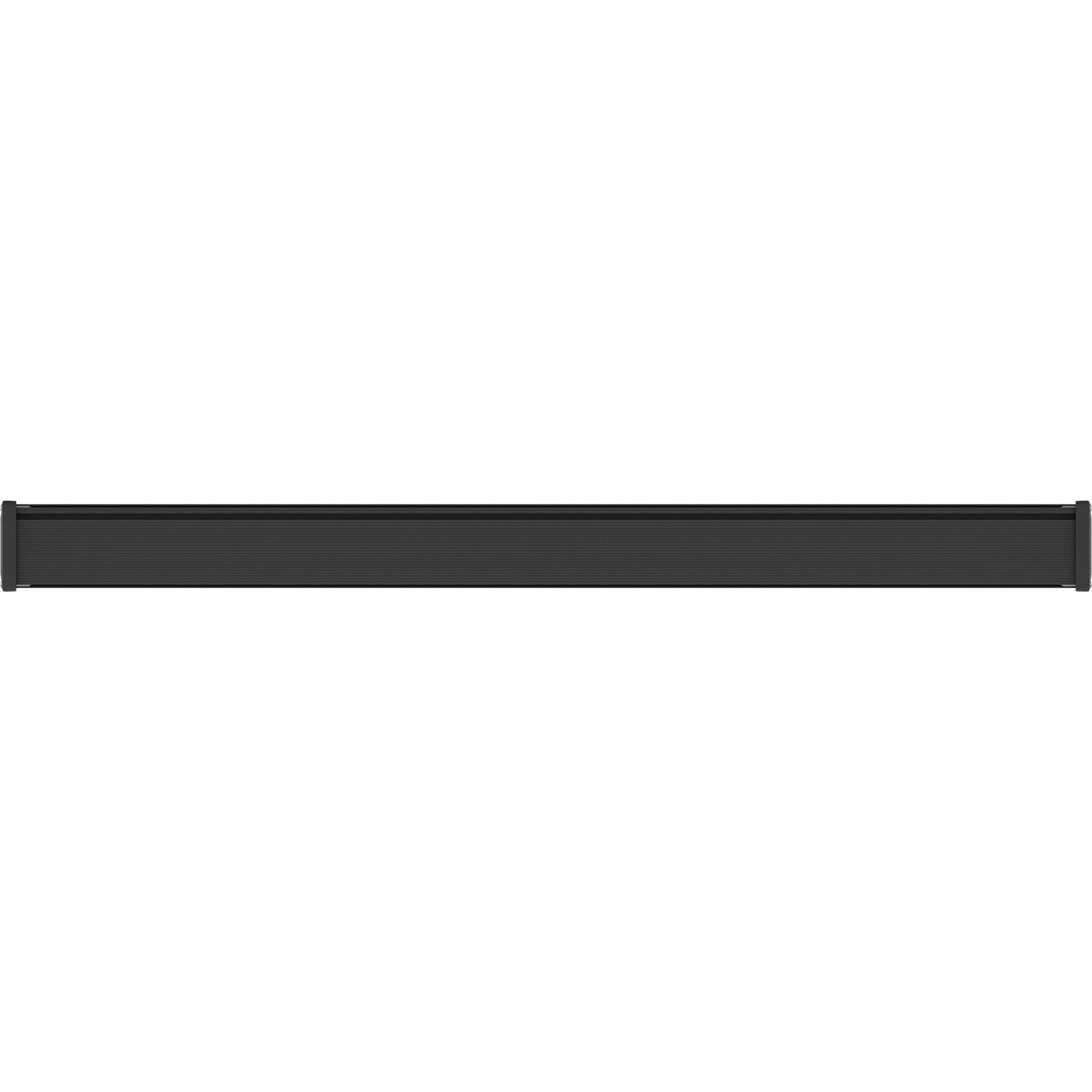

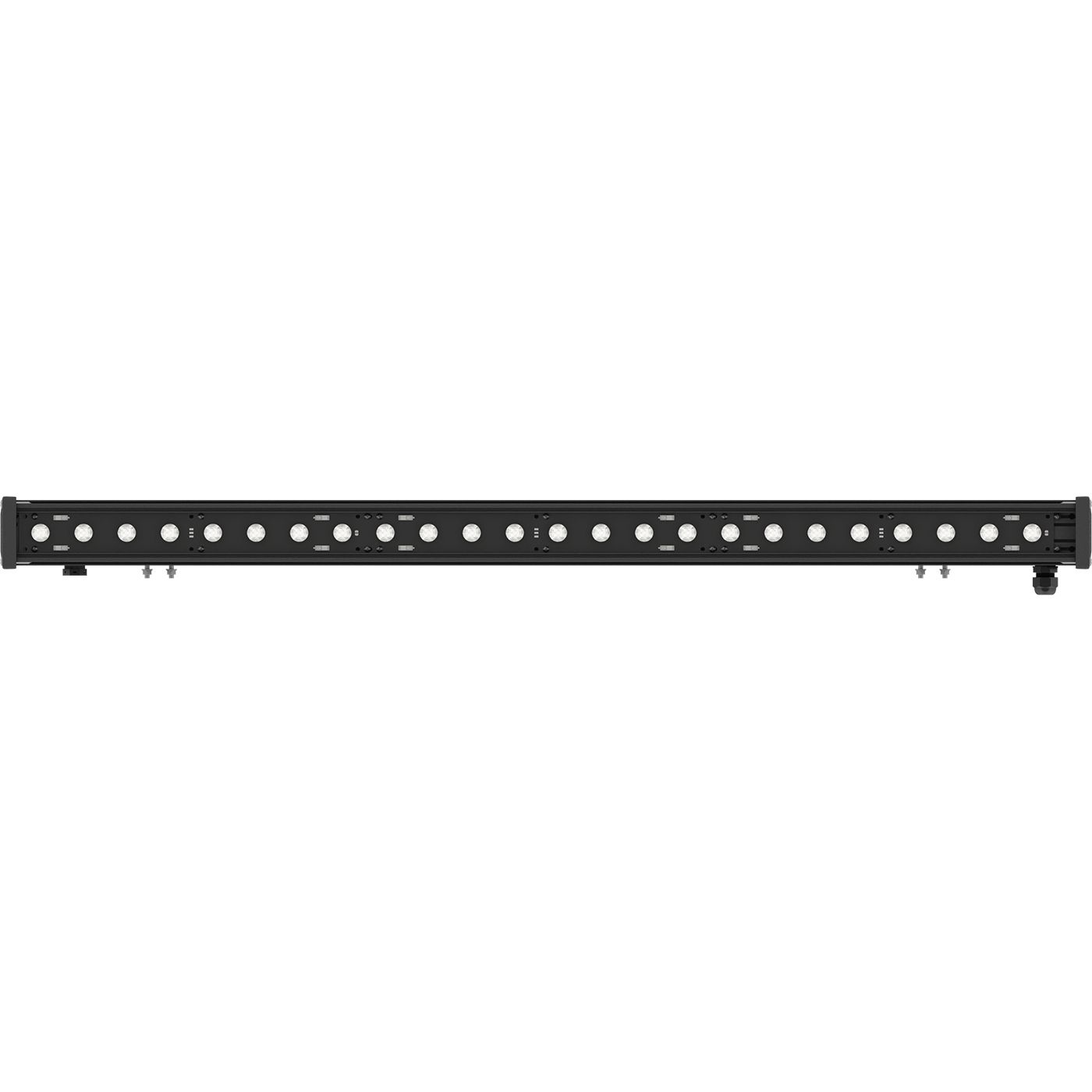

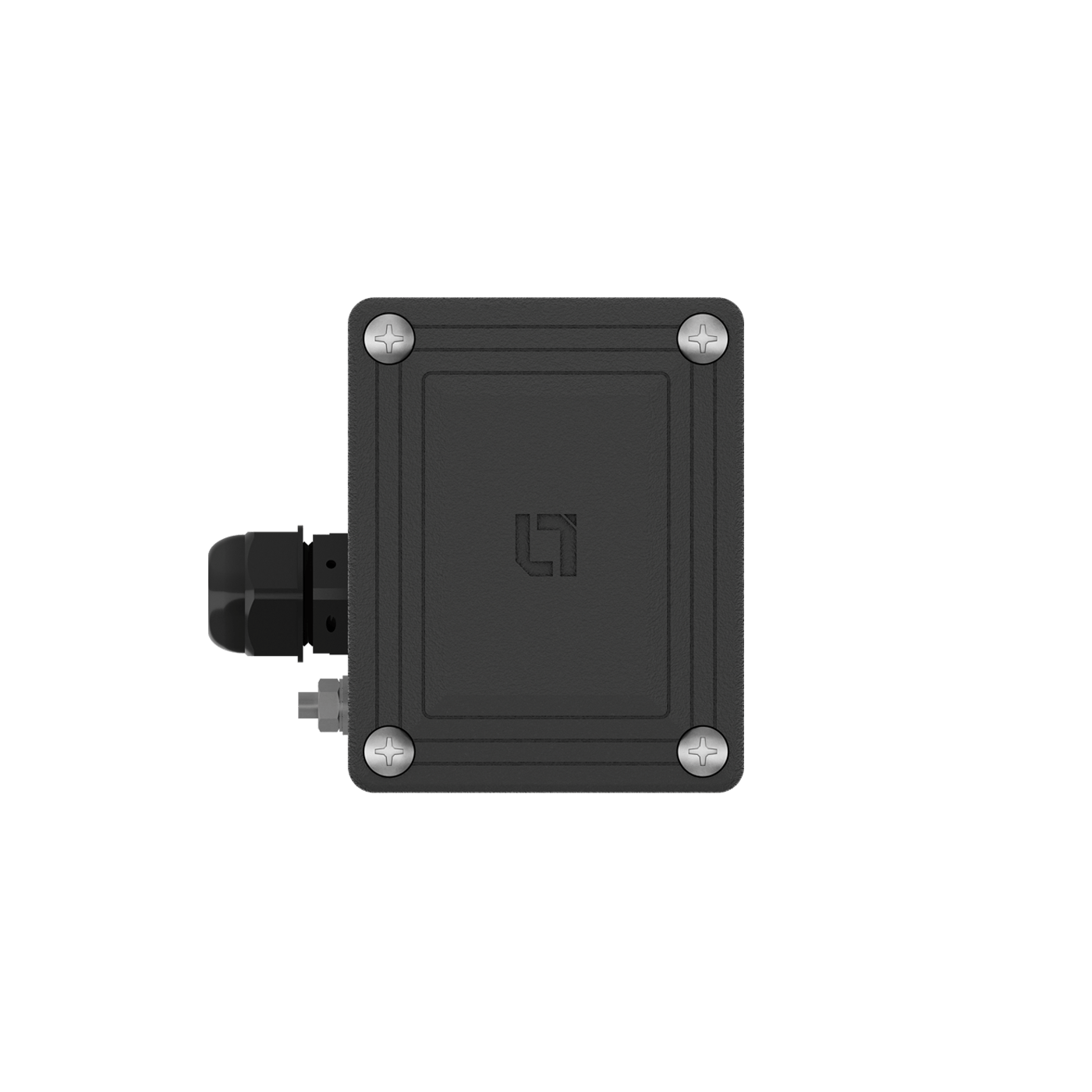

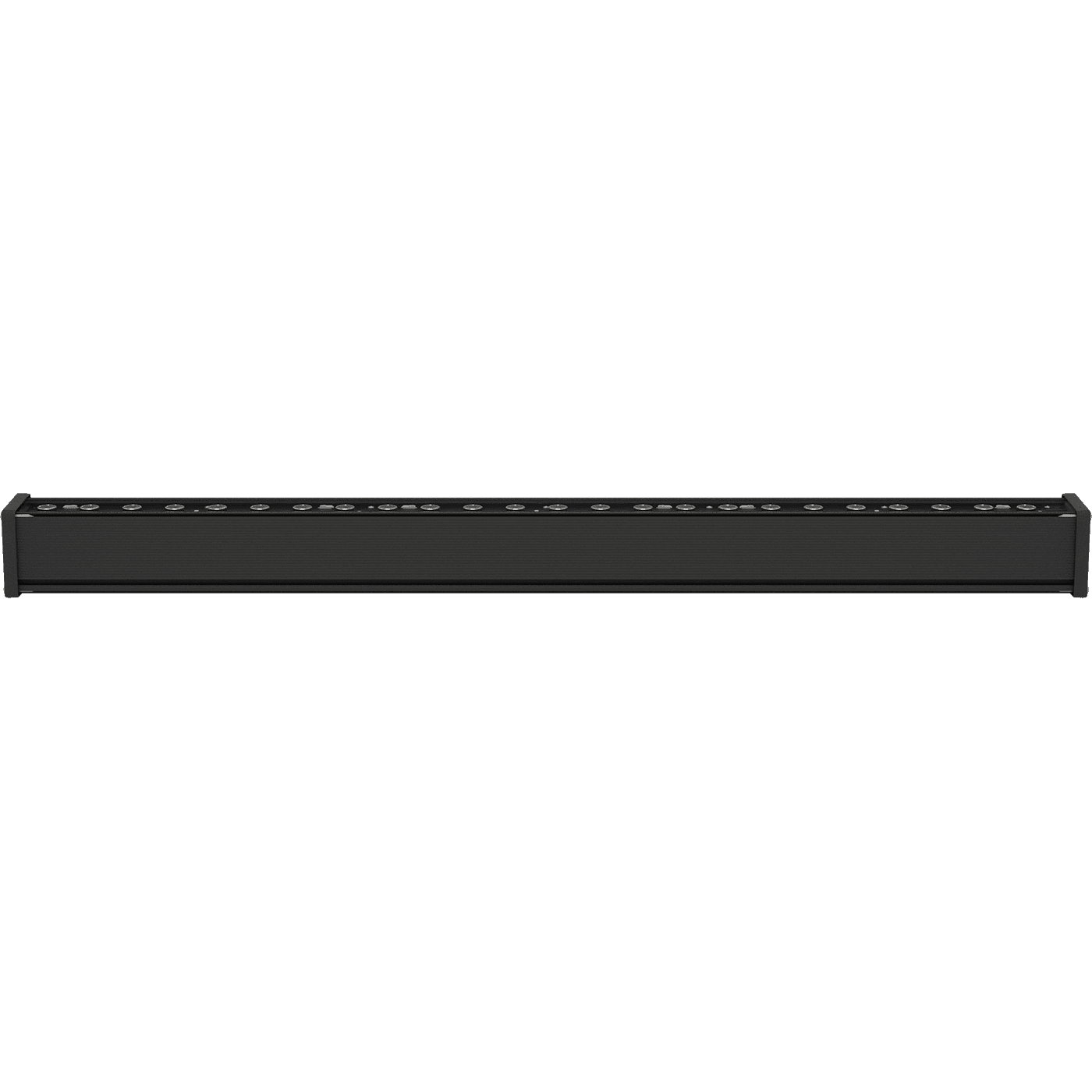

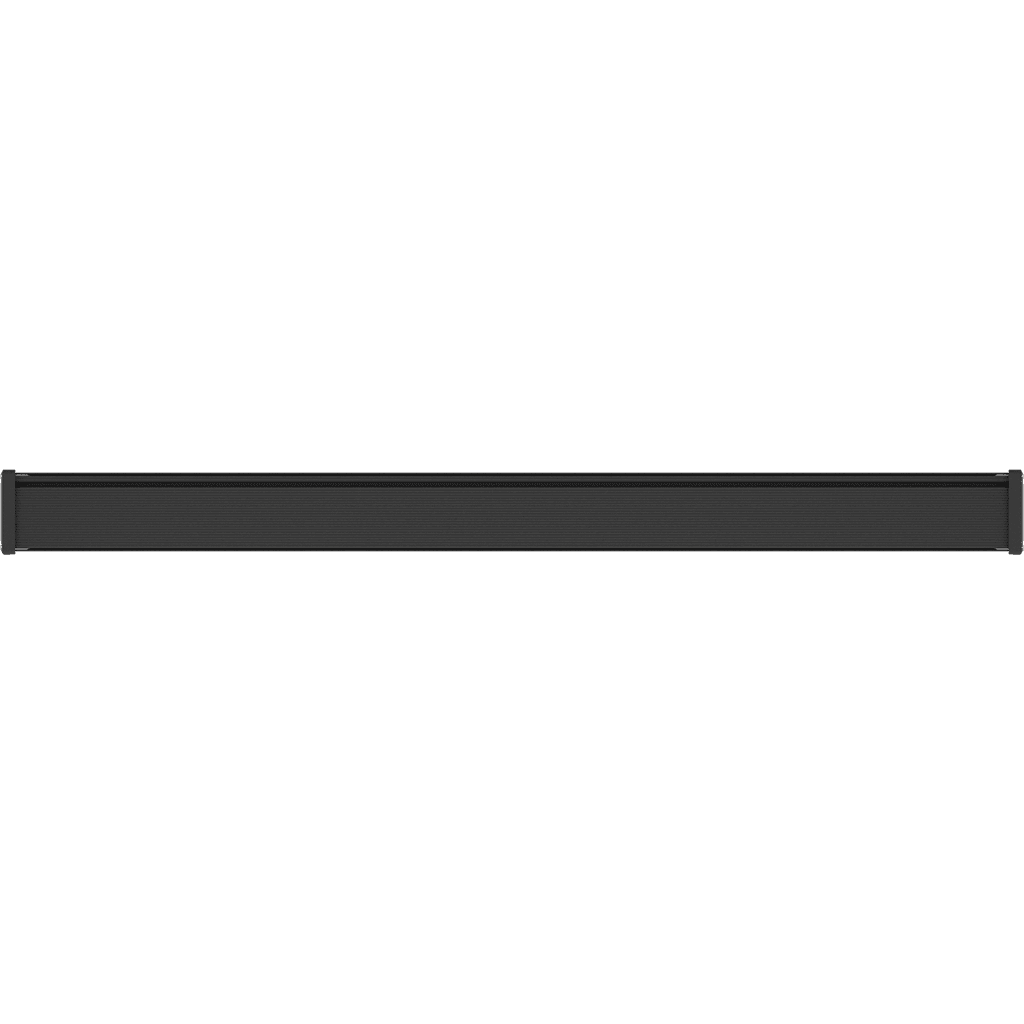

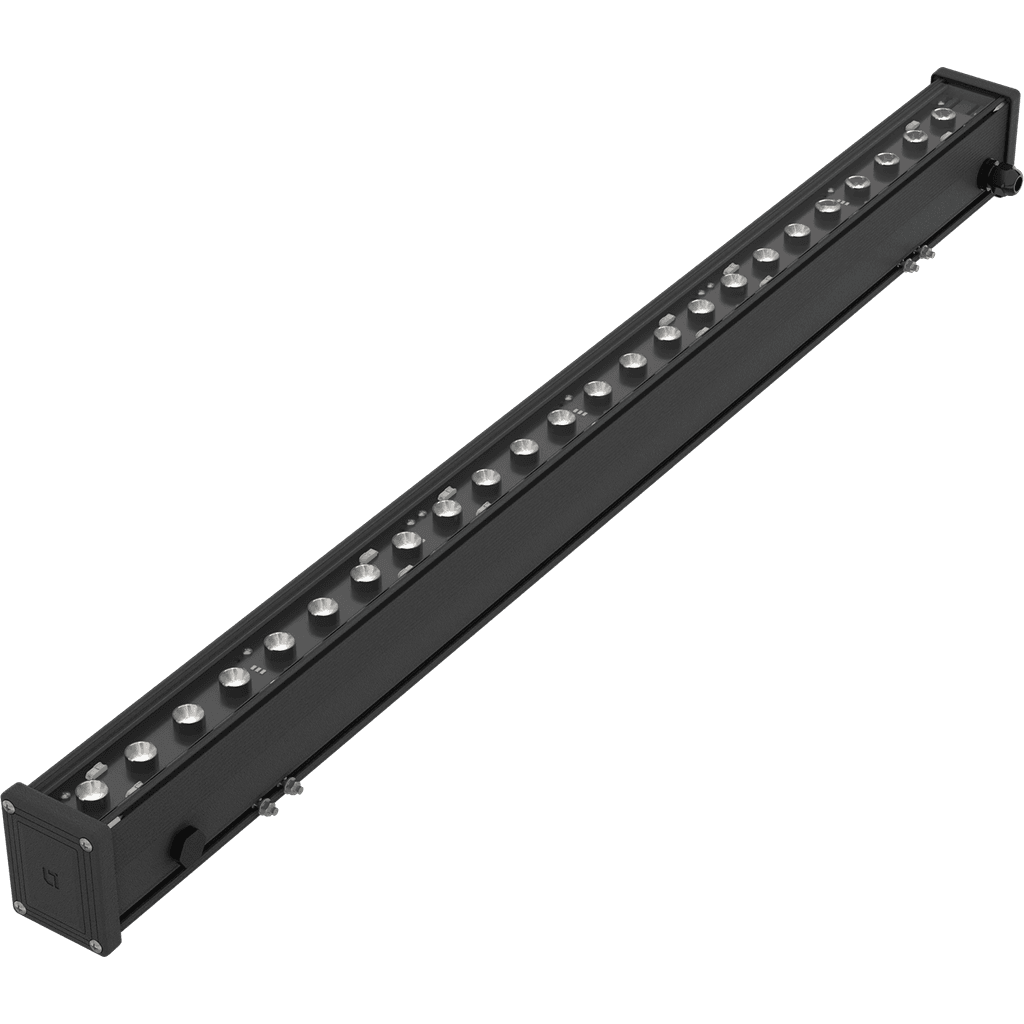

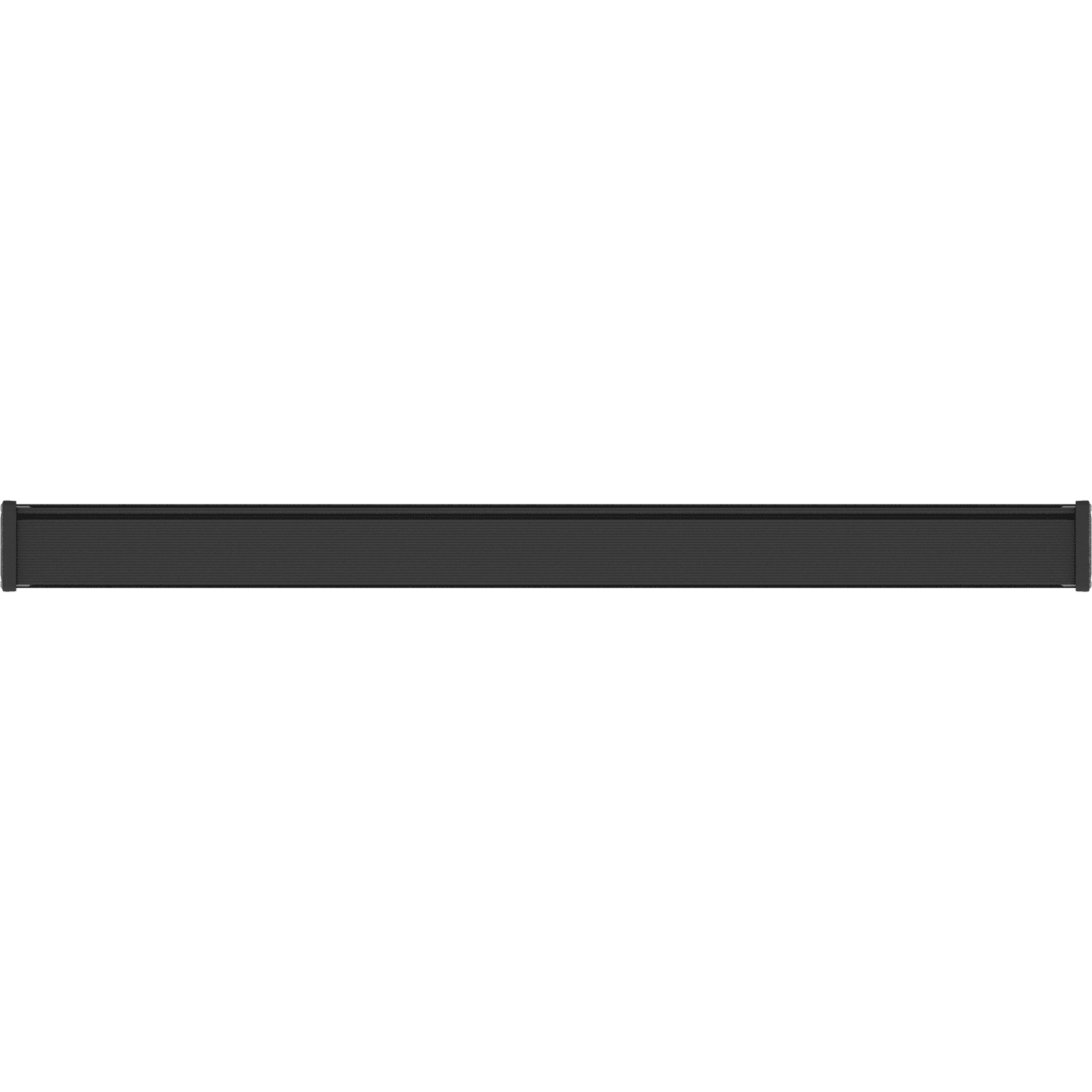

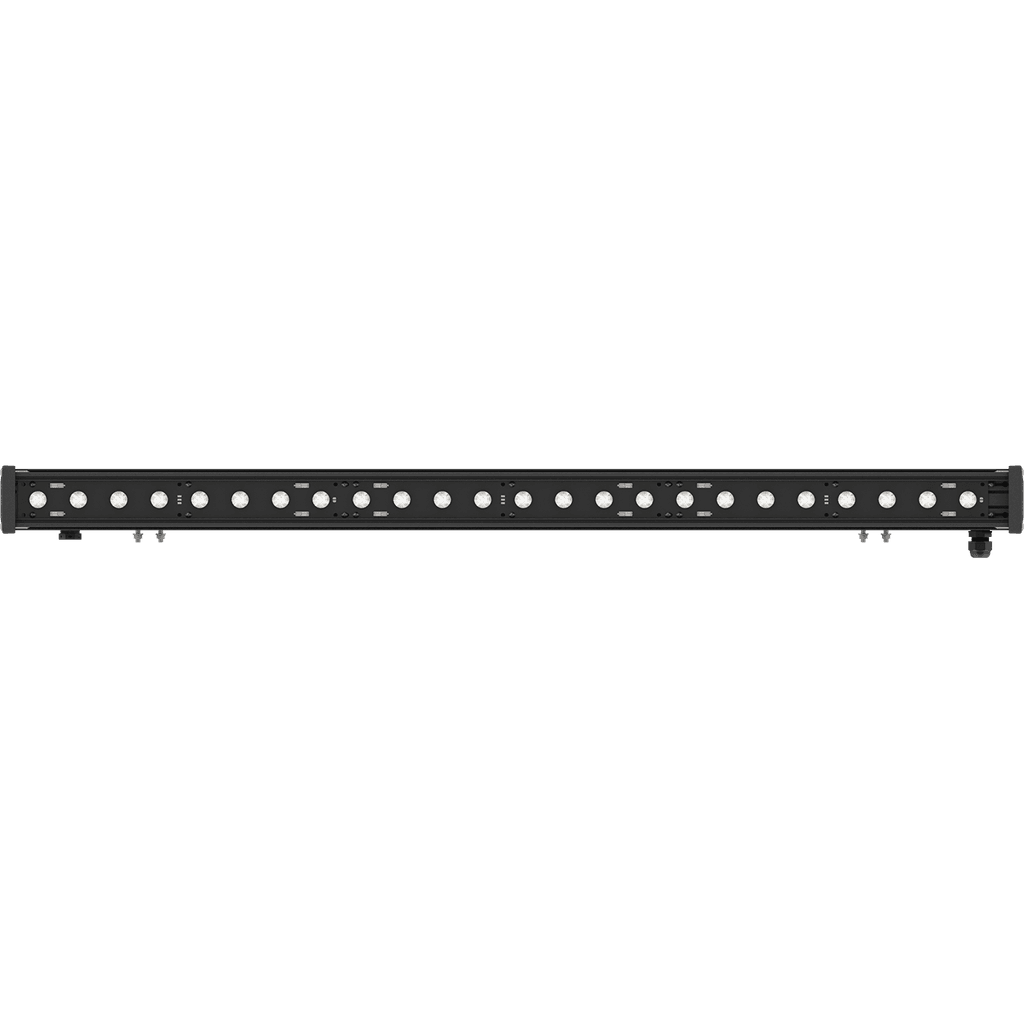

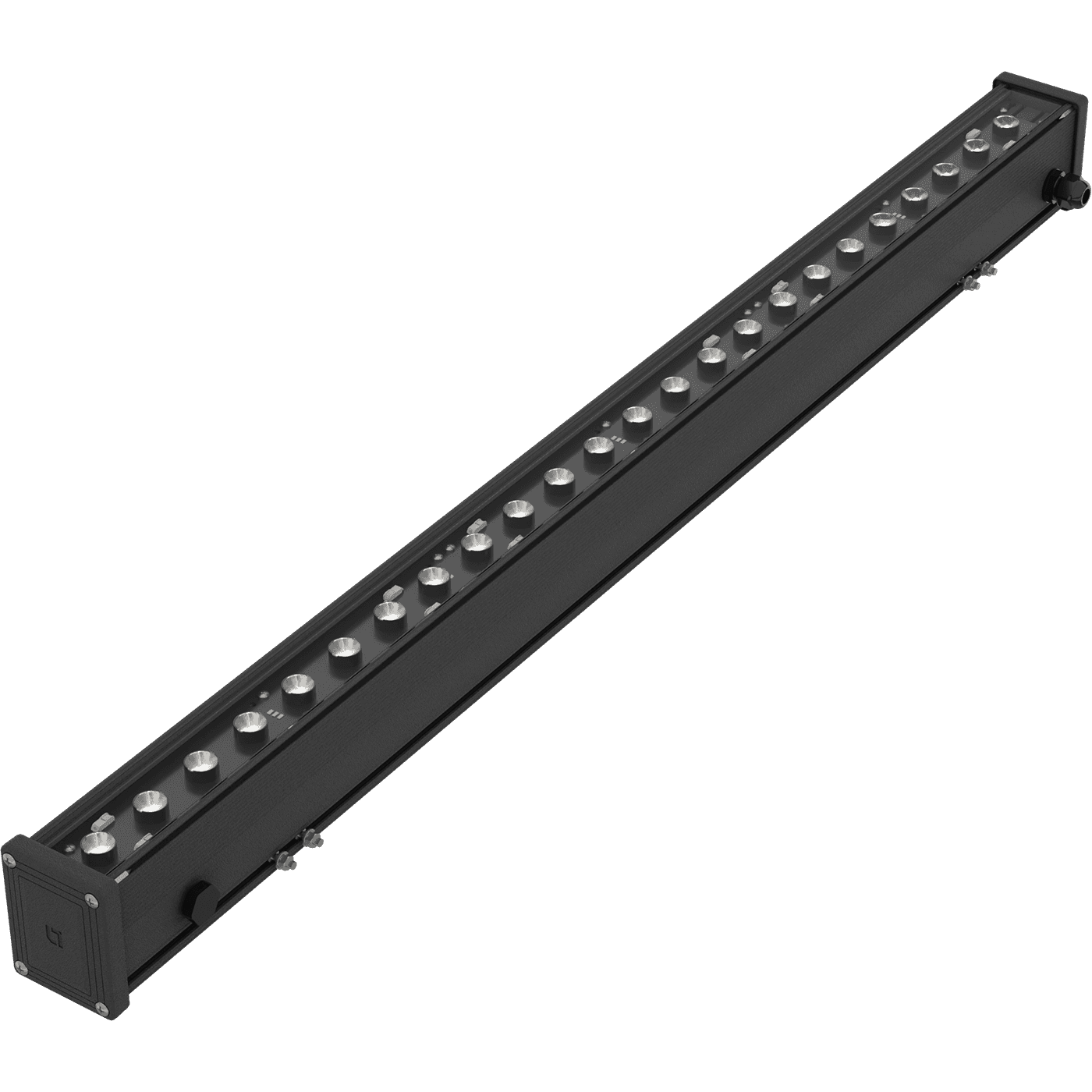

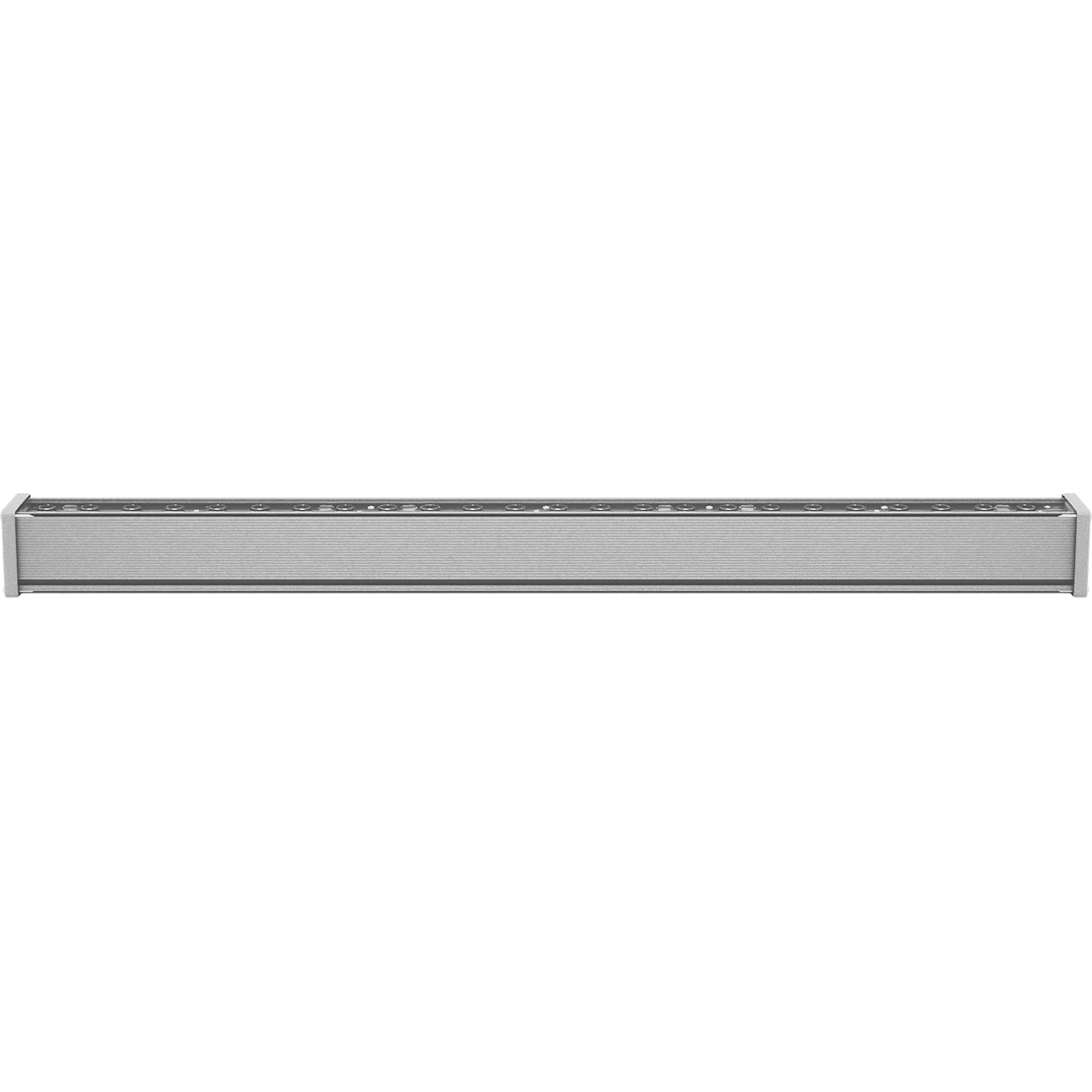

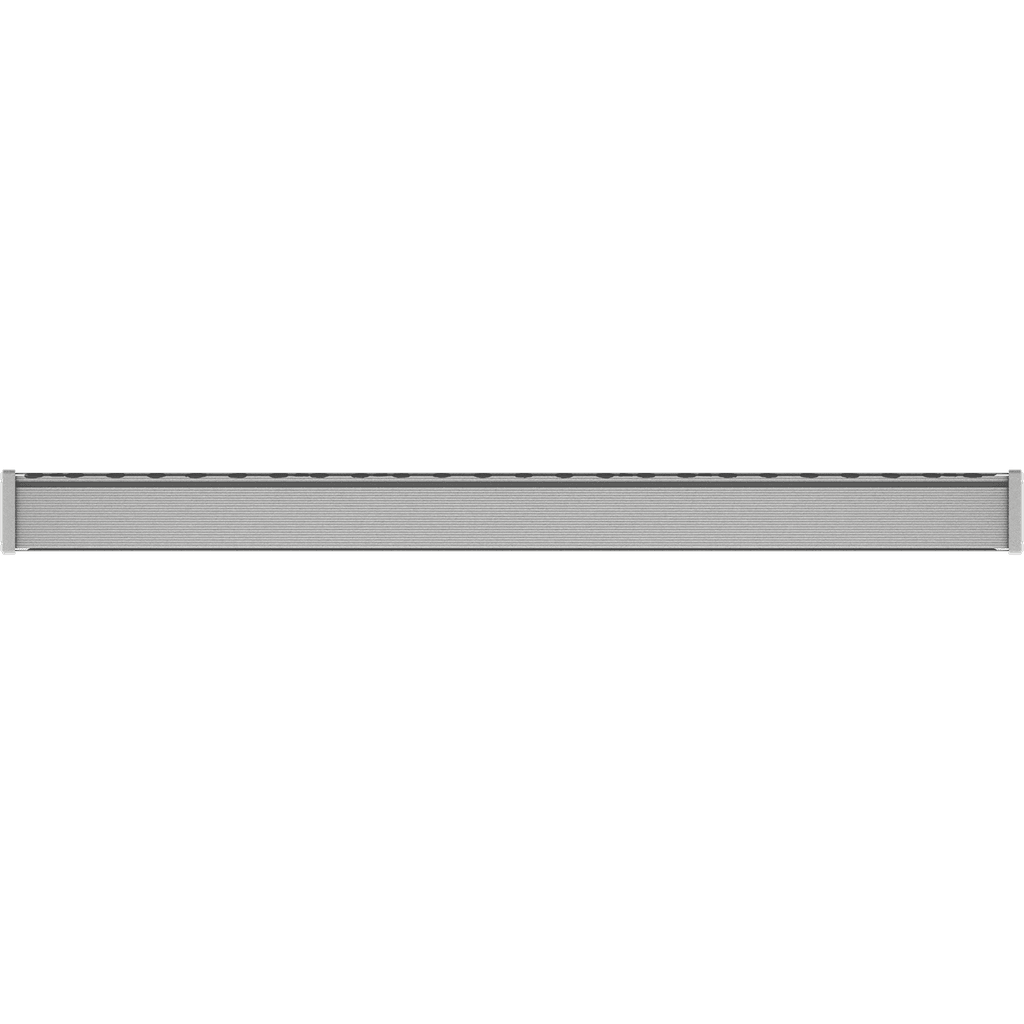

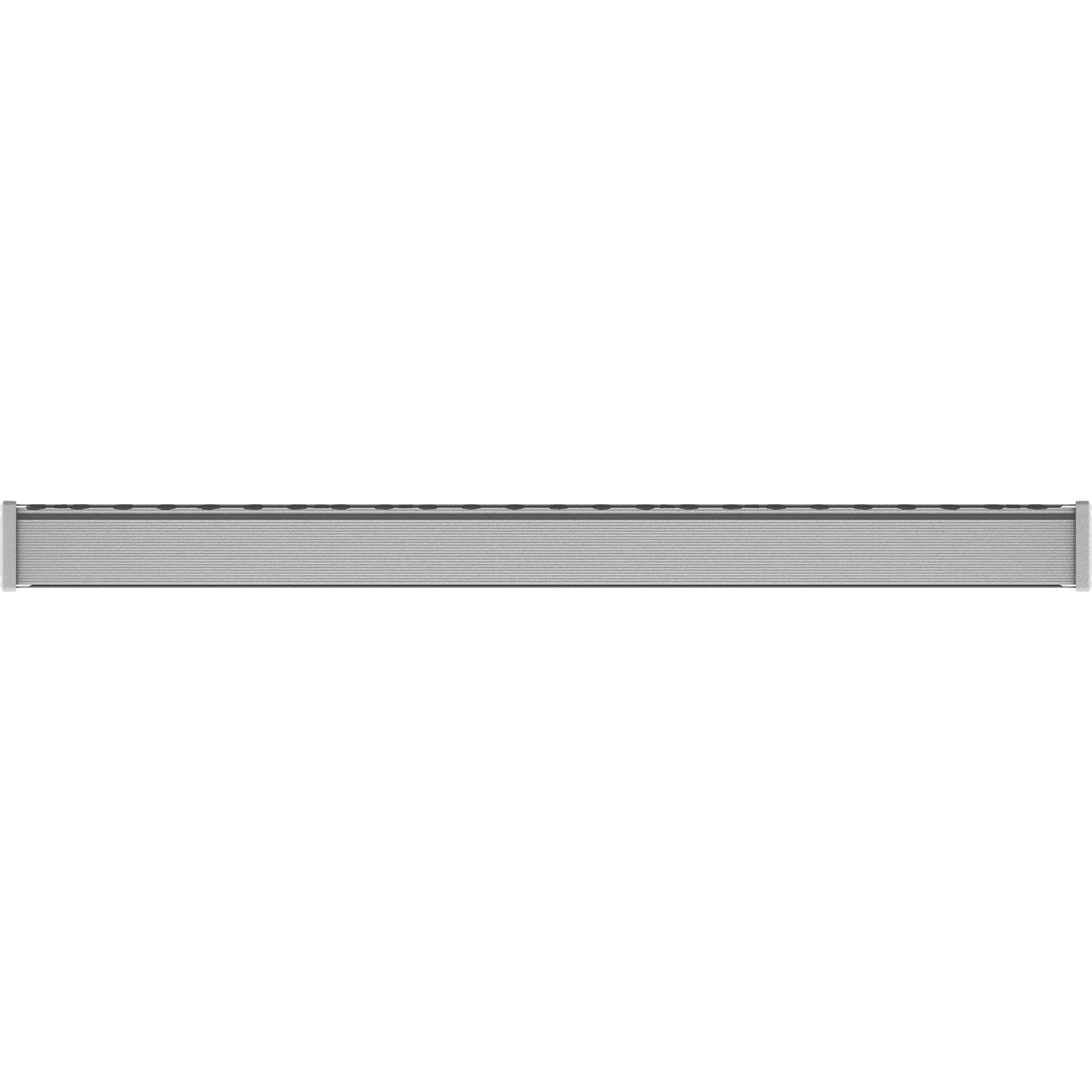

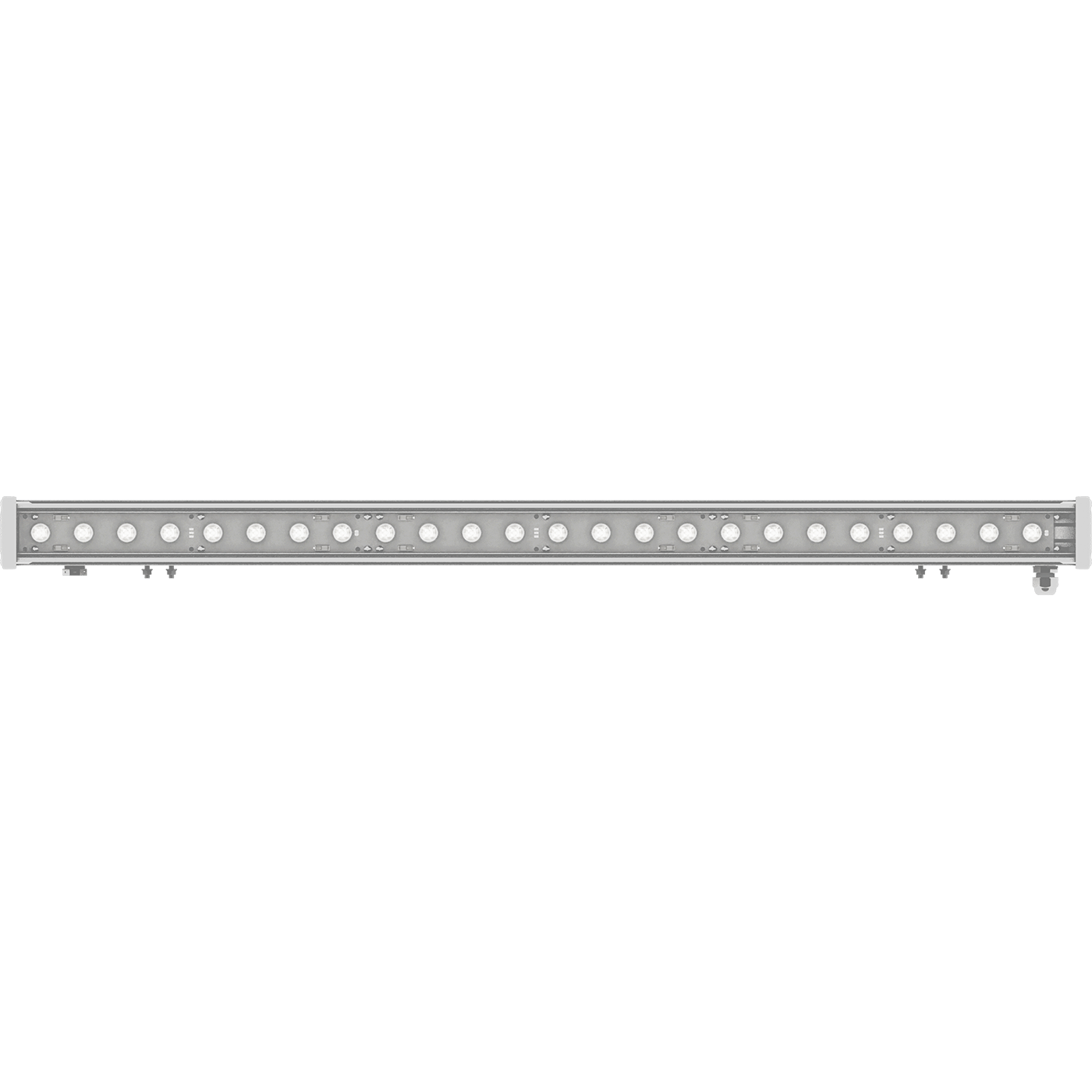

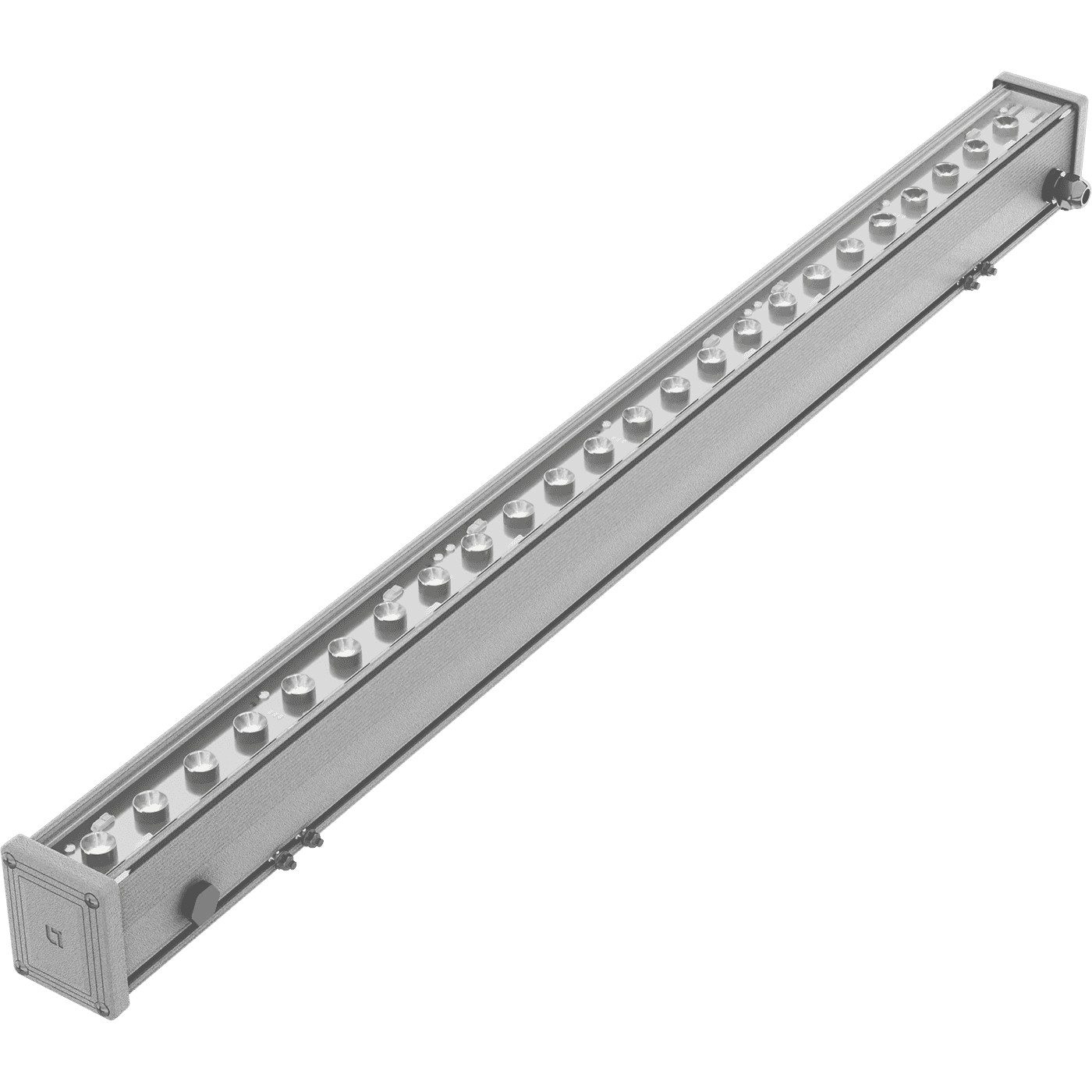

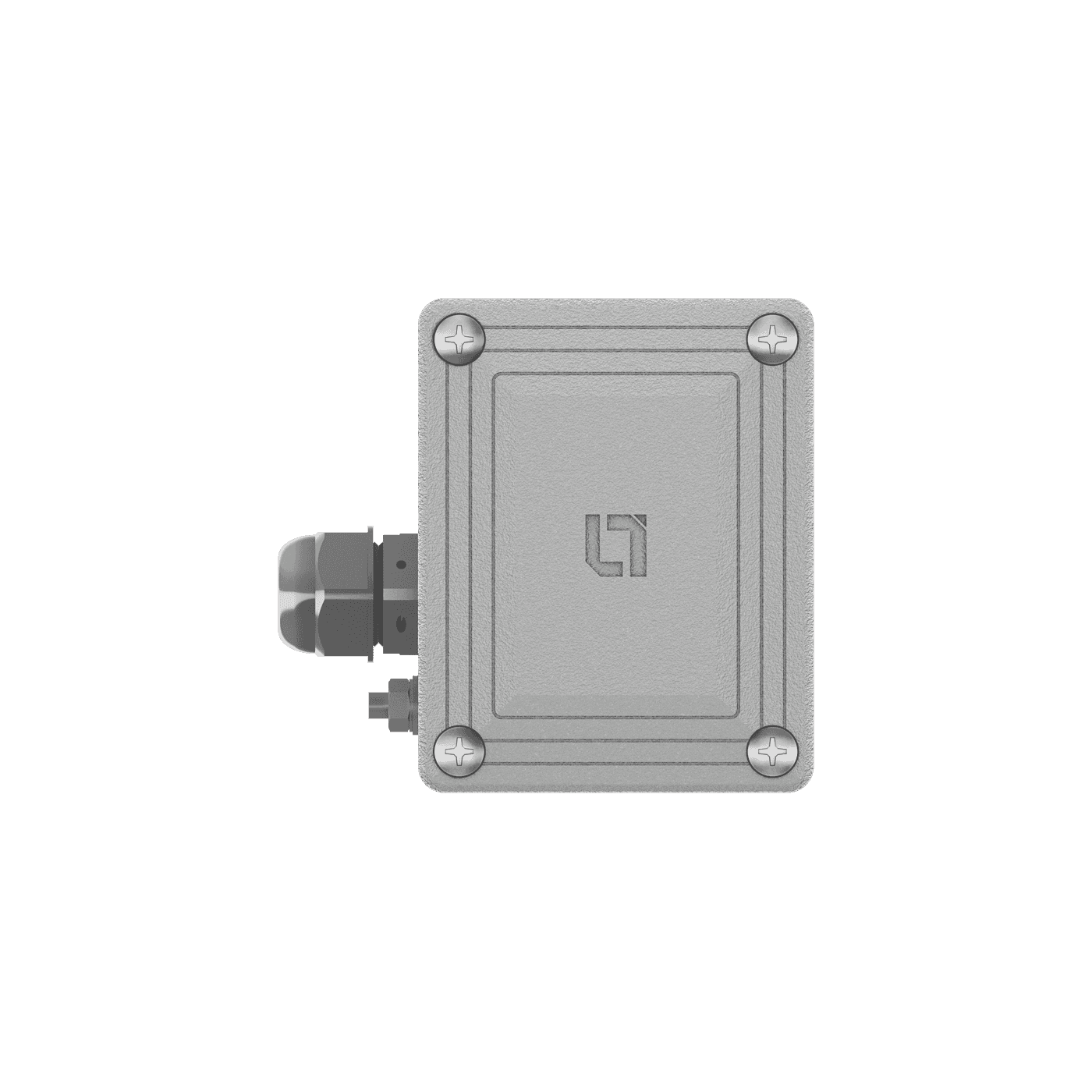

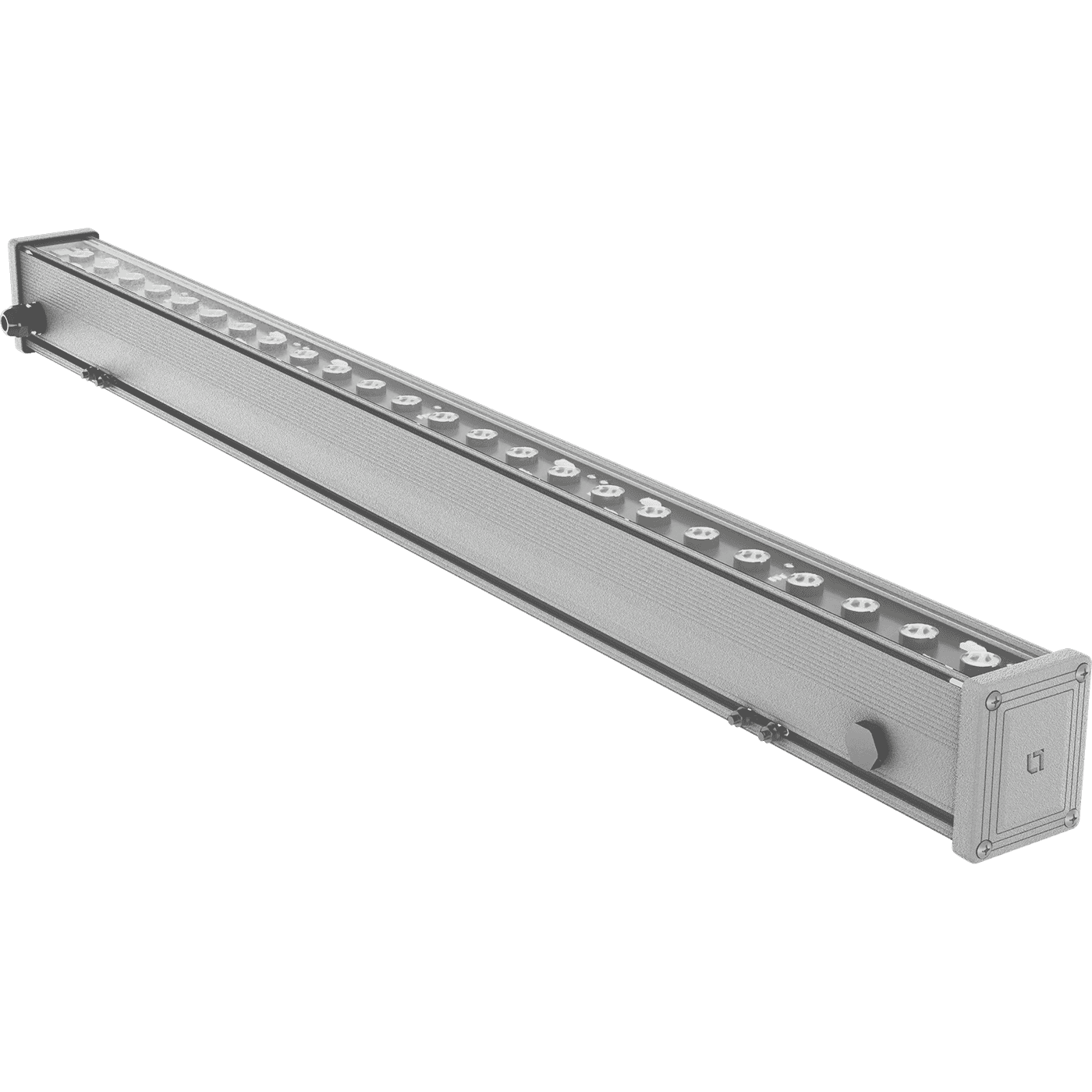

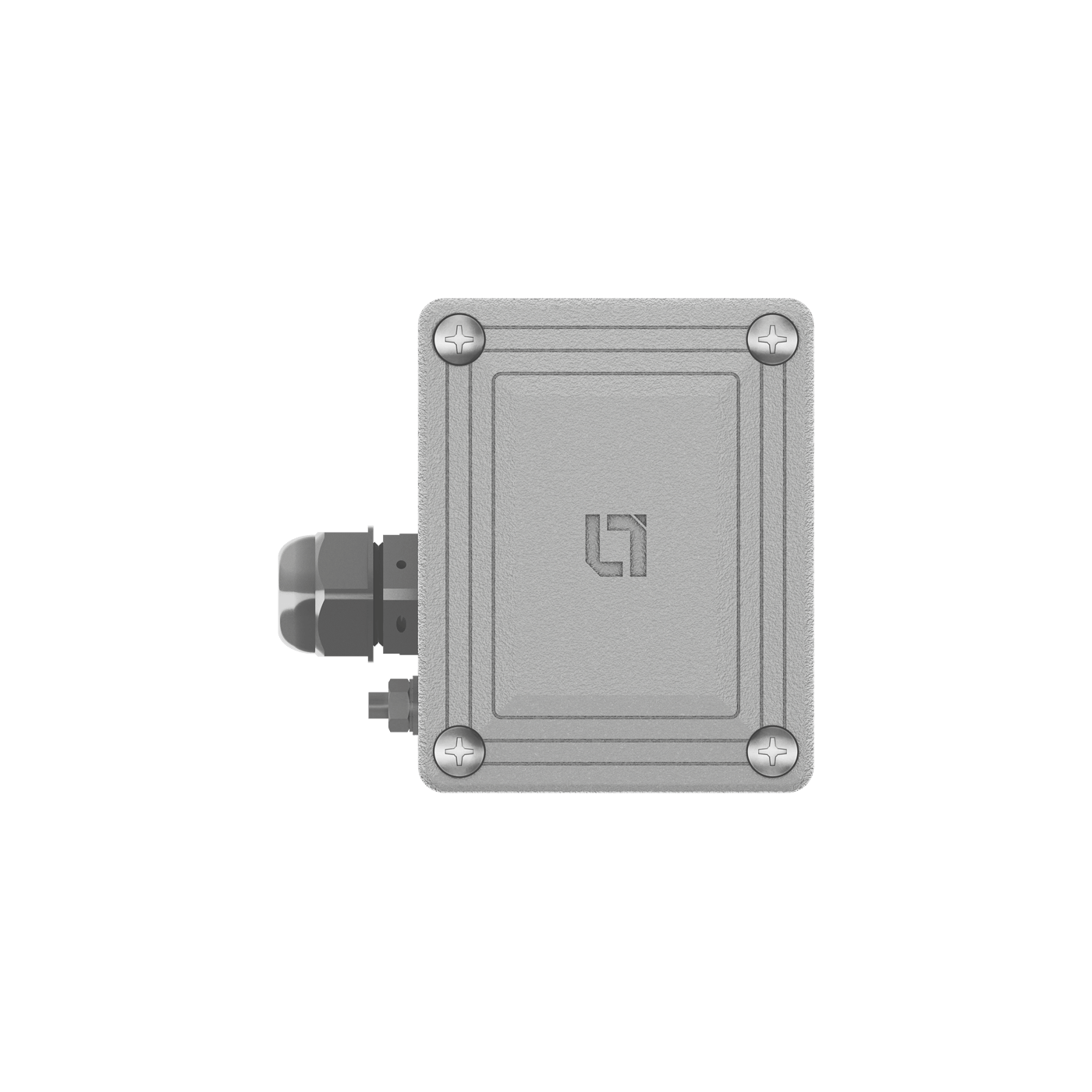

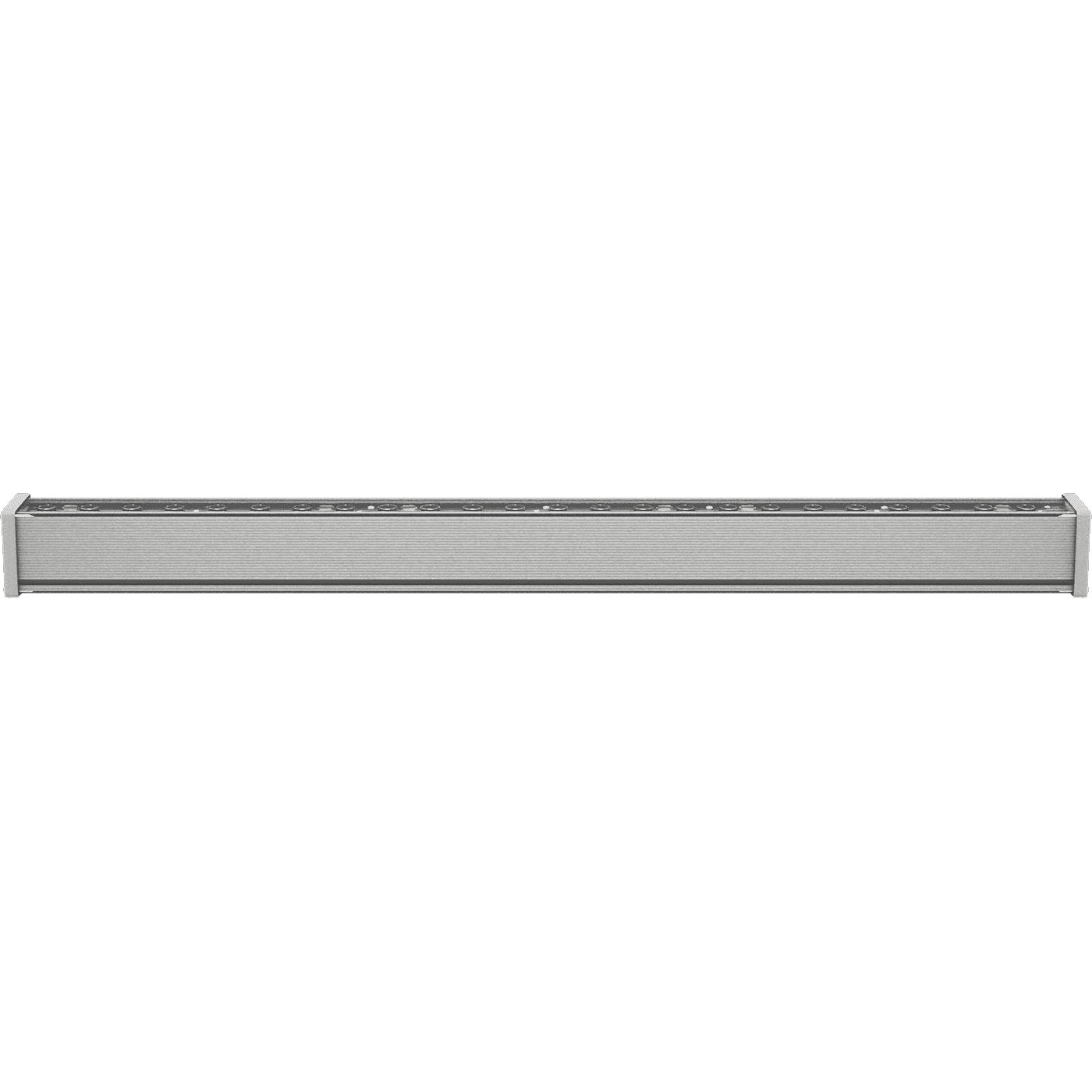

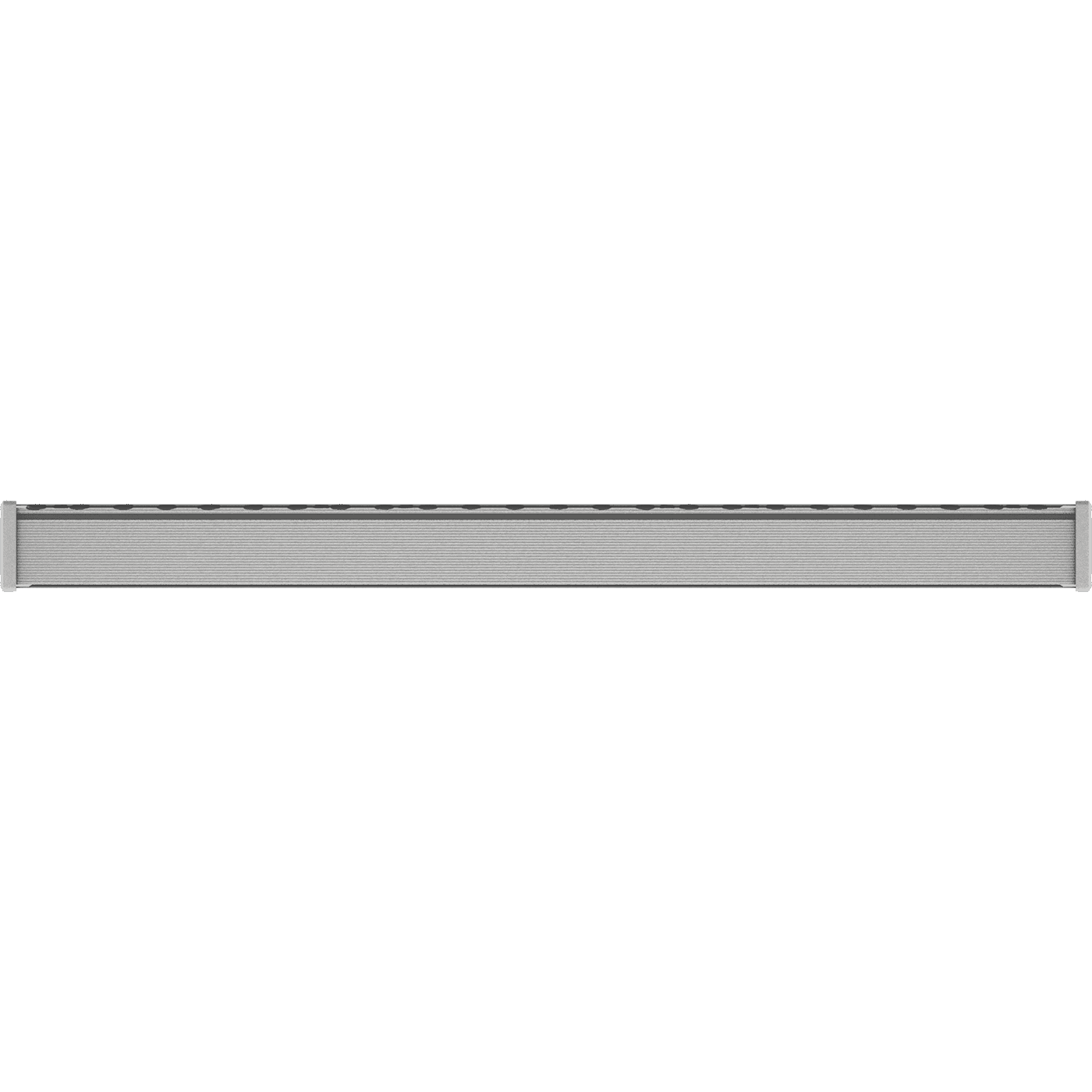

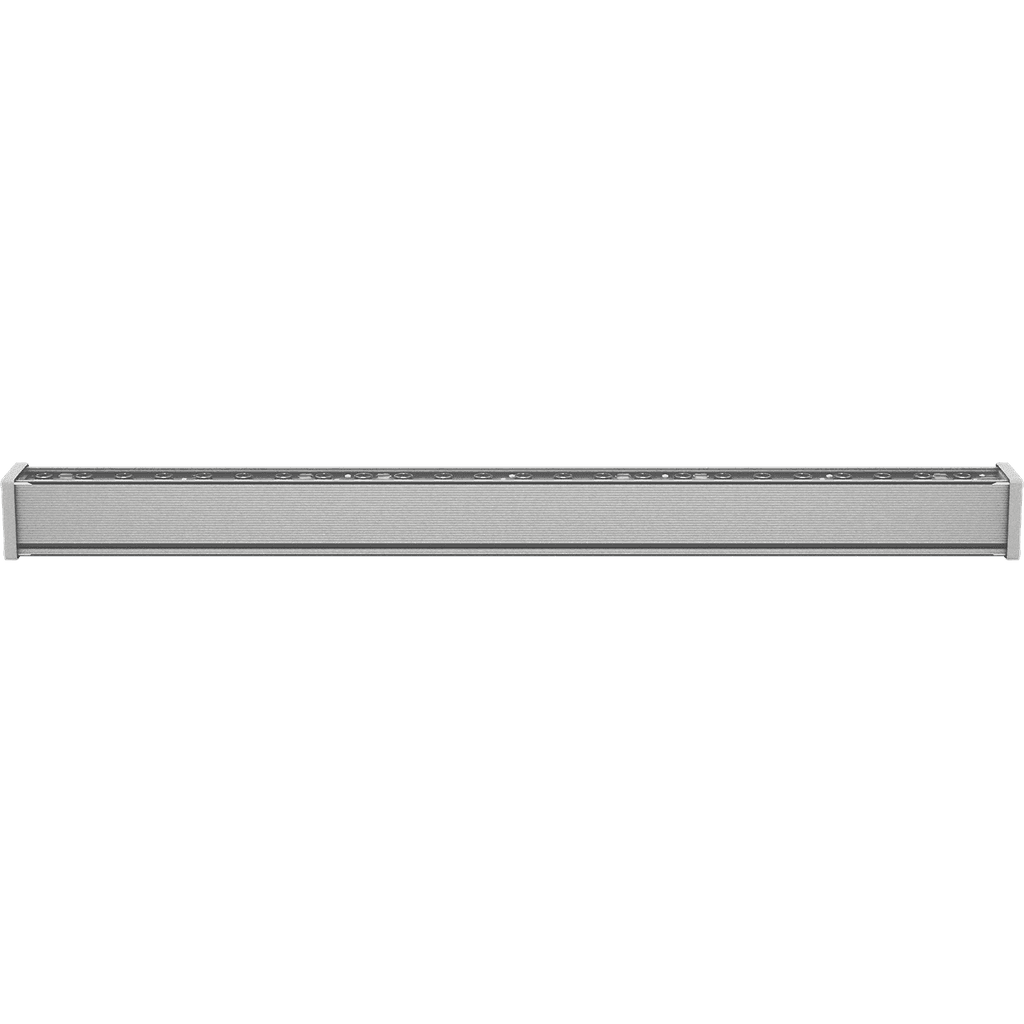

EVOLINE LED (600) 24W D30 RGBW SL DMX RDM
EVOLINE LED (600) 24W D30 RGBW SL DMX RDM
26 Wluminaire power
2200 lmlight flow
85 lm/Wenergy efficiency
code1006001800
beam angleD30
weight2.1 kg
options
свернуть все
illuminatingelectricalconstructionalLMS optionscommon
energy efficiency
85 lm/Wlight flow
2200 lmflickering factor
<4%beam angle
D30light source type
LEDemission color
RGBWilluminating
energy efficiency
85 lm/W
light flow
2200 lm
flickering factor
<4%
beam angle
D30
light source type
LED
emission color
RGBW
electrical
luminaire power
26 W
electric shock protection
I
supply voltage
230 V
maximum cross-section of the connected cable
2.5 mm2
supply voltage, alternating current
176-264 V
power factor
> 0,95
constructional
fire safety class
П-ІІІ
length
600 mm
height
75 mm
installation length
180 mm
housing color
Металлик
lamp socket
LED
number of lamps
1
ballast
Драйвер
width
60 mm
material
Алюминий
climatic performance
УХЛ1*
ingress protection (IP)
IP65
shock resistance (IK)
IK07/2 Дж
weight
2.1 kg
LMS options
dimming
DMX RDM
common
code
1006001800
warranty
36 month
energy efficiency class
A
temperature range
от -40 до +40 C
service life
50 000 h
ETIM class
Настенно-потолочный светильник
model files
model files
сертификаты
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
