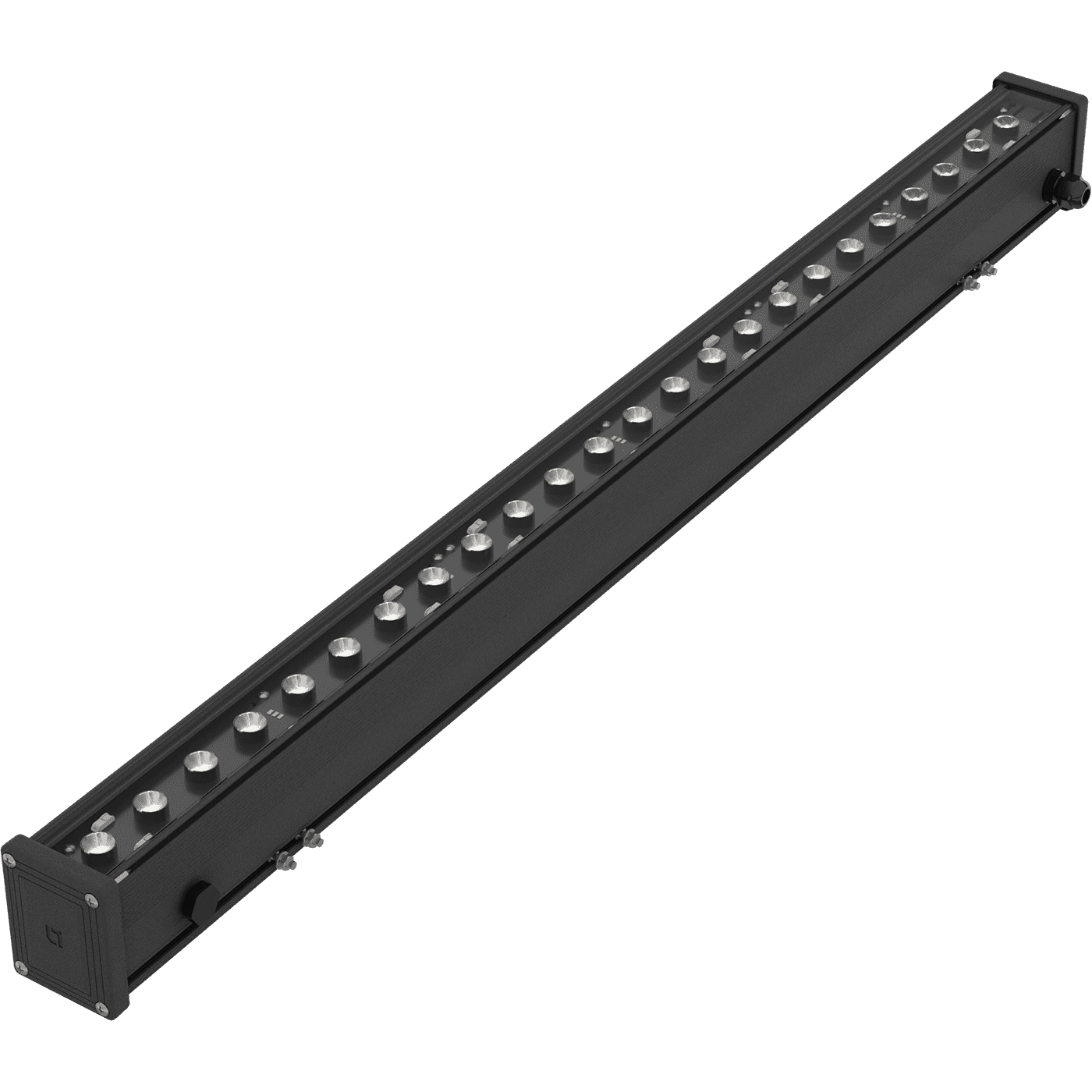

EVOLINE LED (600) 24W D30 RGB SL DMX RDM

archive
archive

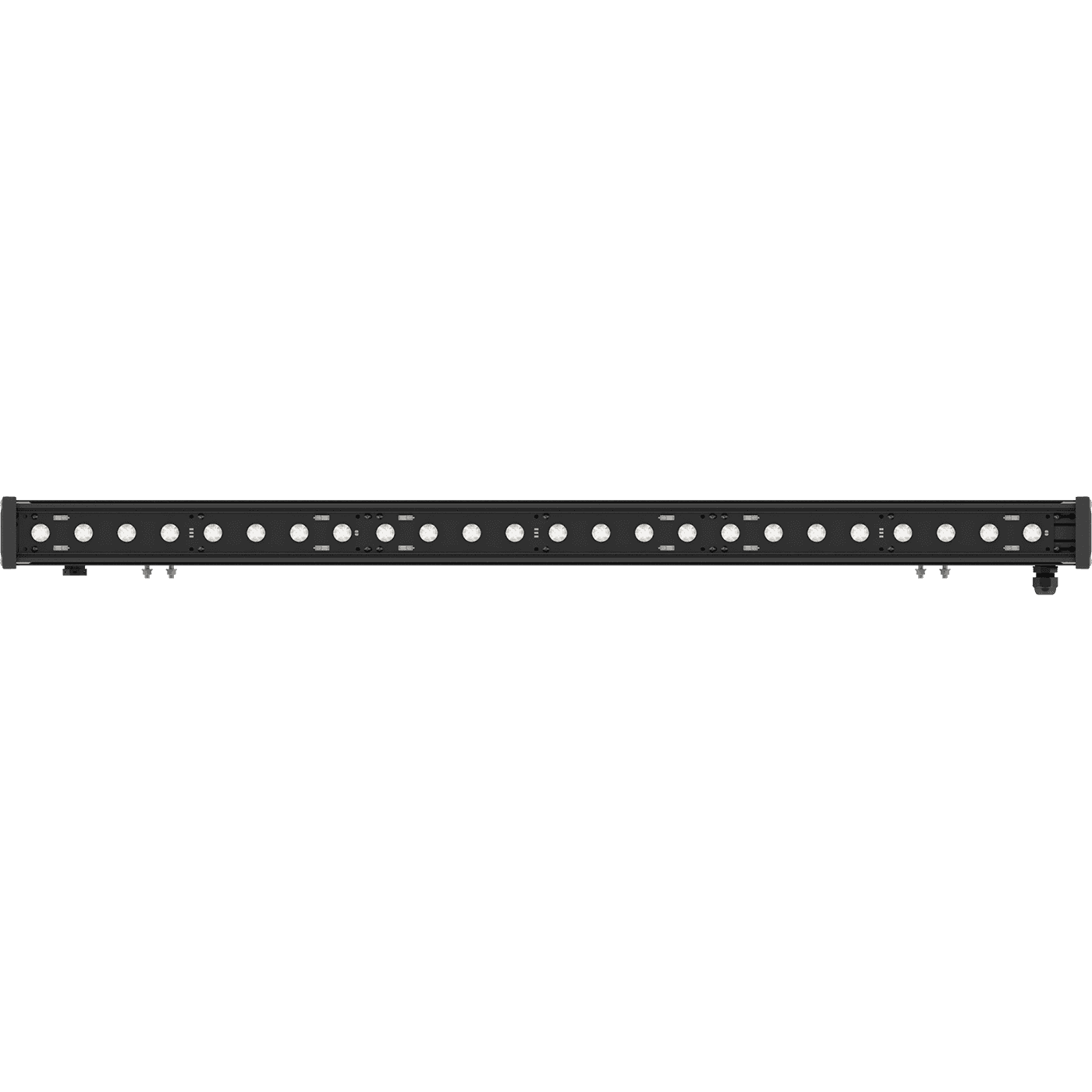

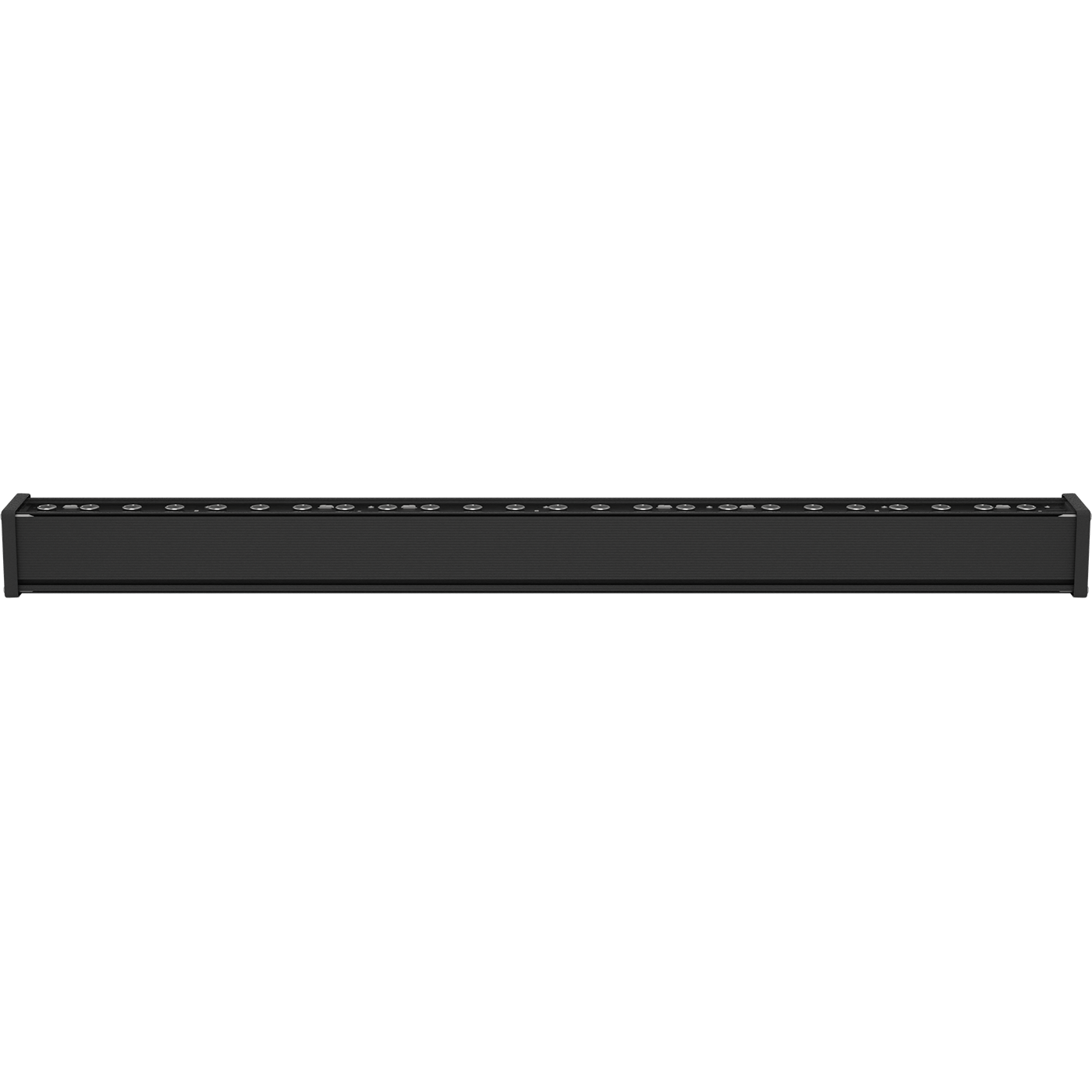

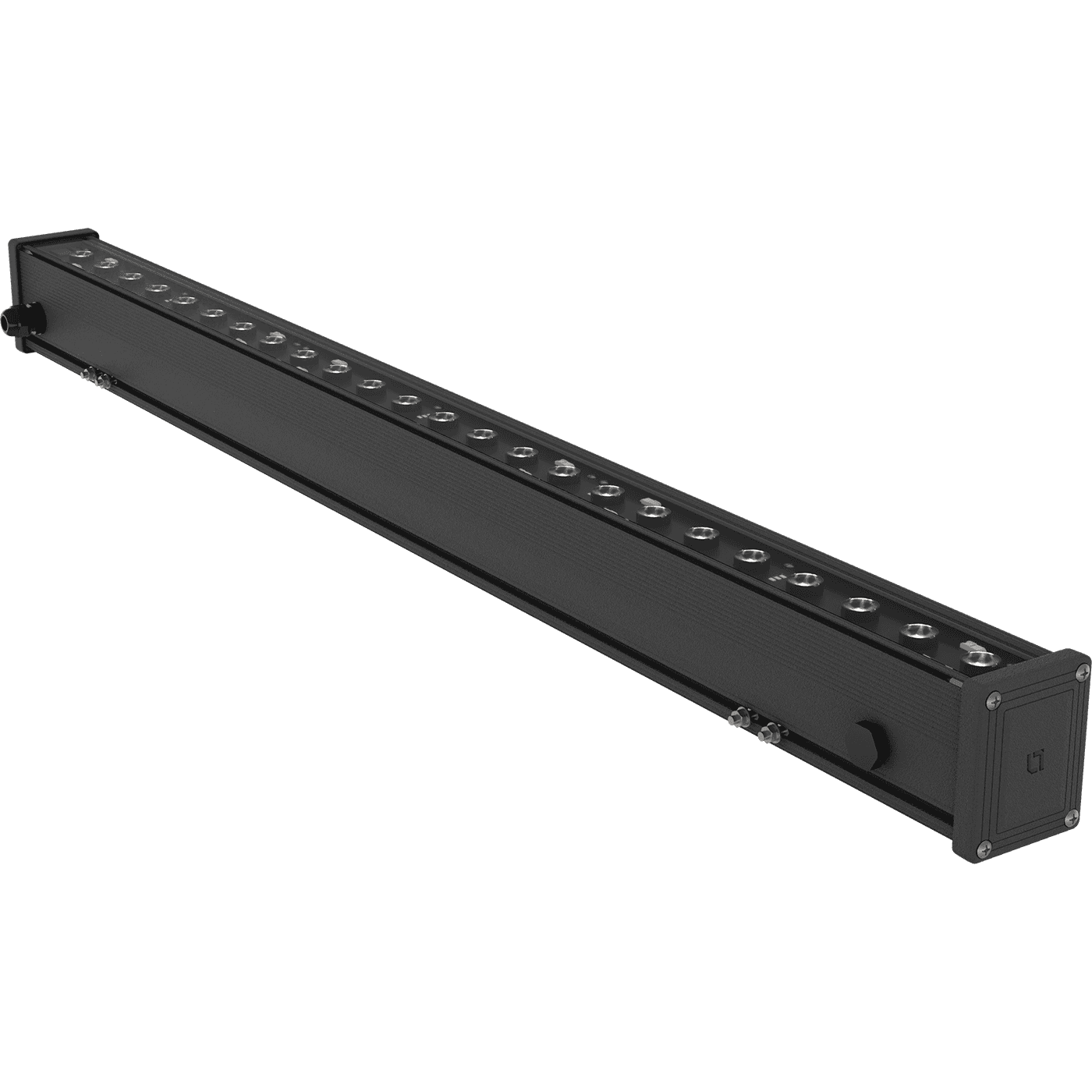

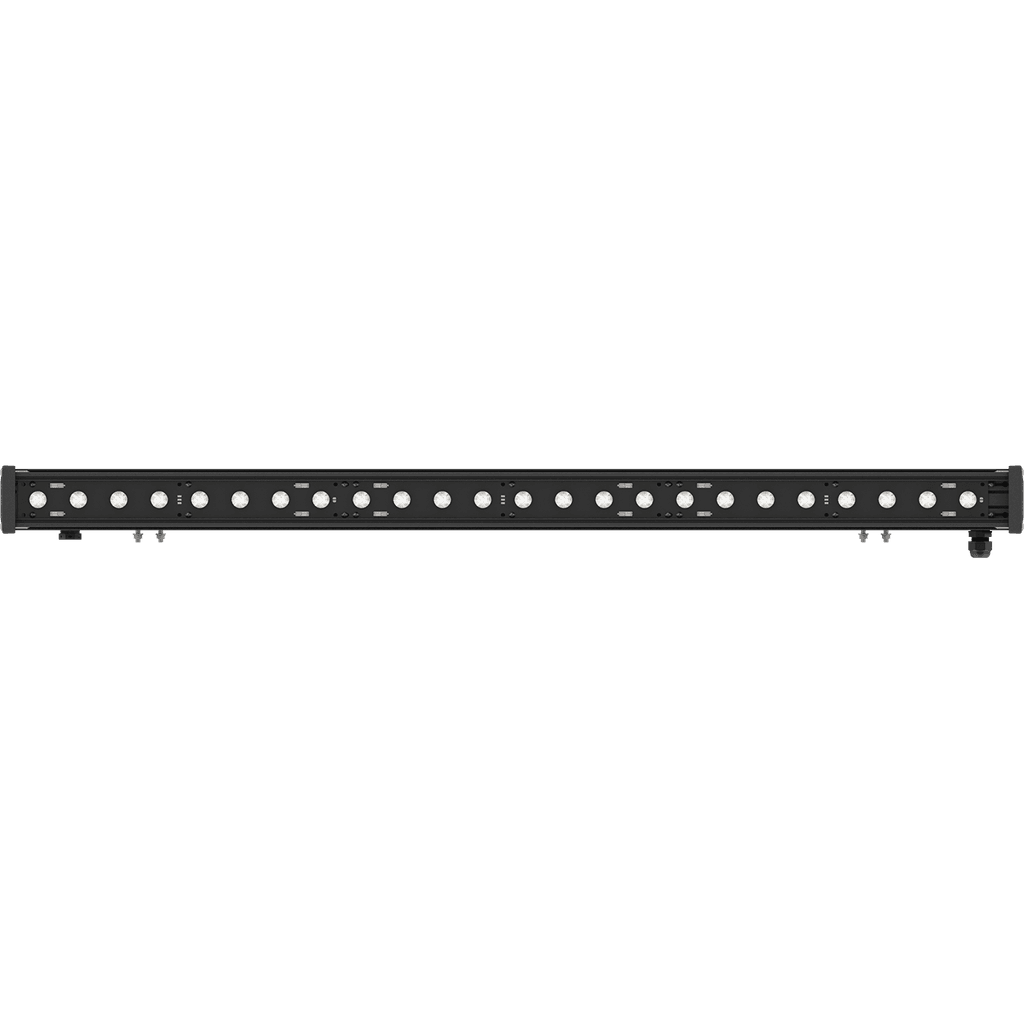

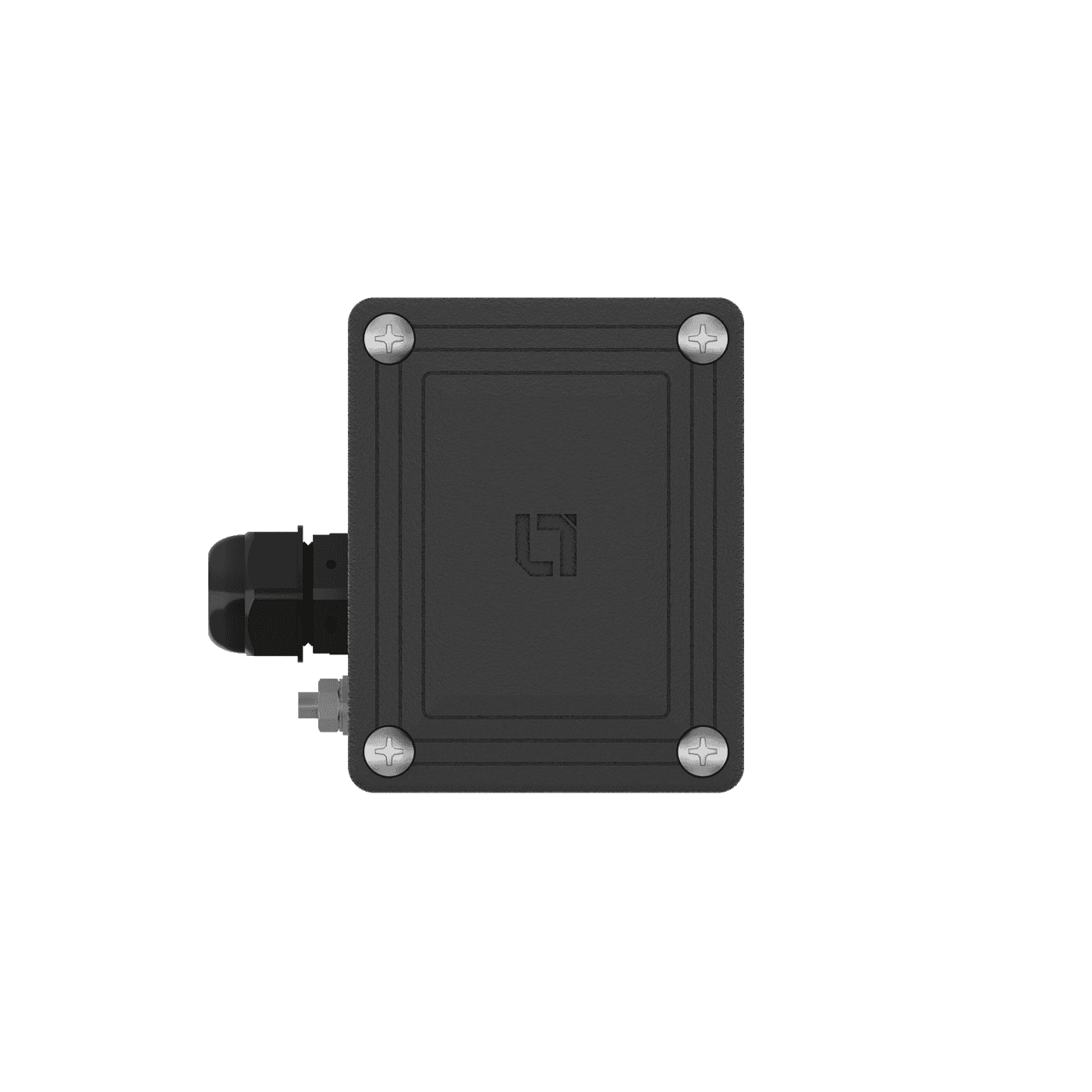

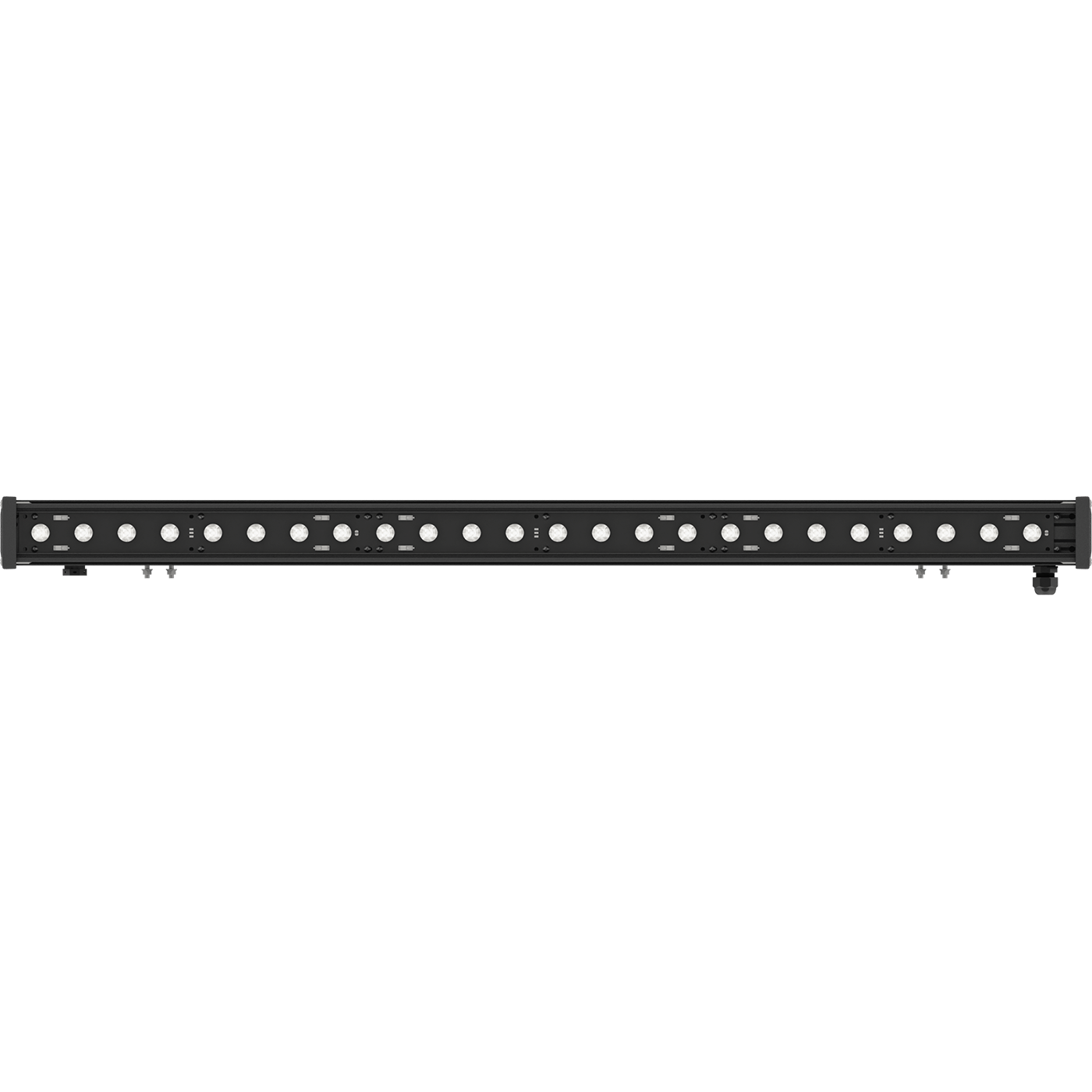

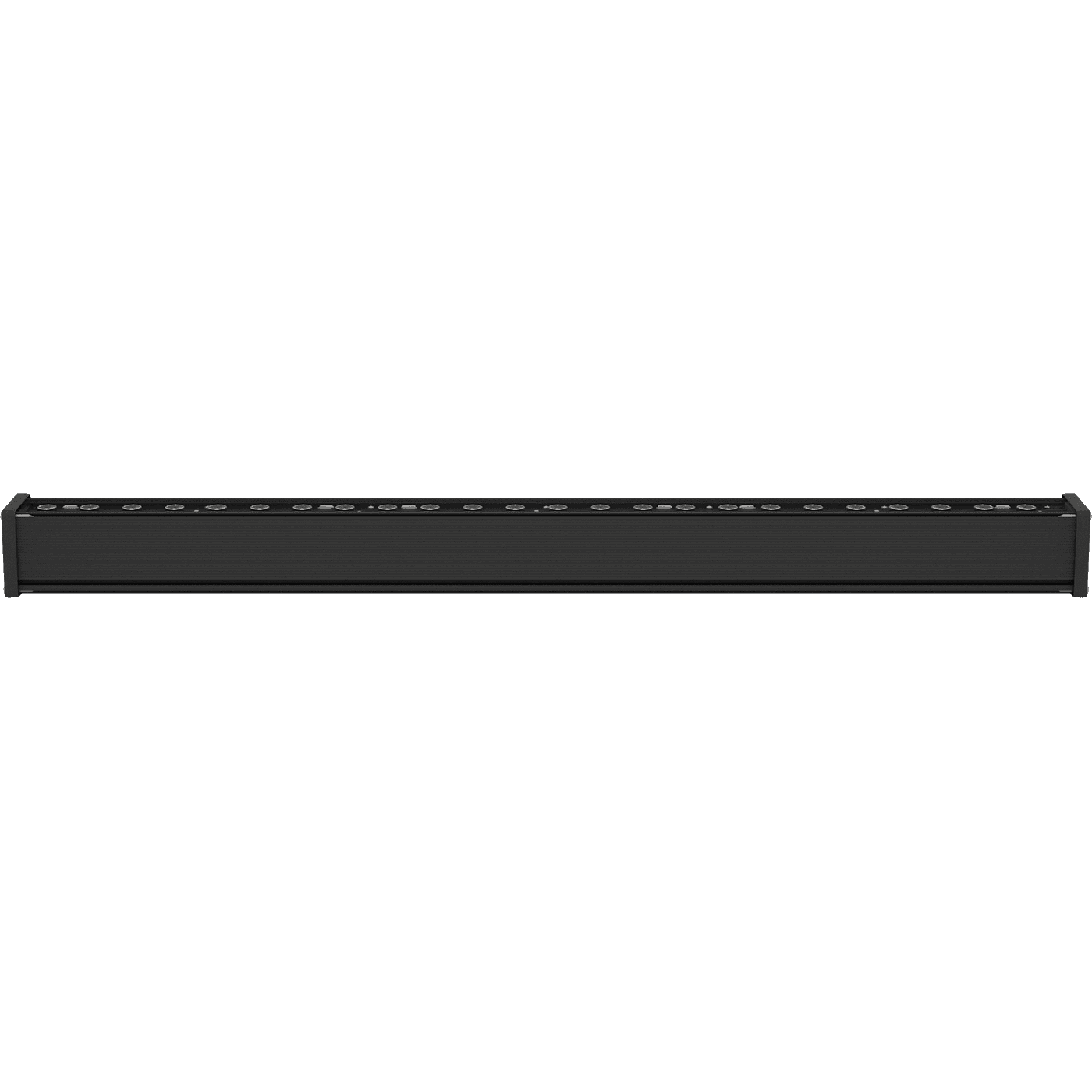

EVOLINE LED (600) 24W D30 RGB SL DMX RDM
add to favorites
26 Wluminaire power
2200 lmlight flow
85 lm/Wenergy efficiency
code1006001790
beam angleD30
weight2.1 kg
  1. main page
  2. catalog
  3. by product type
  4. outdoor lighting
  5. linear architectural luminaires
  6. EVOLINE LED RGB
  7. EVOLINE LED (600) 24W D30 RGB SL DMX RDM
options
свернуть все
electricalconstructionalcommonilluminatingLMS options
supply voltage, alternating current
176-264 V
luminaire power
26 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
electrical
supply voltage, alternating current
176-264 V
luminaire power
26 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
constructional
ingress protection (IP)
IP65
fire safety class
П-ІІІ
material
Алюминий
weight
2.1 kg

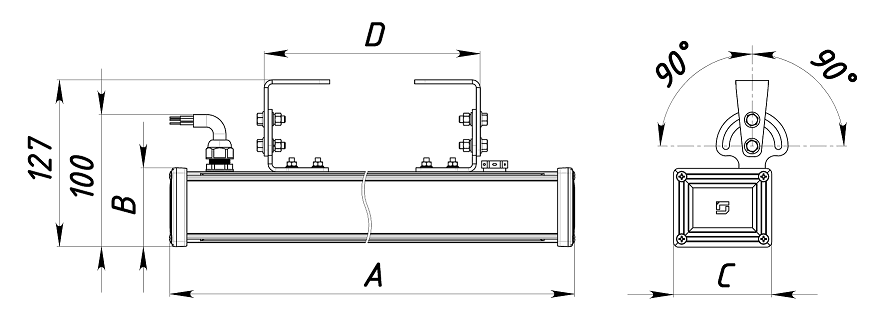

length, mm
600 mm
width, mm
60 mm
height, mm
75 mm
housing color
Металлик
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
shock resistance (IK)
IK07/2 Дж
installation length, mm
180 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
code
1006001790
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от -40 до +40 C
energy efficiency class
A
service life, hour
50 000 h
illuminating
energy efficiency
85 lm/W
light flow
2200 lm
flickering factor
<4%
beam angle
D30
light source type
LED
emission color
RGB
LMS options
dimming
DMX RDM
model files
model files
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016588 kB
Fire Safety Certificate2.5 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016588 kB
Fire Safety Certificate2.5 mB
