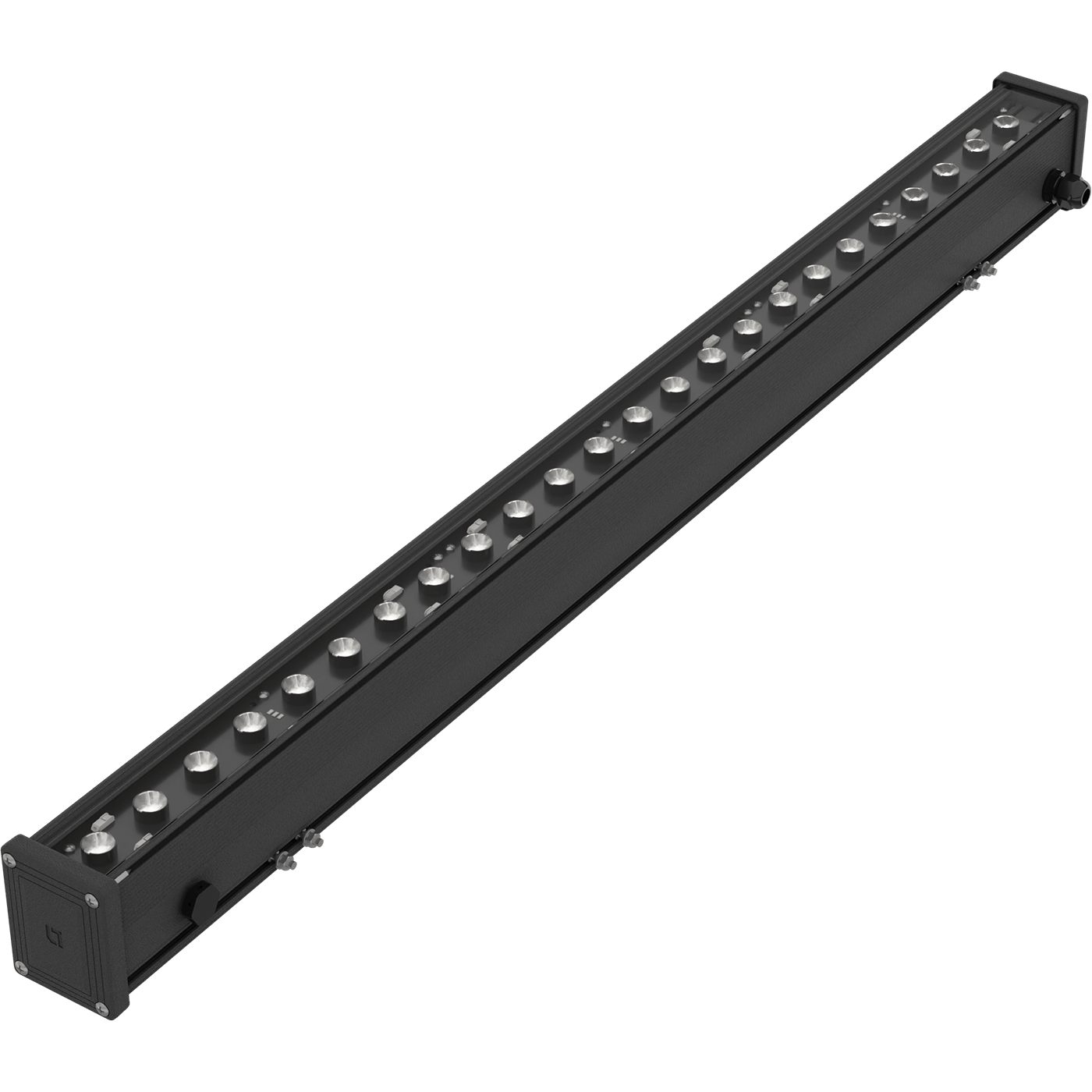

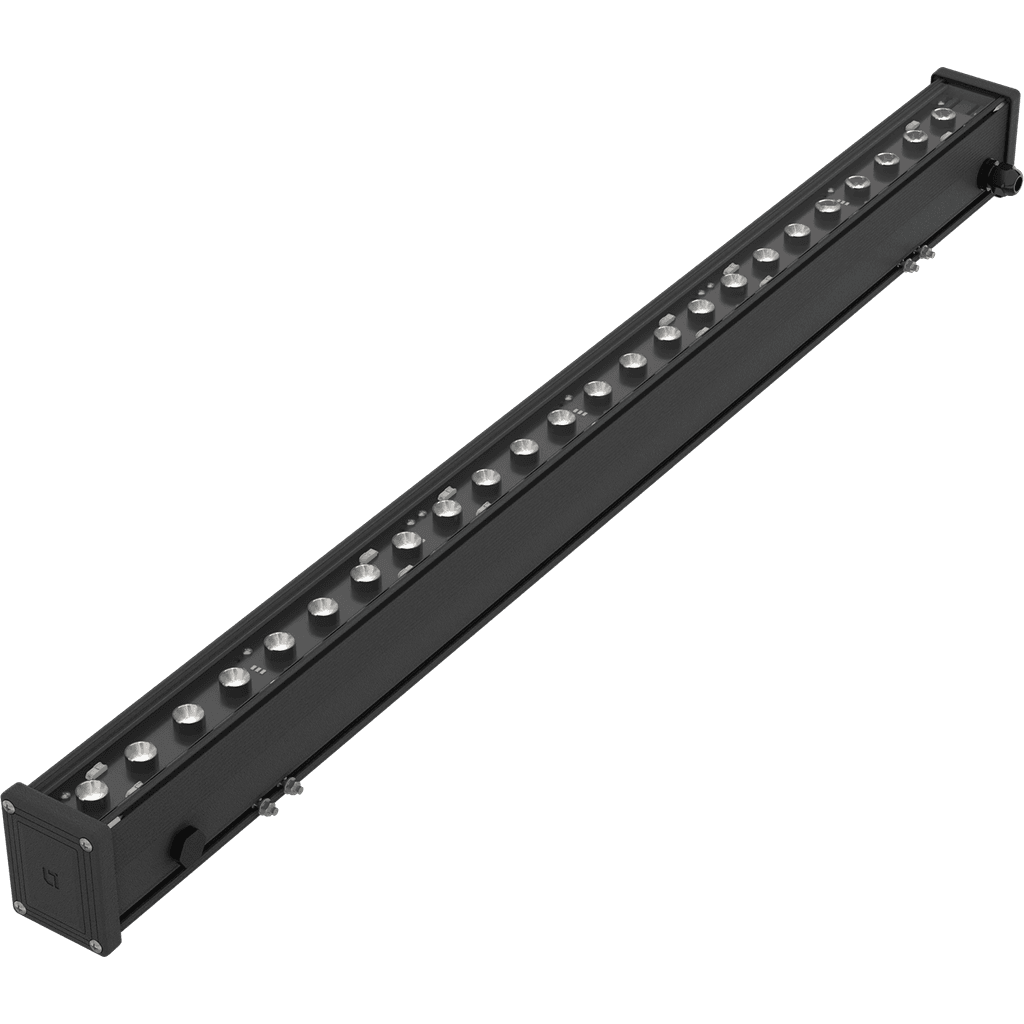

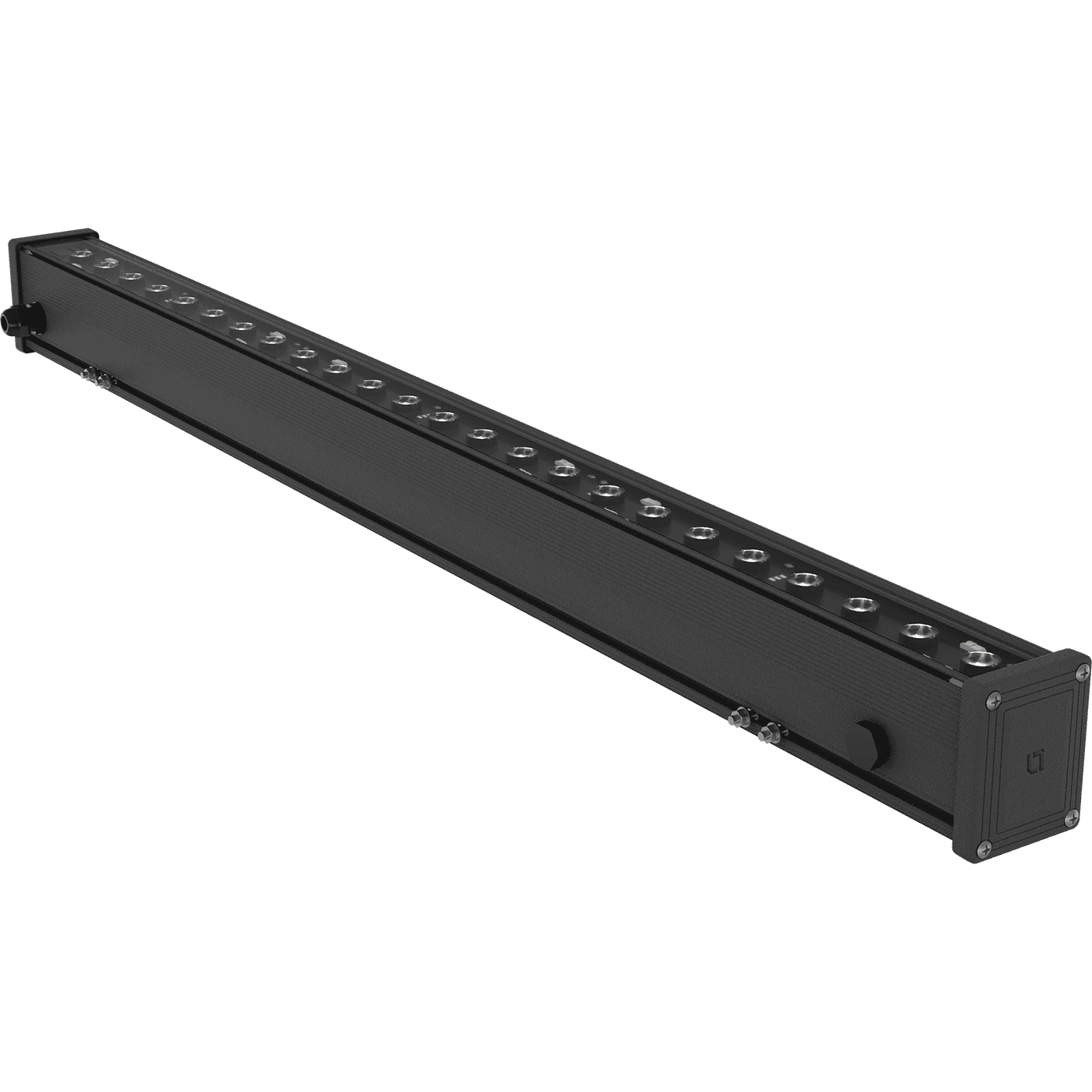

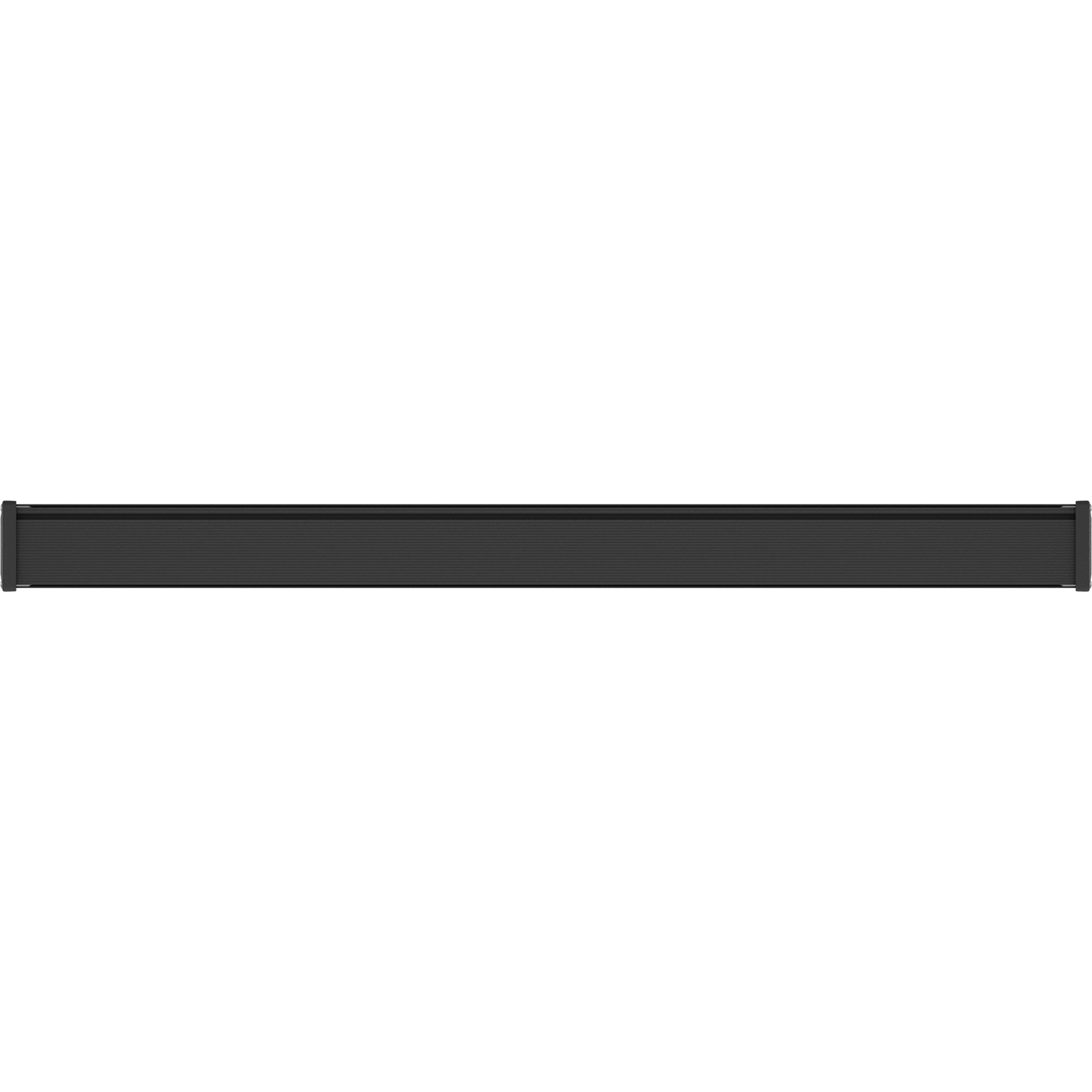

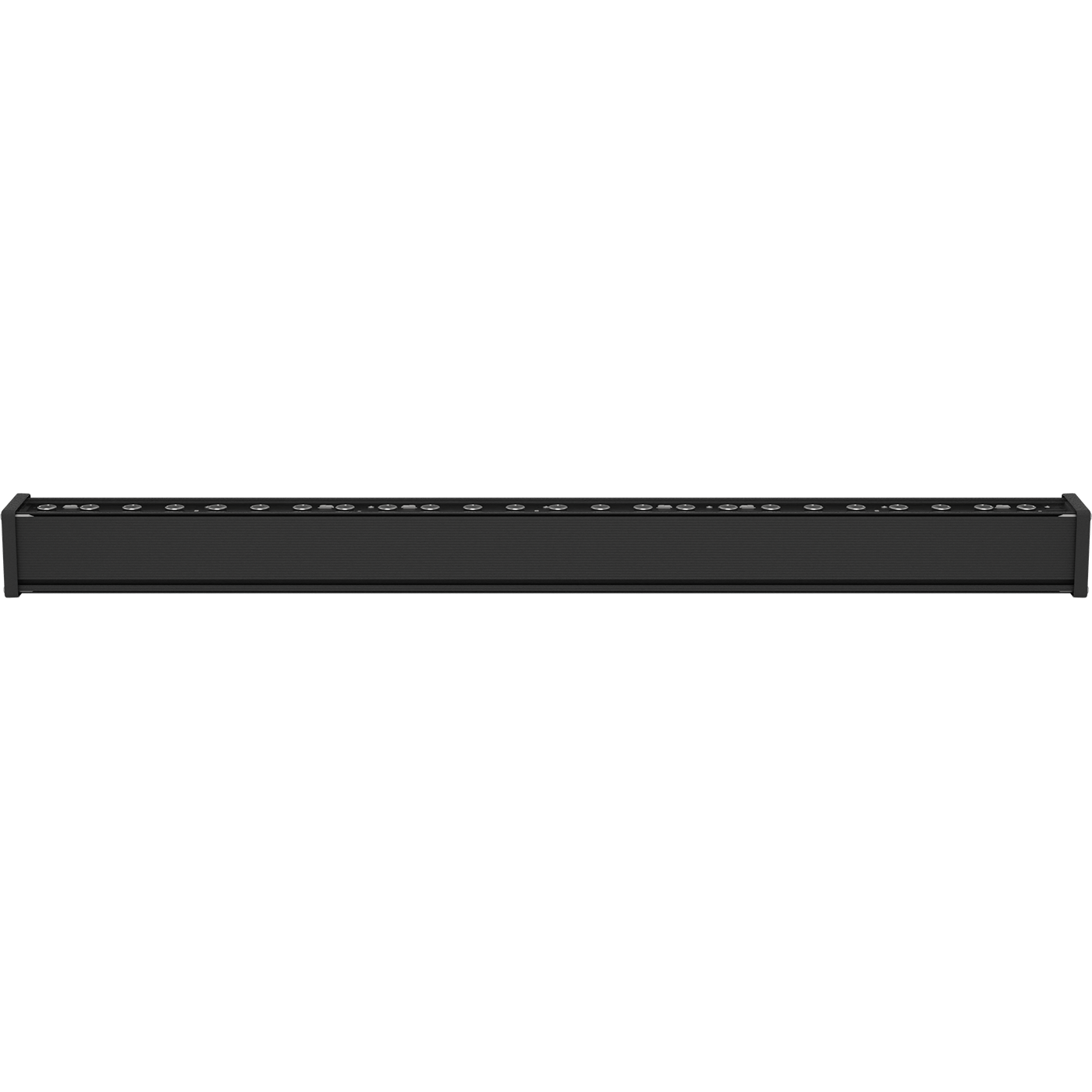

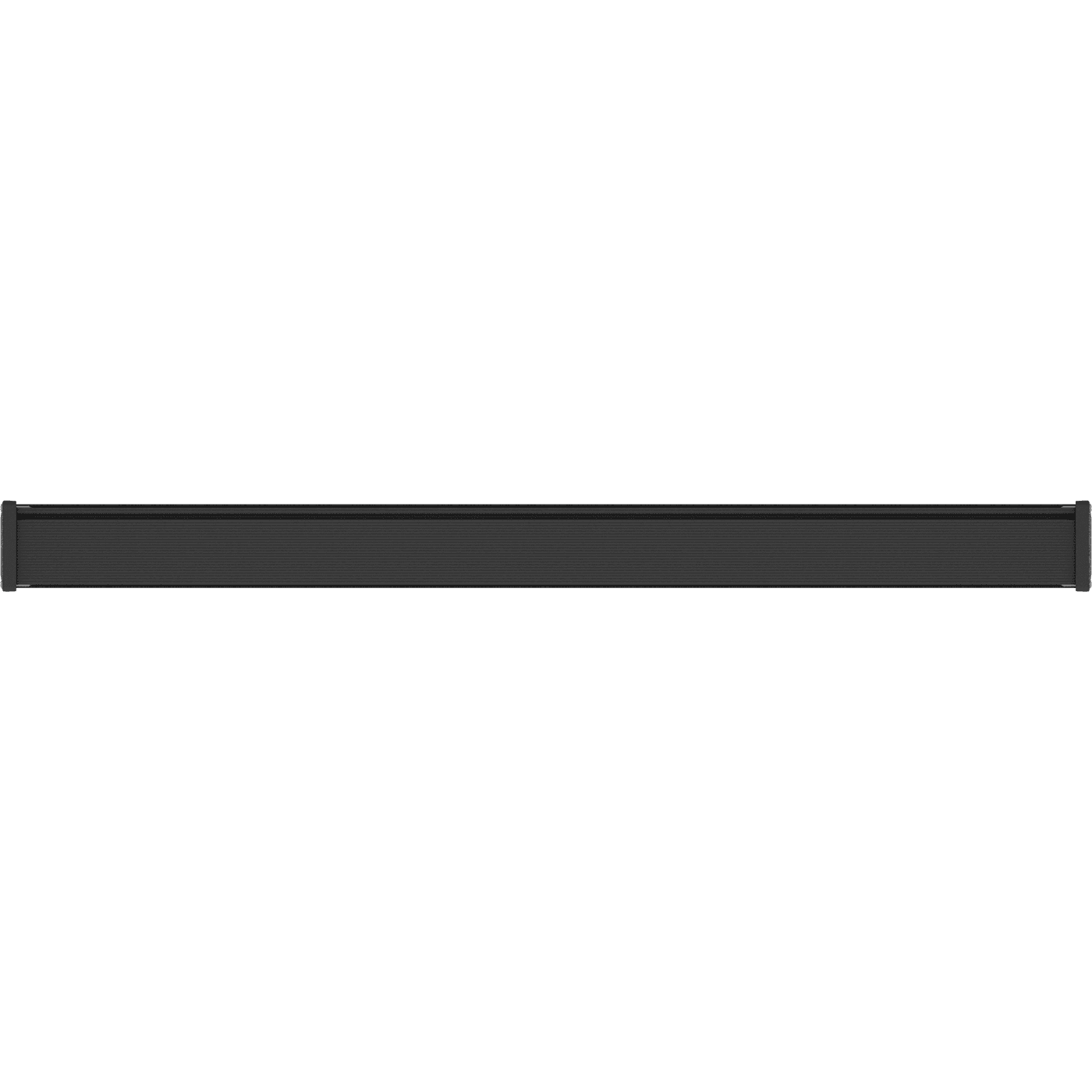

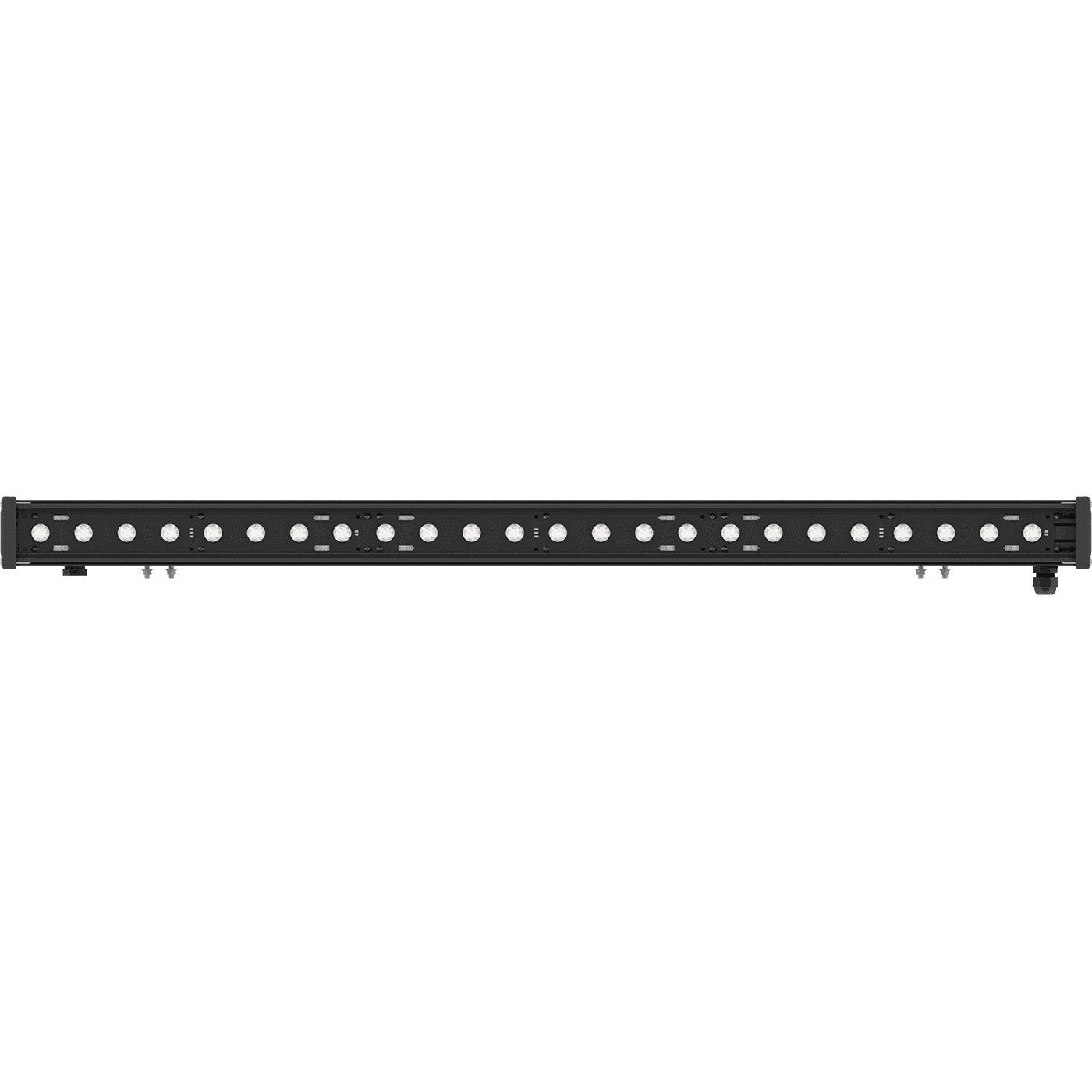

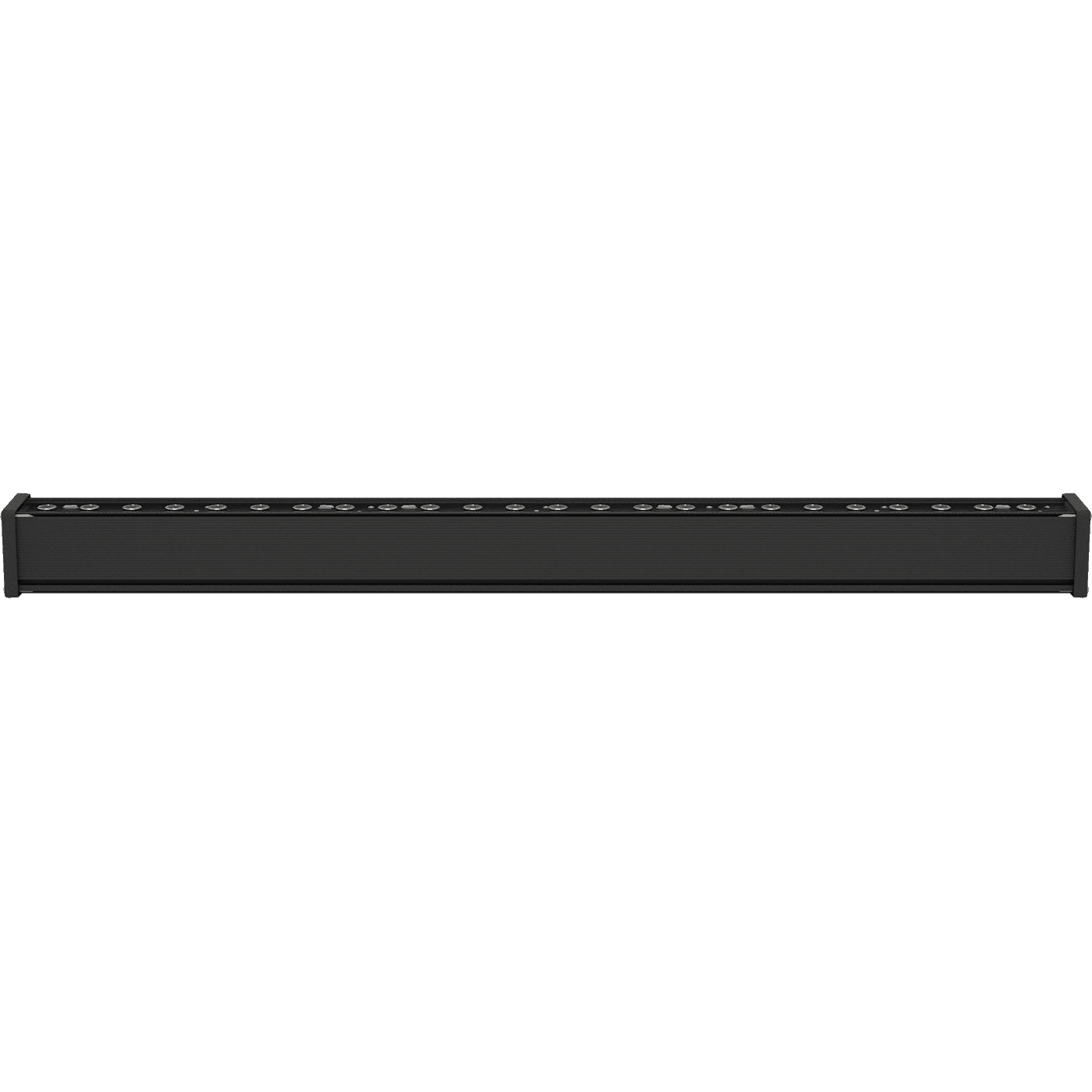

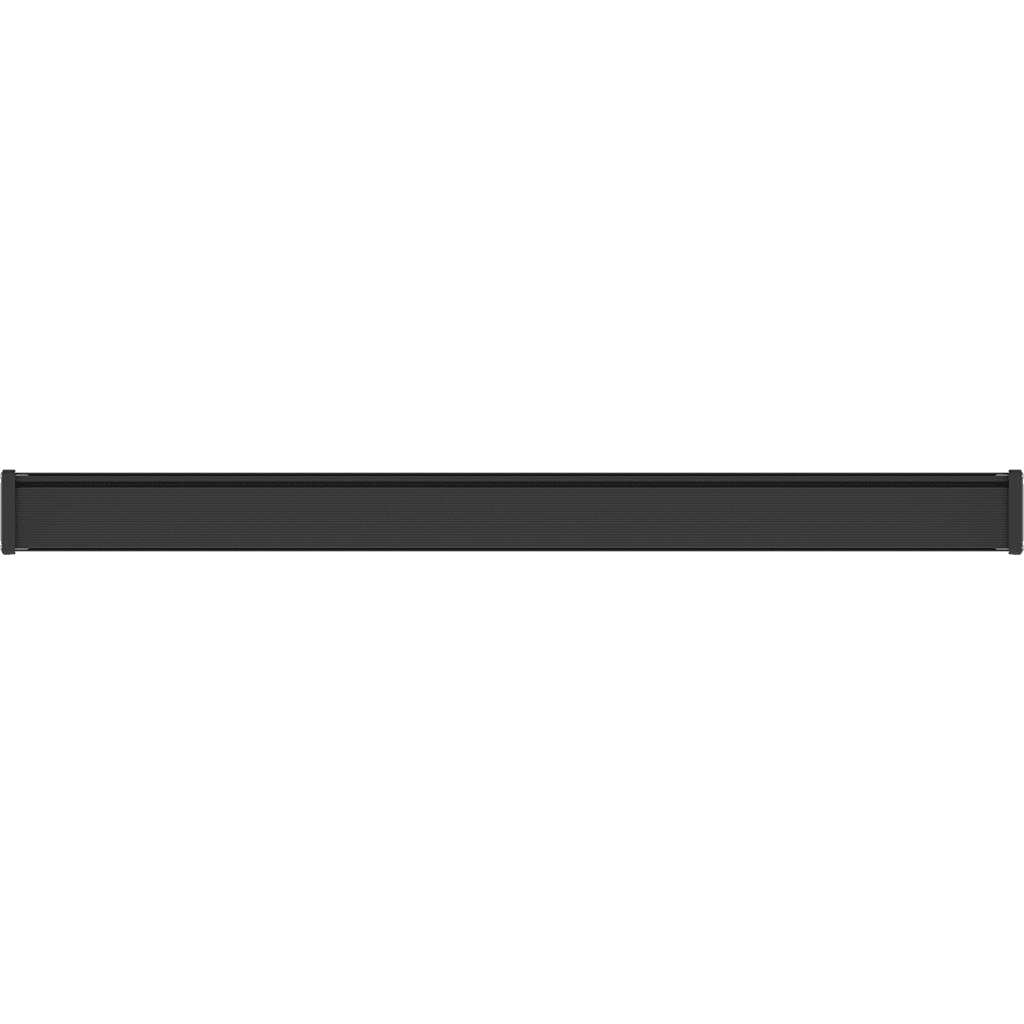

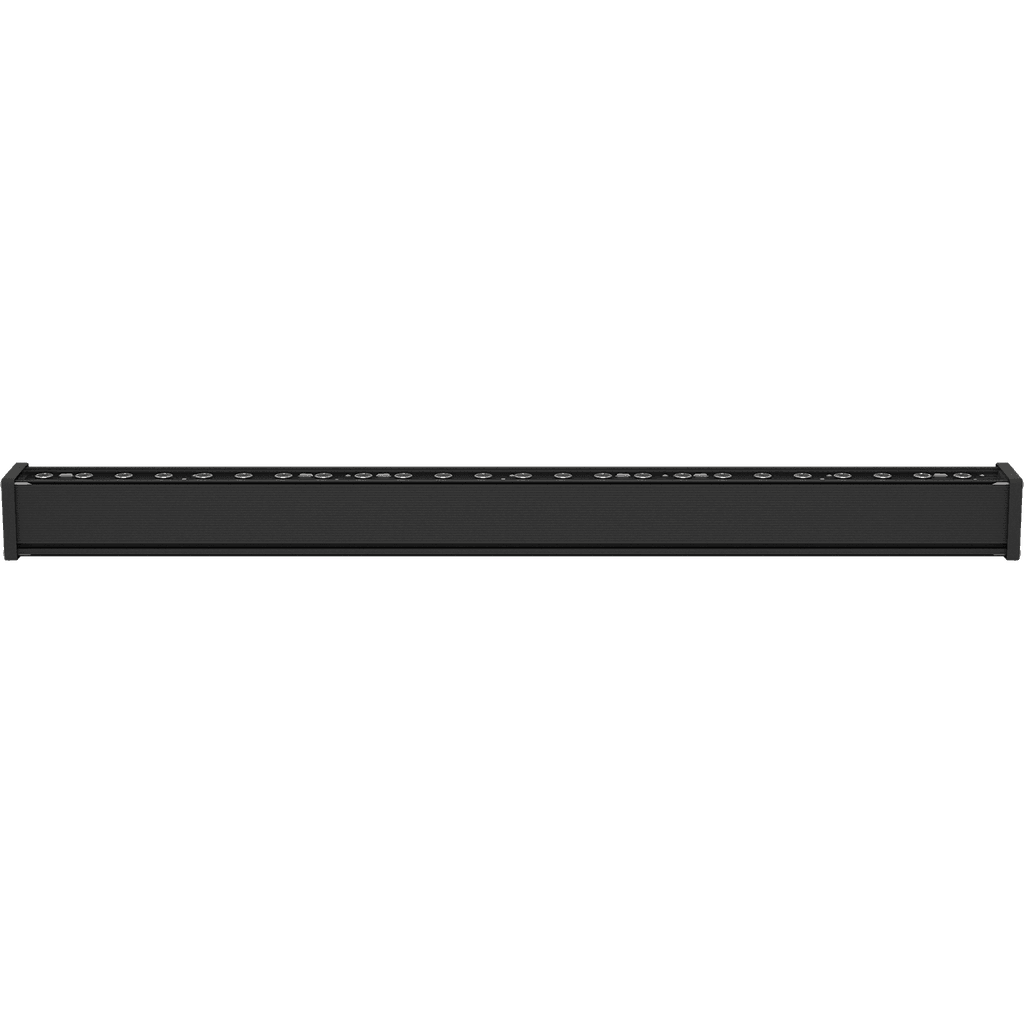

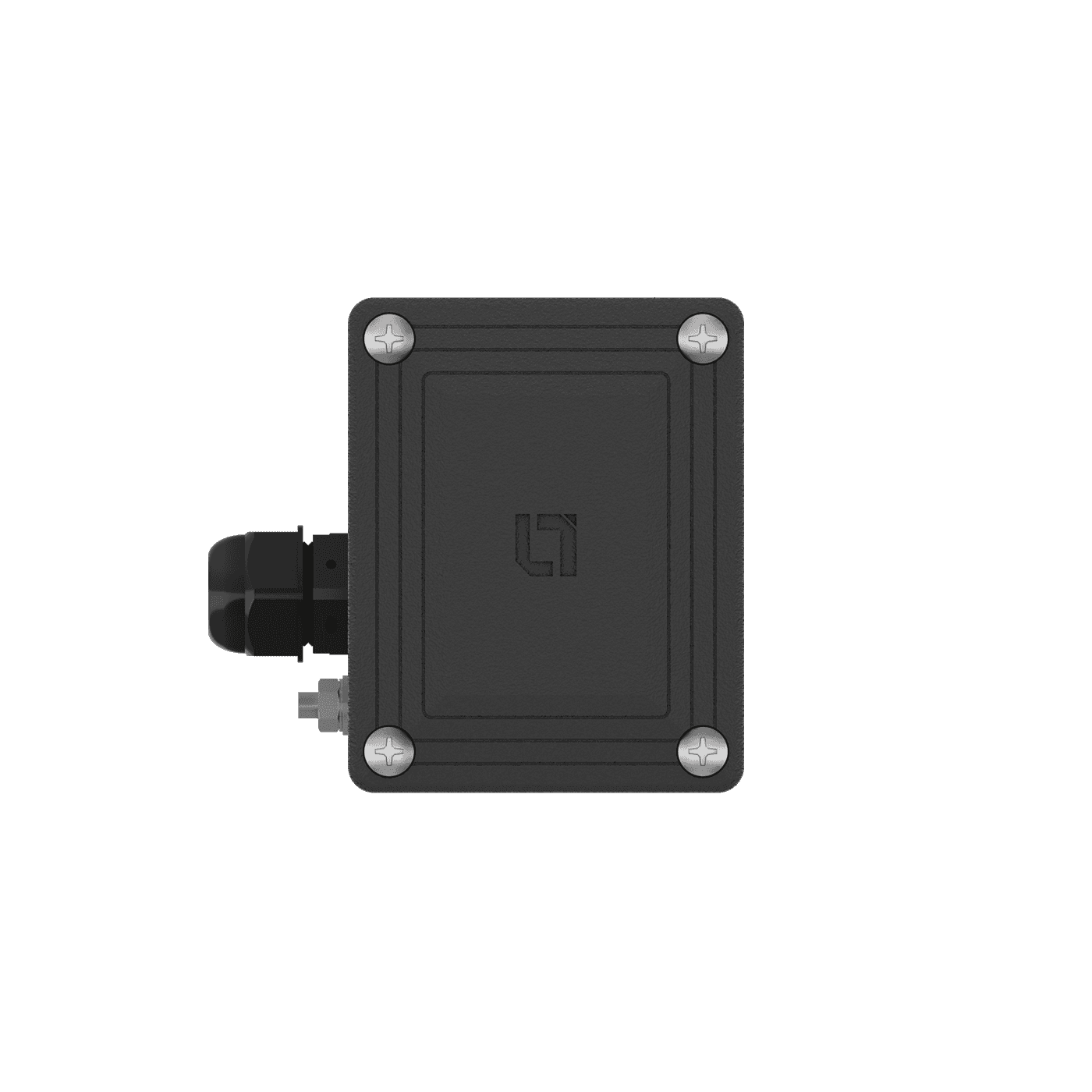

EVOLINE LED 36 D50 4000K HFD 1000
archive
archive
EVOLINE LED 36 D50 4000K HFD 1000
40 Wluminaire power
3600 lmlight flow
90 lm/Wenergy efficiency
code1006002360
beam angleD50
color temperature4000
weight1.7 kg
options
свернуть все
electricalconstructionalcommonilluminatingLMS options
supply voltage, alternating current
90-305 Vluminaire power
40 Welectric shock protection
Ipower factor
> 0,95supply voltage
230 Velectrical
supply voltage, alternating current
90-305 V
luminaire power
40 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
constructional
ingress protection (IP)
IP65
fire safety class
П-ІІІ
material
Алюминий
weight
1.7 kg
length, mm
900 mm
width, mm
60 mm
height, mm
75 mm
housing color
Серый
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
shock resistance (IK)
IK07/2 Дж
installation length, mm
180 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер DALI
common
code
1006002360
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от -40 до +40 C
energy efficiency class
A+
service life, hour
50 000 h
illuminating
energy efficiency
90 lm/W
color rendition index (CRI)
>80
light flow
3600 lm
flickering factor
<5%
beam angle
D50
color temperature
4000
light source type
LED
emission color
Белый
LMS options
dimming
DALI
model files
model files
сертификаты
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016588 kB
Fire Safety Certificate2.5 mB
