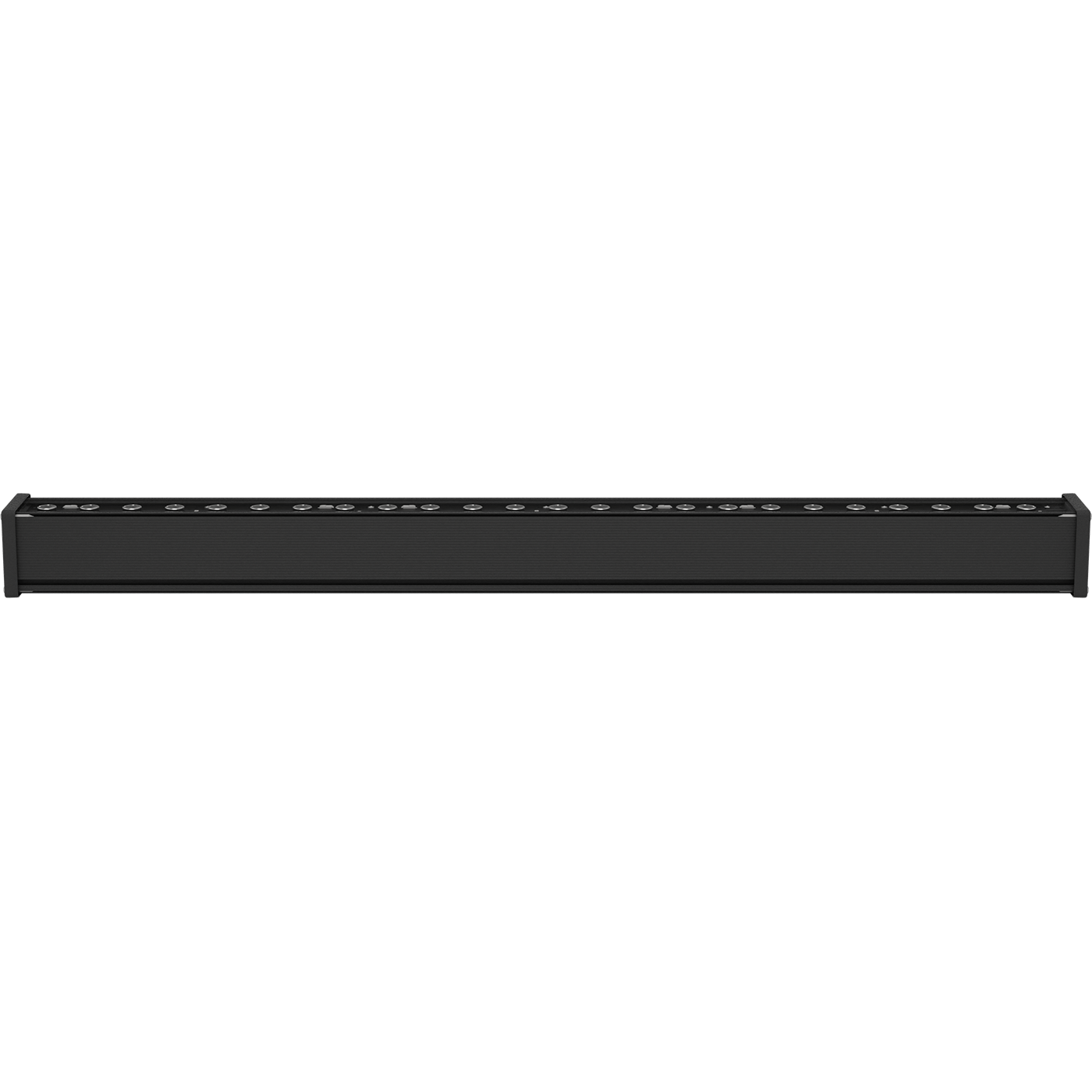

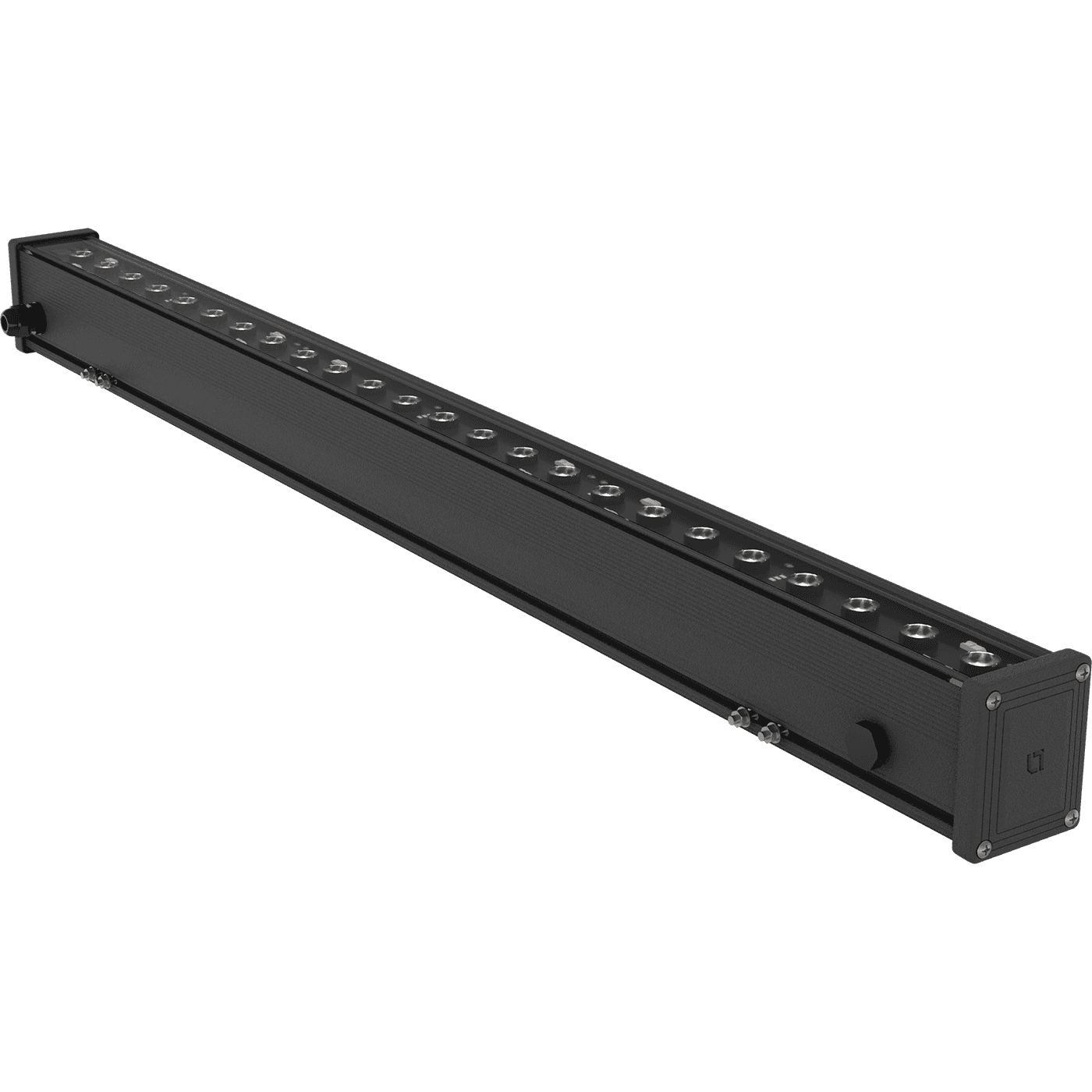

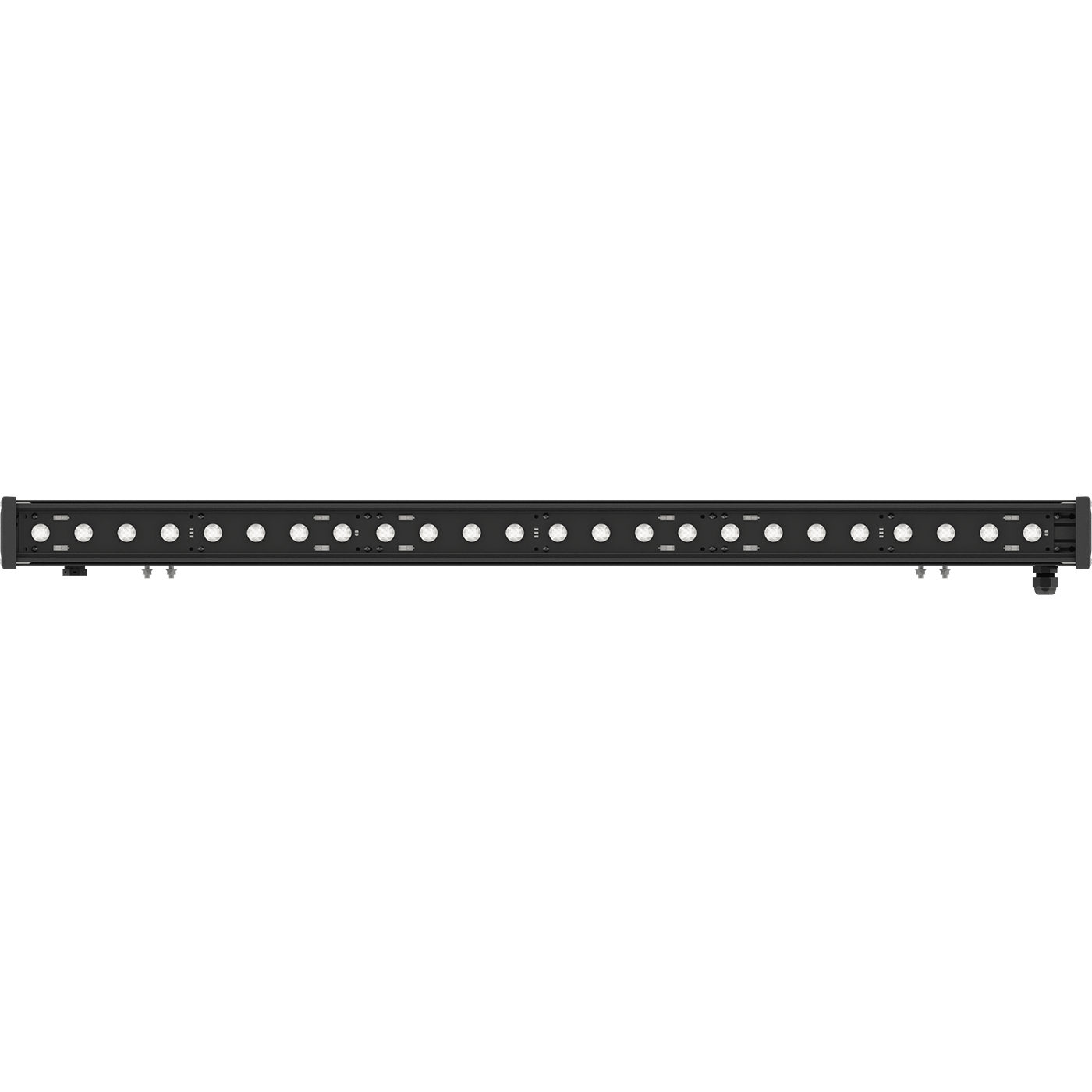

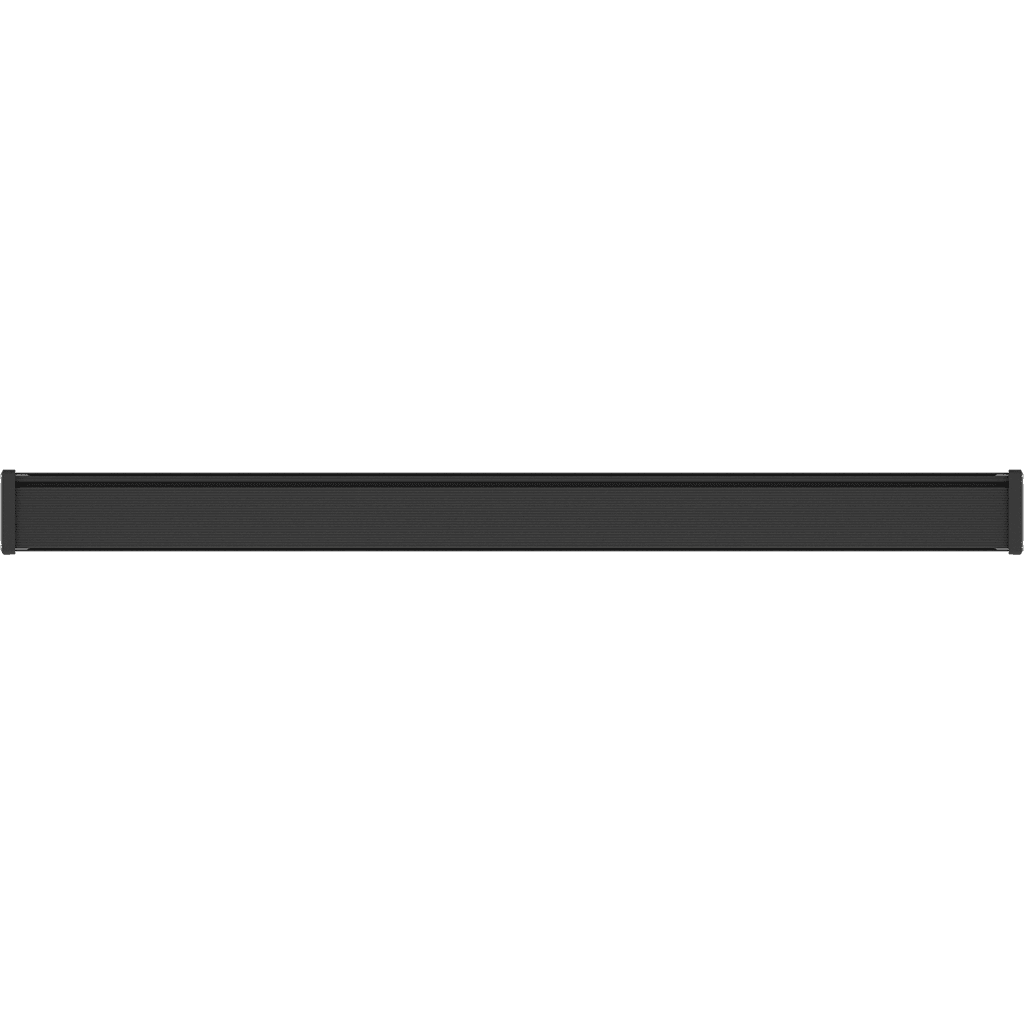

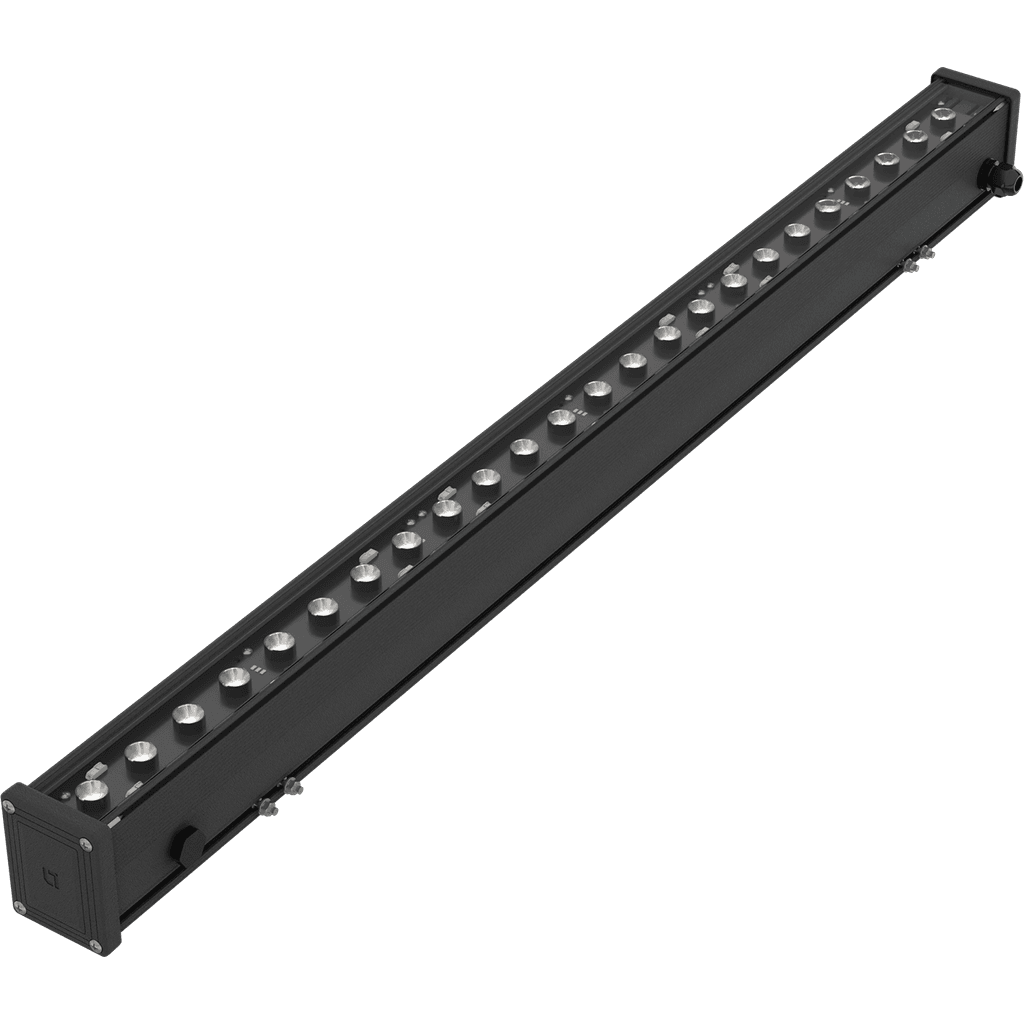

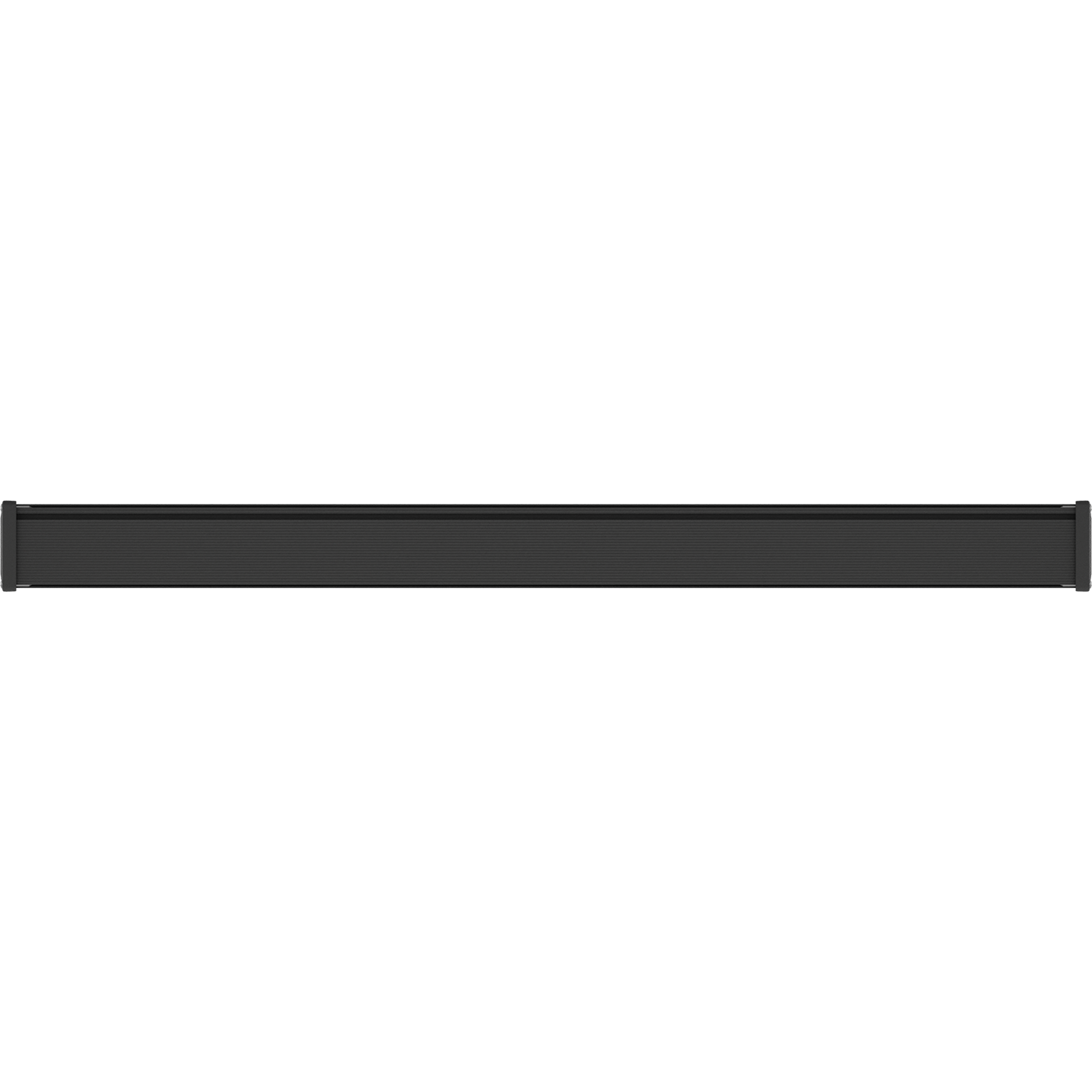

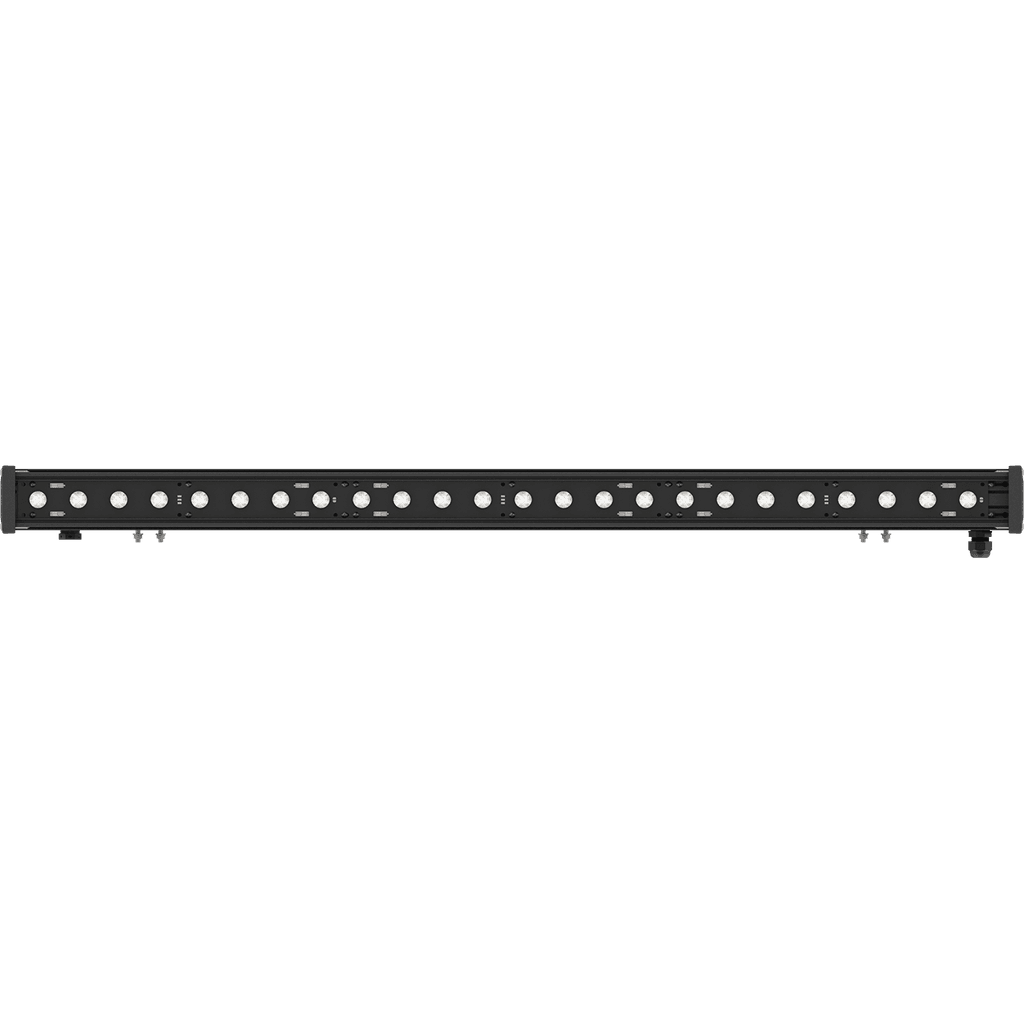

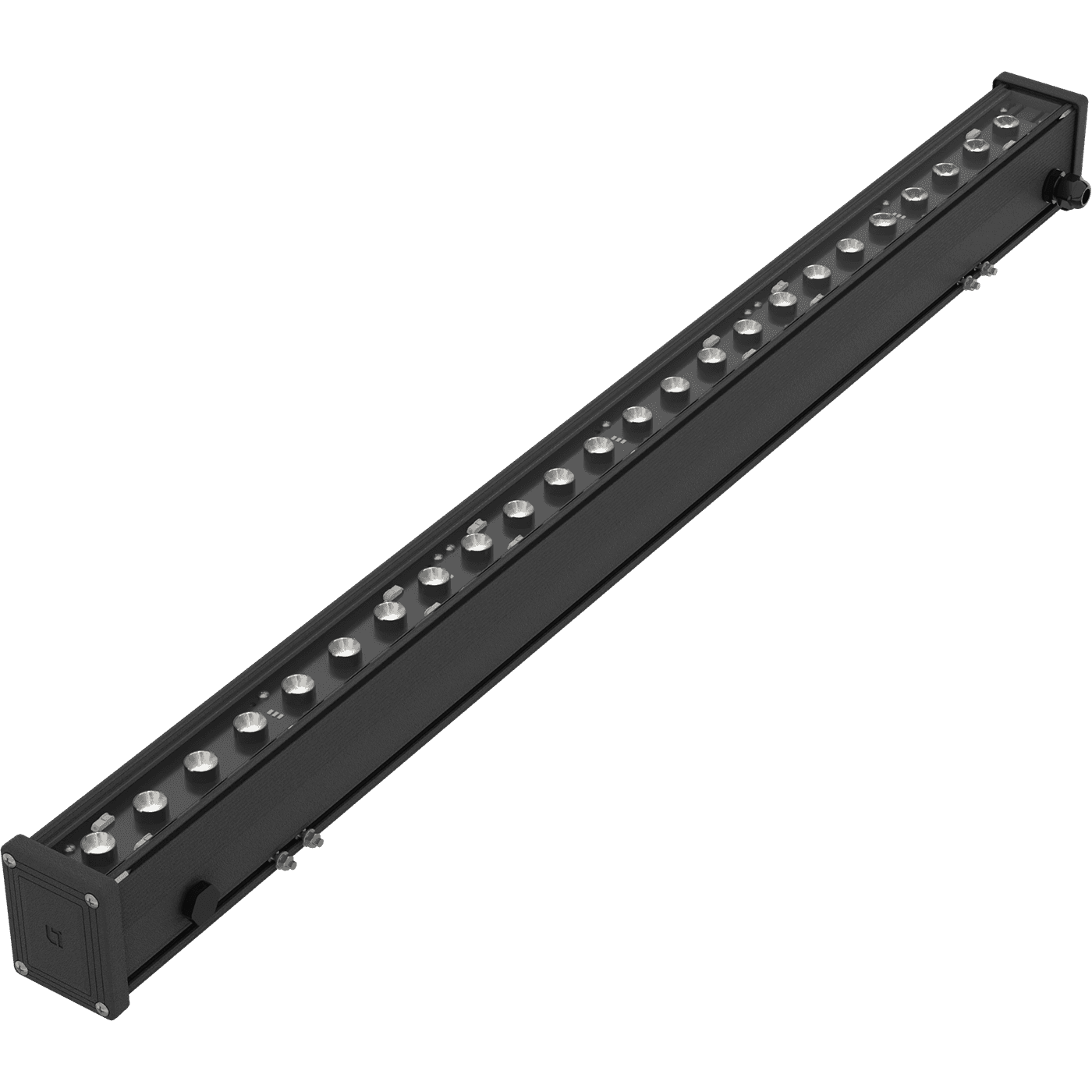

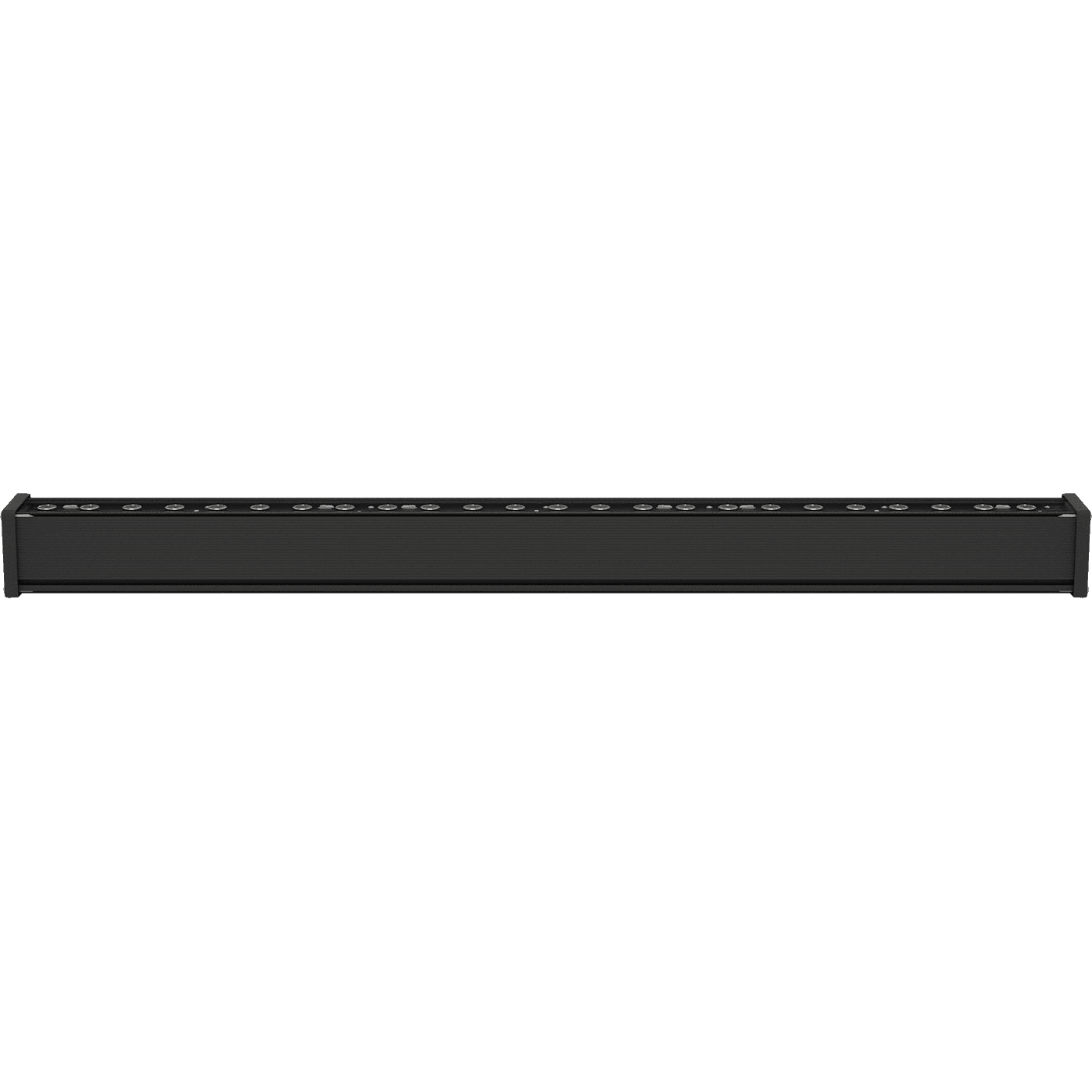

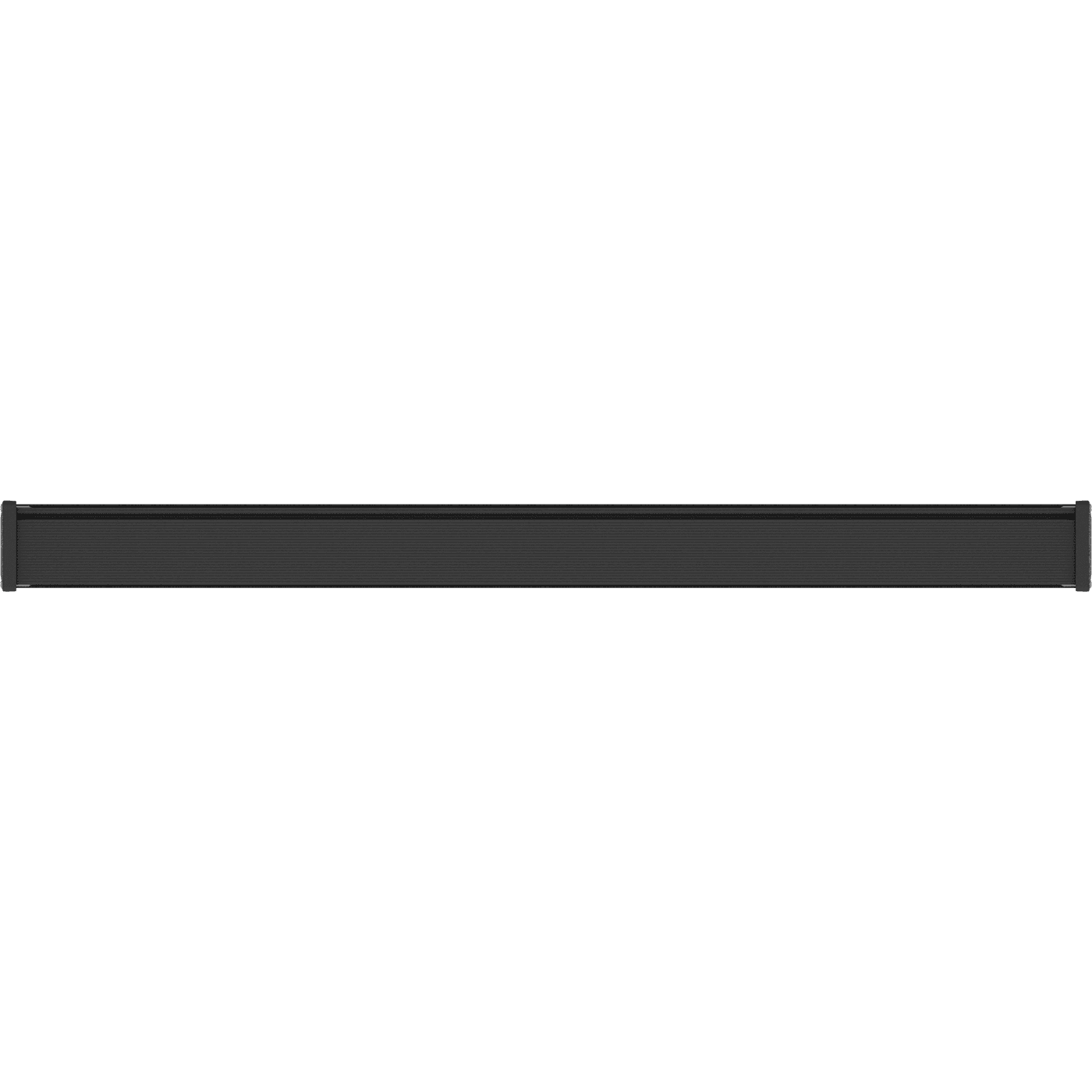

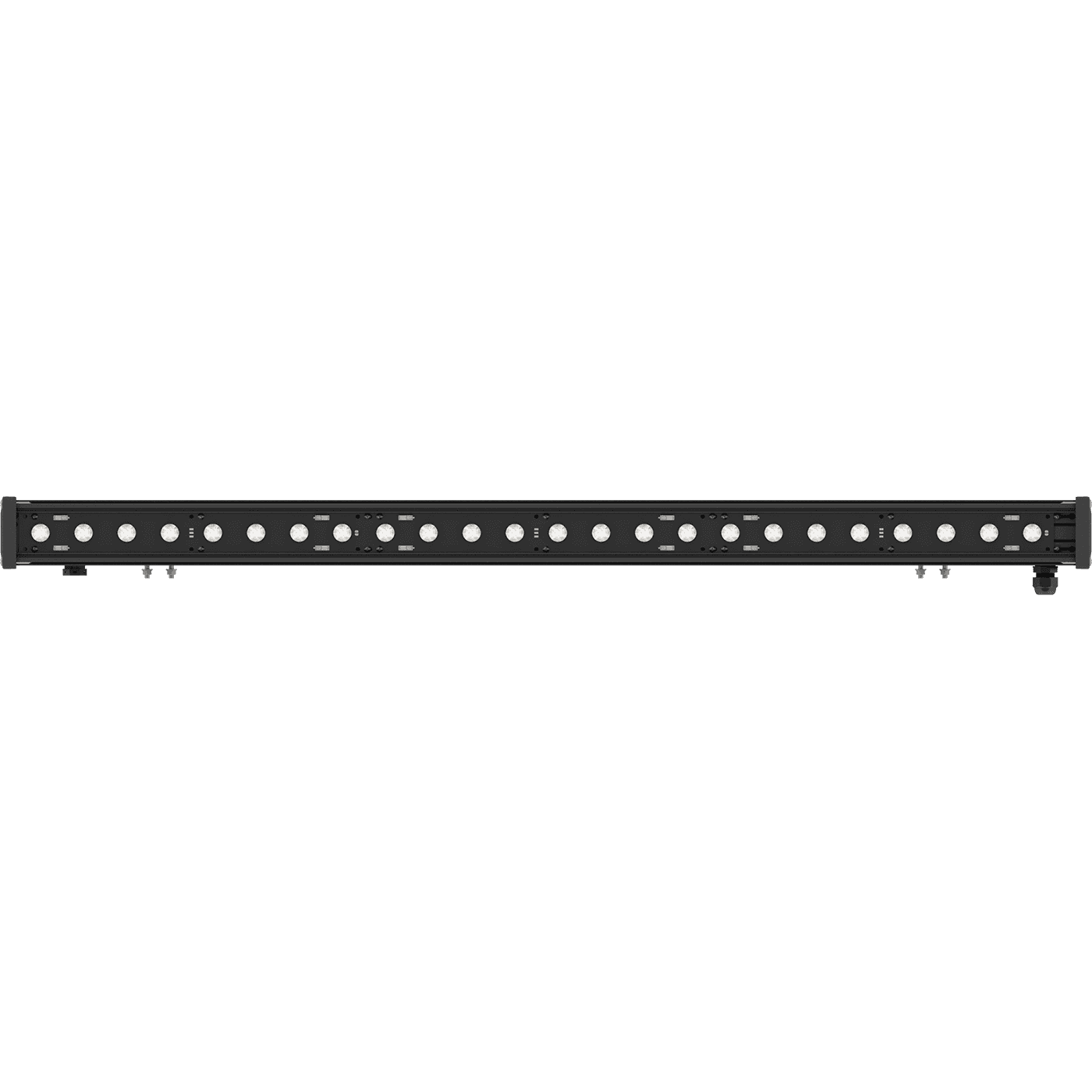

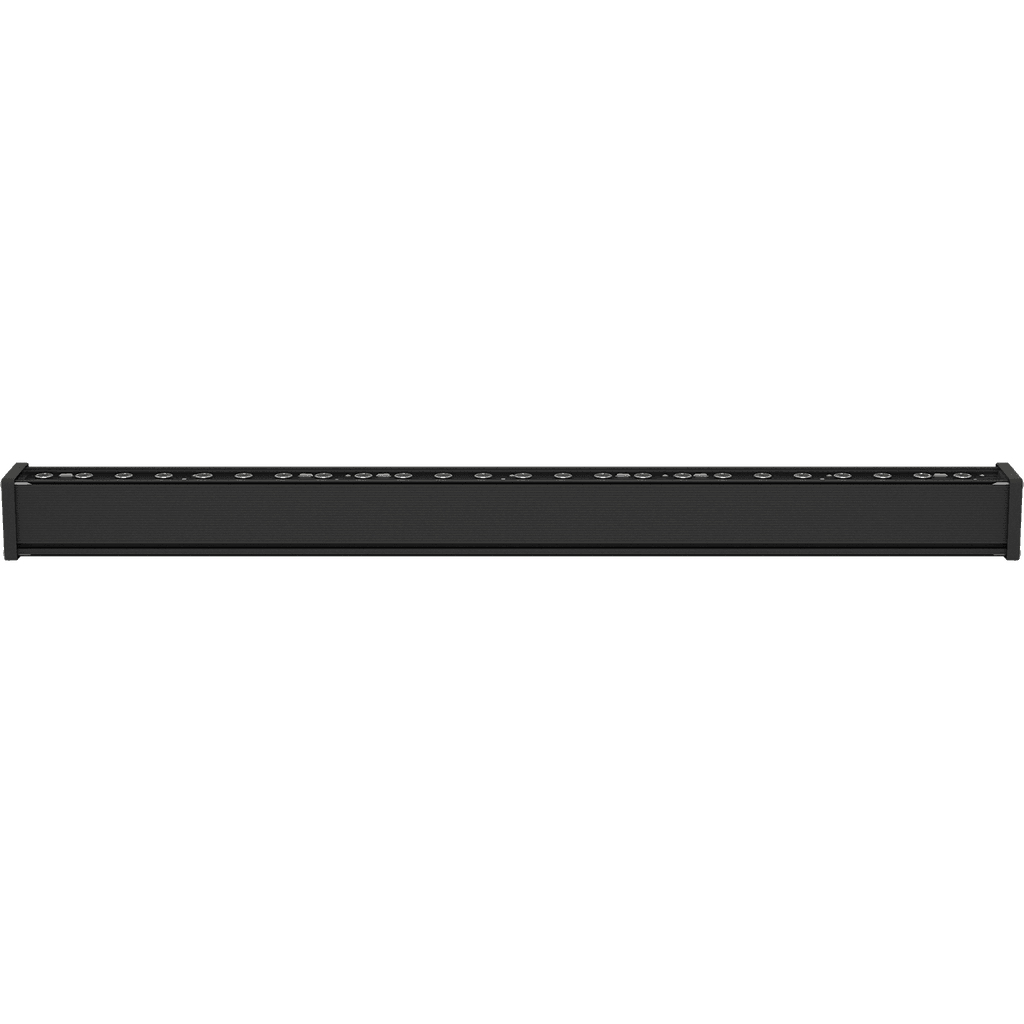

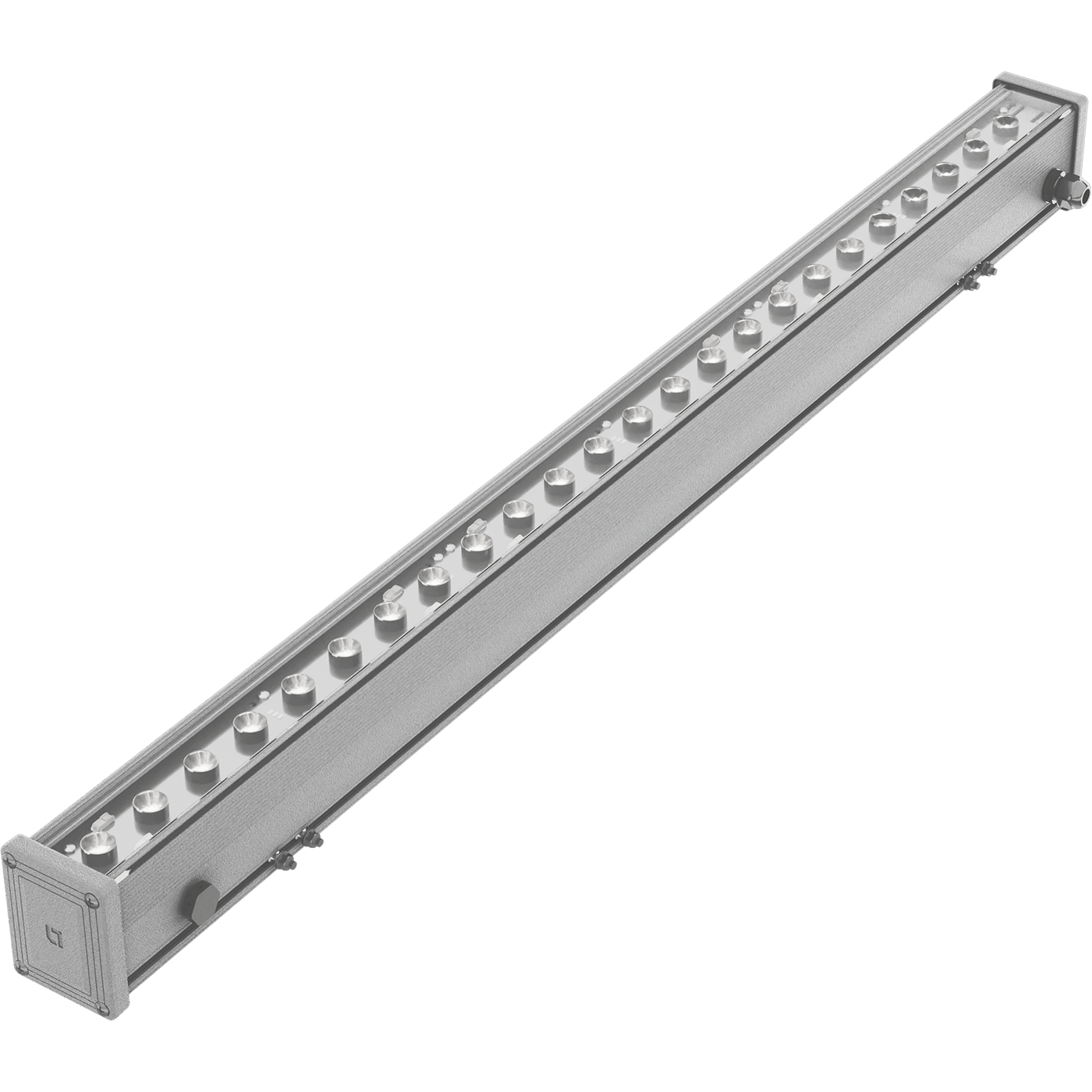

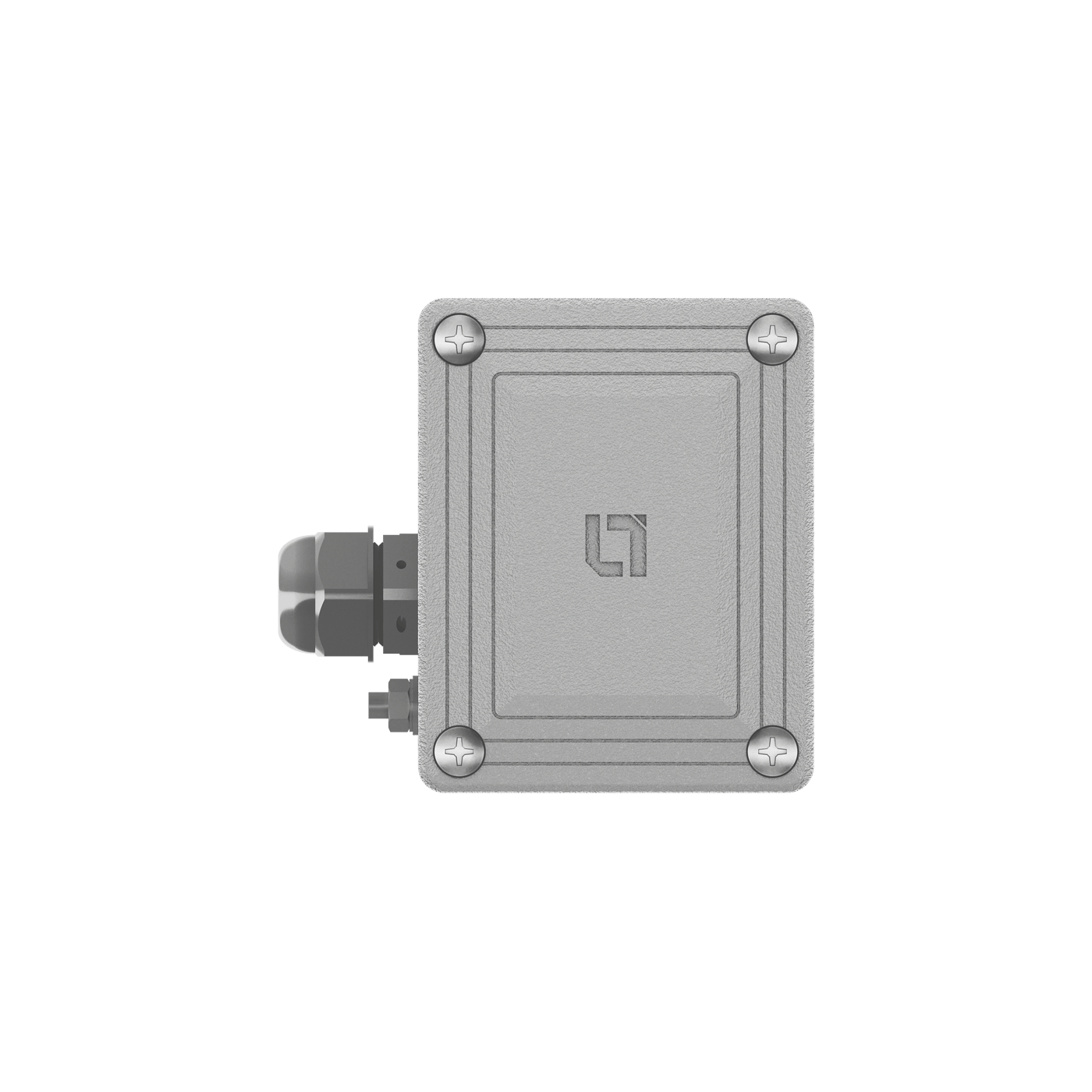

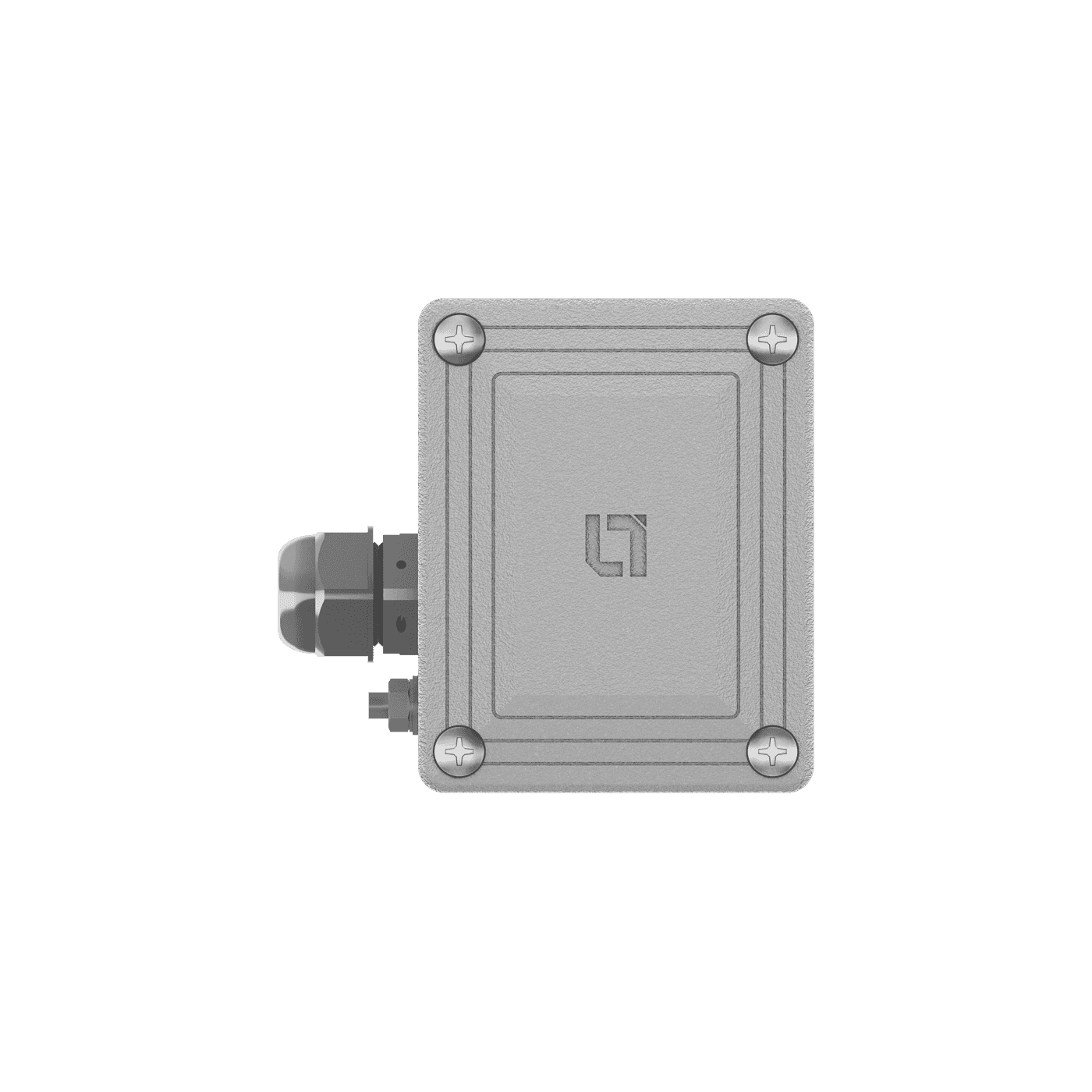

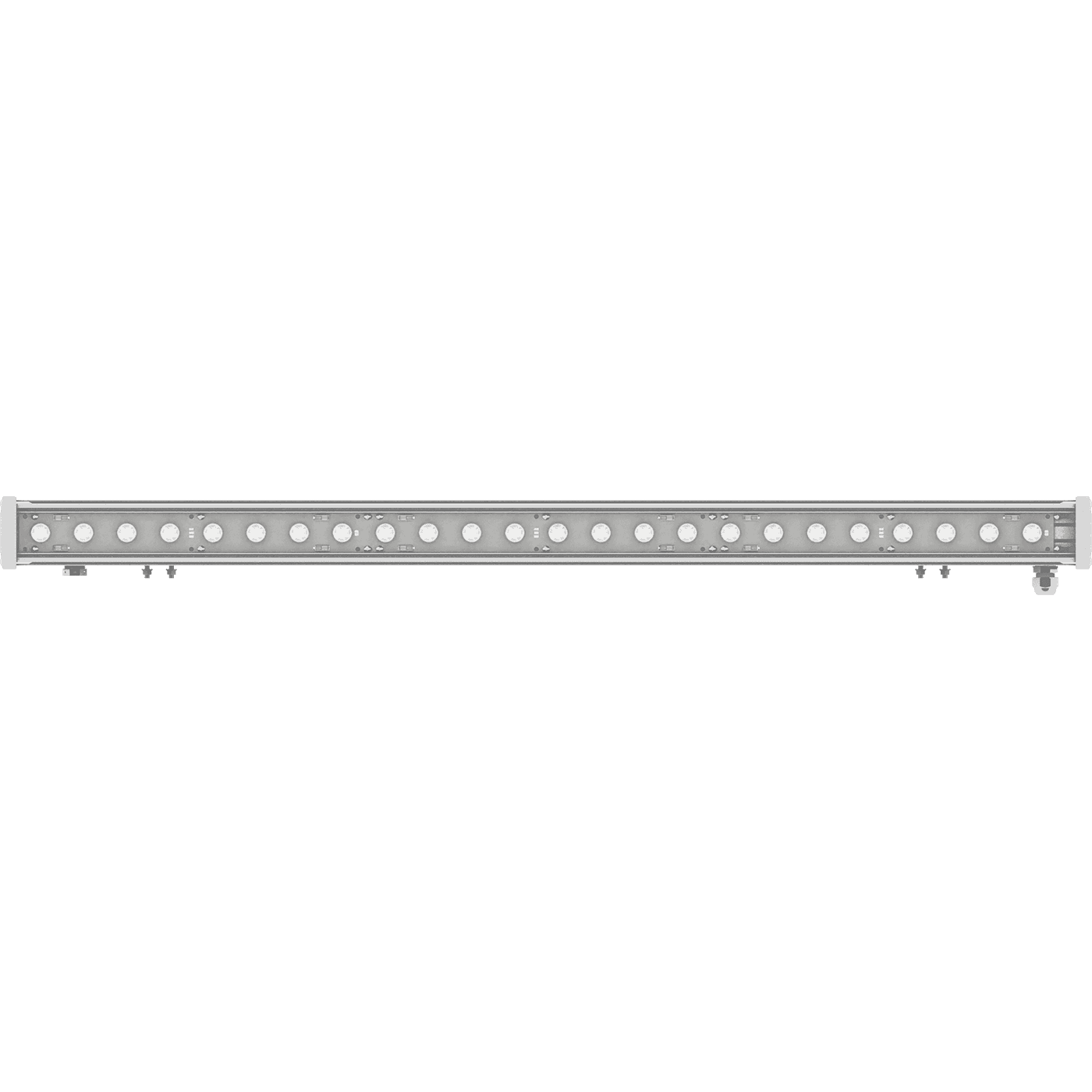

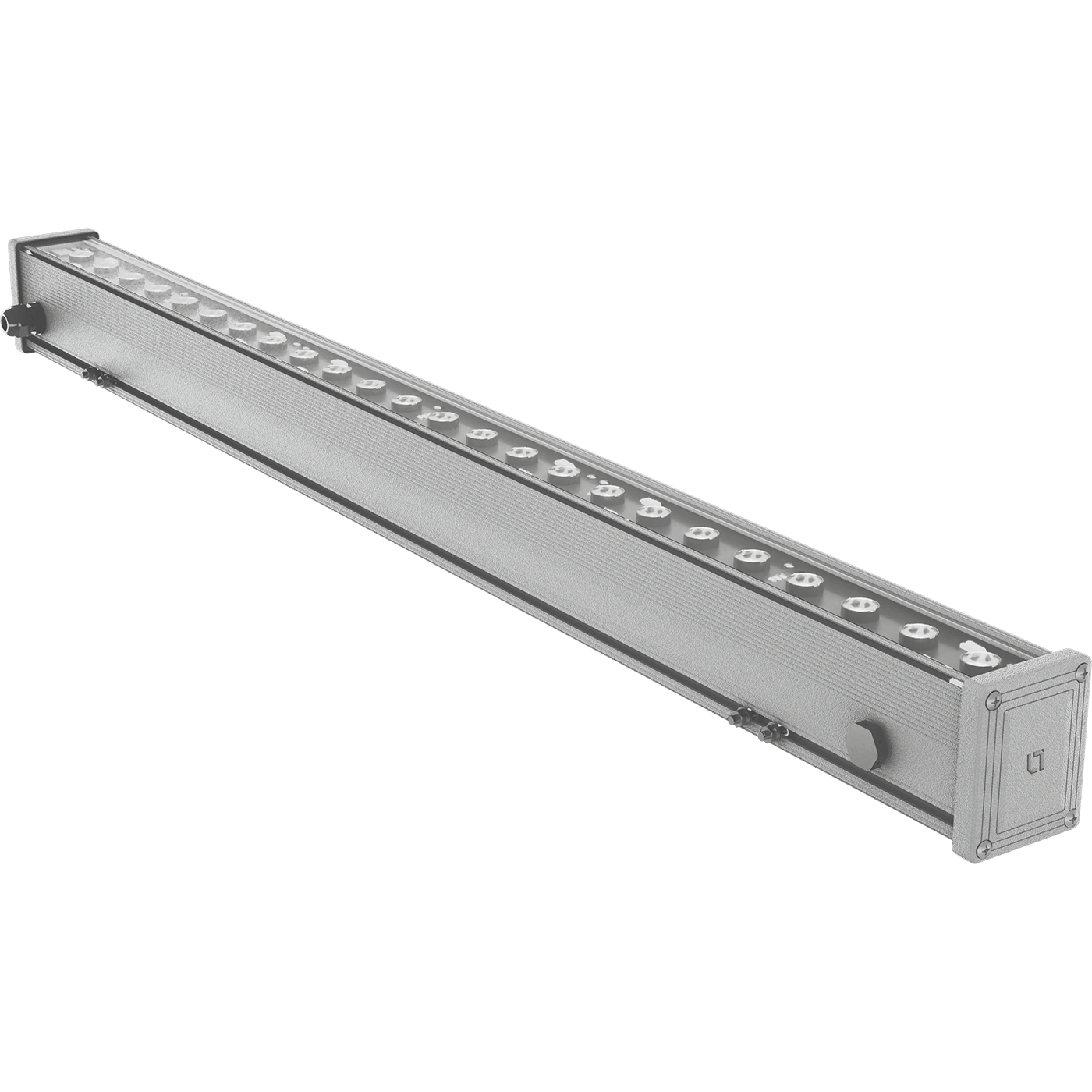

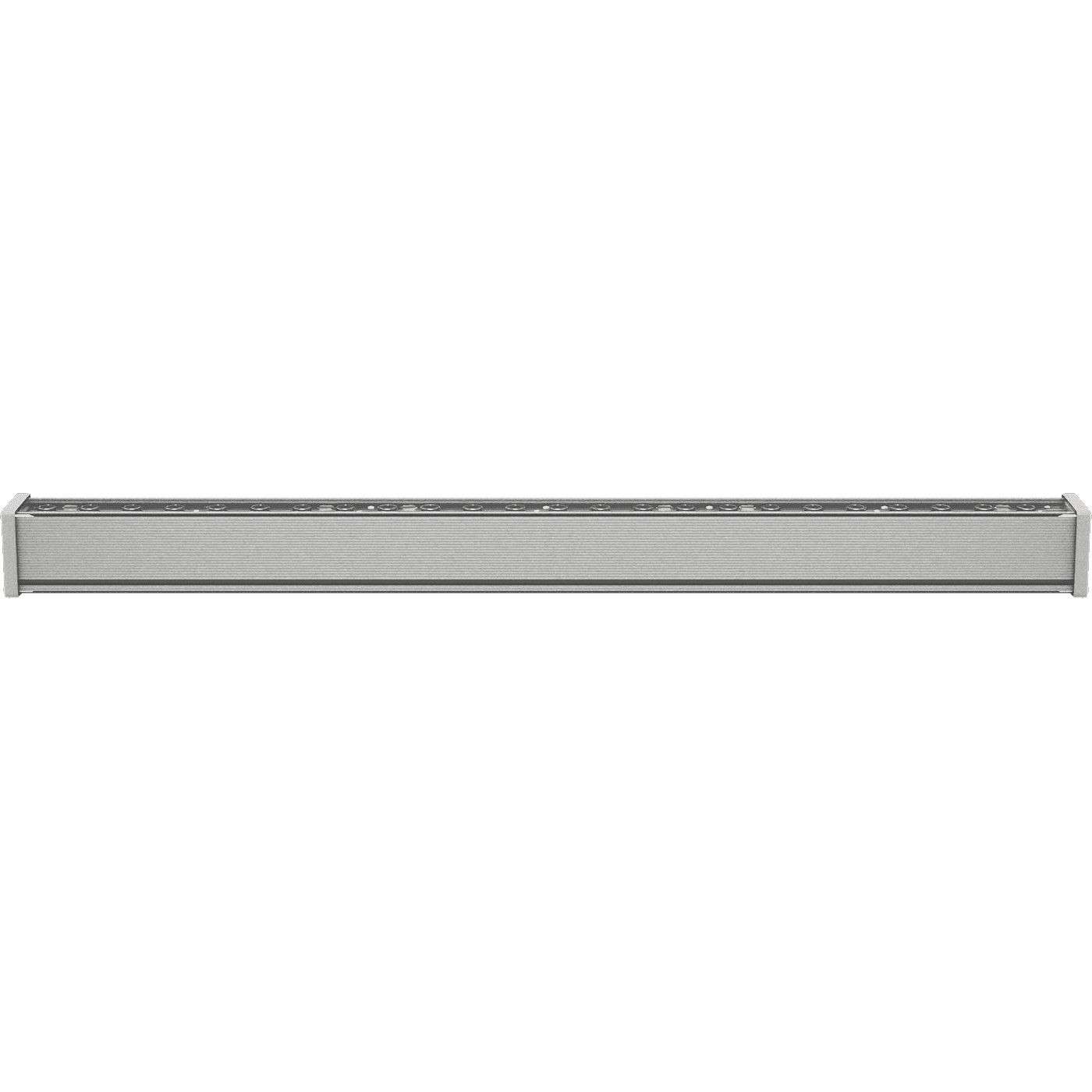

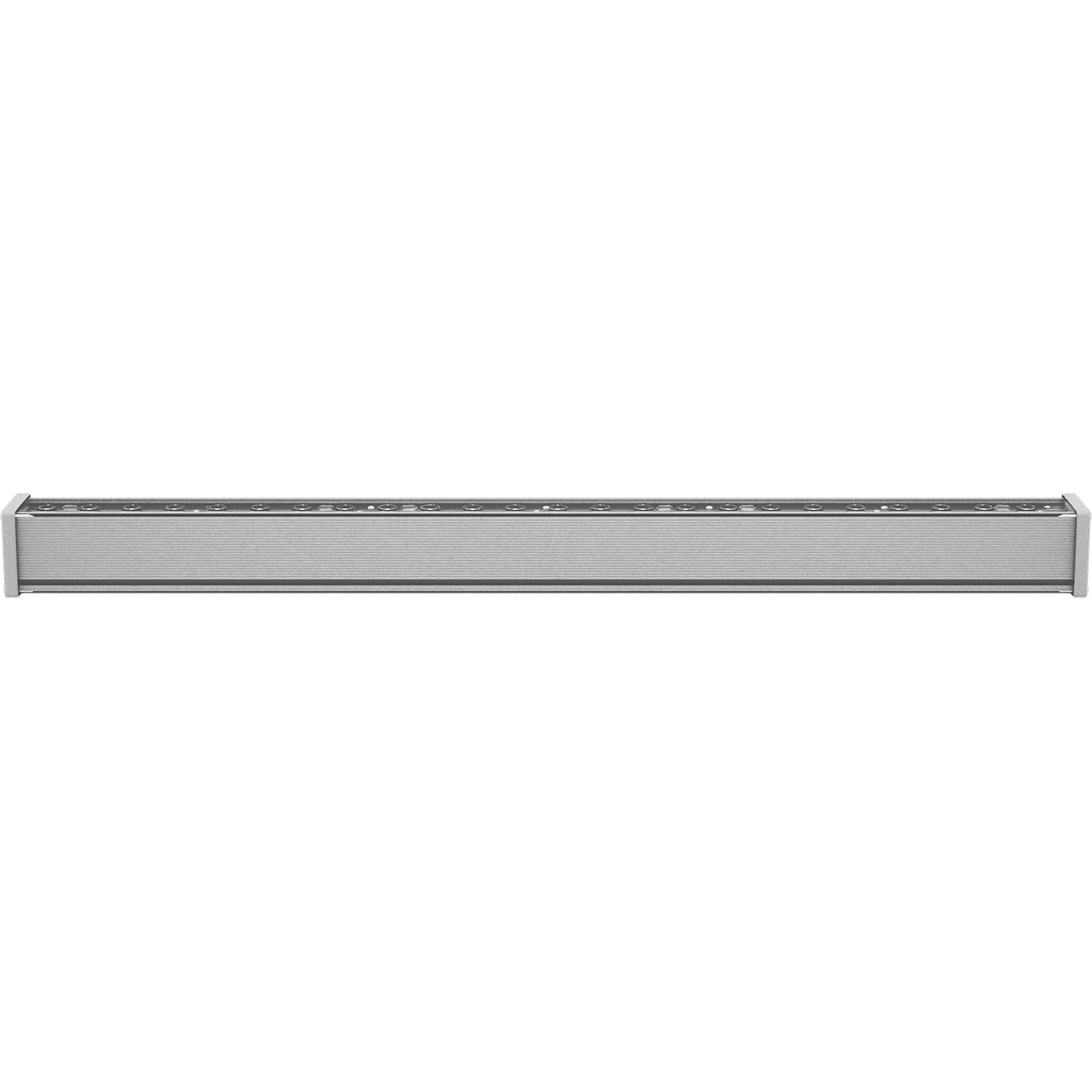

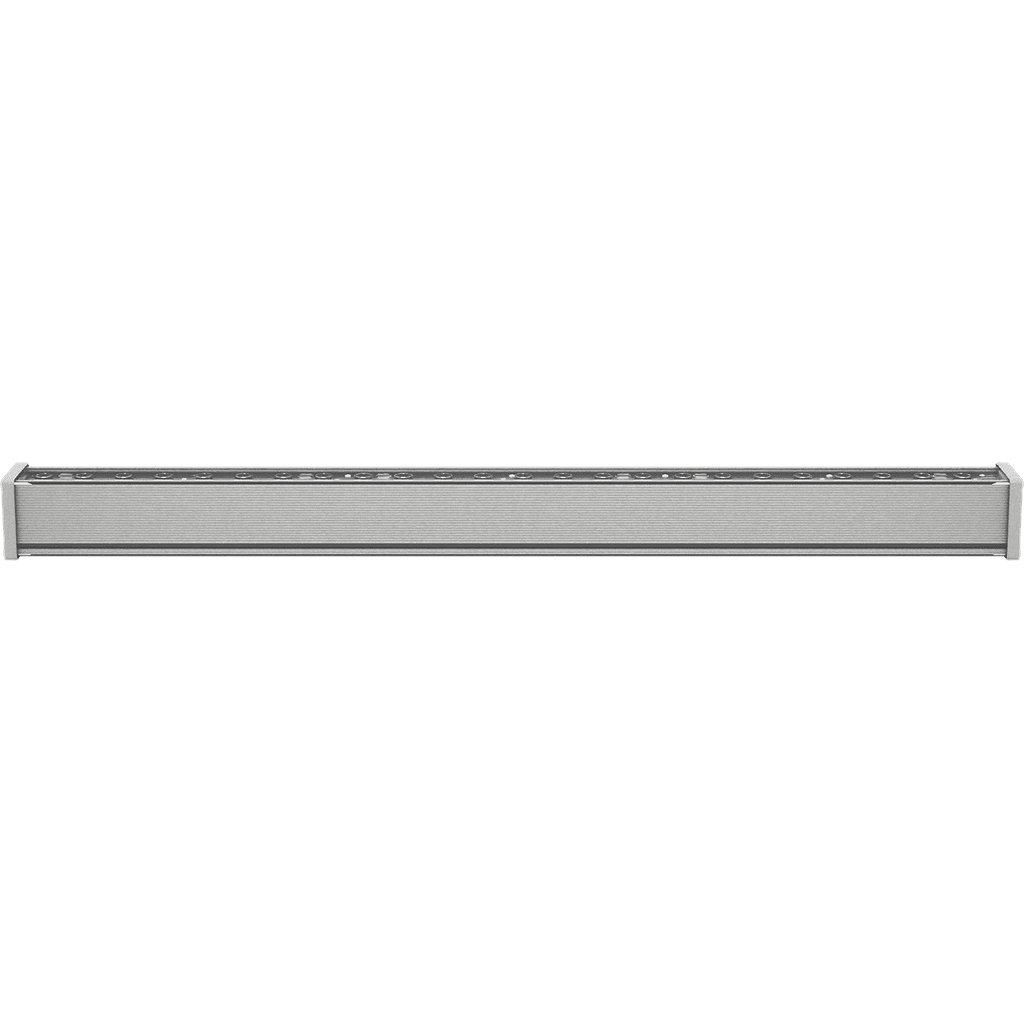

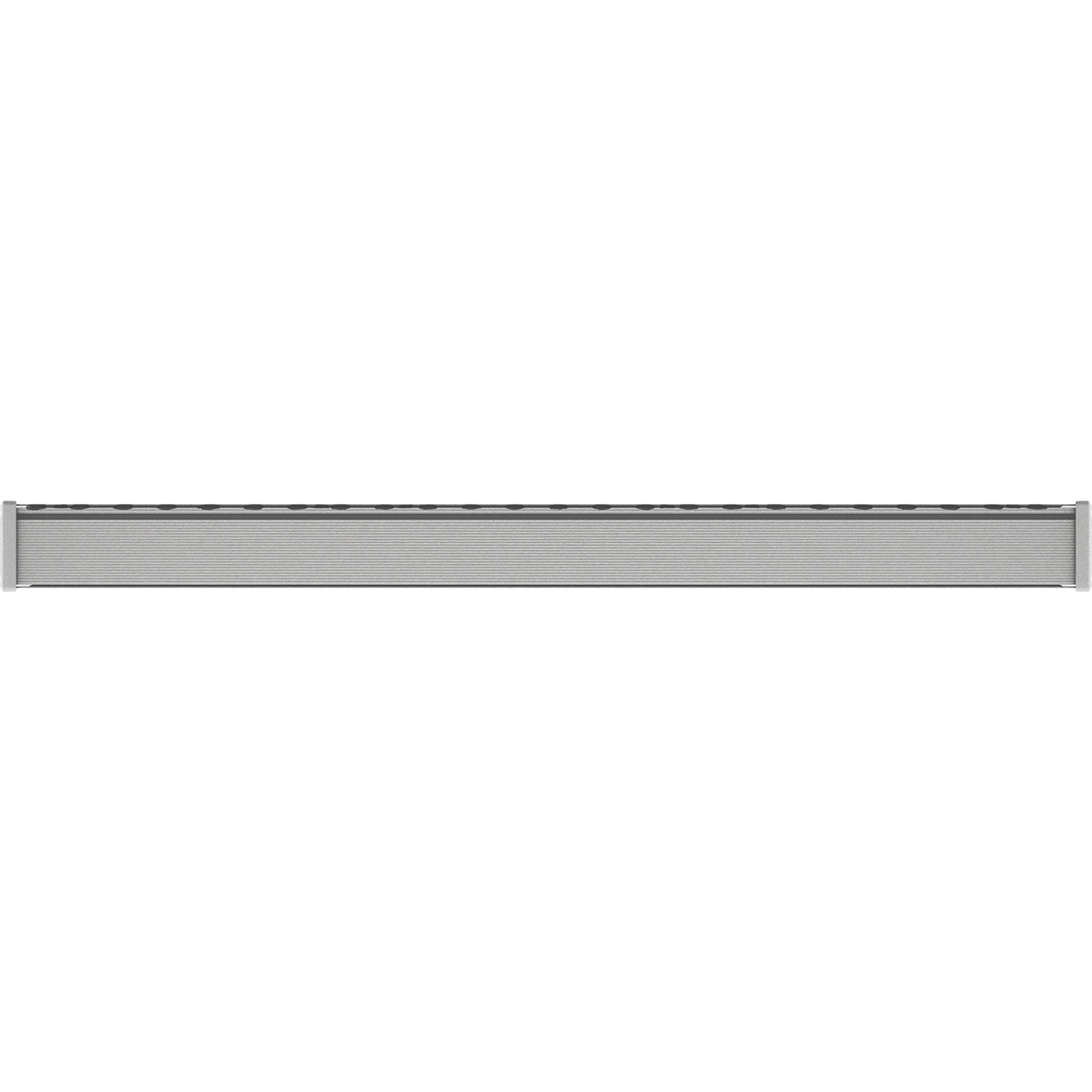

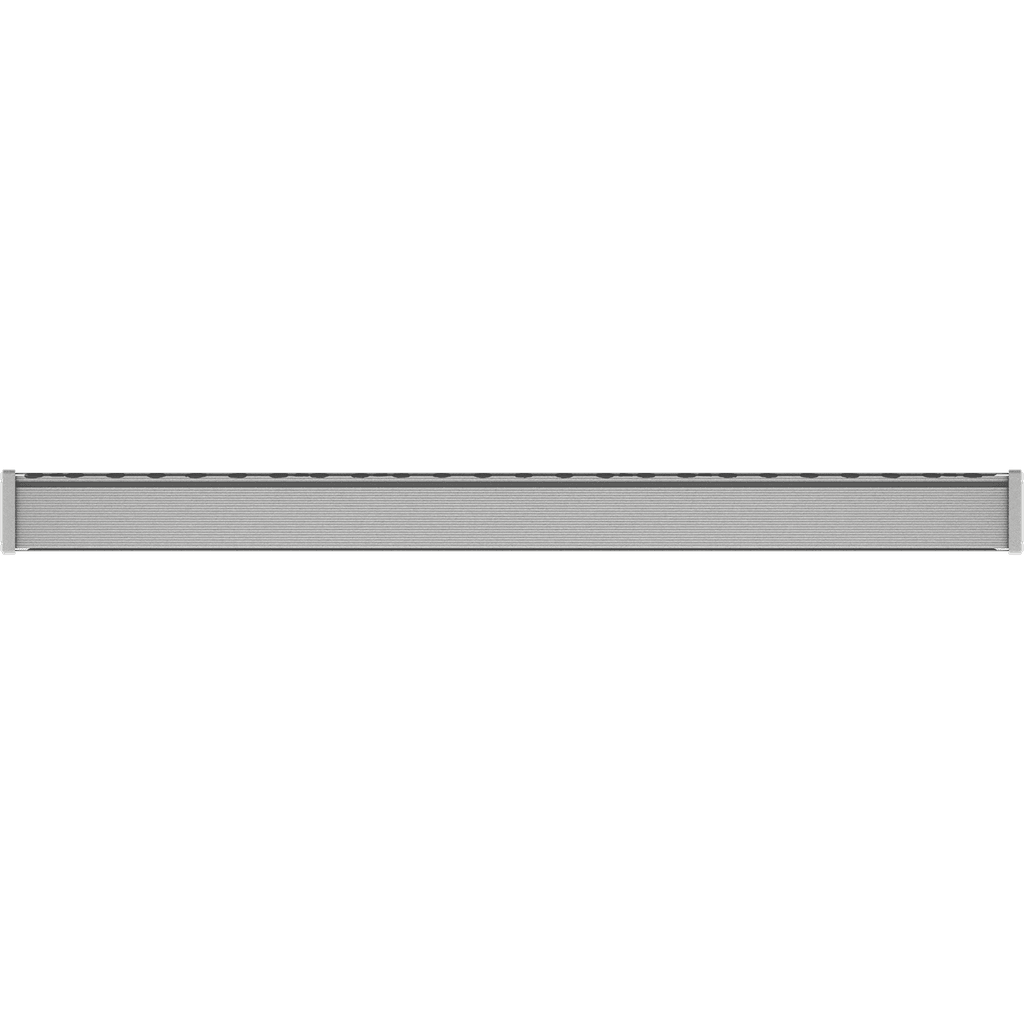

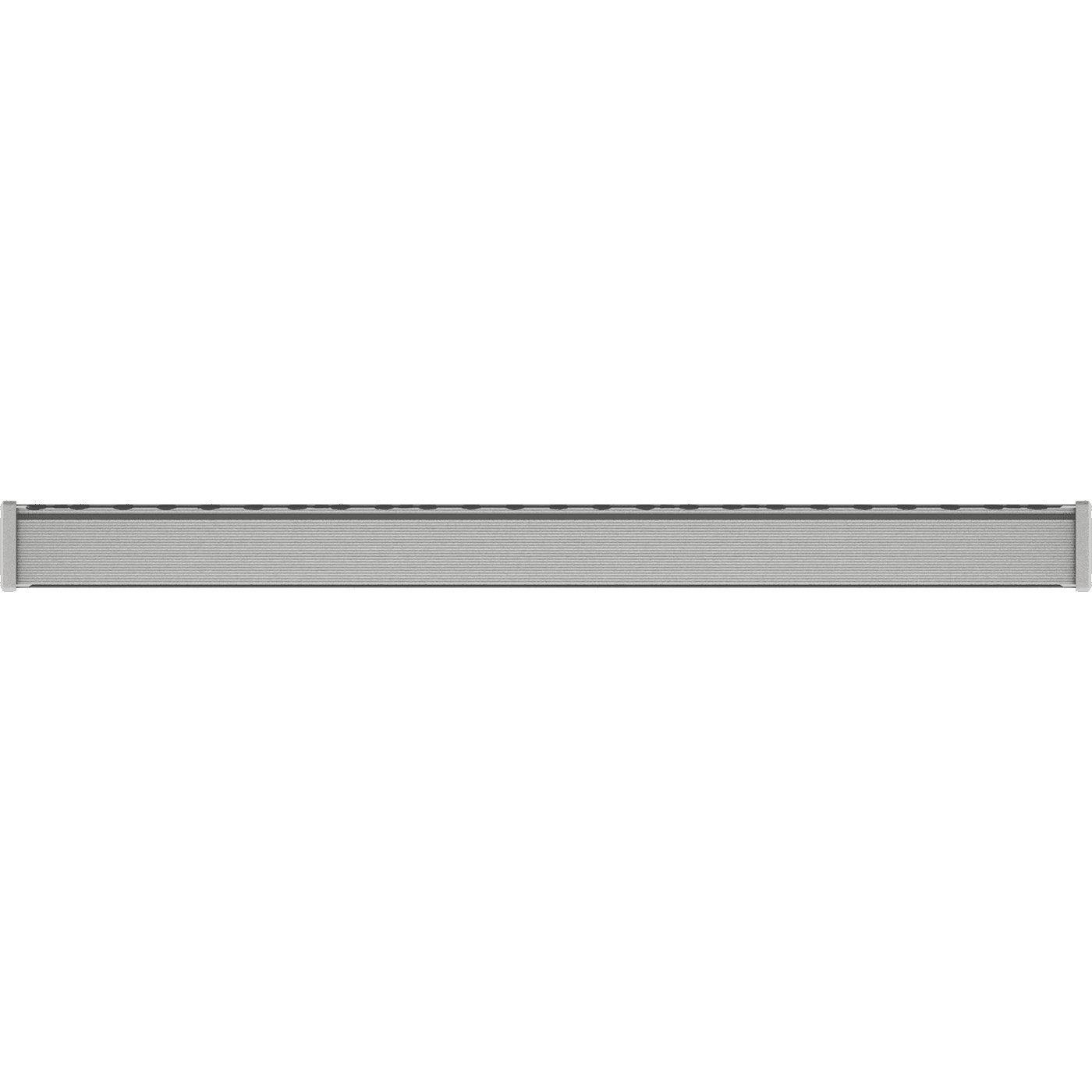

EVOLINE LED (1200) 48W D15 RGBW SL DMX RDM

EVOLINE LED (1200) 48W D15 RGBW SL DMX RDM
add to favorites
54 Wluminaire power
4000 lmlight flow
74 lm/Wenergy efficiency
code1006002050
beam angleD15
weight1.7 kg
  1. main page
  2. catalog
  3. by product type
  4. outdoor lighting
  5. linear architectural luminaires
  6. EVOLINE LED RGB
  7. EVOLINE LED (1200) 48W D15 RGBW SL DMX RDM
options
свернуть все
electricalconstructionalcommonilluminatingLMS options
supply voltage, alternating current
90-305 V
luminaire power
54 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
electrical
supply voltage, alternating current
90-305 V
luminaire power
54 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
constructional
ingress protection (IP)
IP65
fire safety class
П-ІІІ
material
Алюминий
weight
1.7 kg
length, mm
1180 mm
width, mm
60 mm
height, mm
75 mm
housing color
Металлик
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
shock resistance (IK)
IK07/2 Дж
installation length, mm
180 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
code
1006002050
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от -40 до +40 C
energy efficiency class
A
service life, hour
50 000 h
illuminating
energy efficiency
74 lm/W
light flow
4000 lm
flickering factor
<5%
beam angle
D15
light source type
LED
emission color
RGBW
LMS options
dimming
DMX RDM
