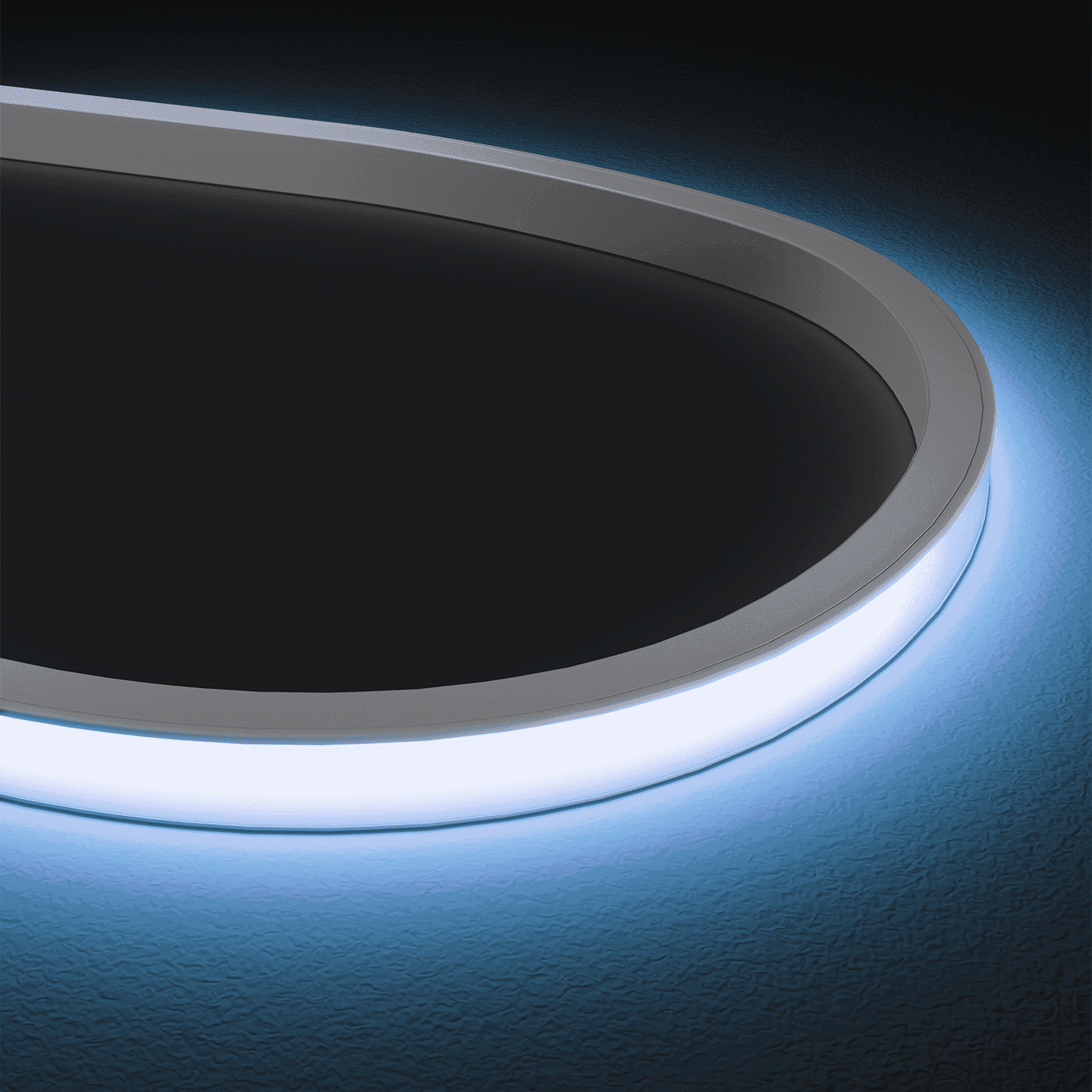

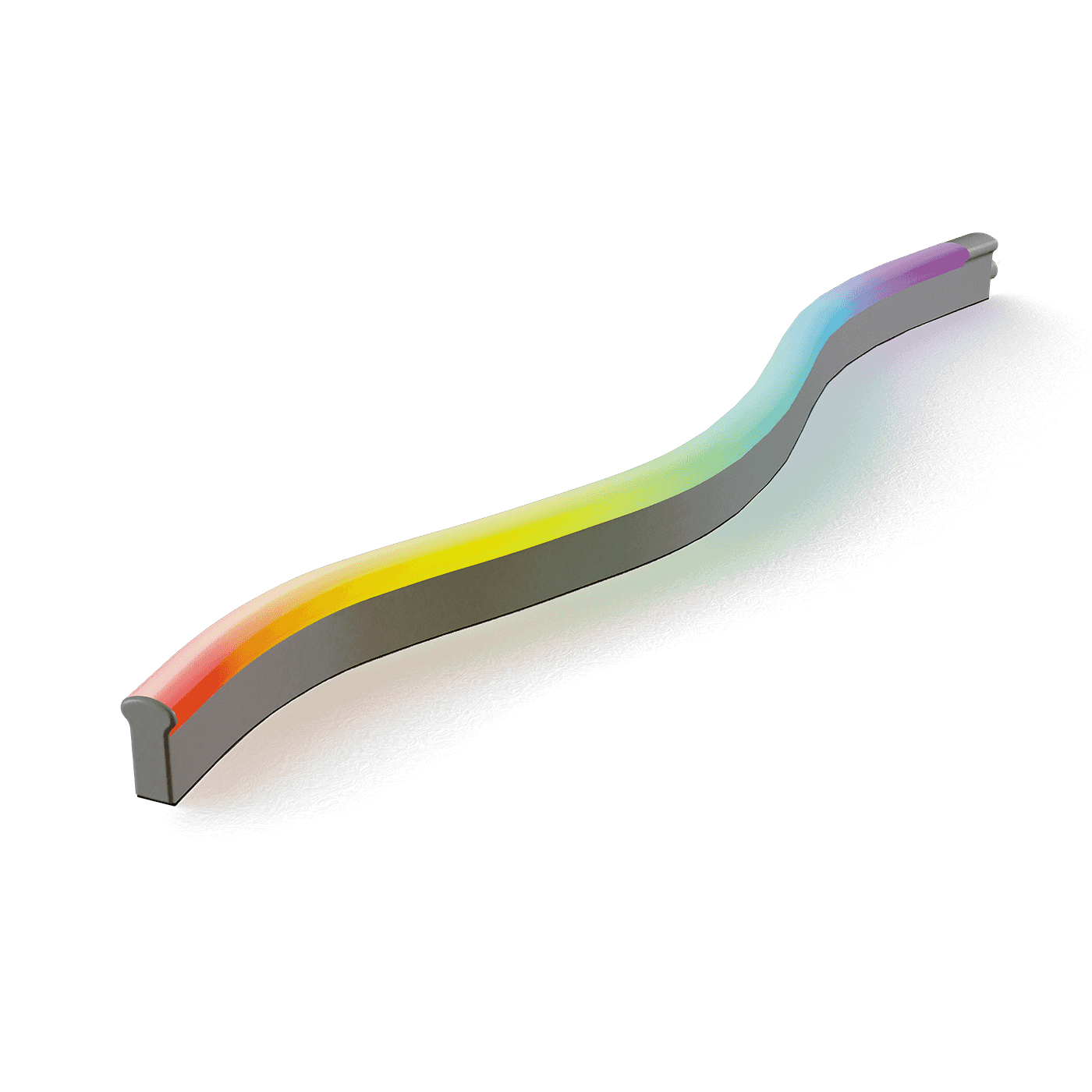

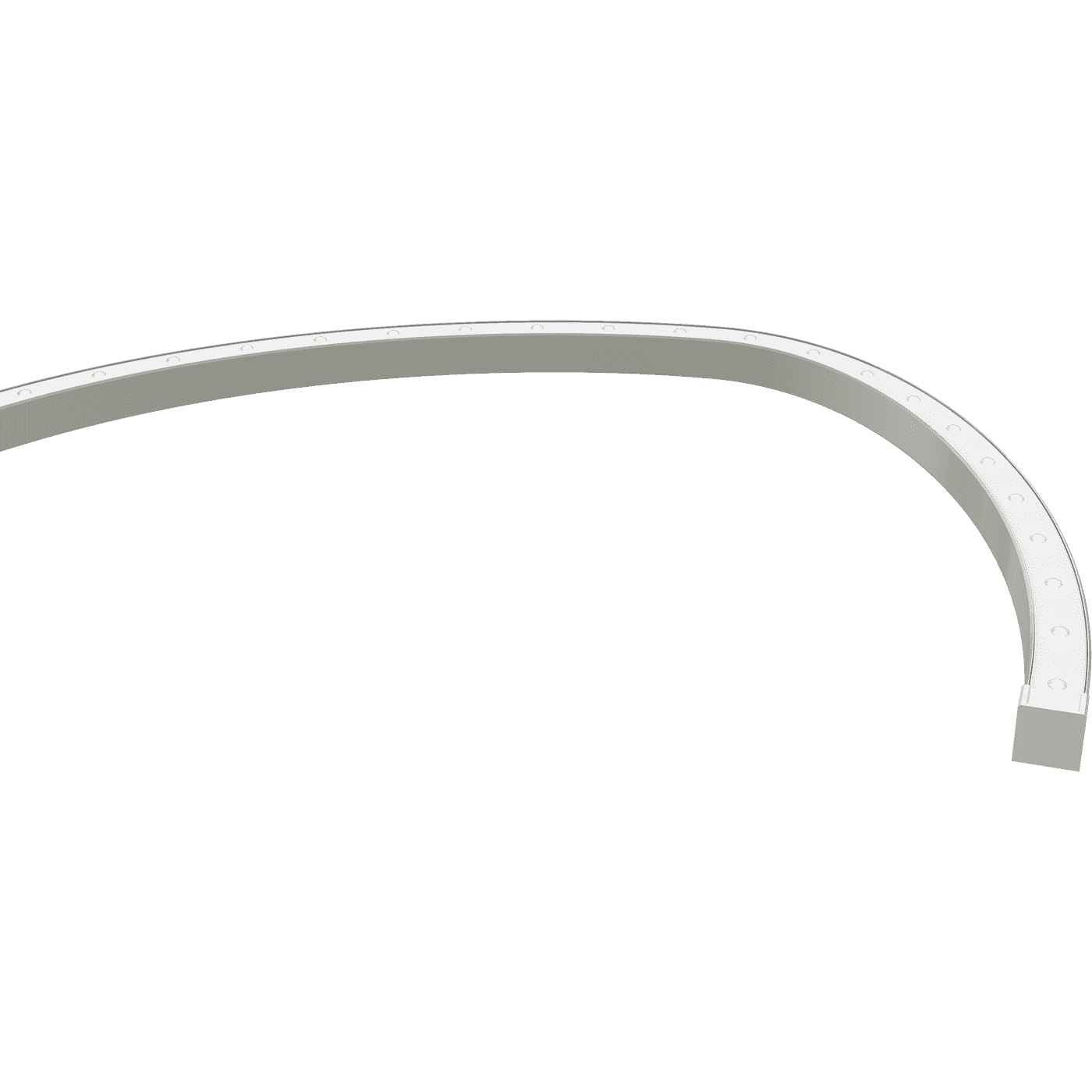

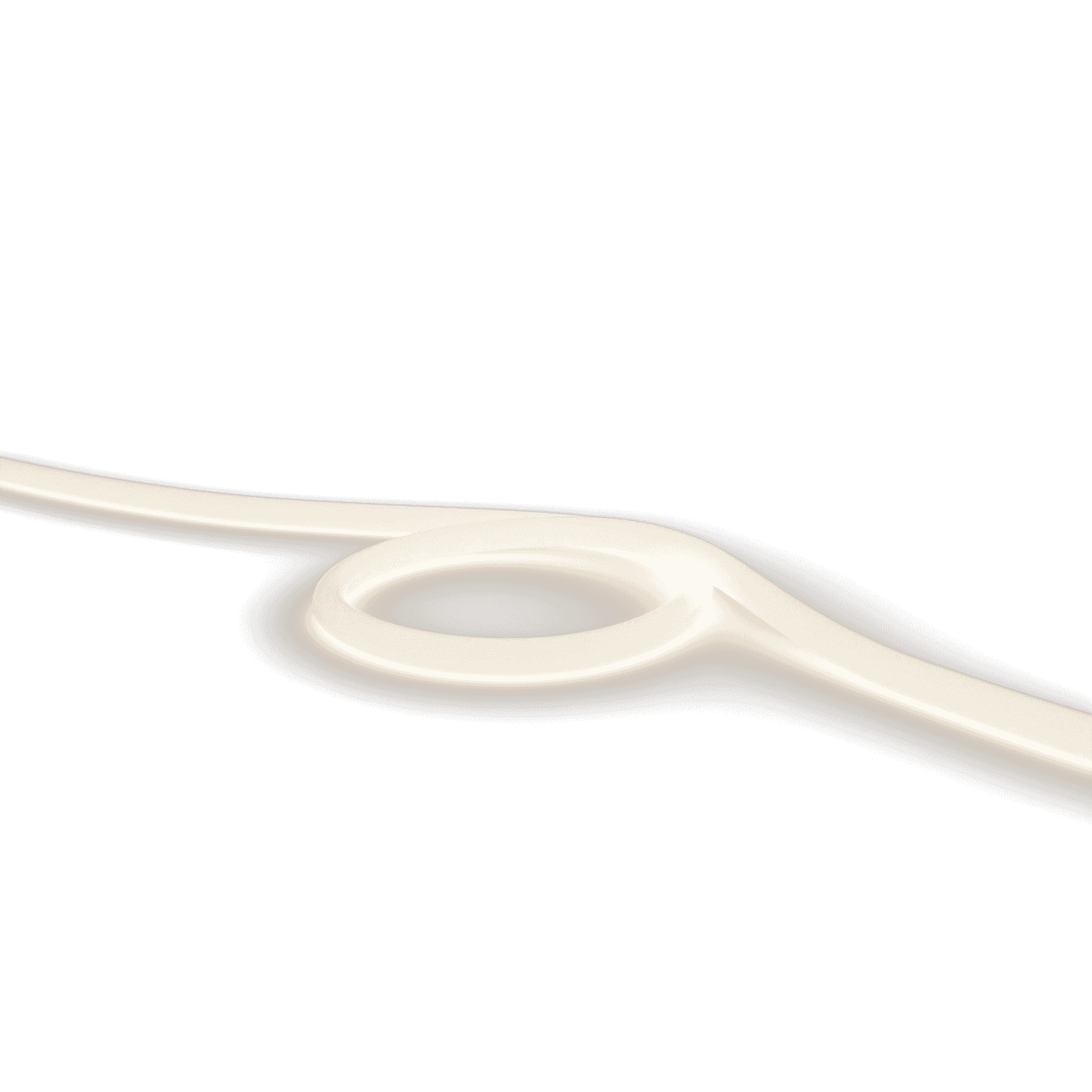

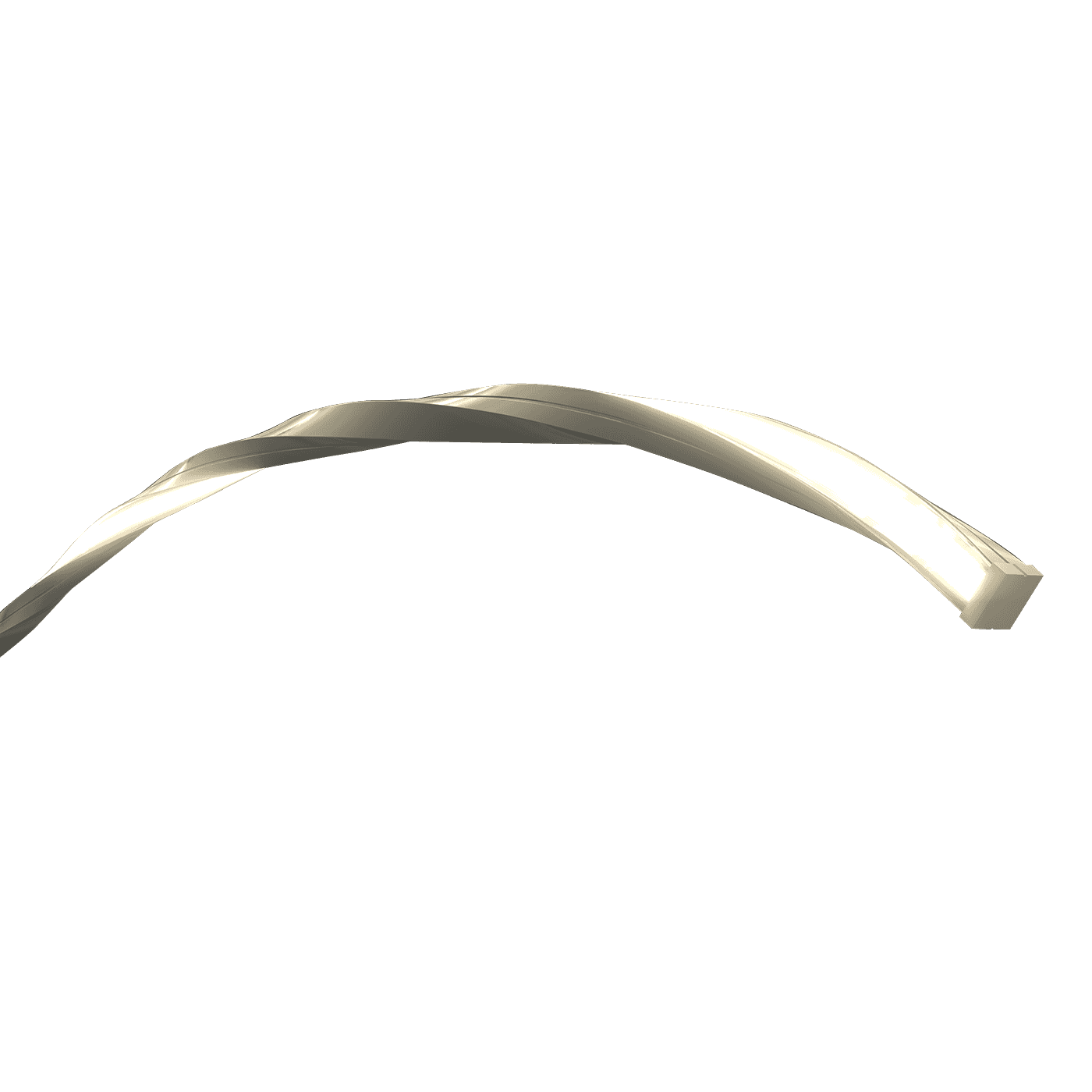

EVOLINE FLEX TOP 15W CHASING RGBW 30000
model is discontinued
model is discontinued
EVOLINE FLEX TOP 15W CHASING RGBW 30000
450 Wluminaire power
11000 lmlight flow
24 lm/Wenergy efficiency
code1006002320
beam angleD120
weight1.7 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
24 lm/Wlight flow
11000 lmflickering factor
<5%beam angle
D120light source type
LEDemission color
RGBWilluminating
energy efficiency
24 lm/W
light flow
11000 lm
flickering factor
<5%
beam angle
D120
light source type
LED
emission color
RGBW
electrical
luminaire power
450 W
electric shock protection
III
supply voltage
230 V
maximum cross-section of the connected cable
2.5 mm2
constructional
climatic performance
УХЛ1*
fire safety class
П-I,II,ІІІ
width
60 mm
height
75 mm
installation length
180 mm
housing color
Серый
lamp socket
LED
number of lamps
1
ballast
Драйвер
length
320 mm
material
ПВХ
ingress protection (IP)
IP68
shock resistance (IK)
IK07/2 Дж
weight
1.7 kg
common
code
1006002320
warranty
36 month
energy efficiency class
C
temperature range
от -40 до +40 C
service life
50 000 h
ETIM class
Световая полоса/ лента/ шнур
model files
model files
сертификаты
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/2011144.8 kB
Declaration of Conformity EAEU TR 037/2016602.6 kB
Fire Safety Certificate2.5 mB
