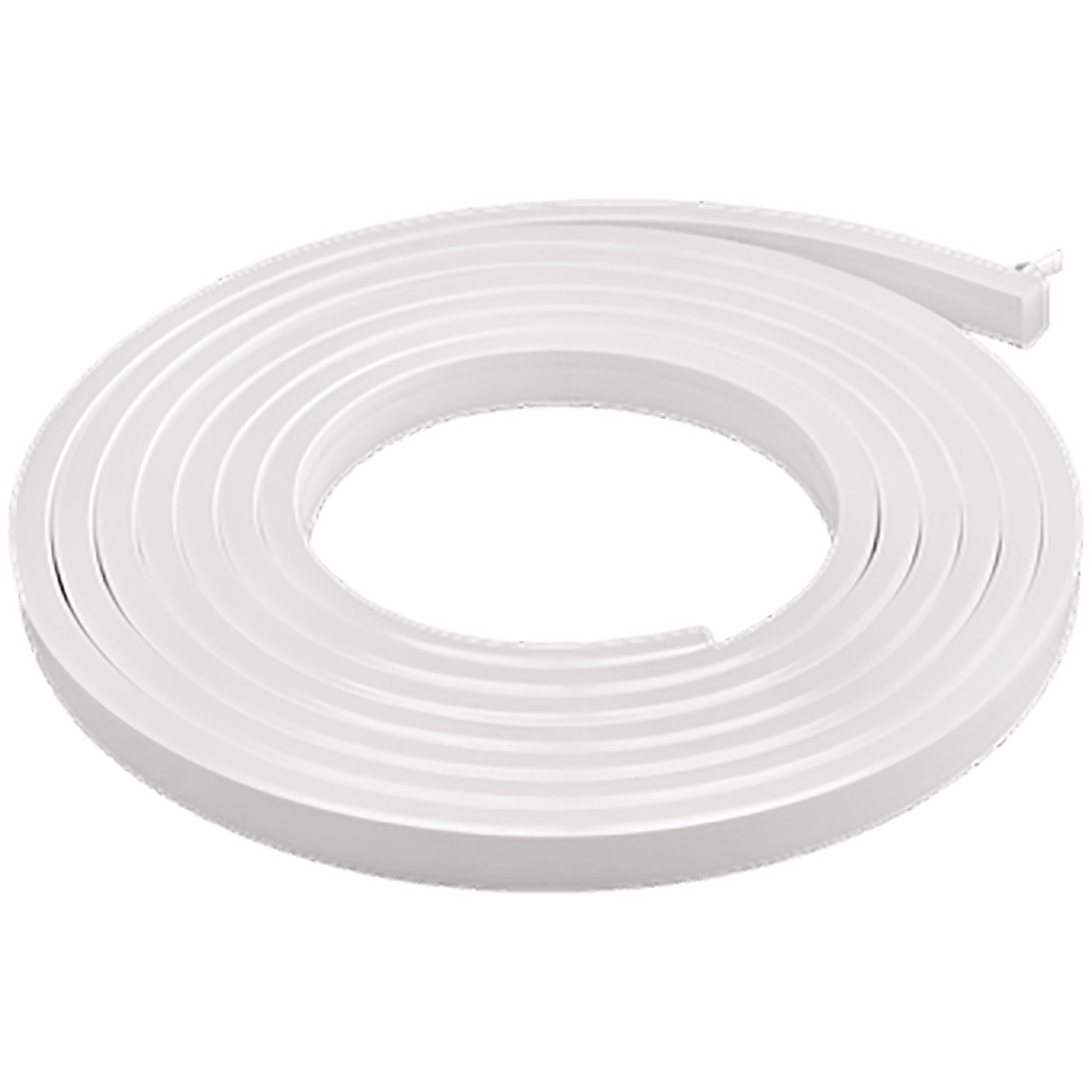

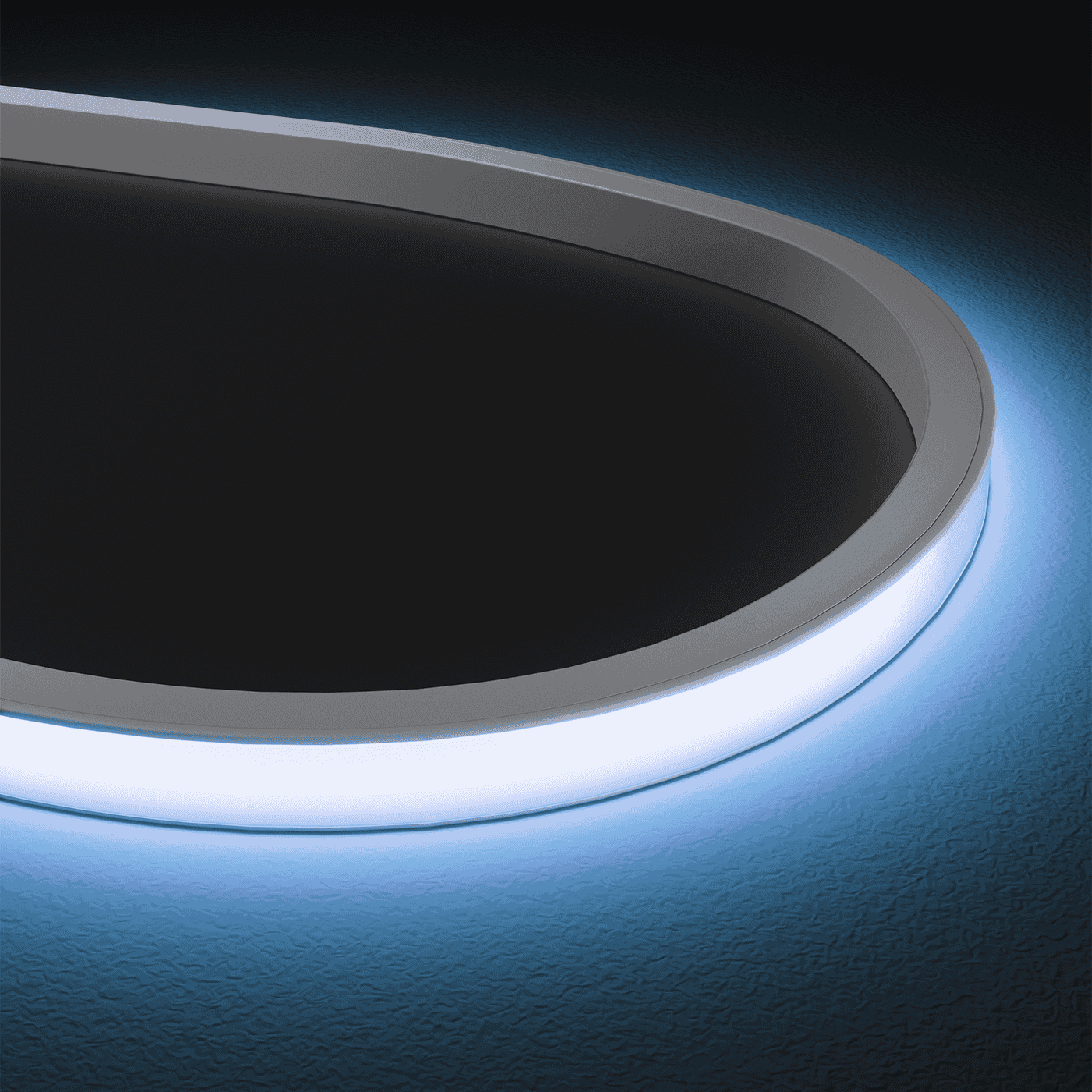

EVOLINE FLEX TOP 10W 840 WH with connector Side L500
archive
archive
EVOLINE FLEX TOP 10W 840 WH with connector Side L500
5 Wluminaire power
185 lmlight flow
37 lm/Wenergy efficiency
code1006001690
beam angleD120
color temperature4000
weight1.7 kg
options
свернуть все
electricalconstructionalcommonilluminating
luminaire power
5 Welectric shock protection
IIIsupply voltage
230 Velectrical
luminaire power
5 W
electric shock protection
III
supply voltage
230 V
constructional
ingress protection (IP)
IP68
material
ПВХ
weight
1.7 kg
length, mm
500 mm
width, mm
60 mm
height, mm
75 mm
housing color
Серый
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
shock resistance (IK)
IK07/2 Дж
installation length, mm
180 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
code
1006001690
ETIM class
Световая полоса/ лента/ шнур
warranty
36 month
temperature range
от -40 до +40 C
energy efficiency class
B
service life, hour
50 000 h
illuminating
energy efficiency
37 lm/W
color rendition index (CRI)
>80
light flow
185 lm
flickering factor
<5%
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
model files
model files

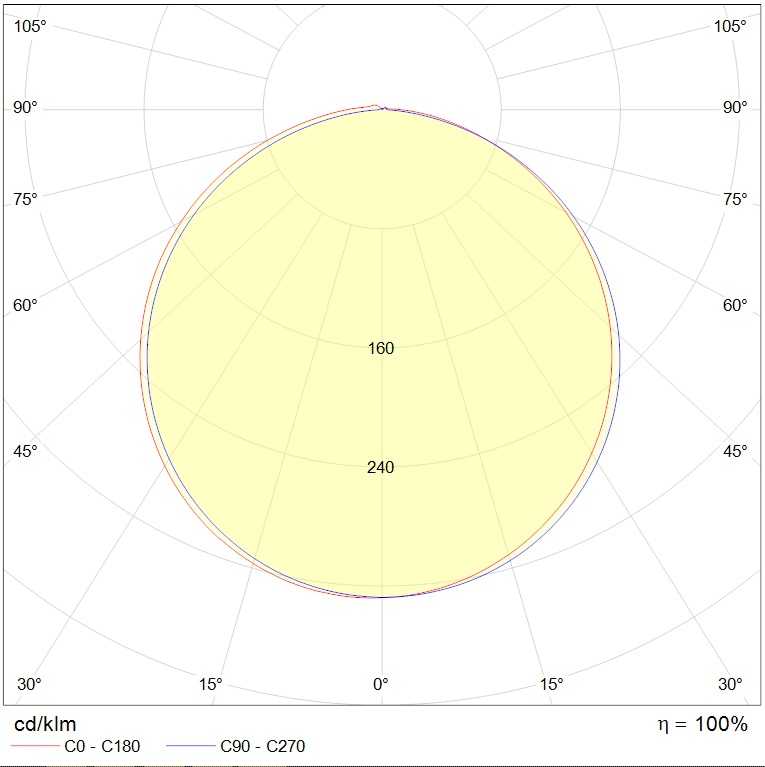

photometric files
сертификаты
photometric files
ies15.9 kB
jpg81.7 kB
ldt12.7 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/2011144.8 kB
Declaration of Conformity EAEU TR 037/2016602.6 kB
Fire Safety Certificate2.5 mB
