DROP LED 15 STANDARD MS 4000K
DROP LED 15 STANDARD MS 4000K
14 Wluminaire power
1400 lmlight flow
100 lm/Wenergy efficiency
code1713000070
color temperature4000
beam angleD120
performance factor100
options
свернуть все
illuminatingelectricalconstructionalLMS optionscommon
energy efficiency
100 lm/Wcolor rendition index (CRI)
>80light flow
1400 lmflickering factor
<2%beam angle
D120color temperature
4000light source type
LEDemission color
Белыйilluminating
energy efficiency
100 lm/W
color rendition index (CRI)
>80
light flow
1400 lm
flickering factor
<2%
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
electrical
electric shock protection
II
luminaire power
14 W
supply voltage
230 V
power factor
> 0,90
maximum cross-section of the connected cable, sq. mm
2.5
rated supply voltage, alternating current
230 V

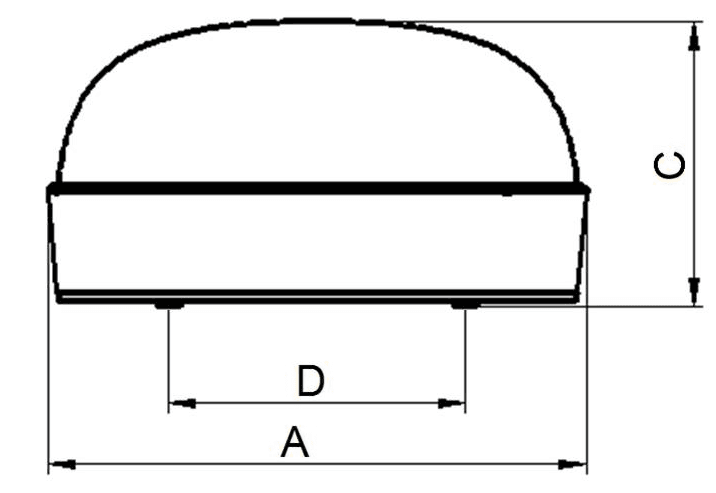

constructional
diameter
220 mm
height, mm
75 mm
installation length, mm
140 mm
weight
0.42 kg
ingress protection (IP)
IP65
shock resistance (IK)
IK08/6,5 Дж
climatic performance
УХЛ2*
material
Поликарбонат
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
LMS options
dimming
Microwave motion sensor / light sensor
common
warranty
36 month
temperature range
от -20 до +40 C
service life, hour
50 000 h
energy efficiency class
A+
ETIM class
Настенно-потолочный светильник
code
1713000070
model files
model files

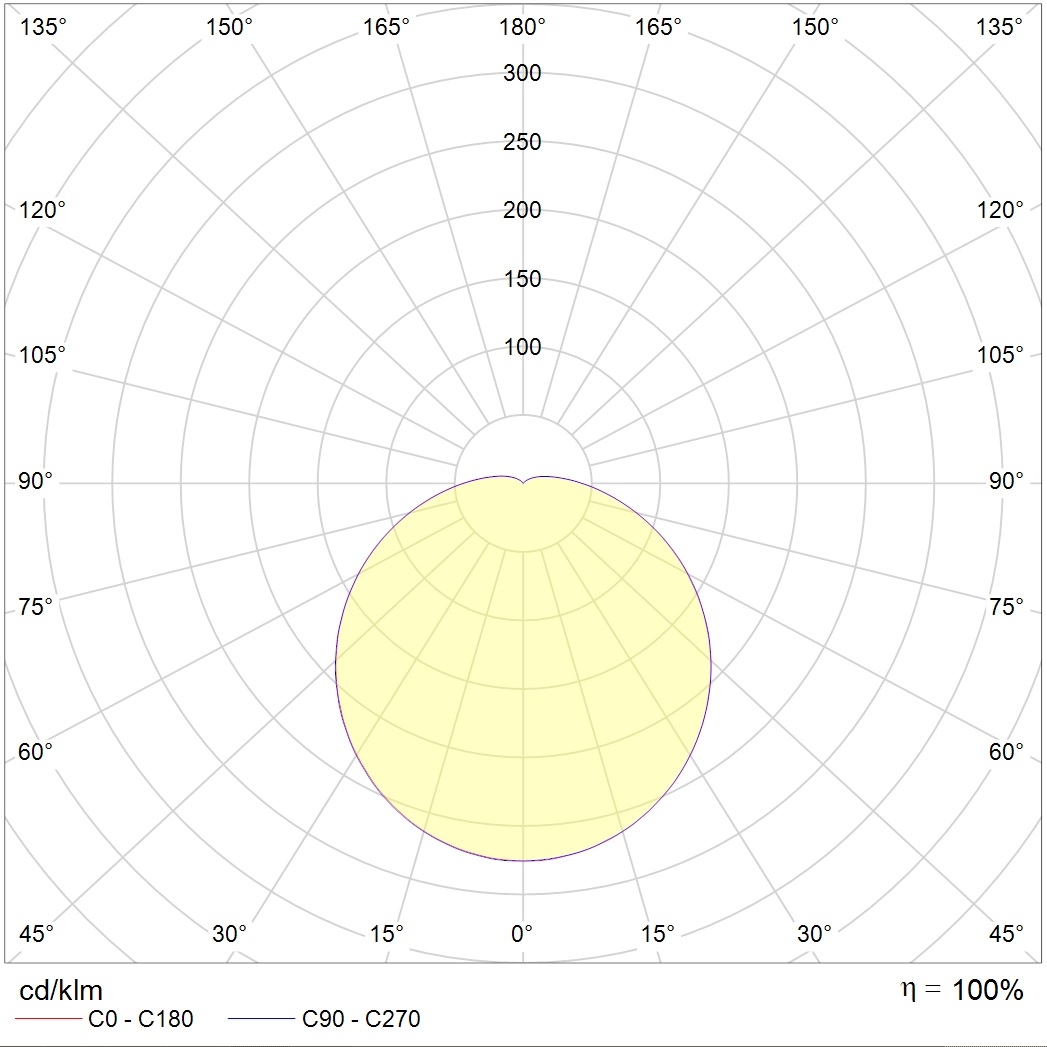

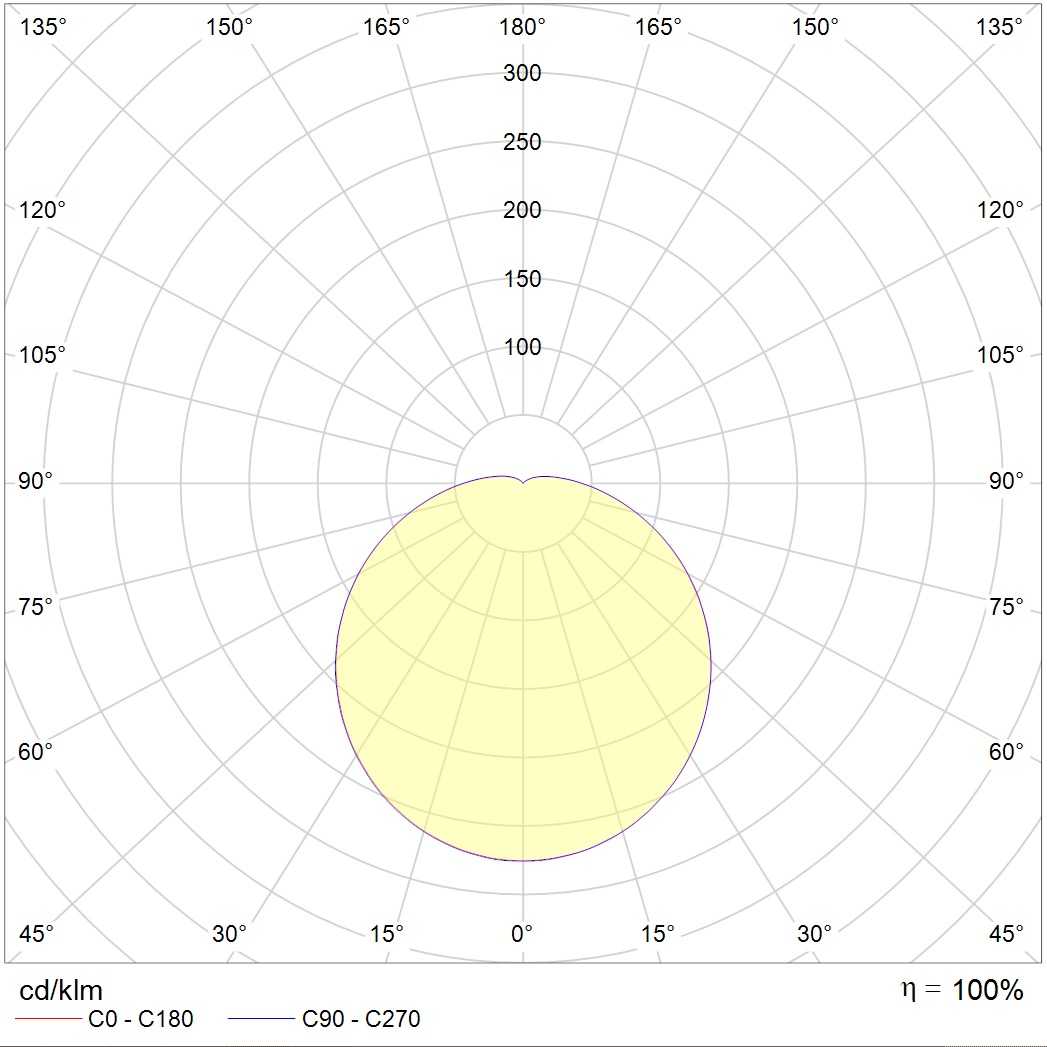

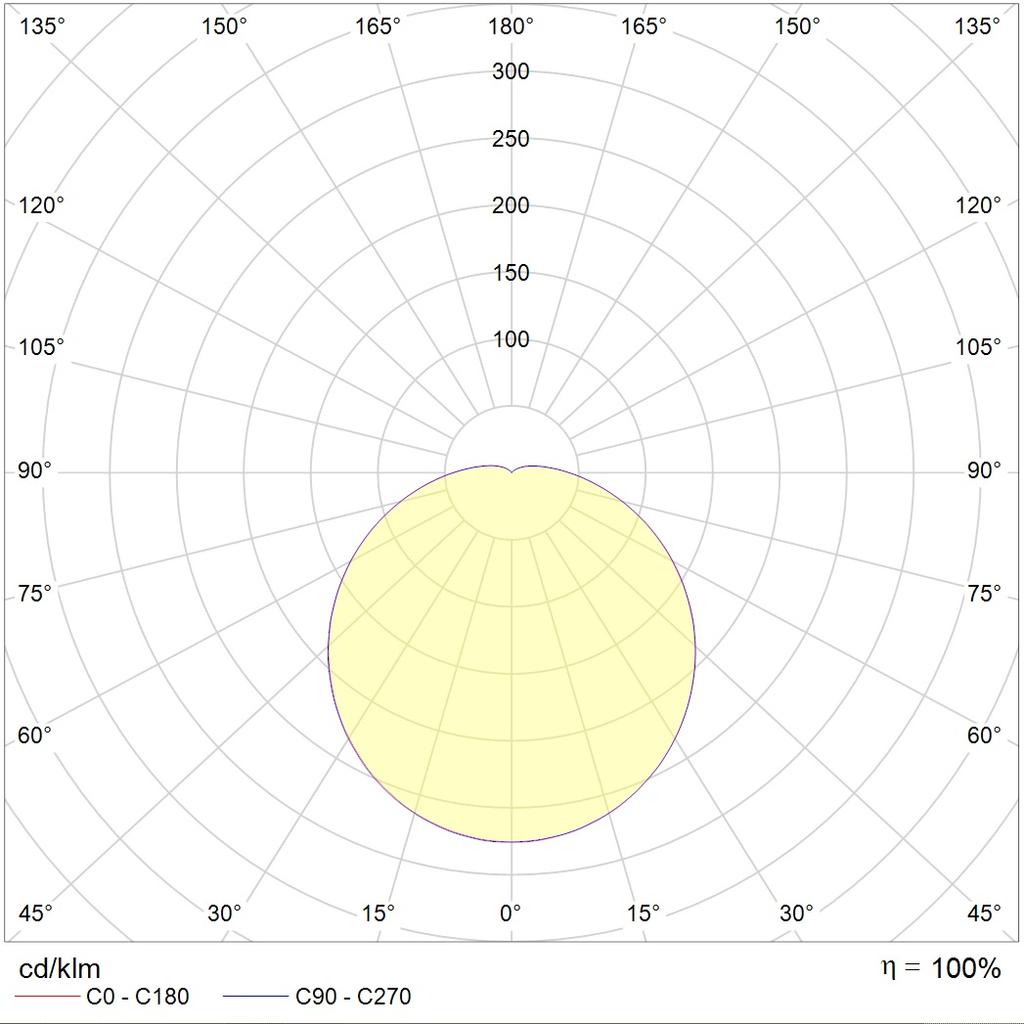

photometric files
documents
сертификаты
photometric files
ies263.2 kB
jpg162 kB
ldt215.9 kB
csv416 B
documents
passport777.7 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.6 mB
Declaration of Conformity EAEU TR 037/2016595.1 kB
Fire Safety Certificate2.5 mB
