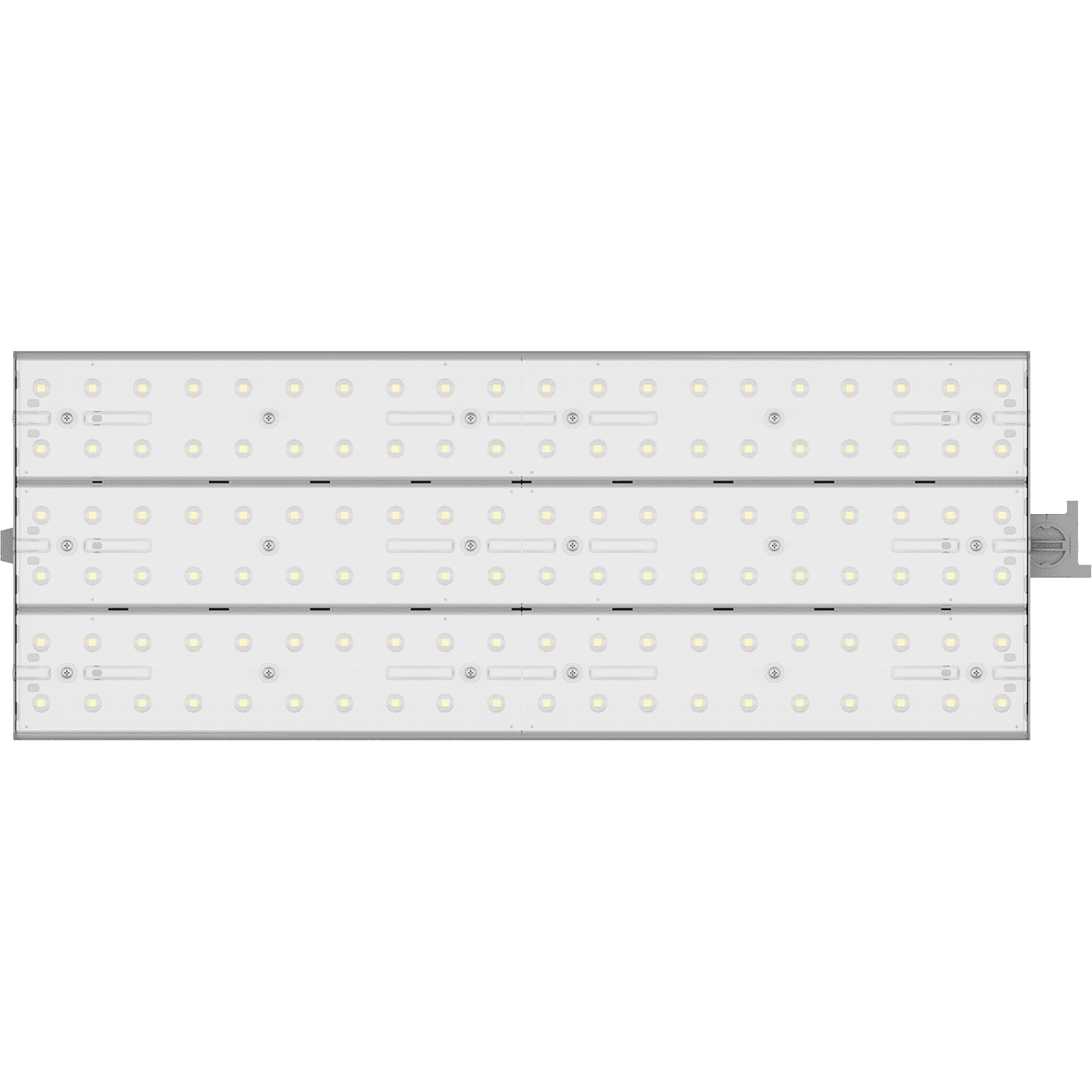

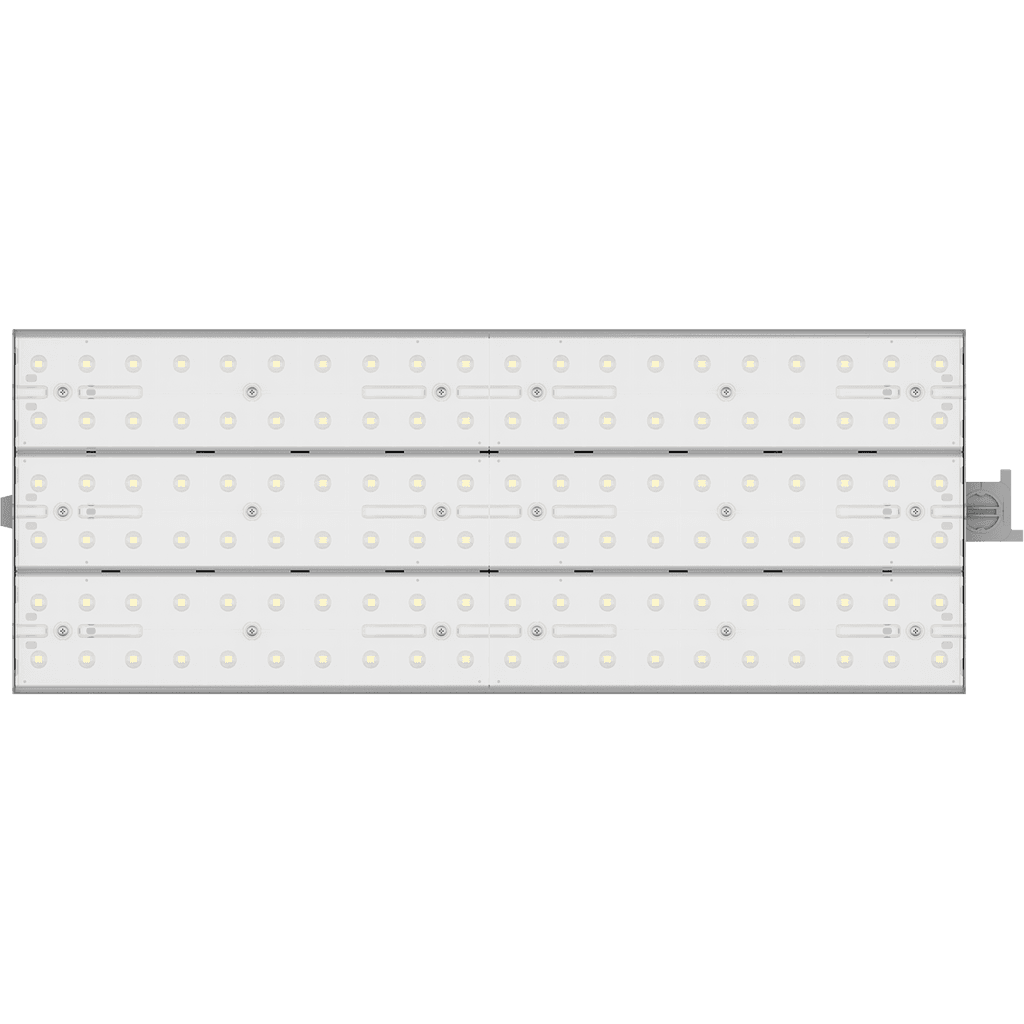

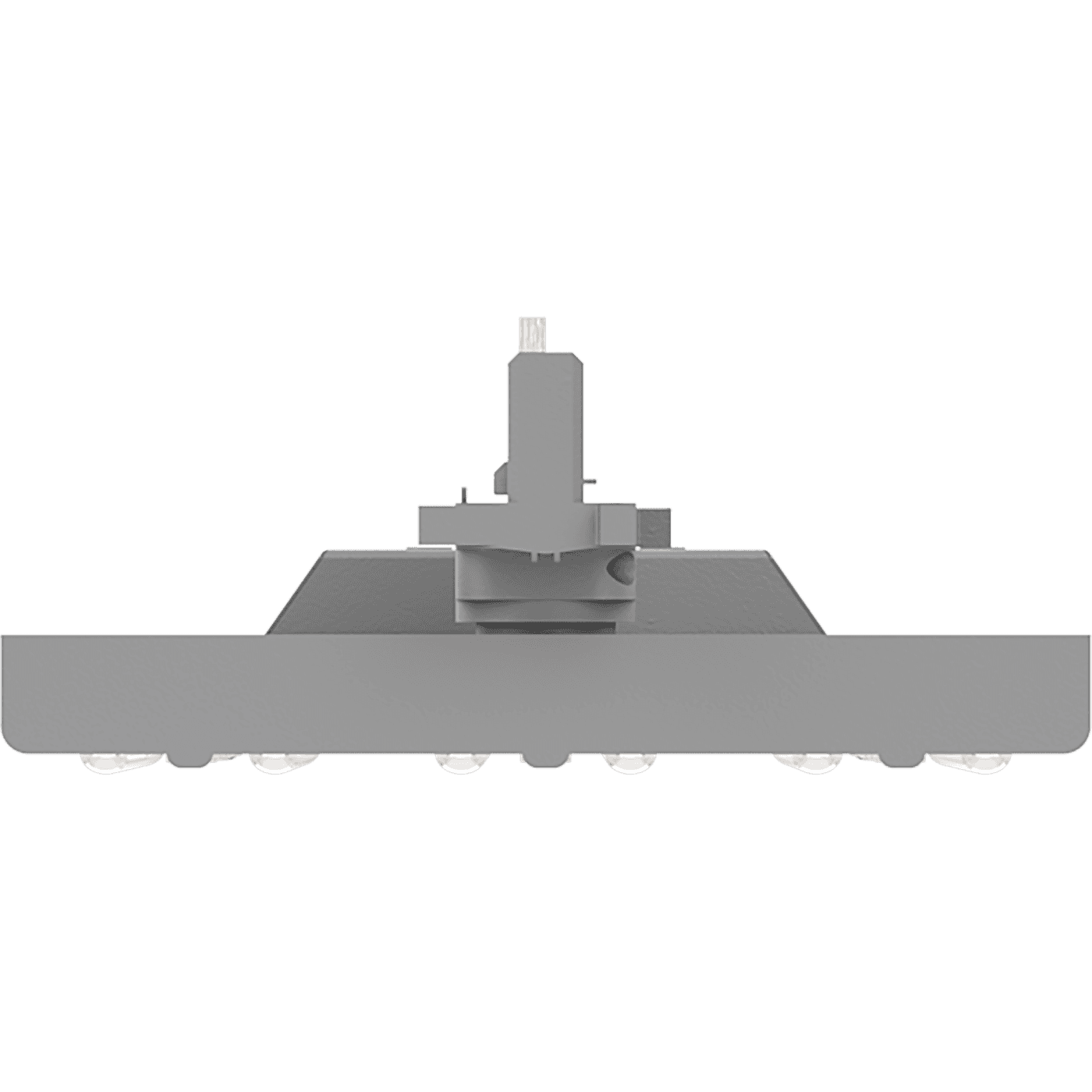

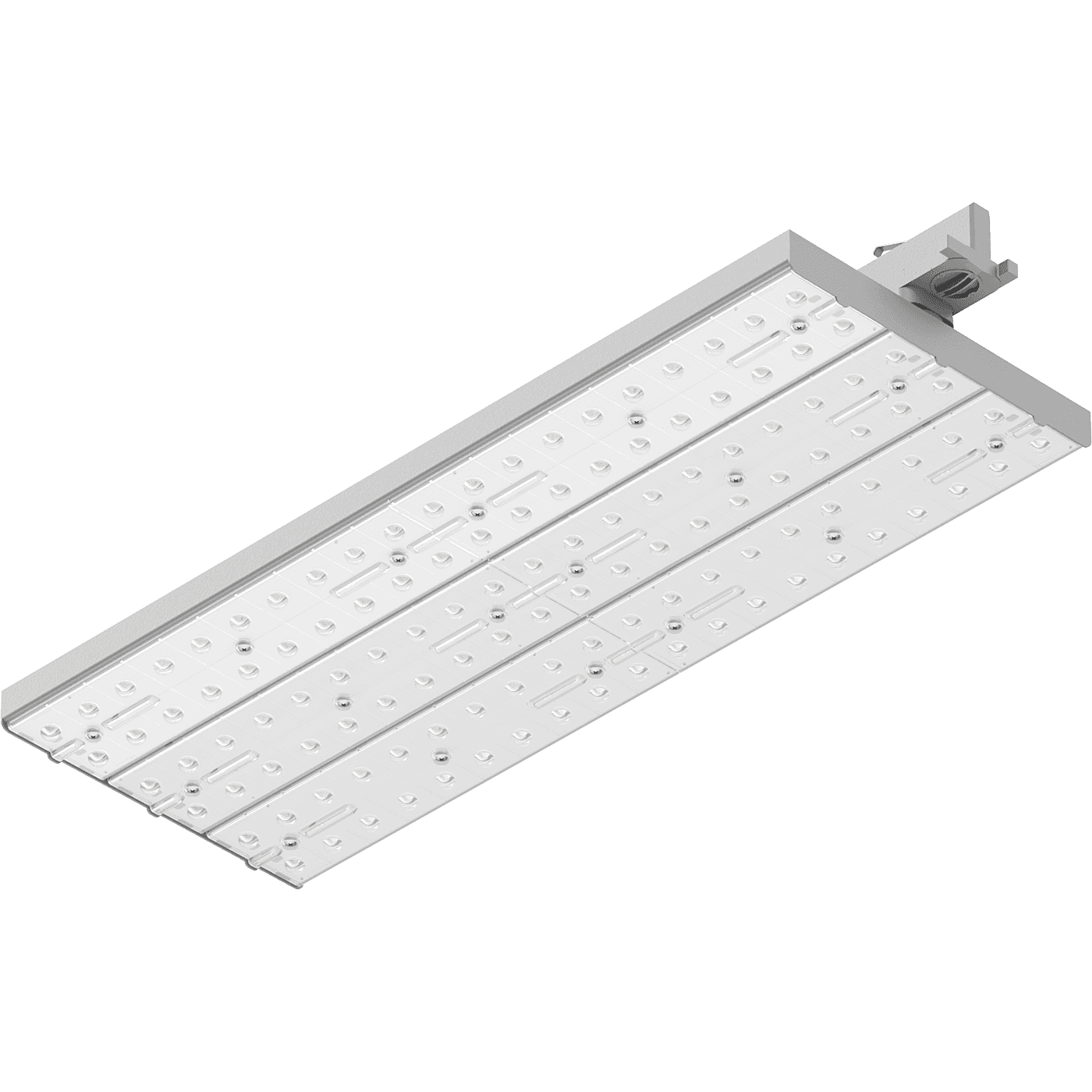

DOMINO LED PANEL/T (500) 65 D90 3000K (RAL 7005)

model is discontinued
model is discontinued
DOMINO LED PANEL/T (500) 65 D90 3000K (RAL 7005)
64 Wluminaire power
8300 lmlight flow
130 lm/Wenergy efficiency
code1232000400
color temperature3000 K
beam angleD90
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
130 lm/W
color rendition index (CRI)
>80
light flow
8300 lm
flickering factor
<5%
beam angle
D90
color temperature
3000 K
light source type
LED
emission color
Белый
illuminating
energy efficiency
130 lm/W
color rendition index (CRI)
>80
light flow
8300 lm
flickering factor
<5%
beam angle
D90
color temperature
3000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
1500 µs
electric shock protection
I
luminaire power
64 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
3 A
constructional
length
504 mm
width
193 mm
height
40 mm
installation length
465 mm
weight
2.5 kg
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
material
Сталь
housing color
Серый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
36 month
temperature range
от +5 до +35 C
service life
50 000 h
energy efficiency class
A+
ETIM class
Прожектор / Светильник направленного света
code
1232000400
model files
model files

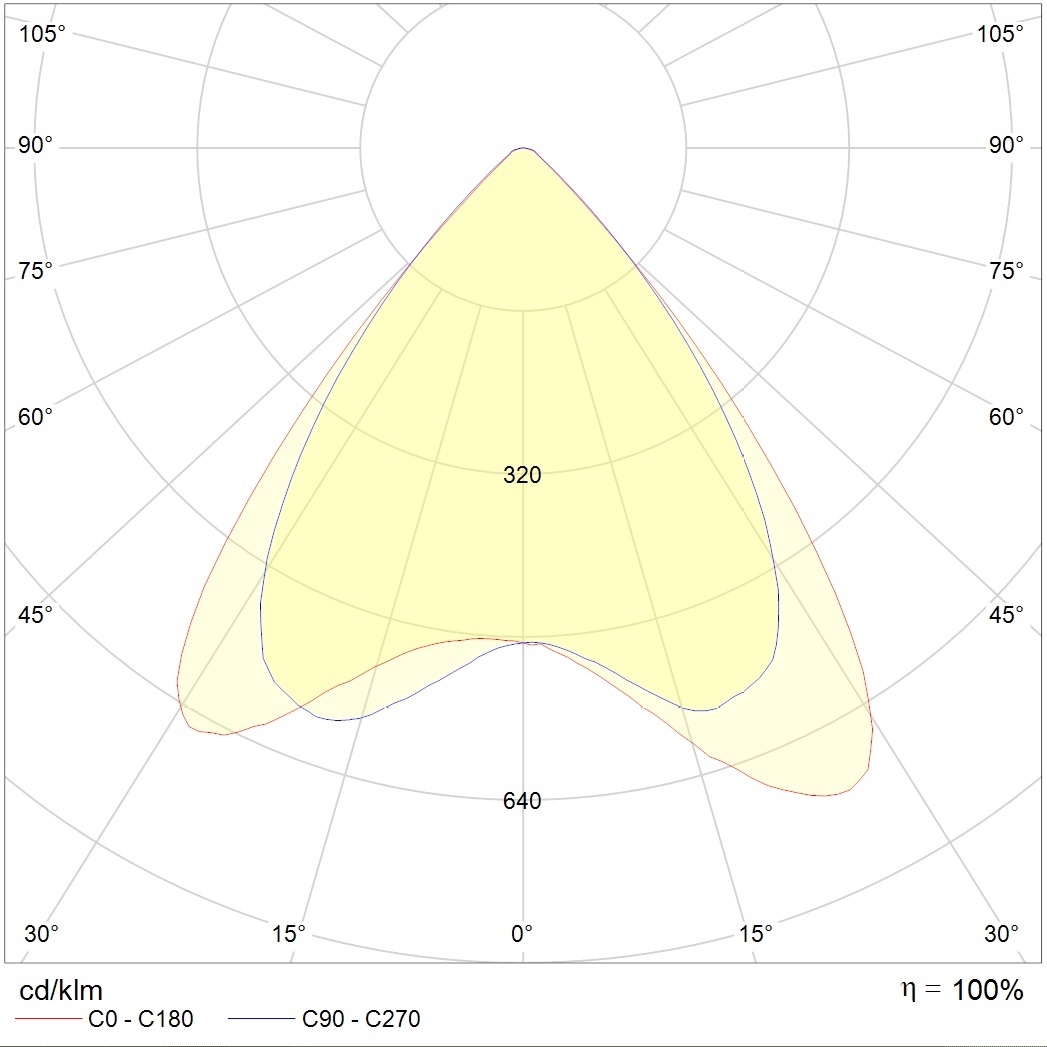

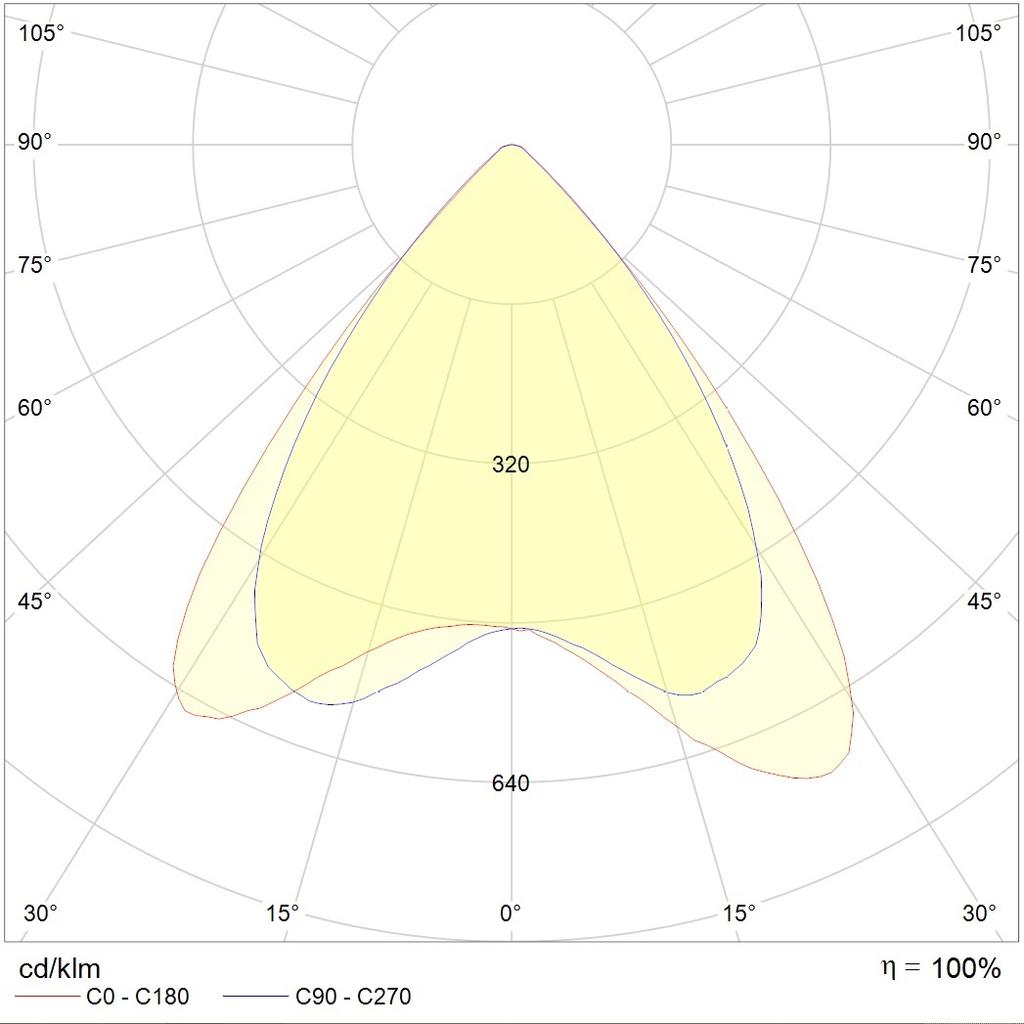

photometric files
