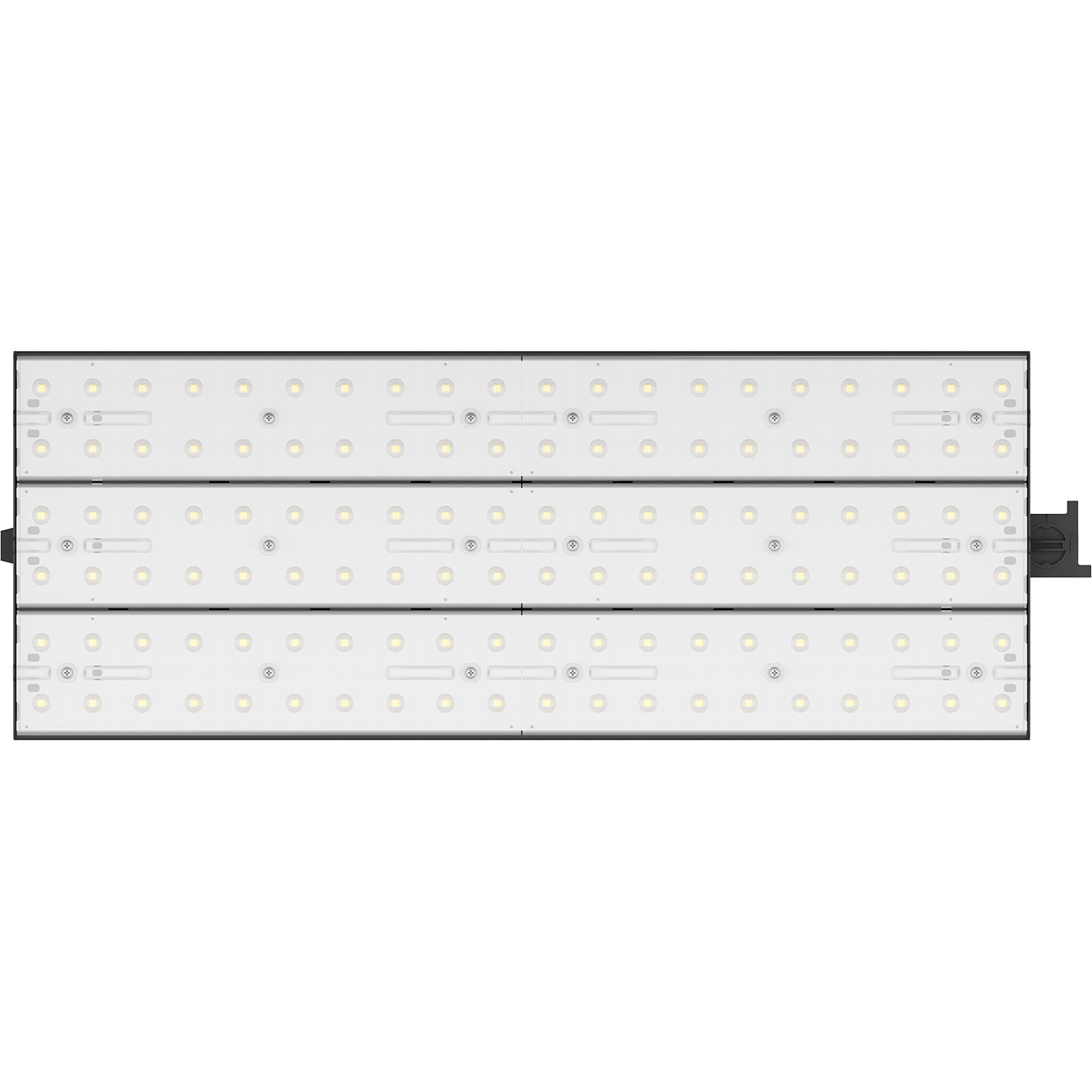

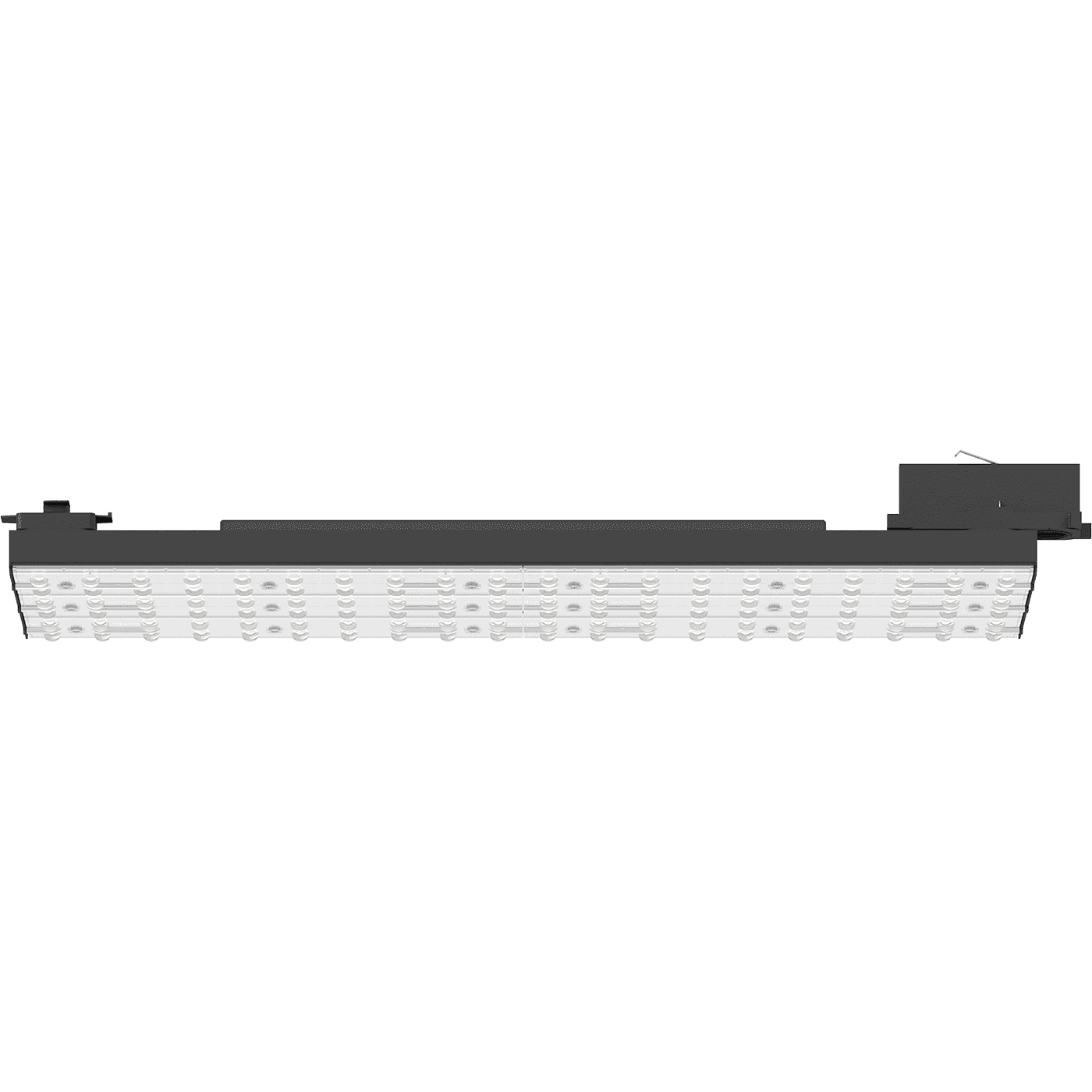

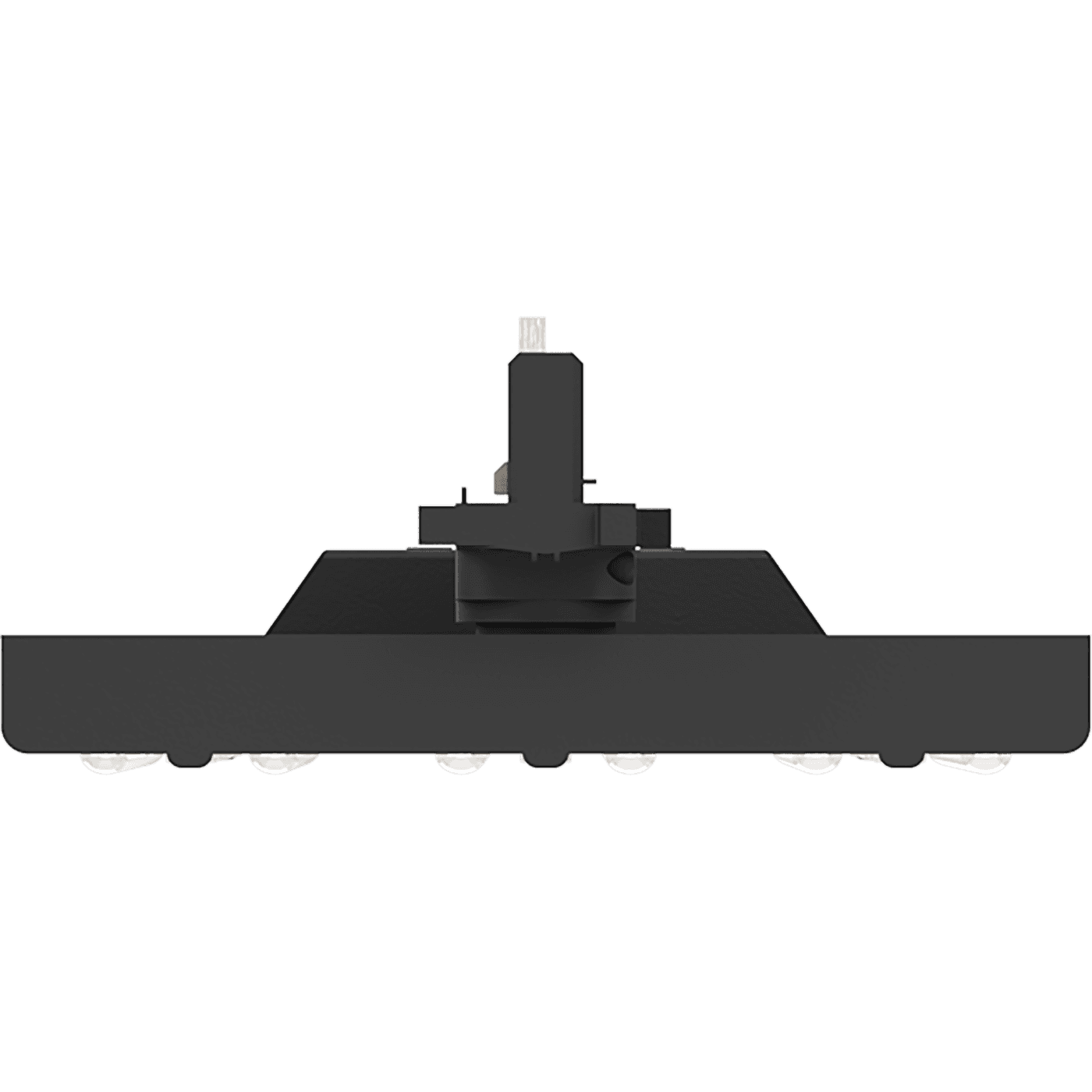

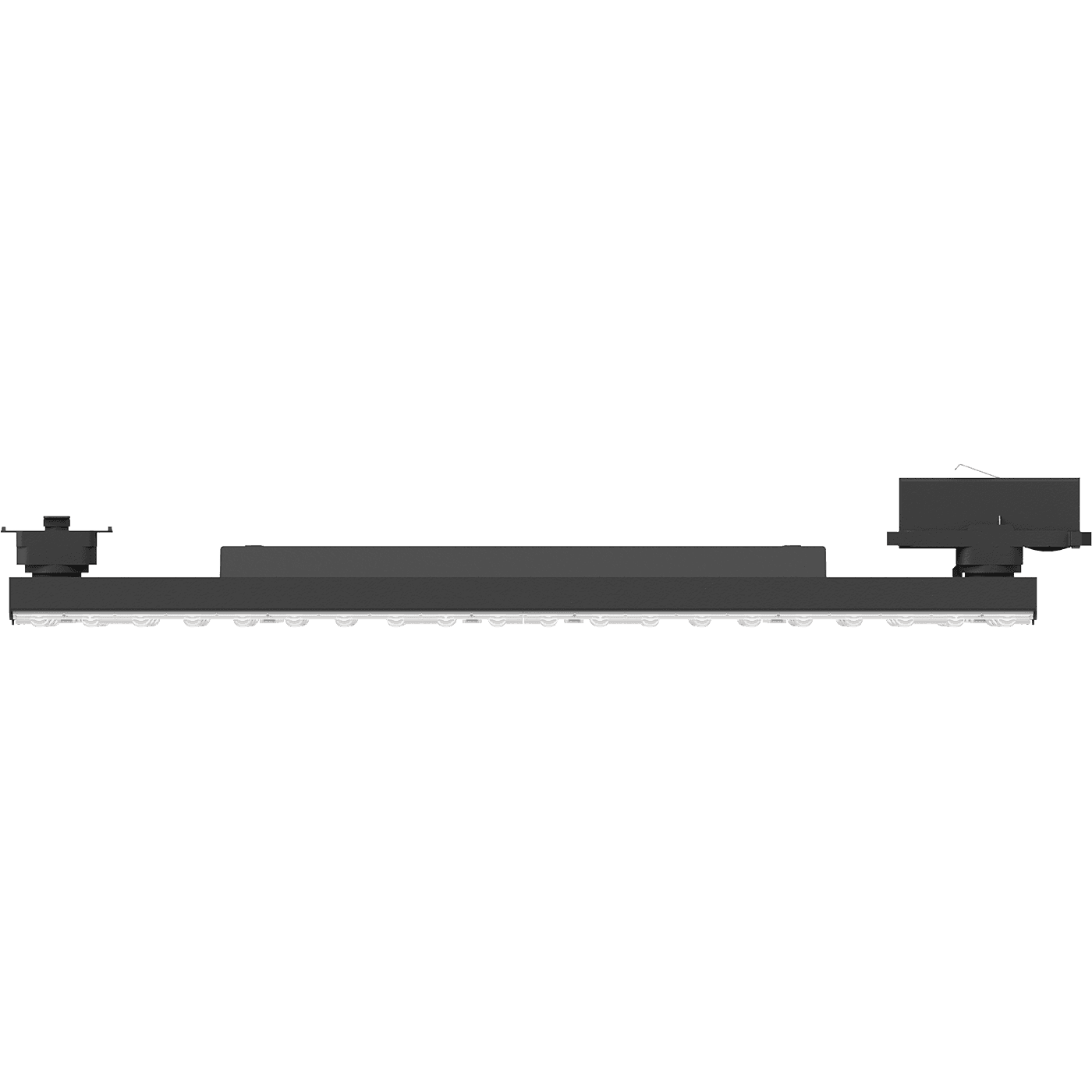

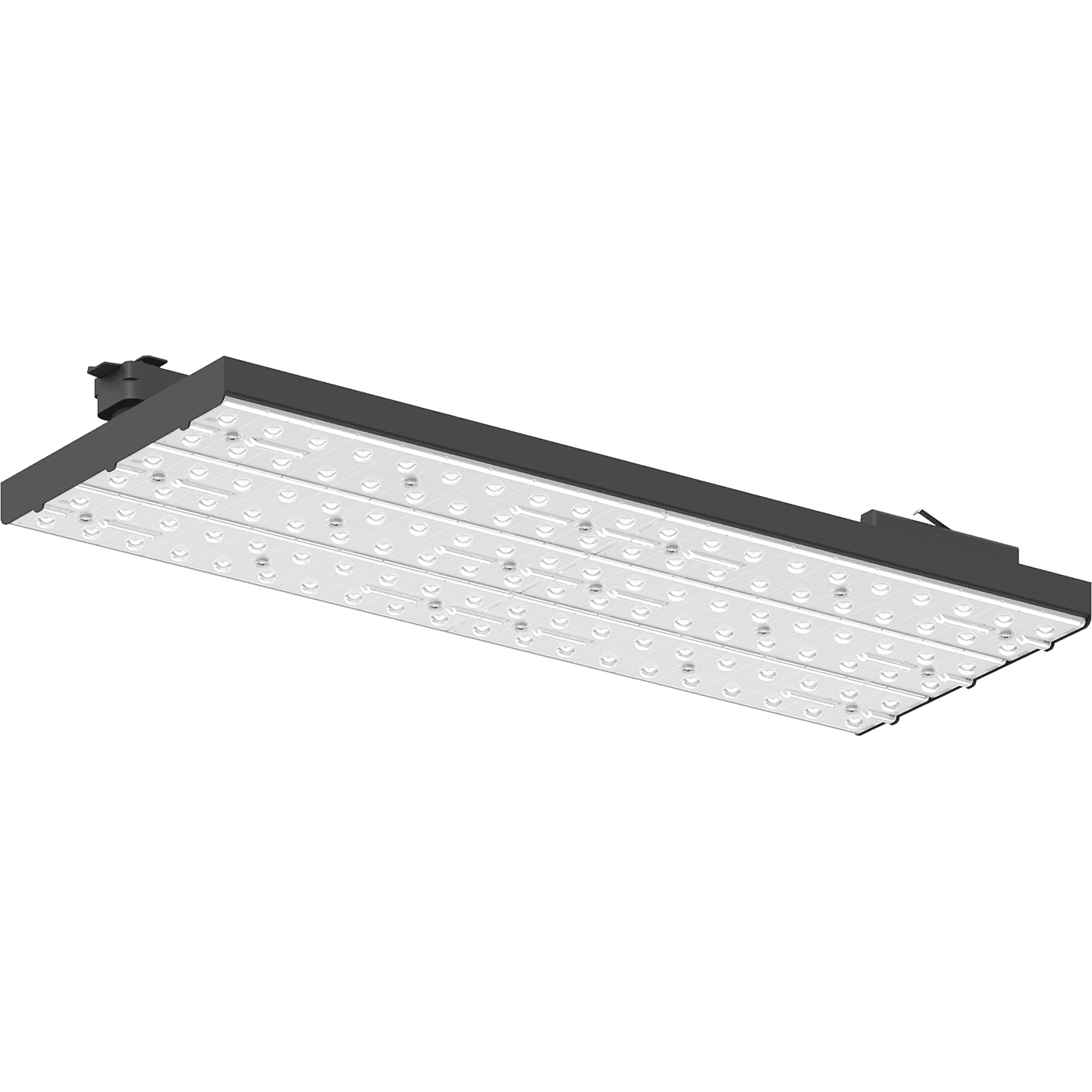

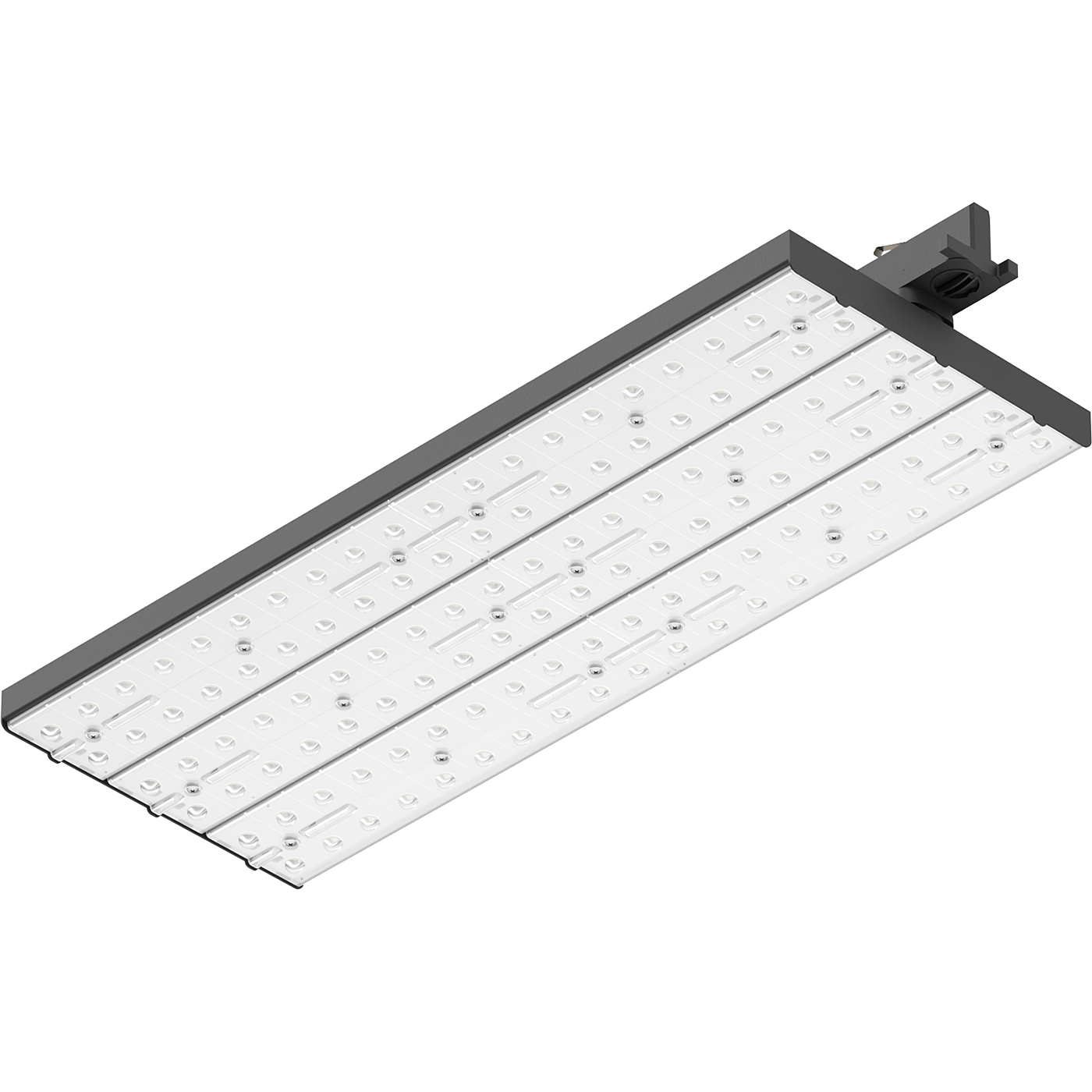

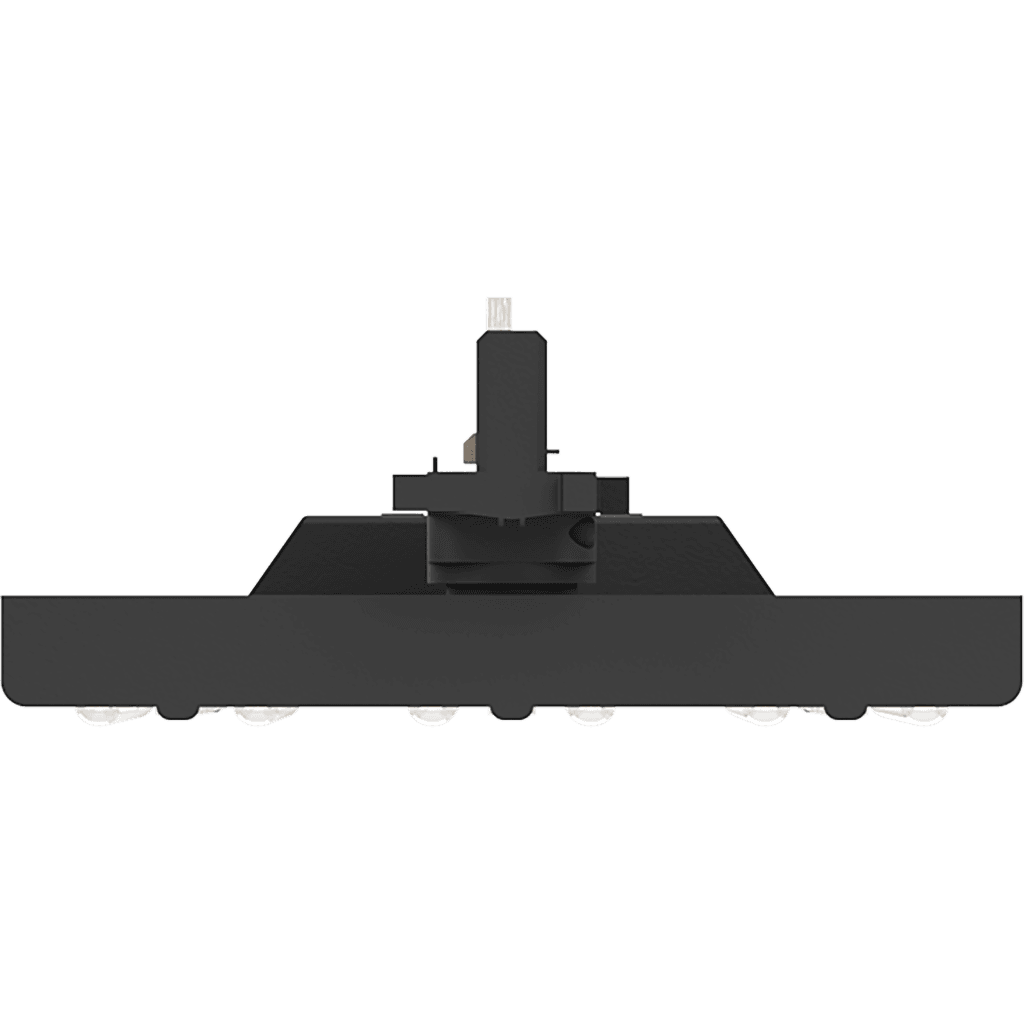

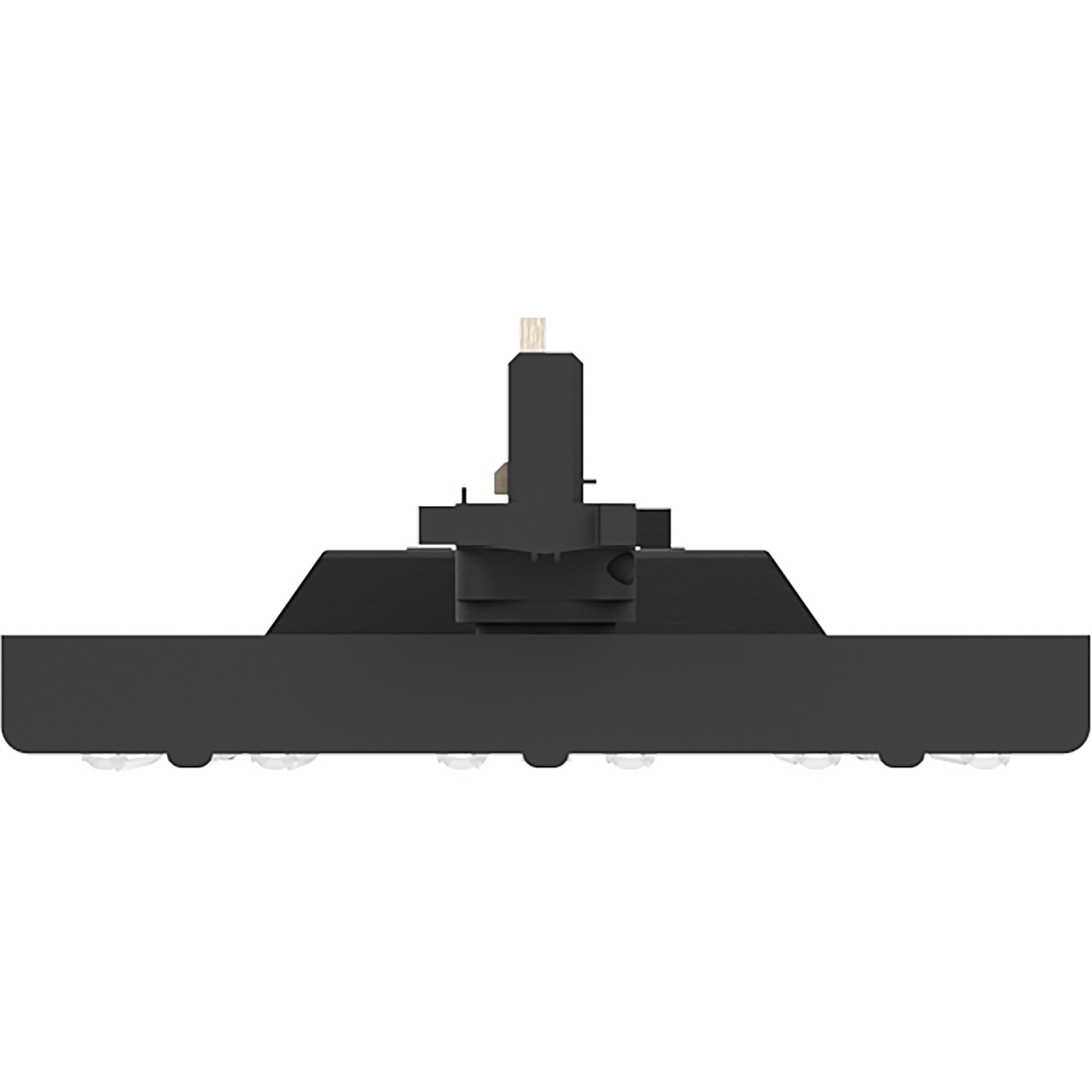

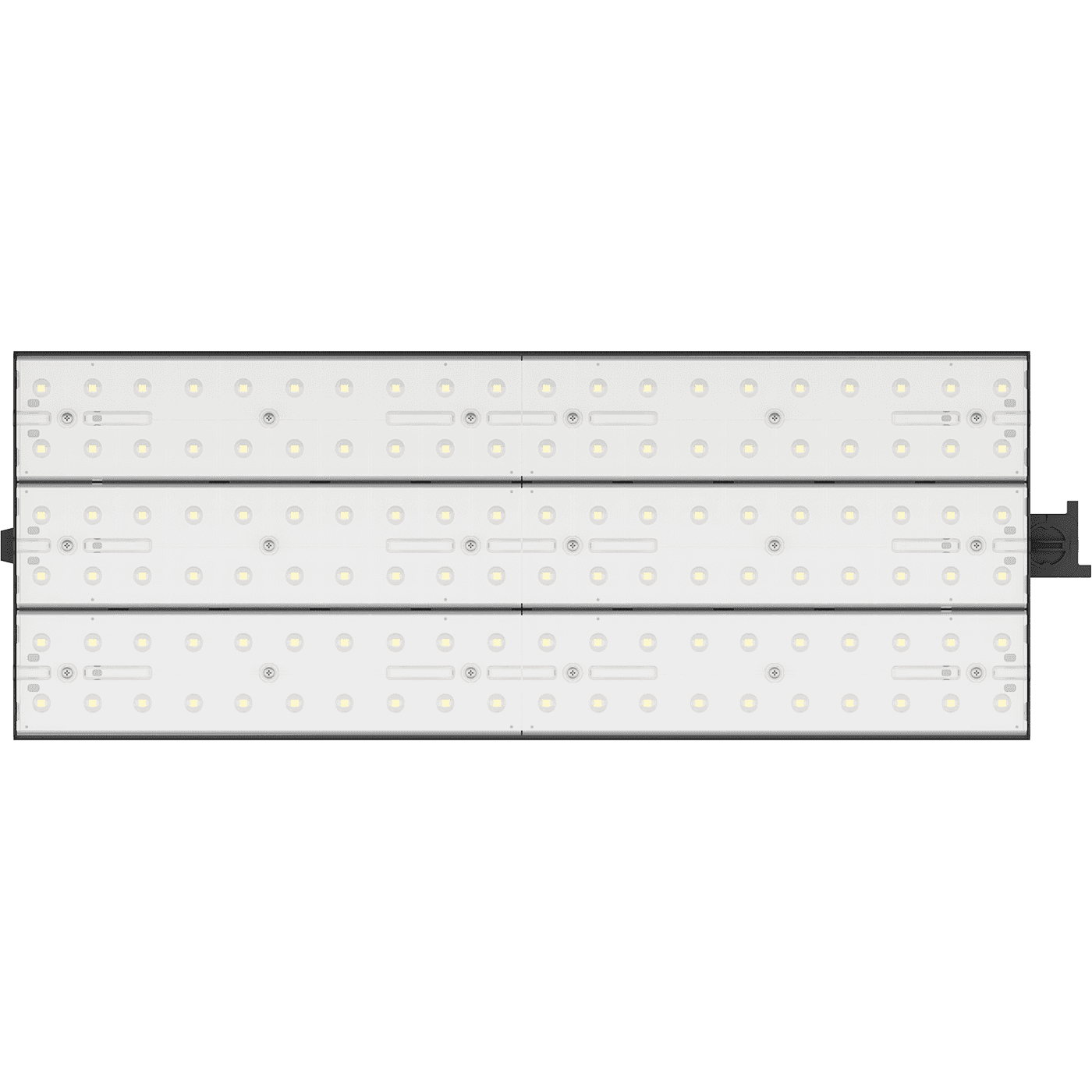

DOMINO LED PANEL/T (500) 40 BL D90 4000K rotary (CM)
model is discontinued
model is discontinued
DOMINO LED PANEL/T (500) 40 BL D90 4000K rotary (CM)
48 Wluminaire power
6700 lmlight flow
140 lm/Wenergy efficiency
code1232000490
color temperature4000 K
beam angleD90
old nameDOMINO LED PANEL/T (500) 40 BL D90 4000K rotary (СМ)
performance factor100
options
свернуть все
illuminatingelectricalconstructionalemergencycommon
energy efficiency
140 lm/Wcolor rendition index (CRI)
>80light flow
6700 lmflickering factor
<1%beam angle
D90color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
140 lm/W
color rendition index (CRI)
>80
light flow
6700 lm
flickering factor
<1%
beam angle
D90
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
250 µs
electric shock protection
I
luminaire power
48 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
30 A
constructional
length
504 mm
width
193 mm
height
53 mm
weight
3.7 kg
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
fire safety class
П-I,II,ІІІ
material
Сталь
housing color
Черный
lamp socket
LED
number of lamps
1
ballast
Драйвер
emergency
battery / battery Ni-Cd
Нет аккумулятора
common
warranty
36 month
temperature range
от +5 до +35 C
service life
50 000 h
energy efficiency class
A++
ETIM class
Прожектор / Светильник направленного света
code
1232000490
