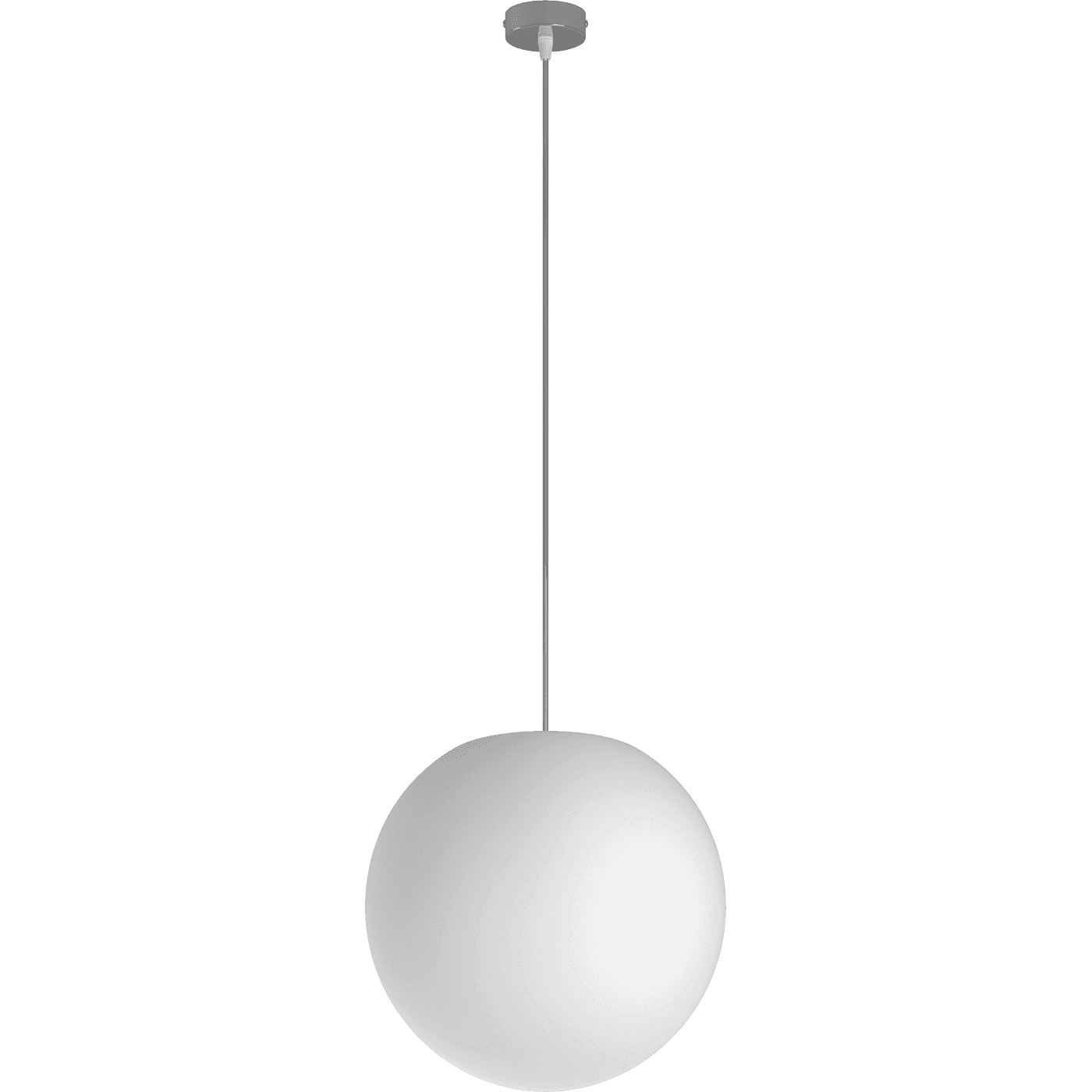

DIADEM/P (500) 840 WH PE
DIADEM/P (500) 840 WH PE
25 Wluminaire power
4000 lmlight flow
160 lm/Wenergy efficiency
code1454000160
color temperature4000 K
beam angleD170
old nameDIADEM PE F LED 500 WH 4000K
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
160 lm/Wcolor rendition index (CRI)
>80light flow
4000 lmflickering factor
<5%beam angle
D170color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
160 lm/W
color rendition index (CRI)
>80
light flow
4000 lm
flickering factor
<5%
beam angle
D170
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
electric shock protection
II
luminaire power
25 W
supply voltage
230 V
power factor
> 0,90
maximum cross-section of the connected cable
1.5 mm2
rated supply voltage, alternating current
230 V
constructional
diameter
485 mm
height
450 mm
installation diameter
195 mm
weight
4.3 kg
ingress protection (IP)
IP40
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
fire safety class
П-ІІІ
material
Металл, пластик
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
36 month
temperature range
от +5 до +35 C
service life
24 000 h
energy efficiency class
A++
ETIM class
Светильник подвесной
code
1454000160
