DIADEM/P (1200) 840 WH PE
_840_wh_pe.jpg&w=1920&q=50)
_840_wh_pe.jpg&w=1024&q=50)
DIADEM/P (1200) 840 WH PE
80 Wluminaire power
12200 lmlight flow
153 lm/Wenergy efficiency
code1454000190
color temperature4000
beam angleD170
old nameDIADEM PE F LED 800 WH 3000K
number of lamps1
performance factor100
options
свернуть все
electricalconstructionalcommonilluminating
supply voltage, alternating current
230 Vluminaire power
80 Welectric shock protection
IIpower factor
> 0,95supply voltage
230 Velectrical
supply voltage, alternating current
230 V
luminaire power
80 W
electric shock protection
II
power factor
> 0,95
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
1.5
ingress protection (IP)
IP40
climatic performance
УХЛ4*
fire safety class
П-ІІІ
material
Металл, стекло
weight
20.3 kg
diameter, mm
1150 mm
height, mm
1160 mm
housing color
Белый
installation length, mm
42 mm
installation width, mm
310 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
ETIM class
Светильник переносной (ручной)
warranty
36 month
temperature range
от +5 до +35 C
energy efficiency class
A++
service life, hour
24 000 h
code
1454000190
illuminating
color rendition index (CRI)
>80
light flow
12200 lm
flickering factor
<5%
energy efficiency
153 lm/W
beam angle
D170
color temperature
4000
light source type
LED
emission color
Белый
model files
model files

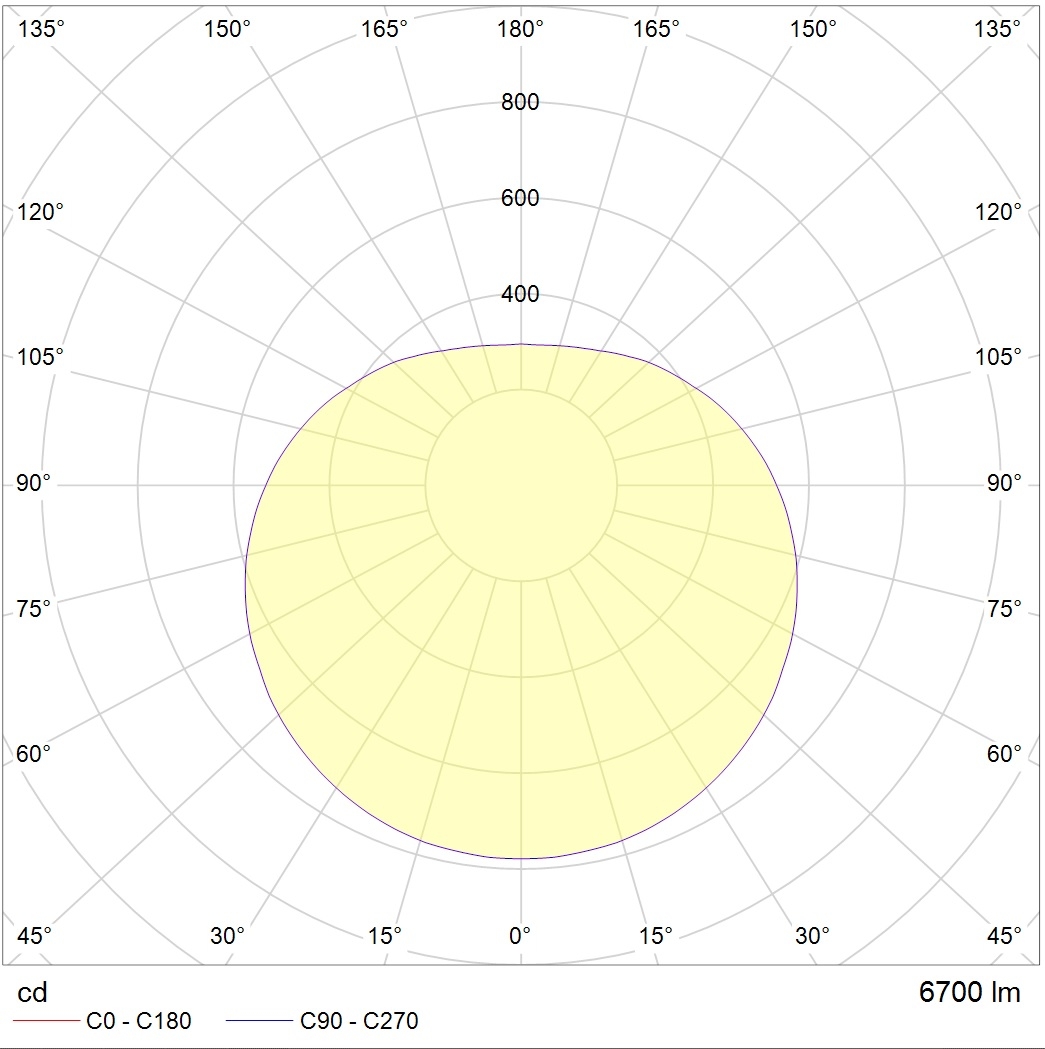

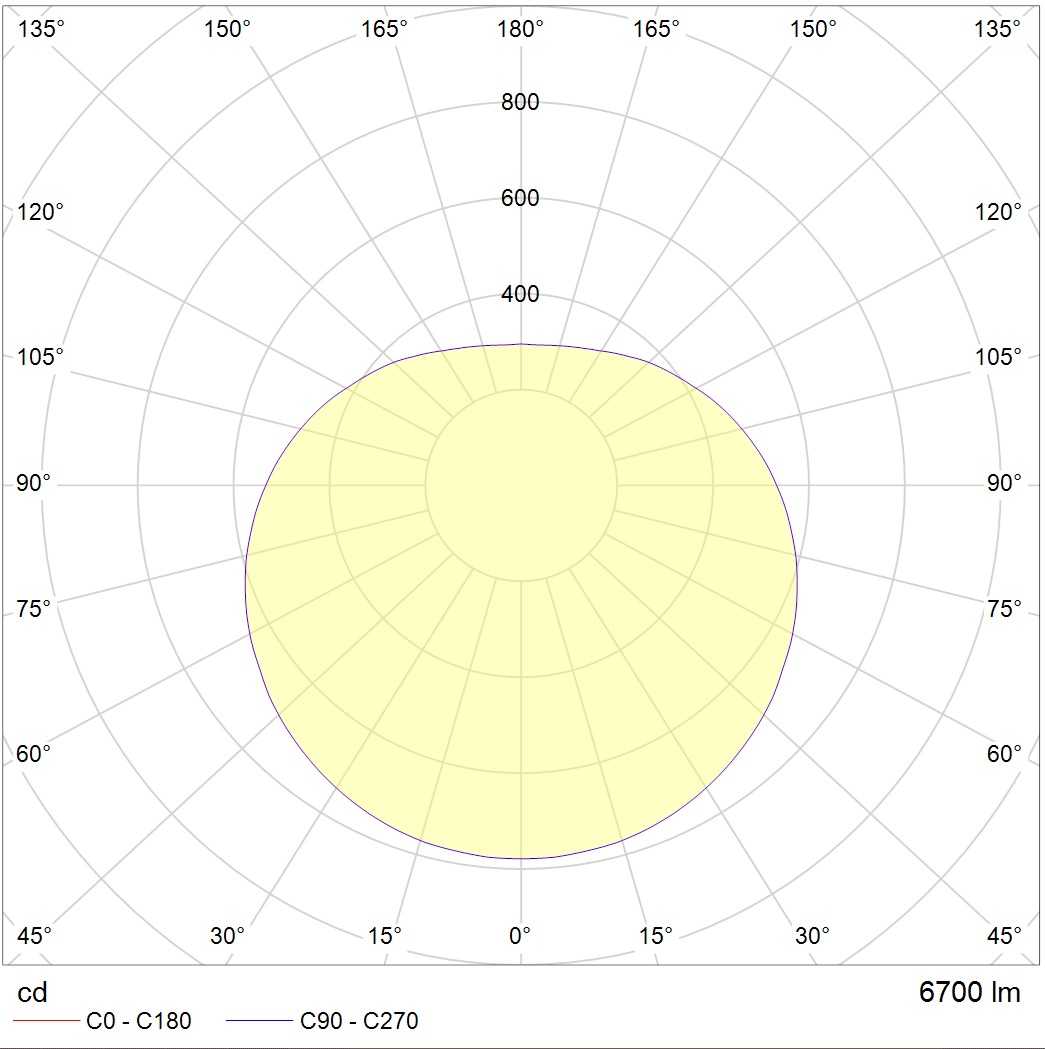

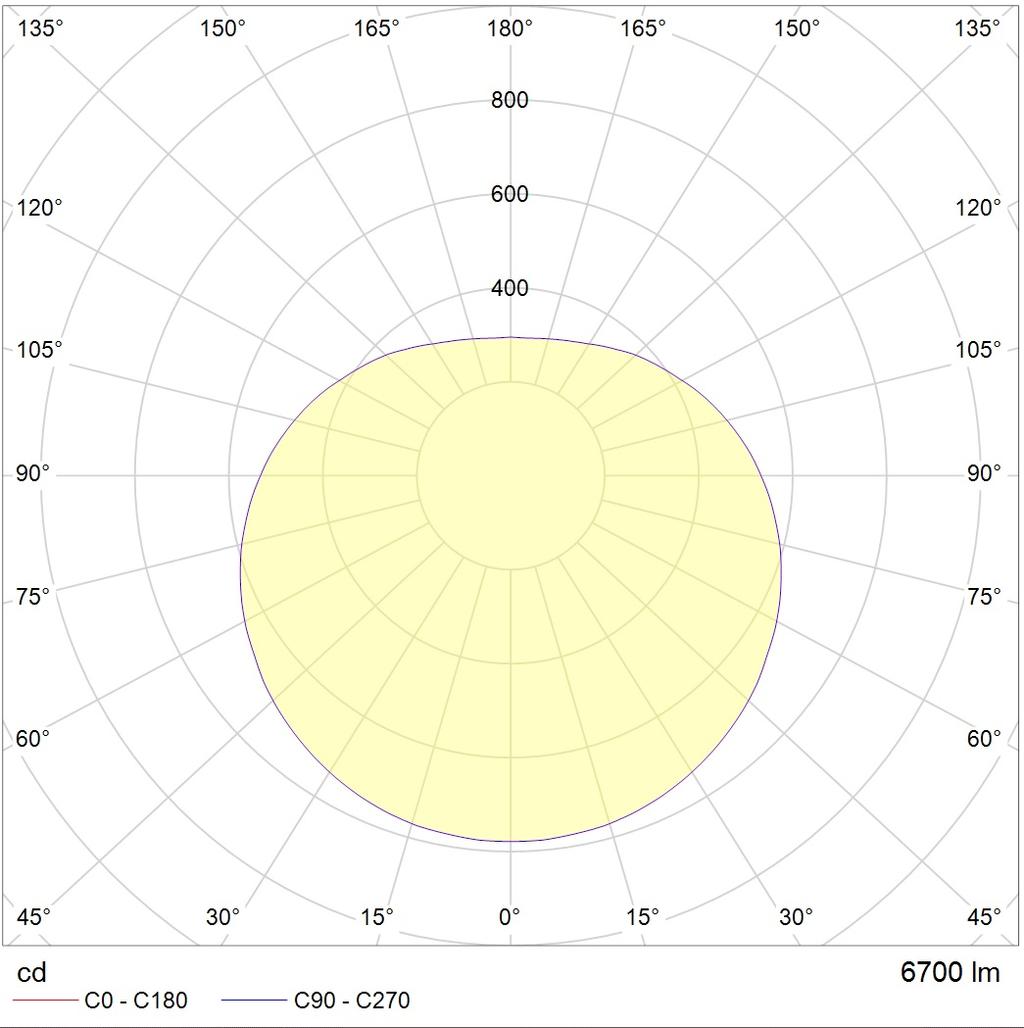

photometric files
сертификаты
photometric files
ies838 B
jpg147.3 kB
ldt684 B
сертификаты
Voluntary certificate2.7 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20112 mB
Declaration of Conformity EAEU TR 037/2016535.9 kB
Fire Safety Certificate2.5 mB
