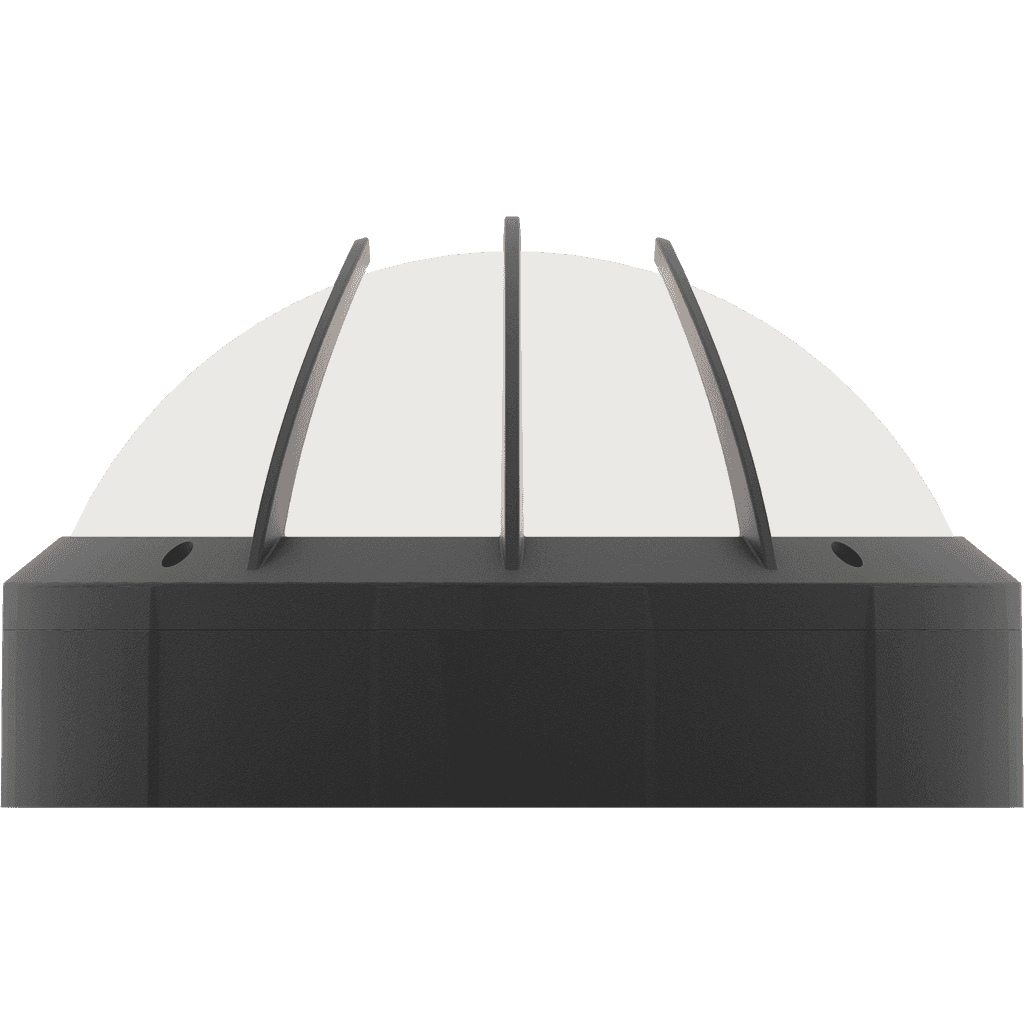

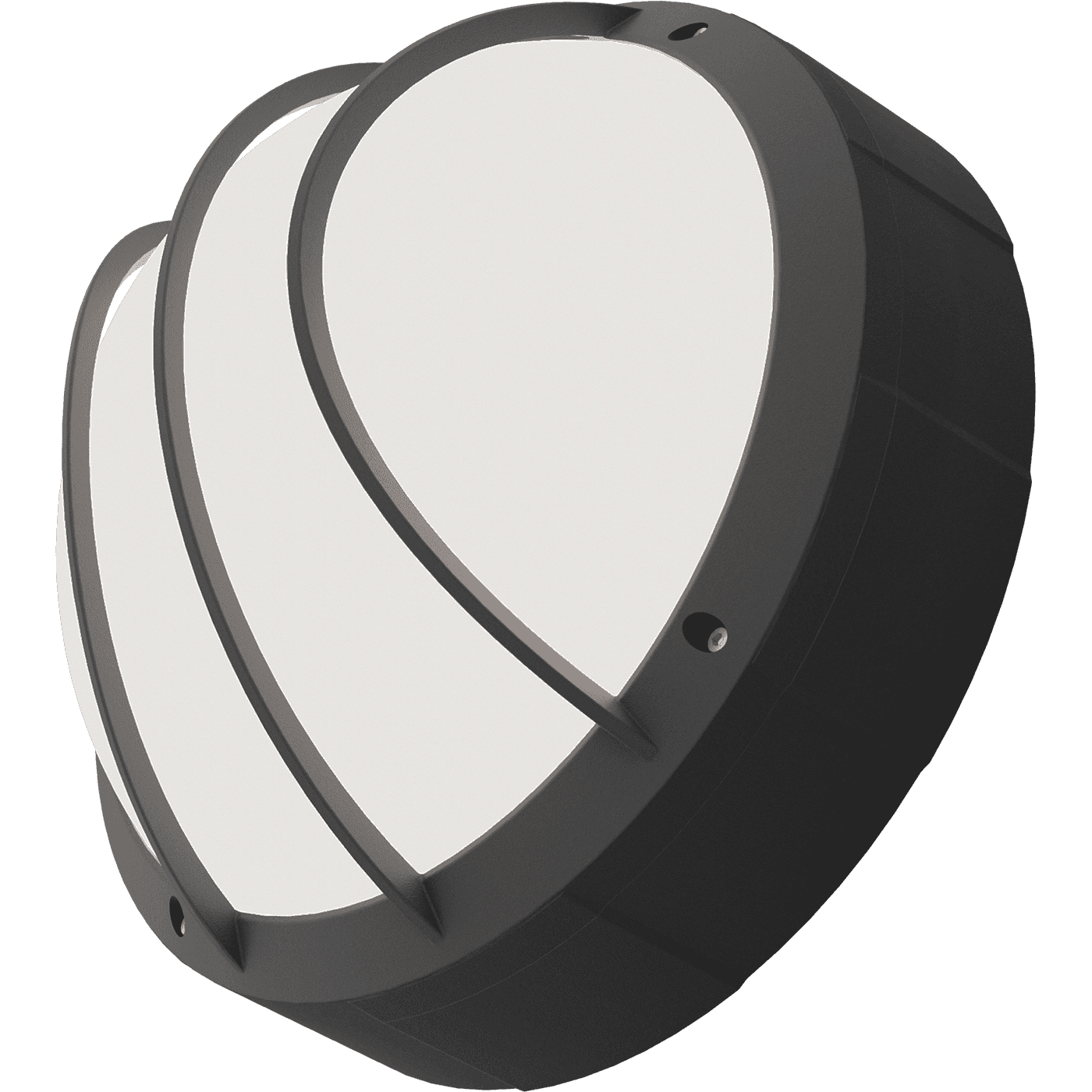

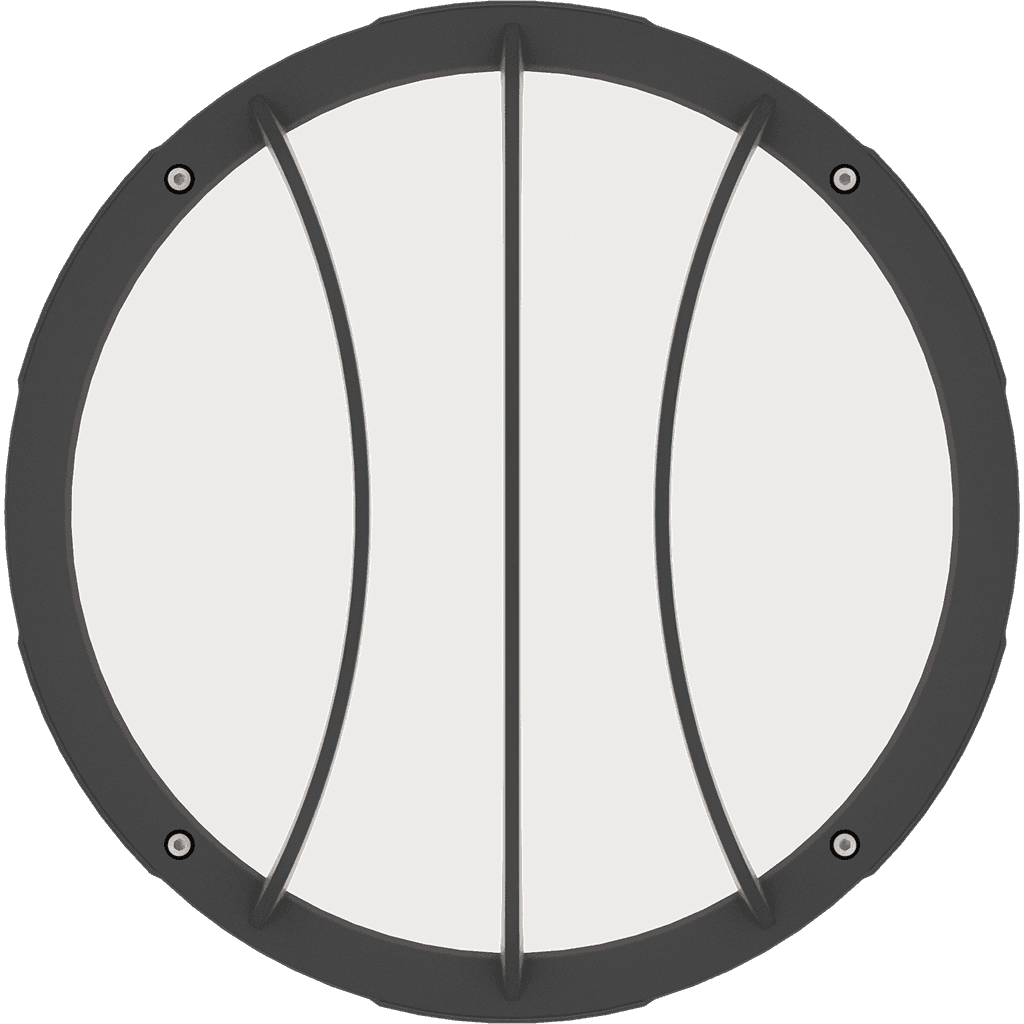

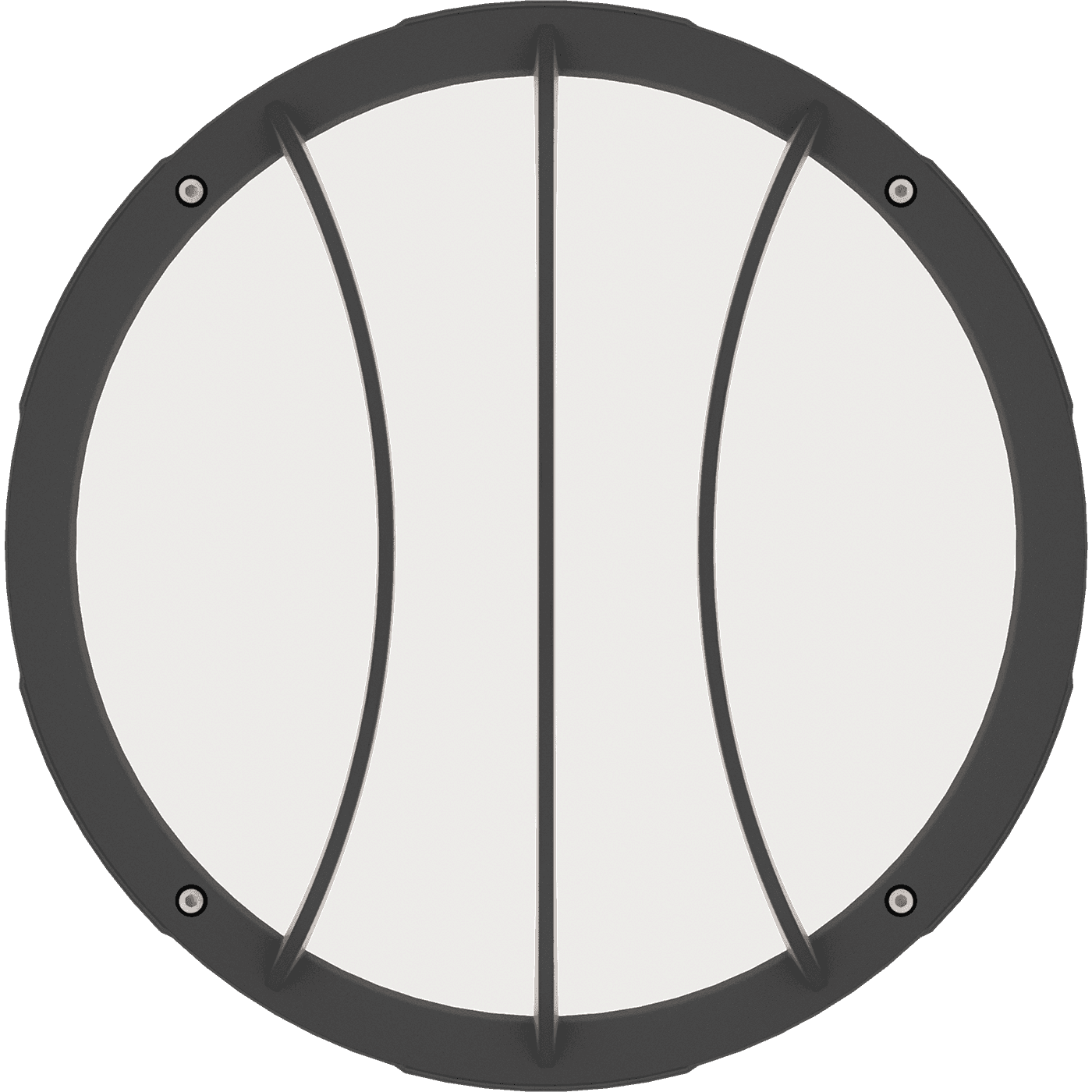

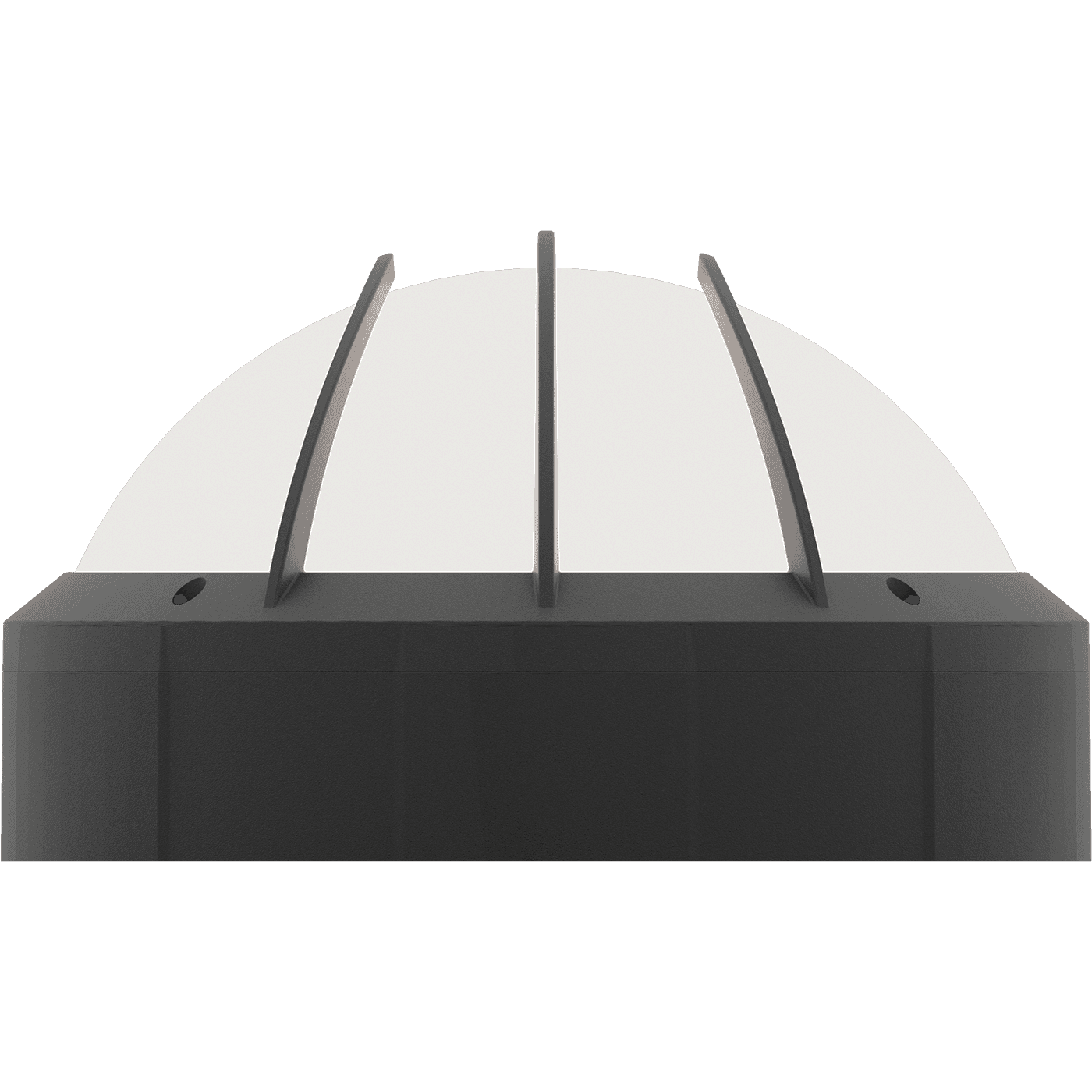

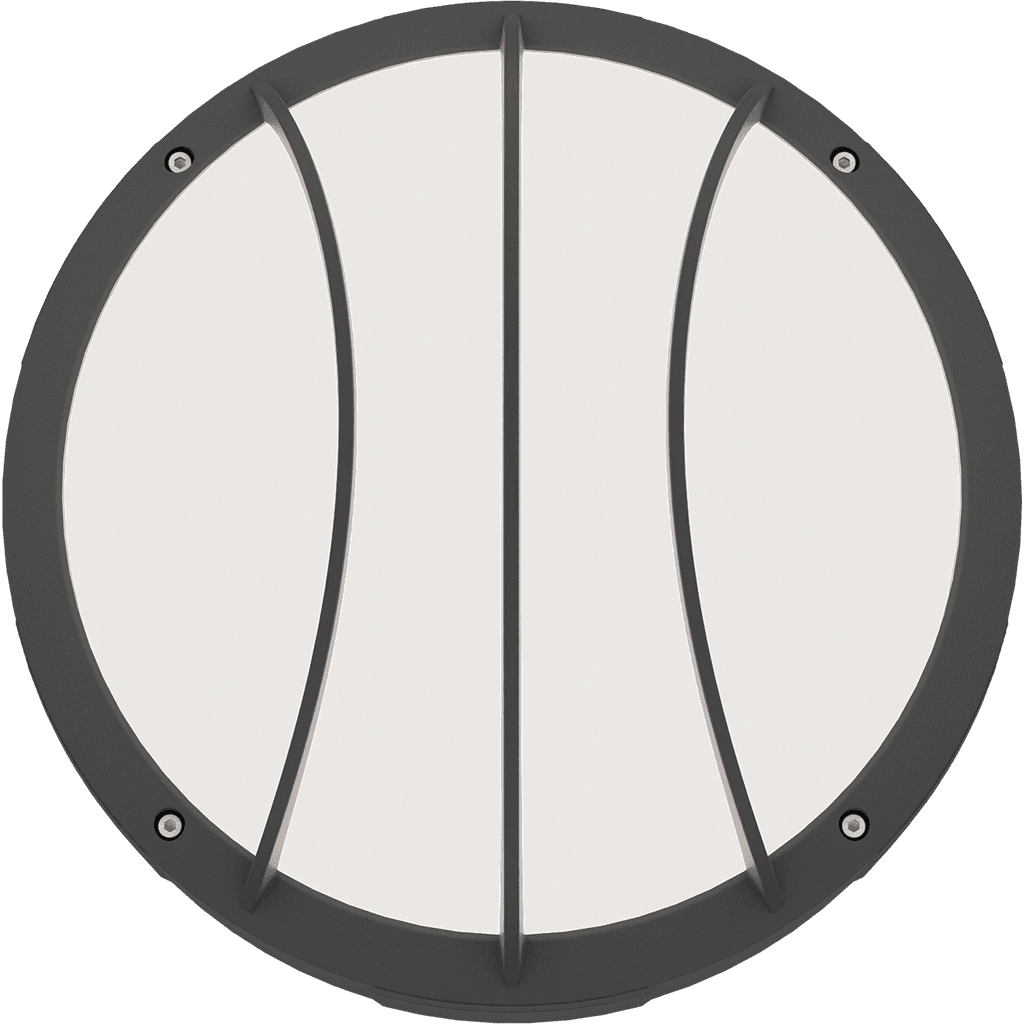

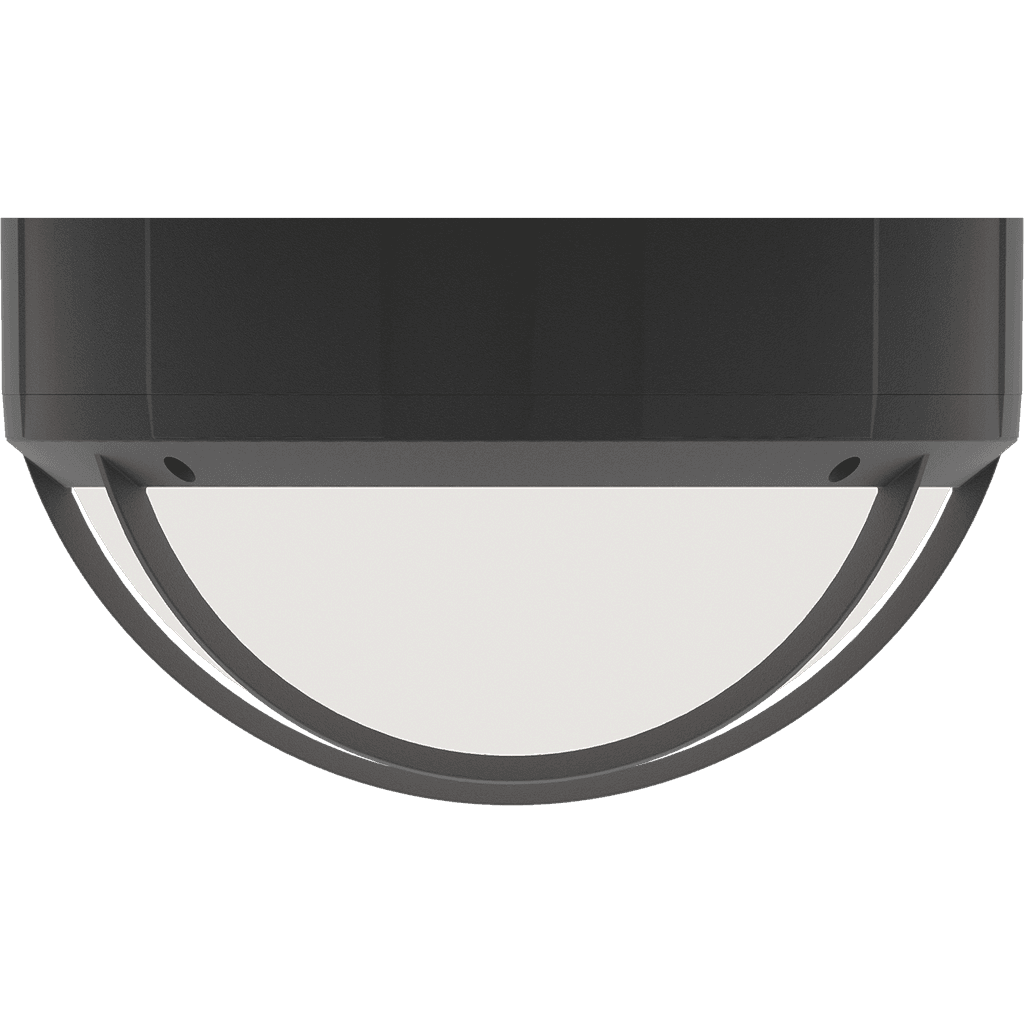

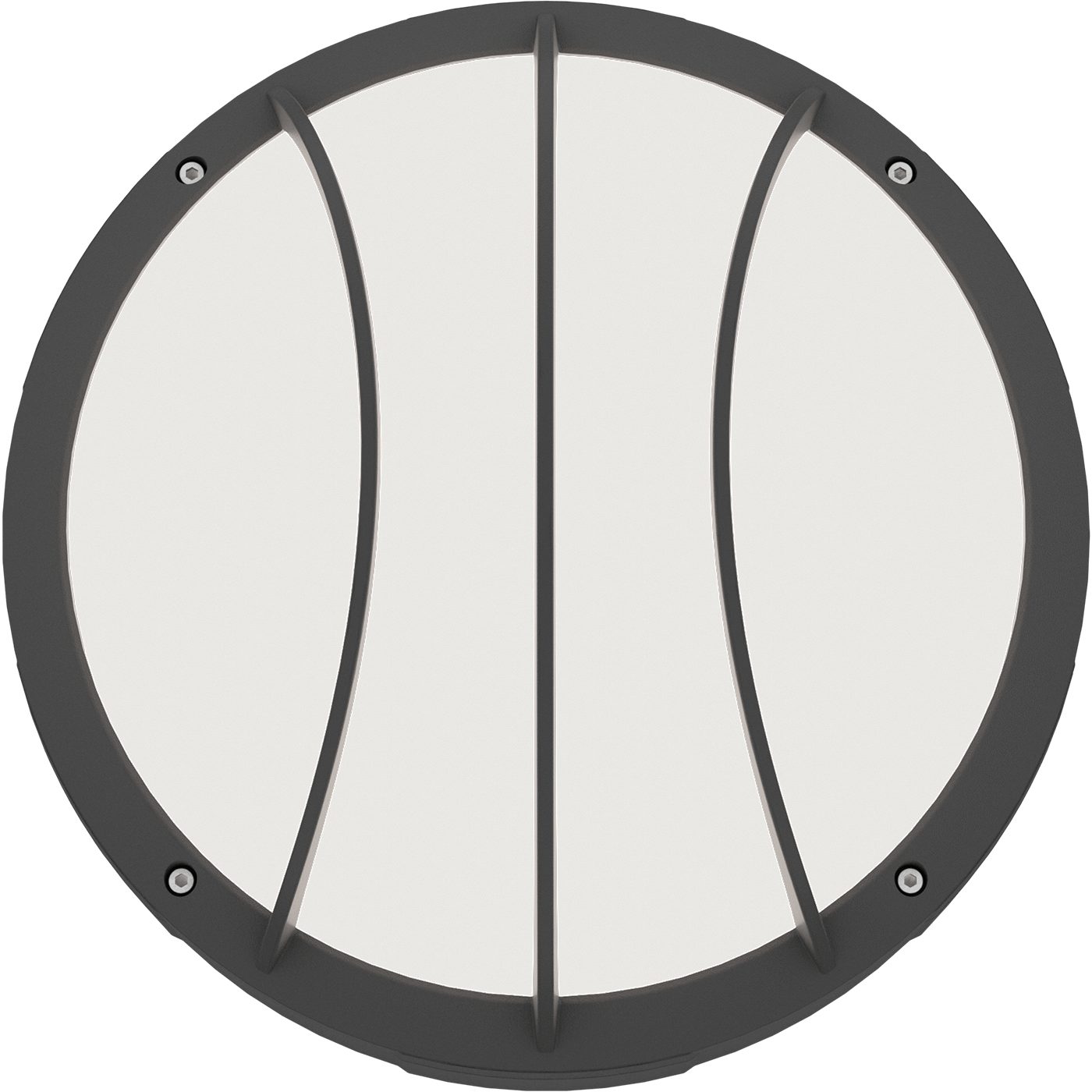

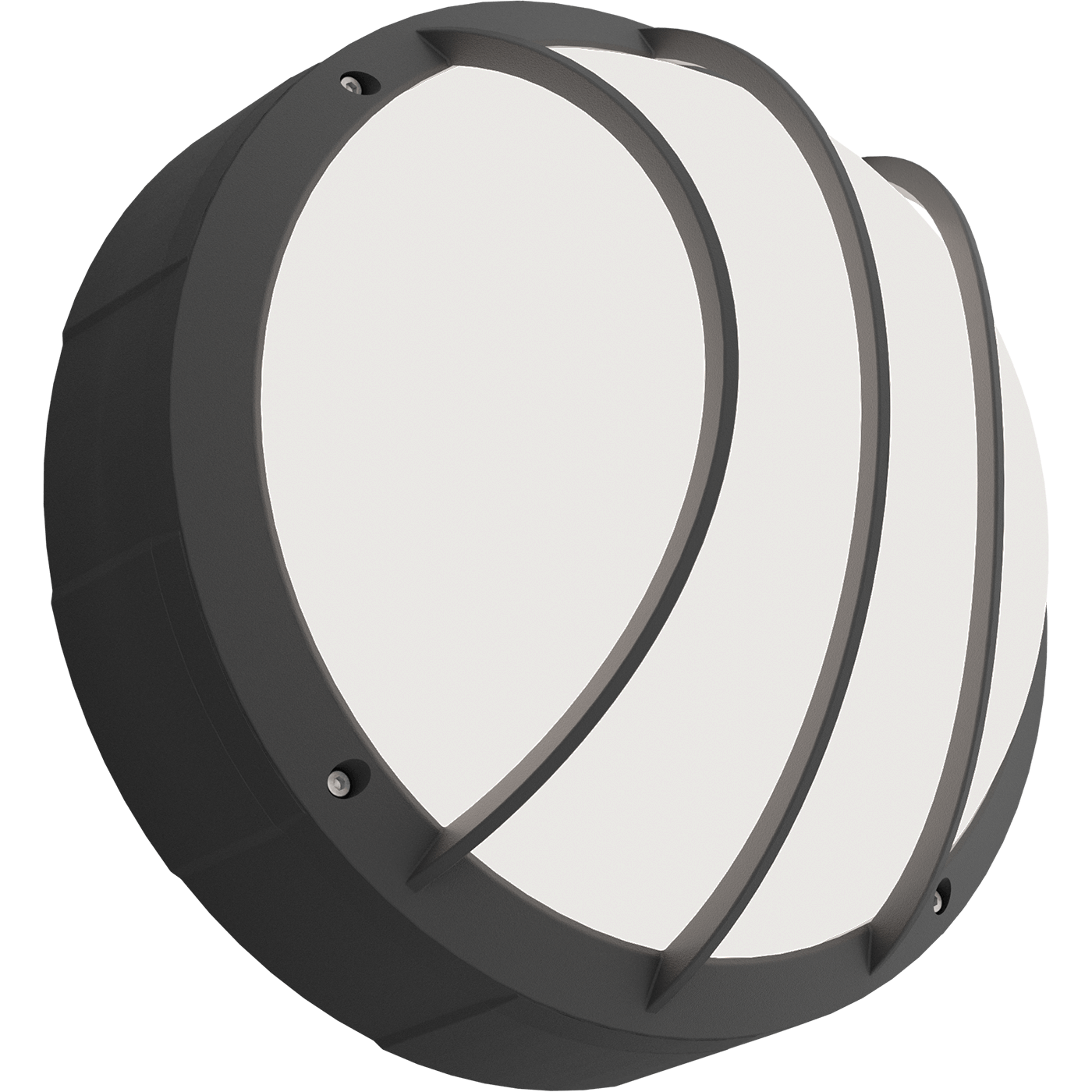

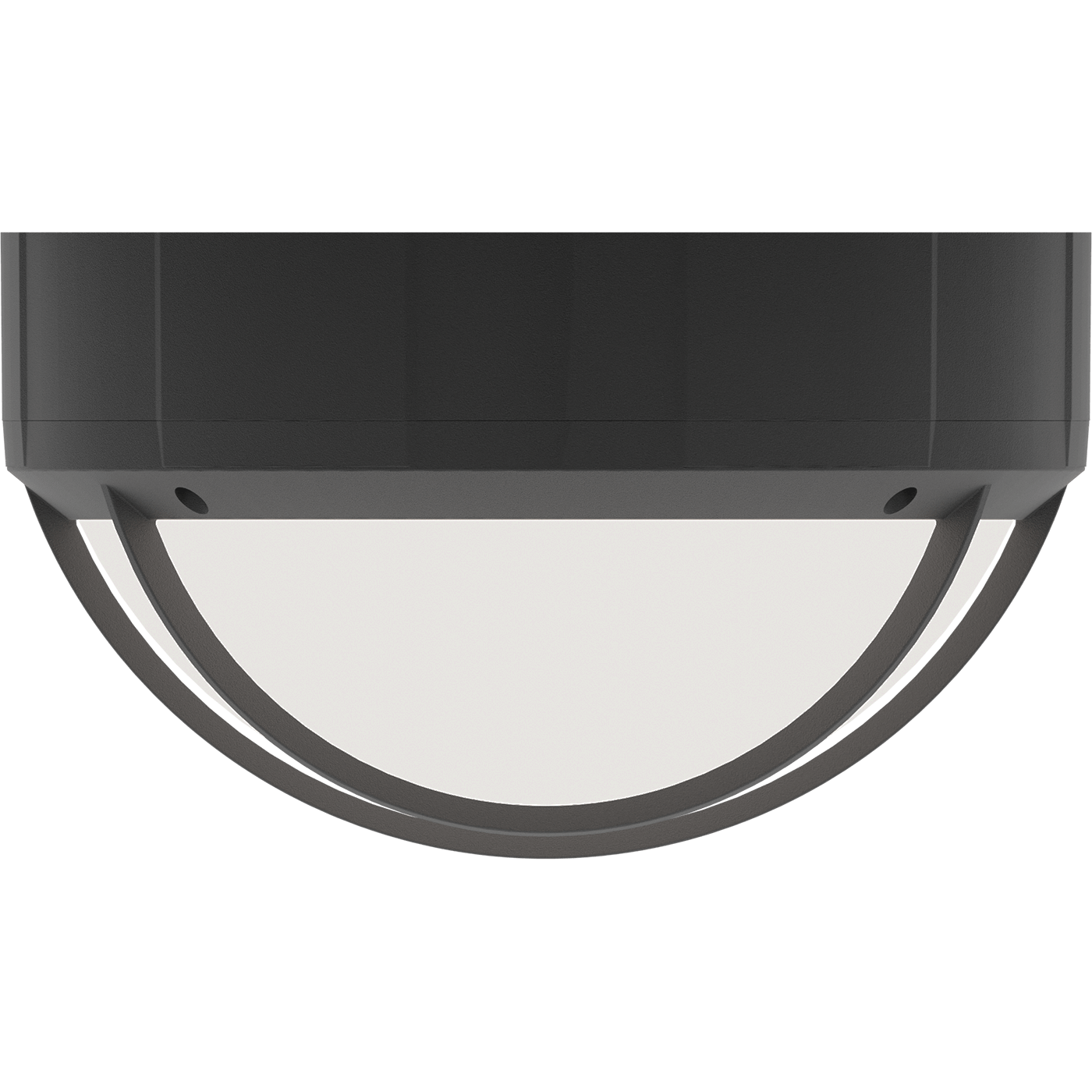

DAMIN LED 30W 840 SL with grille
DAMIN LED 30W 840 SL with grille
30 Wluminaire power
2800 lmlight flow
93 lm/Wenergy efficiency
code1440000040
beam angleD120
color temperature4000
weight4 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
93 lm/Wcolor rendition index (CRI)
>80light flow
2800 lmflickering factor
<2%beam angle
D120color temperature
4000light source type
LEDemission color
Белыйilluminating
energy efficiency
93 lm/W
color rendition index (CRI)
>80
light flow
2800 lm
flickering factor
<2%

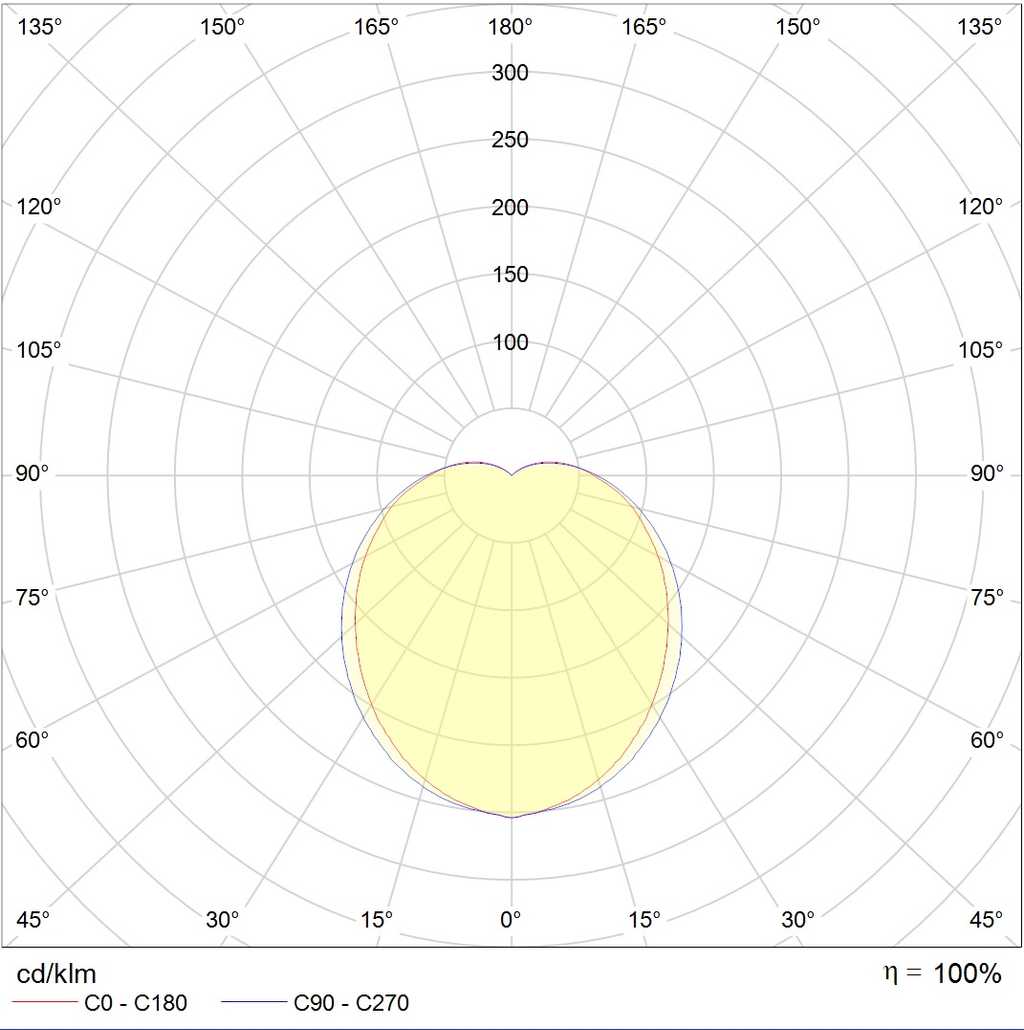

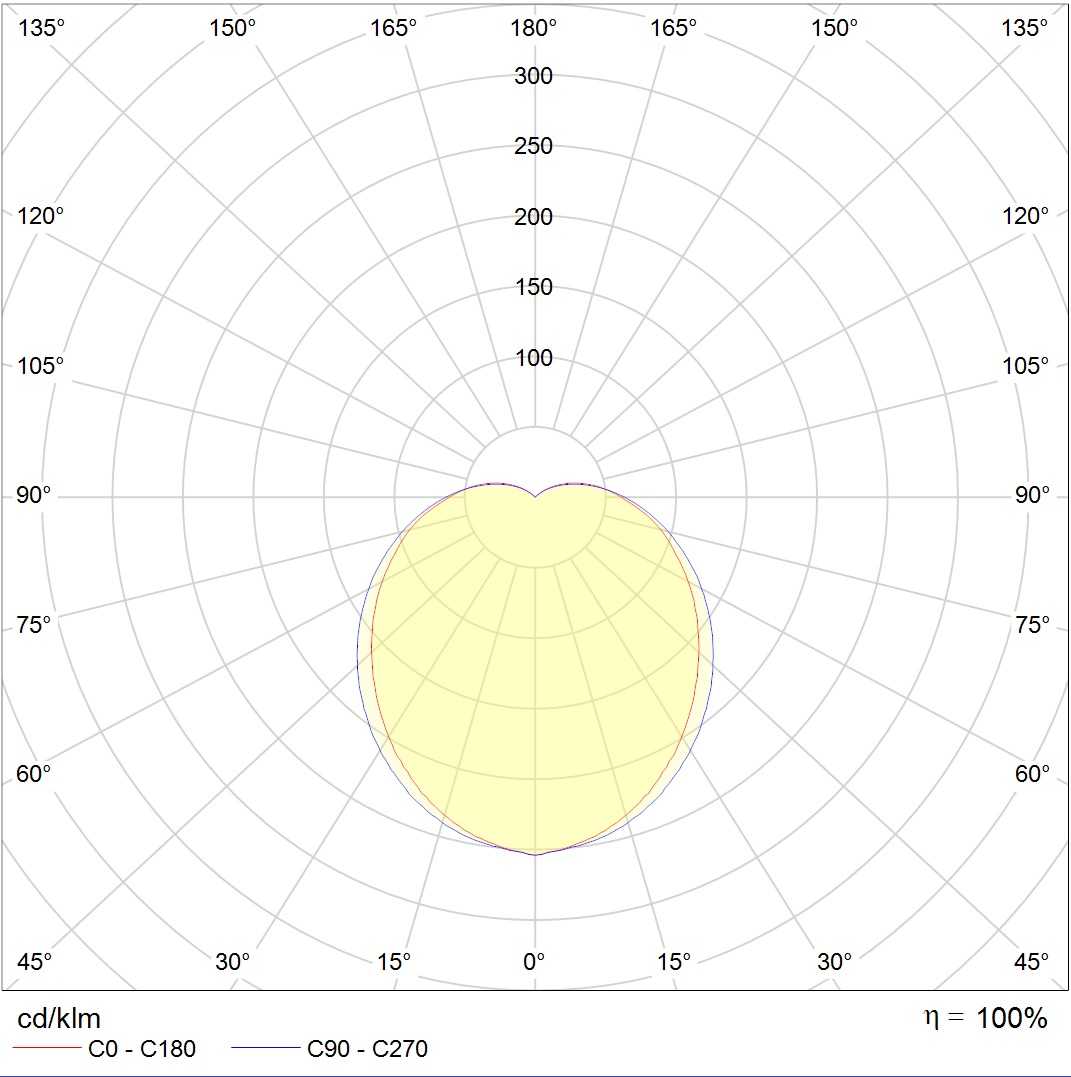

beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
electrical
luminaire power
30 W
electric shock protection
I
starting current pulse time, µs
400 mks
rated supply voltage, alternating current
230 V
supply voltage
230 V
starting current
25 A
maximum cross-section of the connected cable, sq. mm
2.5
supply voltage, direct current
220-280 V
supply voltage, alternating current
198-264 V
power factor
> 0,95
constructional
climatic performance
УХЛ1*

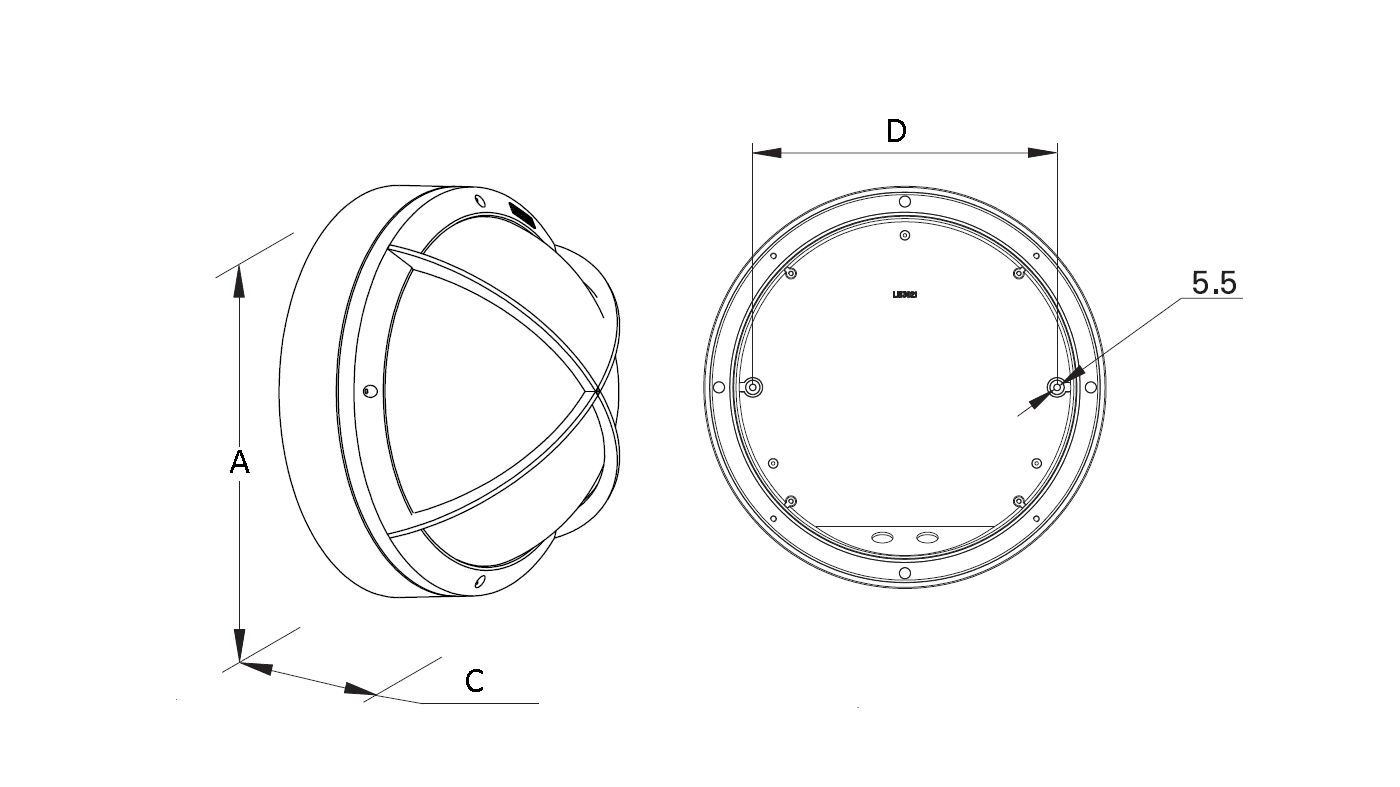

height, mm
212 mm
installation length, mm
270 mm
housing color
Металлик
lamp socket
LED
number of lamps
1
ballast
Драйвер
diameter
355 mm
material
Алюминий
ingress protection (IP)
IP65
shock resistance (IK)
IK10/20 Дж
weight
4 kg
common
code
1440000040
warranty
36 month
energy efficiency class
A+
temperature range
от -30 до +40 C
service life, hour
50 000 h
ETIM class
Настенно-потолочный светильник
