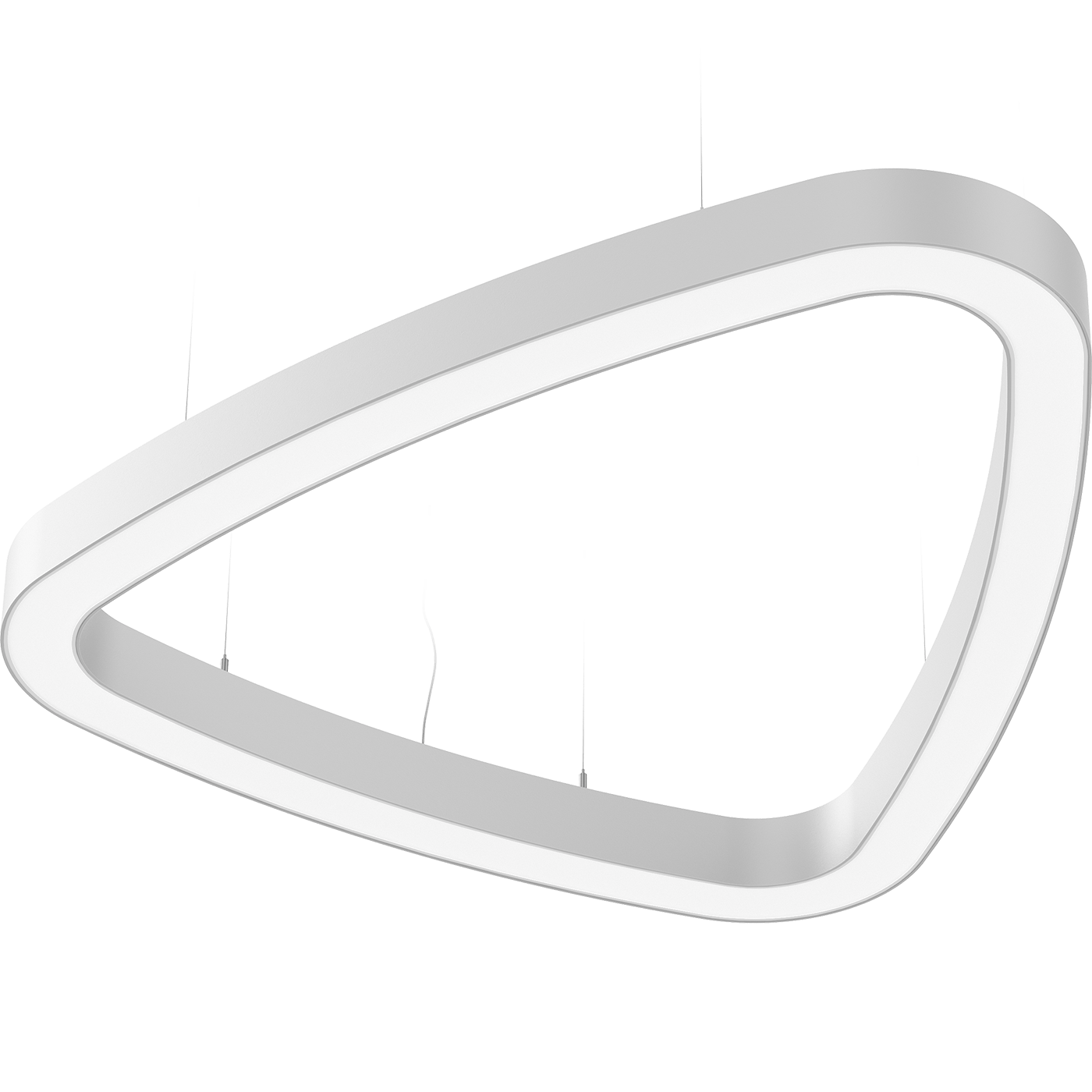

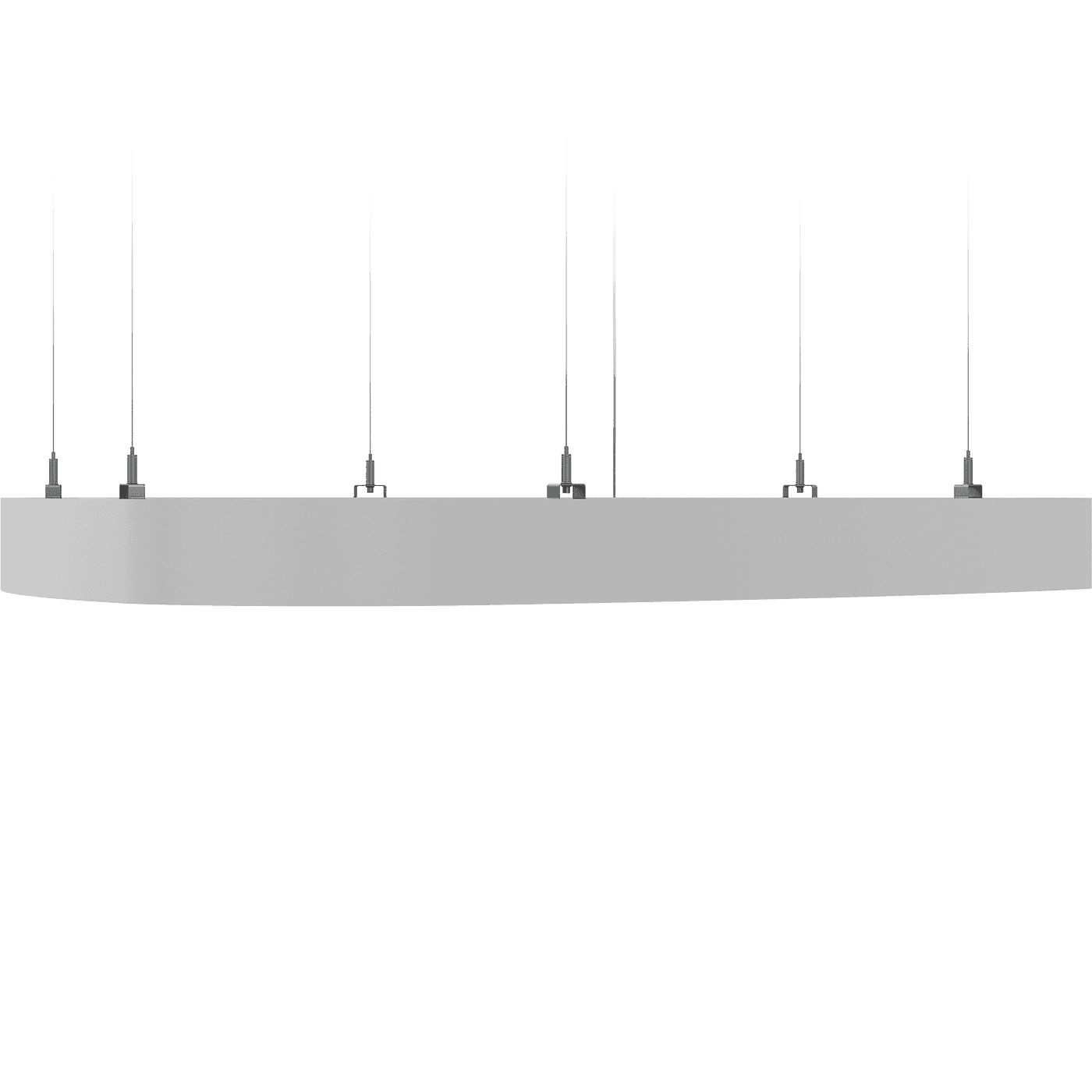

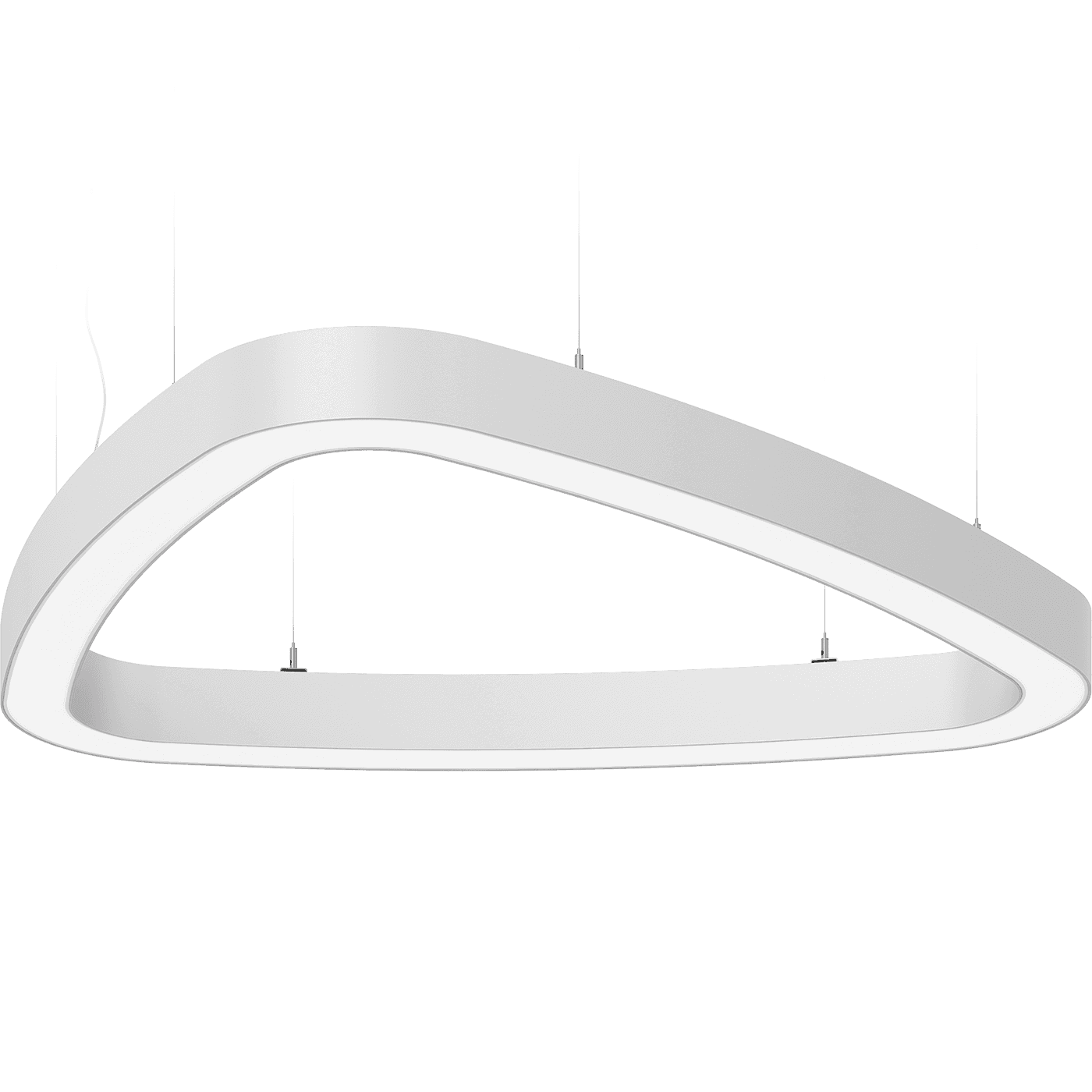

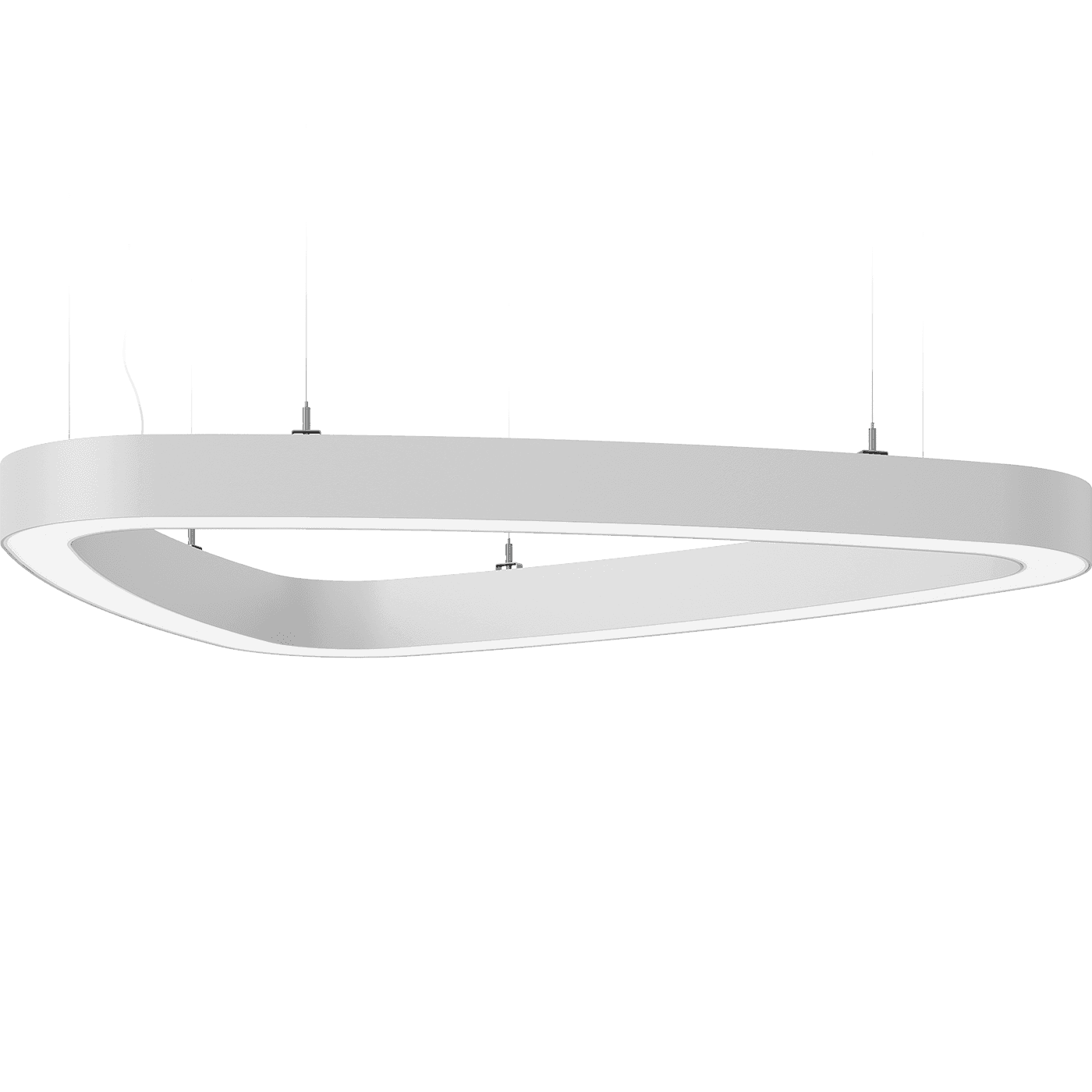

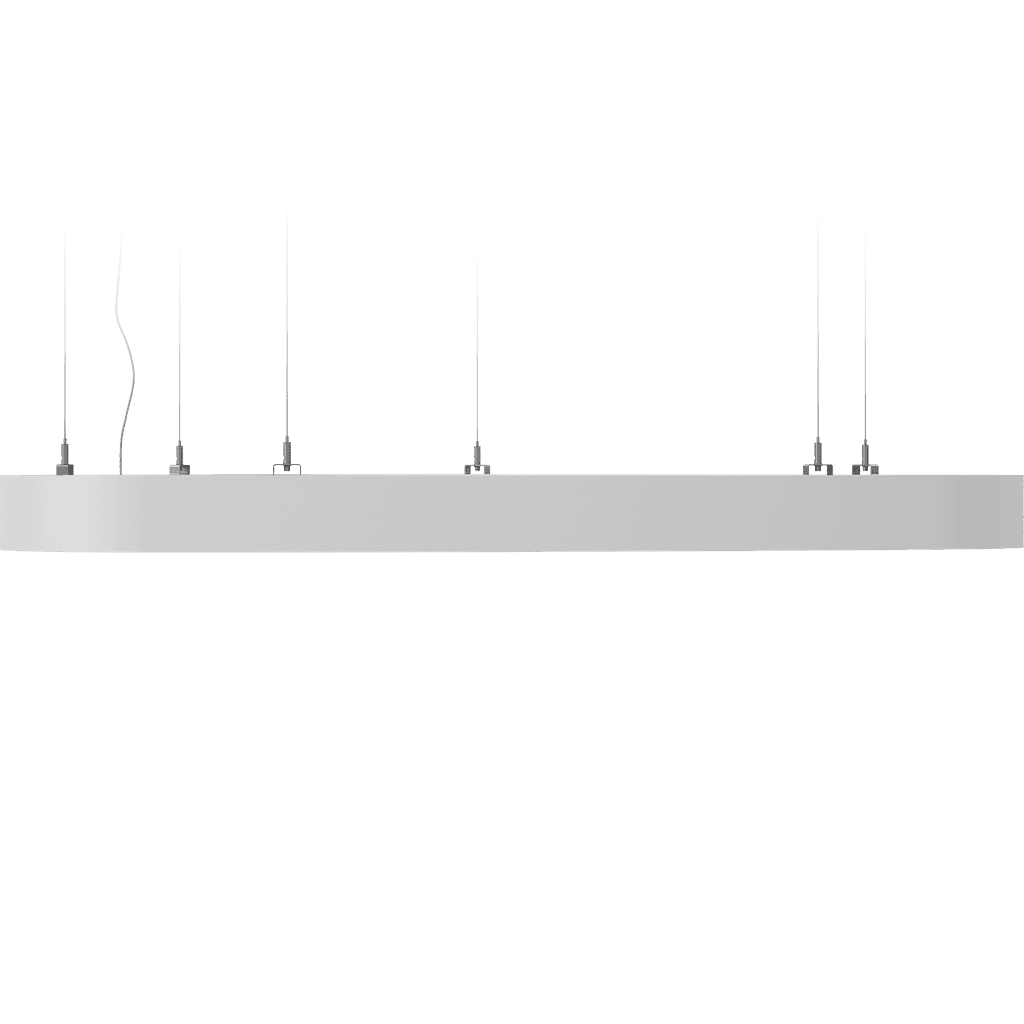

CYCLE TRIO P LED 1600/1500 4000K km
CYCLE TRIO P LED 1600/1500 4000K km
90 Wluminaire power
4600 lmlight flow
51 lm/Wenergy efficiency
code
1101500250
color temperature
4000 K
beam angle
D120
performance factor
100
- main page
- catalog
- by product type
- interior lighting
- suspended
- circles and rings
- profile
- CYCLE TRIO P LED
- CYCLE TRIO P LED 1600/1500 4000K km
options
свернуть все
illuminatingelectricalconstructionalemergencycommonpackage
energy efficiency
51 lm/Wcolor rendition index (CRI)
>80light flow
4600 lmflickering factor
<1%beam angle
D120color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
51 lm/W
color rendition index (CRI)
>80
light flow
4600 lm
flickering factor
<1%

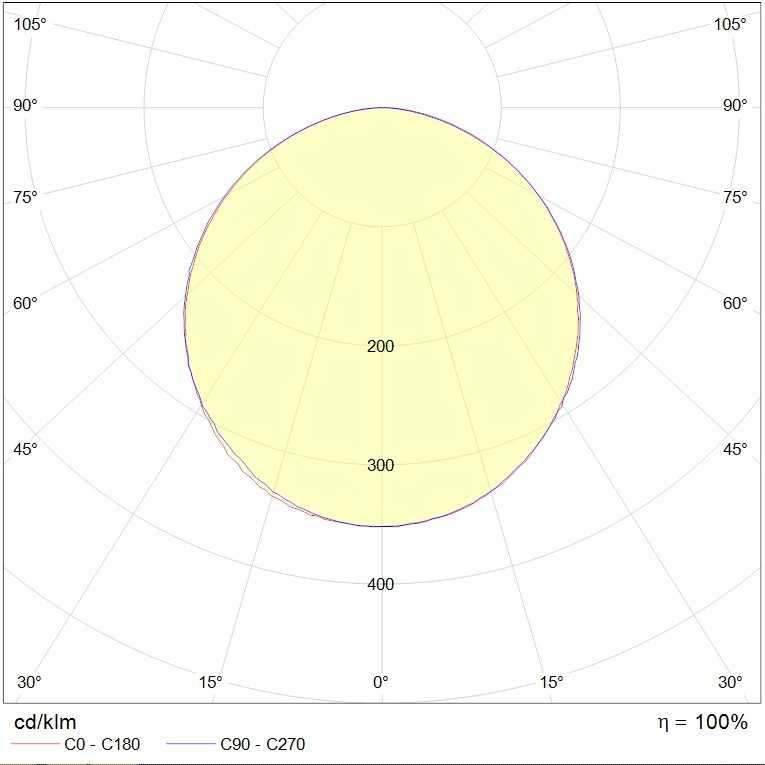

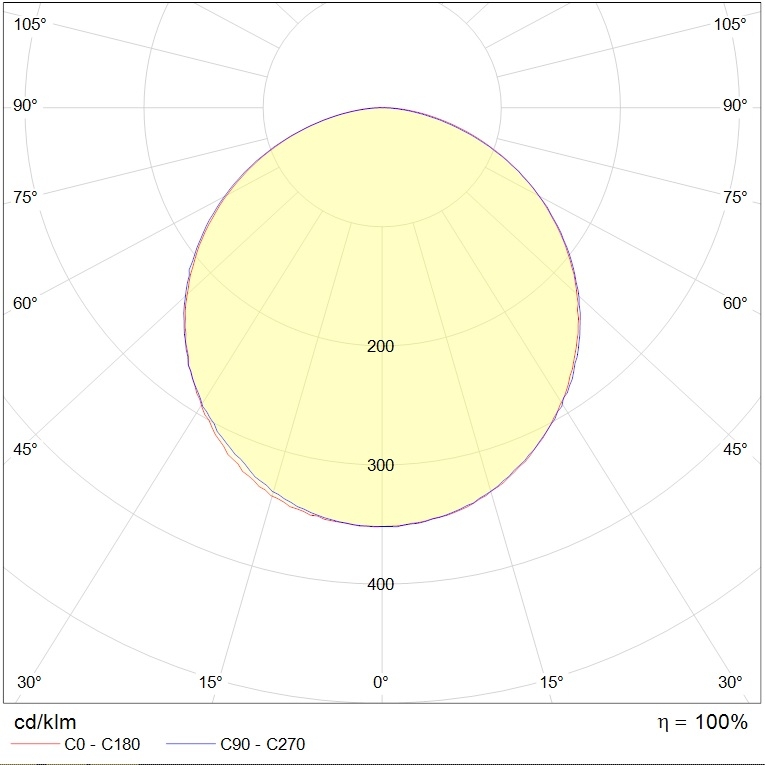

beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
300 µs
power factor
> 0,90
luminaire power
90 W
electric shock protection
I
supply voltage
230 V
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
starting current
60 A
constructional
length
1612 mm
width
1500 mm
height
90 mm
weight
20 kg
ingress protection (IP)
IP40
shock resistance (IK)
IK01/0,15 Дж
climatic performance
УХЛ4*
material
Алюминий
housing color
Белый
mounting type
lamp socket
LED
number of lamps
1
ballast
Драйвер
Type roof
emergency
emergency power supply
Нет
common
temperature range
от +5 до +35 C
service life
50 000 h
ETIM class
Светильник подвесной
warranty
60 month
energy efficiency class
B
code
1101500250
package
Package contents
Светильник - 1 шт.
Паспорт - 1 шт.
Упаковка - 1 шт.
Комплект монтажный - 1 шт.
model files
model files

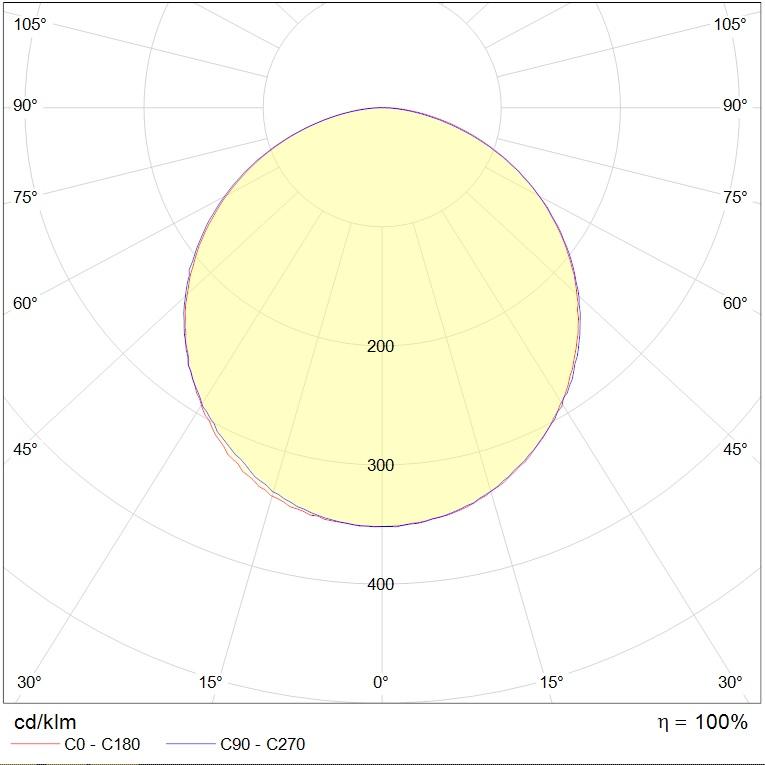

photometric files
documents
сертификаты
photometric files
ies263.2 kB
jpg75.4 kB
ldt165.9 kB
csv441 B
documents
passport660.2 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112 mB
Declaration of Conformity EAEU TR 037/2016535.9 kB
