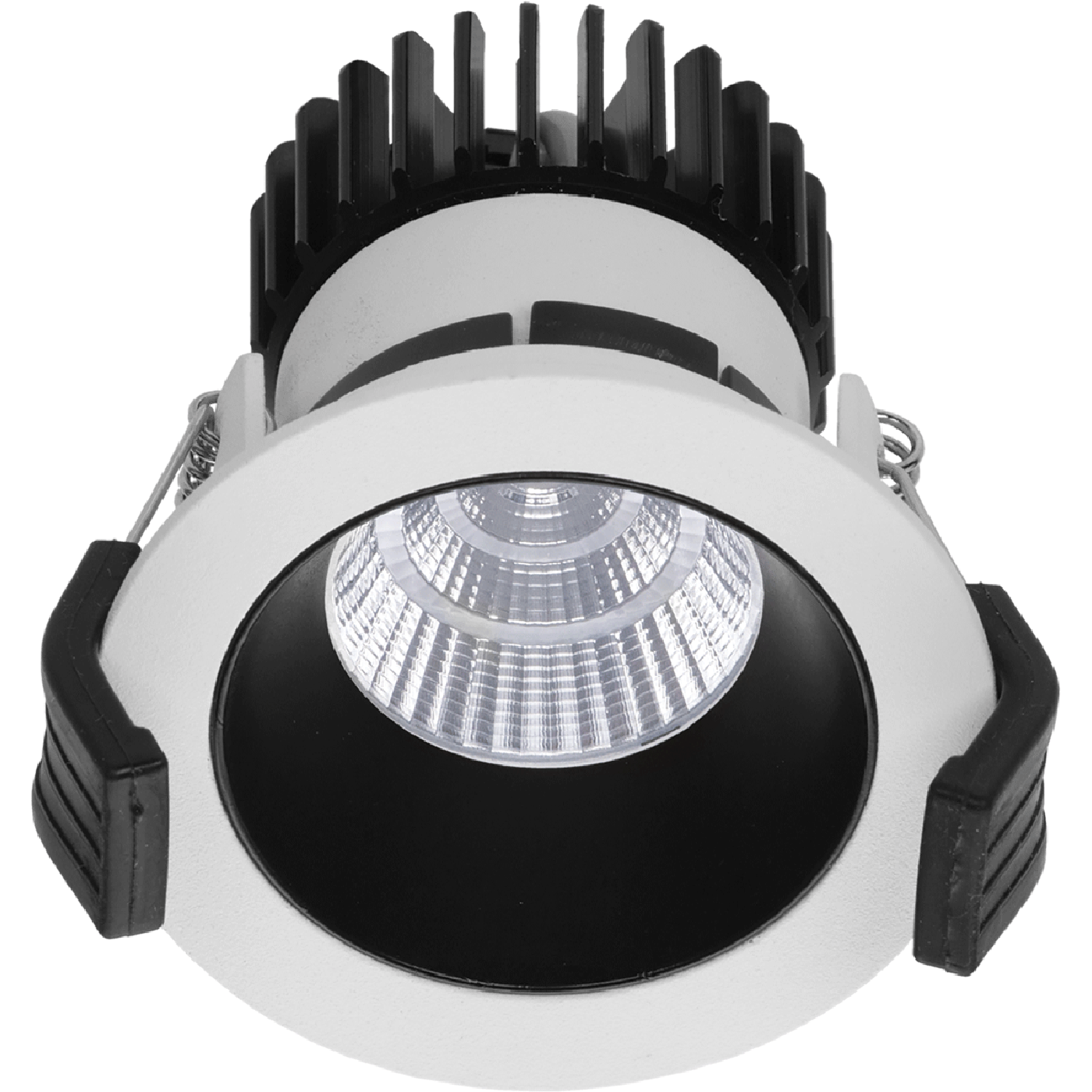

COOL 07 WH/WH D45 4000K DALI

COOL 07 WH/WH D45 4000K DALI
9 Wluminaire power
700 lmlight flow
78 lm/Wenergy efficiency
code1412001090
color temperature4000 K
beam angleD45
performance factor100
options
свернуть все
illuminatingelectricalconstructionalLMS optionscommon
energy efficiency
78 lm/W
color rendition index (CRI)
>80
light flow
700 lm
flickering factor
<5%
beam angle
D45
color temperature
4000 K
light source type
LED
emission color
Белый
illuminating
energy efficiency
78 lm/W
color rendition index (CRI)
>80
light flow
700 lm
flickering factor
<5%
beam angle
D45
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
50 µs
electric shock protection
II
luminaire power
9 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
5 A
constructional
diameter
81 mm
height
76 mm
installation diameter
70 mm
weight
0.23 kg
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
fire safety class
П-ІІІ
material
Алюминий
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер DALI
LMS options
dimming
DALI
common
warranty
36 month
temperature range
от +5 до +35 C
service life
50 000 h
energy efficiency class
A
ETIM class
Прожектор / Светильник направленного света
code
1412001090
model files
model files
CAD/BIM files
model 3dMax520 kB

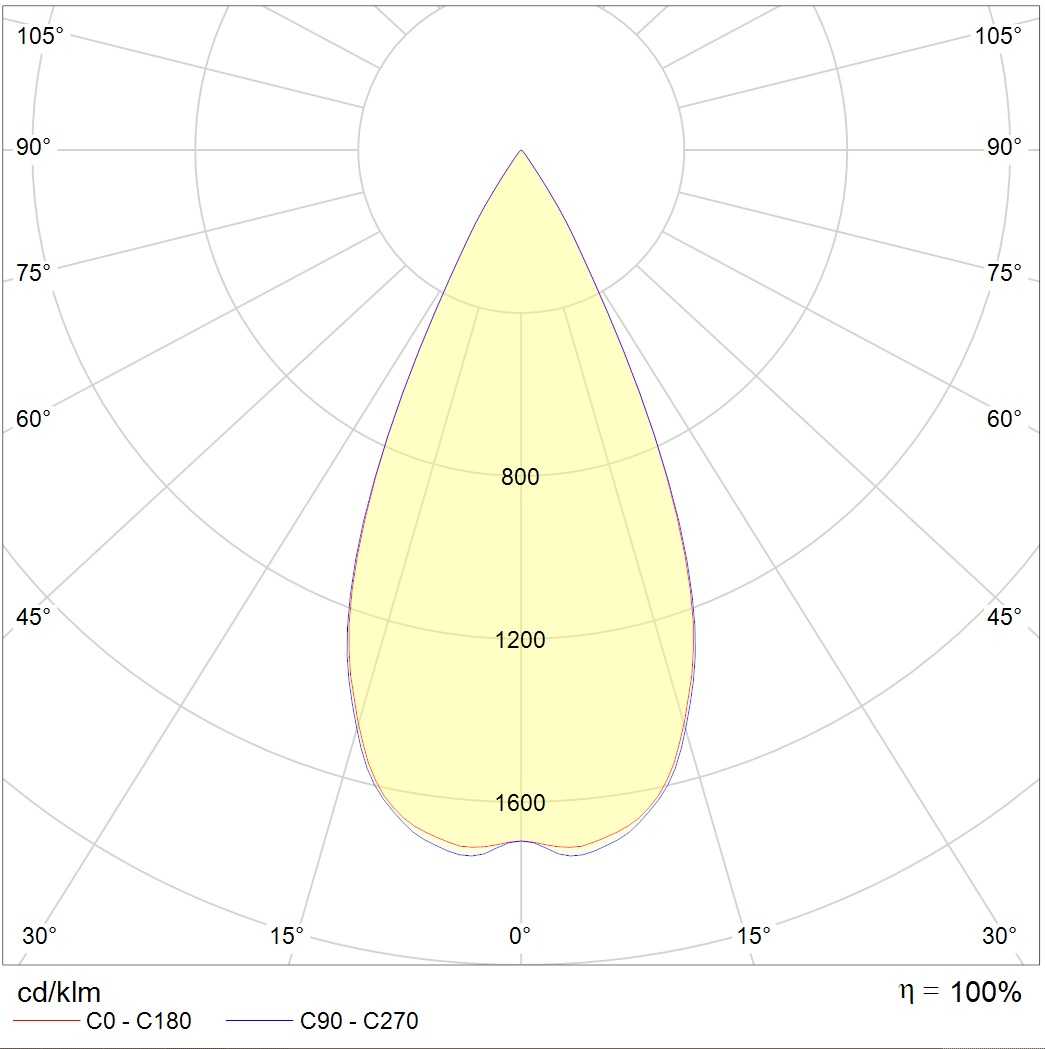

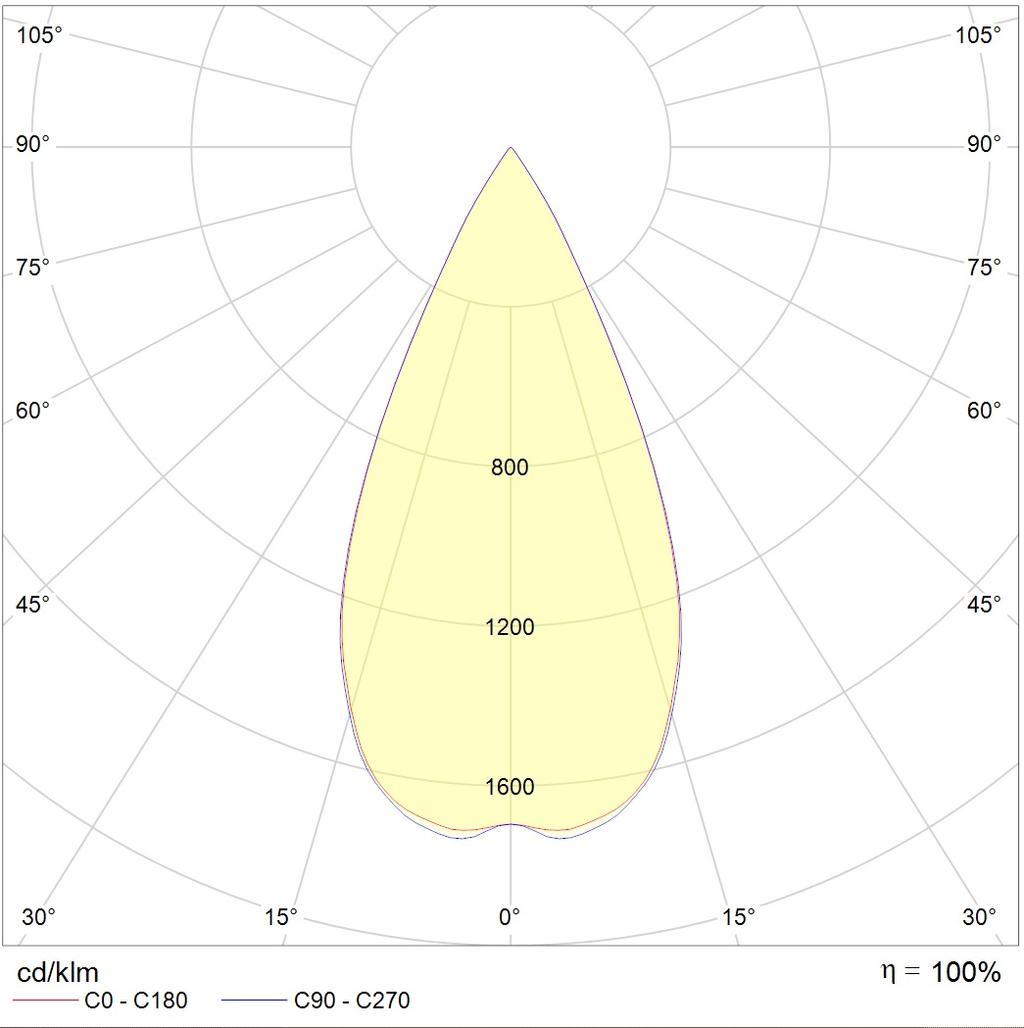

photometric files
ies68.6 kB
jpg118.7 kB
ldt42.7 kB
documents
passport1.7 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016583.2 kB
Fire Safety Certificate1.7 mB
CAD/BIM files
model 3dMax520 kB
photometric files
ies68.6 kB
jpg118.7 kB
ldt42.7 kB
documents
passport1.7 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016583.2 kB
Fire Safety Certificate1.7 mB
