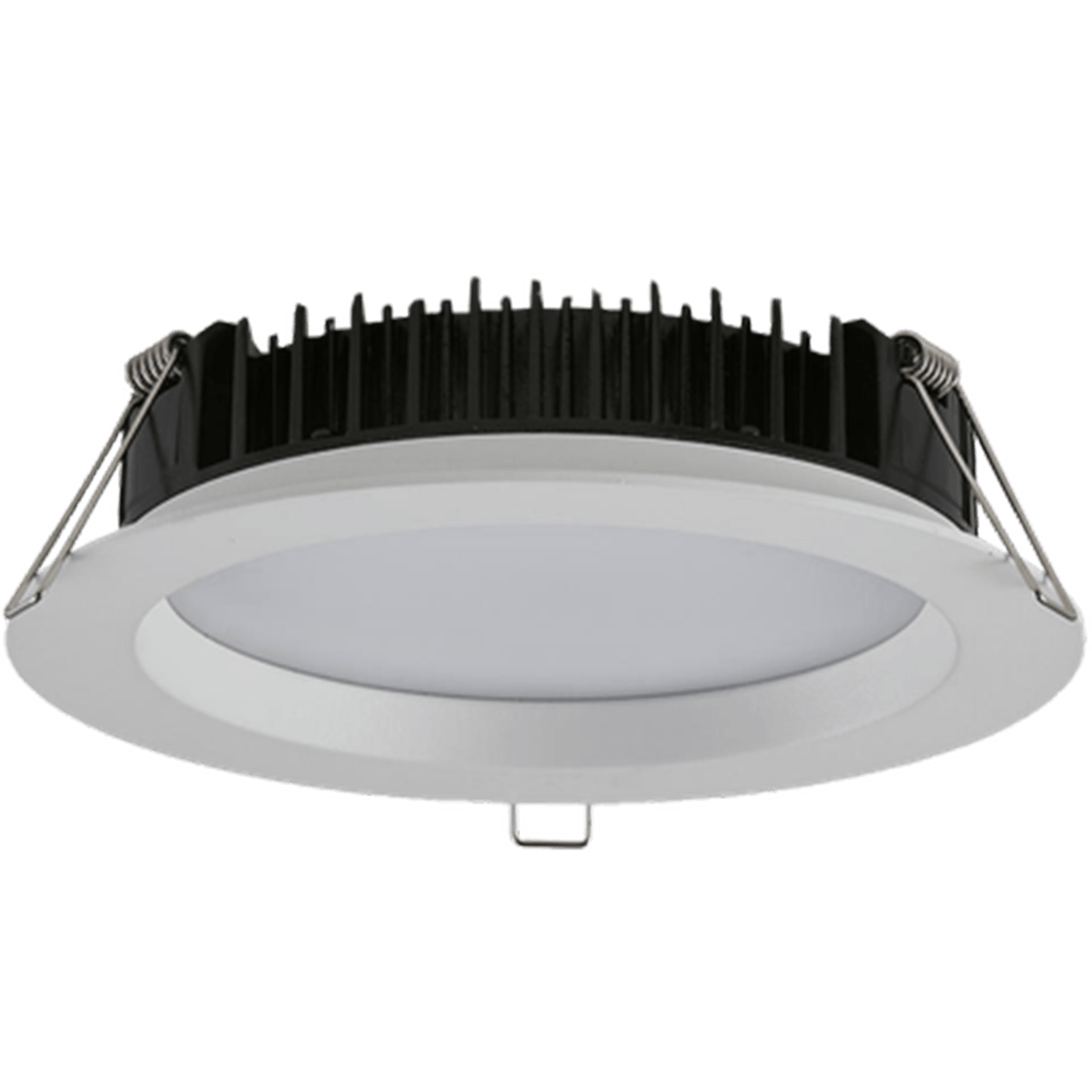

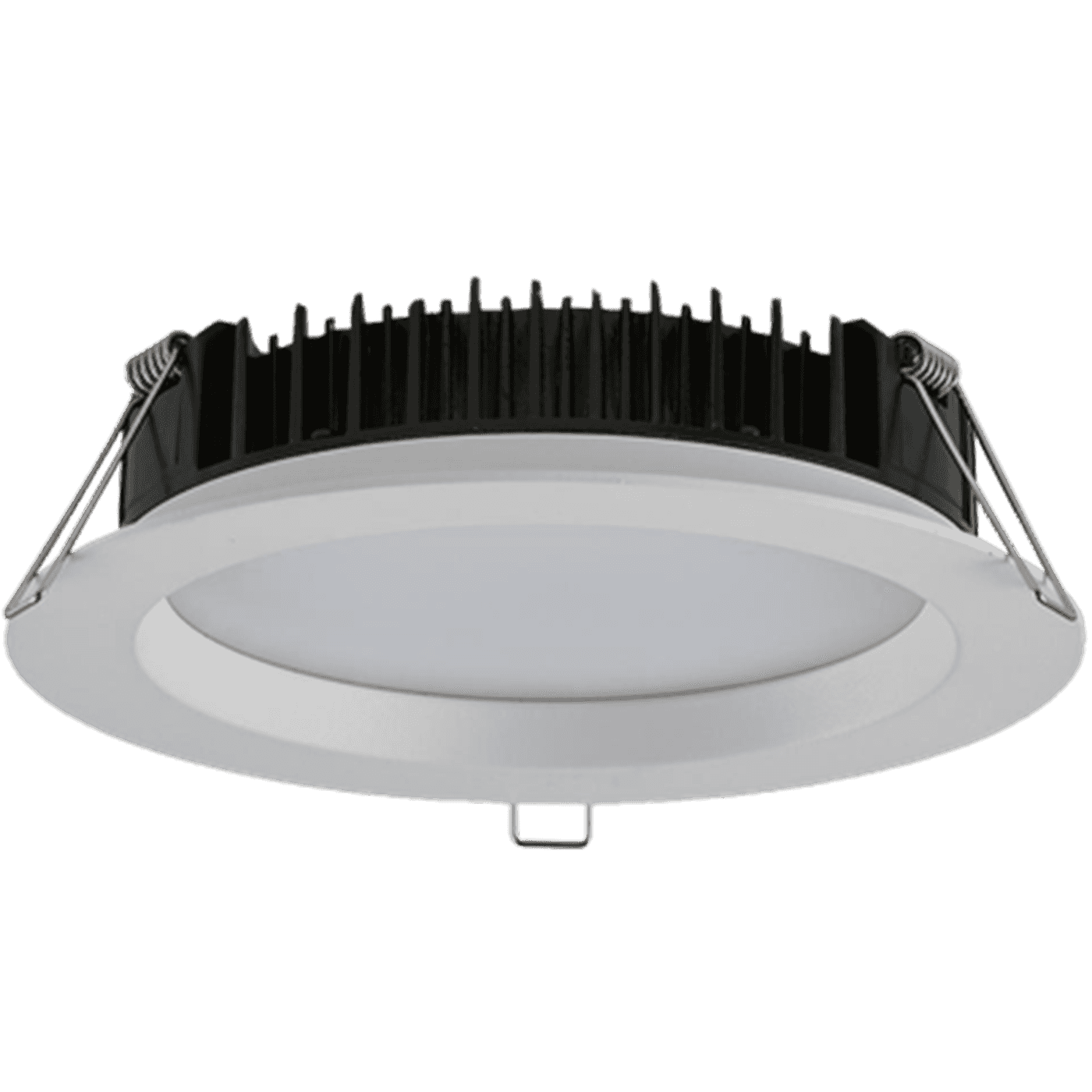

COMP 26 HFD 4000K
model is discontinued
model is discontinued
COMP 26 HFD 4000K
26 Wluminaire power
2400 lmlight flow
92 lm/Wenergy efficiency
code1190000120
color temperature4000 K
beam angleD120
options
свернуть все
illuminatingelectricalconstructionalLMS optionscommon
emission color
Белыйlight source type
LEDlight flow
2400 lmcolor rendition index (CRI)
>80flickering factor
<1%energy efficiency
92 lm/Wbeam angle
D120color temperature
4000 Killuminating
emission color
Белый
light source type
LED
light flow
2400 lm
color rendition index (CRI)
>80
flickering factor
<1%
energy efficiency
92 lm/W
beam angle
D120
color temperature
4000 K
electrical
luminaire power
26 W
electric shock protection
II
power factor
> 0,97
maximum cross-section of the connected cable
1.5 mm2
starting current
5 A
supply voltage
230 V
constructional
ingress protection (IP)
IP44/IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
diameter
186 mm
height
86 mm
material
Алюминий
housing color
Белый
weight
1.3 kg
LMS options
dimming
DALI
common
code
1190000120
ETIM class
Прожектор / Светильник направленного света
energy efficiency class
A+
service life
50 000 h
temperature range
от +5 до +35 C
model files
model files
photometric files
сертификаты
photometric files
ies107 kB
jpg75.3 kB
ldt65.6 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.1 mB
Declaration of Conformity EAEU TR 037/2016521.7 kB
