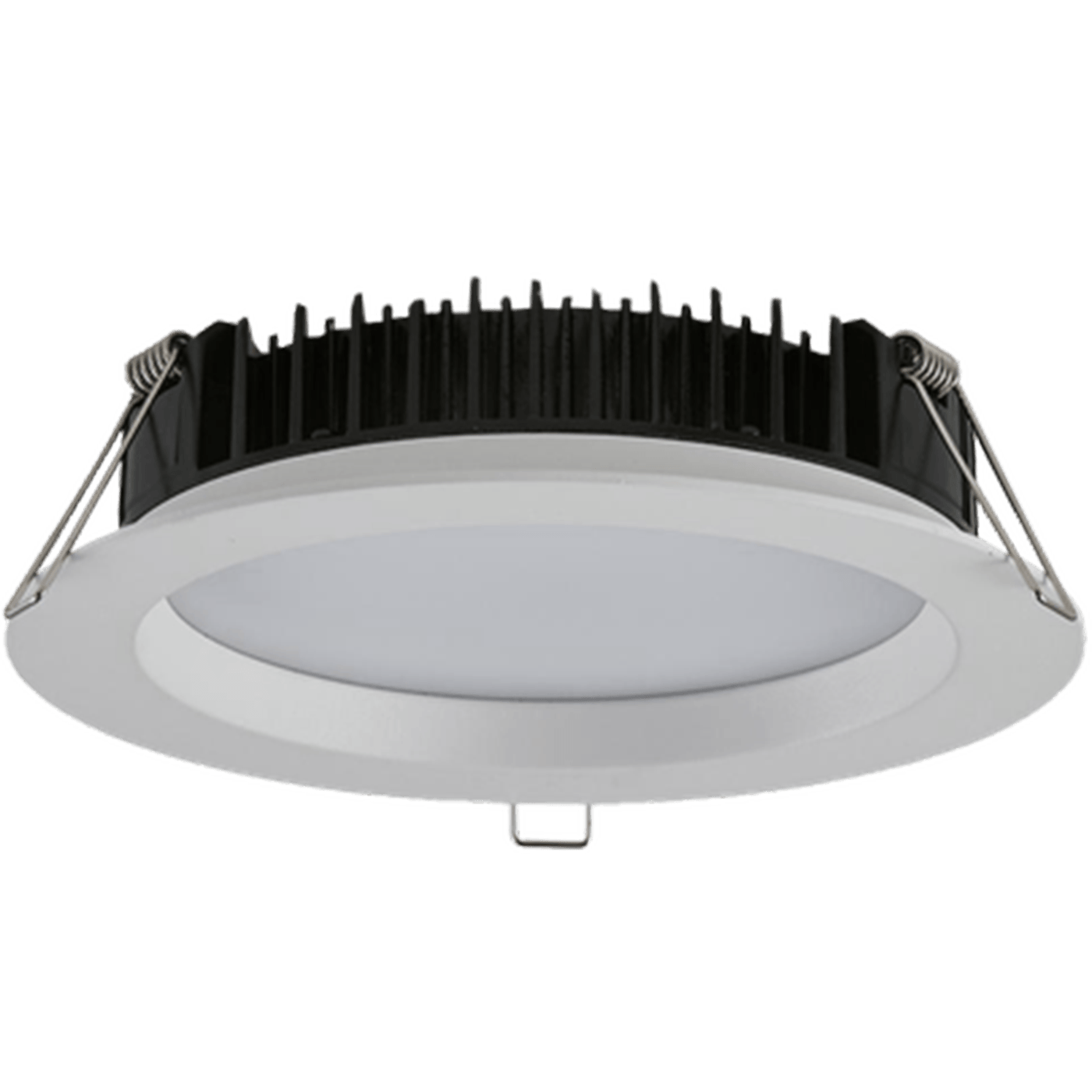

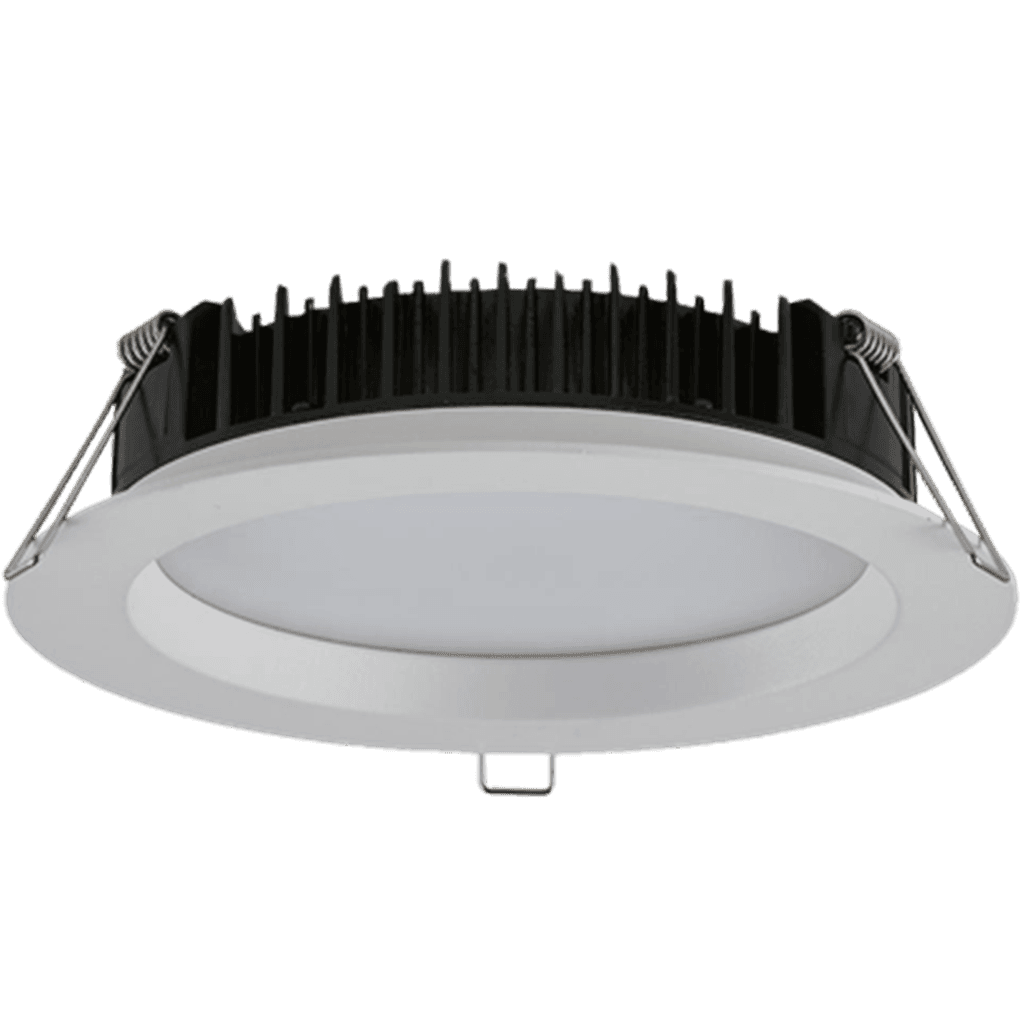

COMP 20 EM 4000K
COMP 20 EM 4000K
22 Wluminaire power
1600 lmlight flow
73 lm/Wenergy efficiency
code1190000100
color temperature4000 K
beam angleD120
options
свернуть все
illuminatingelectricalconstructionalemergencycommon
emission color
Белыйlight source type
LEDlight flow
1600 lmcolor rendition index (CRI)
>80flickering factor
<1%energy efficiency
73 lm/Wbeam angle
D120color temperature
4000 Killuminating
emission color
Белый
light source type
LED
light flow
1600 lm
color rendition index (CRI)
>80
flickering factor
<1%
energy efficiency
73 lm/W
beam angle
D120
color temperature
4000 K
electrical
luminaire power
22 W
electric shock protection
I
power factor
> 0,90
maximum cross-section of the connected cable
1.5 mm2
starting current
15 A
supply voltage
230 V
starting current pulse time
400 µs
constructional
ingress protection (IP)
IP54/IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
diameter
186 mm
height
86 mm
material
Алюминий
housing color
Белый
weight
2.3 kg
emergency
operating time in emergency mode
1 h
luminous flux in emergency mode
750 lm
common
code
1190000100
ETIM class
Прожектор / Светильник направленного света
energy efficiency class
A
service life
50 000 h
temperature range
от +5 до +35 C
model files
model files
CAD/BIM files
photometric files
documents
сертификаты
CAD/BIM files
model 3dMax224 kB

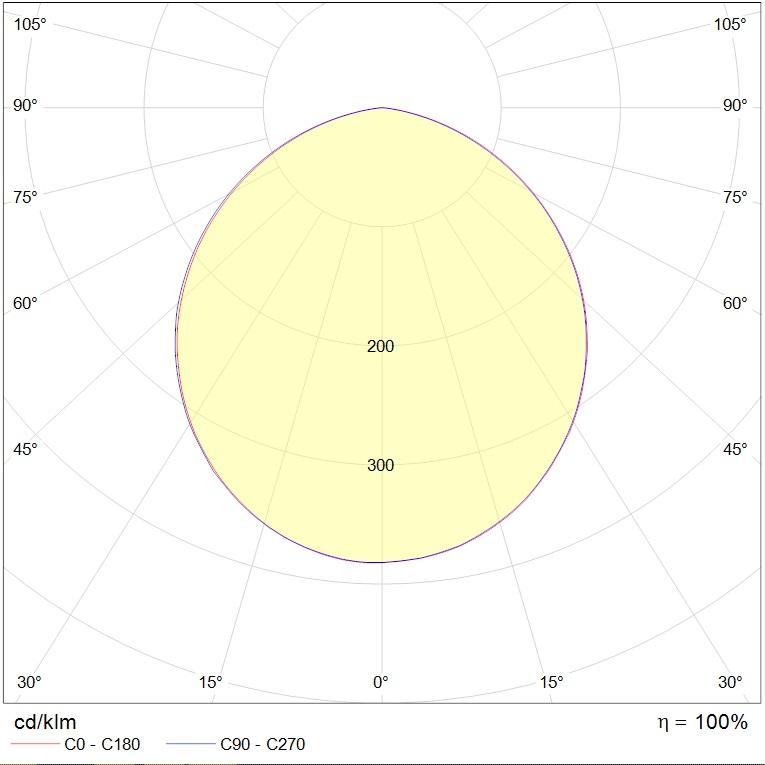

photometric files
ies107 kB
jpg76.2 kB
ldt65.4 kB
documents
passport996.1 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.1 mB
Declaration of Conformity EAEU TR 037/2016298.3 kB
