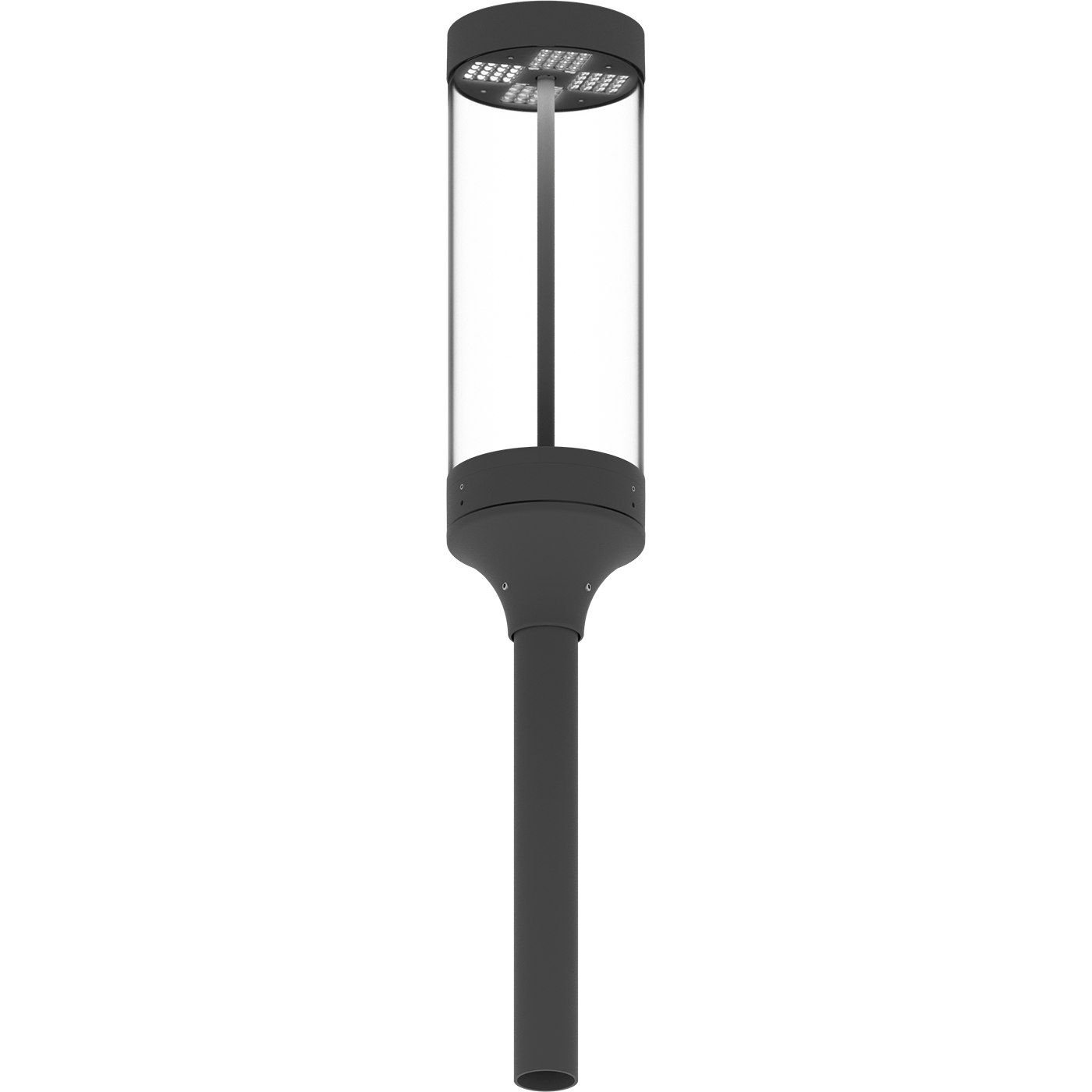

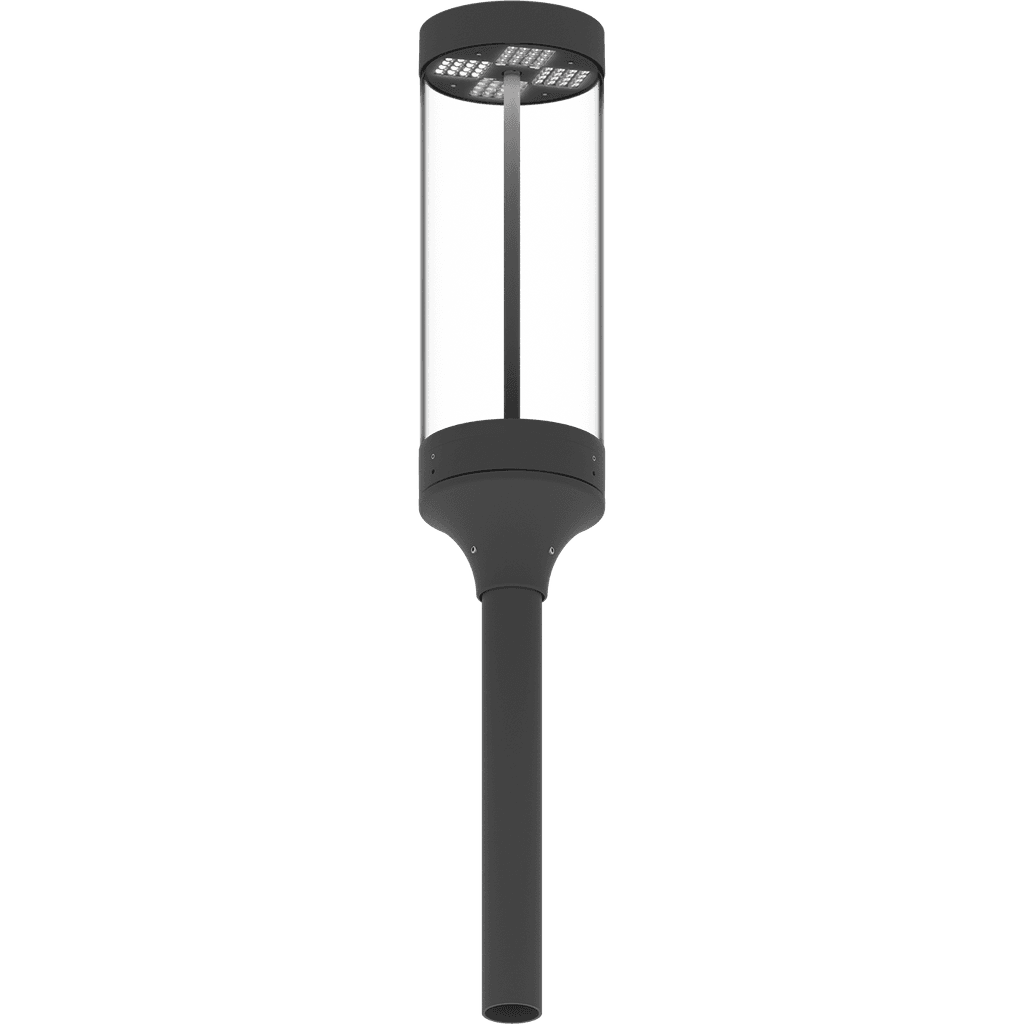

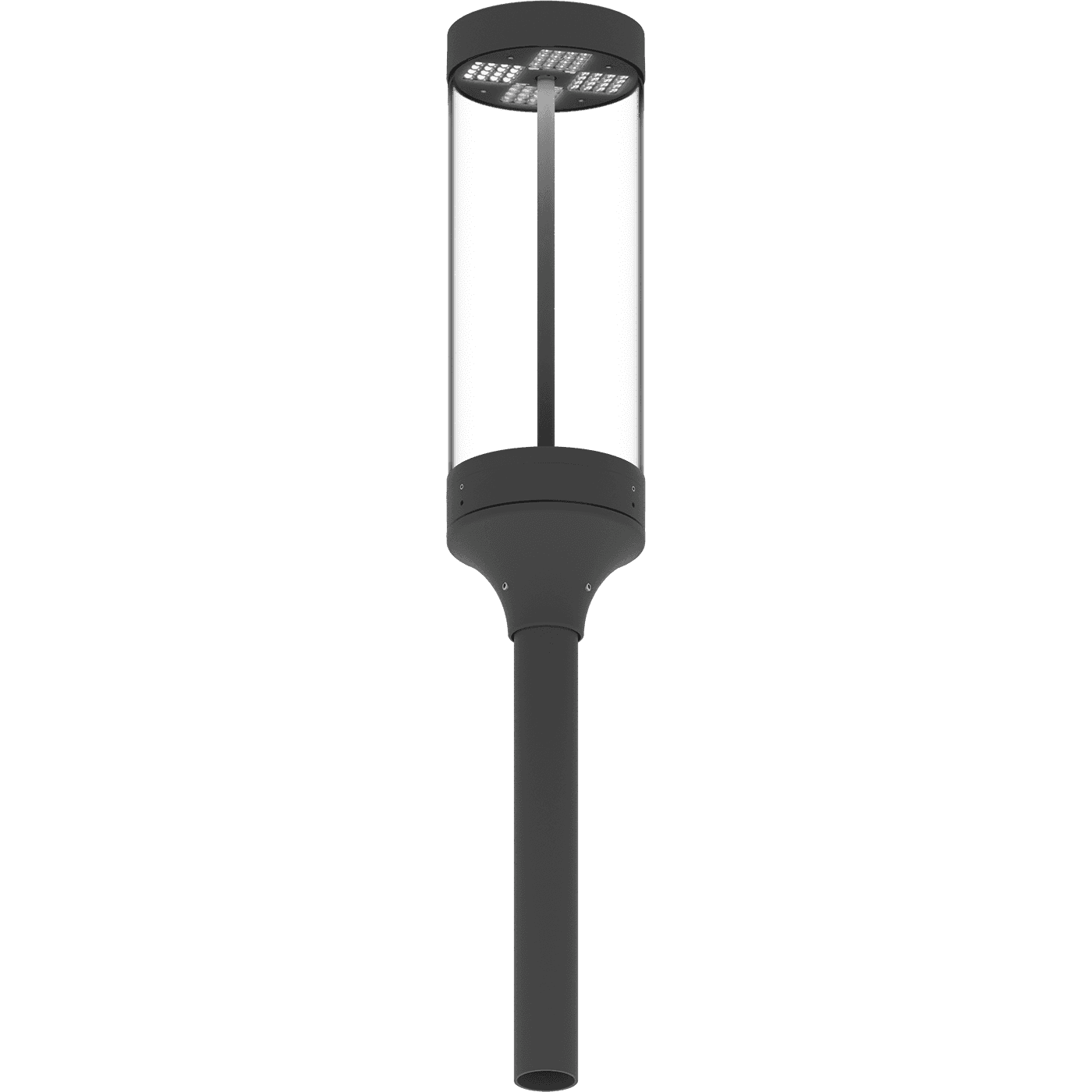

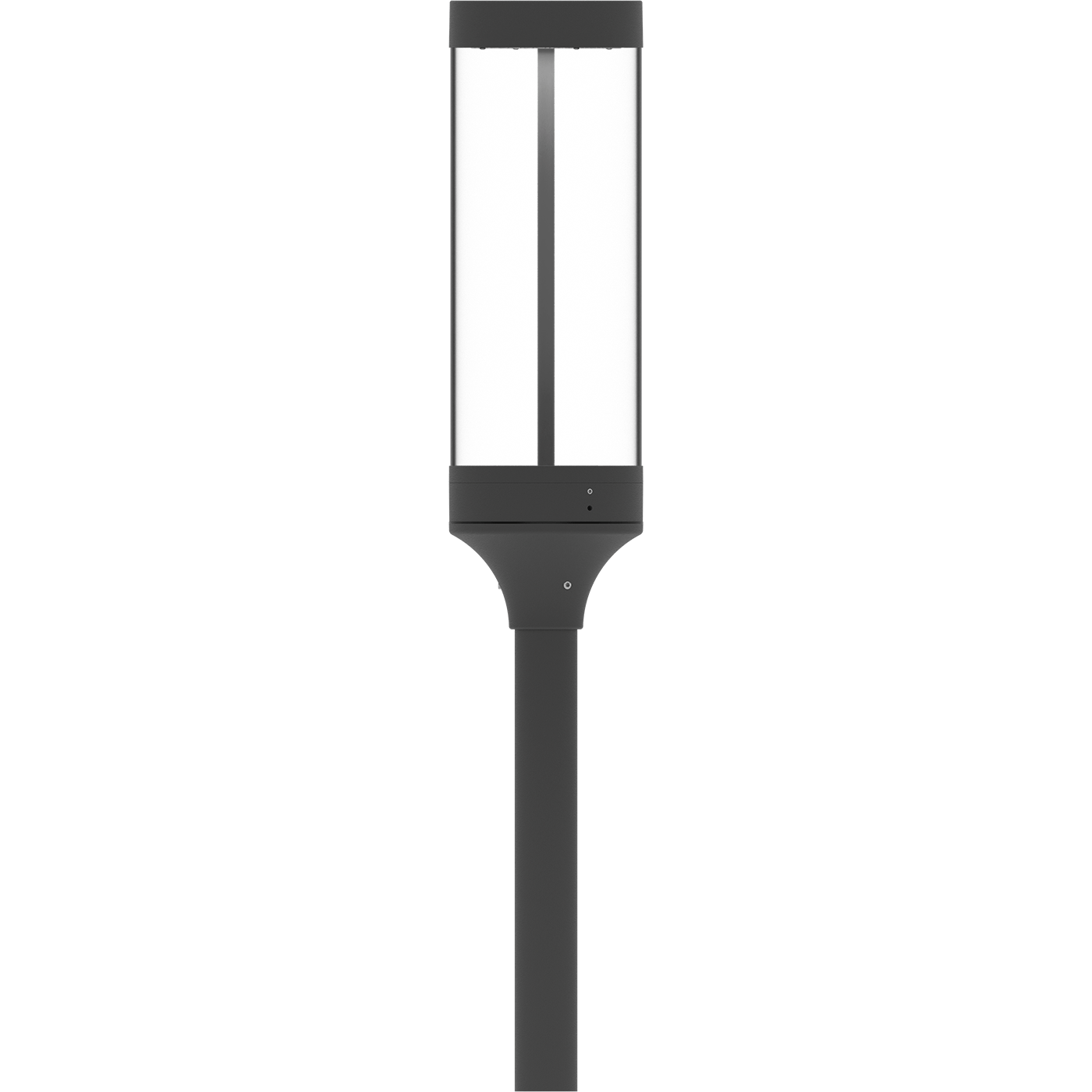

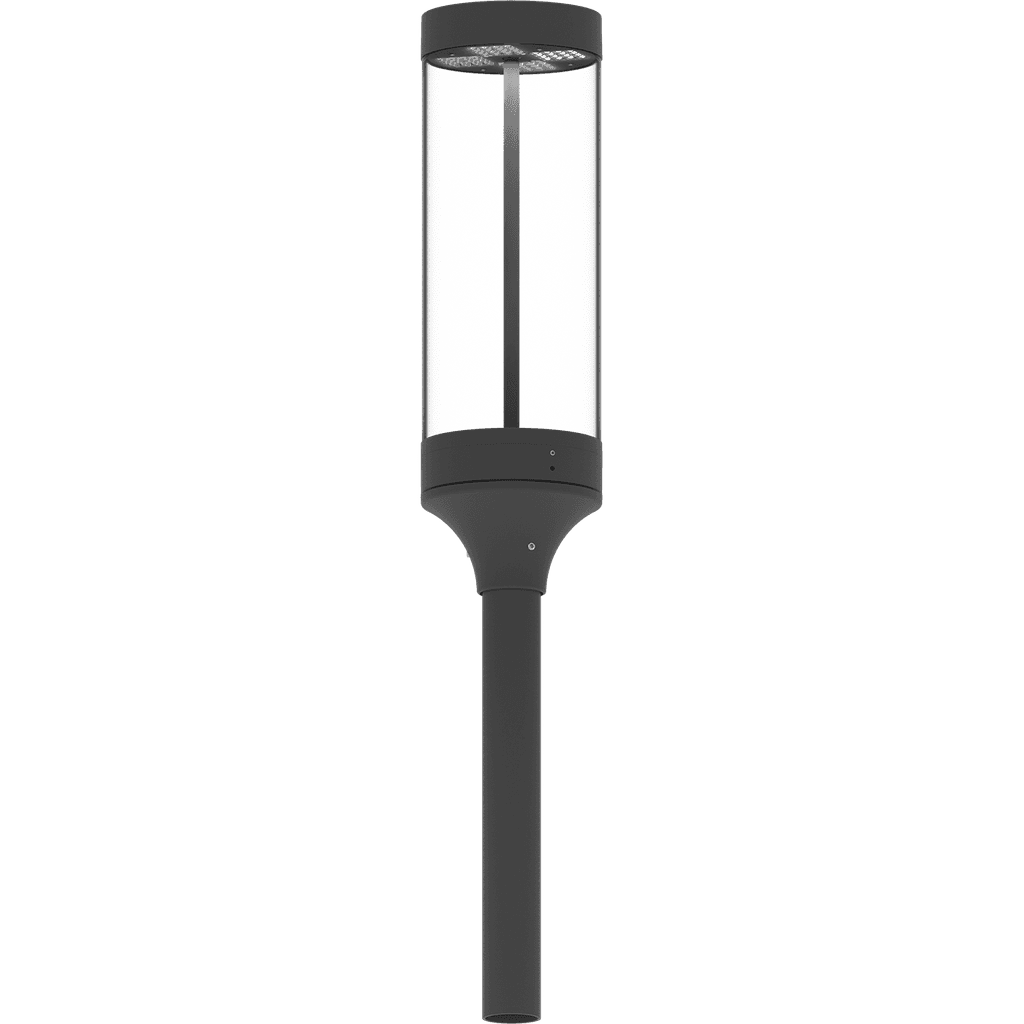

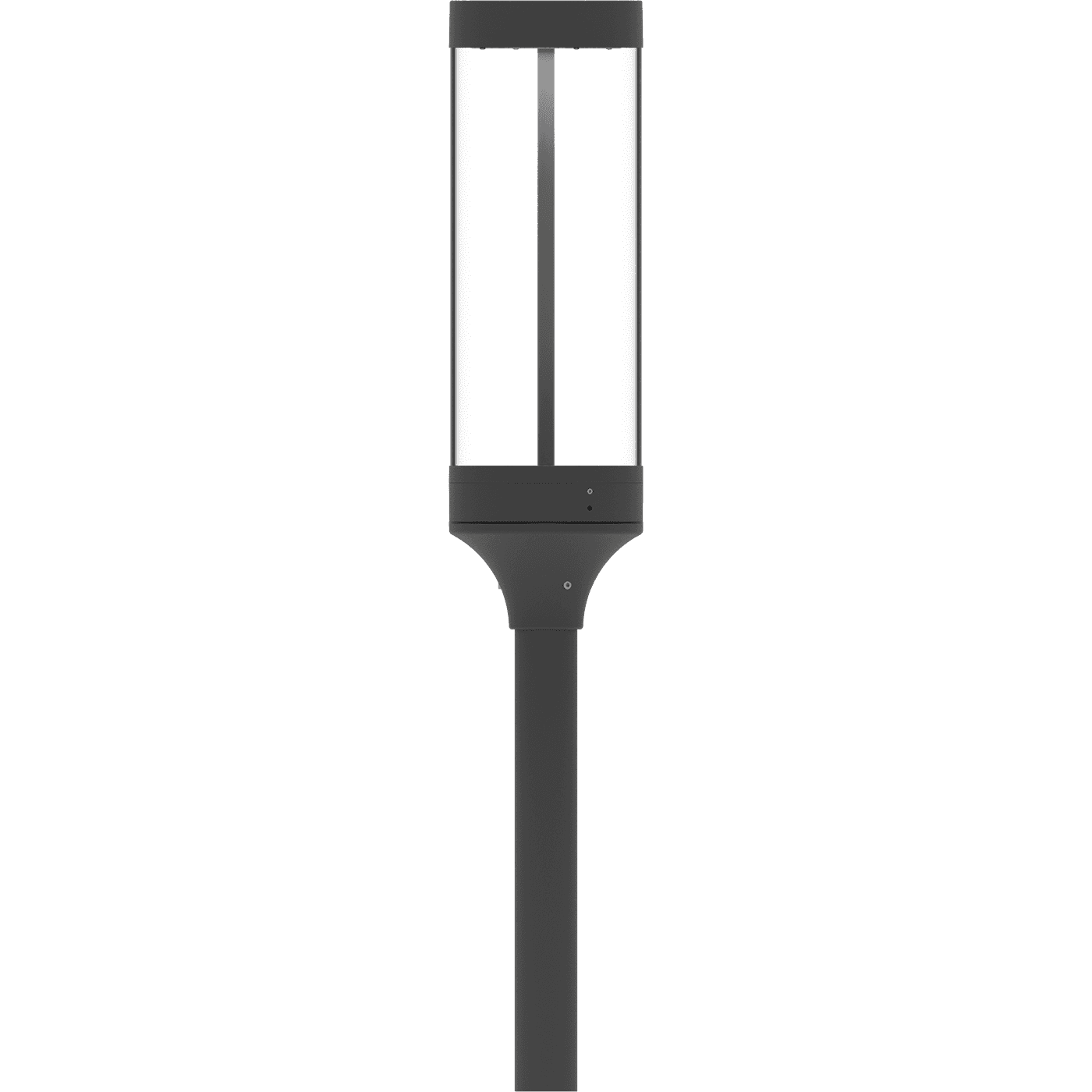

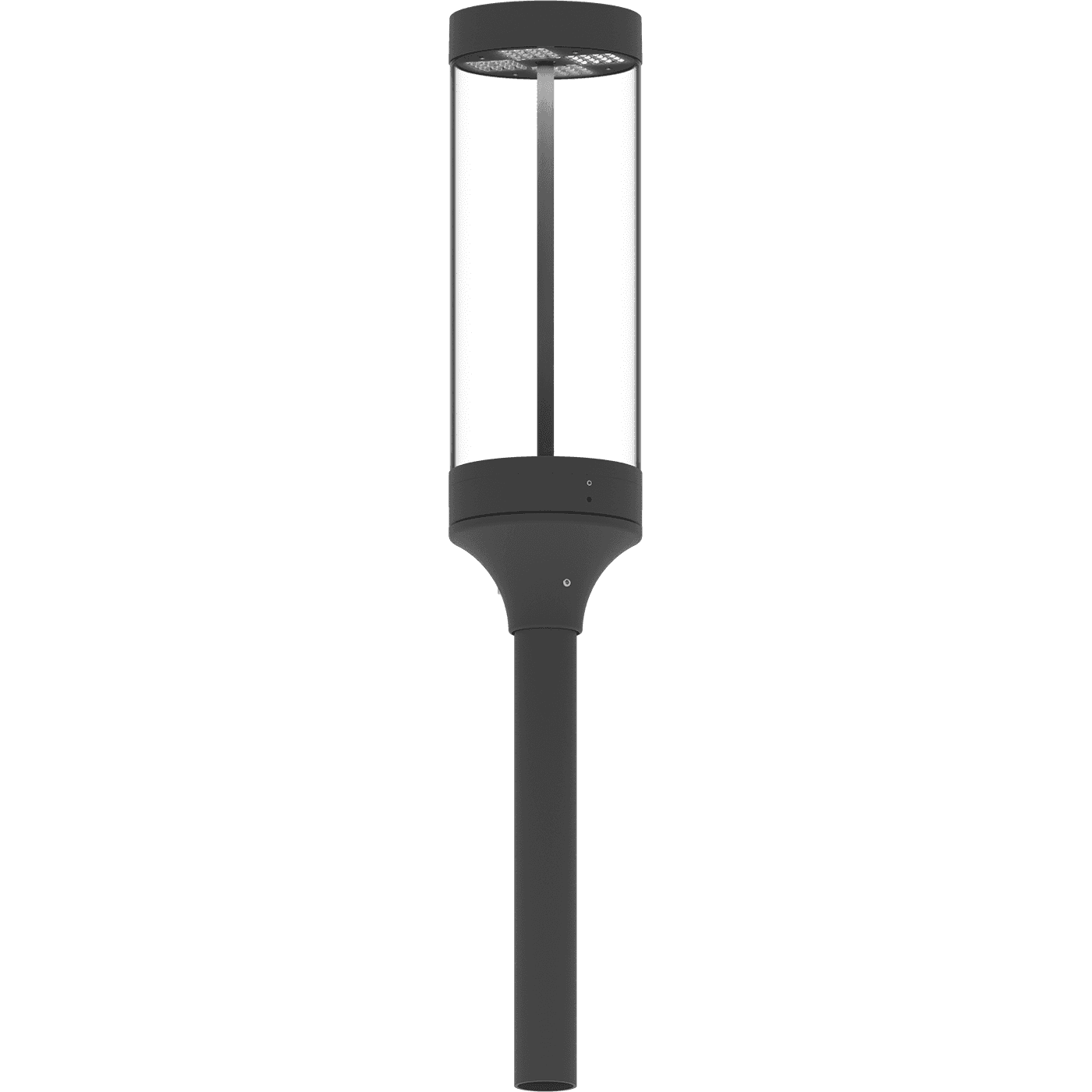

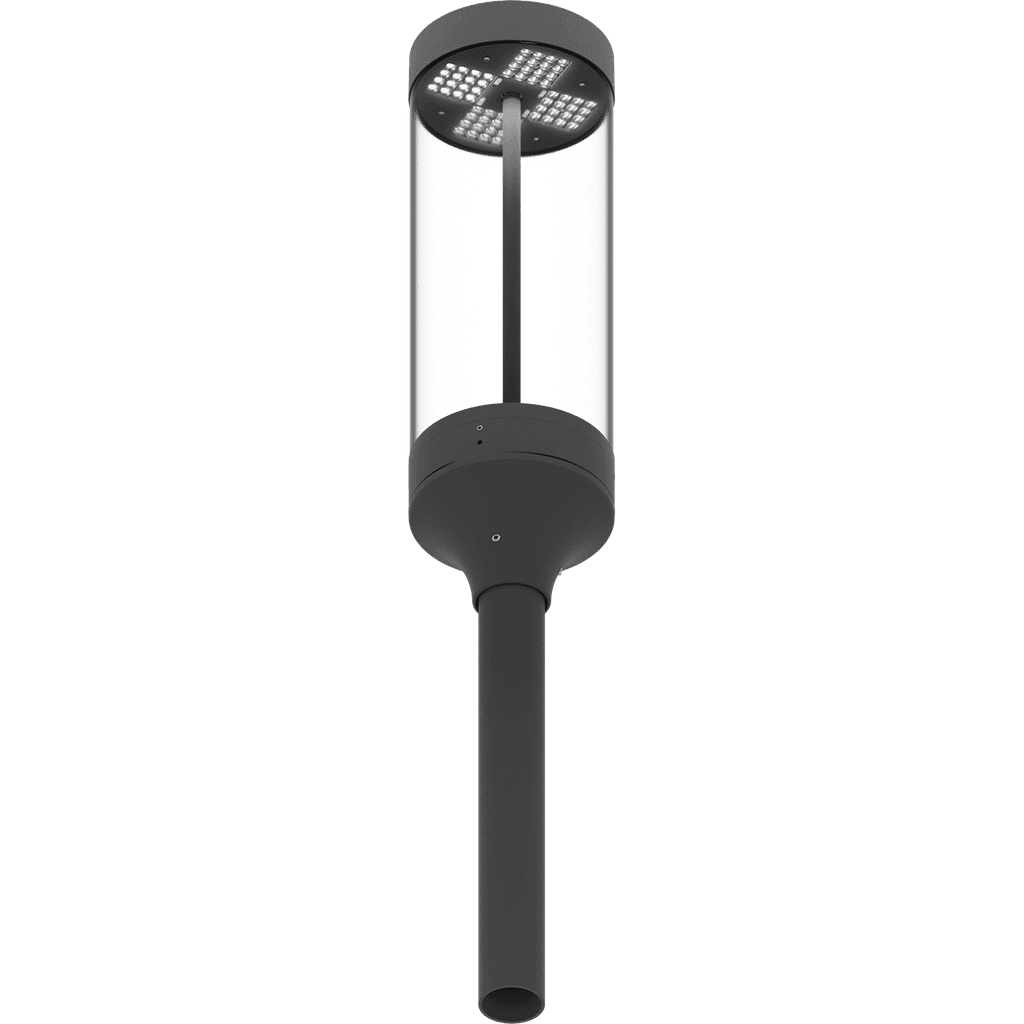

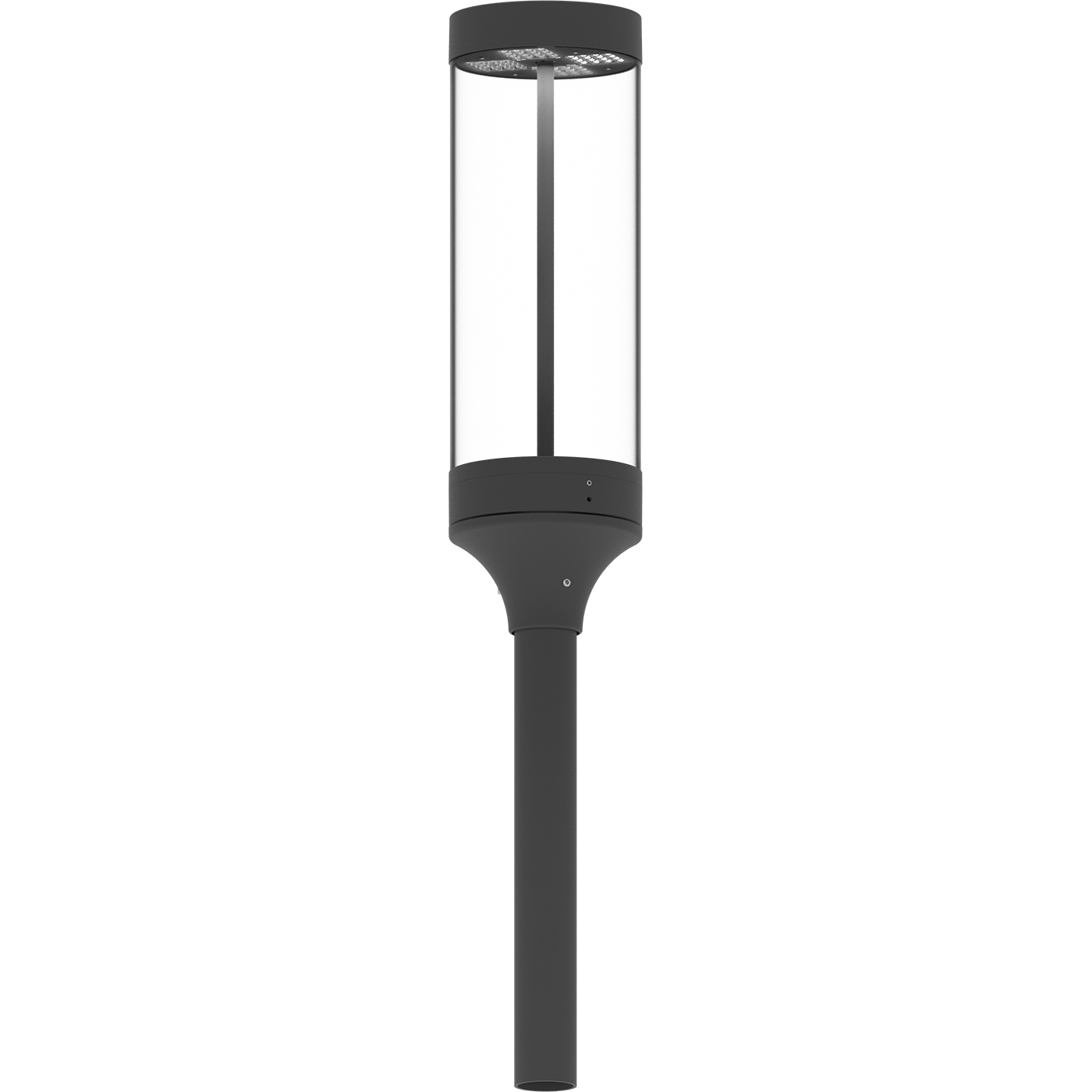

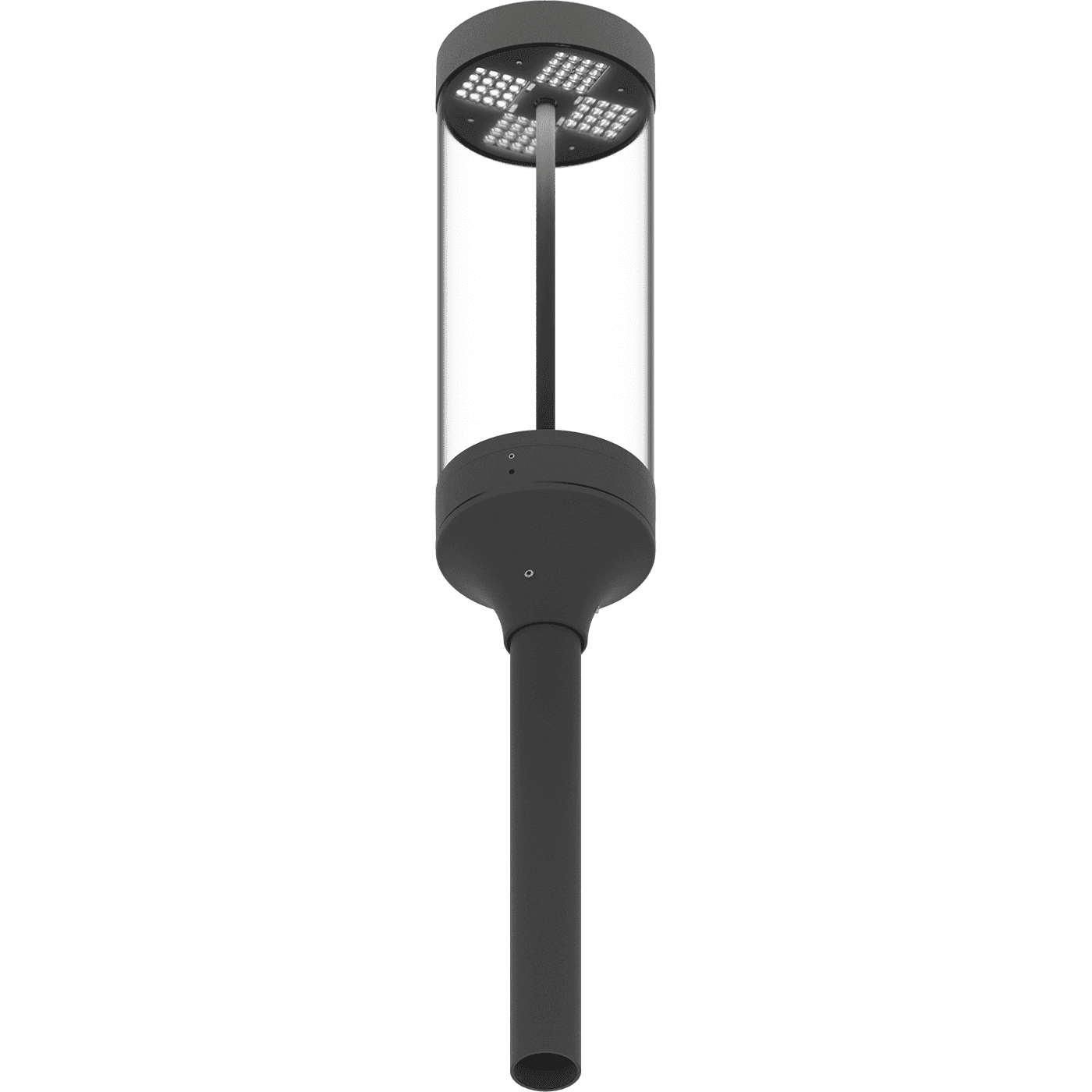

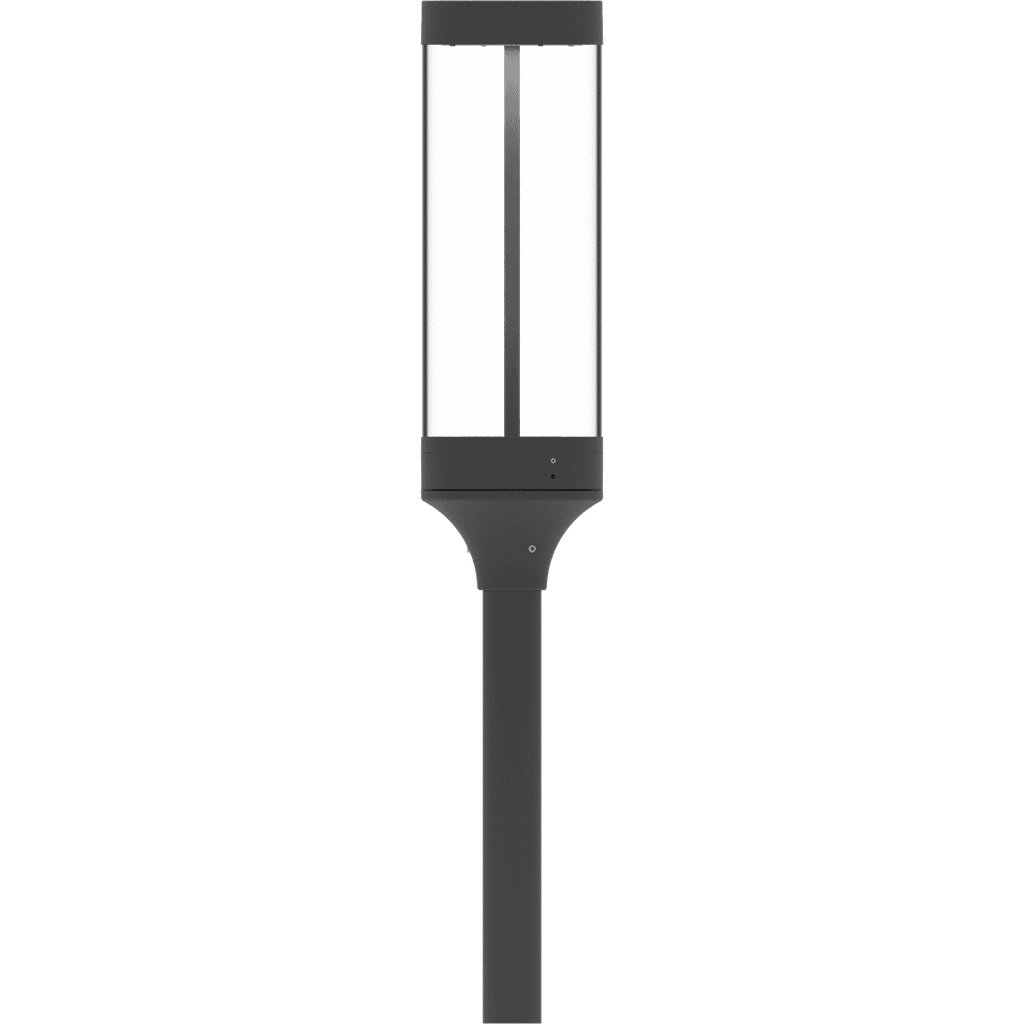

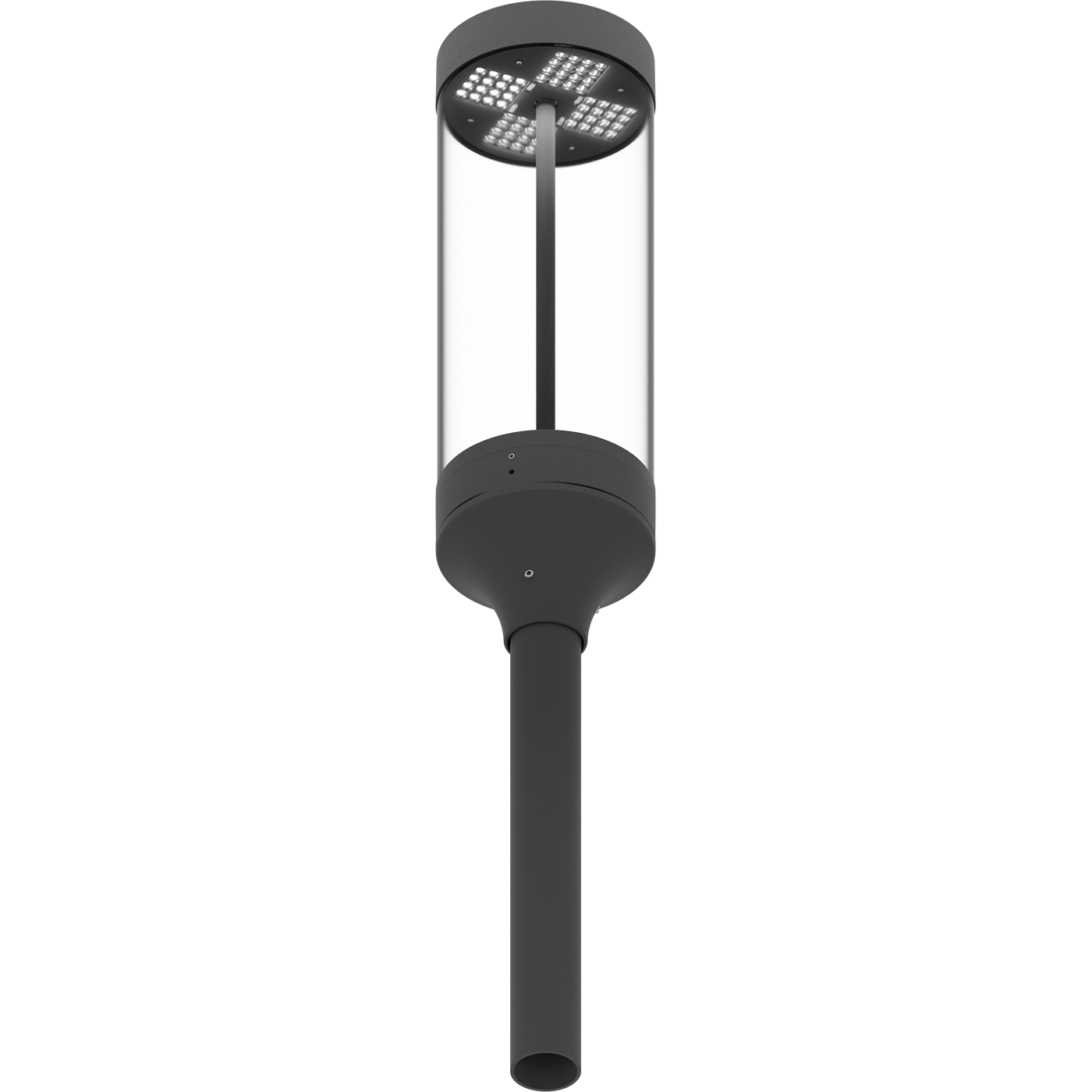

COLOSS TOP LED 30W RW 840 RAL9005
COLOSS TOP LED 30W RW 840 RAL9005
34 Wluminaire power
3900 lmlight flow
115 lm/Wenergy efficiency
code1798000020

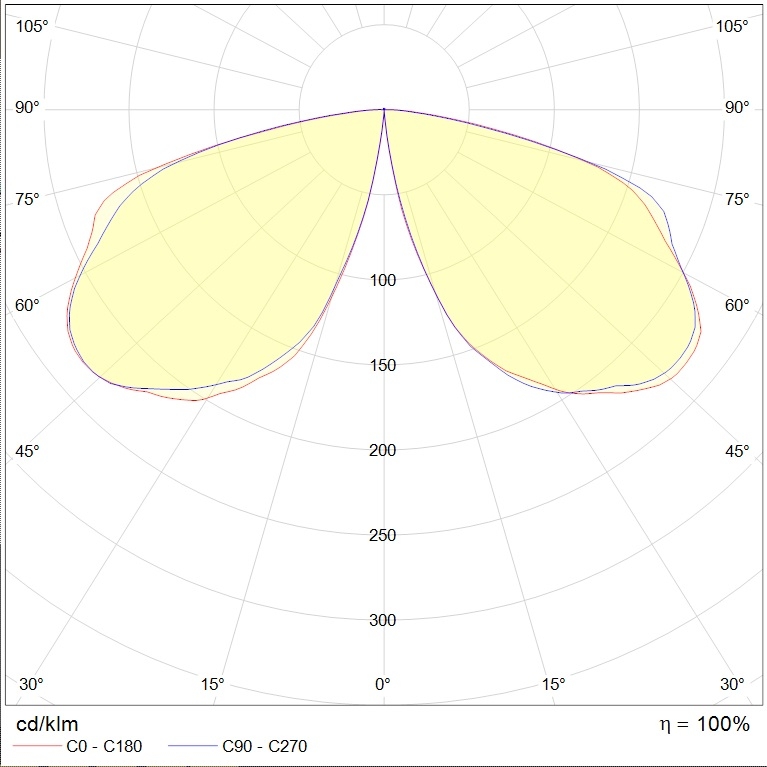

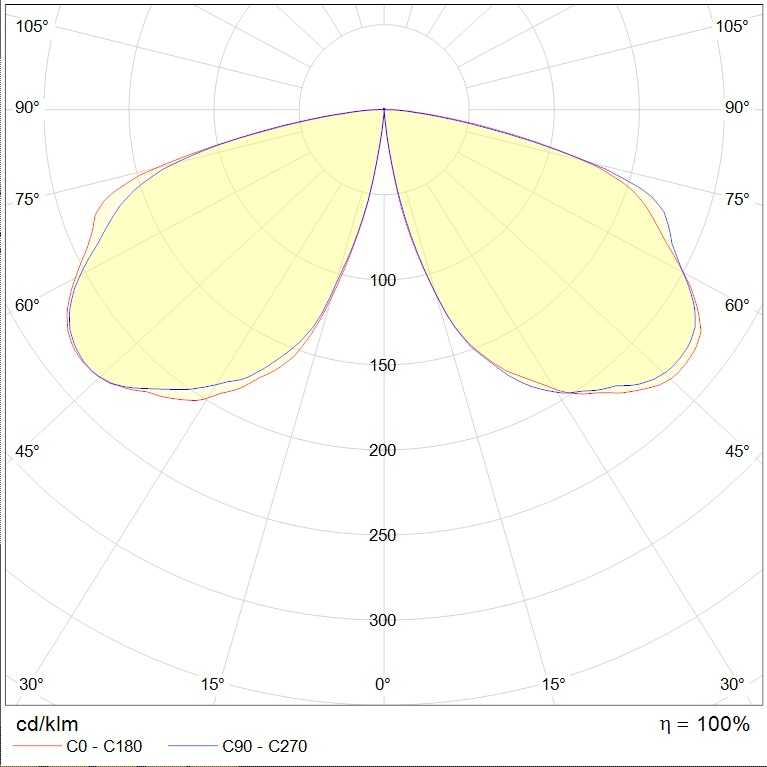

beam angleD145/65
color temperature4000 K
weight5.21 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
115 lm/Wcolor rendition index (CRI)
>80light flow
3900 lmflickering factor
<1%beam angle
D145/65color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
115 lm/W
color rendition index (CRI)
>80
light flow
3900 lm
flickering factor
<1%
beam angle
D145/65
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
luminaire power
34 W
electric shock protection
I
starting current pulse time
350 µs
rated supply voltage, alternating current
230 V
supply voltage
230 V
starting current
50 A
maximum cross-section of the connected cable
1.5 mm2
supply voltage, direct current
142-431 V
supply voltage, alternating current
90-305 V
power factor
> 0,95
constructional
climatic performance
УХЛ1*

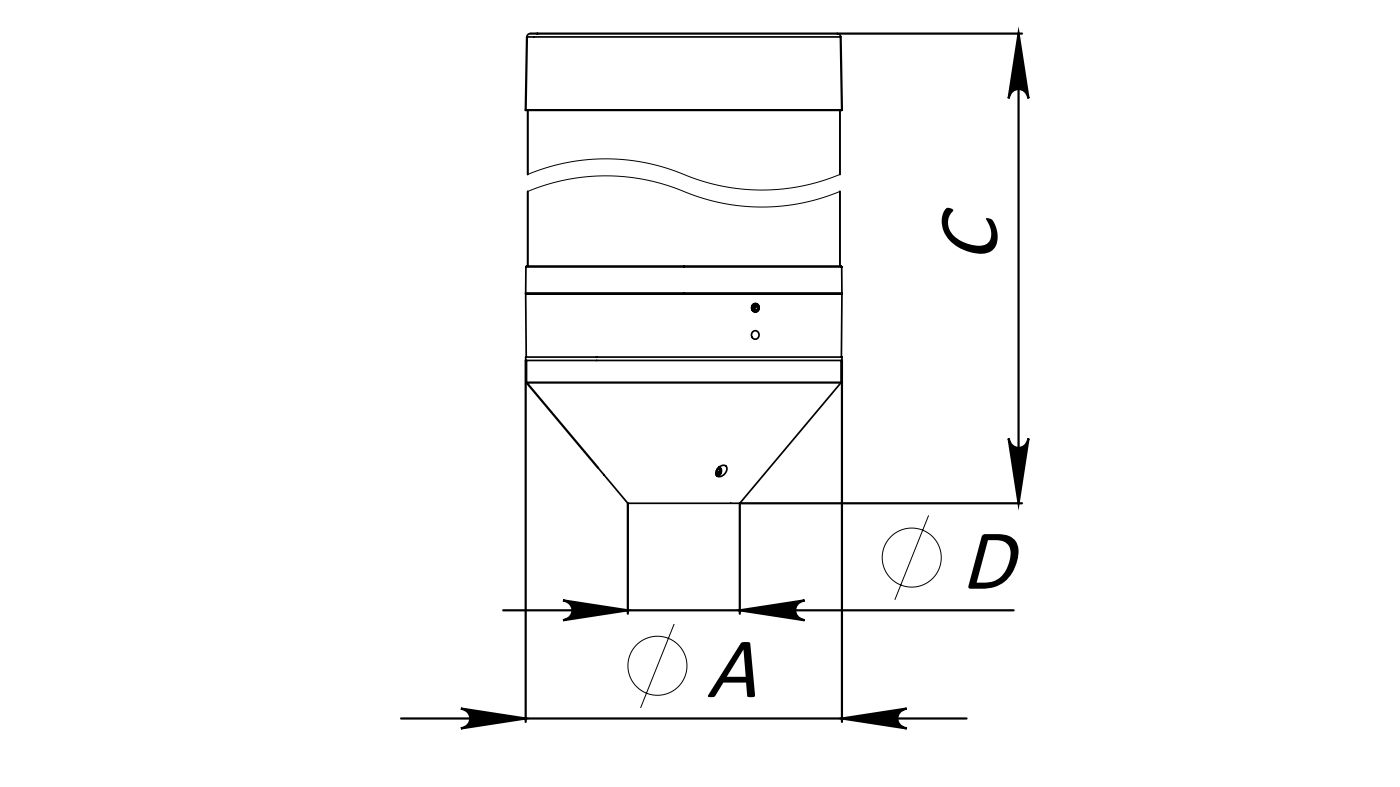

height
602 mm
installation diameter
60 mm
housing color
Черный
lamp socket
LED
number of lamps
1
ballast
Драйвер
diameter
186 mm
material
Алюминий
ingress protection (IP)
IP65
shock resistance (IK)
IK08/6,5 Дж
weight
5.21 kg
common
code
1798000020
warranty
60 month
energy efficiency class
A+
temperature range
от -40 до +40 C
service life
50 000 h
ETIM class
Светильник ландшафтный торшерного типа/ светильник-столбик/ световая тумба
model files
model files

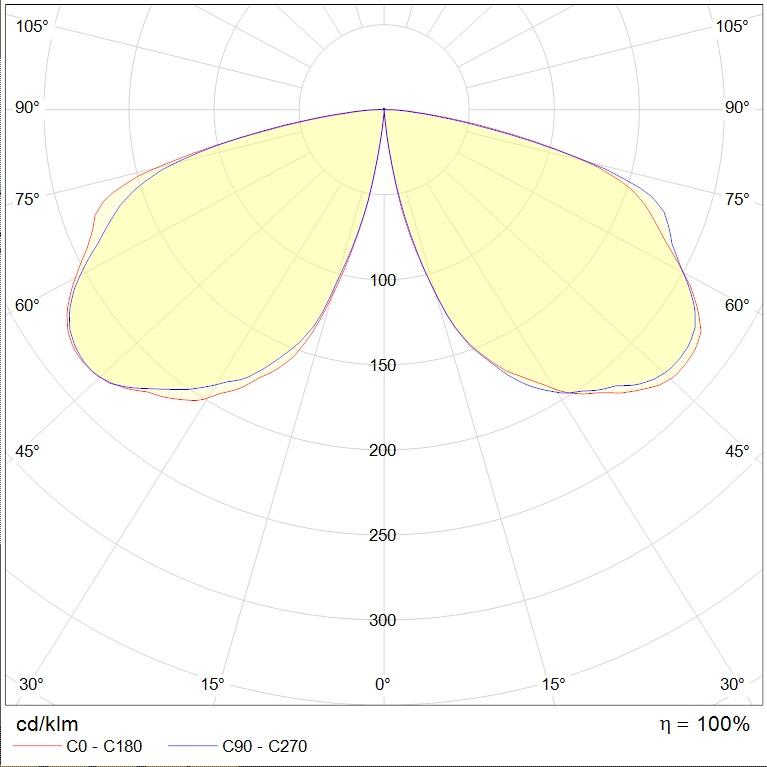

photometric files
documents
сертификаты
photometric files
ies107 kB
jpg94.4 kB
ldt77.4 kB
documents
passport1.3 mB
сертификаты
Russian origin632.4 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20112 mB
Declaration of Conformity EAEU TR 037/2016616.5 kB
