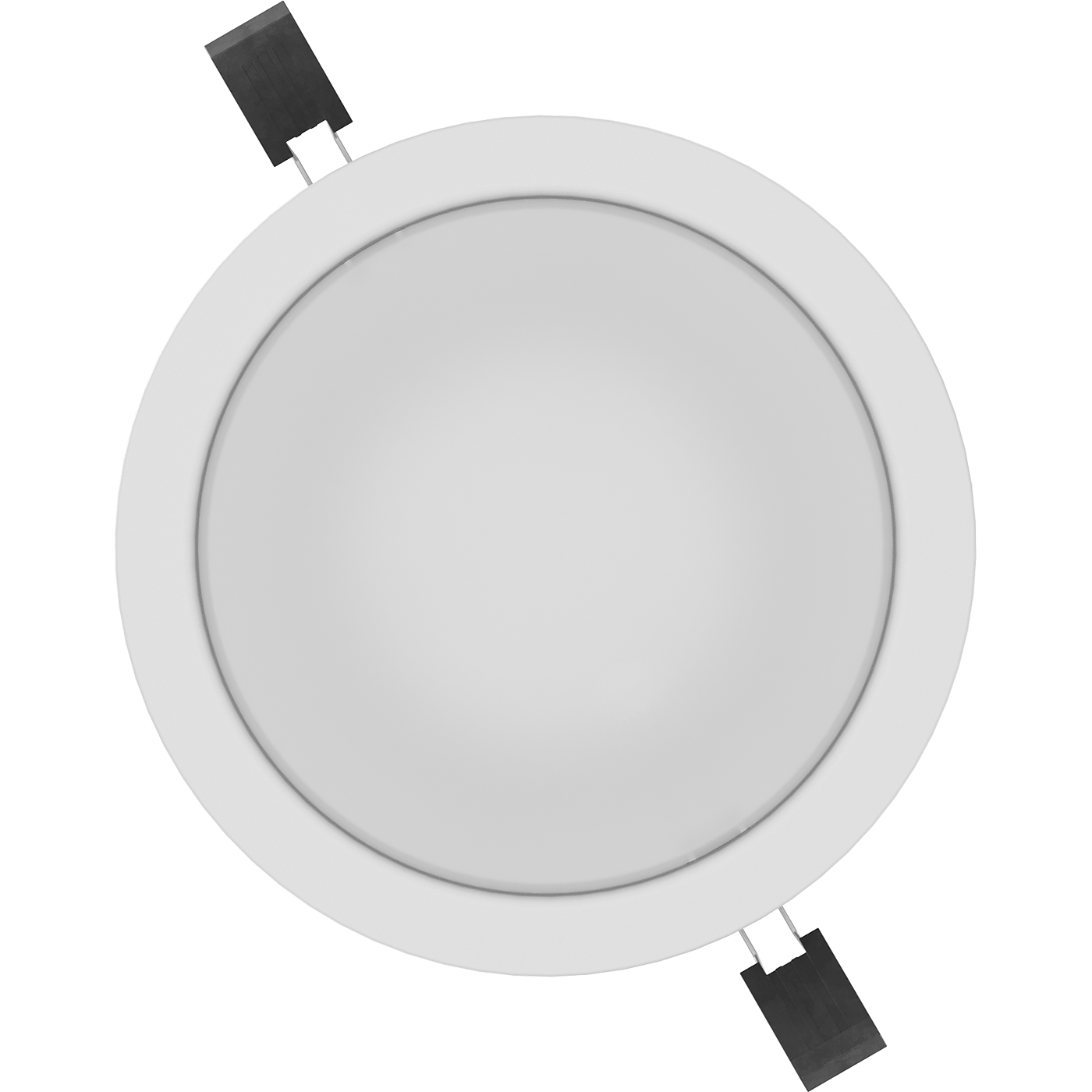

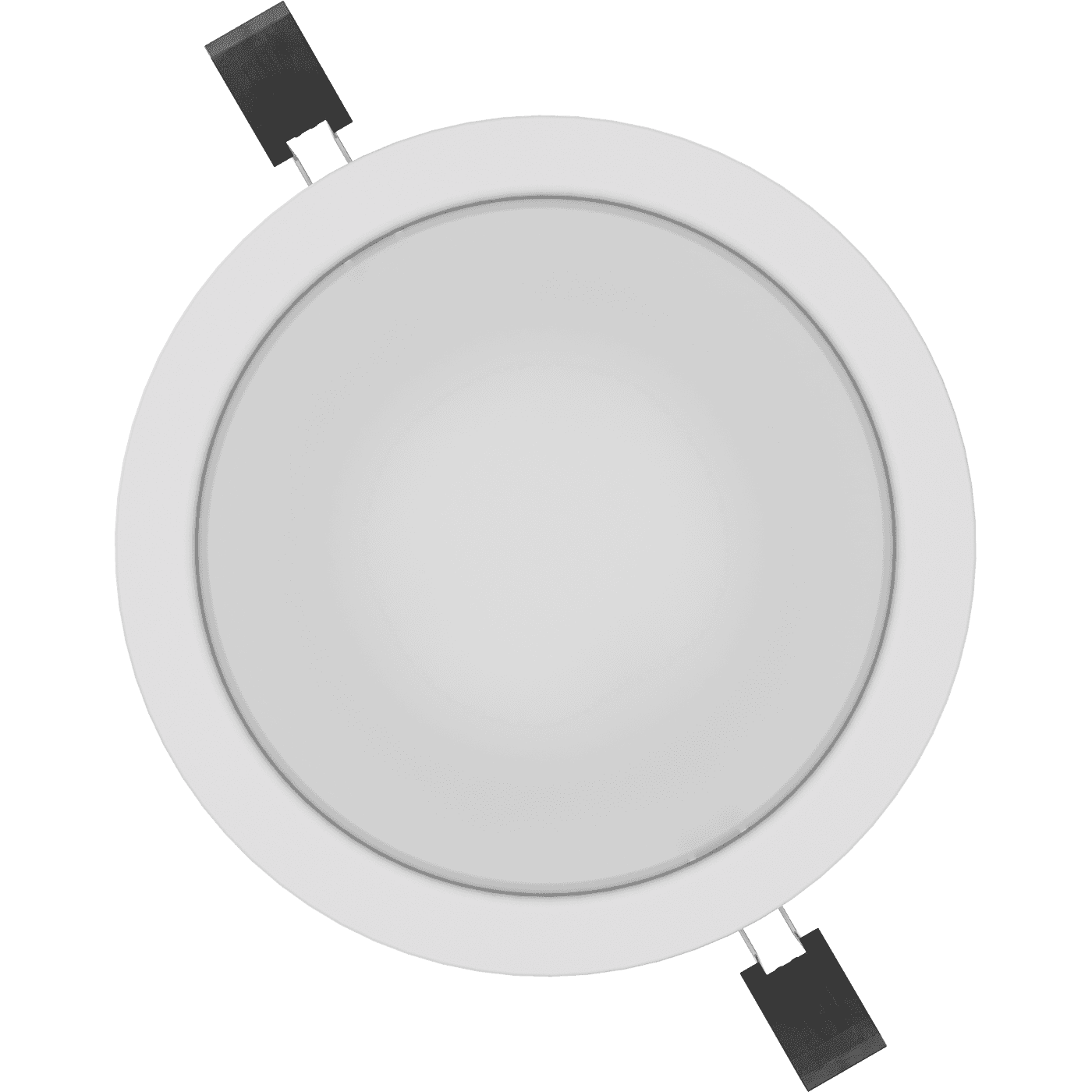

COLIBRI DL LED 19 S EM 4000K
COLIBRI DL LED 19 S EM 4000K
20 Wluminaire power
1700 lmlight flow
85 lm/Wenergy efficiency
code1170003460
color temperature4000 K
beam angleD120
performance factor100
options
свернуть все
illuminatingelectricalconstructionalemergencycommon
energy efficiency
85 lm/Wcolor rendition index (CRI)
>80light flow
1700 lmflickering factor
<5%beam angle
D120color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
85 lm/W
color rendition index (CRI)
>80
light flow
1700 lm
flickering factor
<5%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
2.28 µs
electric shock protection
I
luminaire power
20 W
supply voltage
230 V
power factor
> 0,90
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
43 A
constructional
diameter
186 mm
height
74 mm
installation diameter
165 mm
weight
1.55 kg
ingress protection (IP)
IP40/IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
material
Алюминий
housing color
Металлик
lamp socket
LED
number of lamps
1
ballast
Драйвер
emergency
operating time in emergency mode
1 h
luminous flux in emergency mode
26% lm
common
warranty
36 month
temperature range
от +5 до +35 C
service life
50 000 h
energy efficiency class
A
ETIM class
Прожектор / Светильник направленного света
code
1170003460
model files
model files

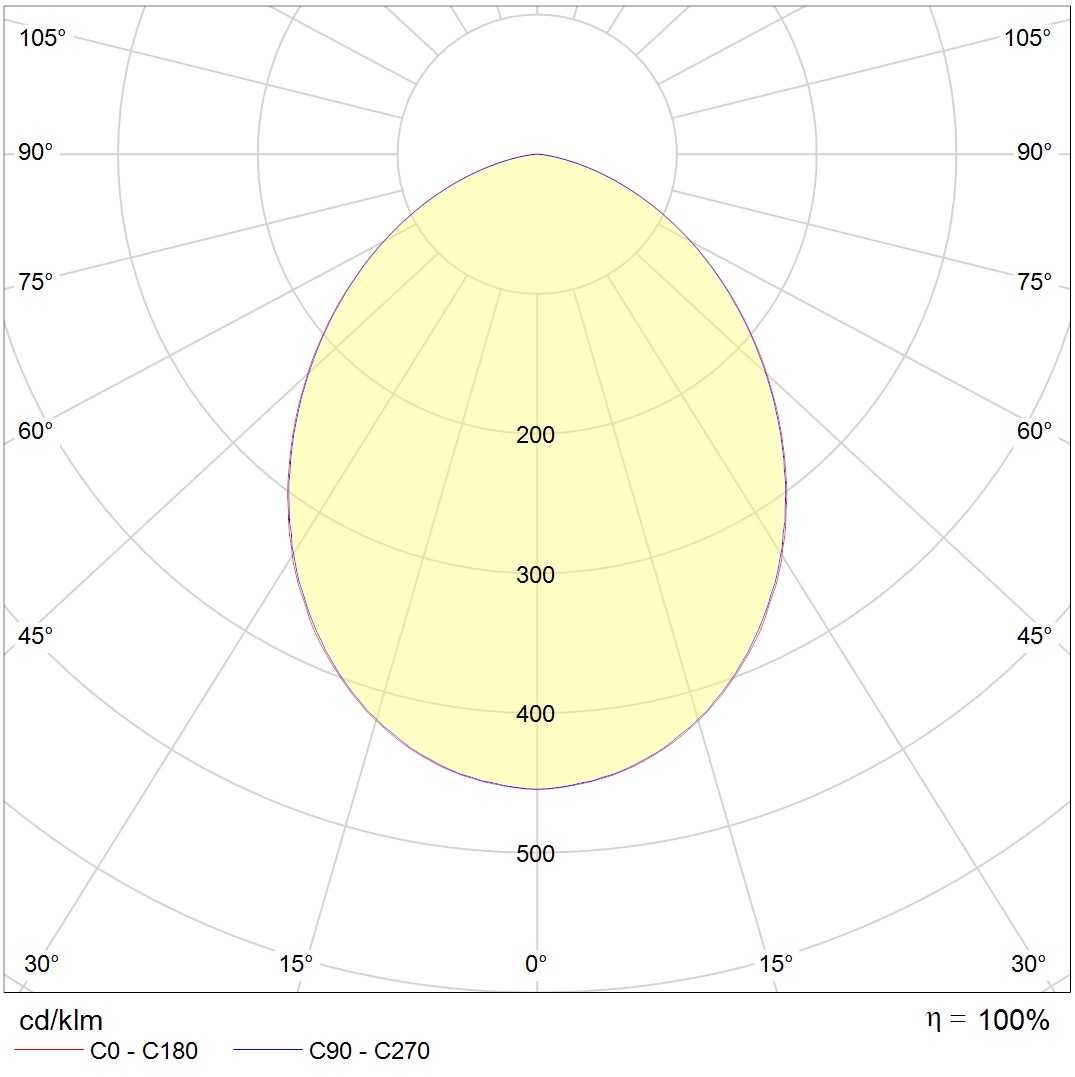

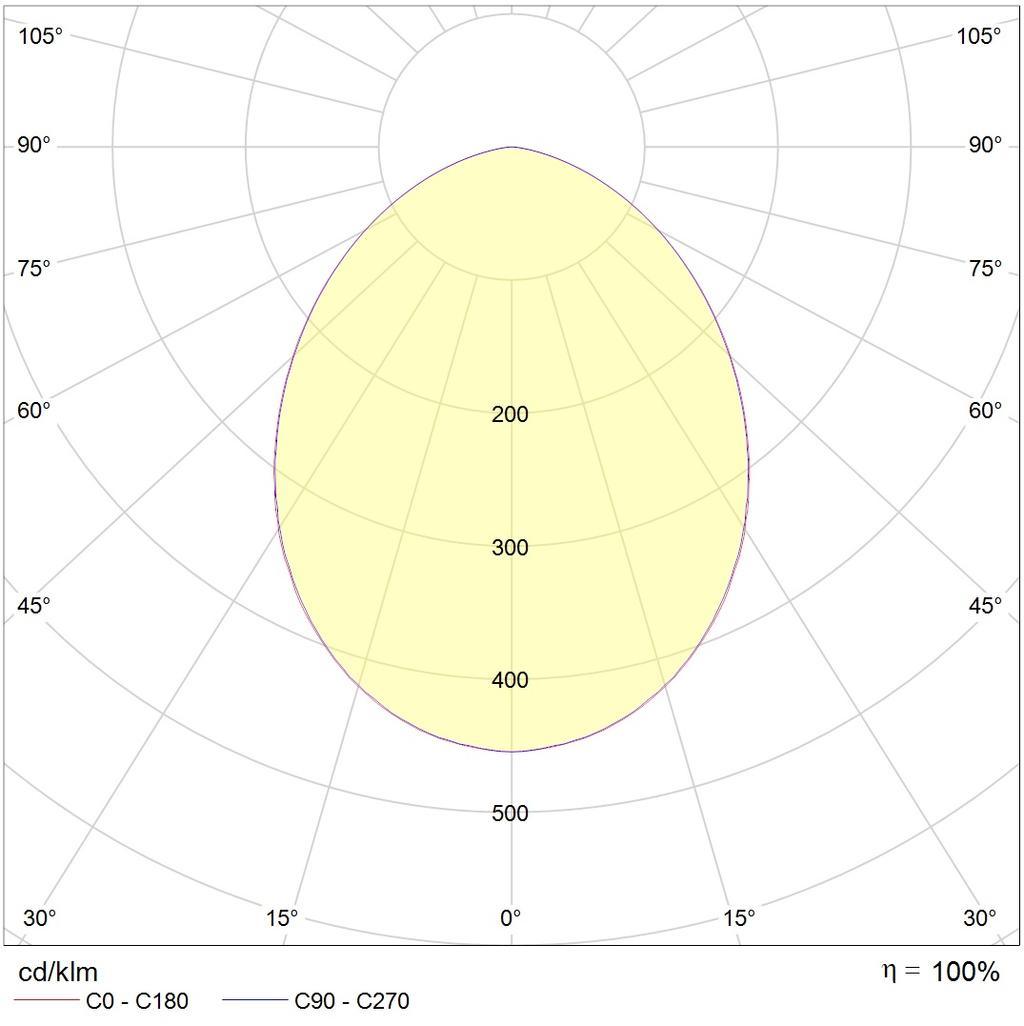

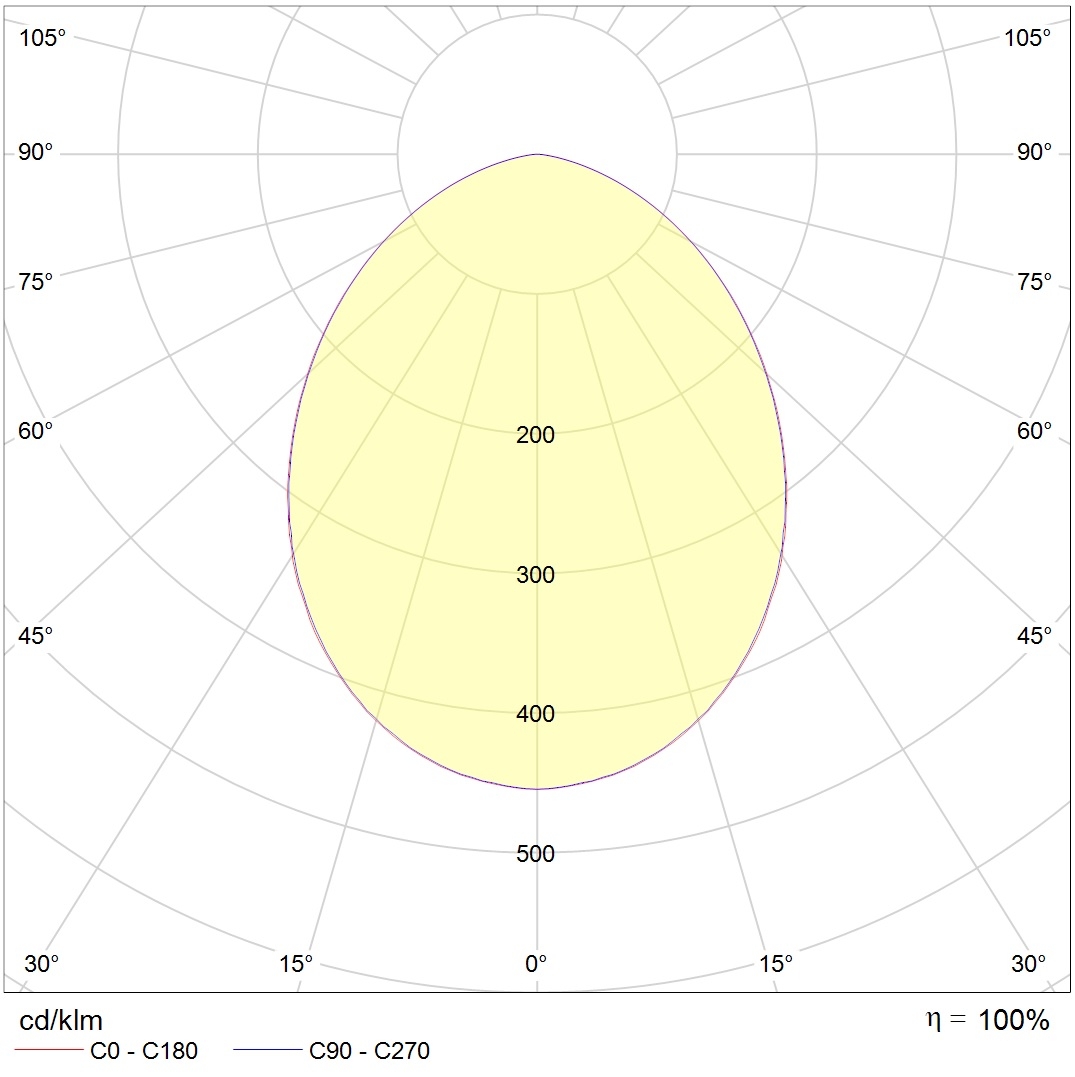

photometric files
documents
сертификаты
photometric files
ies134.1 kB
jpg124.5 kB
ldt83 kB
csv422 B
documents
passport1.6 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
Fire Safety Certificate1.7 mB
accessories

SL/DL (COLIBRI) 190x190xd165 (100x100x40 lamel 10mm) silver0.32kgarticle: 2170000350

SL/DL (COLIBRI) 190x190xd165 (100x100x40 lamel 10mm) white0.32kgarticle: 2170000160
