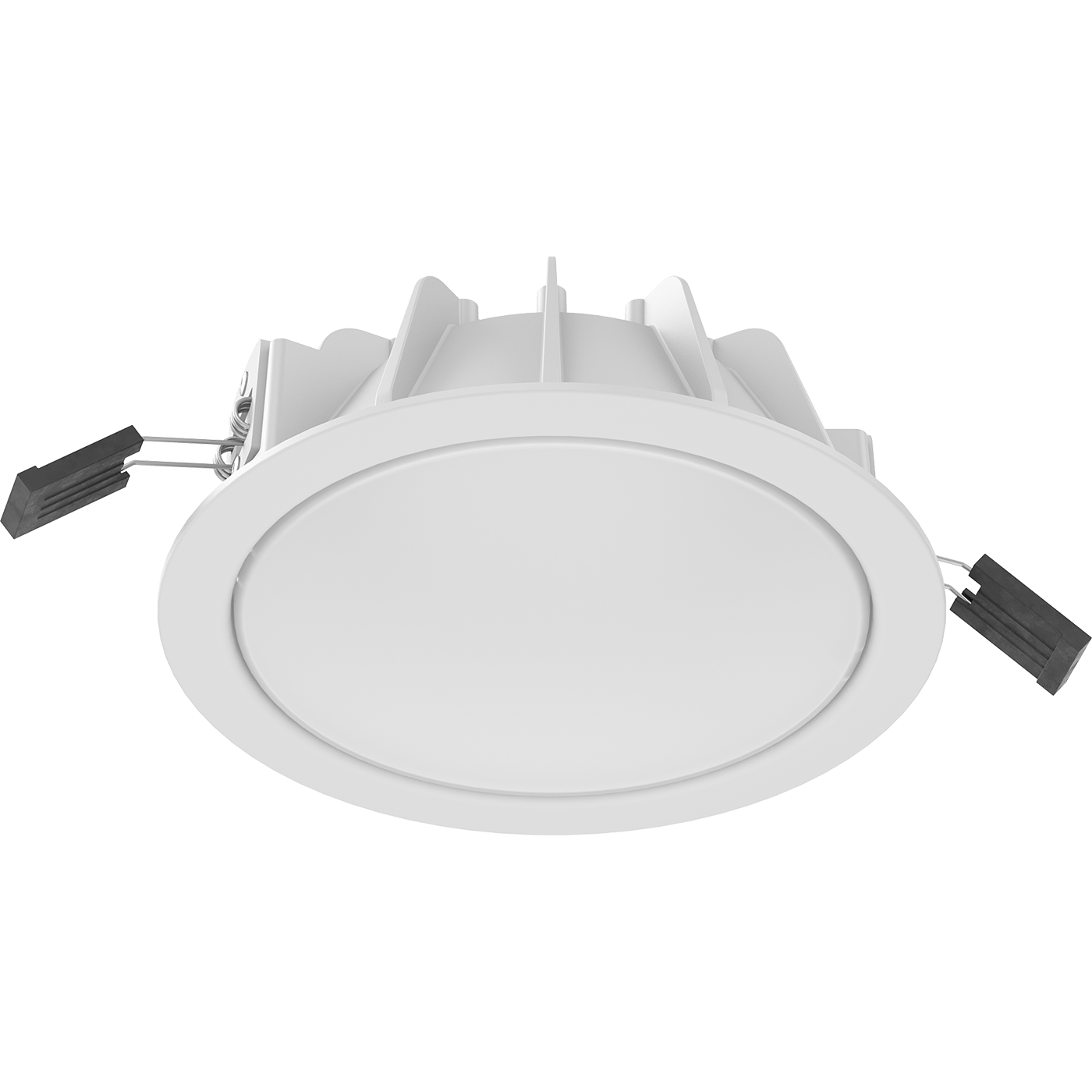

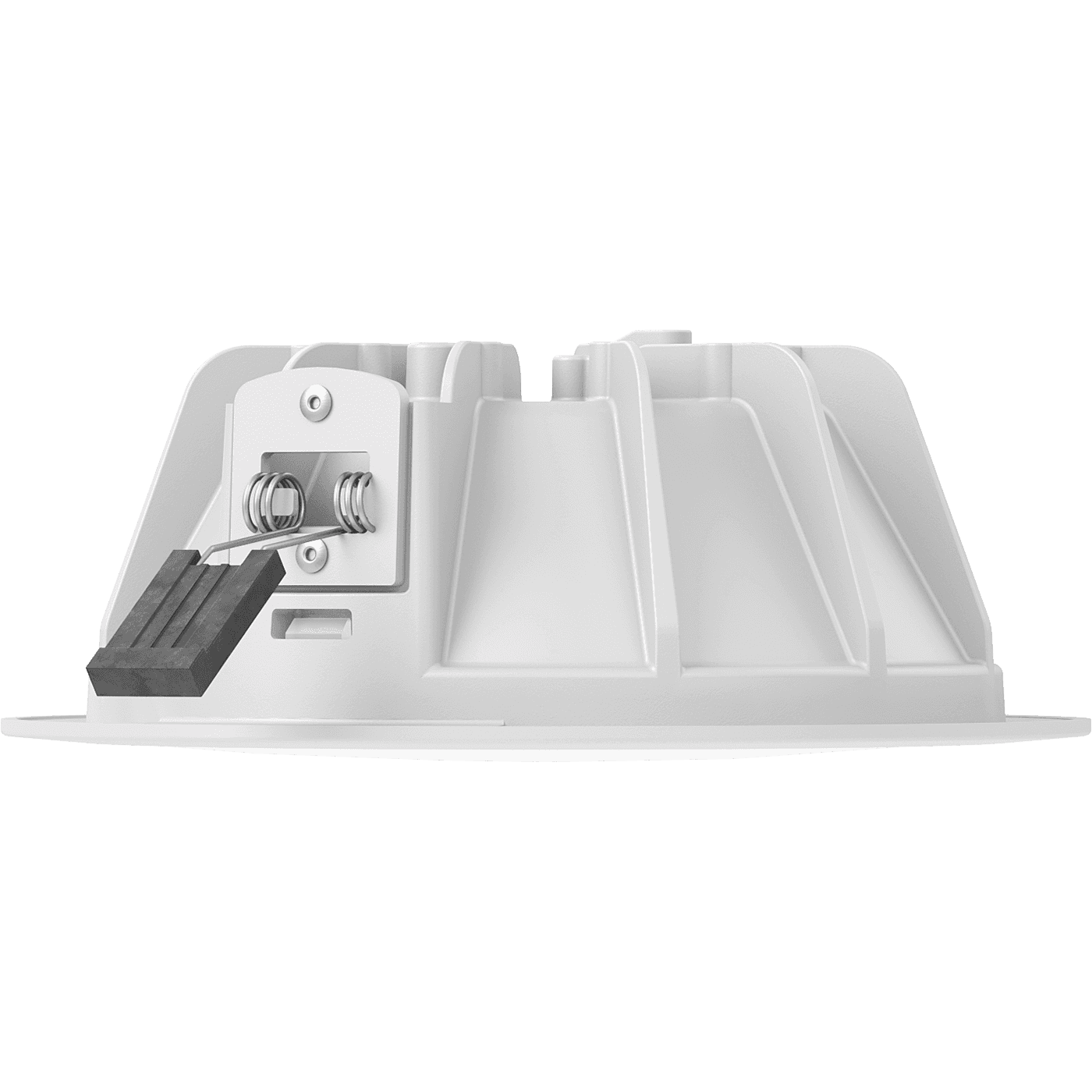

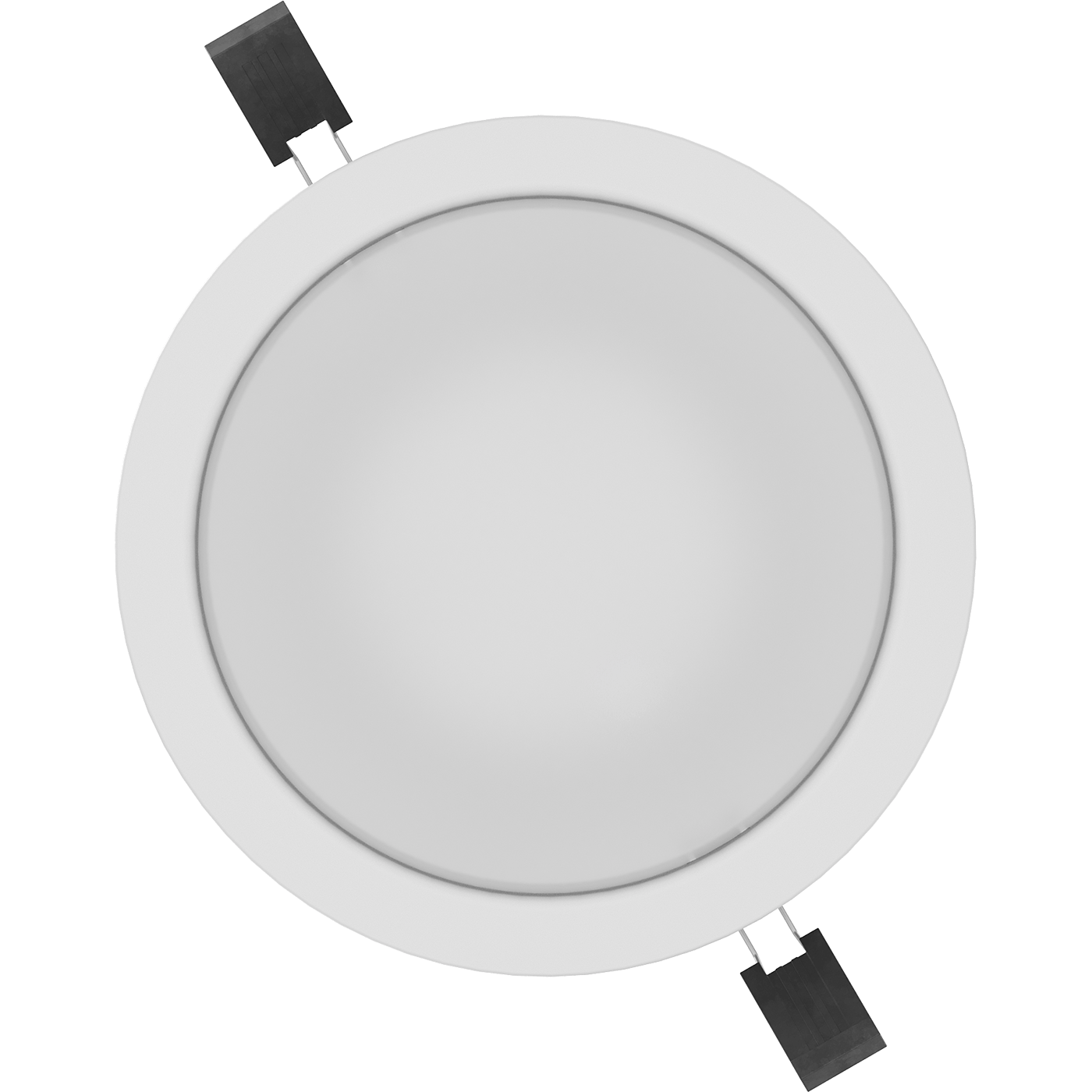

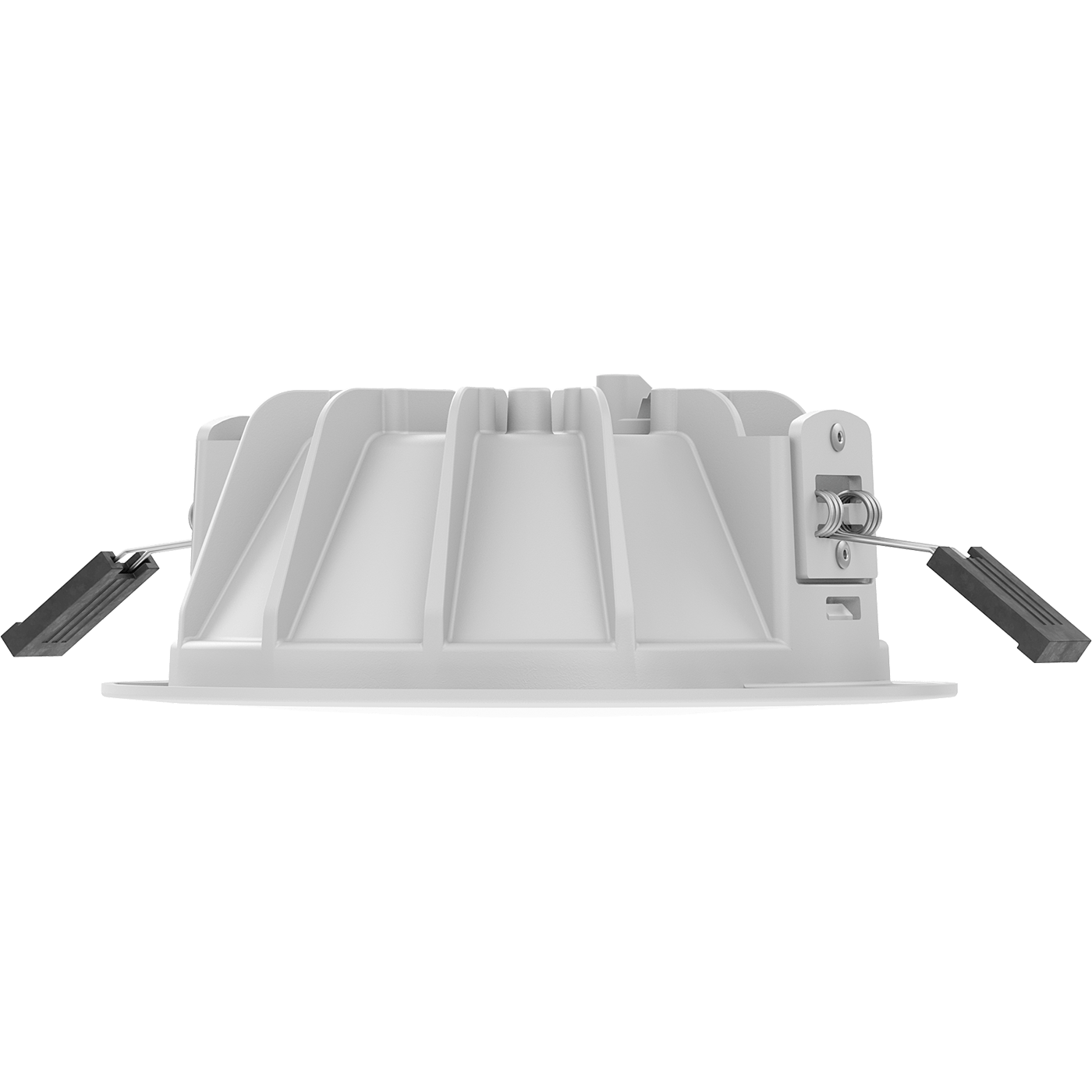

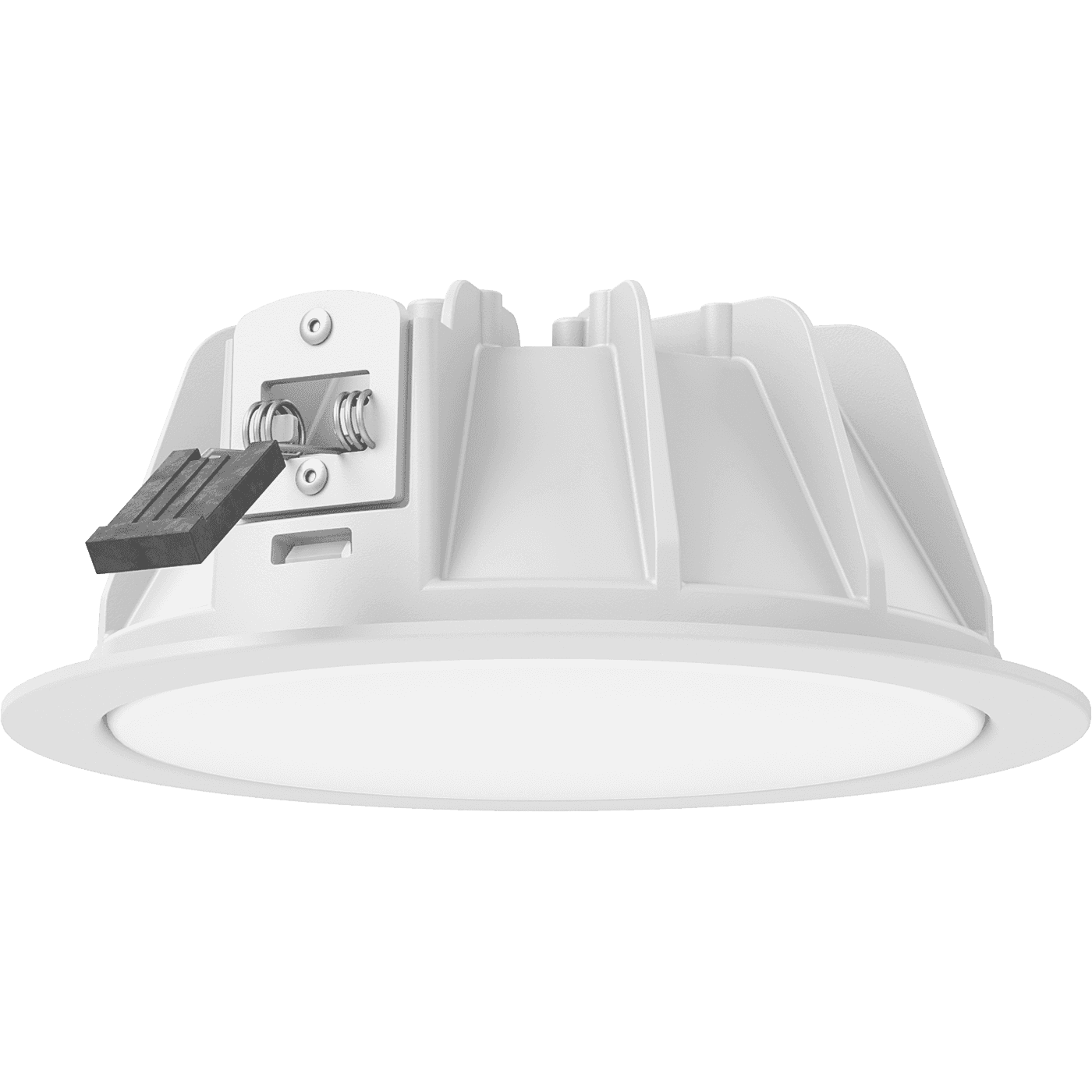

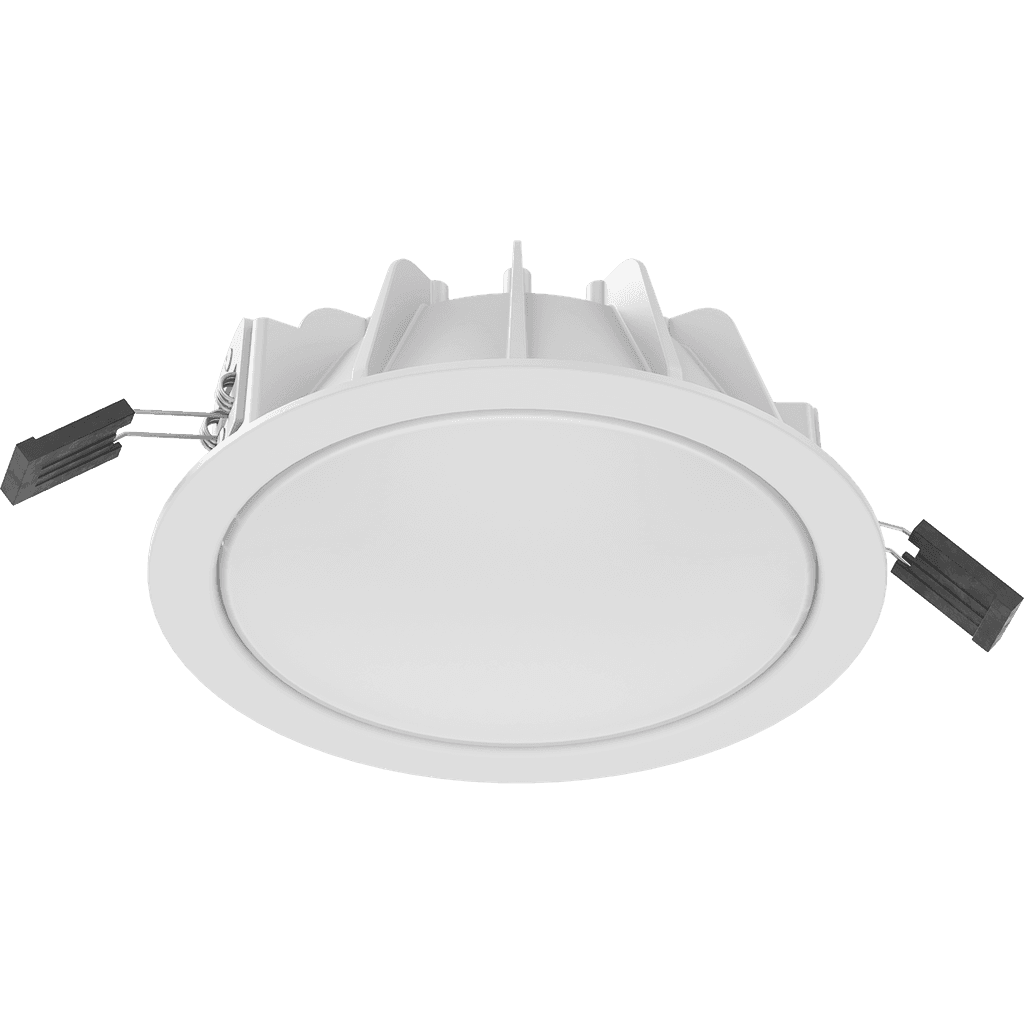

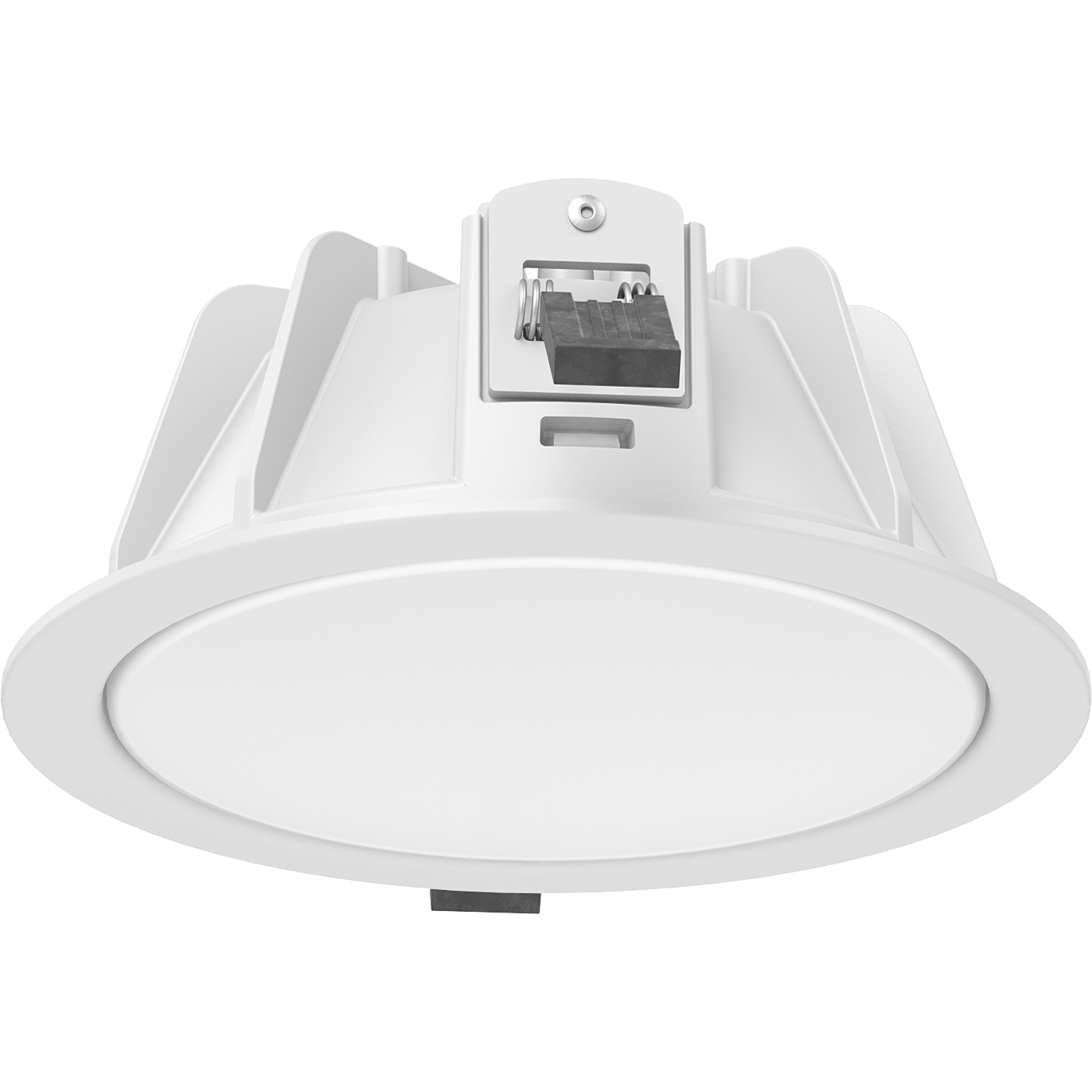

COLIBRI DL LED 15 B EM 4000K
COLIBRI DL LED 15 B EM 4000K
14 Wluminaire power
1300 lmlight flow
93 lm/Wenergy efficiency
code1170003320
color temperature4000
beam angleD120
number of lamps1
performance factor100
options
свернуть все
electricalconstructionalcommonilluminatingemergency
starting current
43 Astarting current pulse time, µs
2.28 mksrated supply voltage, alternating current
230 Vsupply voltage, alternating current
198-264 Vluminaire power
14 Welectric shock protection
Ipower factor
> 0,90supply voltage
230 Velectrical
starting current
43 A
starting current pulse time, µs
2.28 mks
rated supply voltage, alternating current
230 V
supply voltage, alternating current
198-264 V
luminaire power
14 W
electric shock protection
I
power factor
> 0,90
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
2.5
ingress protection (IP)
IP40/IP20
climatic performance
УХЛ4*
material
Алюминий
weight
1.55 kg
diameter, mm
186 mm
height, mm
74 mm
housing color
Черный
installation diameter, mm
165 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
ETIM class
Прожектор / Светильник направленного света
warranty
36 month
temperature range
от +5 до +35 C
energy efficiency class
A+
service life, hour
50 000 h
code
1170003320
illuminating
color rendition index (CRI)
>80
light flow
1300 lm
flickering factor
<1%
energy efficiency
93 lm/W
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
emergency
operating time in emergency mode, hours
1 h
luminous flux in emergency mode
33% lm
battery / battery Ni-Cd
RB 6,0 V 1,5 A*h Ni-Cd
model files
model files

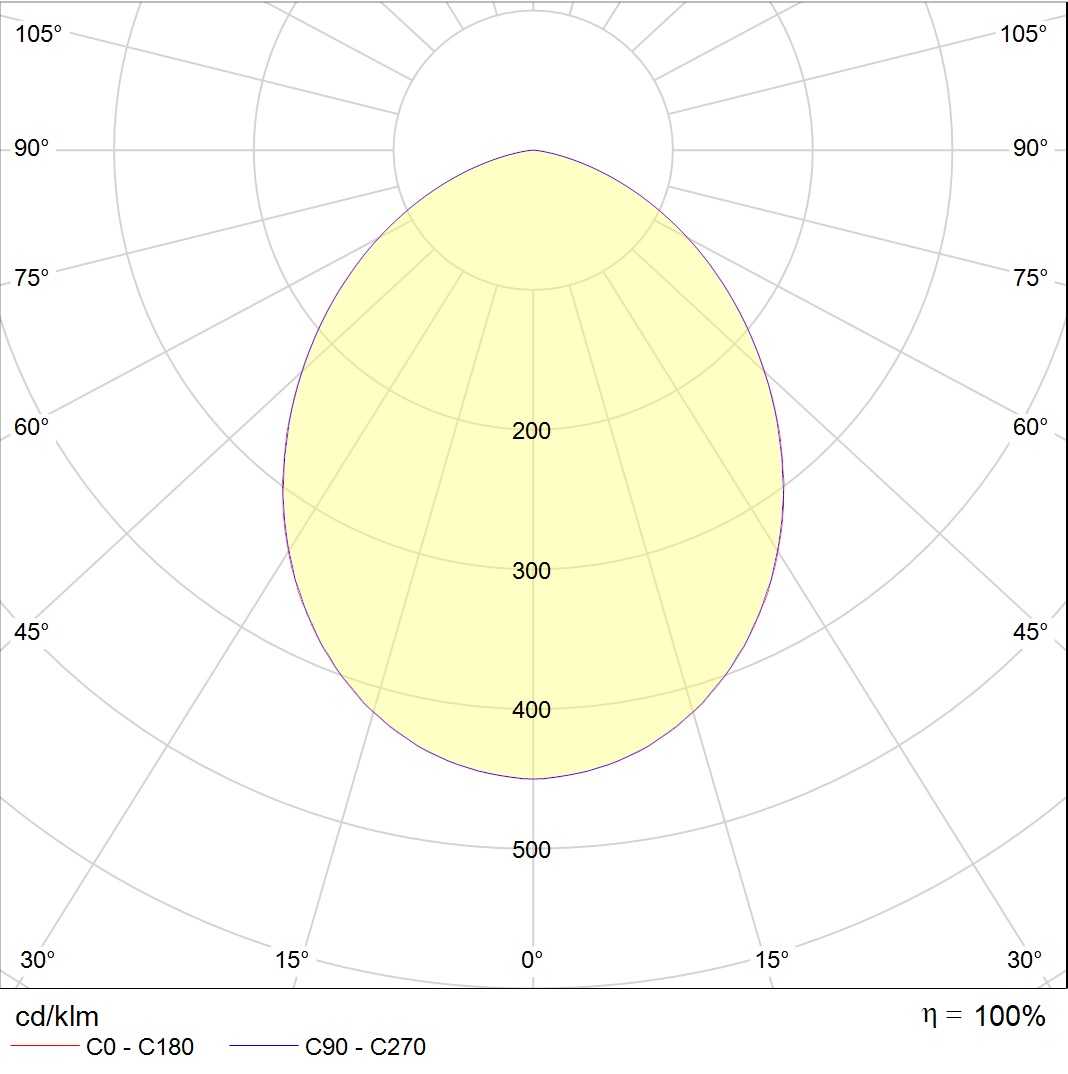

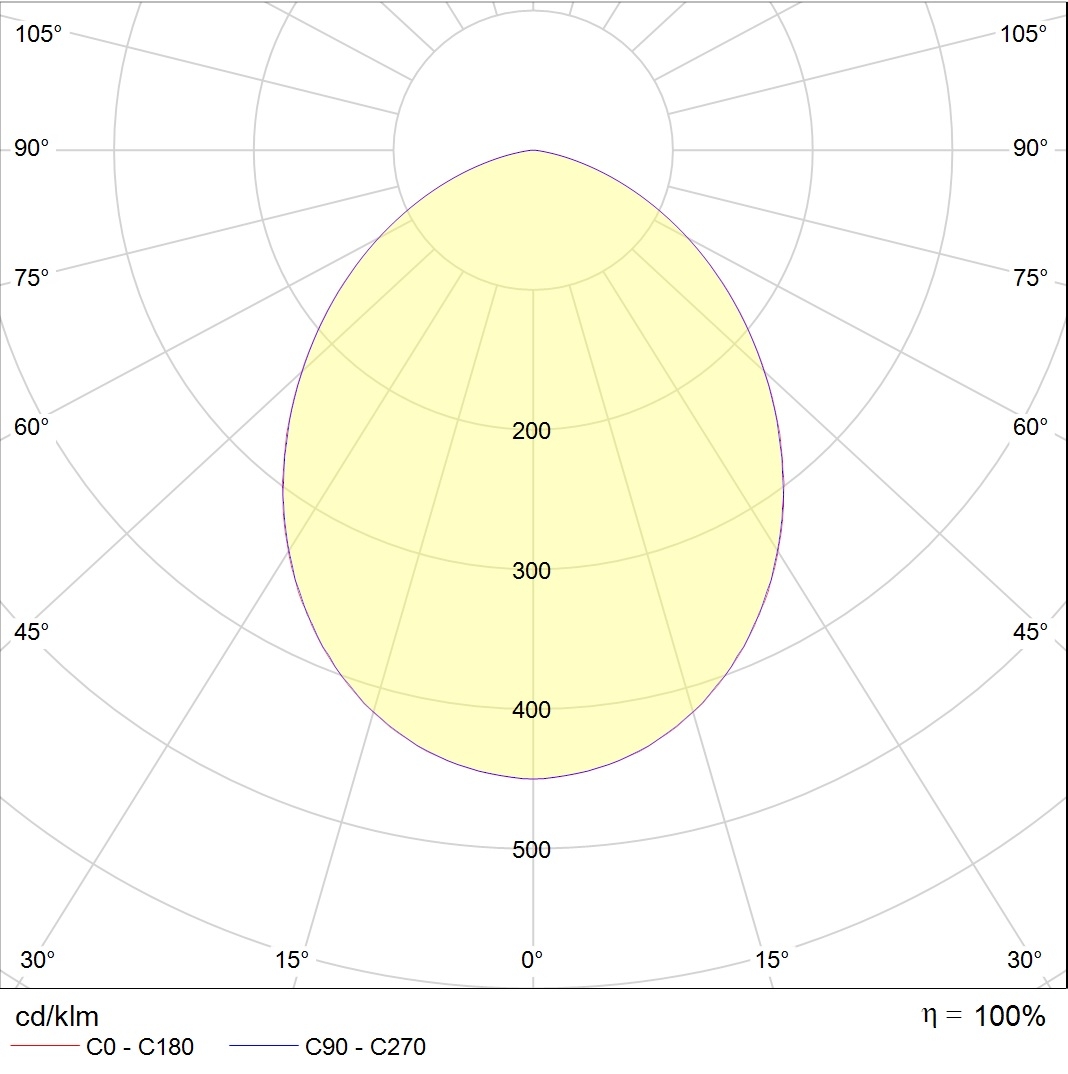

photometric files
documents
сертификаты
photometric files
ies134.1 kB
jpg122.3 kB
ldt82.9 kB
csv422 B
documents
passport1.6 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
Fire Safety Certificate1.7 mB
accessories
SL/DL (COLIBRI) 190x190xd165 (100x100x40 lamel 10mm) silver0.32kgarticle: 2170000350
SL/DL (COLIBRI) 190x190xd165 (100x100x40 lamel 10mm) white0.32kgarticle: 2170000160
