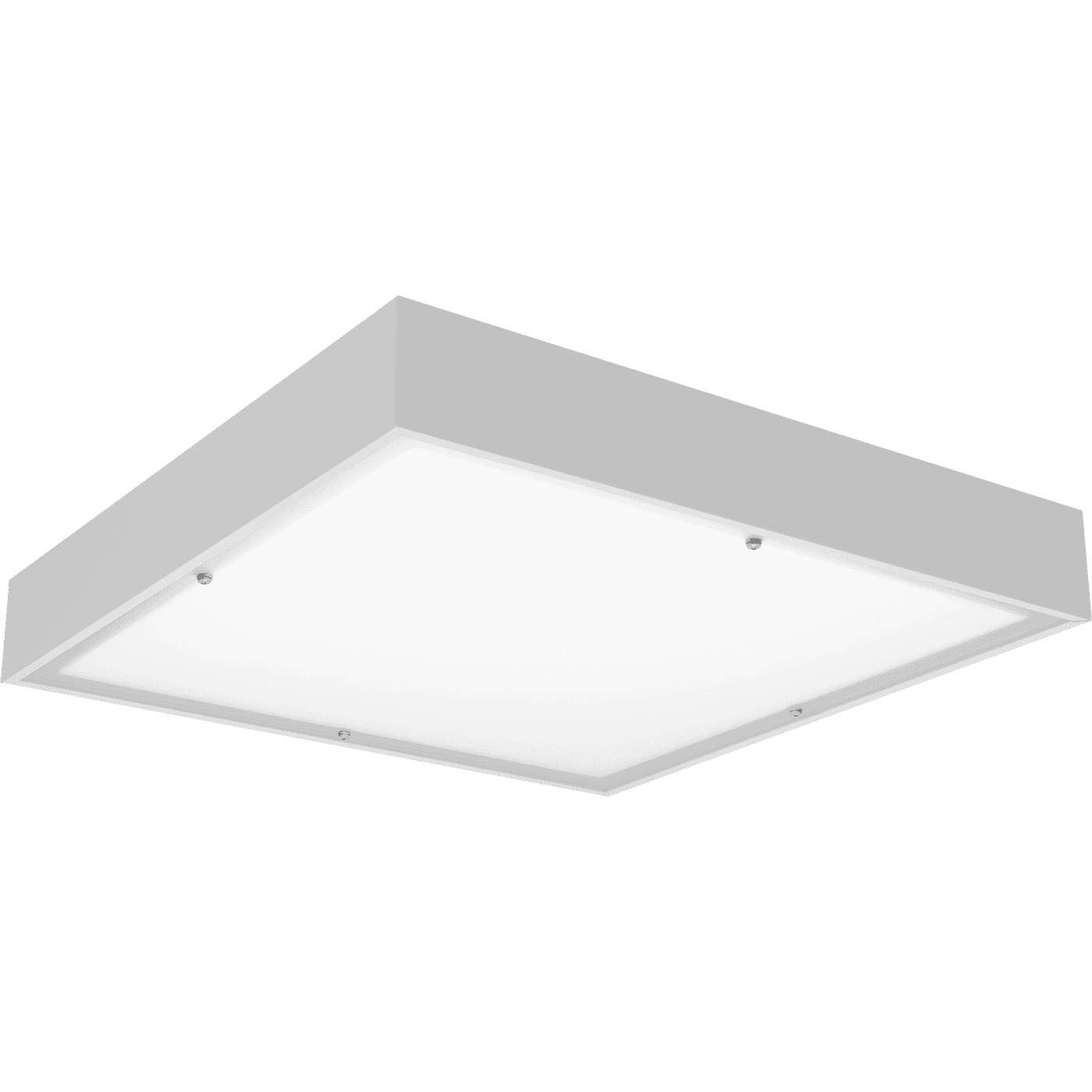

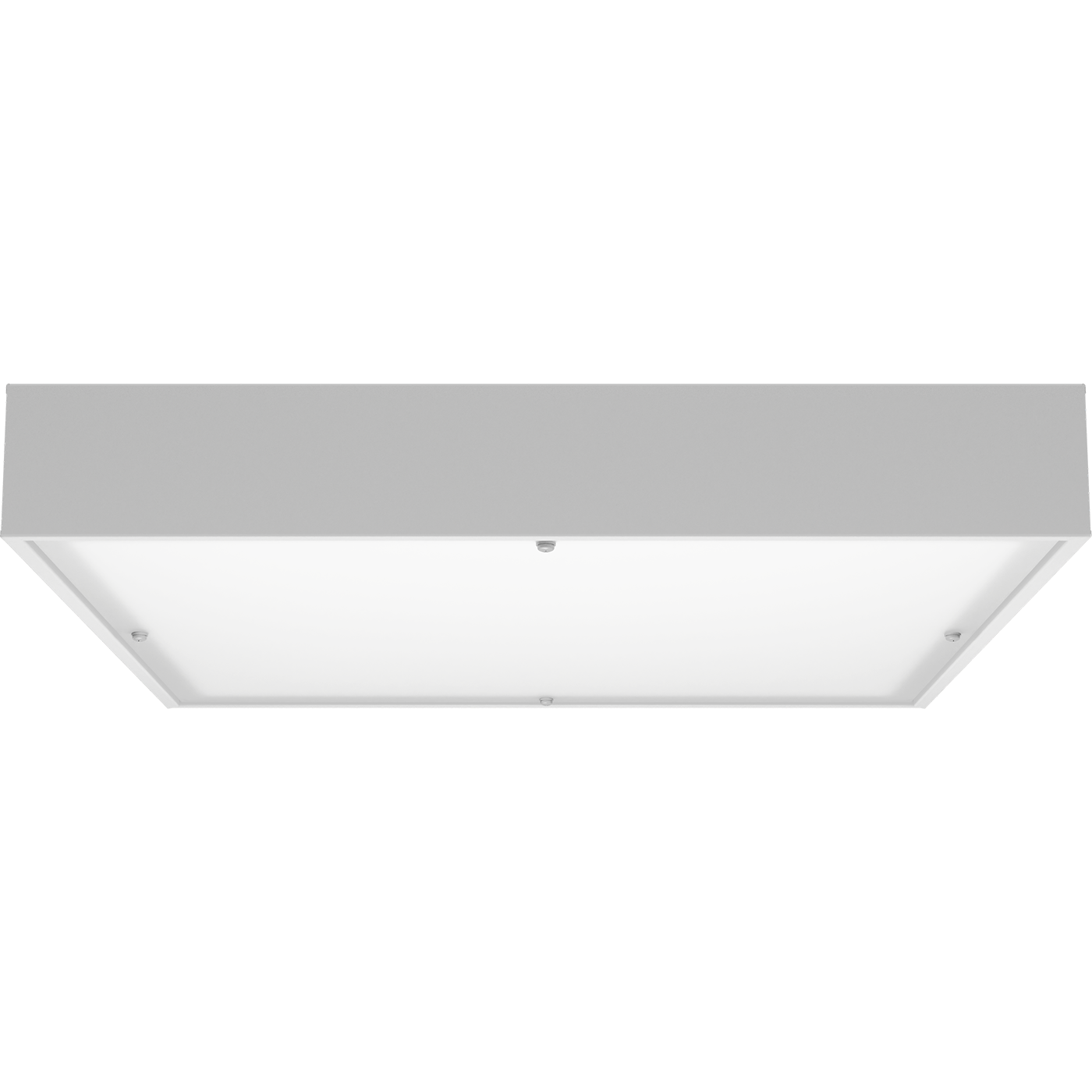

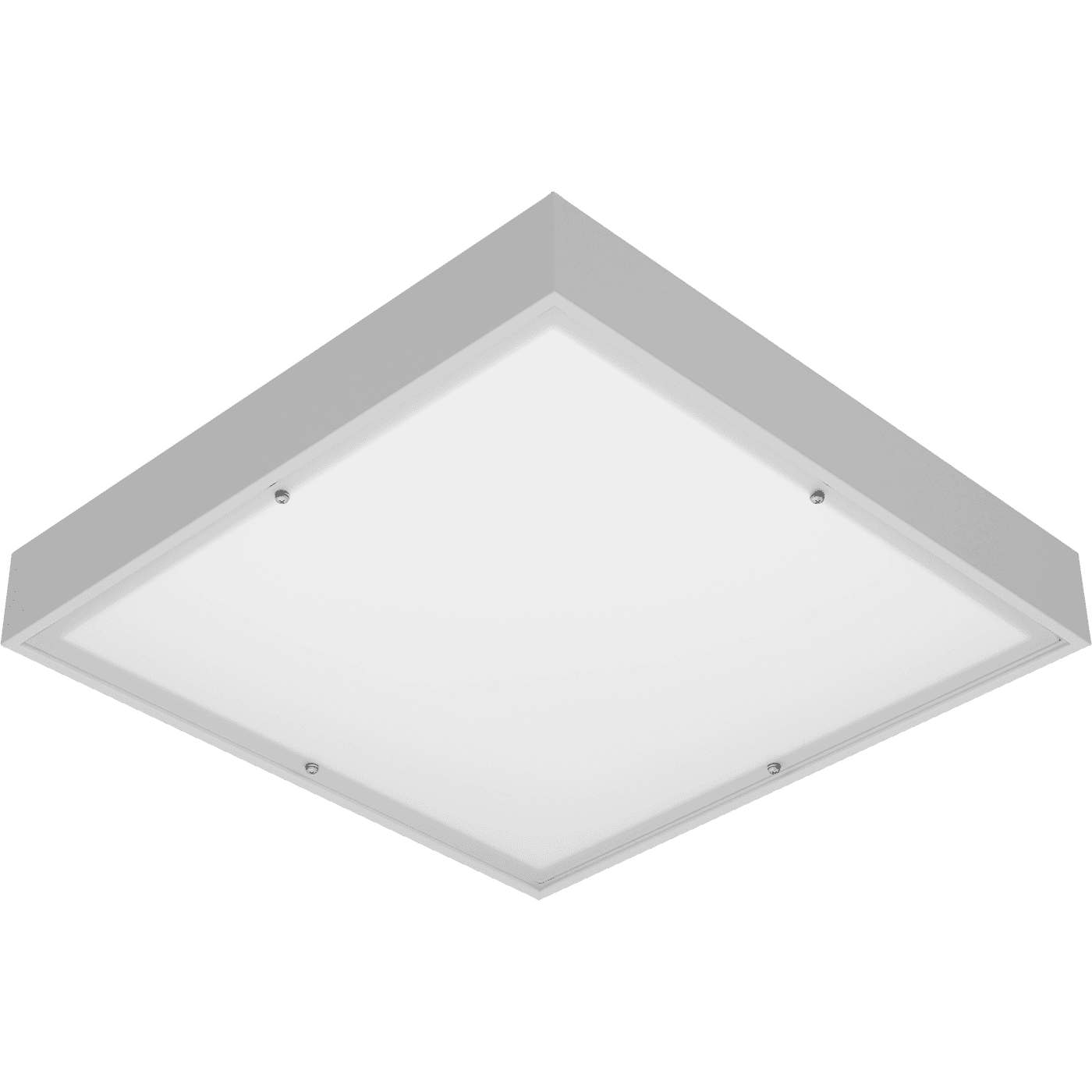

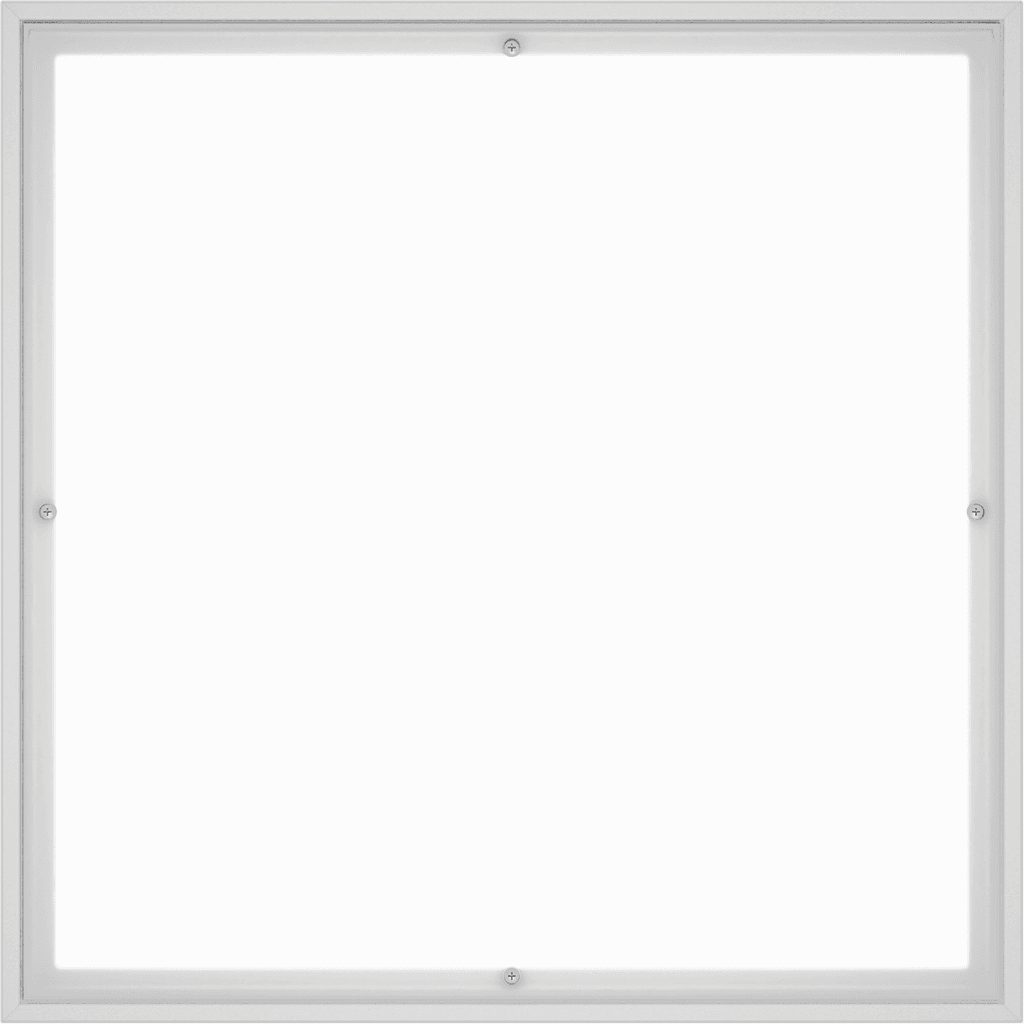

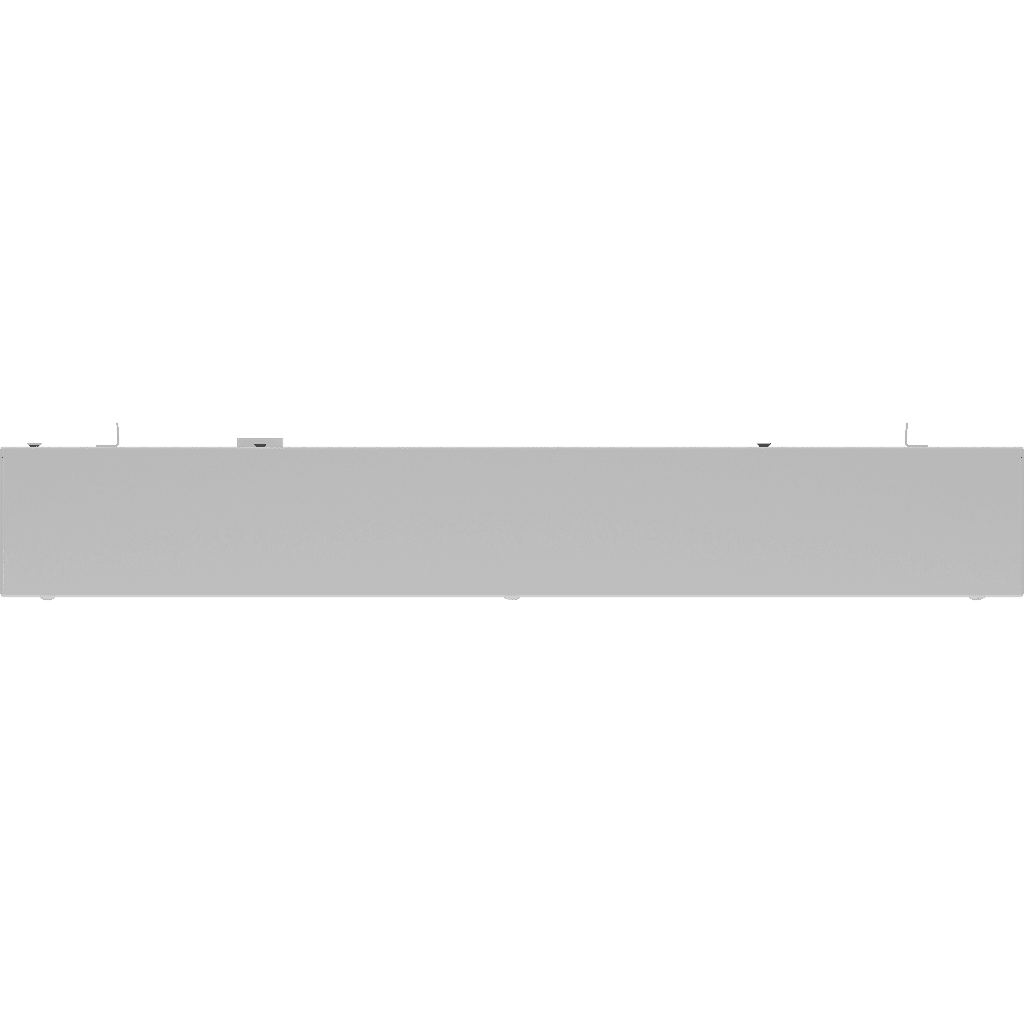

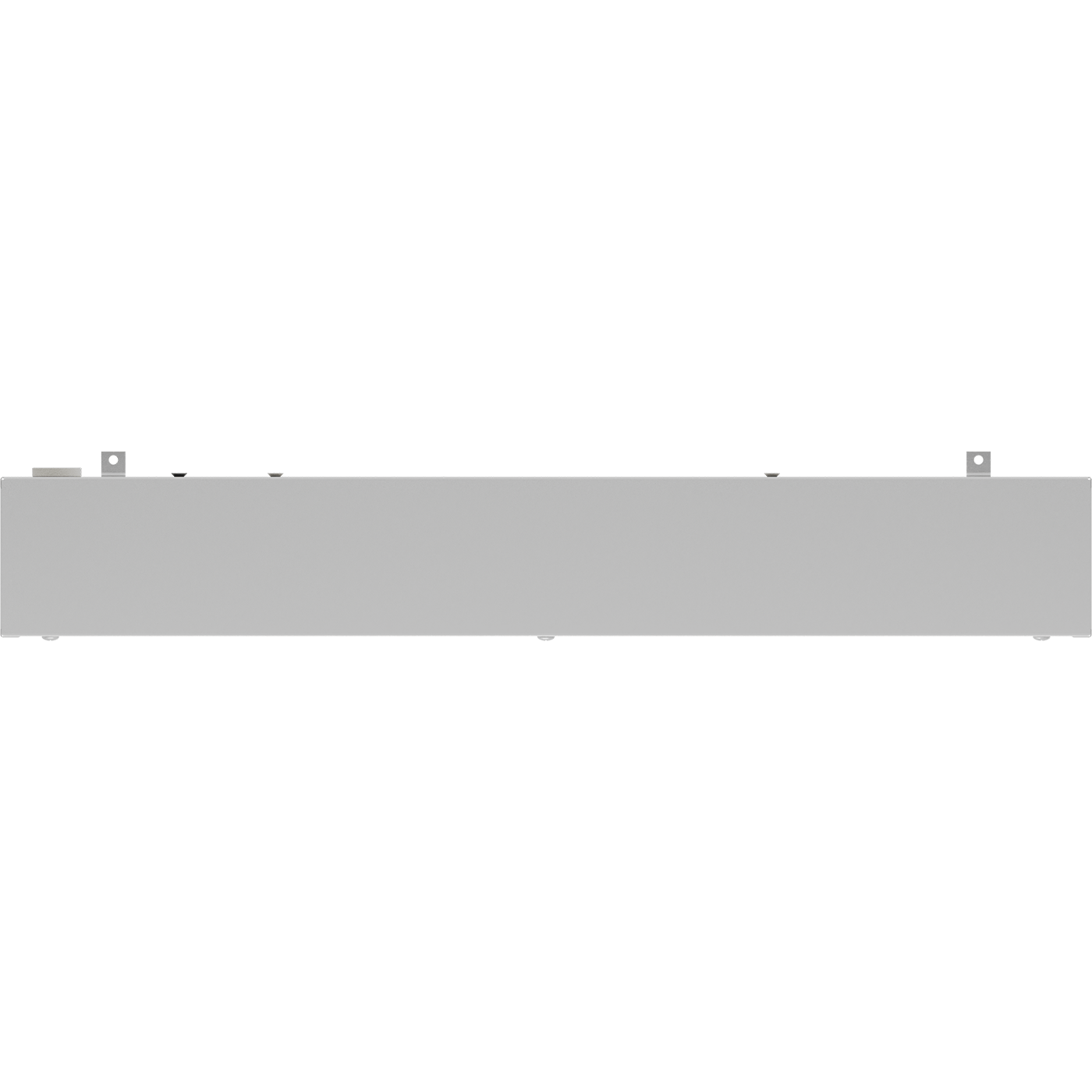

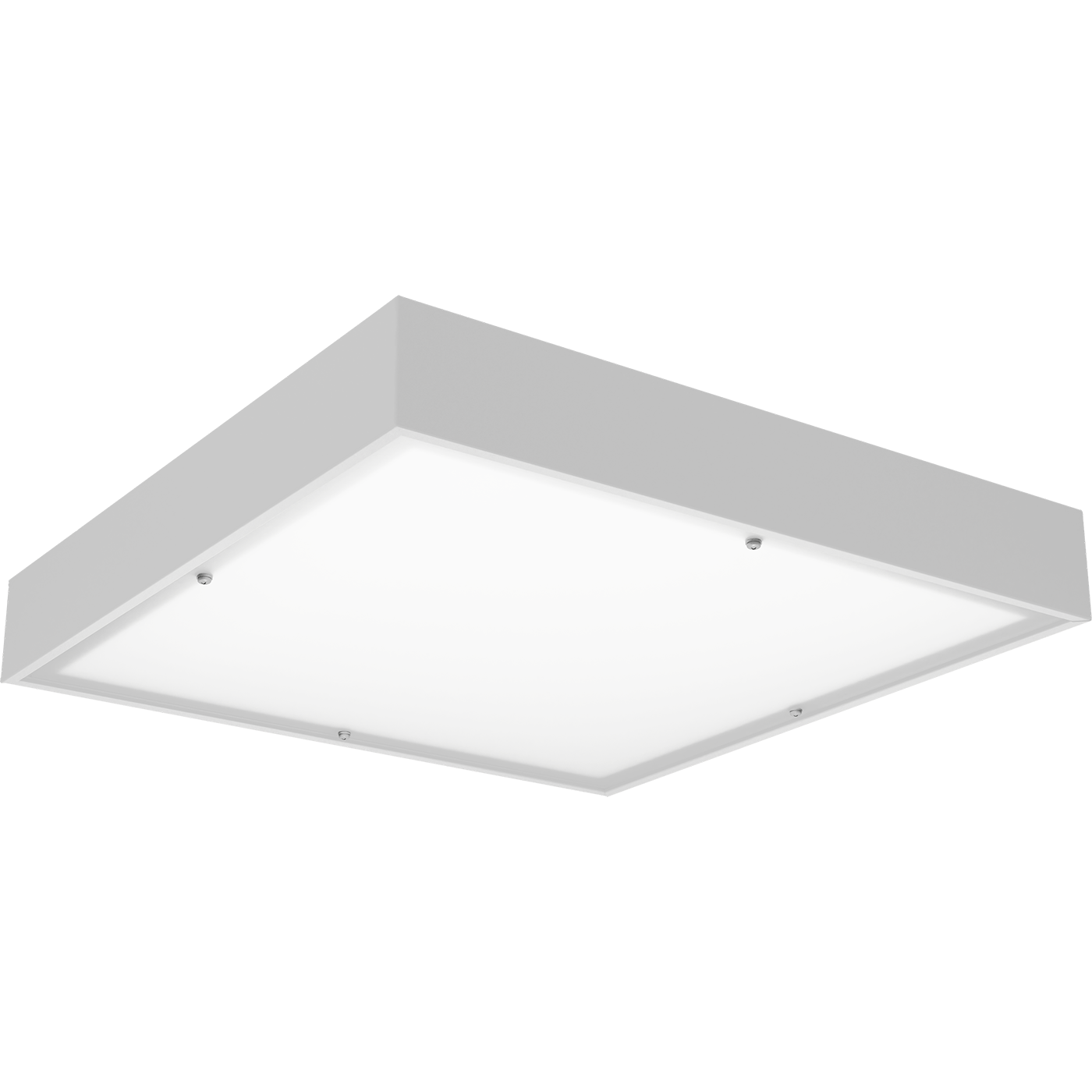

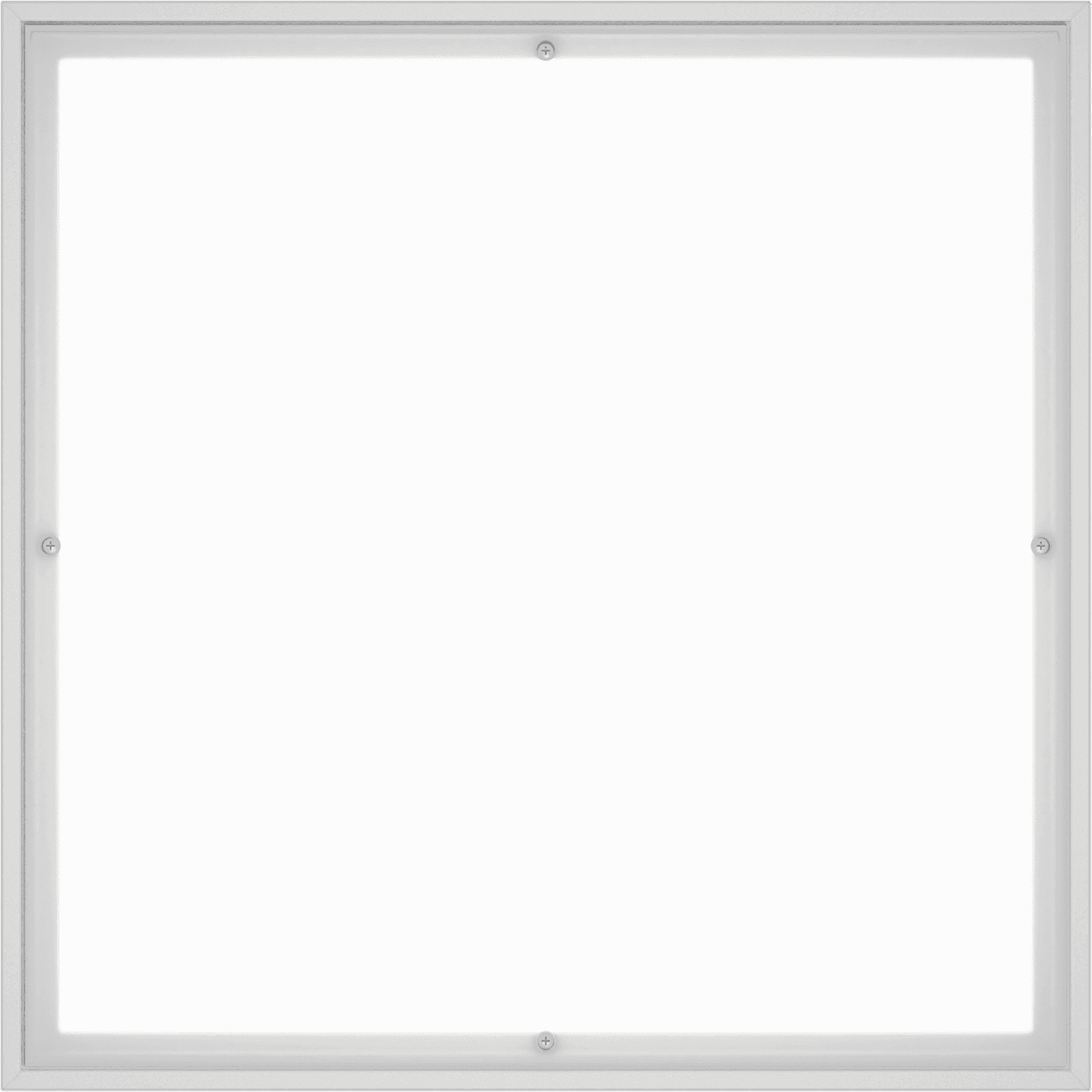

Clean 595 HFD EM mat tempered glass 4000K GRILIATO
model is discontinued
model is discontinued
Clean 595 HFD EM mat tempered glass 4000K GRILIATO
36 Wluminaire power
3700 lmlight flow
103 lm/Wenergy efficiency
code1499000960
color temperature4000 K
beam angleD120
options
свернуть все
illuminatingelectricalconstructionalemergencyLMS optionscommon
emission color
Белыйlight source type
LEDlight flow
3700 lmcolor rendition index (CRI)
>80flickering factor
<1%energy efficiency
103 lm/Wbeam angle
D120color temperature
4000 Killuminating
emission color
Белый
light source type
LED
light flow
3700 lm
color rendition index (CRI)
>80
flickering factor
<1%
energy efficiency
103 lm/W
beam angle
D120
color temperature
4000 K
electrical
luminaire power
36 W
electric shock protection
I
power factor
> 0,95
maximum cross-section of the connected cable
2.5 mm2
starting current
35 A
supply voltage
230 V
constructional
ingress protection (IP)
IP54
shock resistance (IK)
IK05/0,7 Дж
climatic performance
УХЛ2*
fire safety class
П-ІІа
length
595 mm
width
595 mm
height
95 mm
installation width
455 mm
material
Сталь
housing color
Белый
weight
8.5 kg
emergency
operating time in emergency mode
1 h
luminous flux in emergency mode
350 lm
LMS options
dimming
DALI
common
code
1499000960
ETIM class
Настенно-потолочный светильник
energy efficiency class
A+
service life
50 000 h
temperature range
от 0 до +40 C
model files
model files

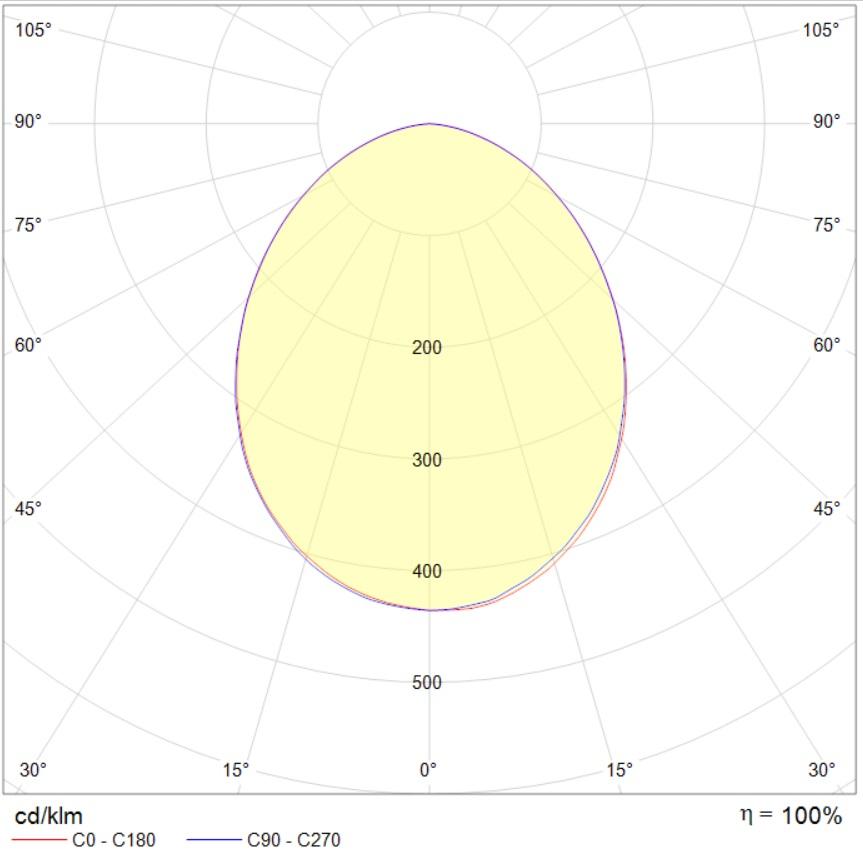

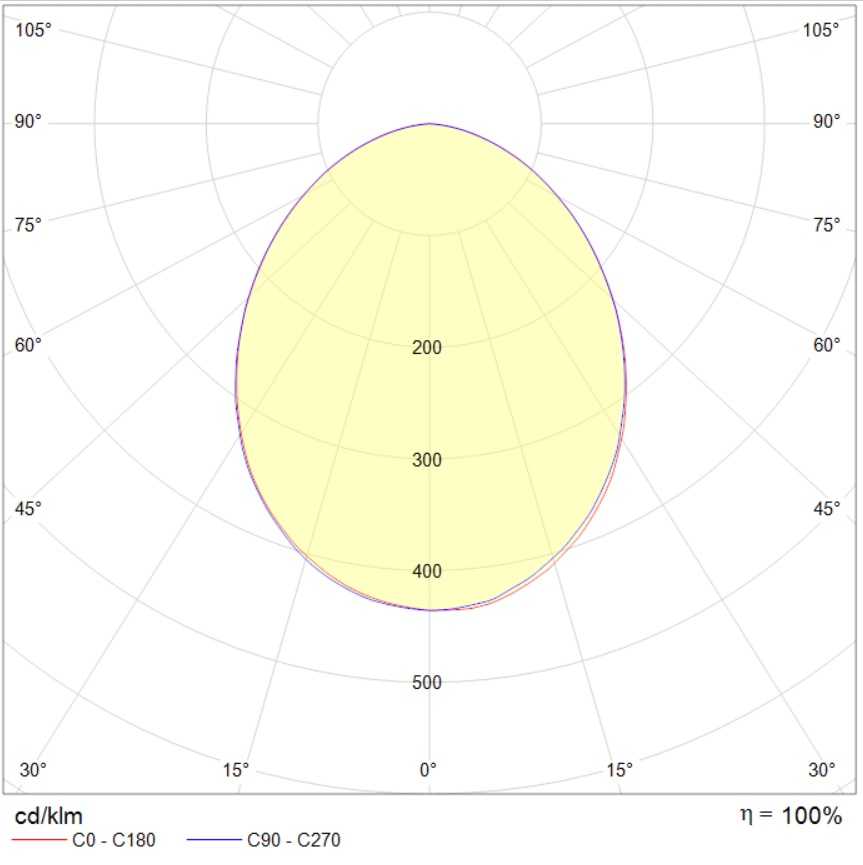

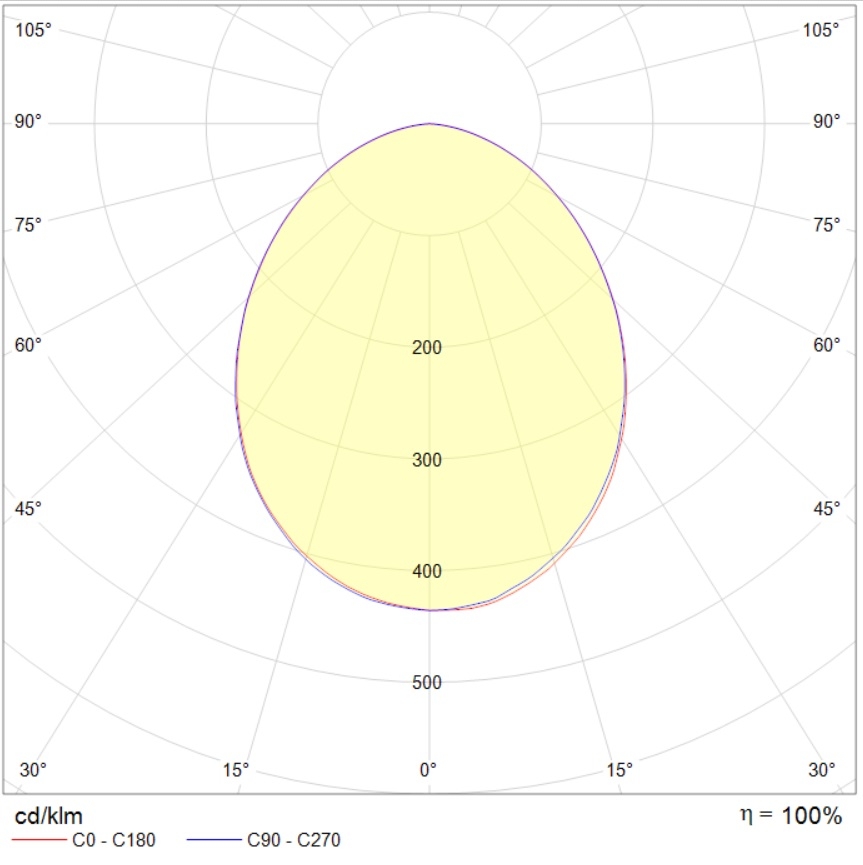

photometric files
сертификаты
photometric files
ies107.1 kB
jpg80.2 kB
ldt72.1 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.1 mB
Declaration of Conformity EAEU TR 037/2016298.3 kB
Fire Safety Certificate2.5 mB
