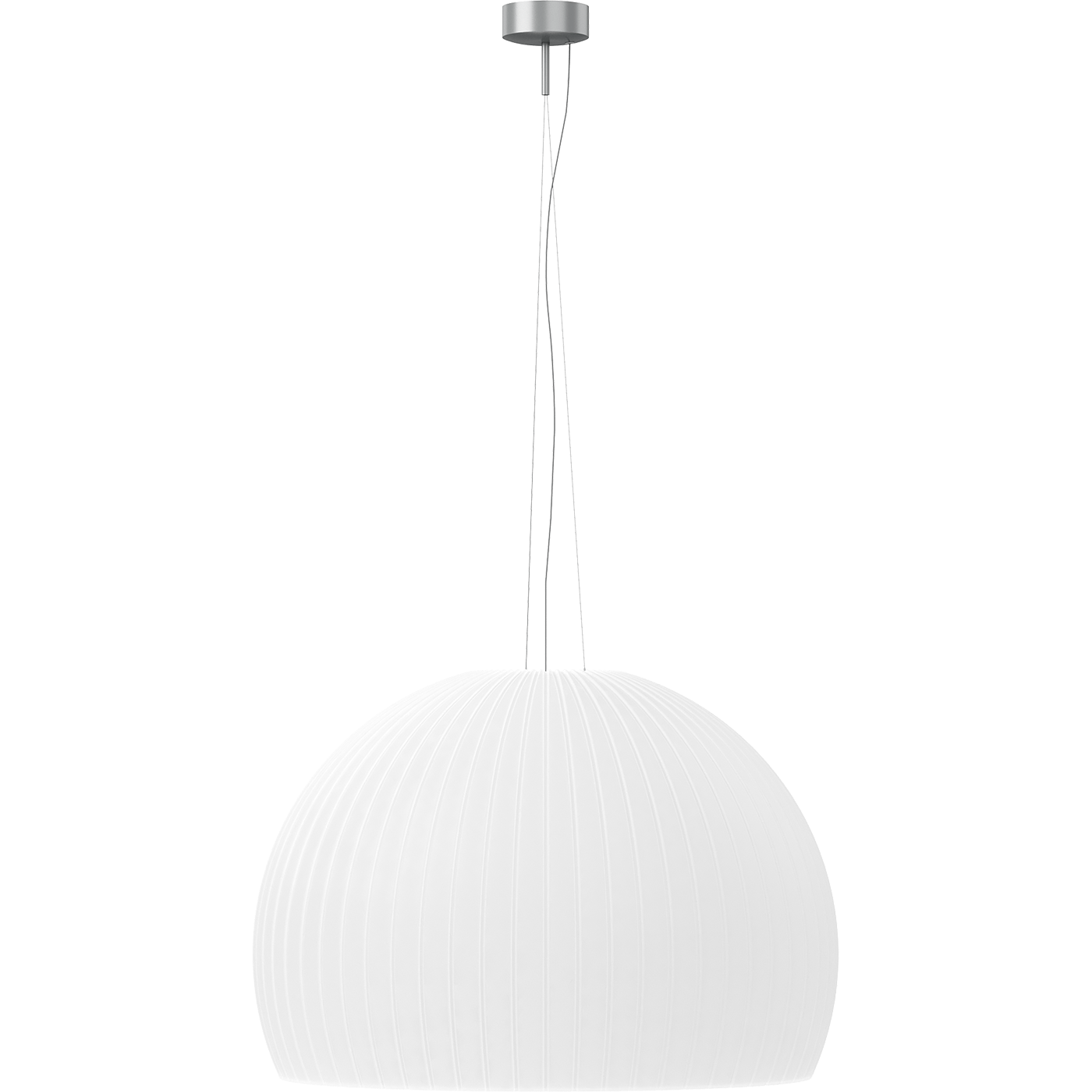

CITRO 900 3000K
CITRO 900 3000K
45 Wluminaire power
5500 lmlight flow
122 lm/Wenergy efficiency
code1202000050
color temperature3000
beam angleD120
number of lamps1
performance factor100
options
свернуть все
electricalcommonilluminatingconstructional
starting current
20 Astarting current pulse time, µs
400 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
99-264 Vsupply voltage, direct current
170-280 Vluminaire power
45 Welectric shock protection
IIpower factor
> 0,95supply voltage
230 Velectrical
starting current
20 A
starting current pulse time, µs
400 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
99-264 V
supply voltage, direct current
170-280 V
luminaire power
45 W
electric shock protection
II
power factor
> 0,95
supply voltage
230 V
common
ETIM class
Светильник подвесной
warranty
36 month
temperature range
от +5 до +35 C
energy efficiency class
A+
code
1202000050
illuminating
color rendition index (CRI)
>80
light flow
5500 lm
flickering factor
<1%
energy efficiency
122 lm/W
beam angle
D120
color temperature
3000
light source type
LED
emission color
Белый
constructional
ingress protection (IP)
IP20
climatic performance
УХЛ4*
fire safety class
П-I,II,ІІІ
material
Полиэтилен
weight
10.5 kg
diameter, mm
900 mm
height, mm
630 mm
housing color
Белый
installation diameter, mm
100 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
model files
model files

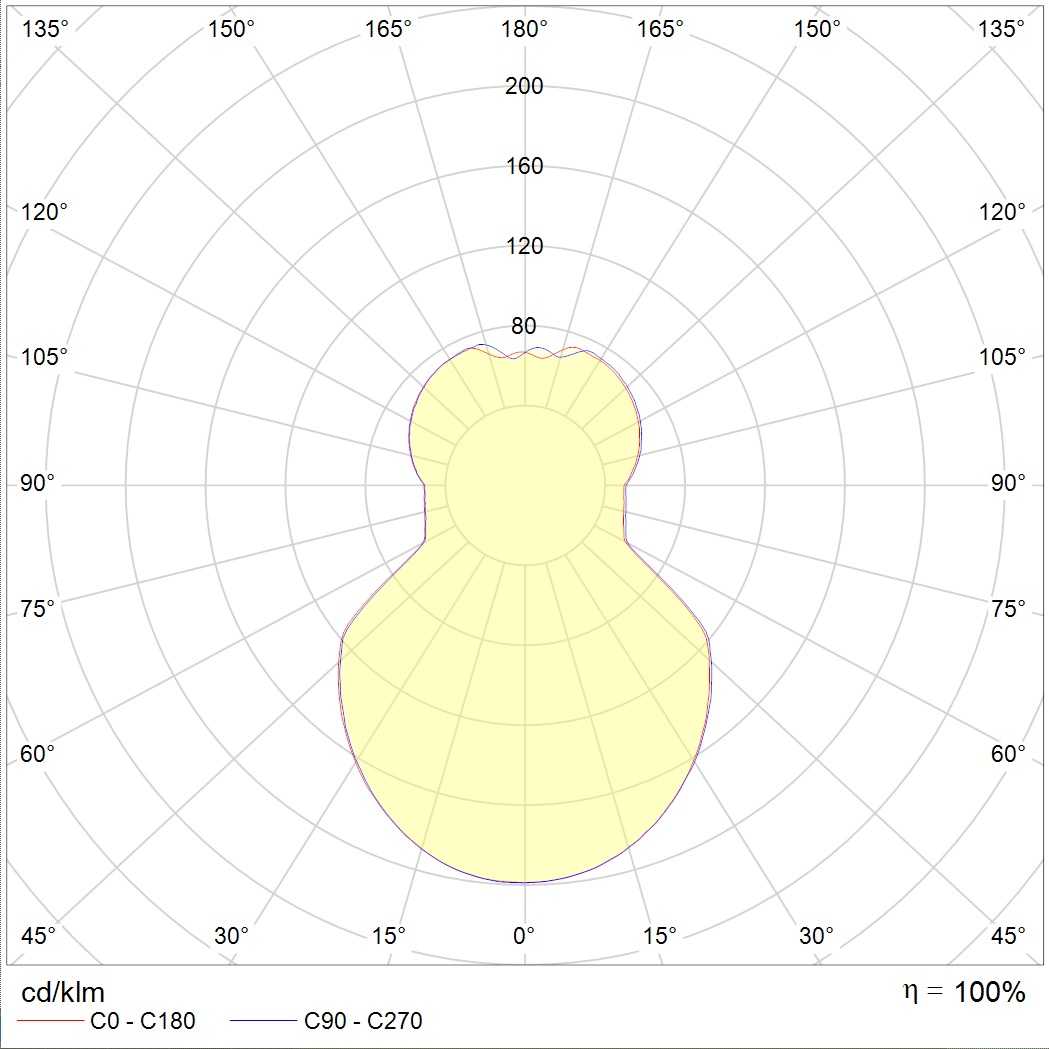

photometric files
documents
сертификаты
photometric files
ies263.2 kB
jpg160.4 kB
ldt236.2 kB
documents
passport1.5 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112 mB
Declaration of Conformity EAEU TR 037/2016535.9 kB
Fire Safety Certificate2.5 mB
