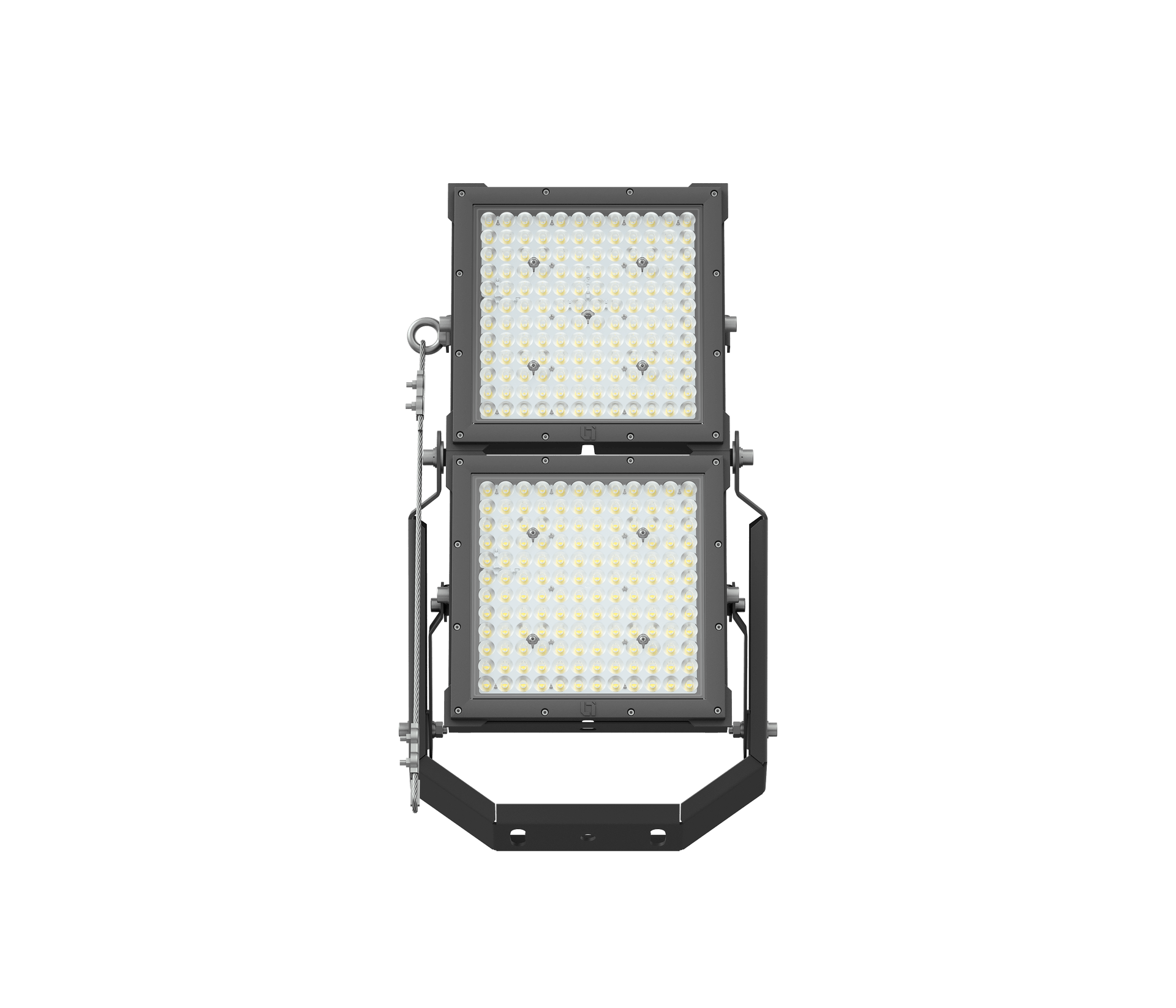

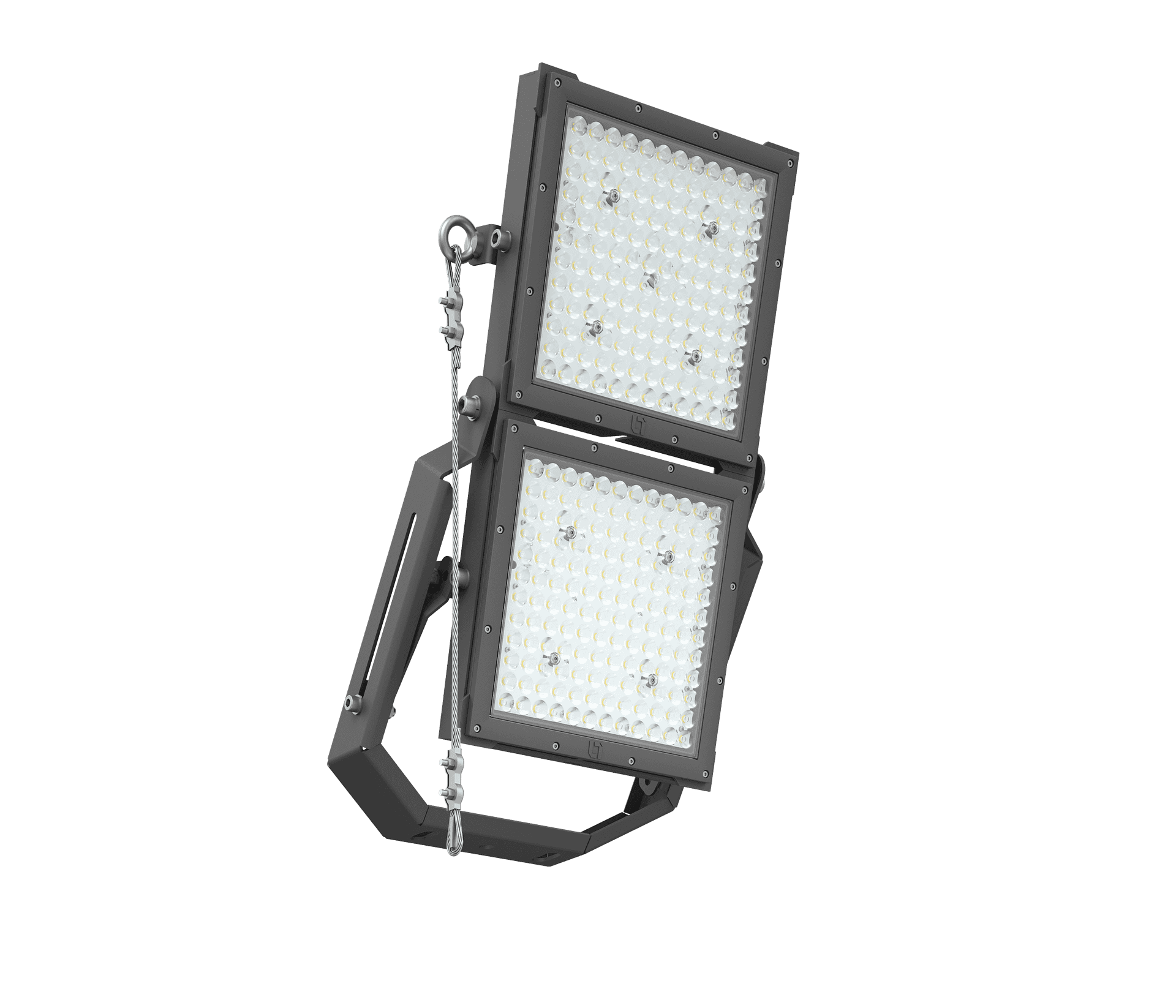

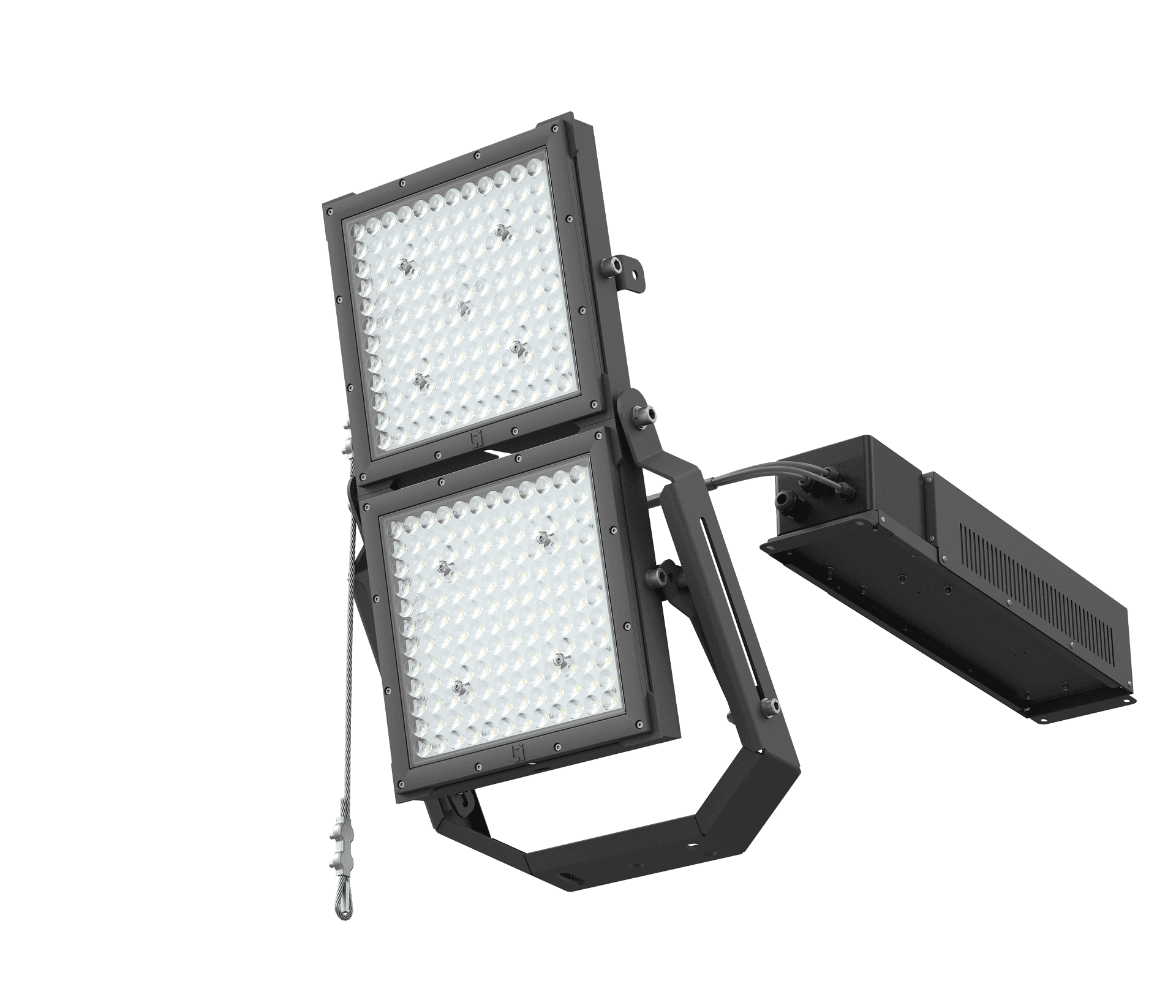

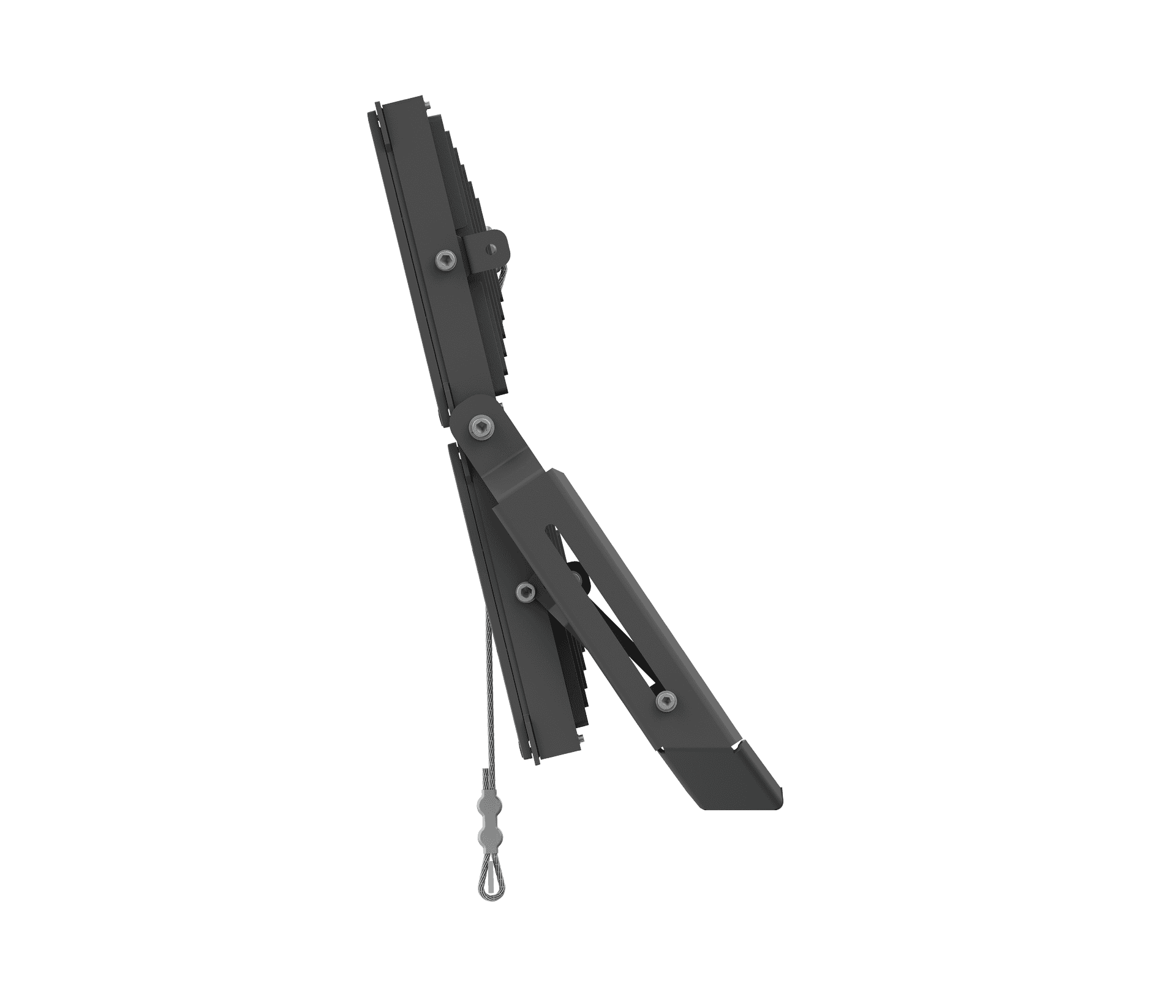

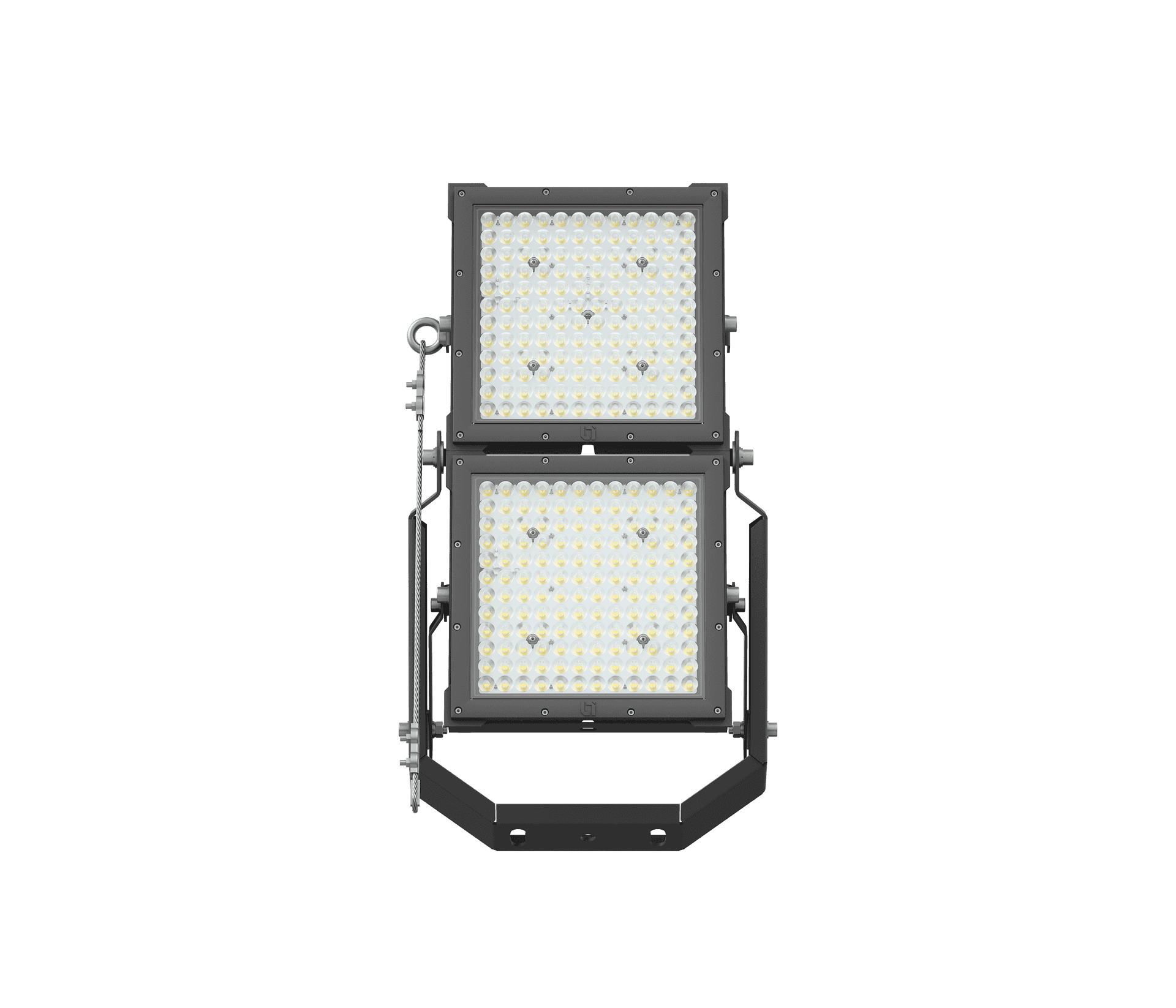

CHAMPION 900W A30 857 BK DMX FB
CHAMPION 900W A30 857 BK DMX FB
900 Wluminaire power
99800 lmlight flow
111 lm/Wenergy efficiency
code1879000620
beam angleA30
color temperature5700 K
weight33 kg
options
свернуть все
illuminatingelectricalconstructionalLMS optionscommon
energy efficiency
111 lm/Wcolor rendition index (CRI)
>80light flow
99800 lmflickering factor
<2%beam angle
A30color temperature
5700 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
111 lm/W
color rendition index (CRI)
>80
light flow
99800 lm
flickering factor
<2%
beam angle
A30
color temperature
5700 K
light source type
LED
emission color
Белый
electrical
luminaire power
900 W
electric shock protection
I
starting current pulse time
760 µs
rated supply voltage, alternating current
230 V
supply voltage
230 V
starting current
52 A
maximum cross-section of the connected cable
2.5 mm2
supply voltage, direct current
127-420 V
supply voltage, alternating current
90-305 V
power factor
> 0,97
constructional
climatic performance
УХЛ1*
fire safety class
П-ІІ
width
555 mm
height
420 mm
installation length
340 mm
housing color
Черный
lamp socket
LED
number of lamps
1
ballast
Драйвер 0-10В
length
710 mm
material
Алюминий
ingress protection (IP)
IP66
shock resistance (IK)
IK07/2 Дж
weight
33 kg
LMS options
dimming
DMX
common
code
1879000620
warranty
60 month
energy efficiency class
A+
temperature range
от -20 до +40 C
service life
50 000 h
ETIM class
Светильник для освещения высоких пролетов (хайбей)
model files
model files
сертификаты
сертификаты
Russian origin243.5 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016505.1 kB
