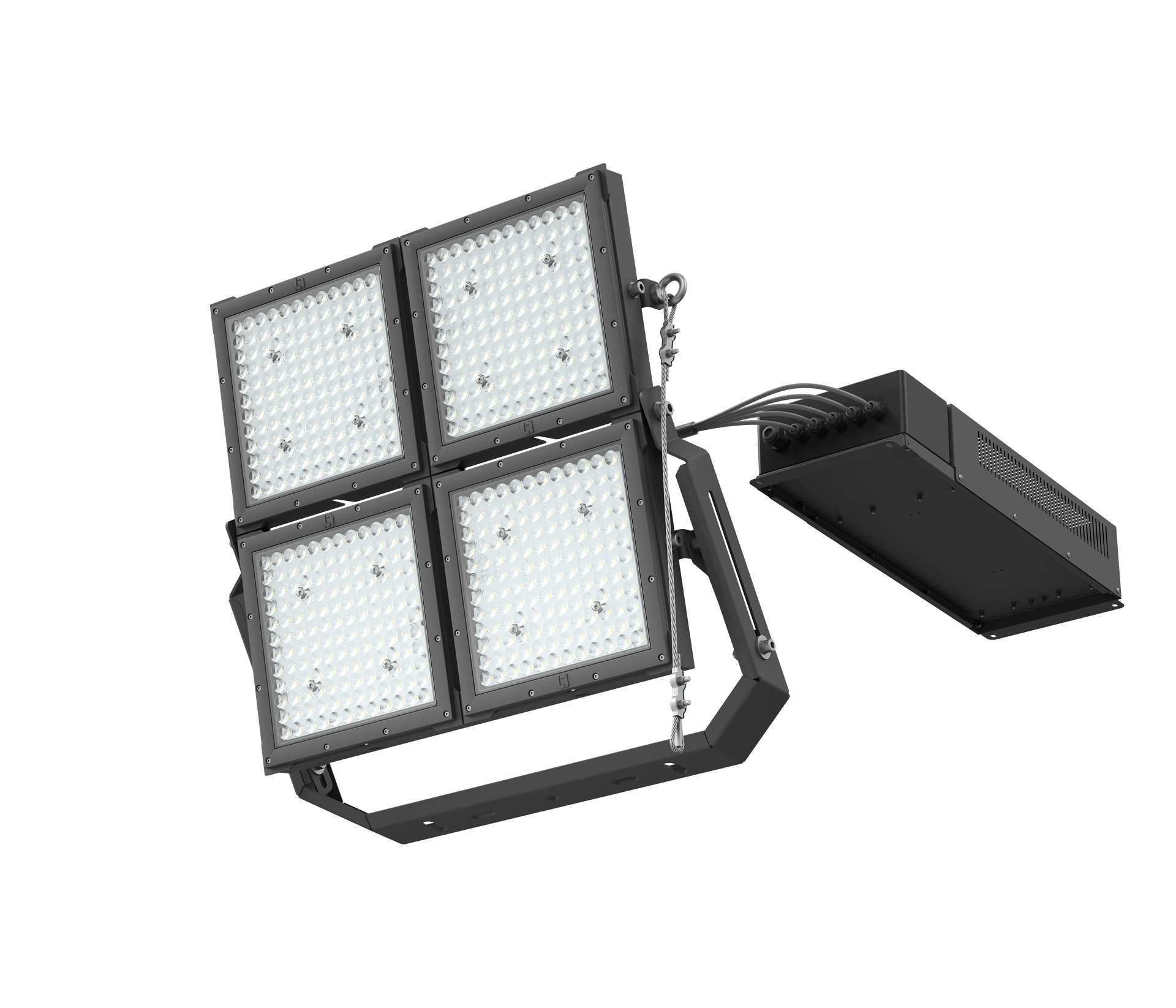

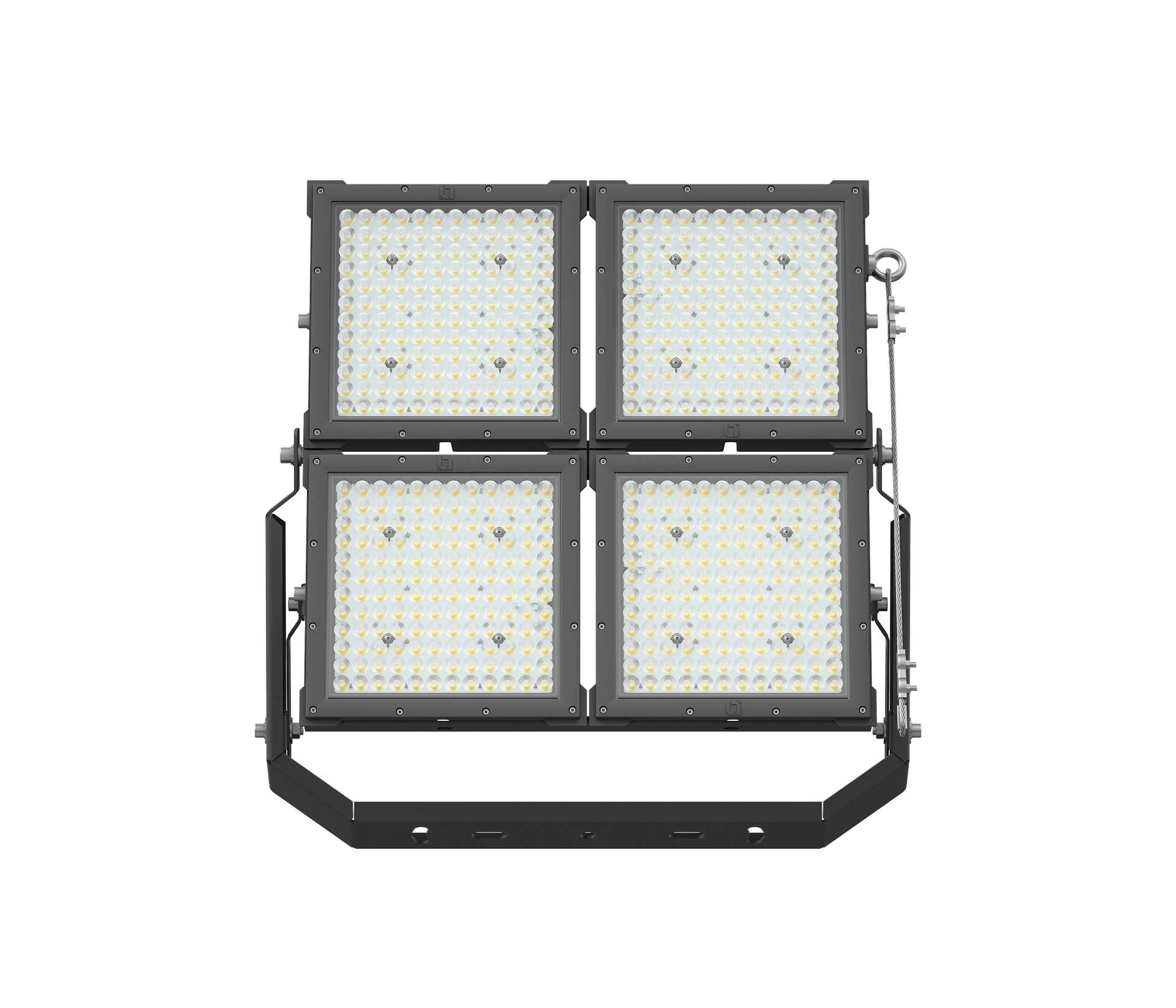

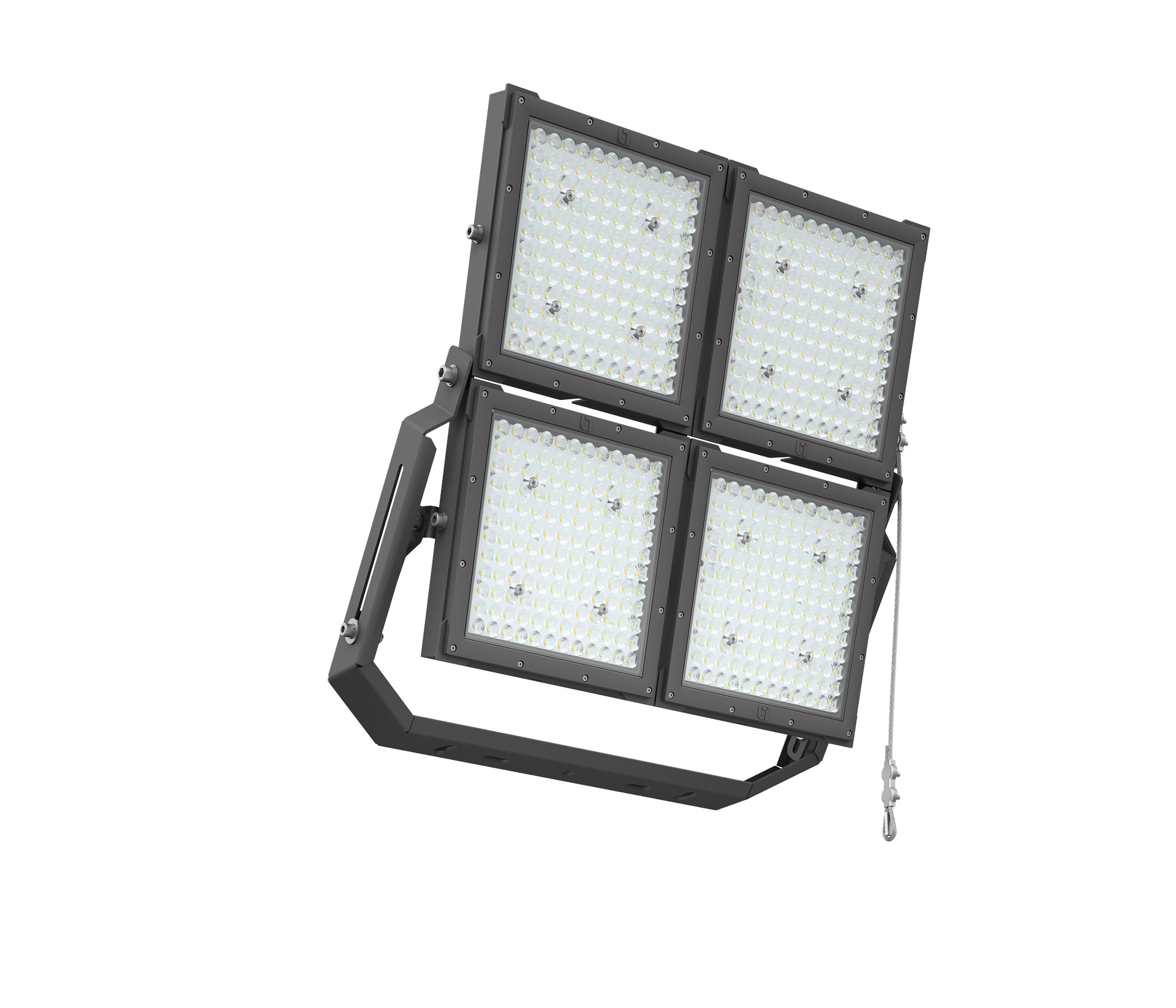

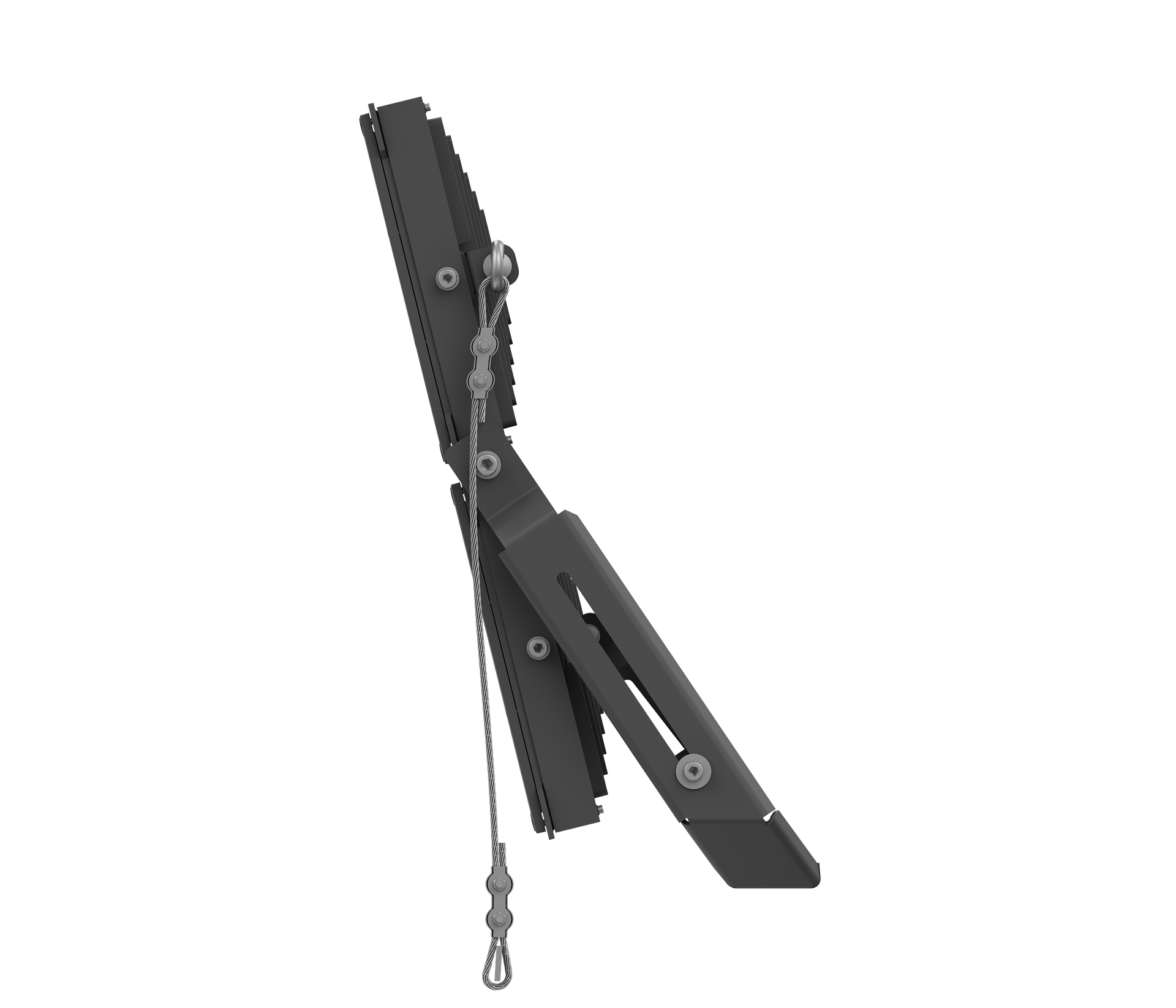

CHAMPION 1800W D30 750 BK FB
CHAMPION 1800W D30 750 BK FB
1900 Wluminaire power
261000 lmlight flow
137 lm/Wenergy efficiency
code1879000560
beam angleD30
color temperature5000
weight40 kg
options
свернуть все
electricalconstructionalcommonilluminating
starting current
6 Astarting current pulse time, µs
11800 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
100-305 Vsupply voltage, direct current
154-308 Vluminaire power
1900 Welectric shock protection
Ipower factor
> 0,97supply voltage
230 Velectrical
starting current
6 A
starting current pulse time, µs
11800 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
100-305 V
supply voltage, direct current
154-308 V
luminaire power
1900 W
electric shock protection
I
power factor
> 0,97
supply voltage
230 V
constructional
ingress protection (IP)
IP66
fire safety class
П-I,II,ІІІ
material
Алюминий
weight
40 kg
length, mm
760 mm
width, mm
320 mm
height, mm
680 mm
housing color
Черный
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
shock resistance (IK)
IK08/5 Дж
installation length, mm
390 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
code
1879000560
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
temperature range
от -40 до +40 C
energy efficiency class
A++
service life, hour
50 000 h
illuminating
energy efficiency
137 lm/W
color rendition index (CRI)
>70
light flow
261000 lm
flickering factor
<1%
beam angle
D30
color temperature
5000
light source type
LED
emission color
Белый
model files
model files
photometric files
documents
сертификаты

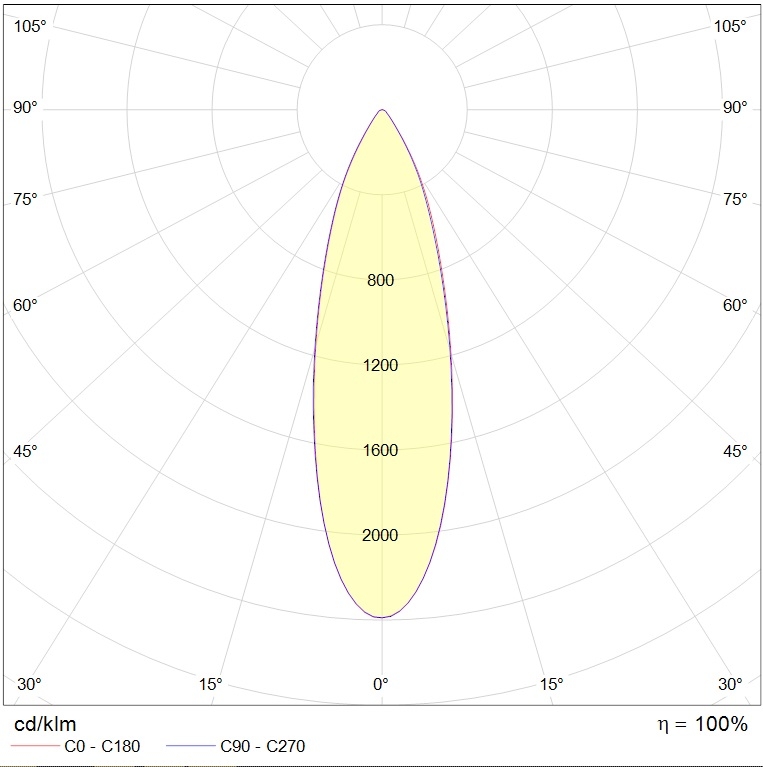

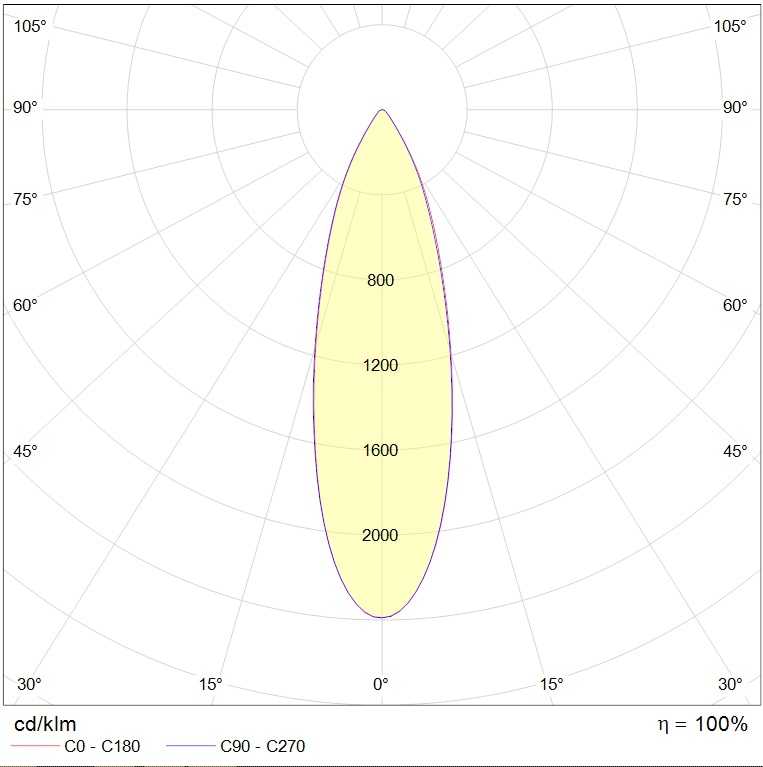

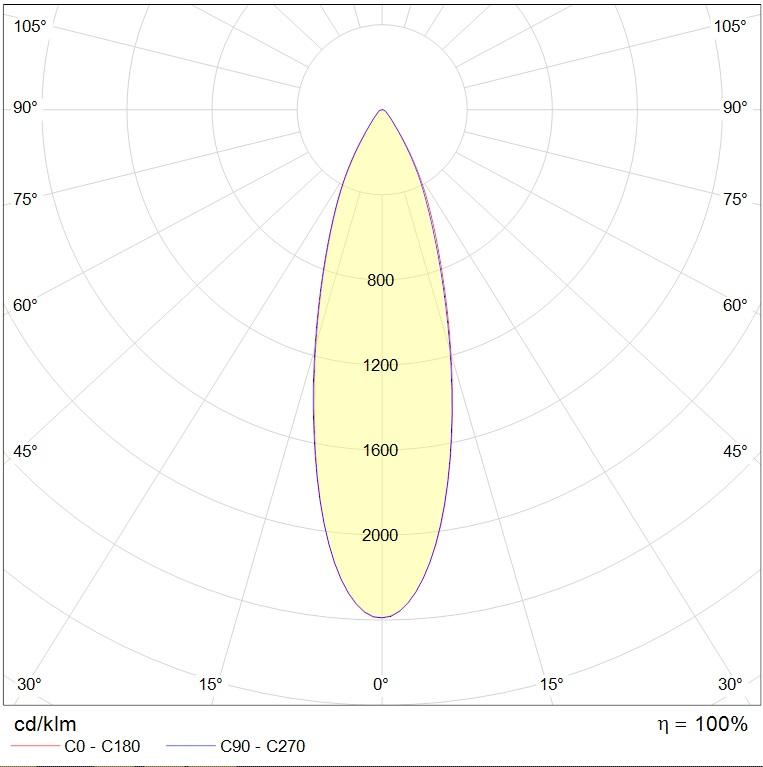

photometric files
jpg84.5 kB
ldt165.6 kB
documents
passport8.9 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016505.1 kB
