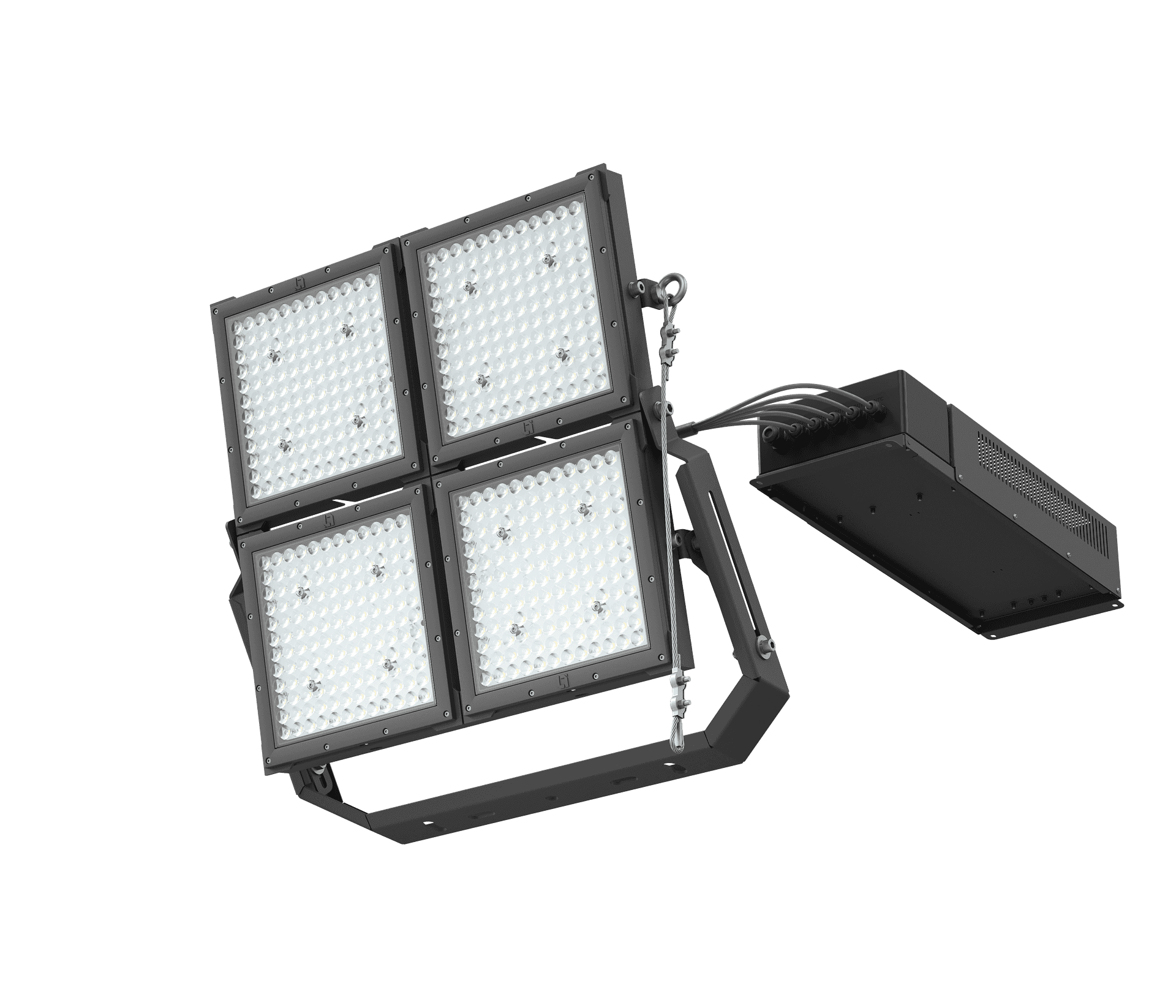

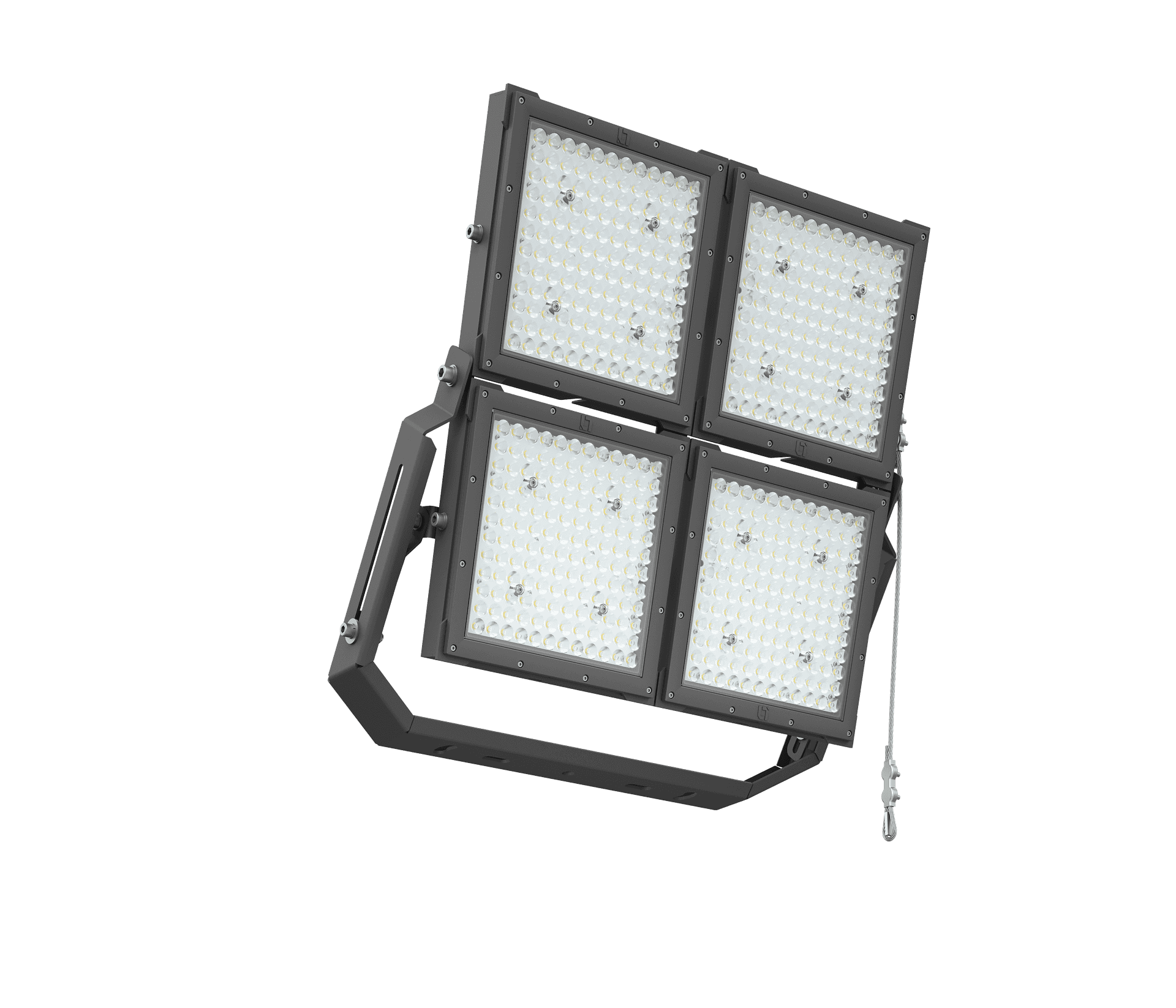

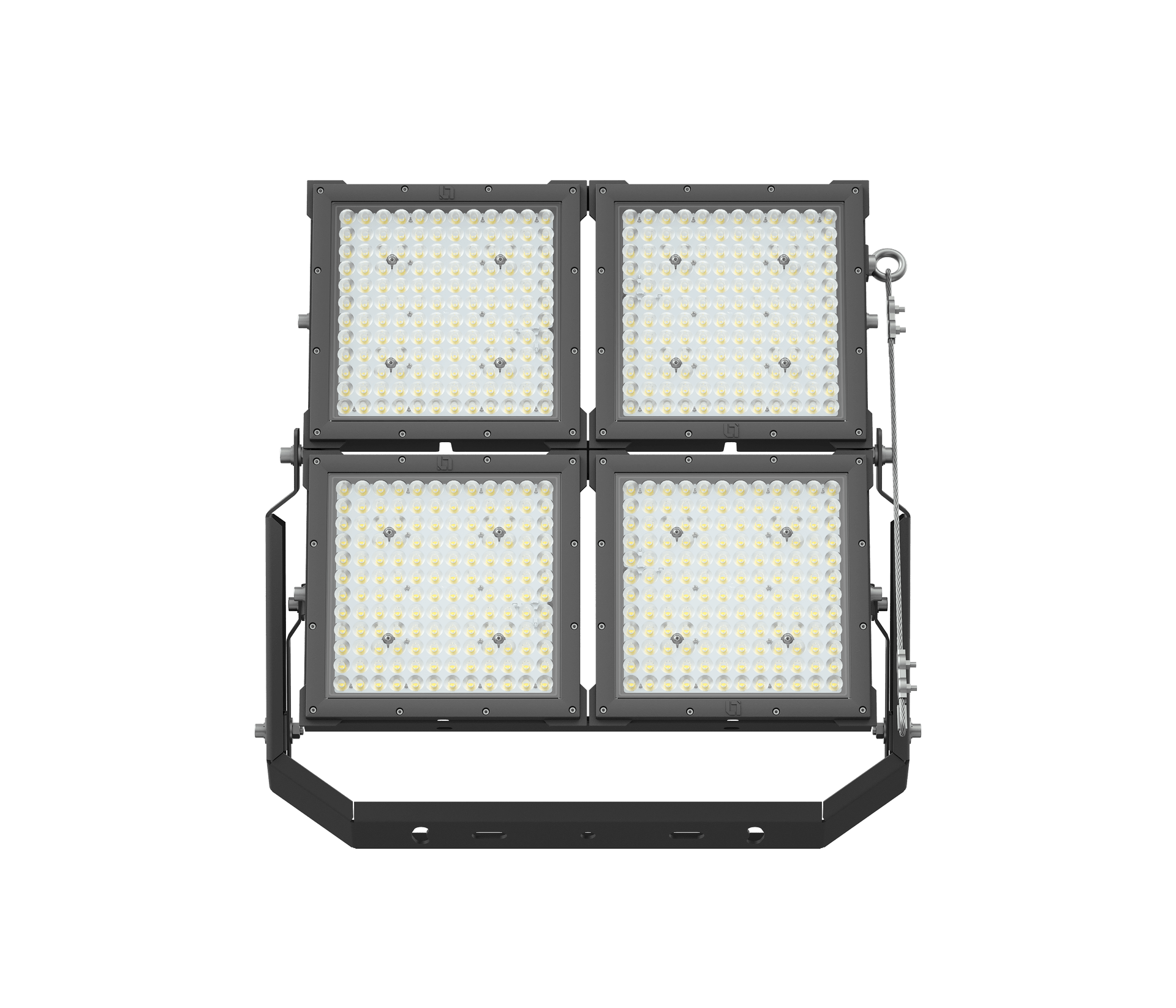

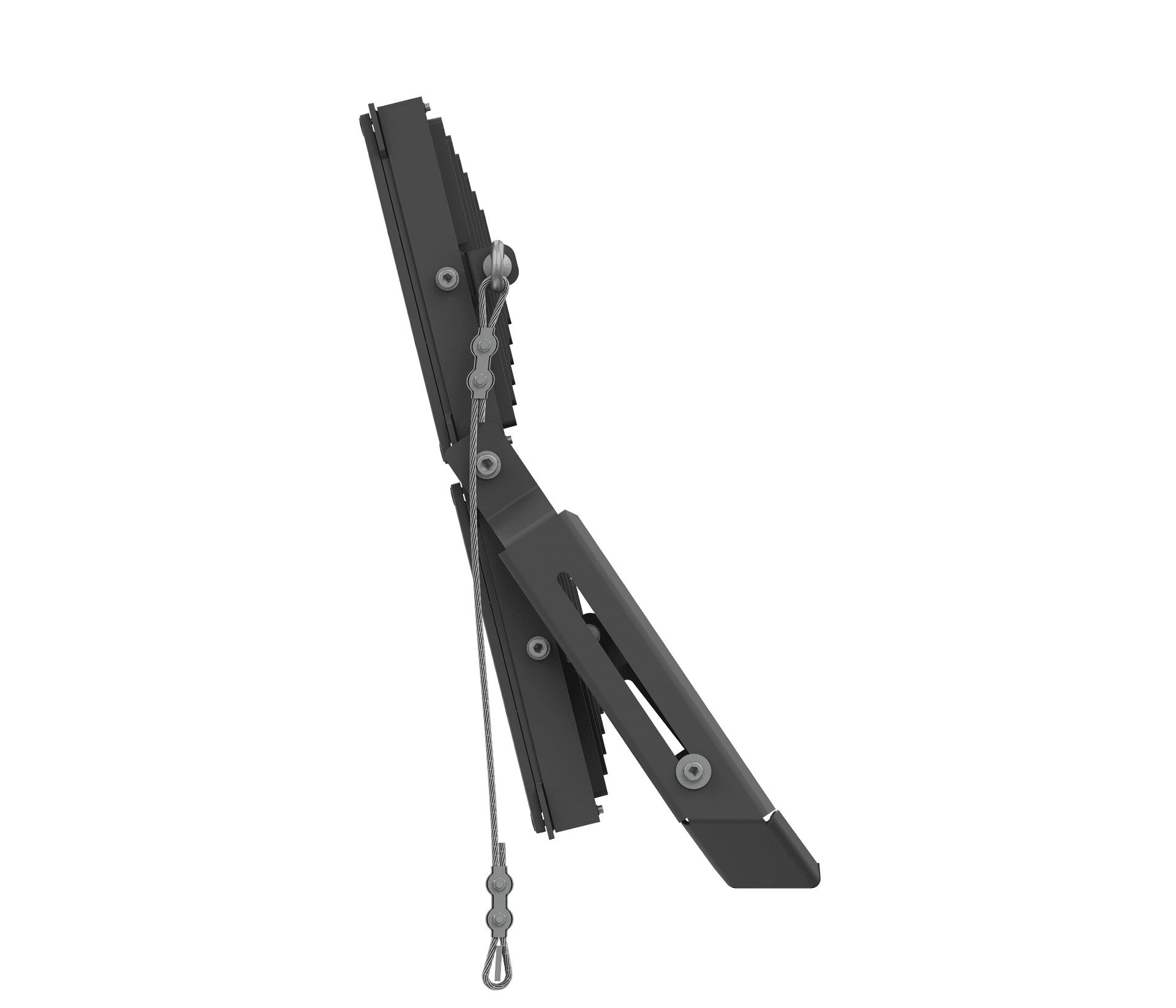

CHAMPION 1800W D15 857 BK FB
CHAMPION 1800W D15 857 BK FB
1800 Wluminaire power
234000 lmlight flow
130 lm/Wenergy efficiency
code1879000530
beam angleD15
color temperature5700
weight29 kg
options
свернуть все
constructionalelectricalcommonilluminating
ingress protection (IP)
IP66housing color
Черныйlength, mm
760 mmwidth, mm
680 mmheight, mm
320 mmweight
29 kgfire safety class
П-I,II,ІІІclimatic performance
УХЛ1*maximum cross-section of the connected cable, sq. mm
2.5material
Алюминийshock resistance (IK)
IK07/2 Джinstallation length, mm
392 mmlamp socket
LEDnumber of lamps
1ballast
Драйверconstructional
ingress protection (IP)
IP66
housing color
Черный
length, mm
760 mm
width, mm
680 mm
height, mm
320 mm
weight
29 kg
fire safety class
П-I,II,ІІІ
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
material
Алюминий
shock resistance (IK)
IK07/2 Дж
installation length, mm
392 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер
electrical
electric shock protection
I
starting current
70 A
starting current pulse time, µs
1200 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
90-305 V
supply voltage, direct current
127-431 V
luminaire power
1800 W
power factor
> 0,97
supply voltage
230 V
common
code
1879000530
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
temperature range
от -40 до +45 C
energy efficiency class
A+
service life, hour
50 000 h
illuminating
color rendition index (CRI)
>80
light flow
234000 lm
energy efficiency
130 lm/W
flickering factor
<1%

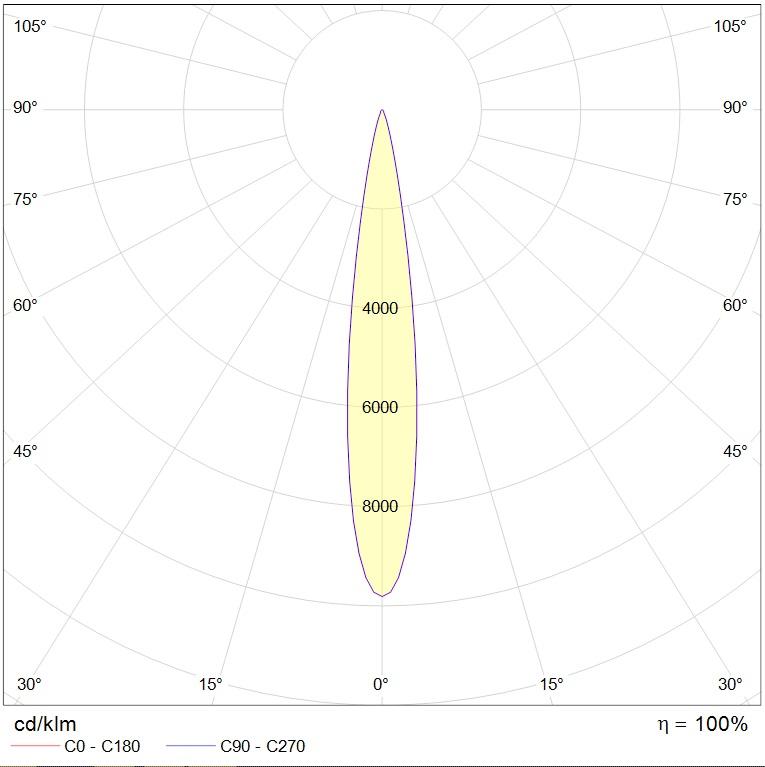

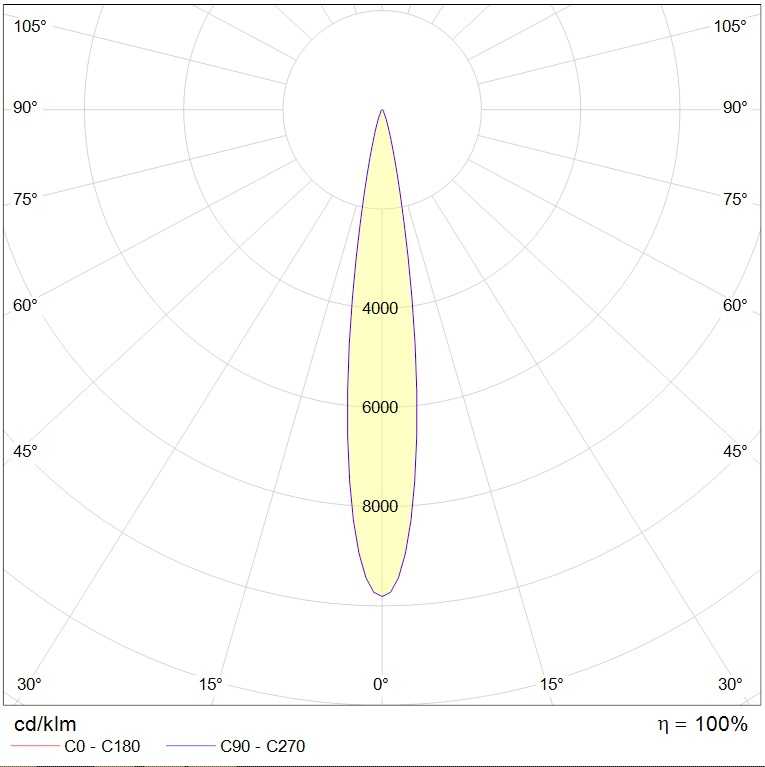

beam angle
D15
color temperature
5700
light source type
LED
emission color
Белый
