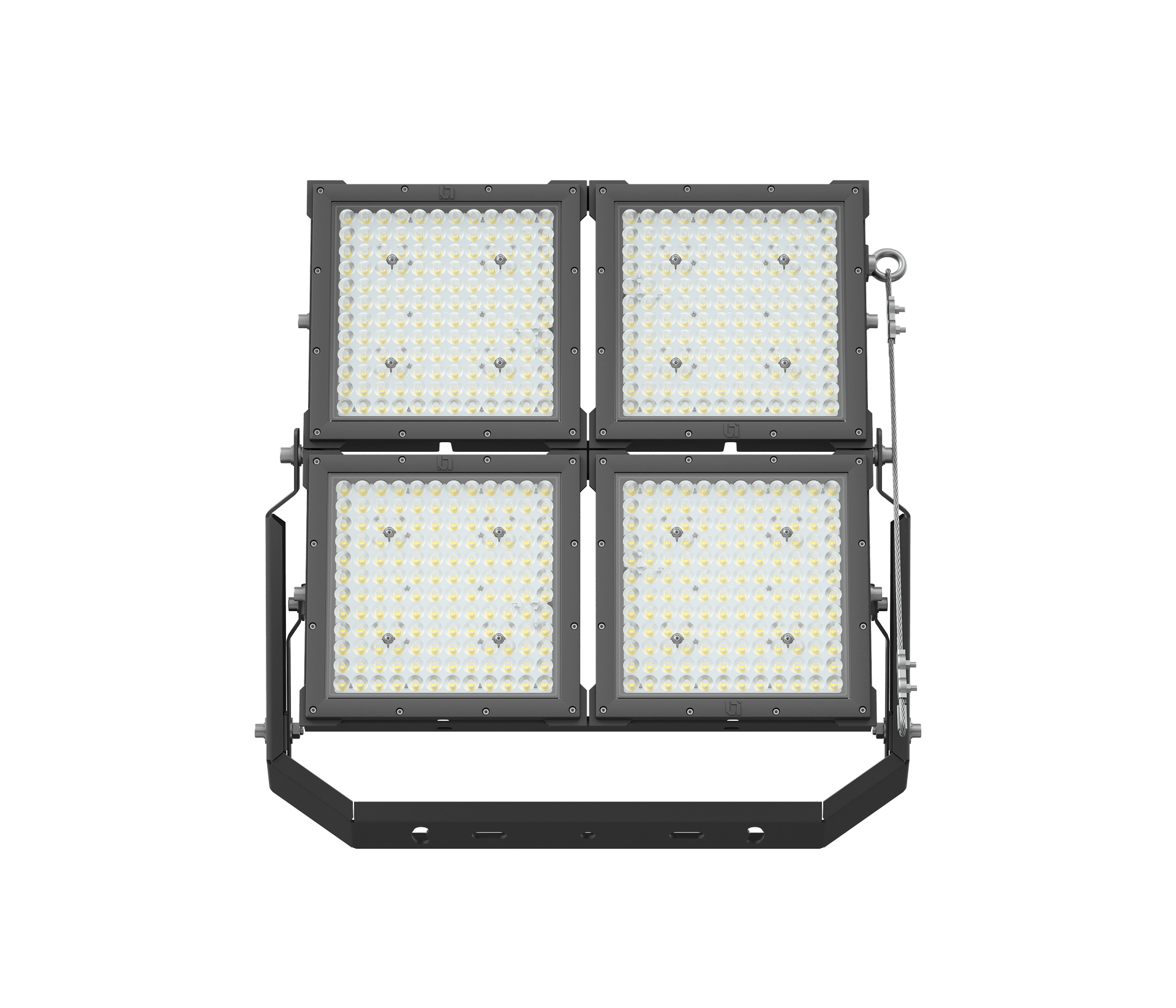

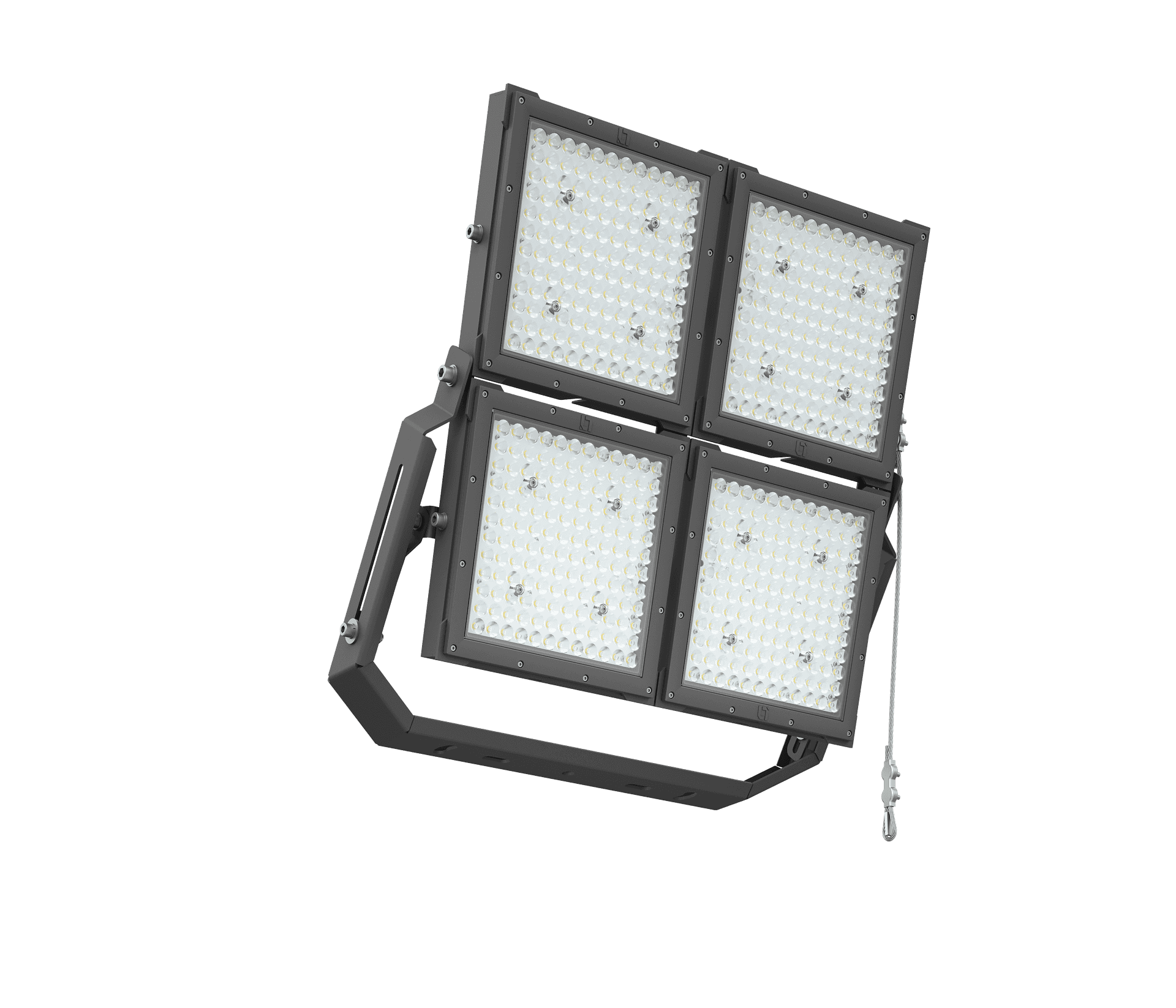

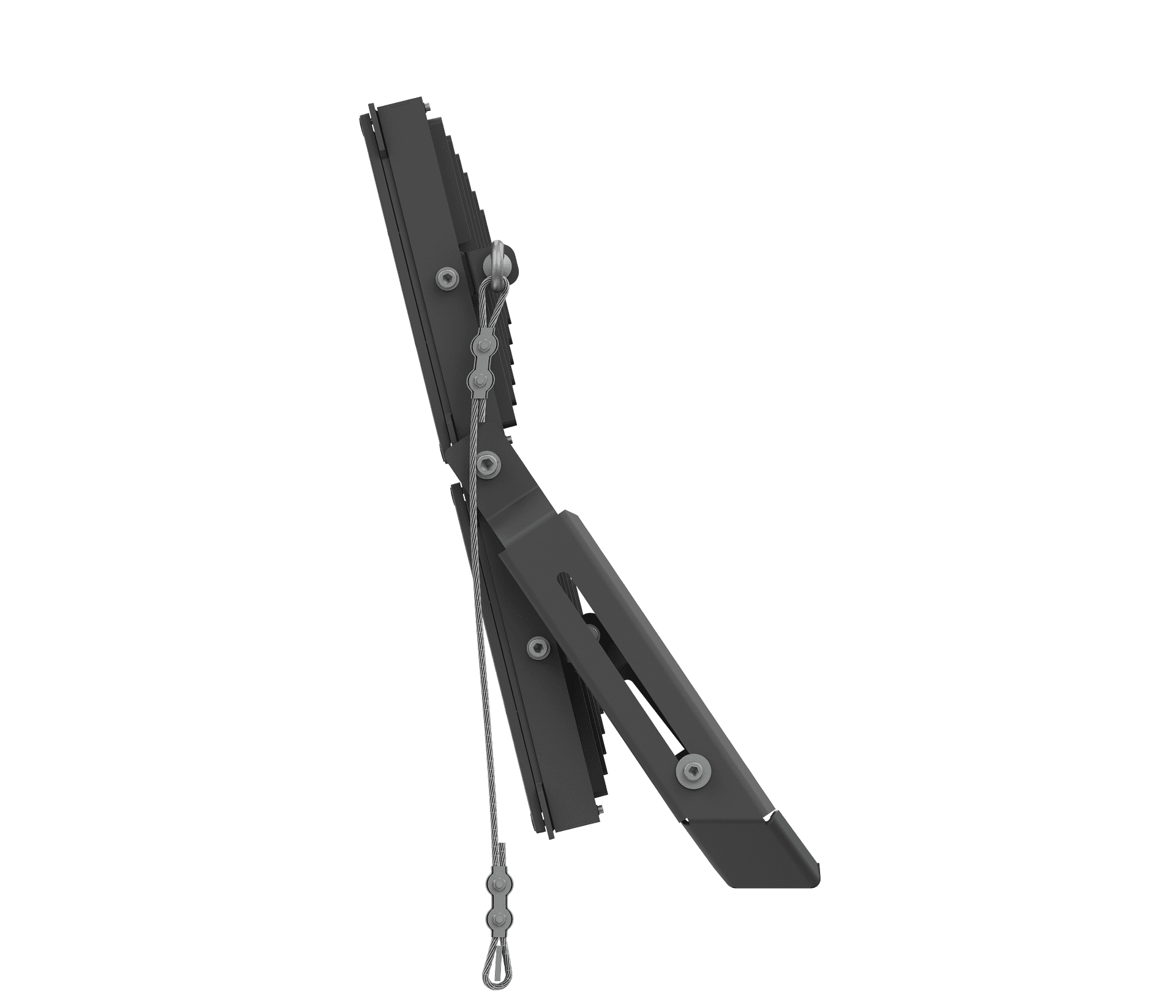

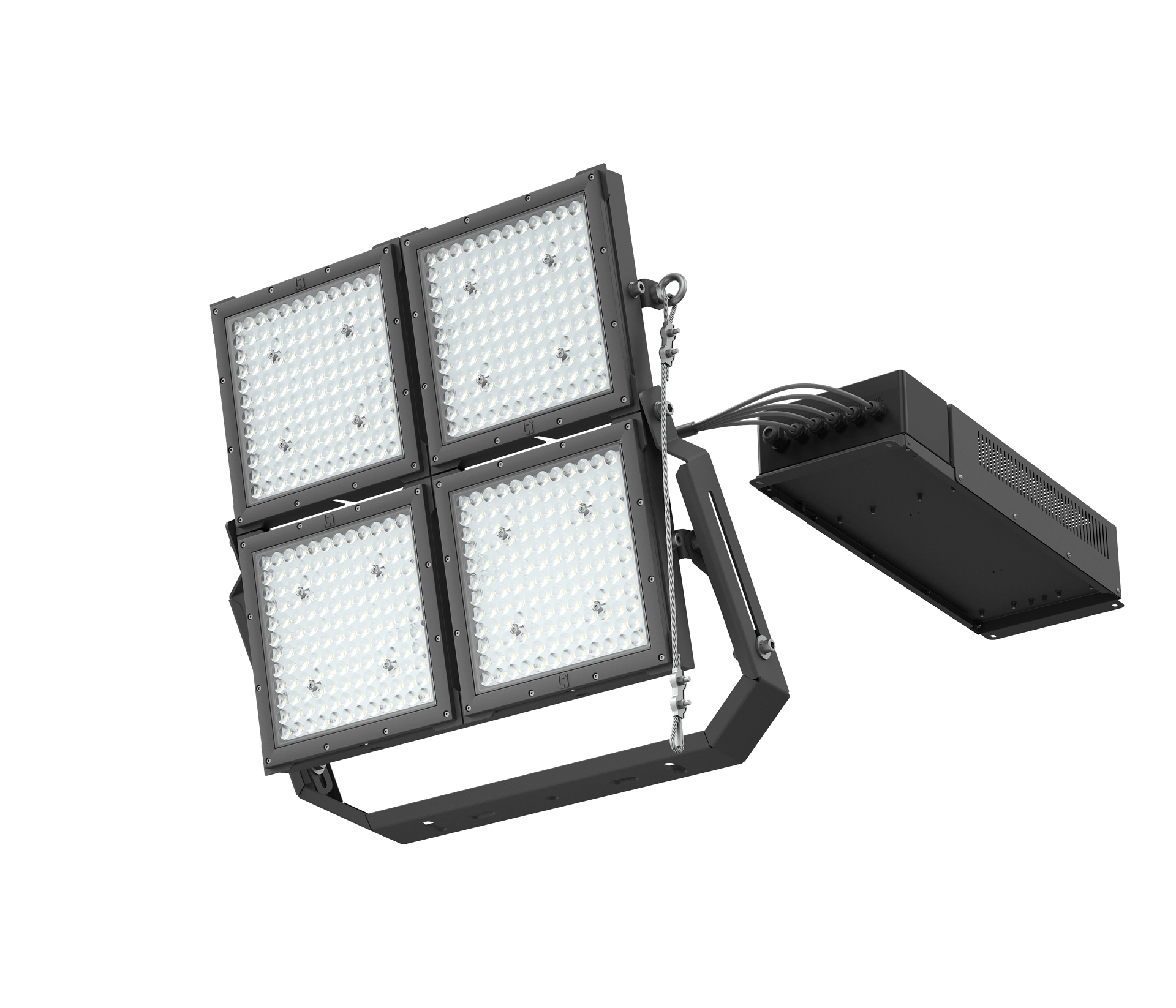

CHAMPION 1500W D30 950 BK FB
CHAMPION 1500W D30 950 BK FB
1500 Wluminaire power
165000 lmlight flow
110 lm/Wenergy efficiency
code1879000450
beam angleD30
color temperature5000
weight29 kg
options
свернуть все
electricalconstructionalcommonilluminating
starting current
70 Astarting current pulse time, µs
1200 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
90-305 Vsupply voltage, direct current
127-431 Vluminaire power
1500 Welectric shock protection
Ipower factor
> 0,97supply voltage
230 Velectrical
starting current
70 A
starting current pulse time, µs
1200 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
90-305 V
supply voltage, direct current
127-431 V
luminaire power
1500 W
electric shock protection
I
power factor
> 0,97
supply voltage
230 V
constructional
ingress protection (IP)
IP66
fire safety class
П-I,II,ІІІ
material
Алюминий
weight
29 kg

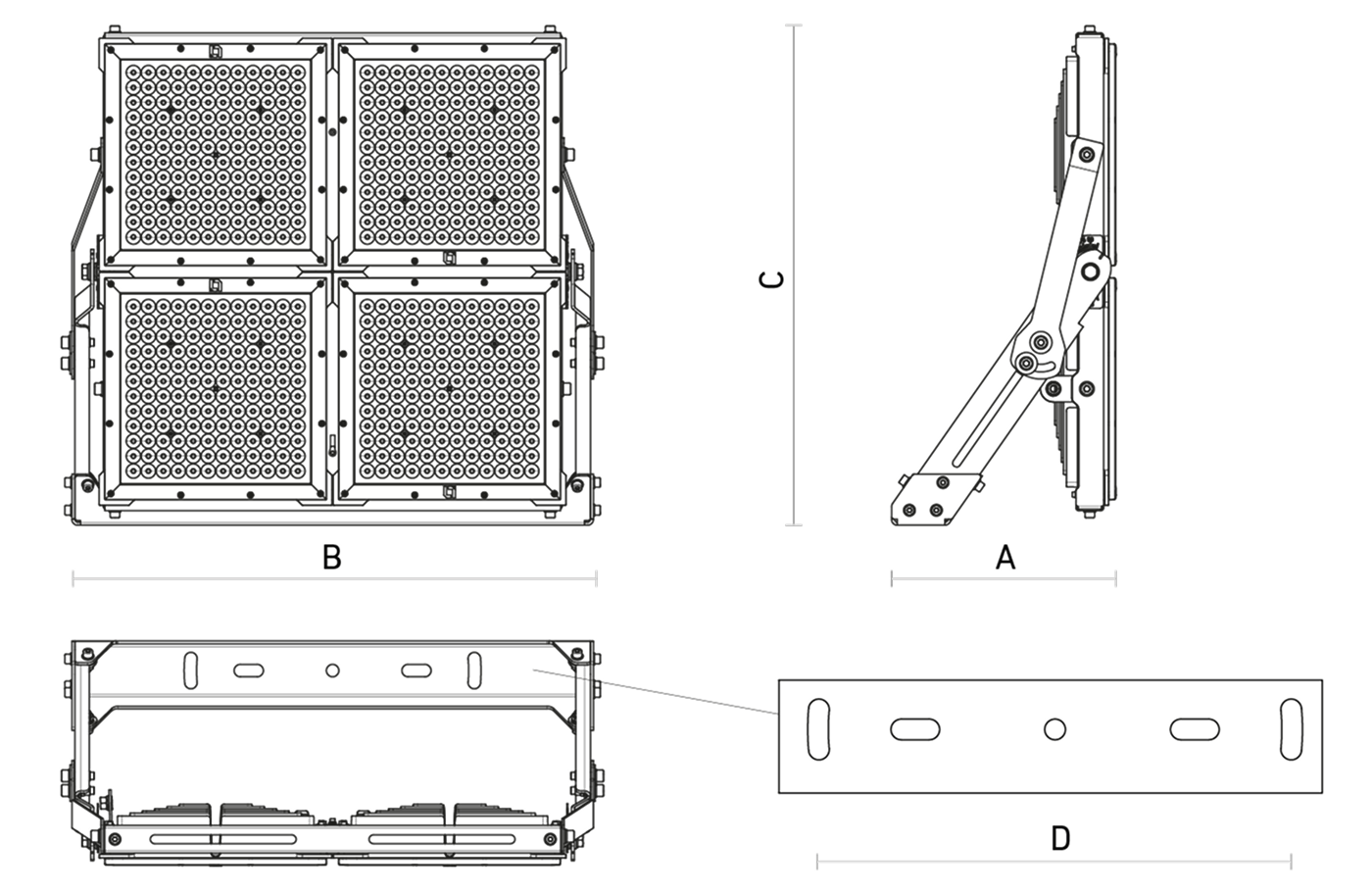

length, mm
760 mm
width, mm
680 mm
height, mm
320 mm
housing color
Черный
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
shock resistance (IK)
IK07/2 Дж
installation length, mm
392 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
code
1879000450
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
temperature range
от -40 до +45 C
energy efficiency class
A+
service life, hour
50 000 h
illuminating
energy efficiency
110 lm/W
color rendition index (CRI)
>90
light flow
165000 lm
flickering factor
<1%
beam angle
D30
color temperature
5000
light source type
LED
emission color
Белый
model files
model files
photometric files
сертификаты

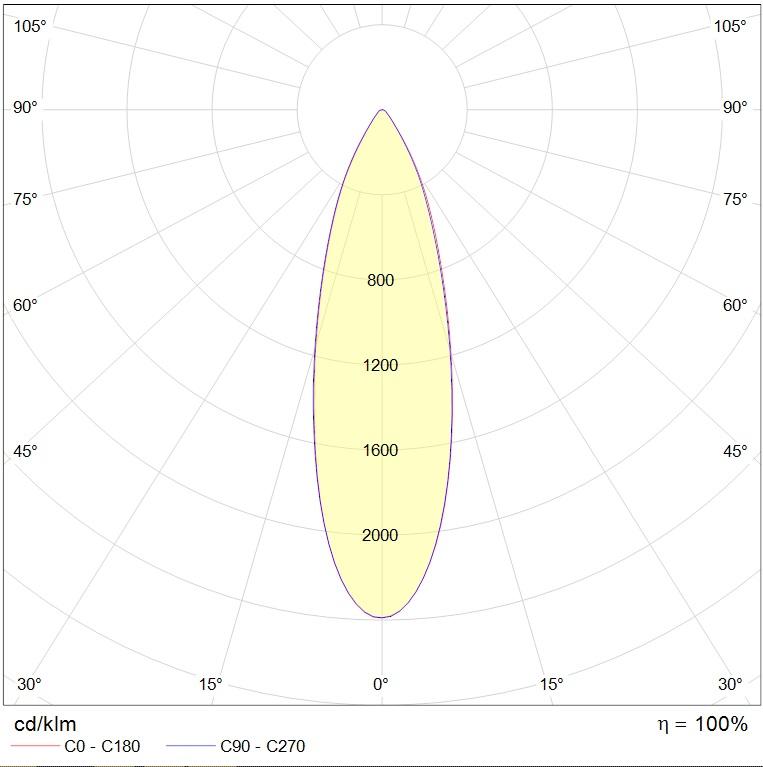

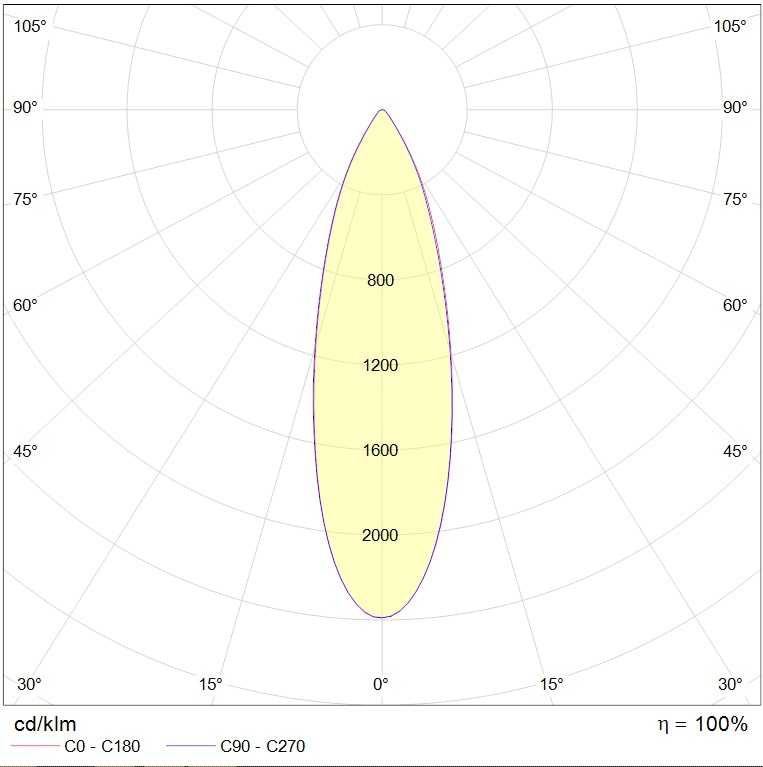

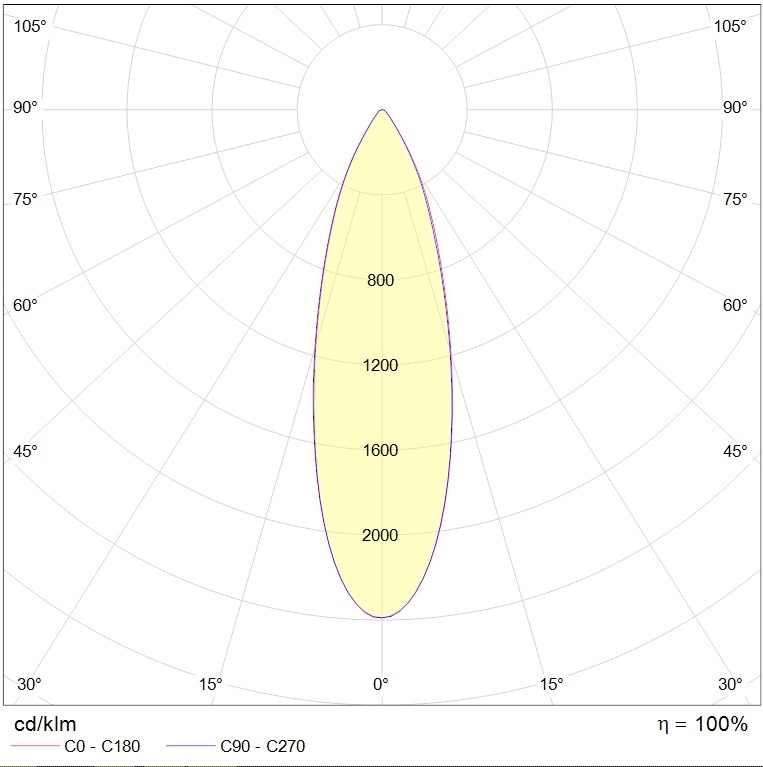

photometric files
jpg84.5 kB
ldt165.5 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016505.1 kB
