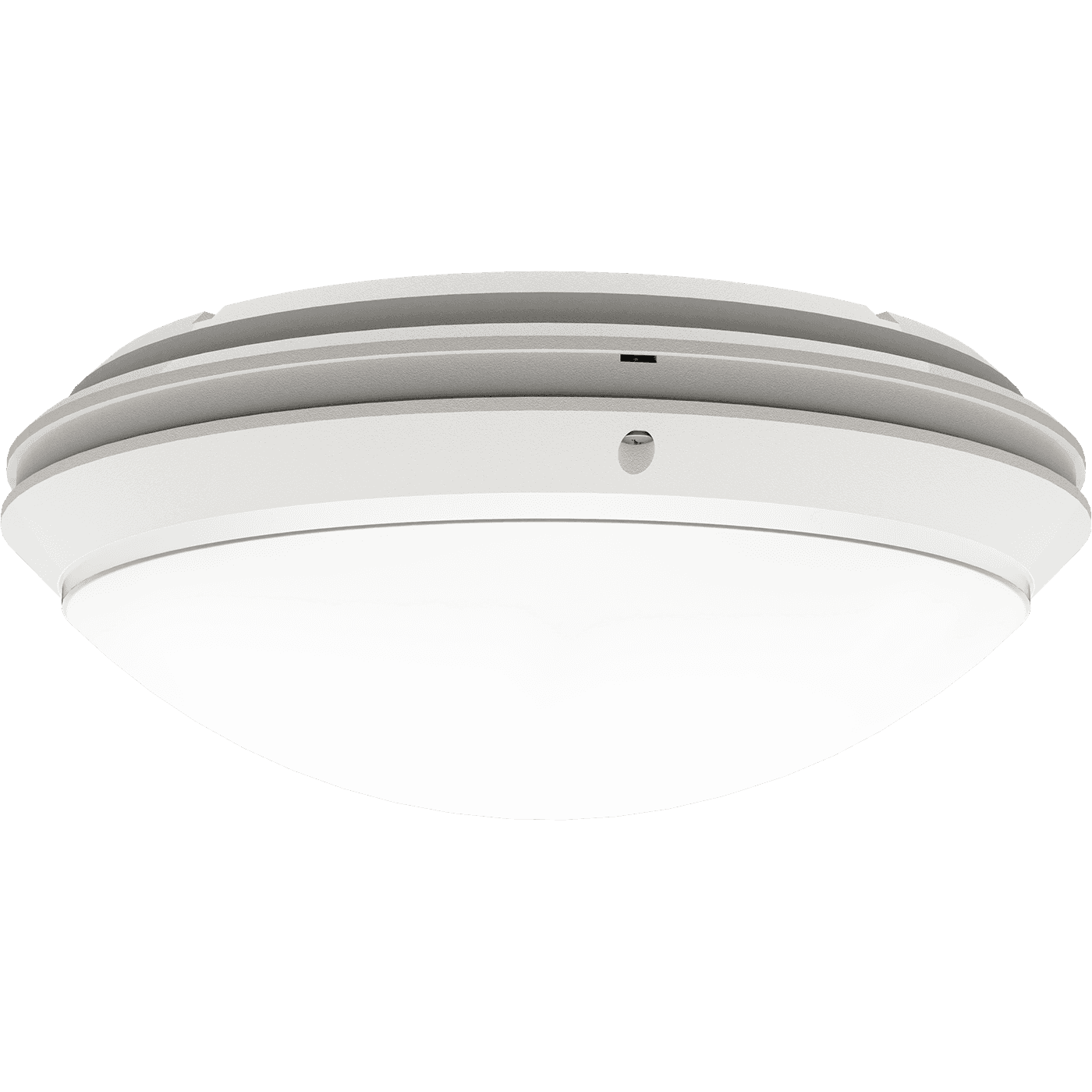

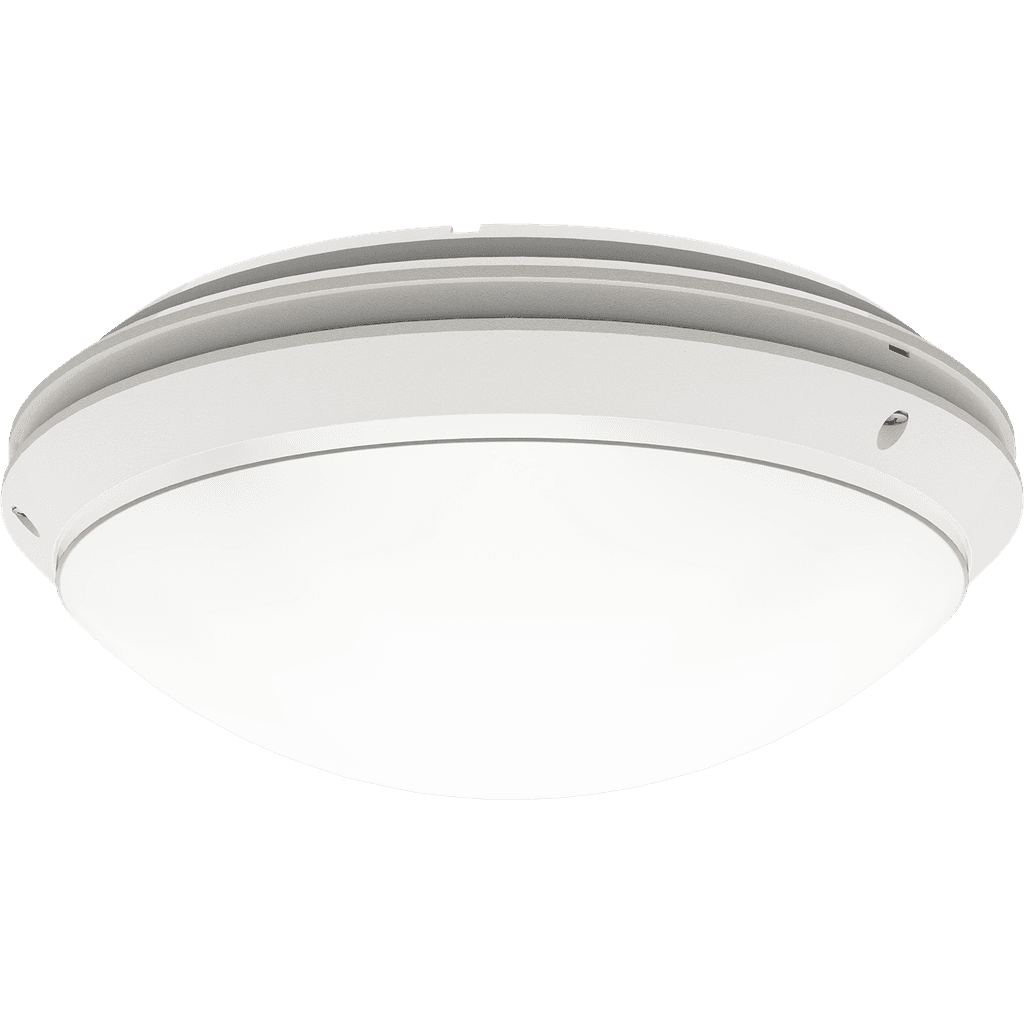

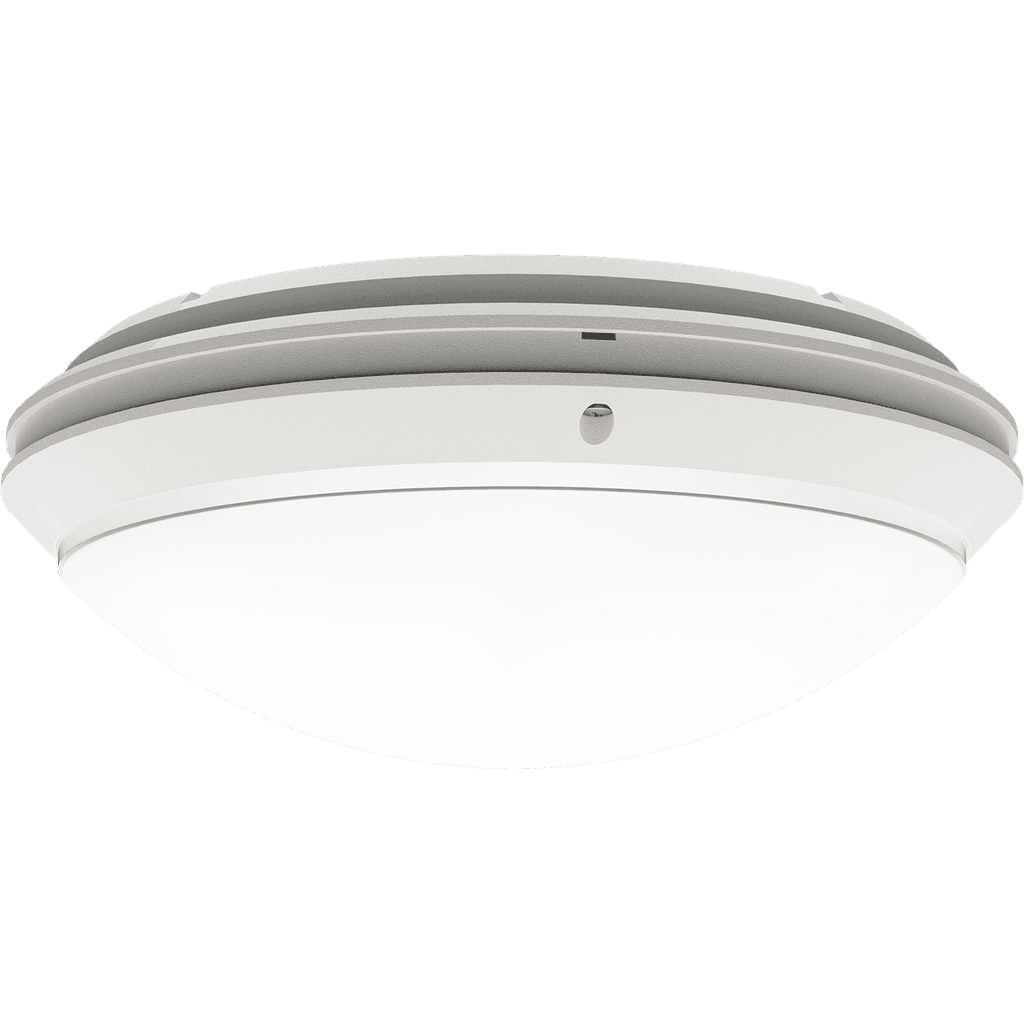

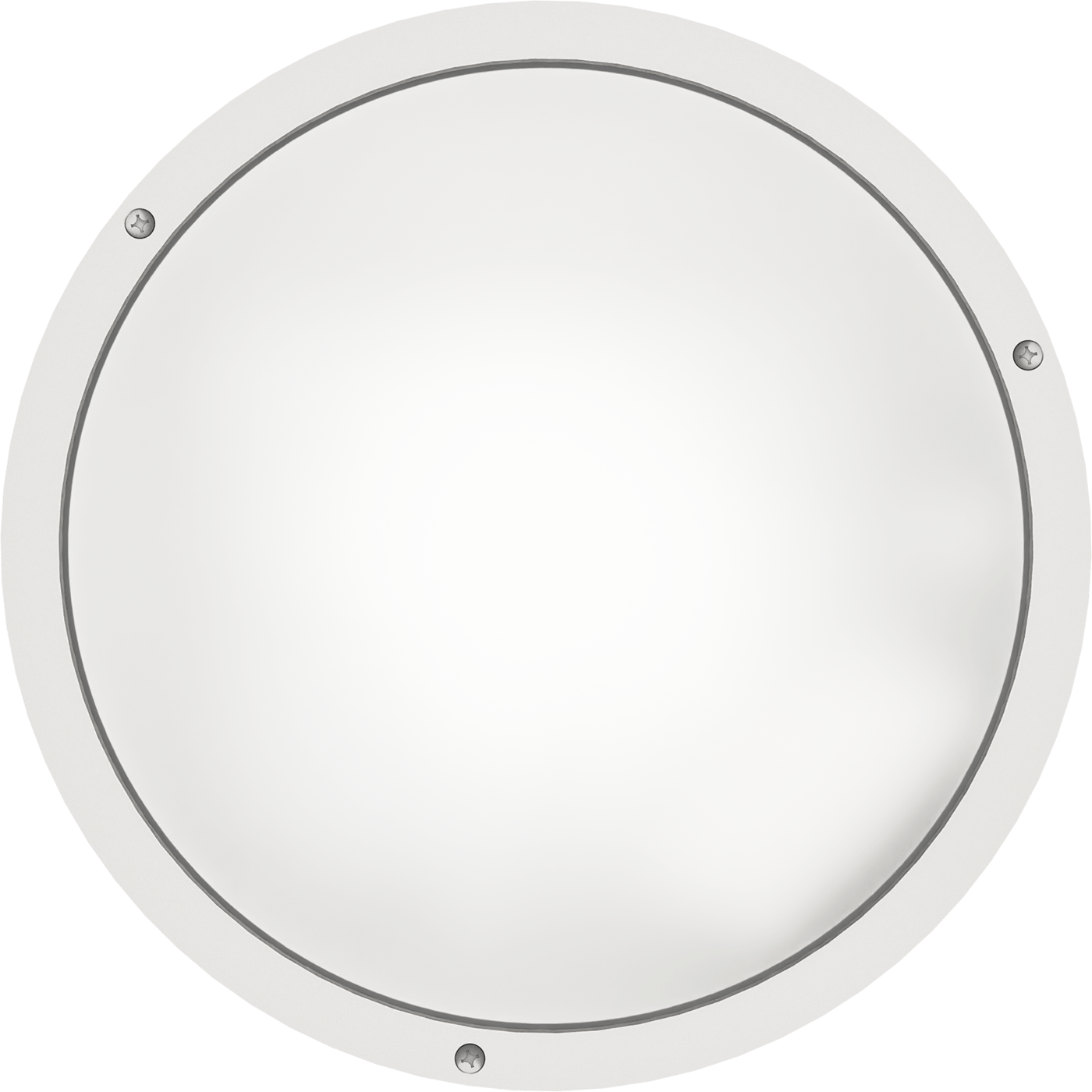

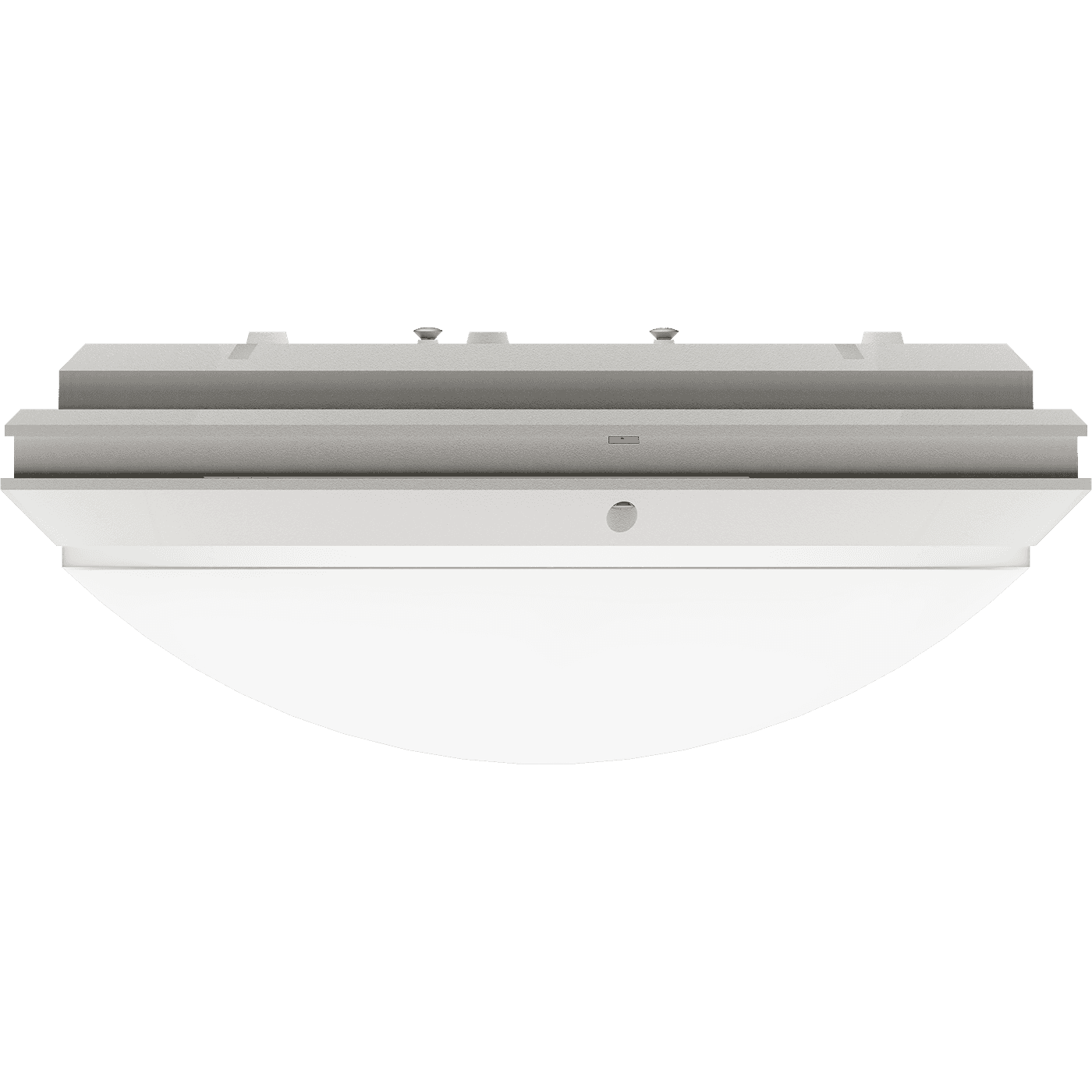

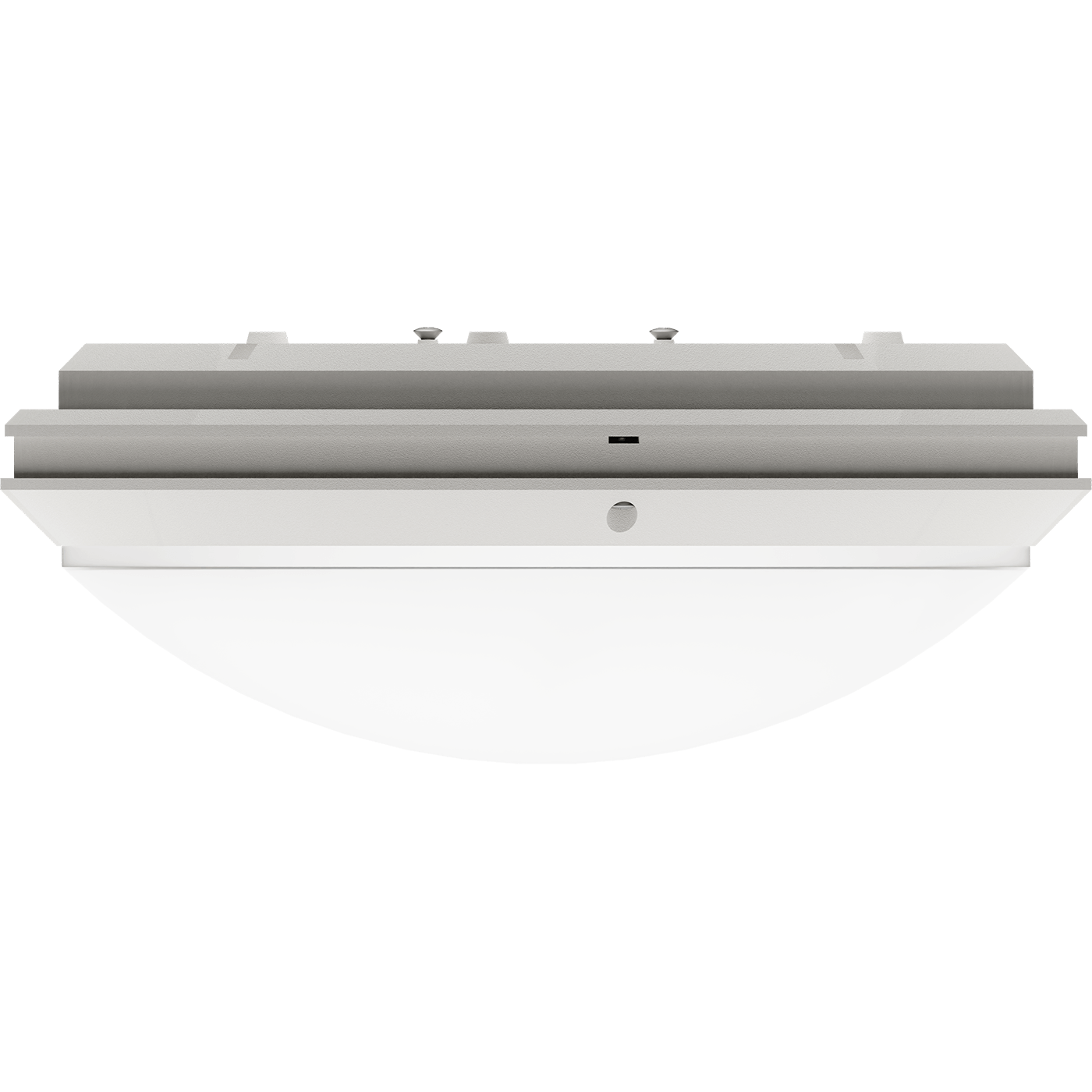

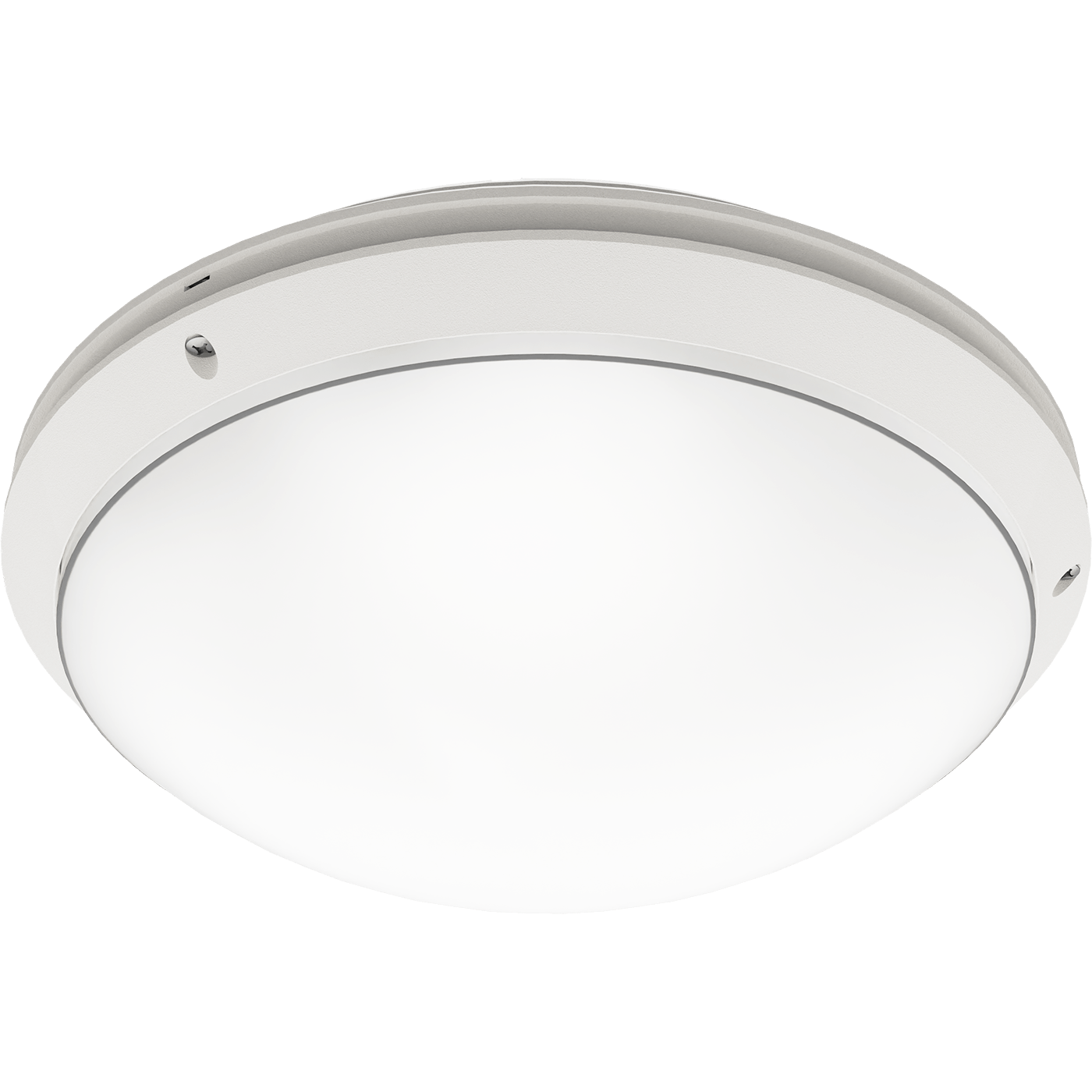

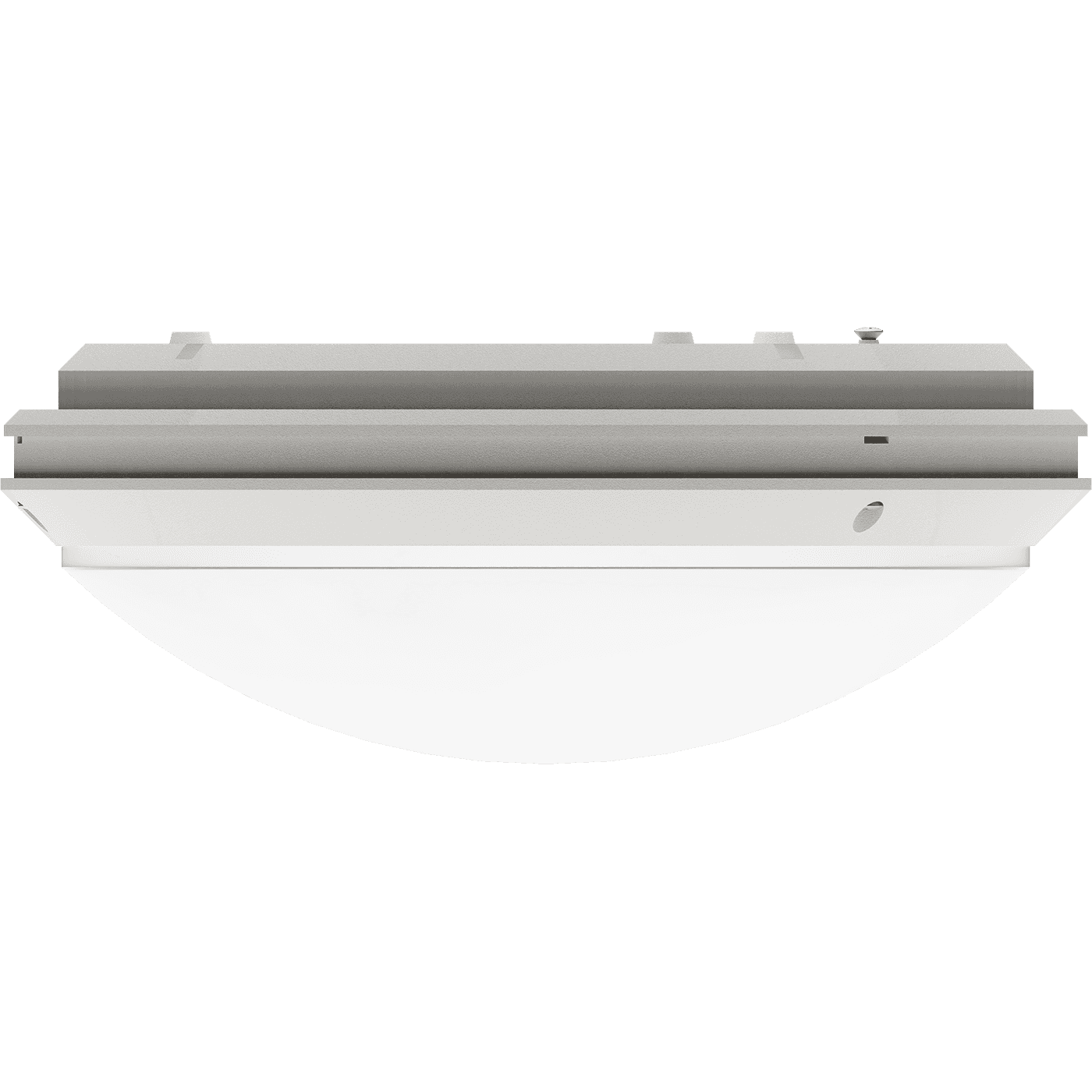

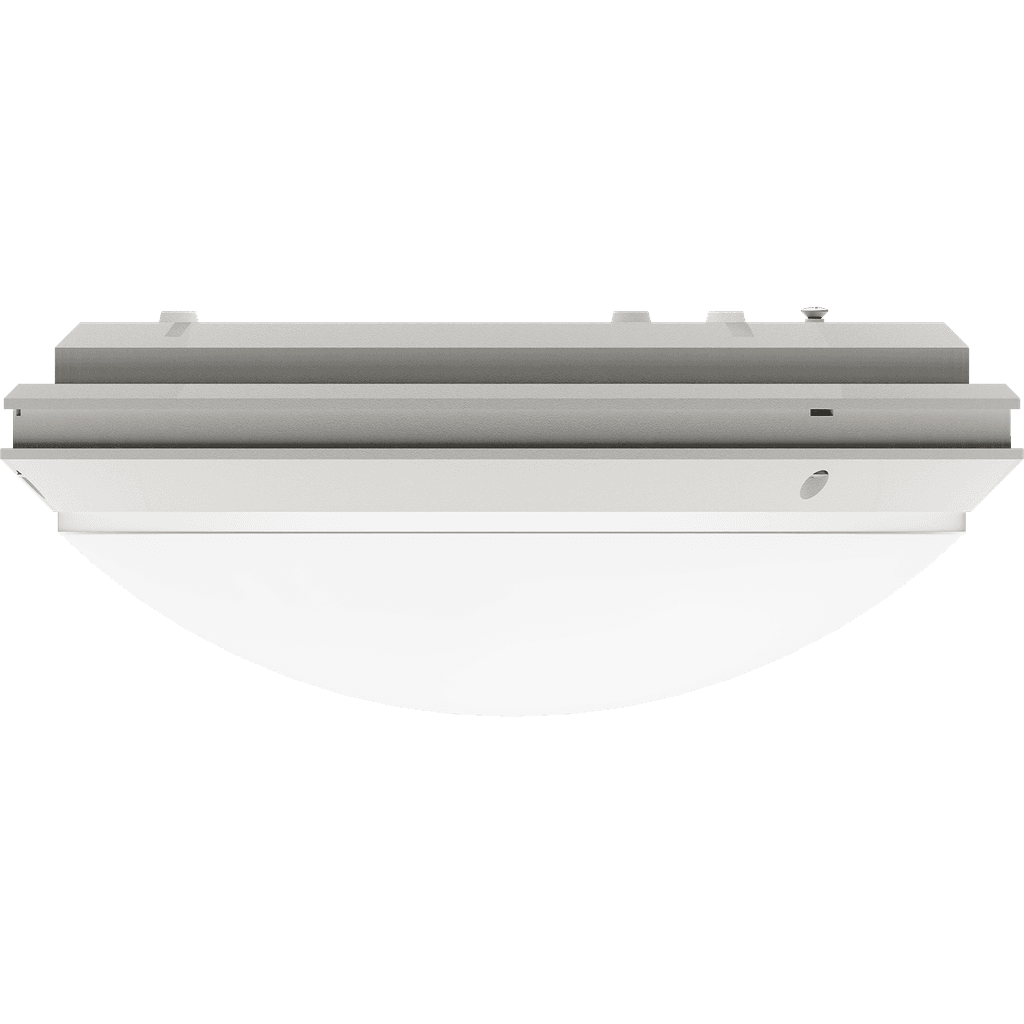

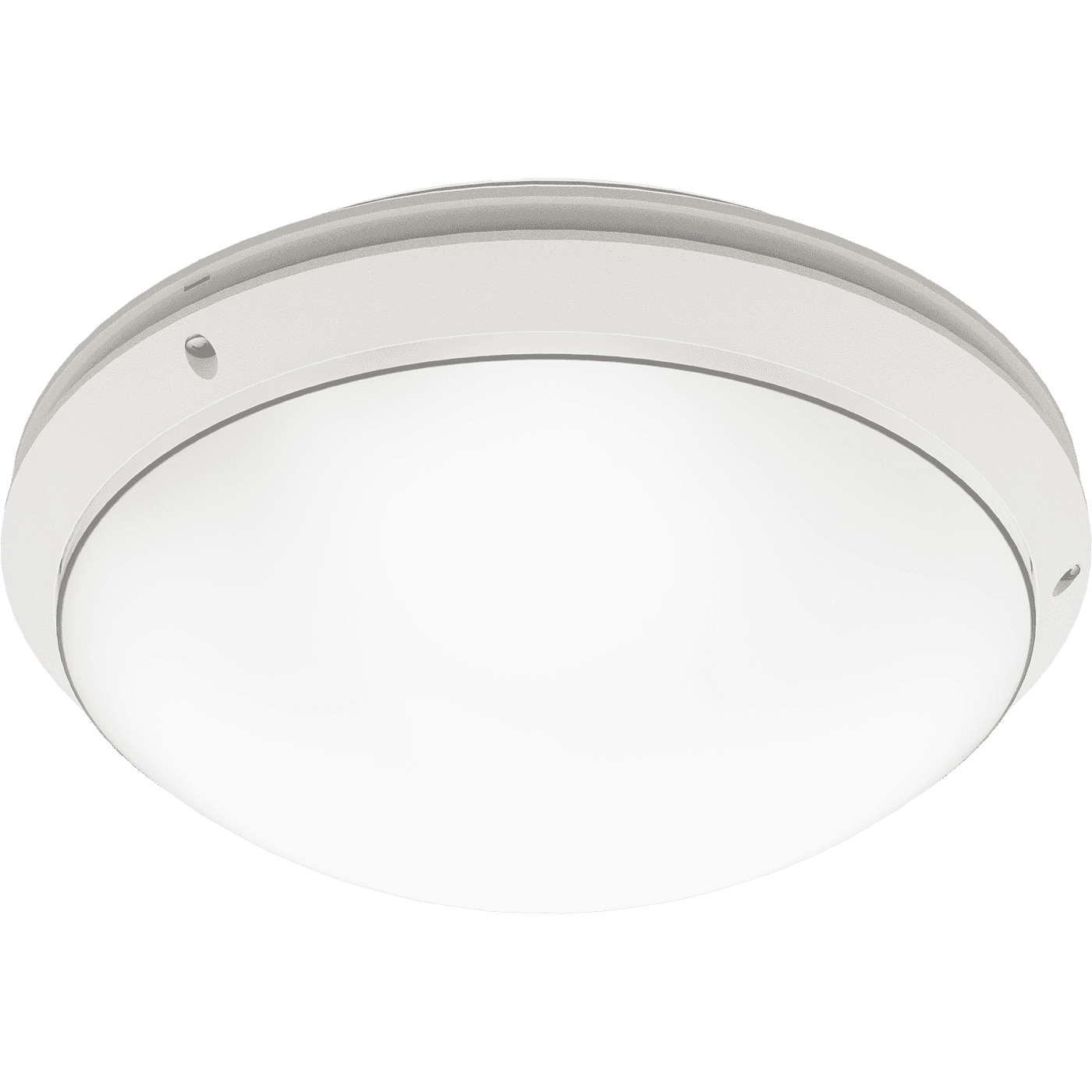

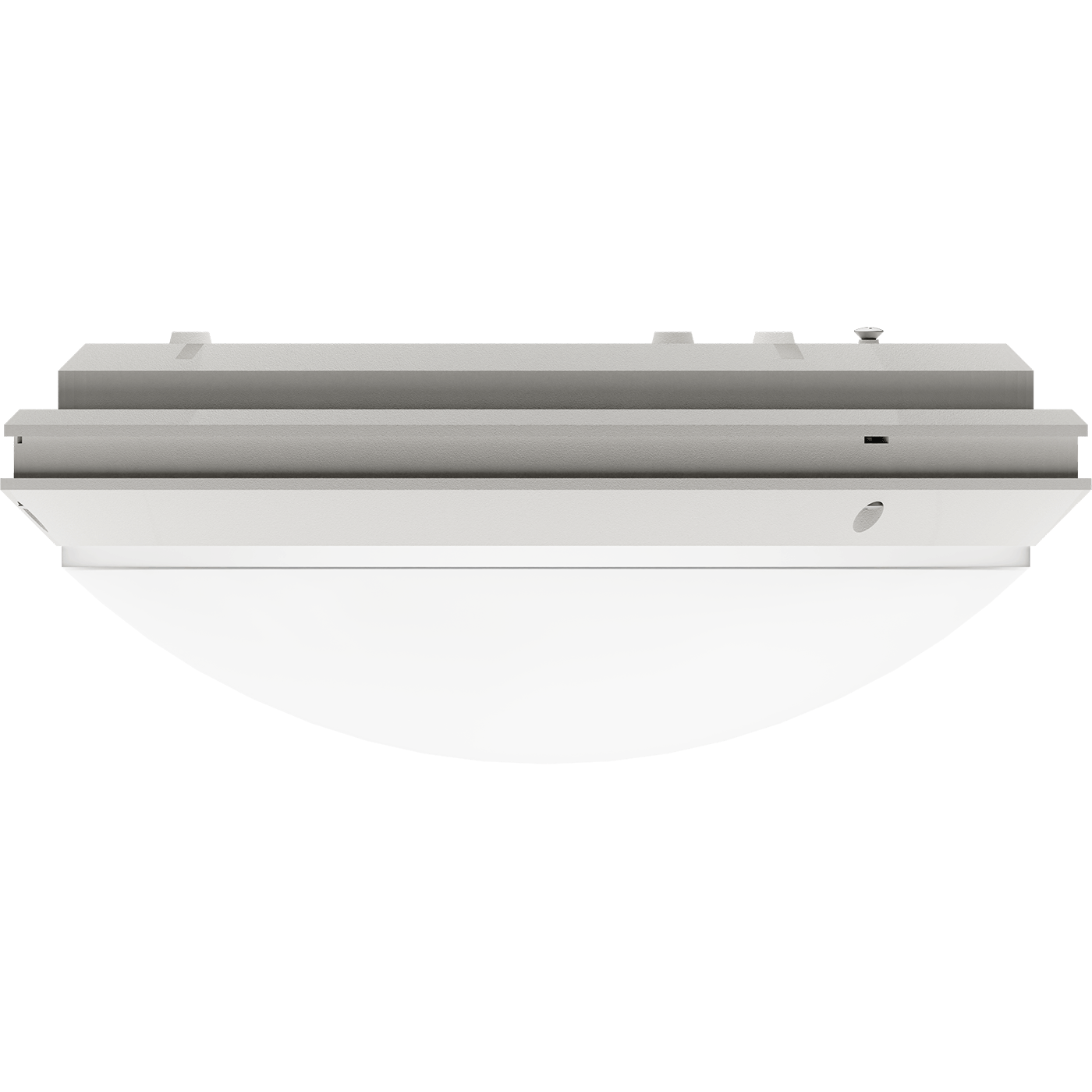

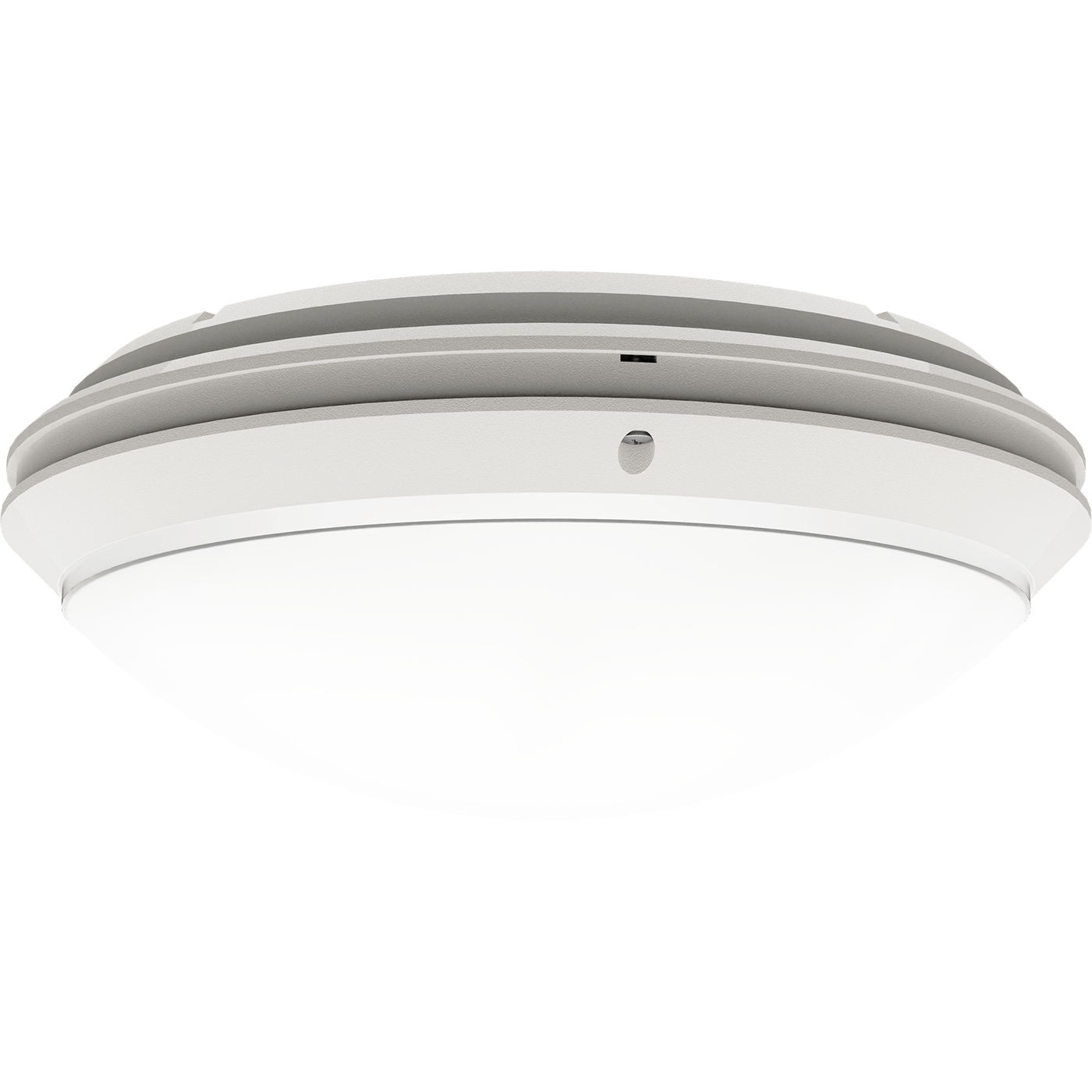

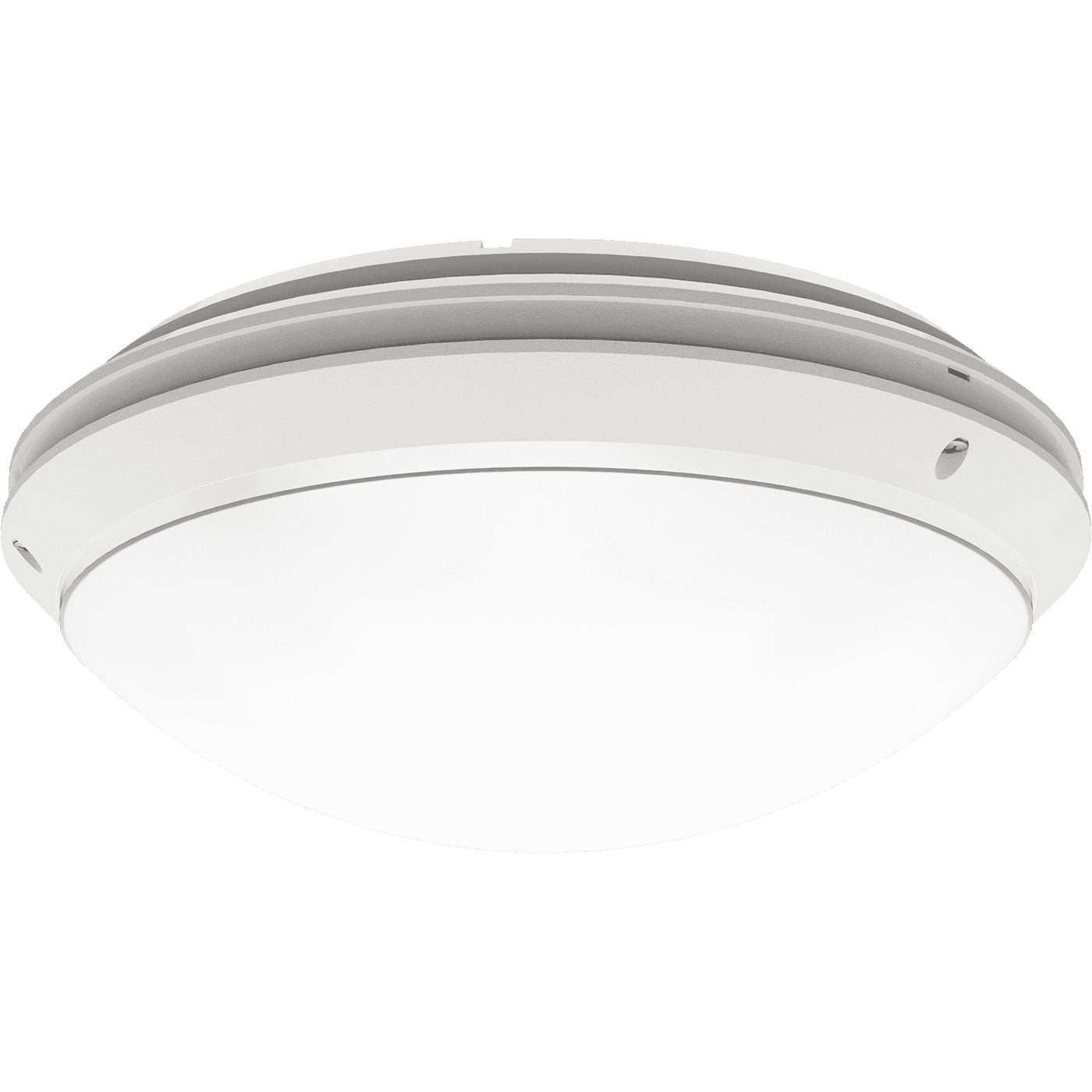

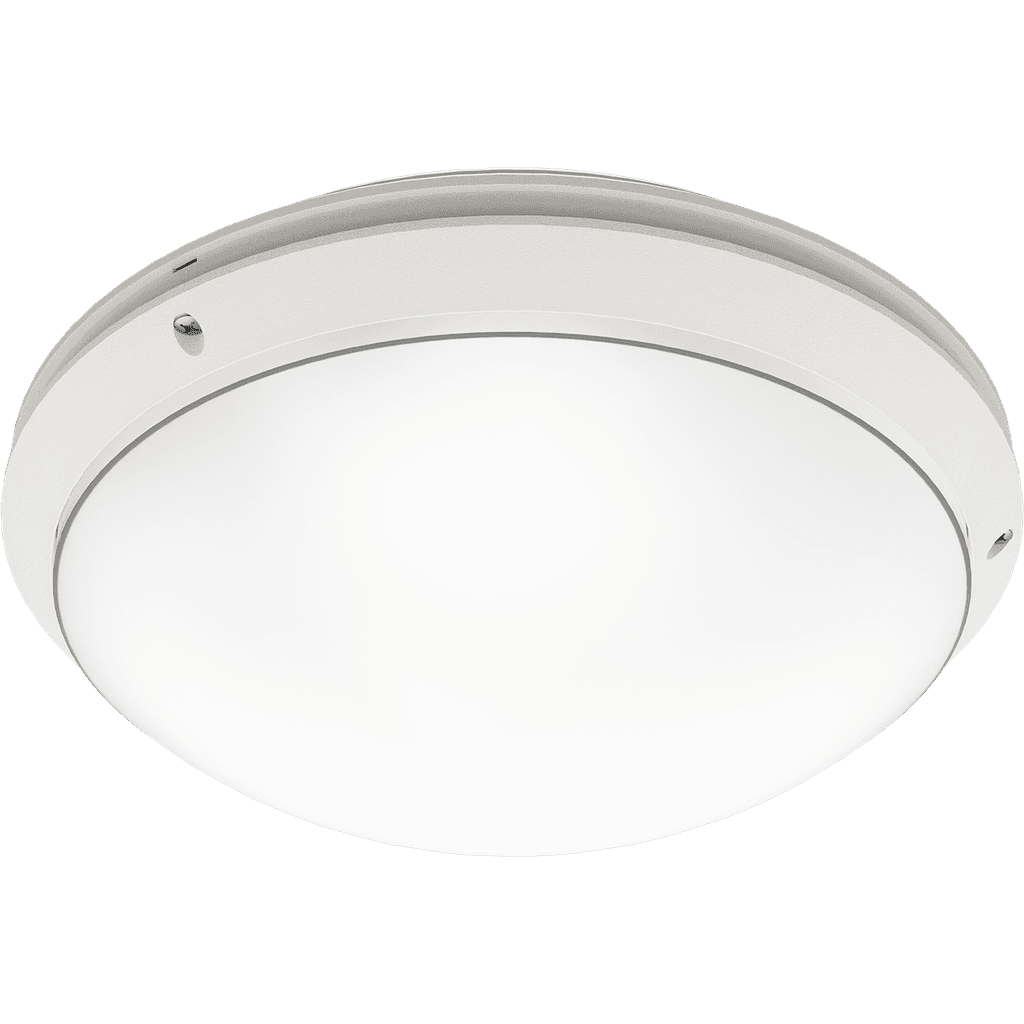

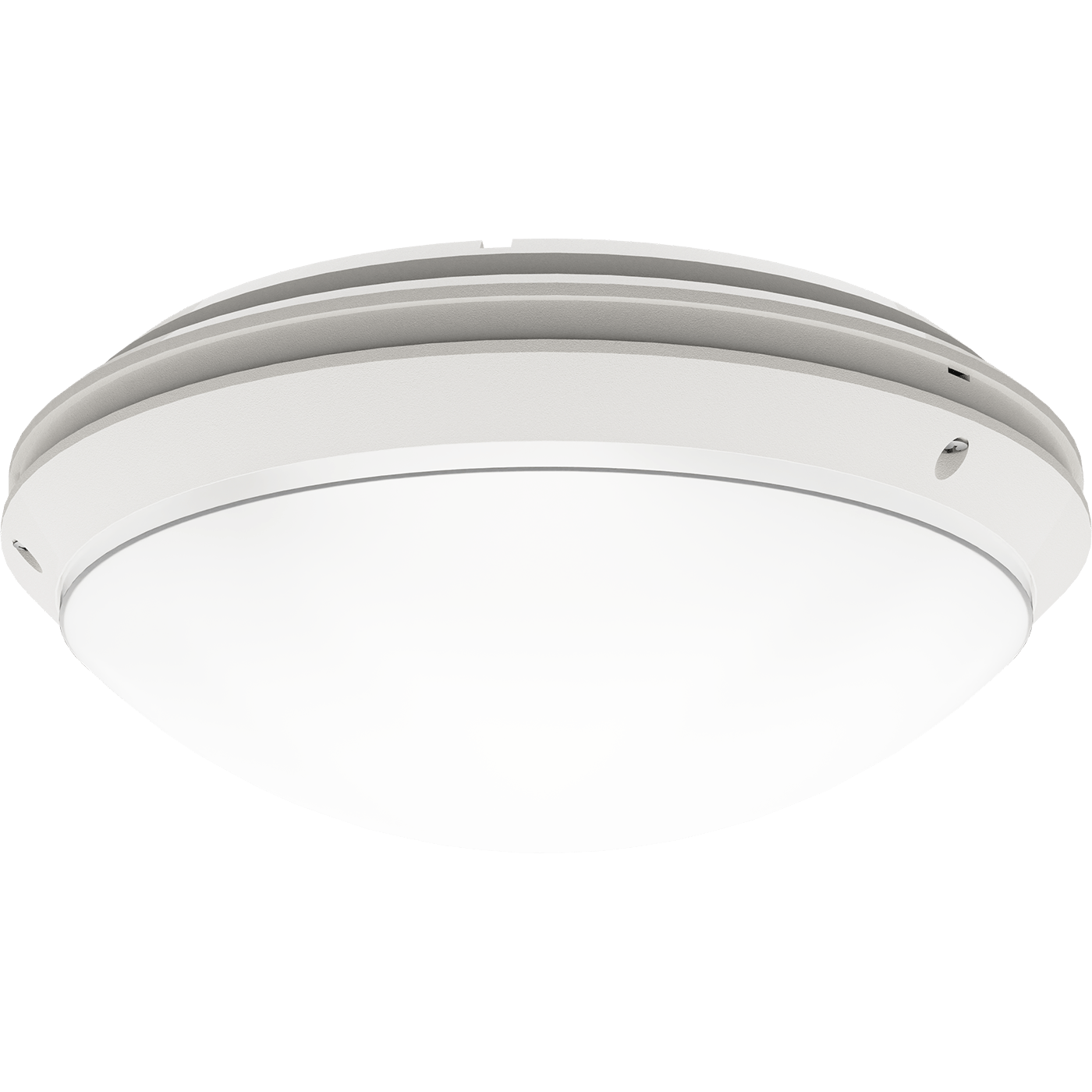

CD LED 27 4000K
CD LED 27 4000K
22 Wluminaire power
2500 lmlight flow
114 lm/Wenergy efficiency
code1134000020
color temperature4000
beam angleD120
number of lamps1
performance factor100
options
свернуть все
electricalconstructionalcommonilluminating
starting current
43 Astarting current pulse time, µs
2.28 mksrated supply voltage, alternating current
230 Vsupply voltage, alternating current
198-264 Vluminaire power
22 Welectric shock protection
IIpower factor
> 0,95supply voltage
230 Velectrical
starting current
43 A
starting current pulse time, µs
2.28 mks
rated supply voltage, alternating current
230 V
supply voltage, alternating current
198-264 V
luminaire power
22 W
electric shock protection
II
power factor
> 0,95
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
1.5
ingress protection (IP)
IP65
climatic performance
УХЛ2*
material
Поликарбонат
weight
2.3 kg
diameter, mm
390 mm
height, mm
163 mm
housing color
Белый
installation diameter, mm
255 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от -20 до +40 C
energy efficiency class
A+
service life, hour
50 000 h
code
1134000020
illuminating
color rendition index (CRI)
>80
light flow
2500 lm
flickering factor
<5%
energy efficiency
114 lm/W
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
model files
model files
CAD/BIM files

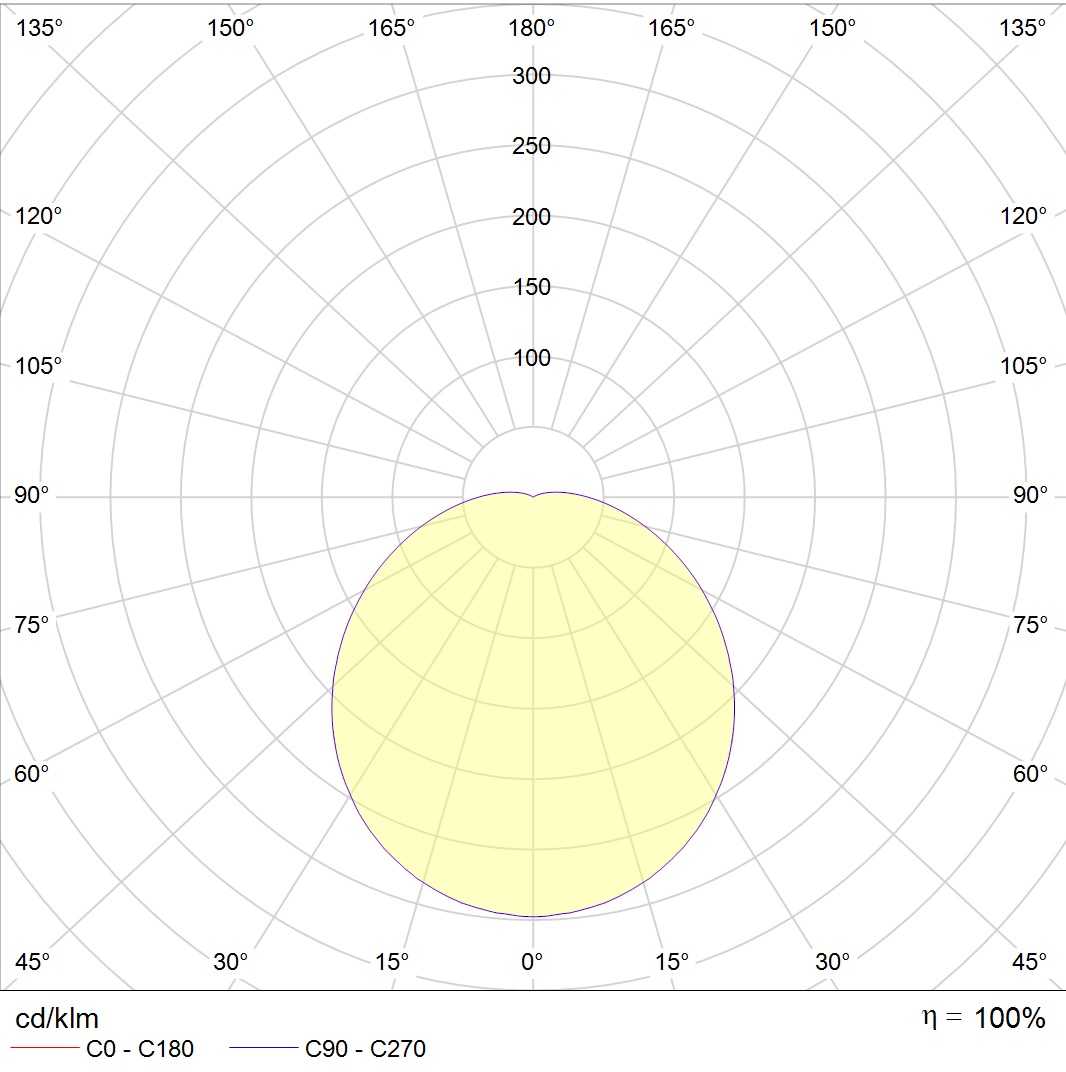

photometric files
documents
сертификаты
CAD/BIM files
CAD model 3DS944.3 kB
model 3dMax1.4 mB
photometric files
ies134.1 kB
jpg161.7 kB
ldt109.5 kB
csv403 B
documents
passport1.7 mB
сертификаты
Russian origin626.7 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016588 kB
Fire Safety Certificate2.5 mB
