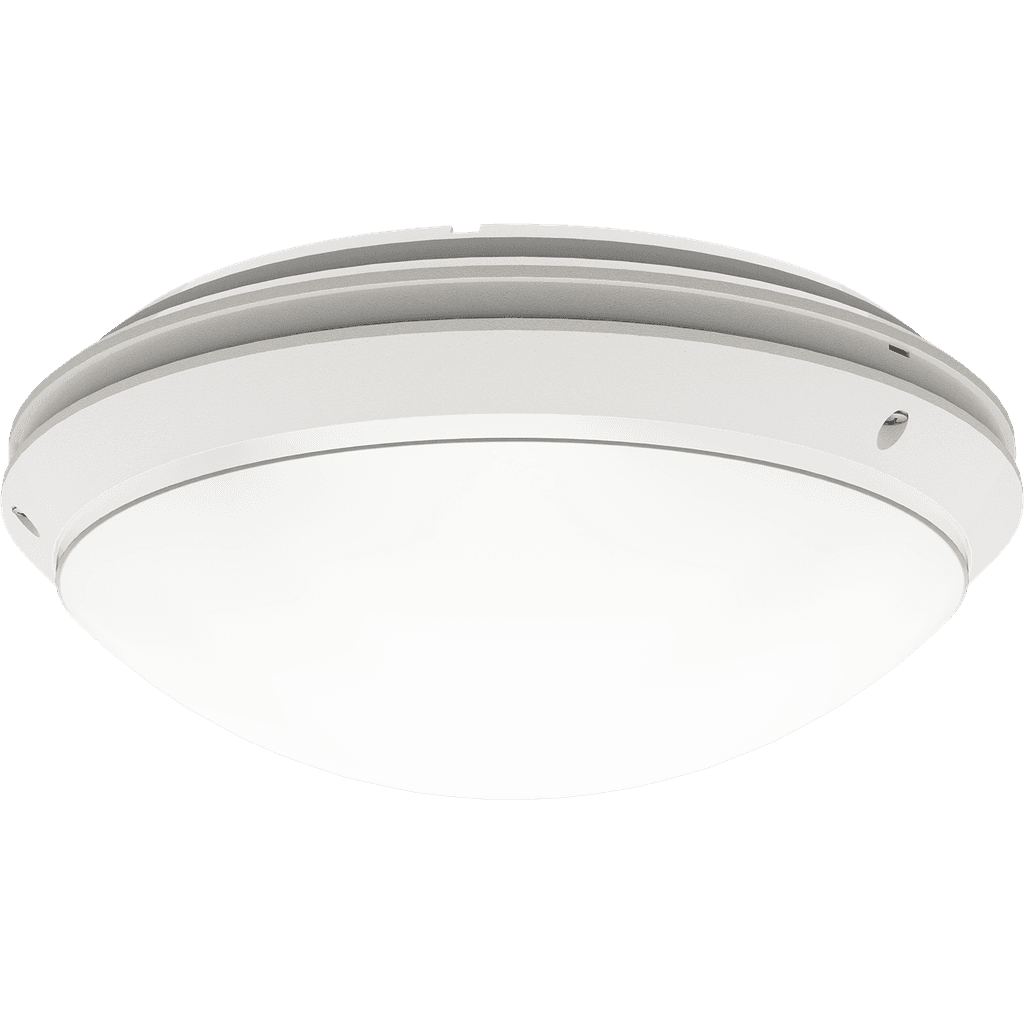

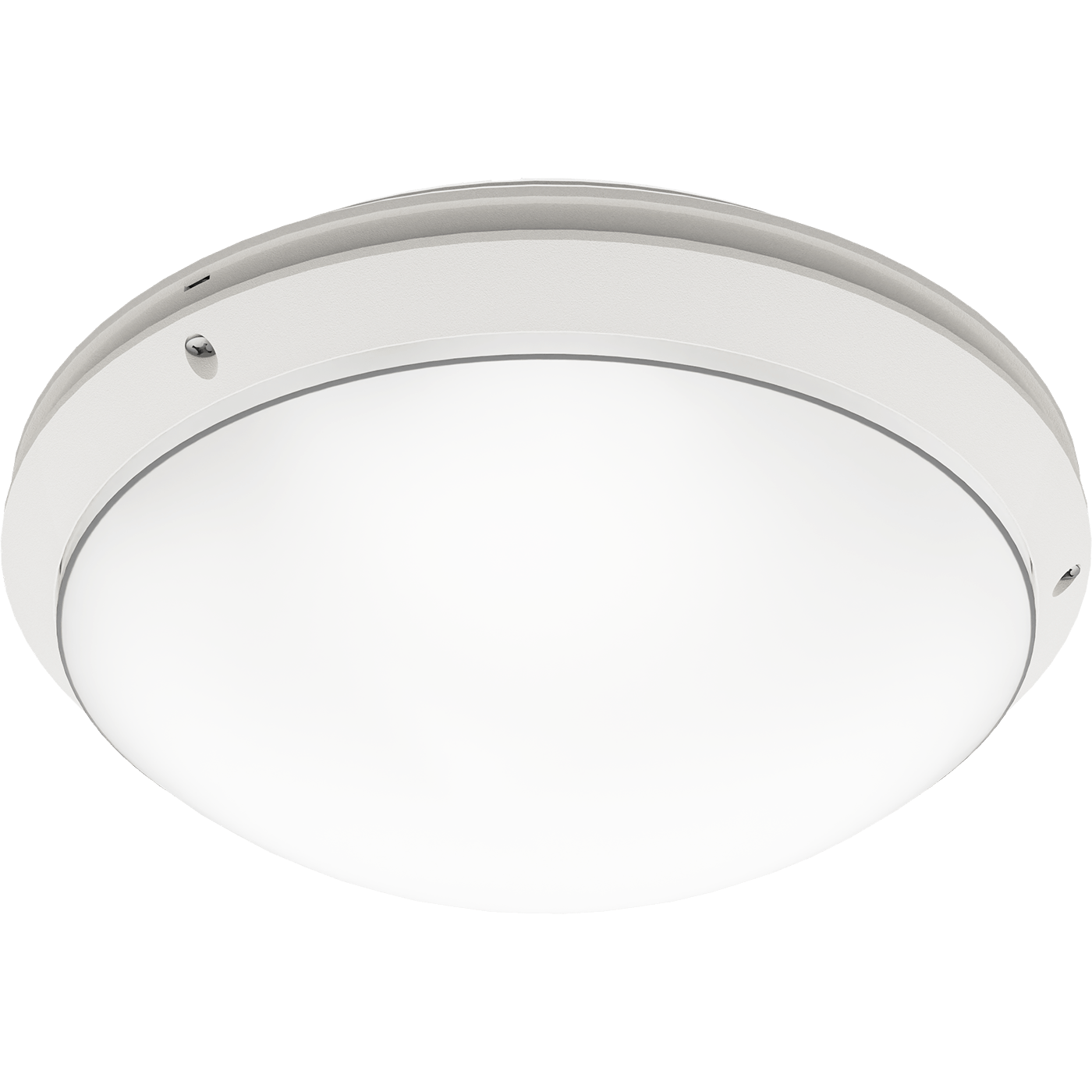

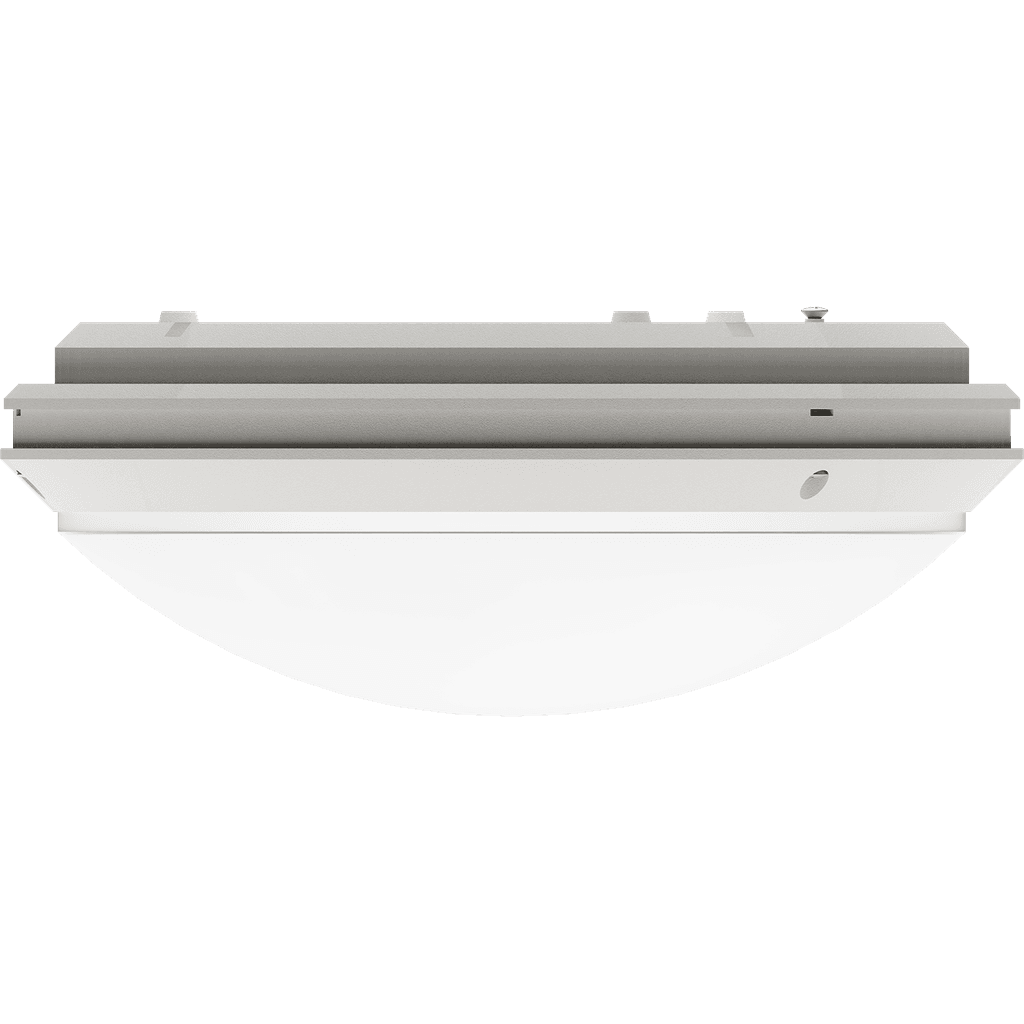

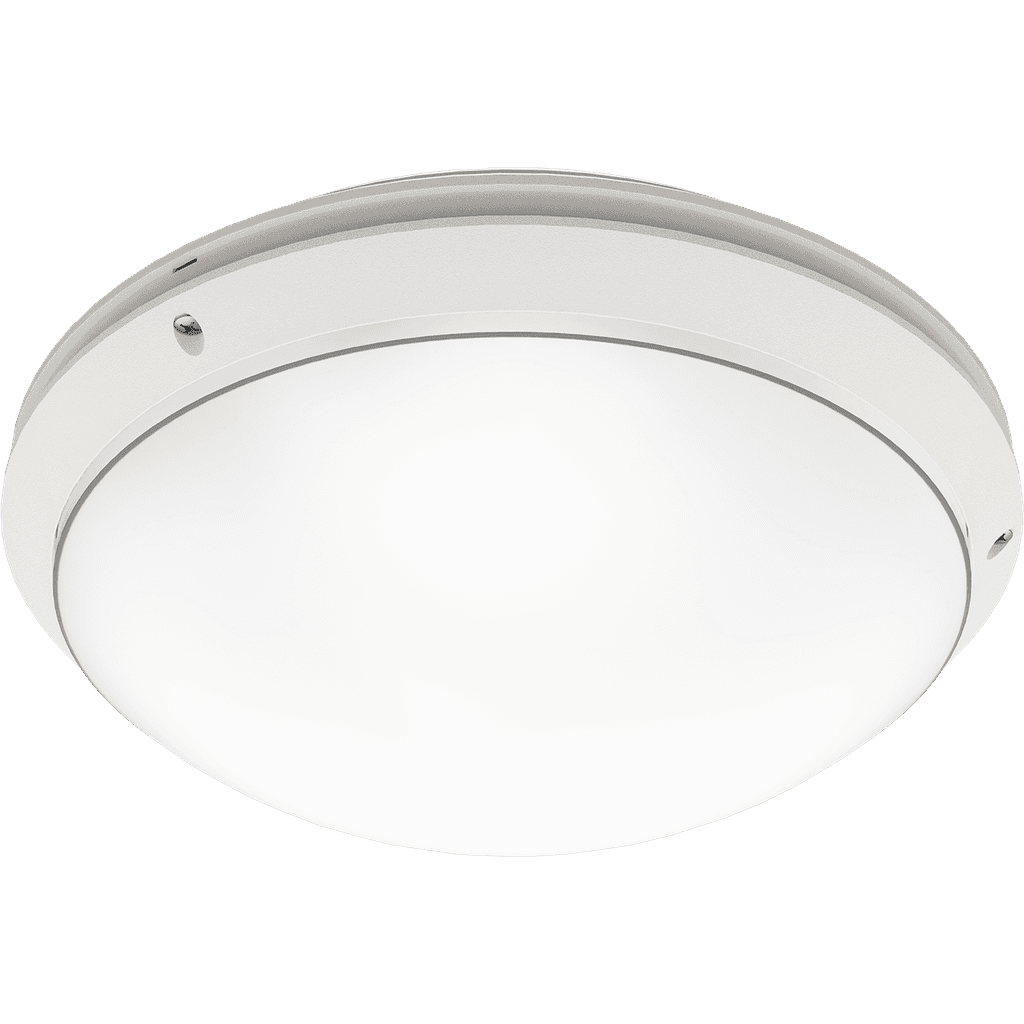

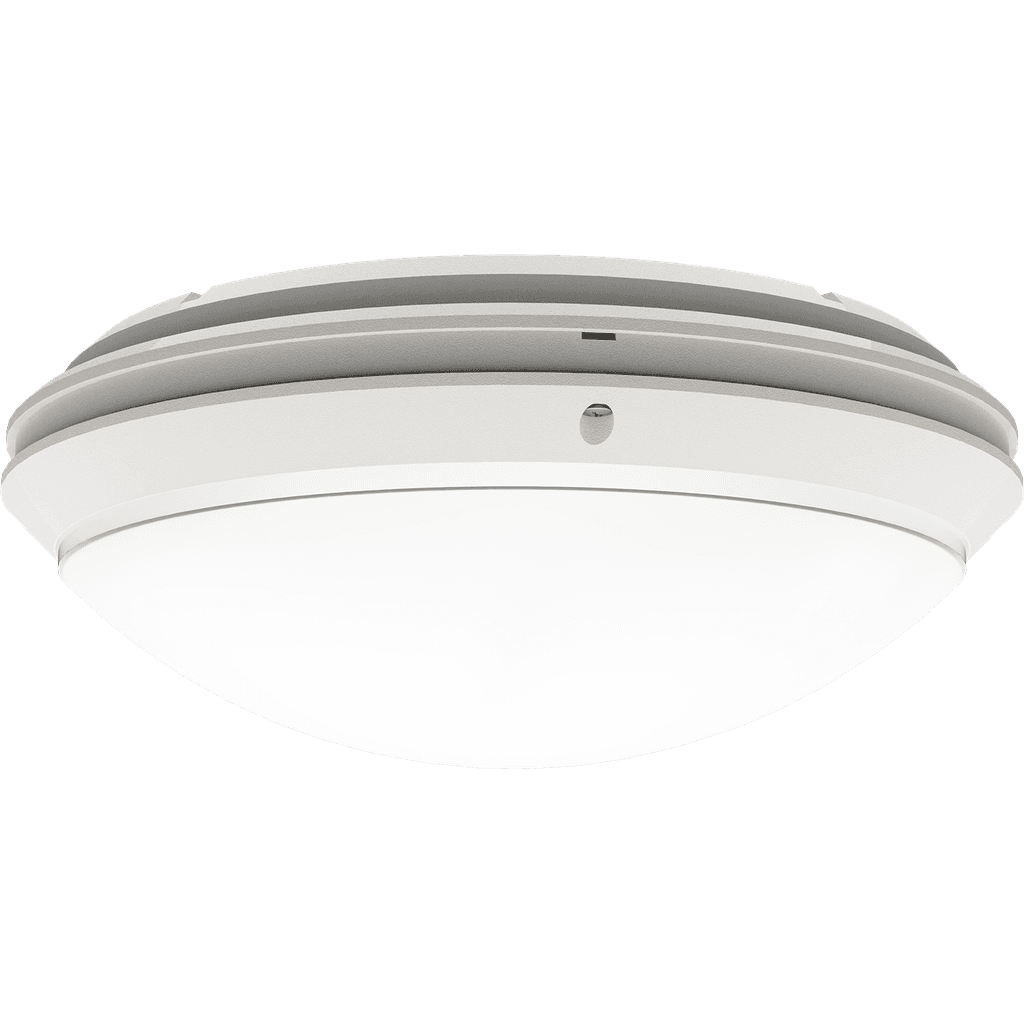

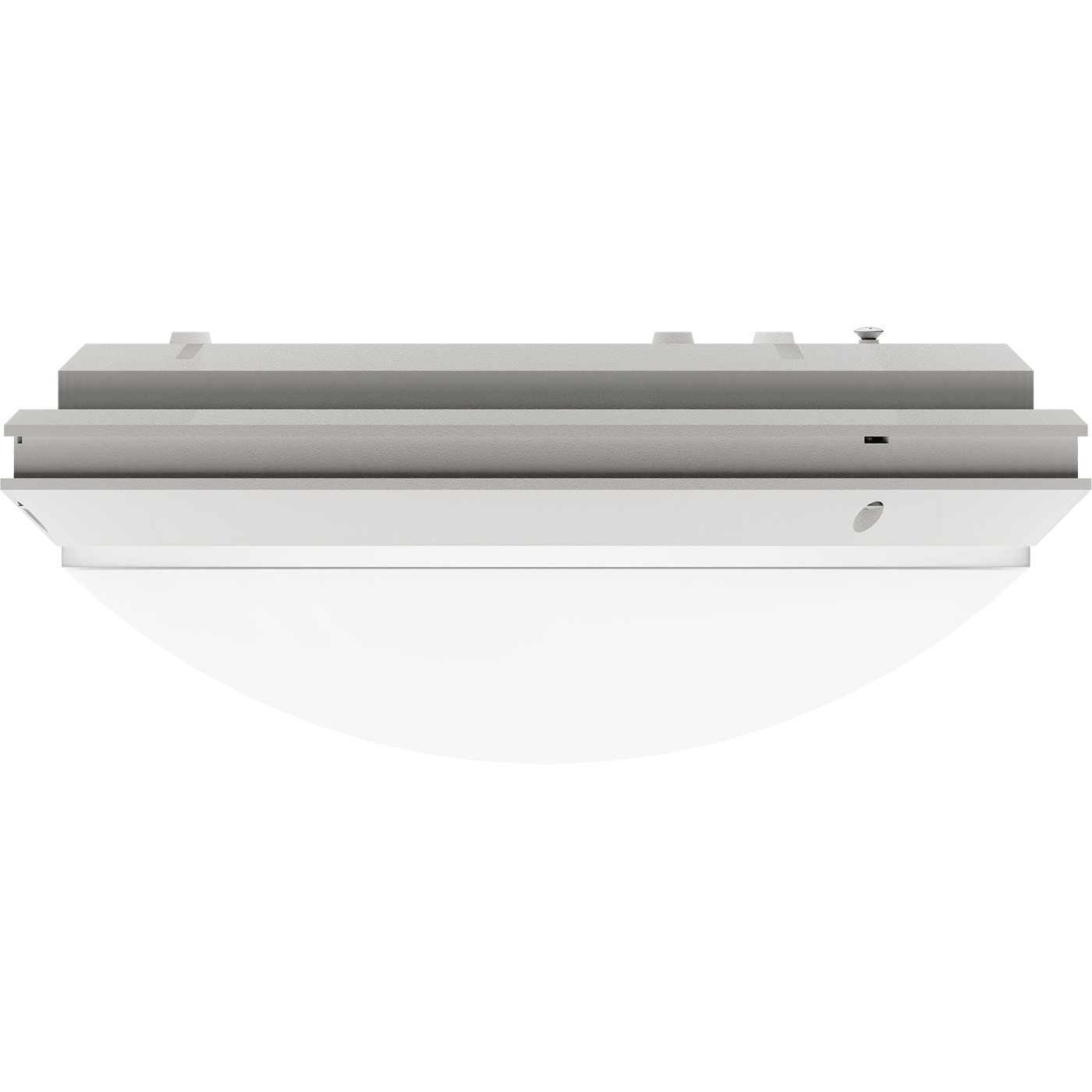

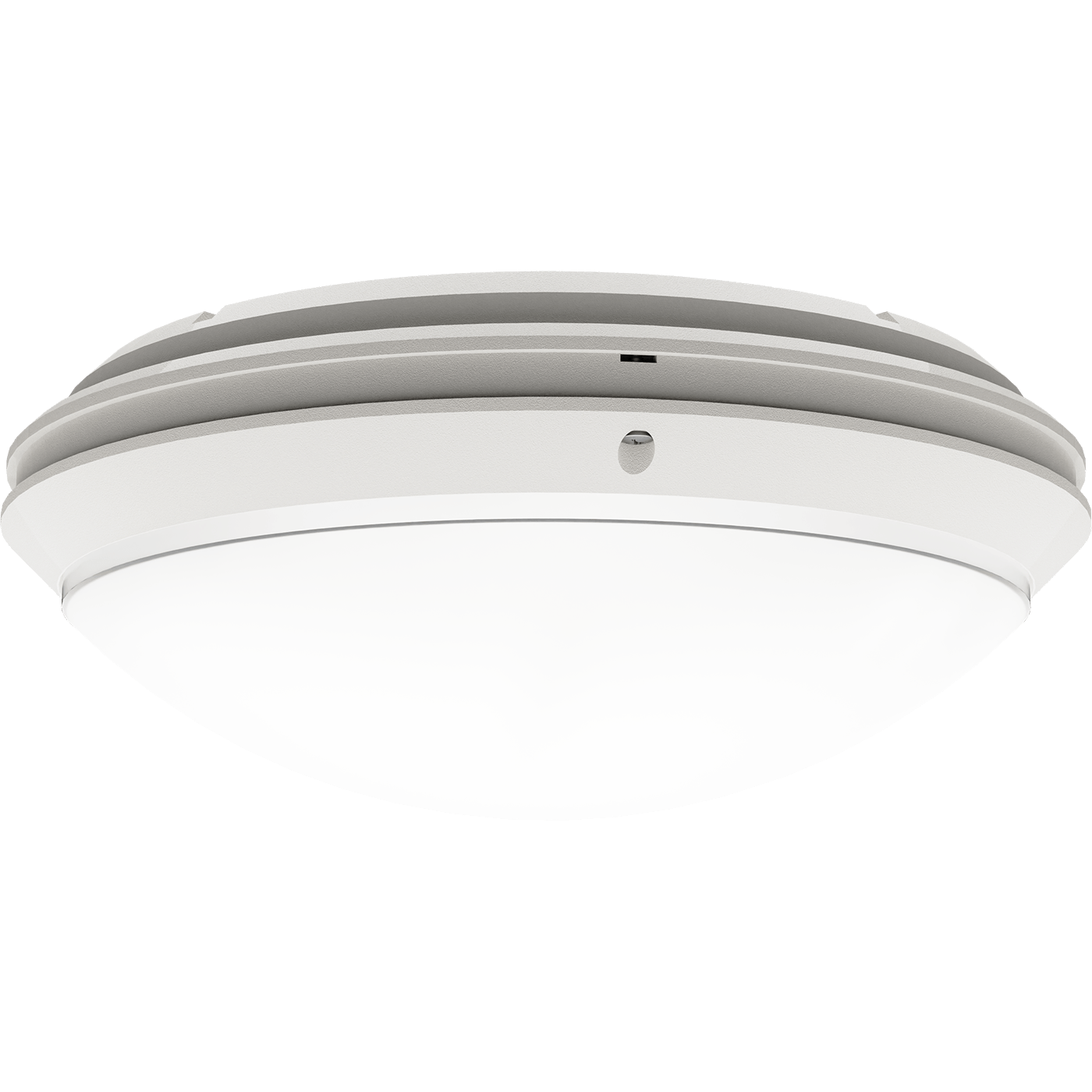

CD LED 18 5000K
CD LED 18 5000K
18 Wluminaire power
2000 lmlight flow
111 lm/Wenergy efficiency
code1134000120
color temperature5000
beam angleD120
number of lamps1
performance factor100
options
свернуть все
electricalconstructionalcommonilluminating
starting current
43 Astarting current pulse time, µs
2.28 mksrated supply voltage, alternating current
230 Vsupply voltage, alternating current
198-264 Vluminaire power
18 Welectric shock protection
IIpower factor
> 0,98supply voltage
230 Velectrical
starting current
43 A
starting current pulse time, µs
2.28 mks
rated supply voltage, alternating current
230 V
supply voltage, alternating current
198-264 V
luminaire power
18 W
electric shock protection
II
power factor
> 0,98
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
1.5
ingress protection (IP)
IP65
climatic performance
УХЛ2*
material
Поликарбонат
weight
2 kg
diameter, mm
390 mm
height, mm
144 mm
housing color
Белый
installation diameter, mm
255 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от -20 до +40 C
energy efficiency class
A+
service life, hour
50 000 h
code
1134000120
illuminating
color rendition index (CRI)
>80
light flow
2000 lm
flickering factor
<2%
energy efficiency
111 lm/W
beam angle
D120
color temperature
5000
light source type
LED
emission color
Белый
model files
model files
CAD/BIM files
photometric files
documents
сертификаты
CAD/BIM files
CAD model 3DS944.3 kB
model 3dMax1.4 mB
photometric files
ies134.1 kB
jpg162.2 kB
ldt103 kB
csv150 B
documents
passport1.7 mB
сертификаты
Russian origin626.7 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016588 kB
Fire Safety Certificate2.5 mB
